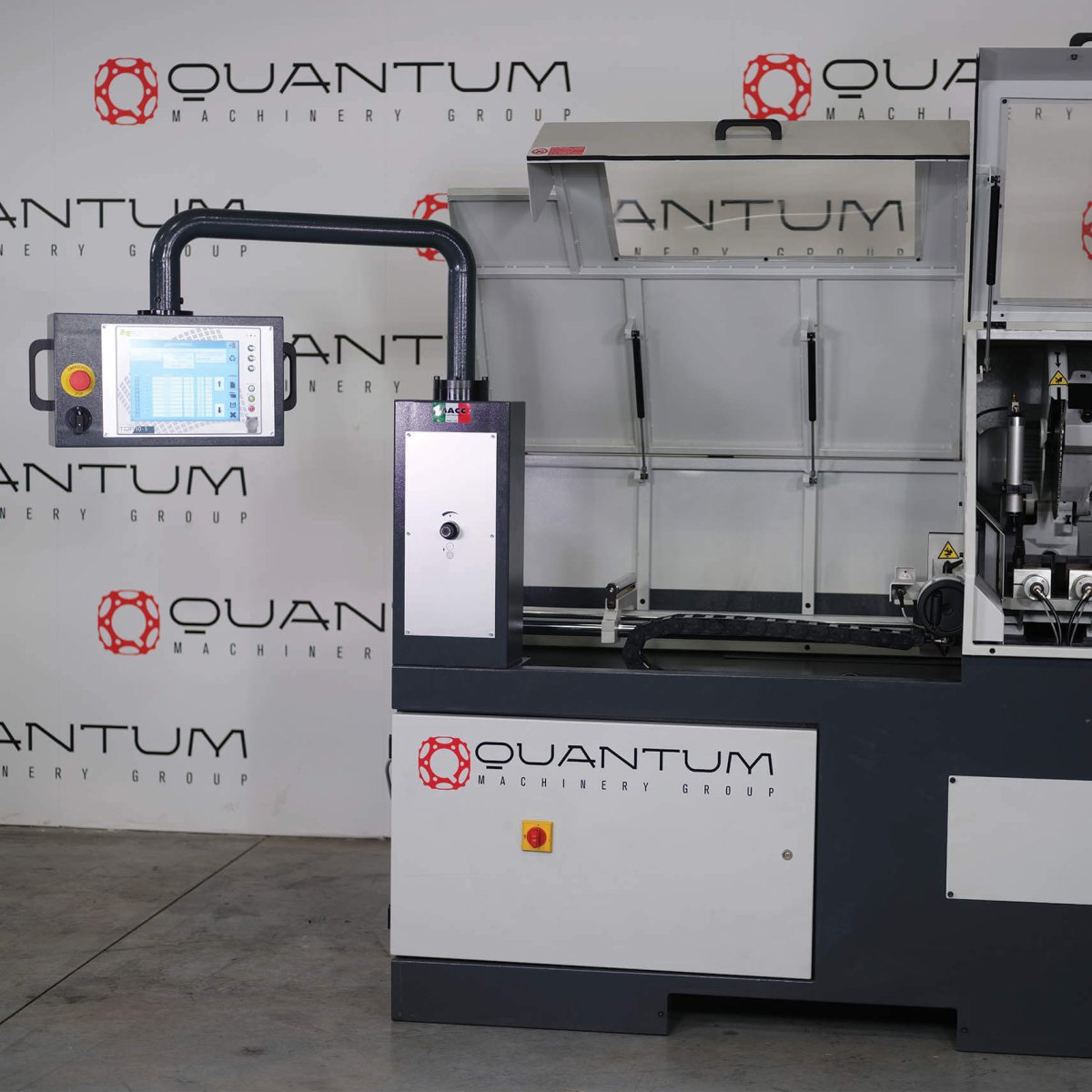

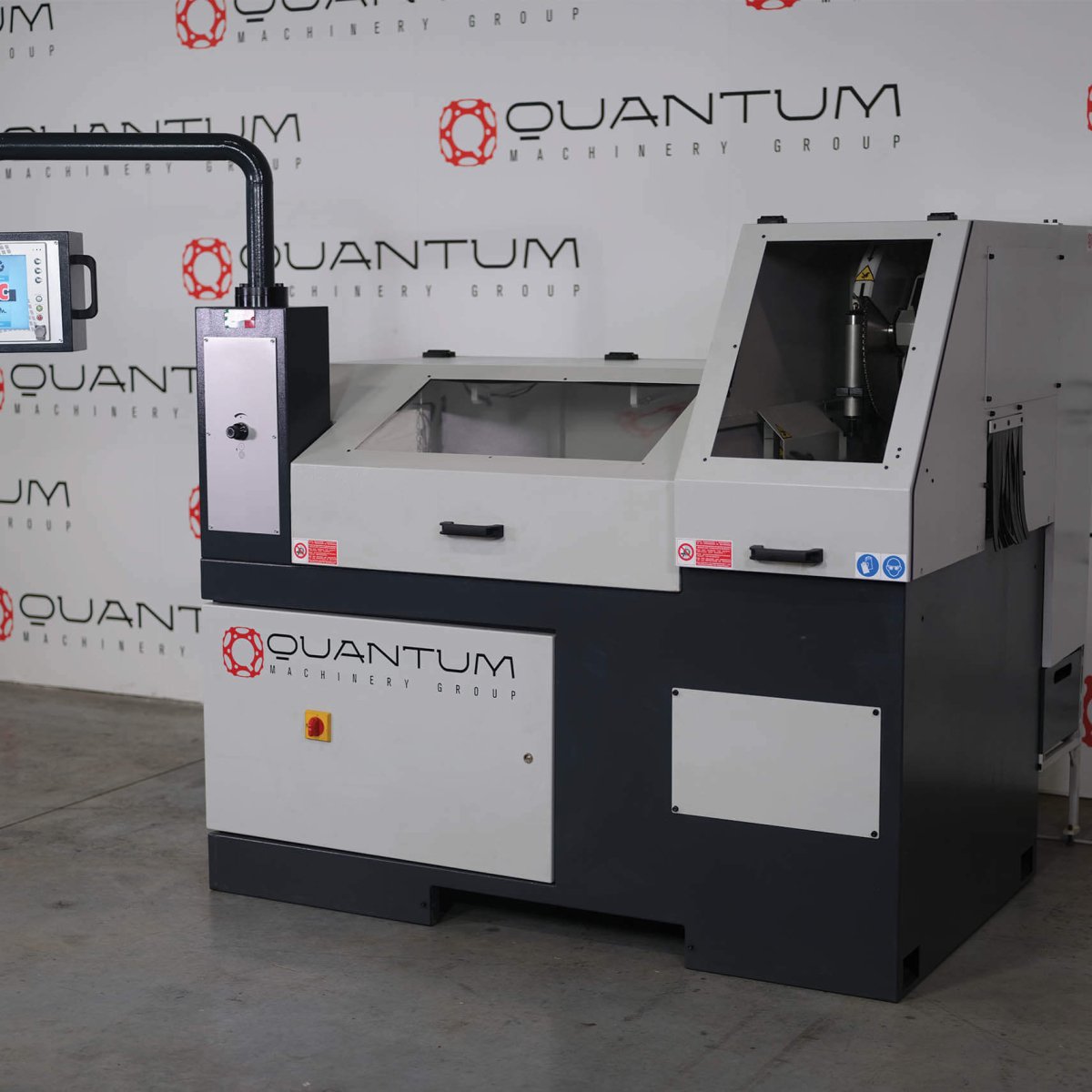

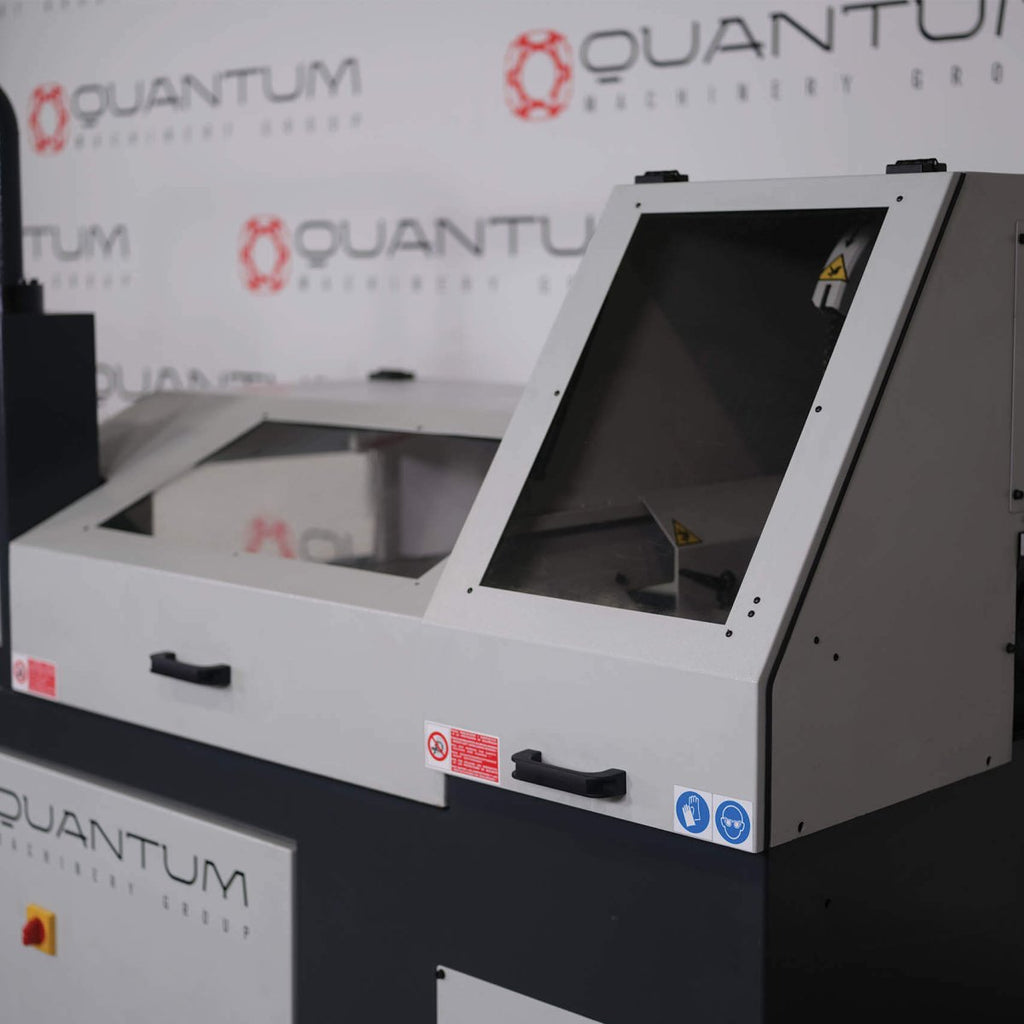

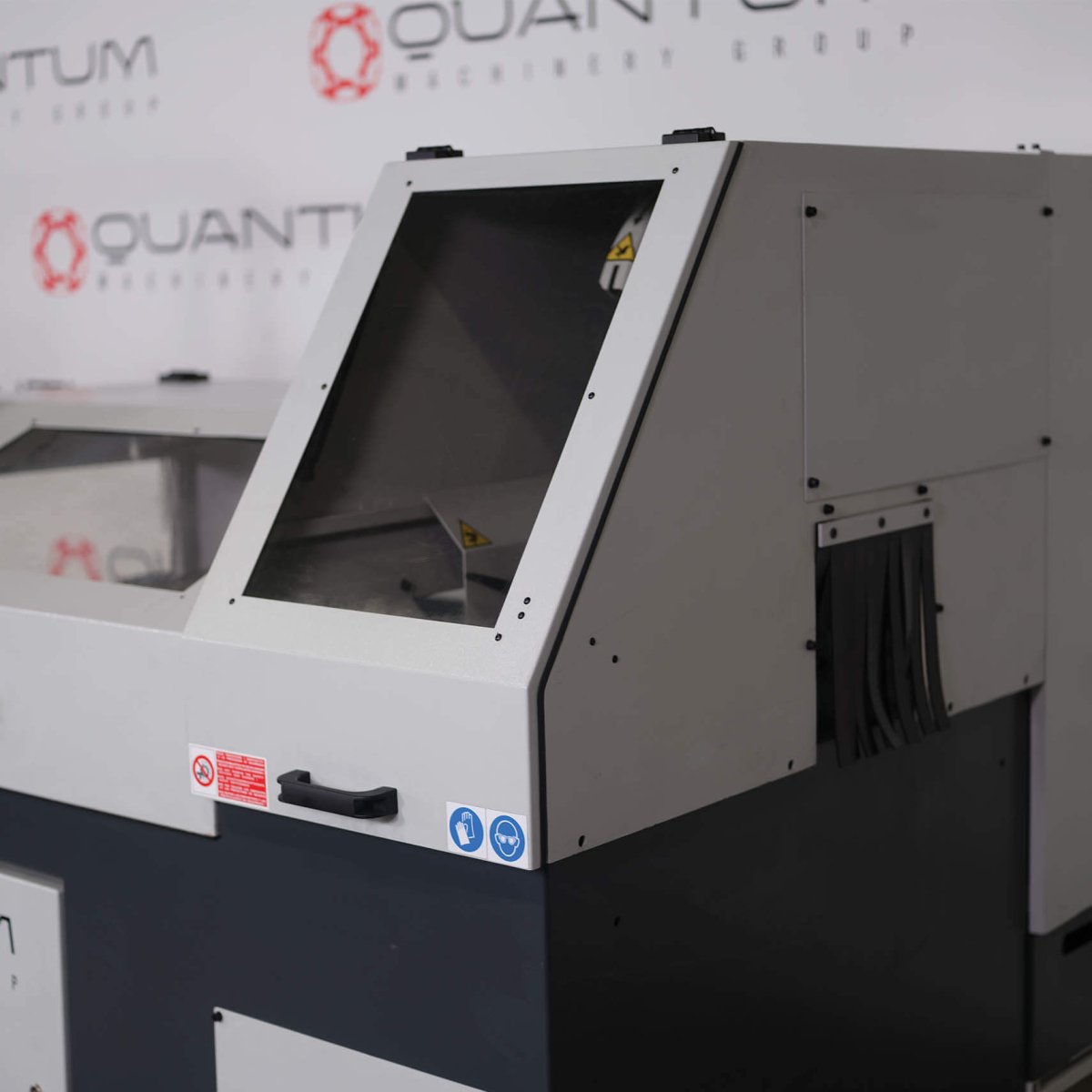

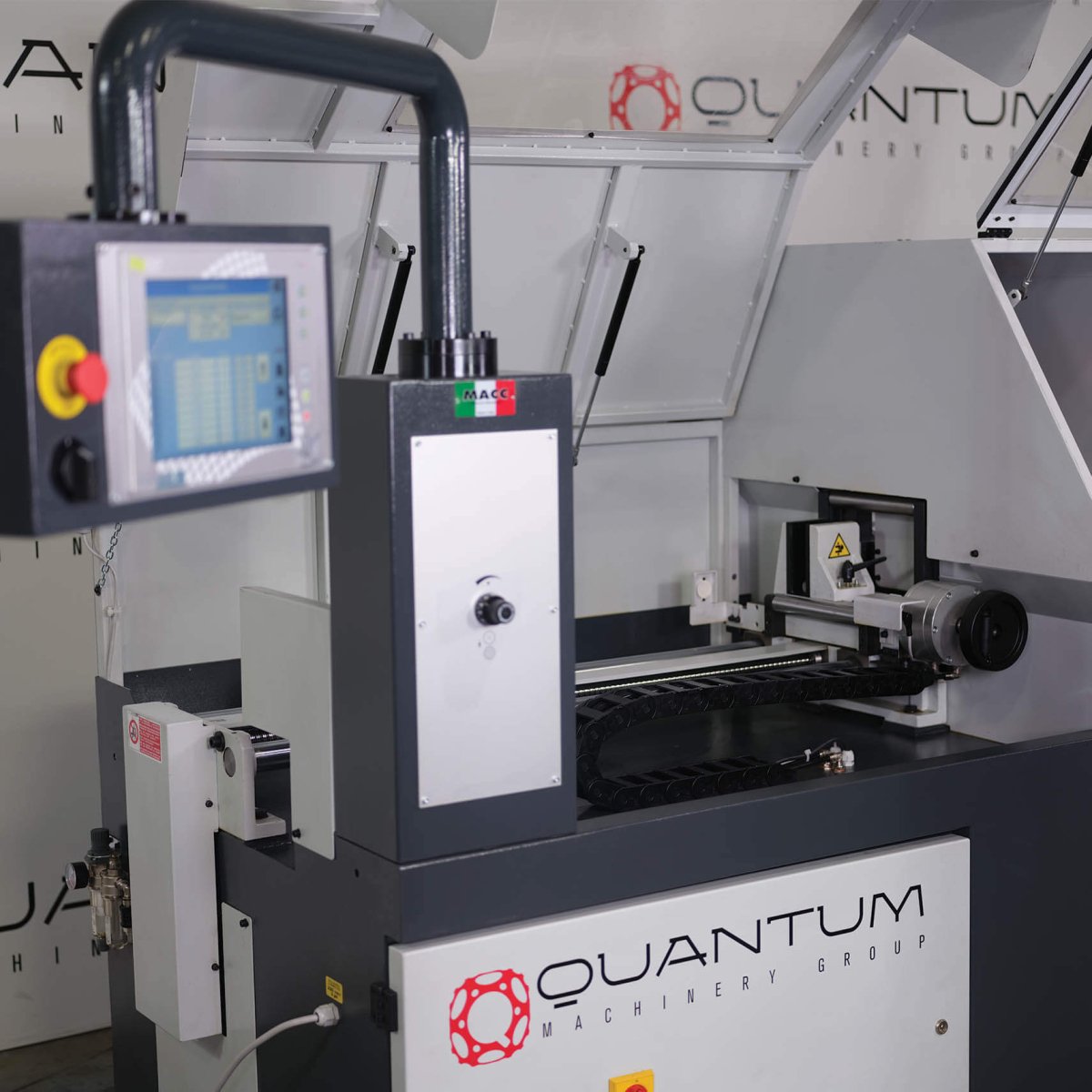

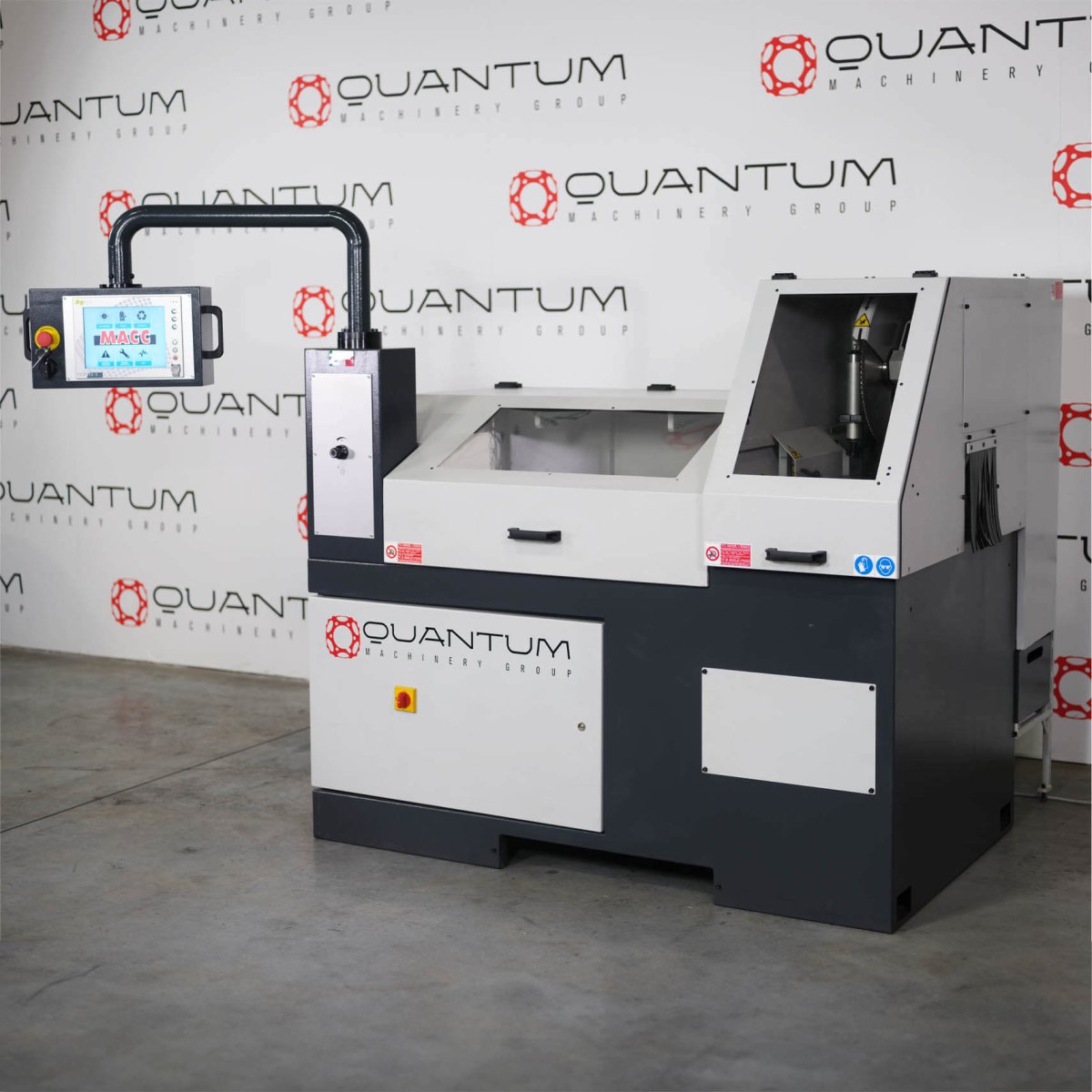

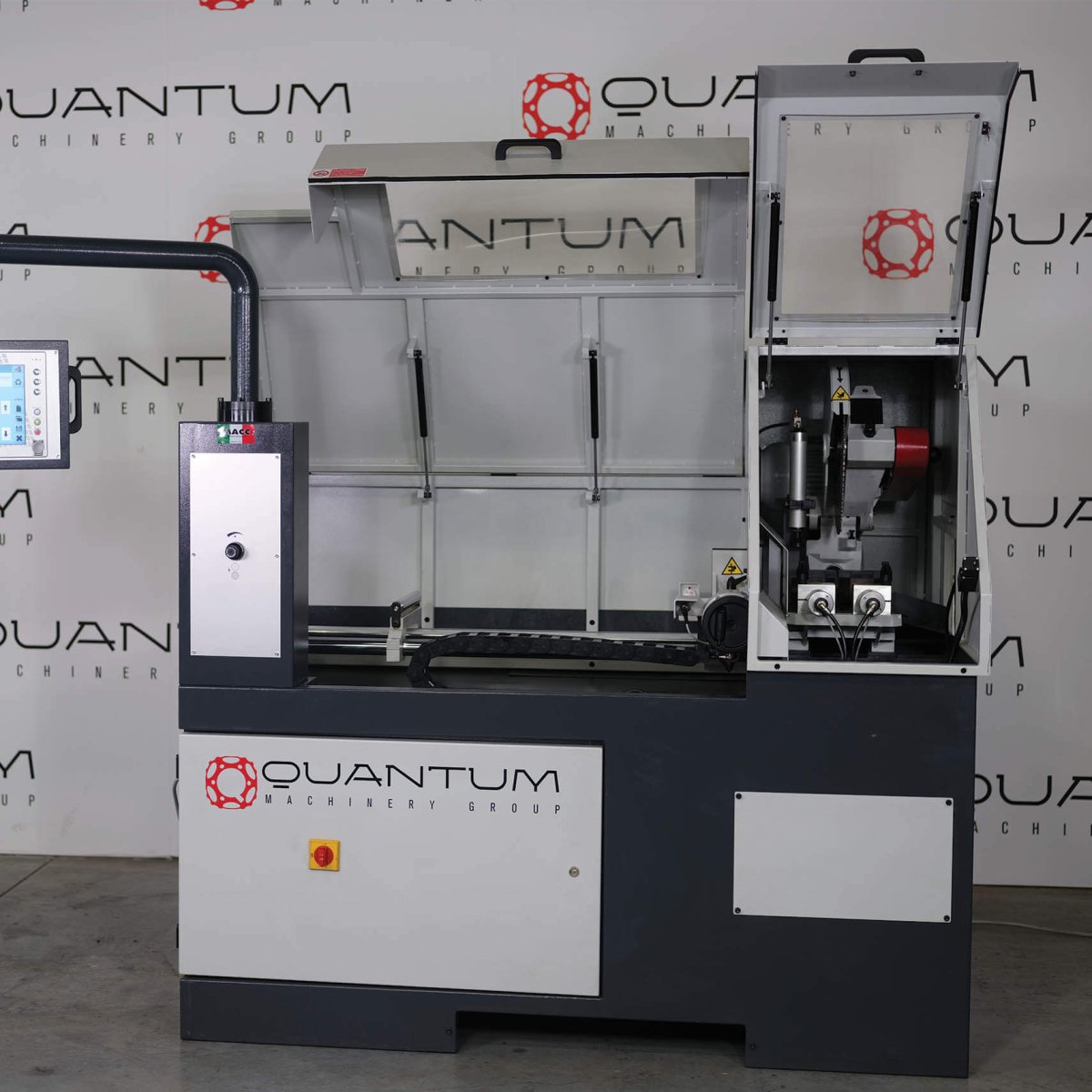

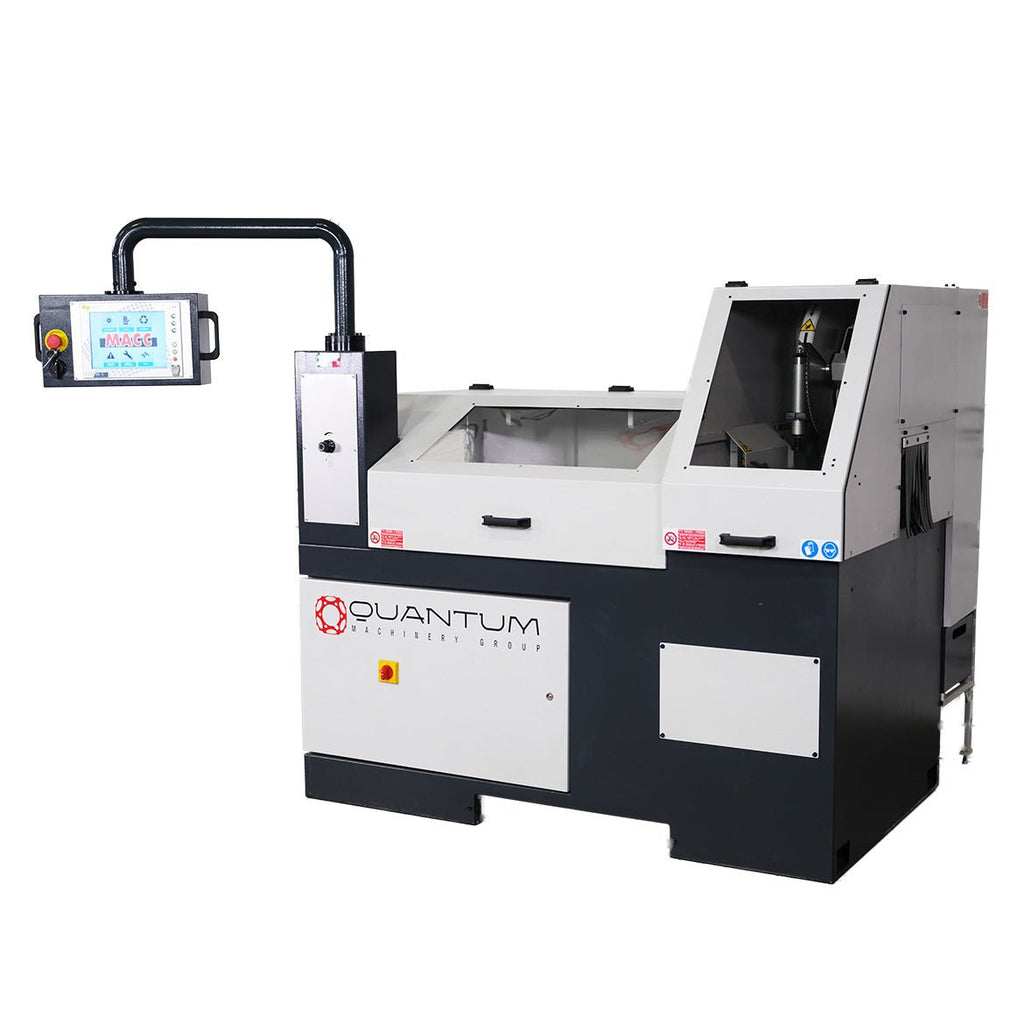

TA 400-A: 15.75" Fully-Automatic Non-Ferrous, Aluminum Cutting Saw (5-1/2" Round Tube Capacity)

FULLY-AUTOMATIC OPERATION:
Cycle start is obtained by pressing the relevant start button.
The machine performs the following operations during the cutting cycle:

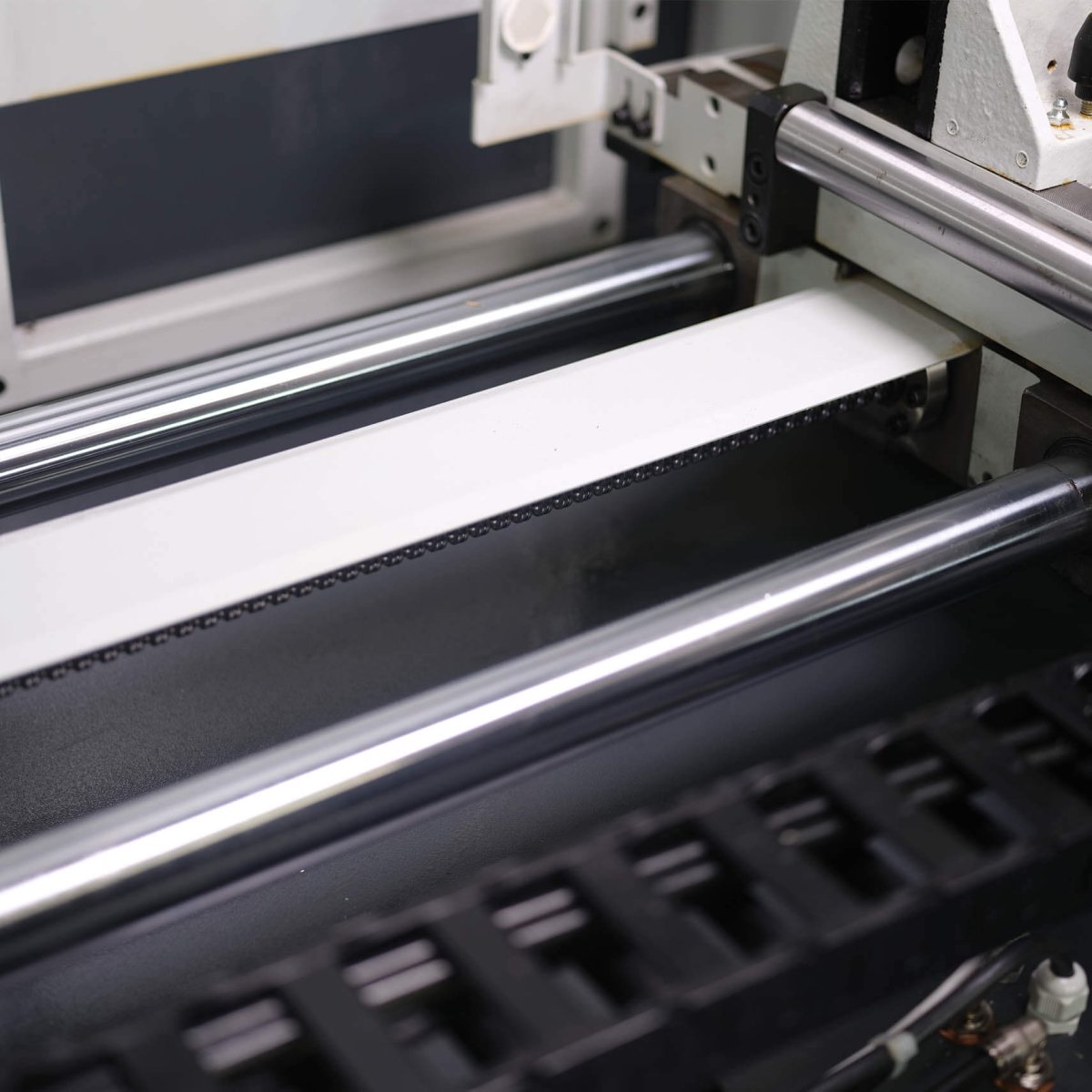

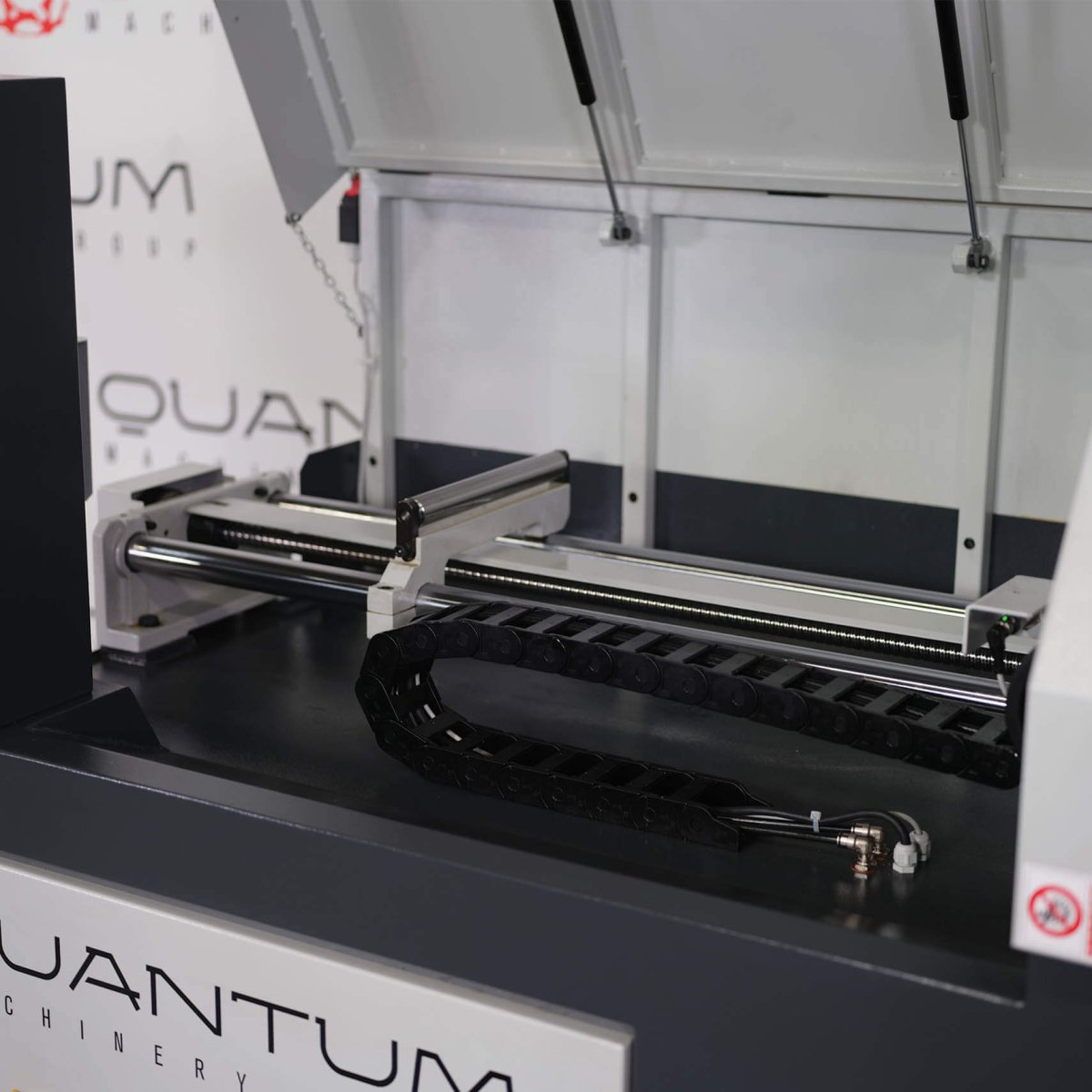

1. Material feeds in and fixed vice locks.
3. The blade rotation and coolant delivery start.
4. Head descends to the set cut.
5. Stroke returns to the set measurement.
6. Head returns and blade rotation and coolant delivery stop.
7. Vice opens.

MAXIMUM CUTTING CAPACITIES:

Round Tube

• Straight Cut: 5.5"



Square Tube

• Straight Cut: 4.25"



Solid Round

• Straight Cut: 2.25"



Rectangular Tube

• Straight Cut: 3.9"H x 7"W

TECHNICAL DATA & FEATURES:

• Automatic circular saw for cutting solid or profiles of aluminium or light alloys.

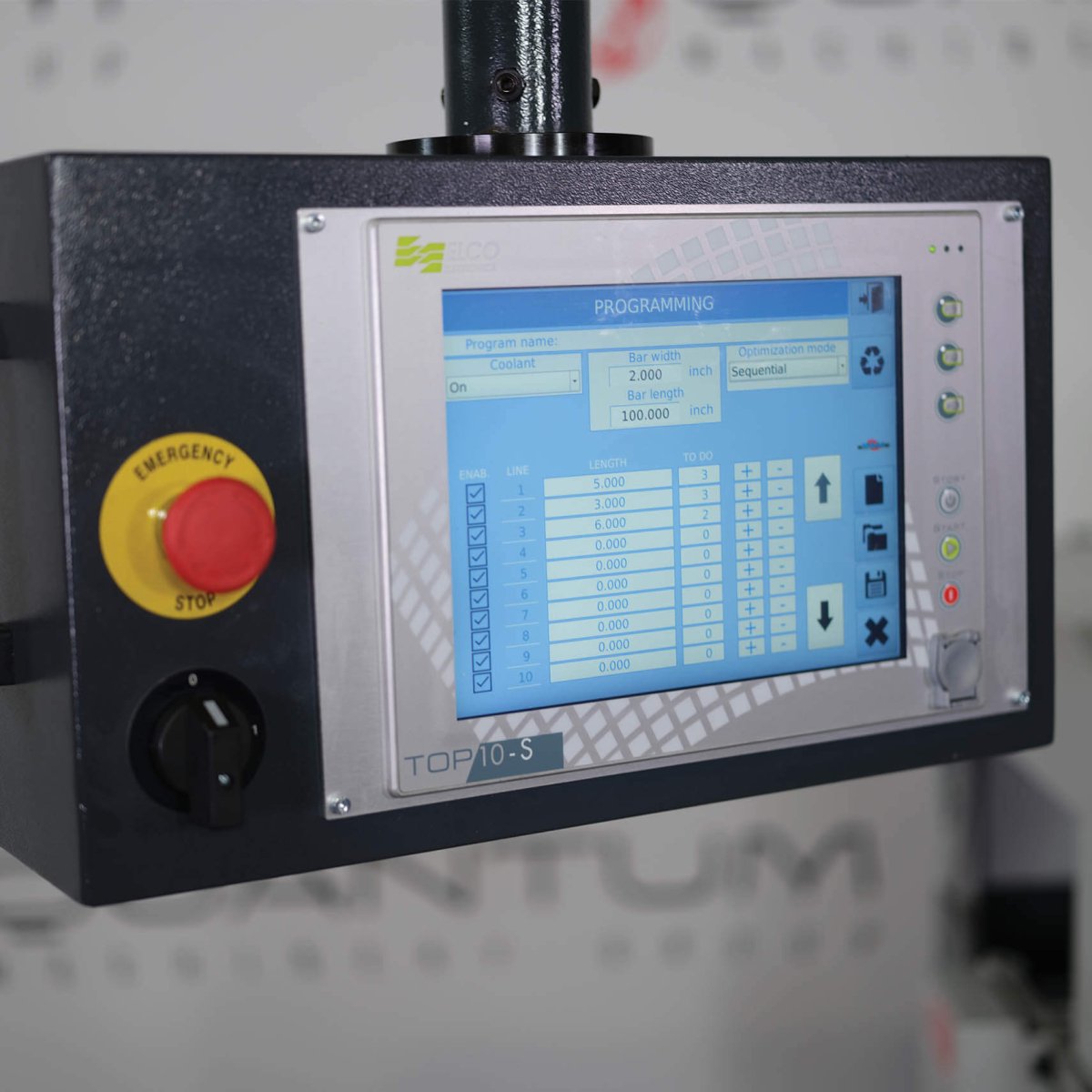

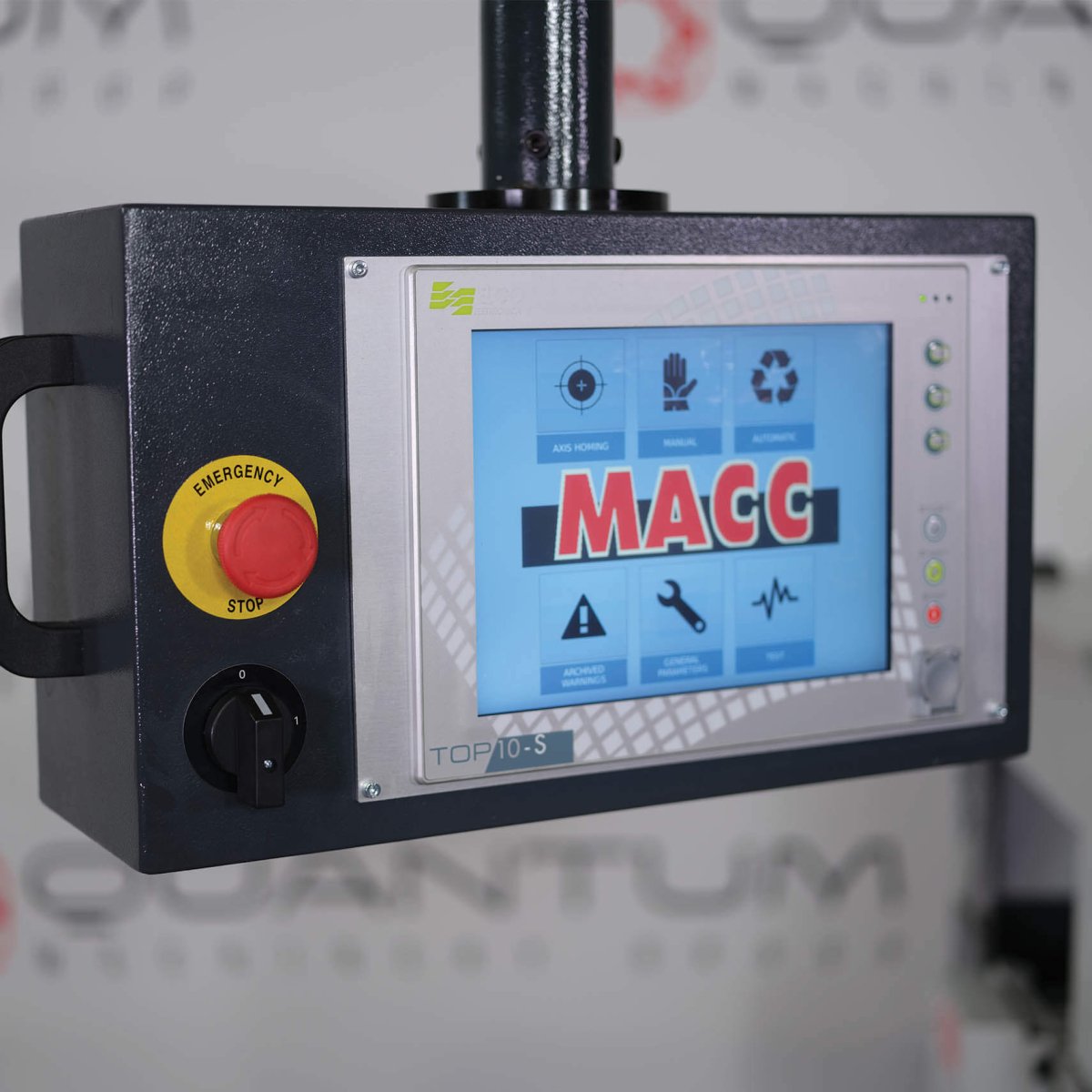

• Supplied with 39 programs, each of them with 50 steps for a total of 1950 cutting positions with relevant piece-counter.
• Blade holder shaft on bearings.

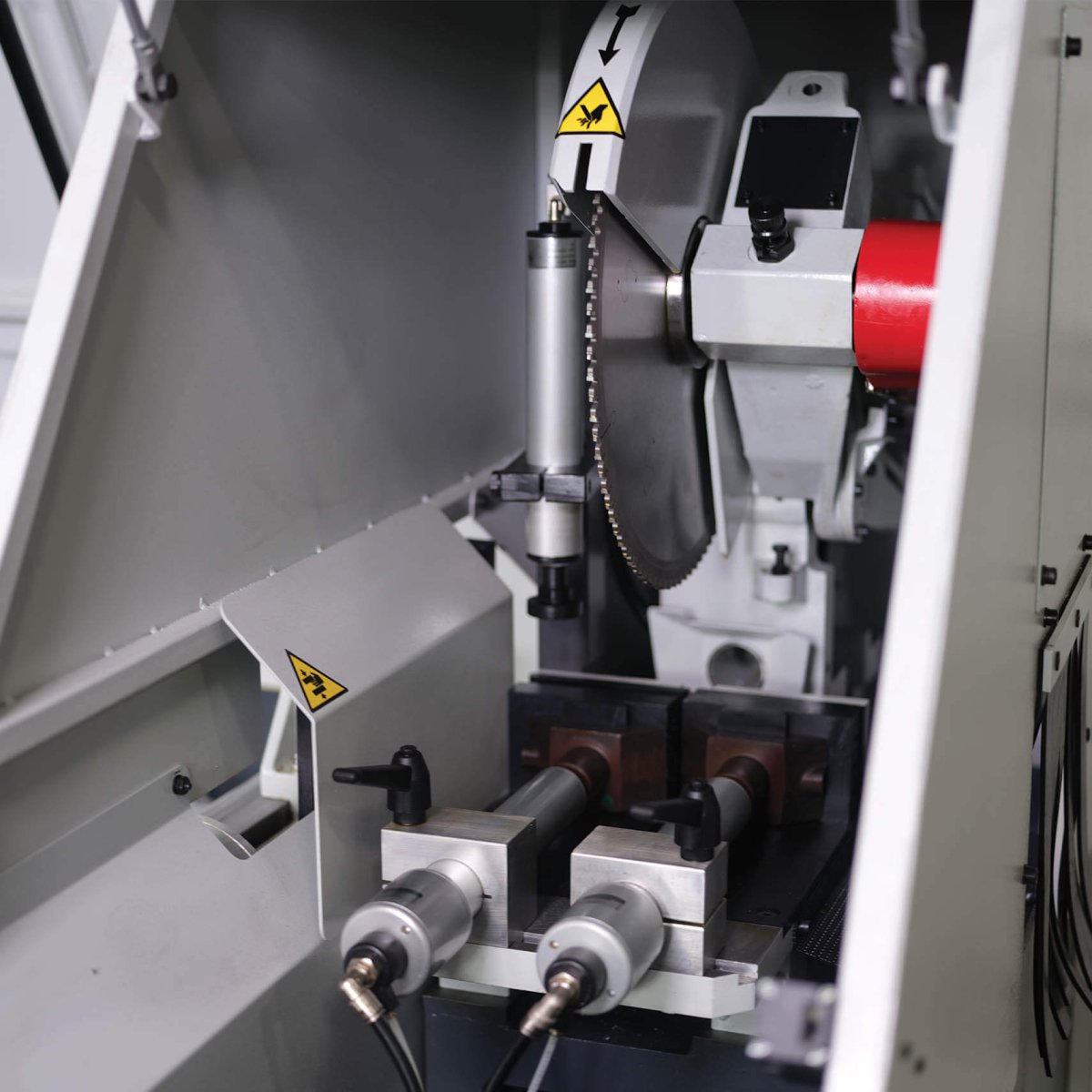

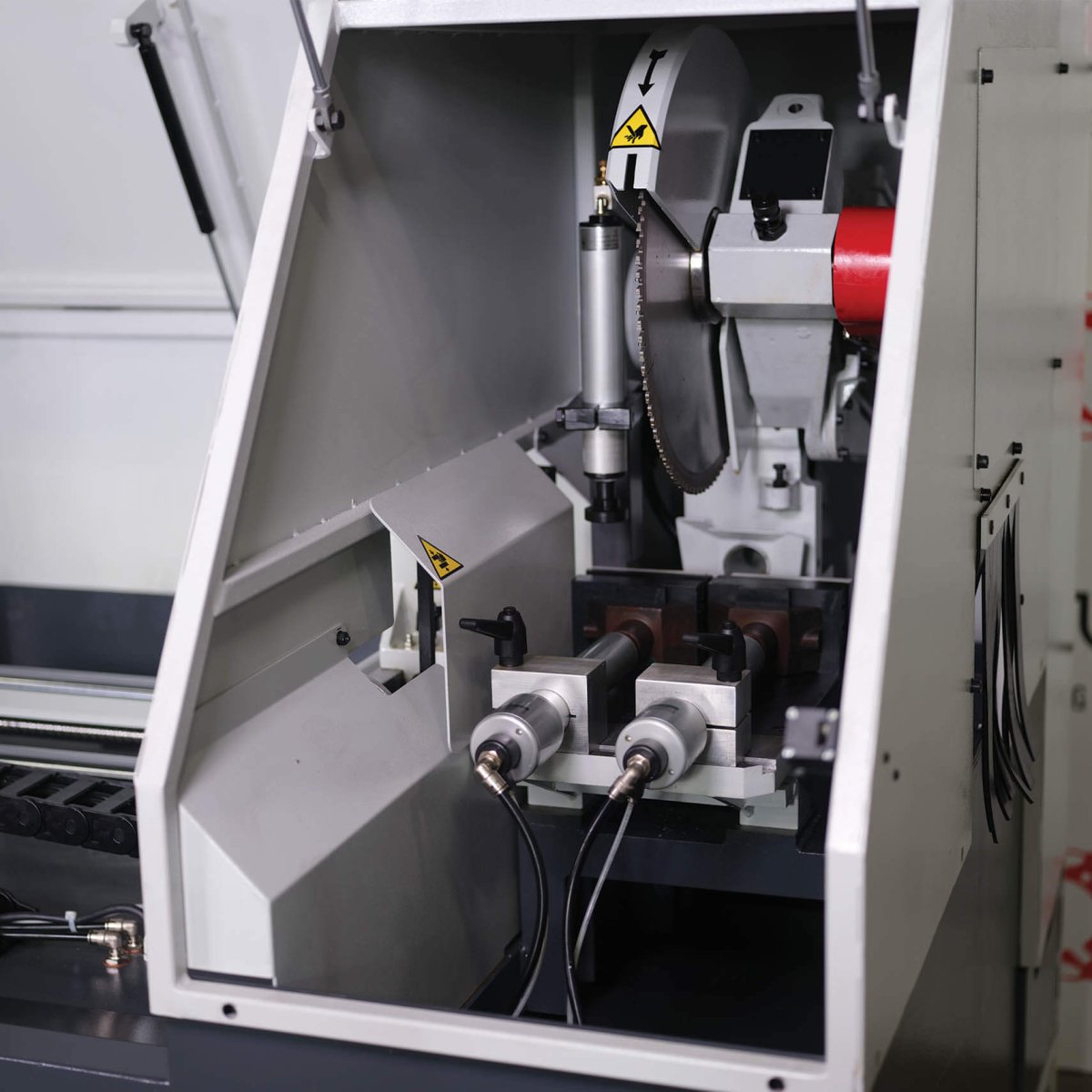

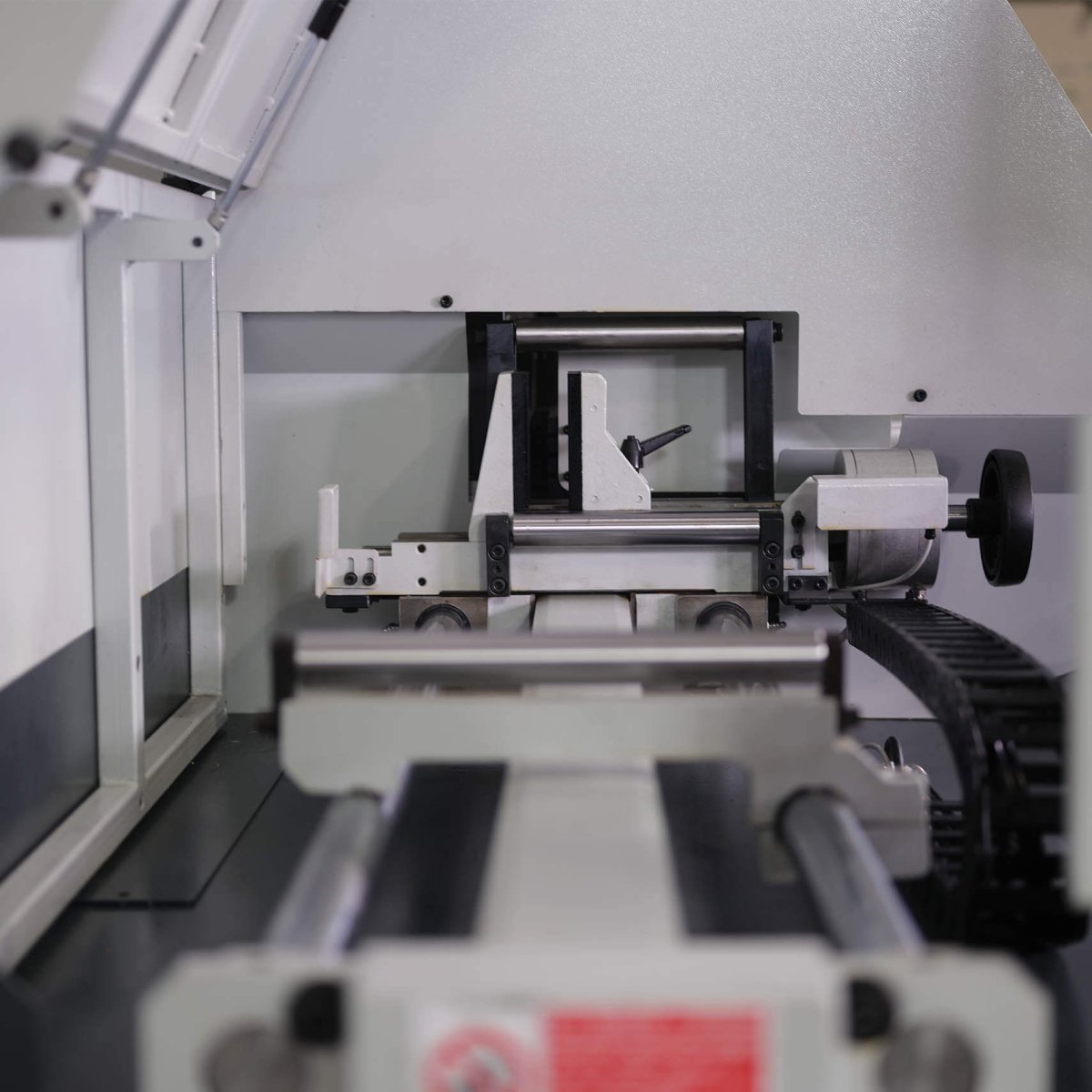

• Two pneumatic vices.

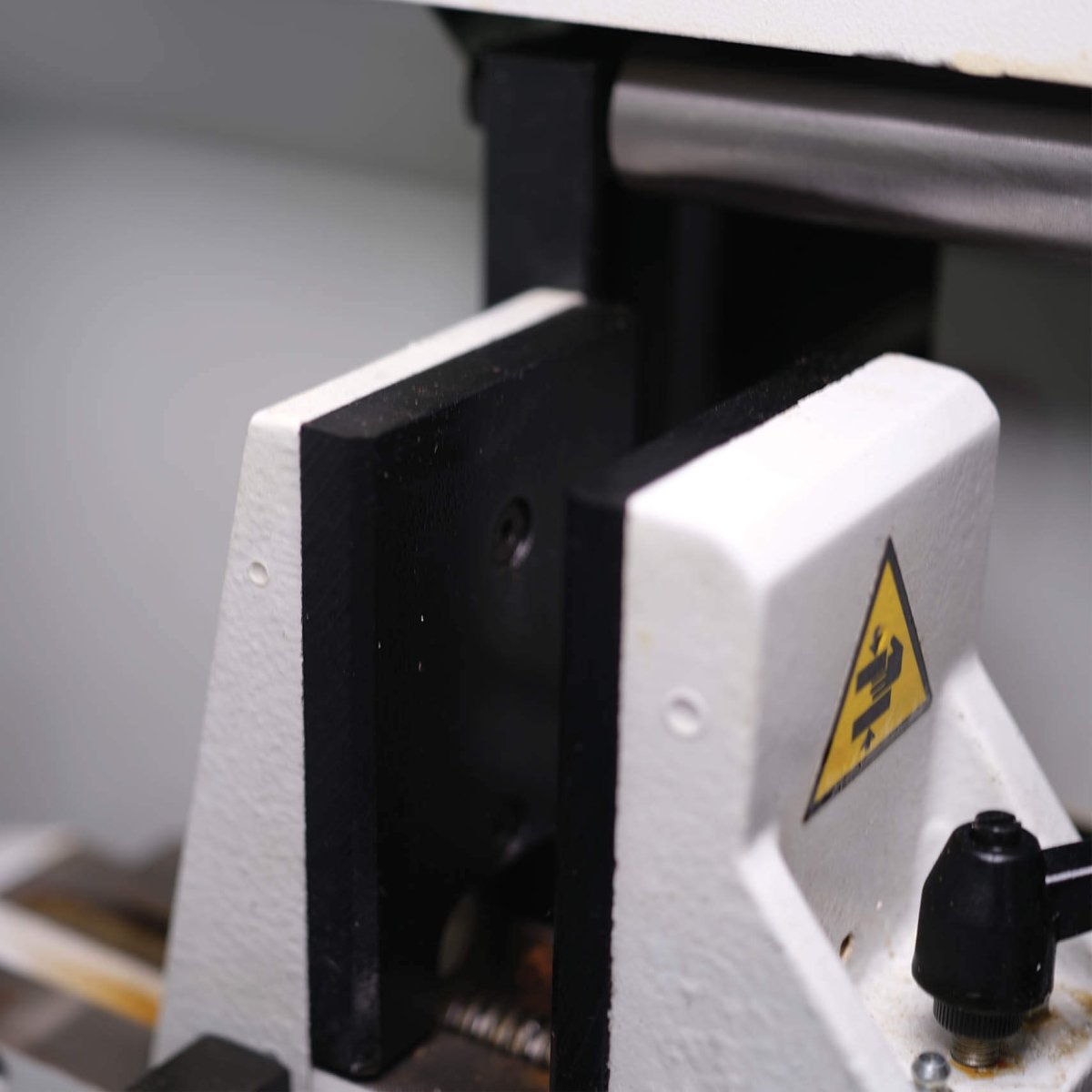

• Teflon jaws to fix the piece.
• Blade Size: 400 x 2.5 x 32mm Bore Carbide Tip
• Maximum Vice Opening: 7” (180 mm)
• Machine Weight: 1,125 lbs. (510 kg.)
• Blade Speed: 3,000 R.P.M.
• Overall Dimensions: 5'-6"H x 12'-5"W x 5'-3"L or 67”H x 150”W x 63”L or 1,700mm H x 3,800 mm W x 1,600 mm L

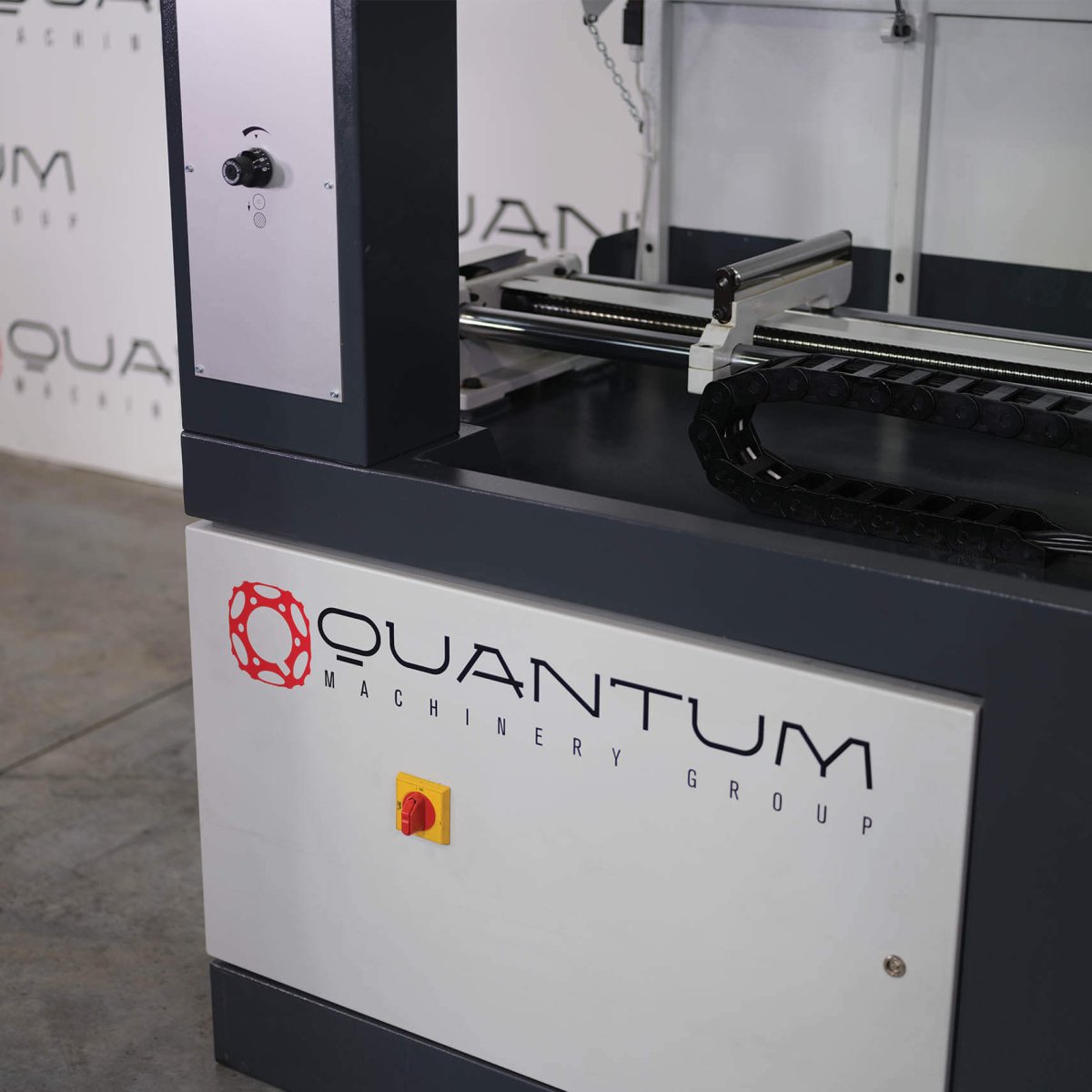

• This Saw Includes: the Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Bore Carbide Tip
