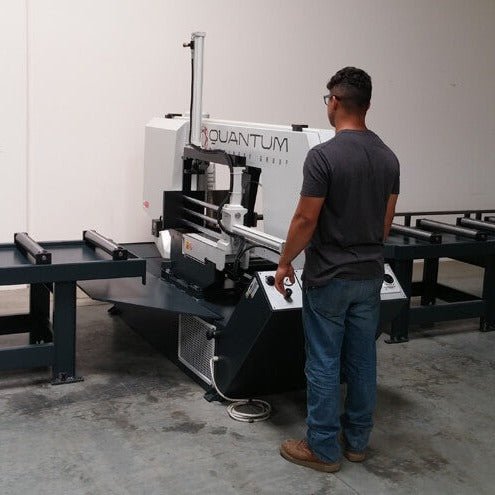

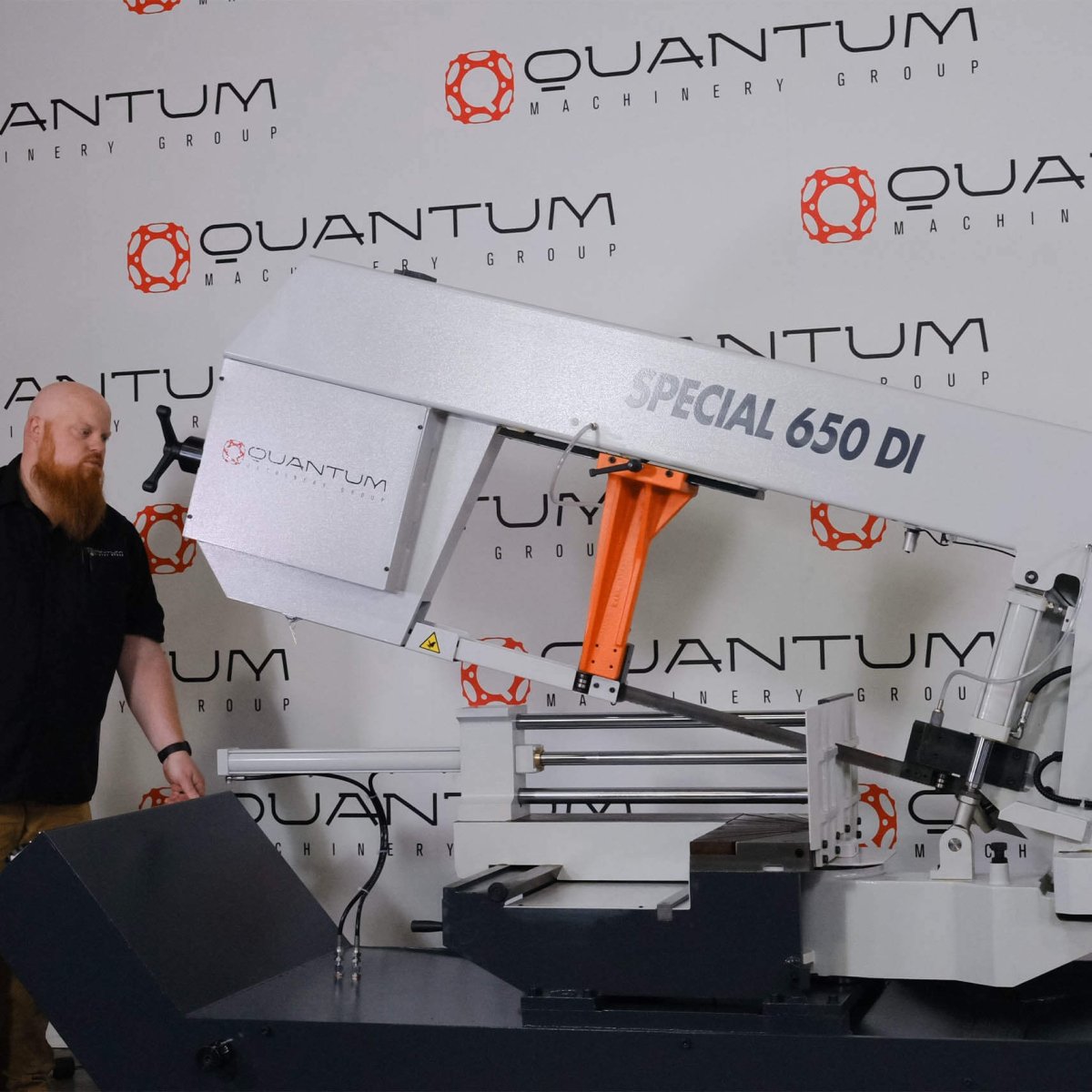

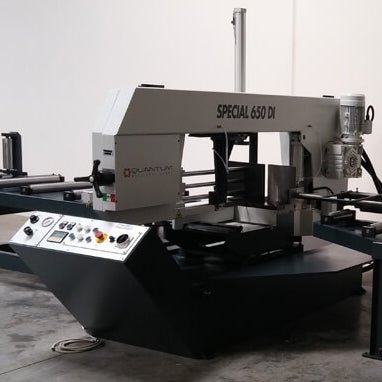

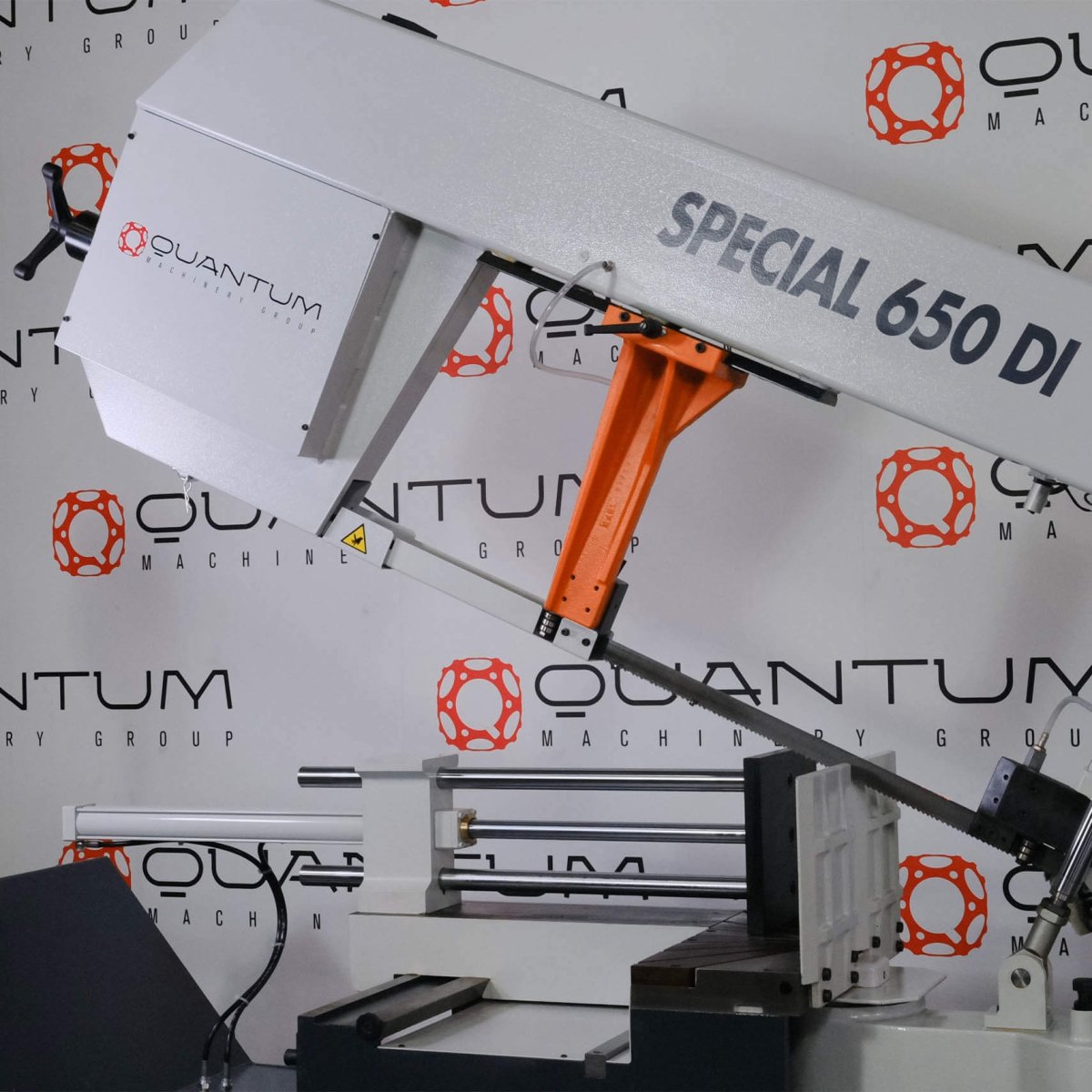

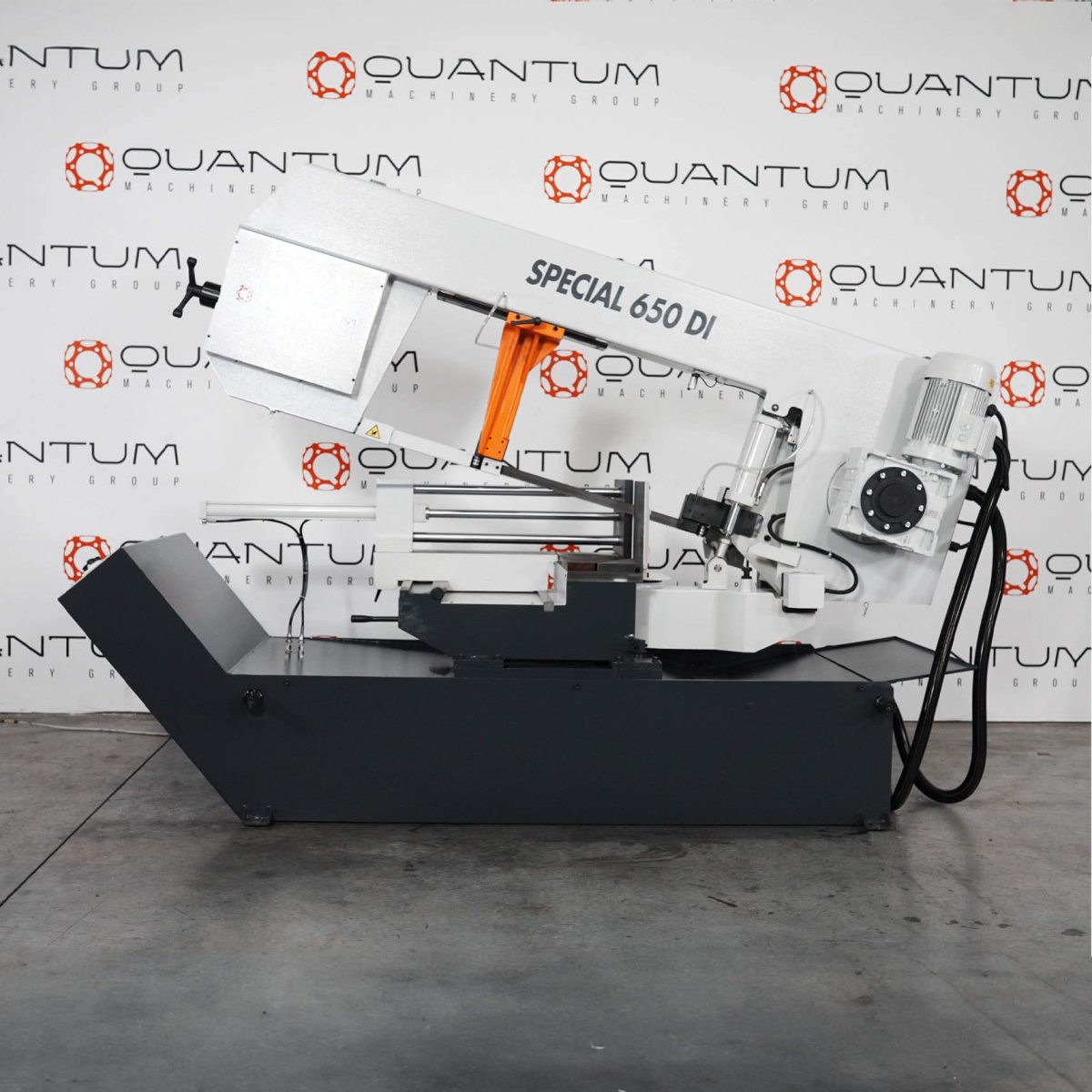

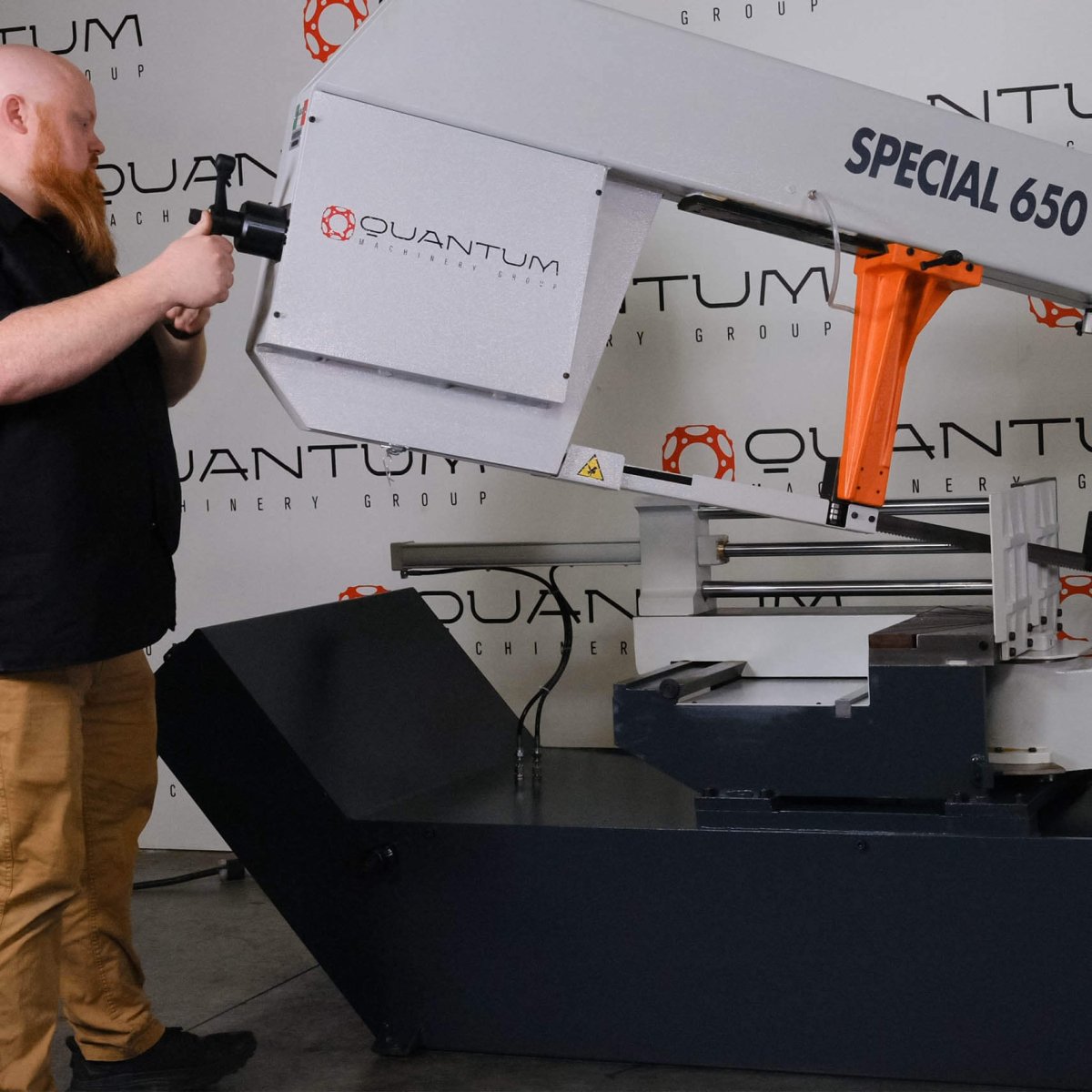

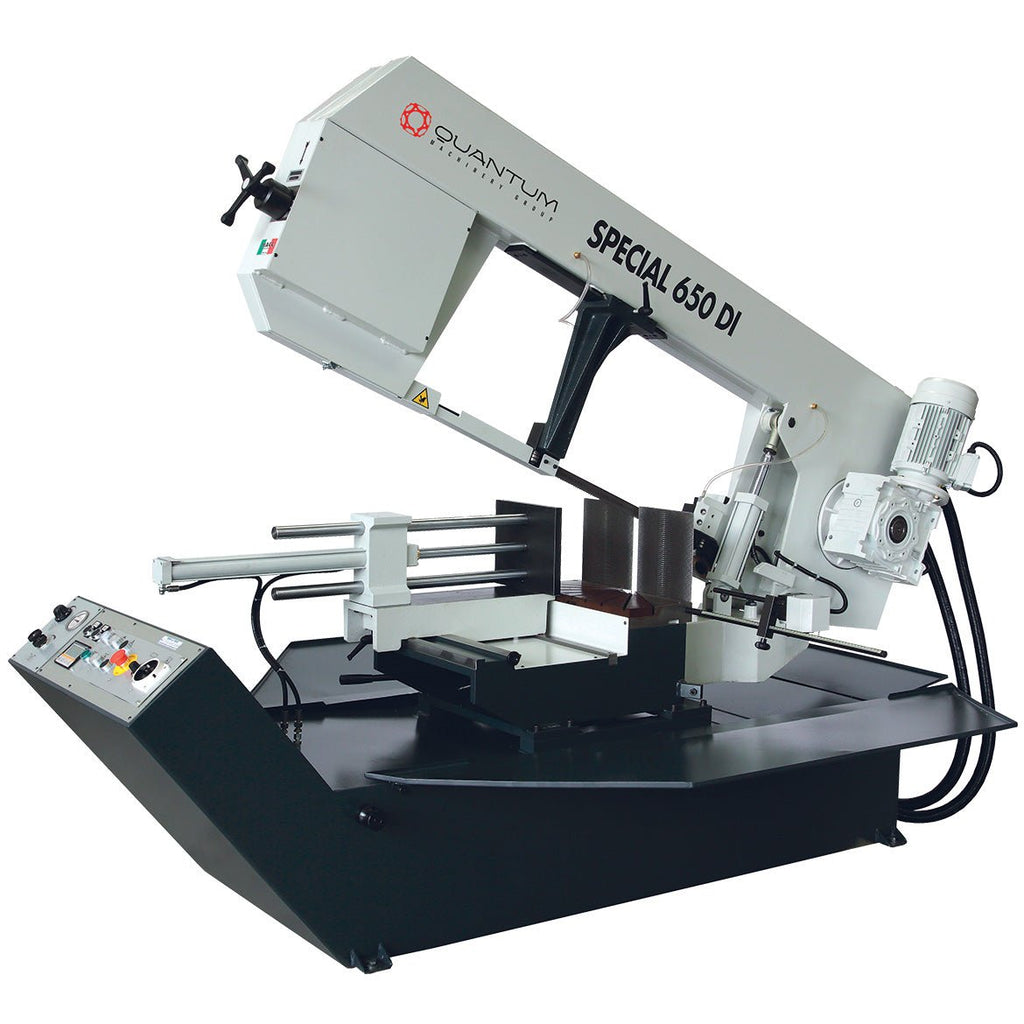

S 650 DI: Semi-Automatic Band Saw with Variable Speed Inverter (18" Round Tube Capacity)

SEMI-AUTOMATIC OPERATION:

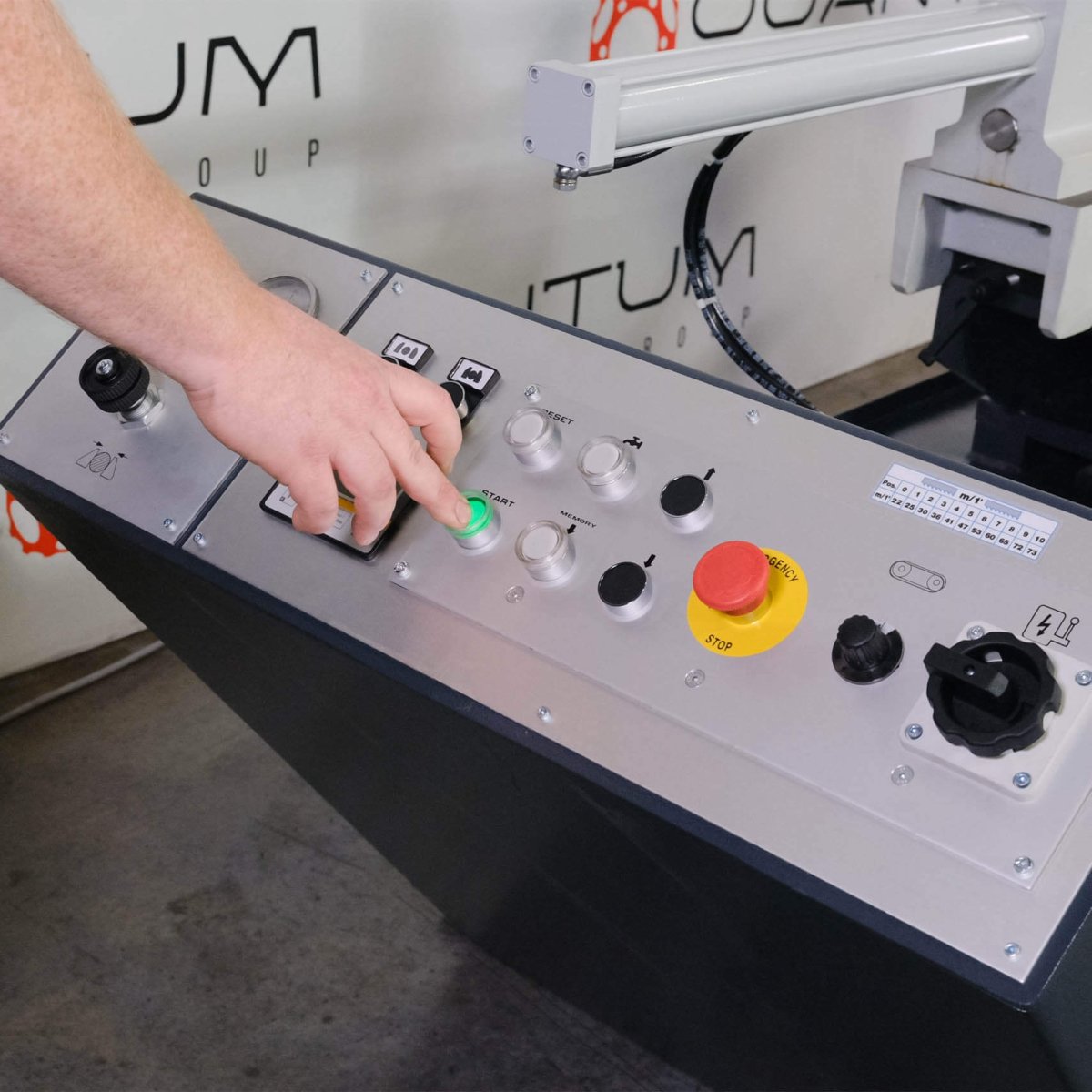

Cycle start is obtained by pressing the relevant start button.
The machine performs the following operations during the cutting cycle:
1. Vice closing and activation of band motor.
2. Cutting bow down stroke.
3. Return of bow to initial position.
4. Band motor stop.
5. Vice opening.

MAXIMUM CUTTING CAPACITIES:

• Round Tube
  Straight Cut: 18"
  45° Left Cut: 17.6"
  60° Left Cut: 9.4"
  45° Right Cut: 17-.6"
  60° Right Cut: 11.75"

•

•

  Square Tube
  Straight Cut: 7.75"
  45° Left Cut: 7.75"
  60° Left Cut: 7.75"
  45° Right Cut: 7.75"
  60° Right Cut: 7.75"

•

•

  Solid Round
  Straight Cut: 17.6"
  45° Left Cut: 16.9"
  60° Left Cut: 11.75"
  45° Right Cut: 16.1"
  60° Right Cut: 11.75"

•

•

  Rectangular Tube
  Straight Cut: 17.6"H x 24.4"W
  45° Left Cut: 15.6"H x 17.6"W
  60° Left Cut: 8.5"H x 12.5"W
  45° Right Cut: 13.4"H x 17.6"W
  60° Right Cut: 10.6"H x 16.5"W

• TECHNICAL DATA & FEATURES:

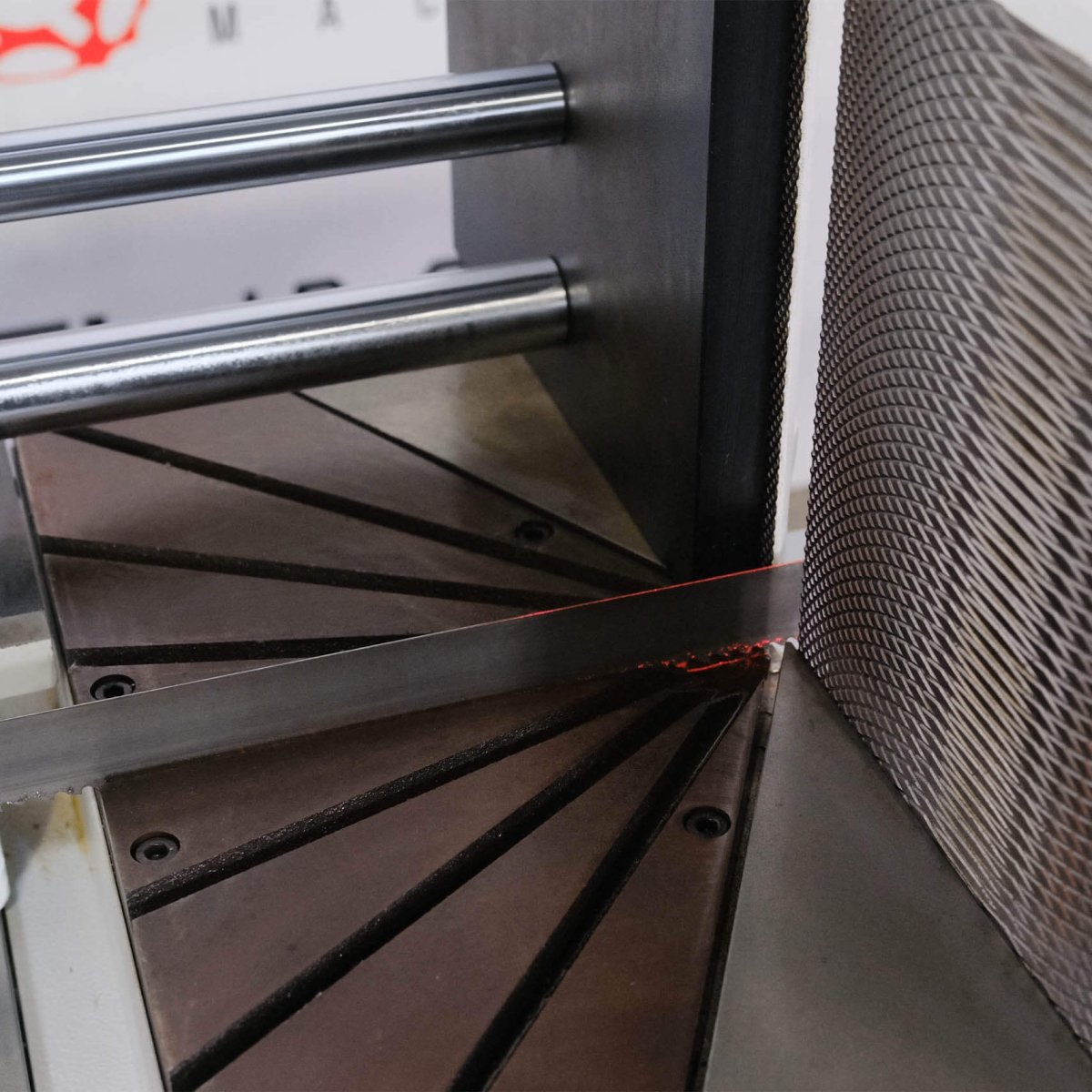

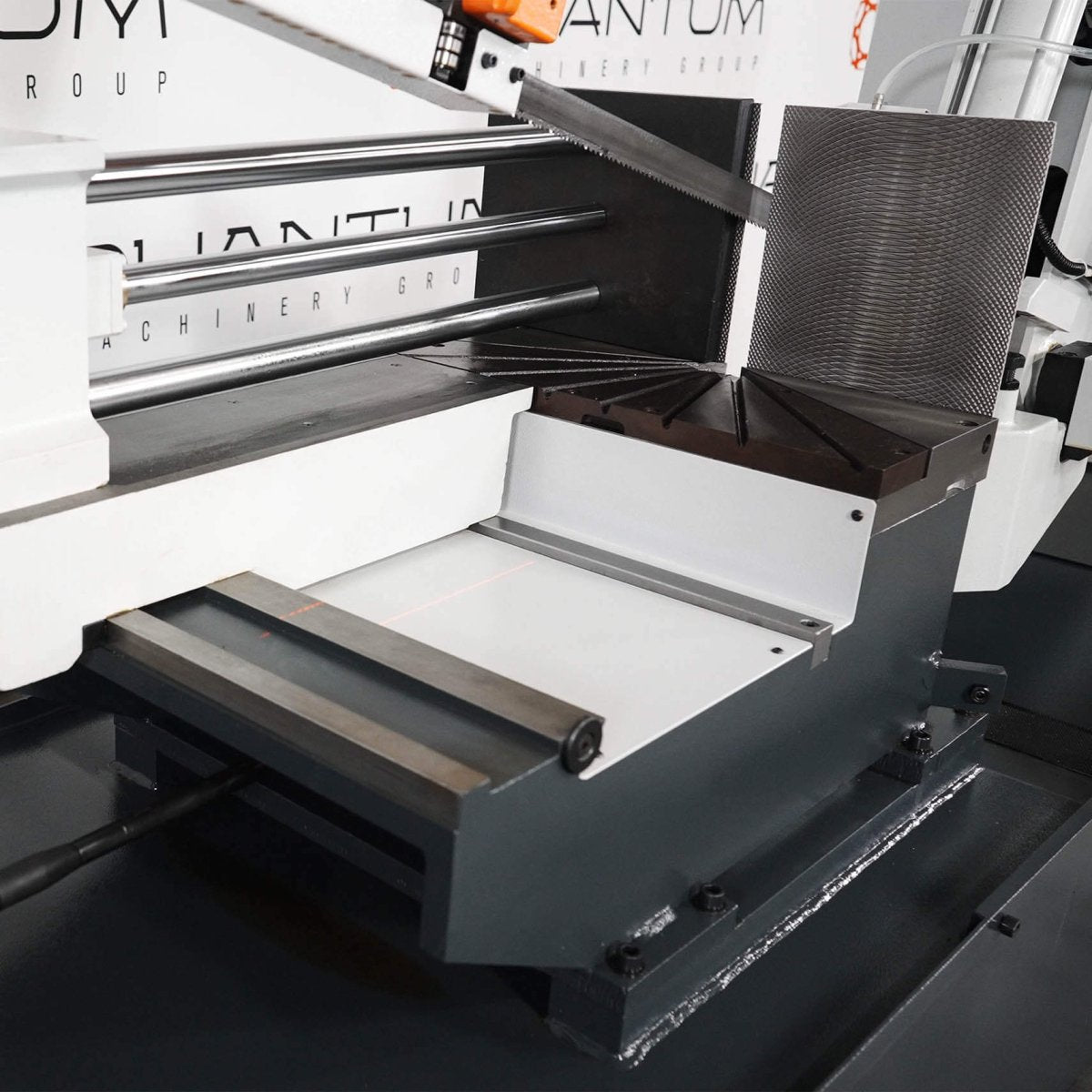

• Includes: Variable Speed Inverter, Vertical Hydraulic Clamp and Laser for Saw Cut.
• Appropriately dimensioned flywheels.

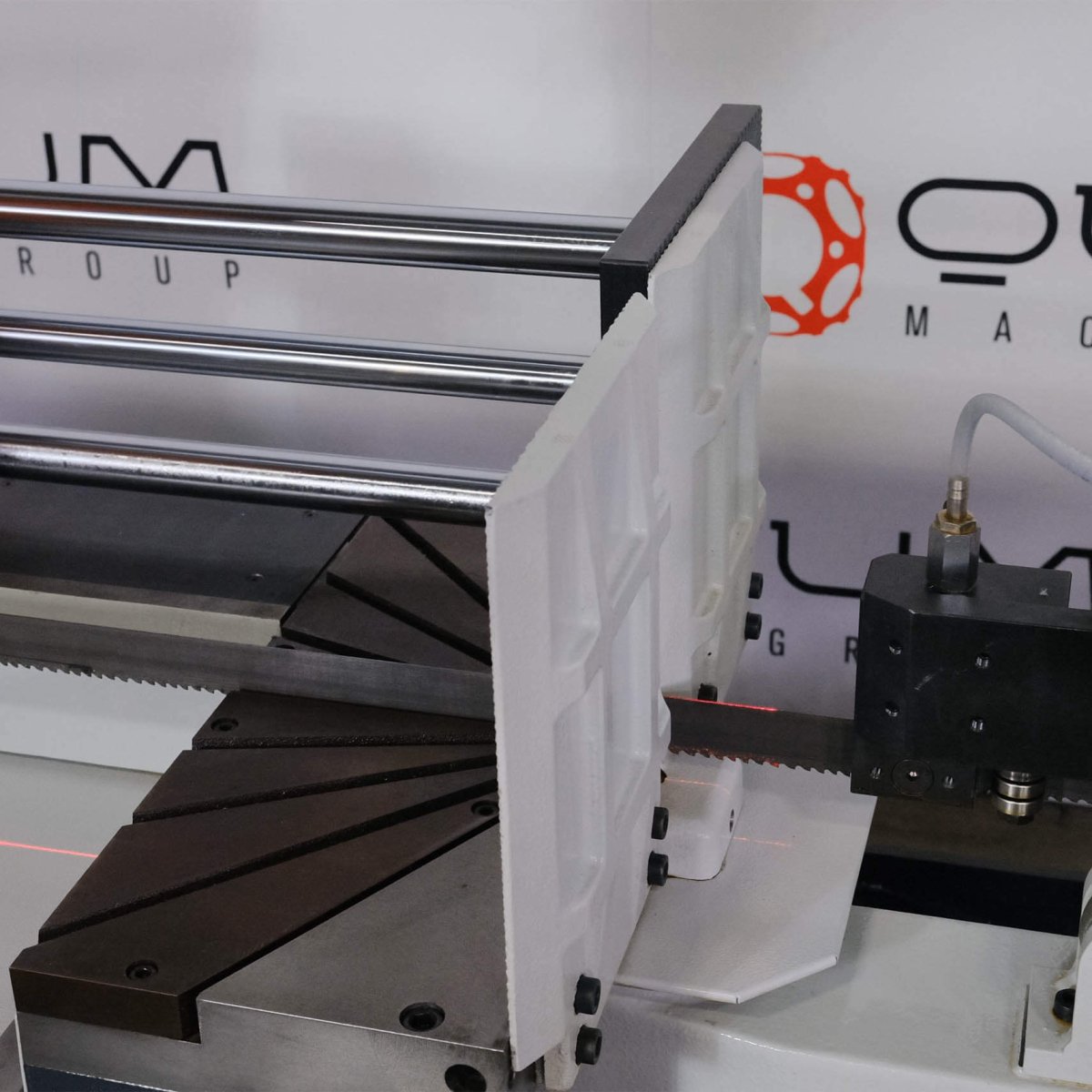

• Strong blade guides with tight stress-raiser bearings and adjustable widia tips.
• Band stretching is obtained by electro-mechanical blade tensioner with microswitch for blade rotation.
• Safety device on the flywheel casing and on the blade.
• Adjustable stop for cuts of the same size.
• Blade cleaning device with brush.
• Vice Jaws Height: 9.84" (250 mm)
• Vice Jaws Length: 7.87" (200 mm)
• Bed Height: 30" (760 mm)
• Cutting Thickness: 0.059" (1.5mm)
• Cutting Range: 60° Left up to 60° Right.

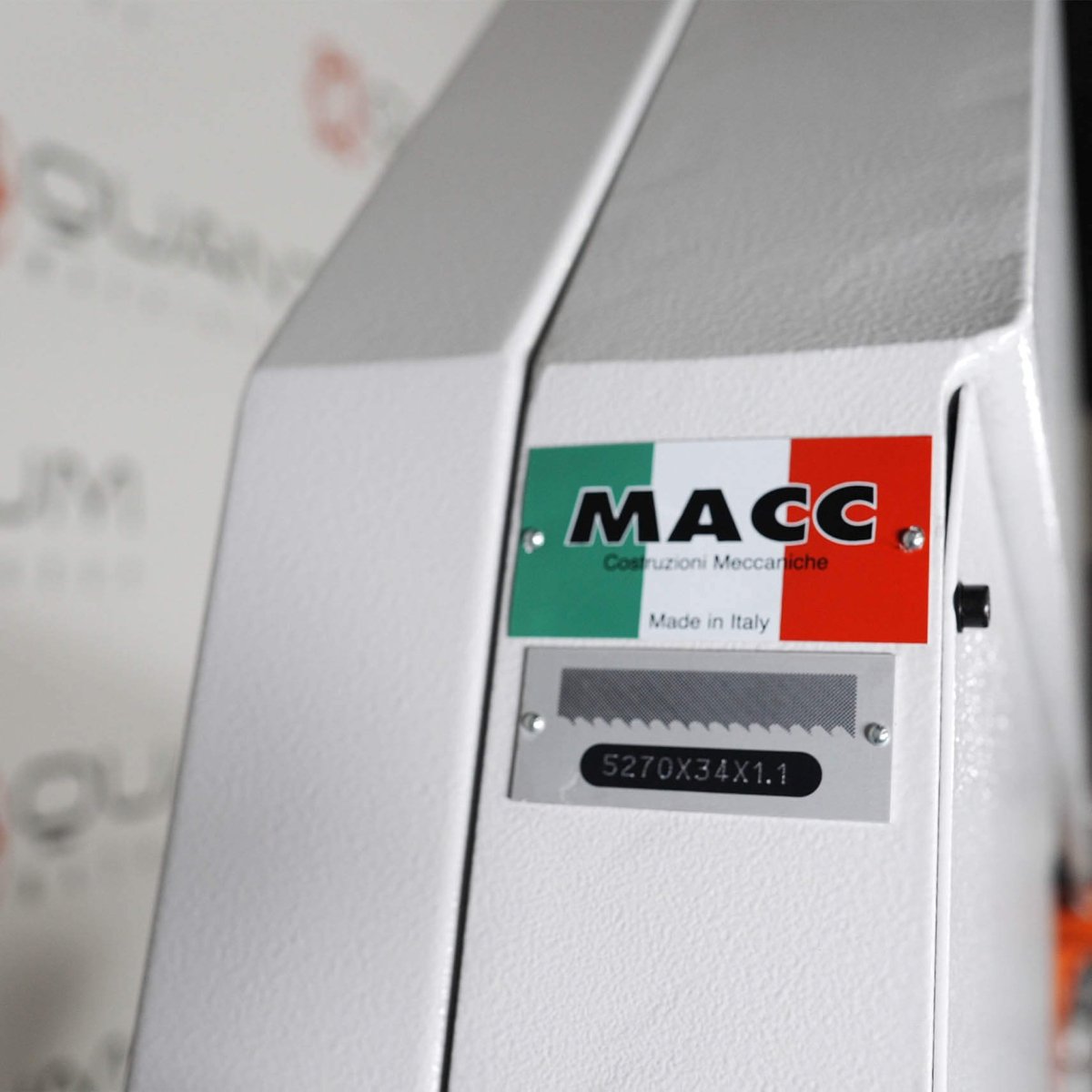

• Blade Size: 5,270 x 34 x 1.1 mm
• Maximum Vice Opening: 24.4" (620 mm)
• Machine Weight: 2,760 lbs. (1,250 kg.)
• 2 Speeds: 23-95 Feet per Minute
• Motor Hydraulic Gearcase: 0.55 kW
• Electropump for Band Cooling: 0.09 kW
• Overall Dimensions (without Bar Stop): 8'-3”H x 2'-3”W x 10'-1”L or 90”H x 28”W x 112”L or 2,286 mm H x 711 mm W x 3,073 mm L
• Overall Dimensions (with Bar Stop): 8'-3”H x 6'-3”W x 10'-1”L or 90”H x 75”W x 112”L or 2,286 mm H x 1,905 mm W x 3,073 mm L
• This Saw also Includes: Instruction Manual, Service Tools & 1 Band Saw Blade.
