SEMI-AUTOMATIC OPERATION:

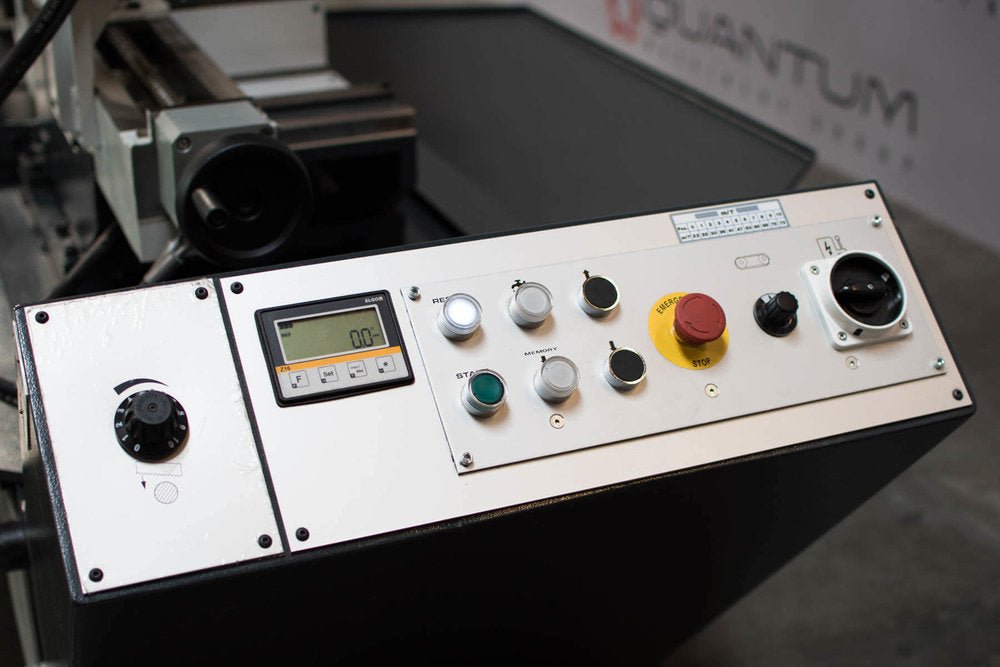

Cycle start is obtained by pressing the relevant start button.
The machine performs the following operations during the cutting cycle:
1. Vice closing and activation of band motor.
2. Cutting bow down stroke.
3. Return of bow to initial position.
4. Band motor stop.
5. Vice opening.

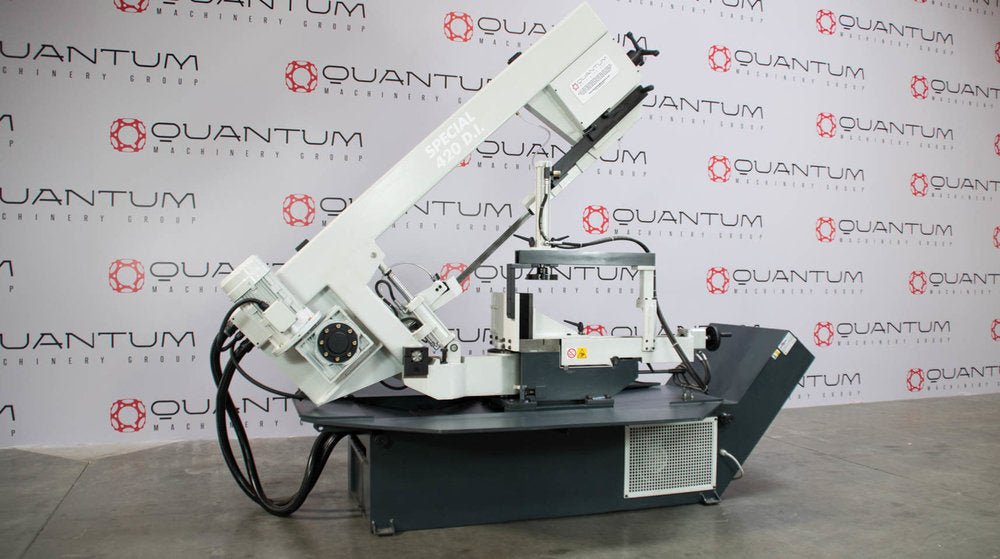

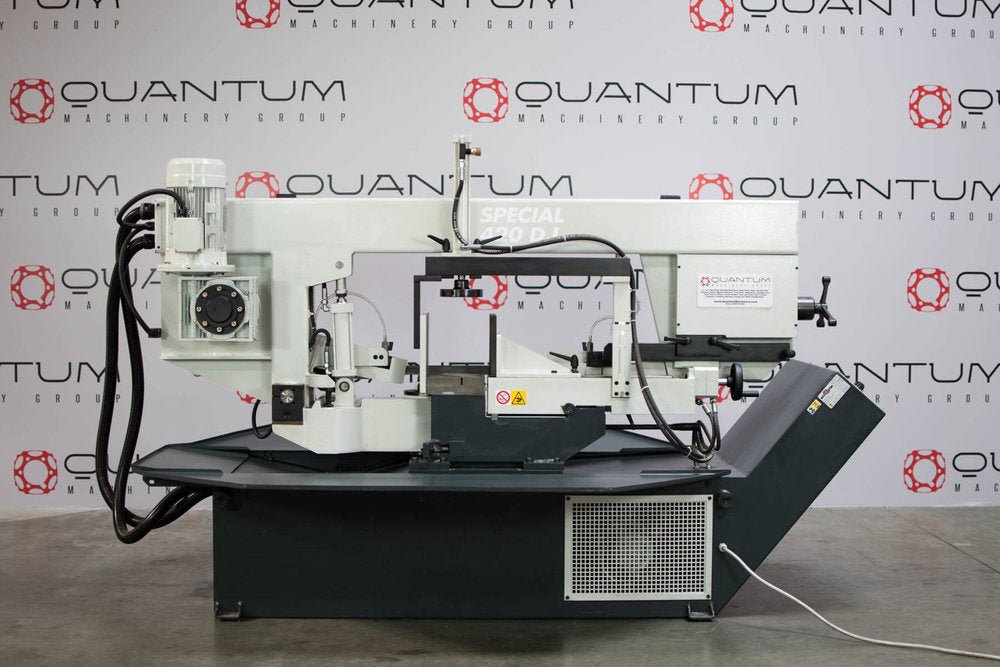

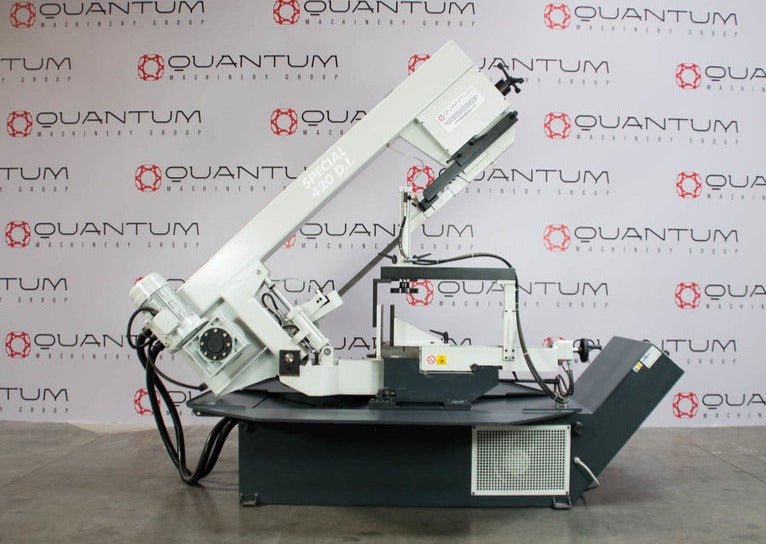

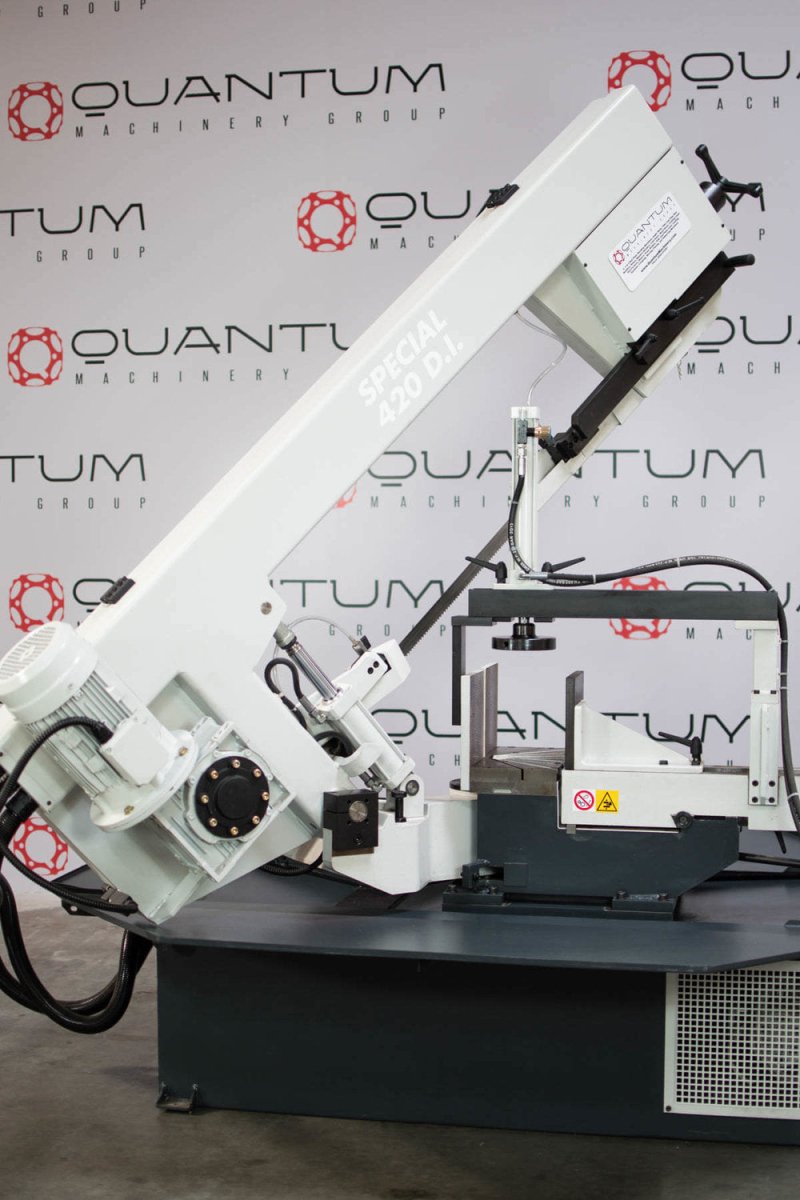

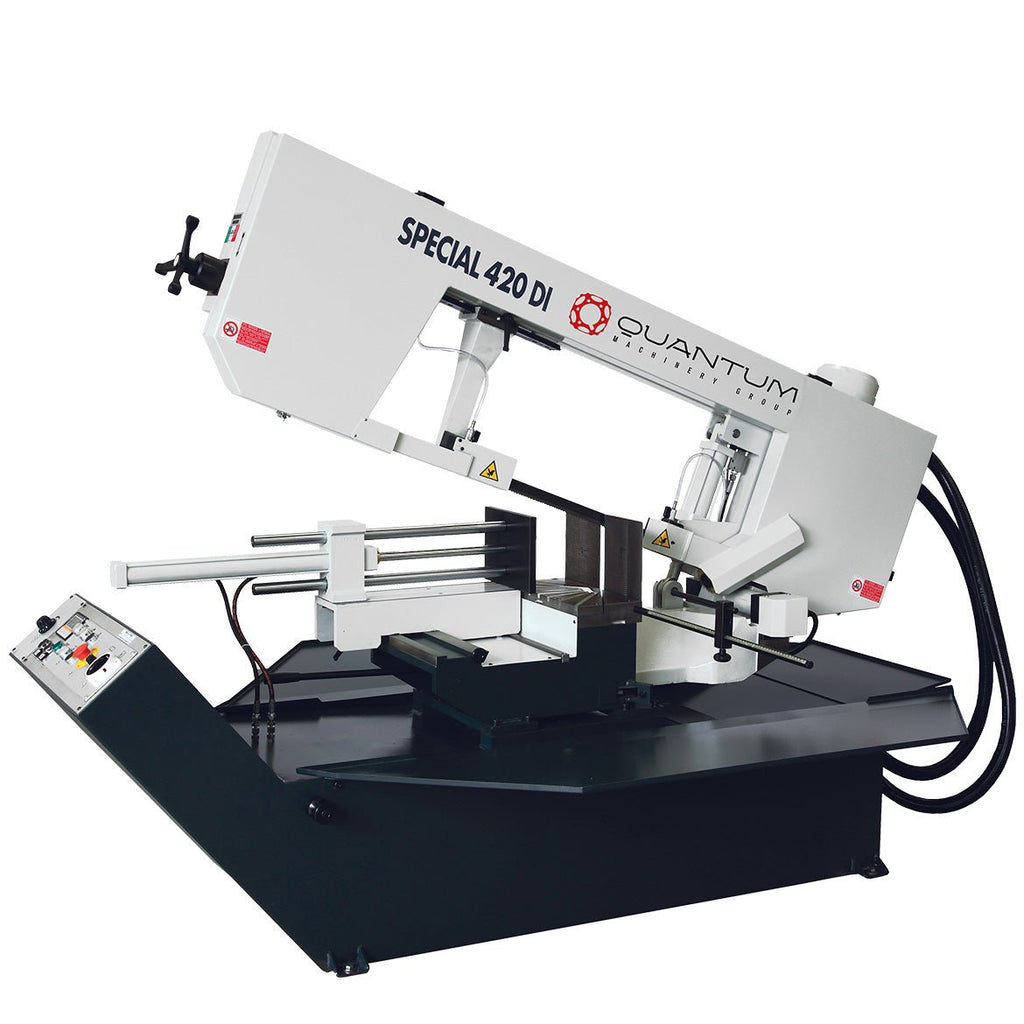

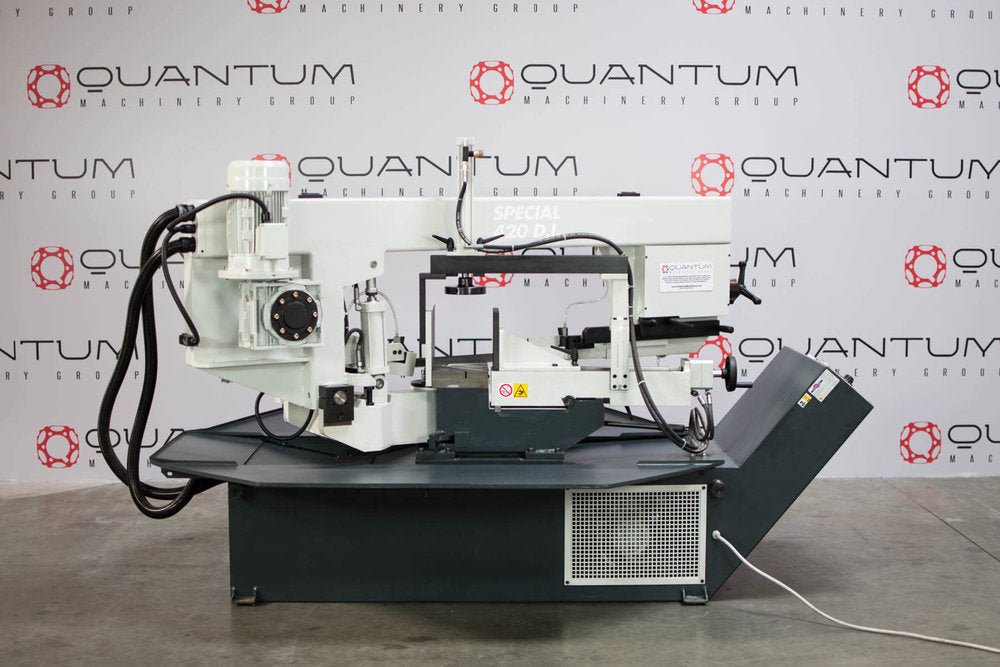

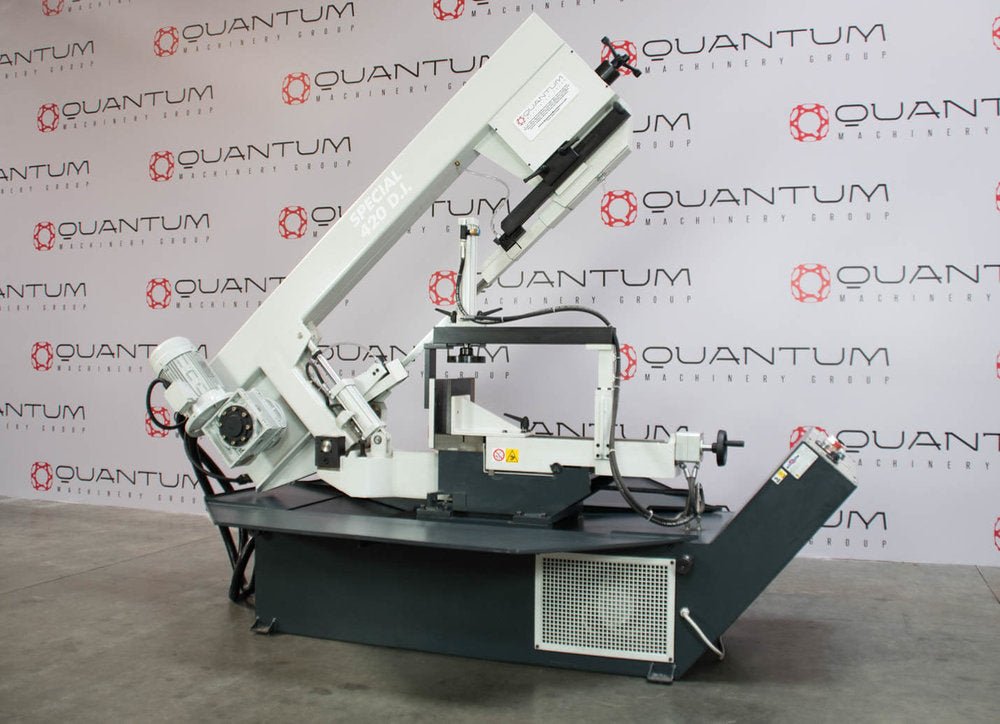

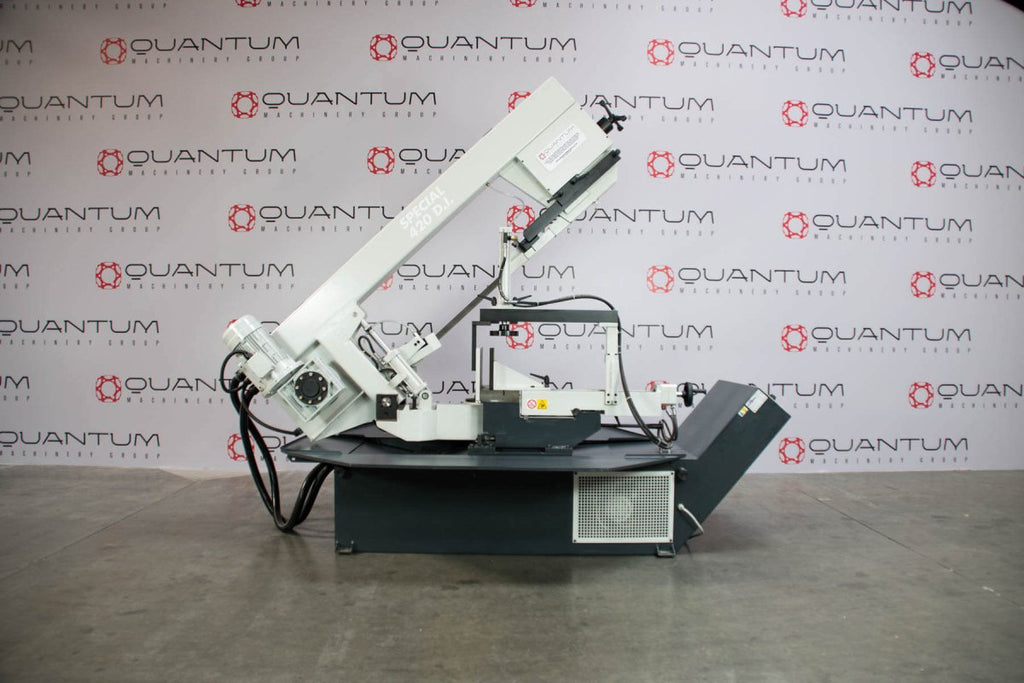

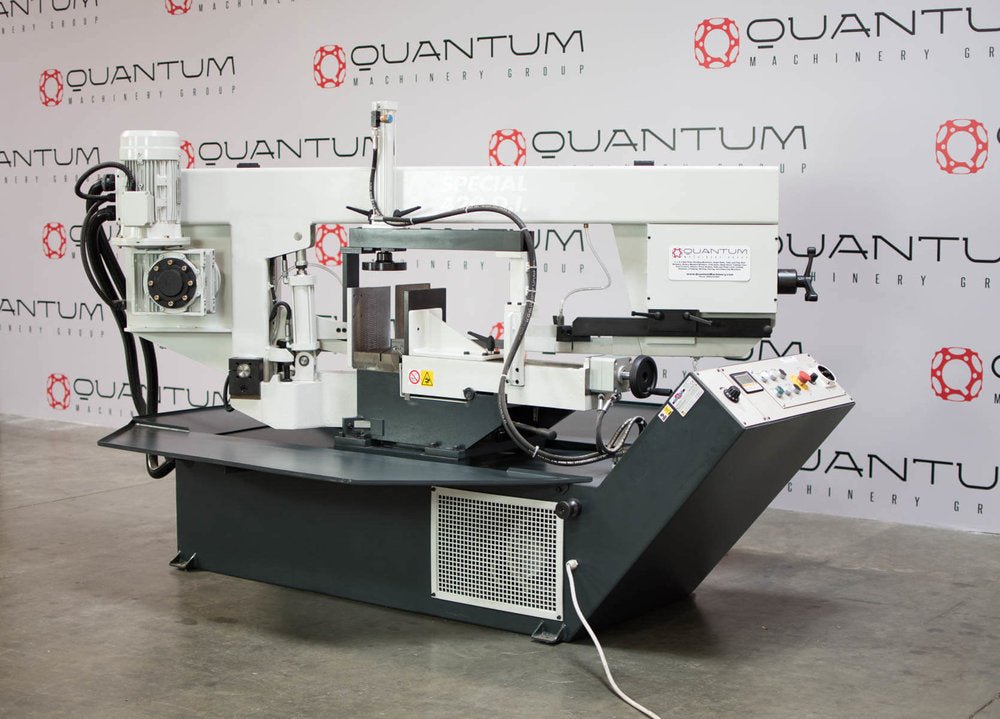

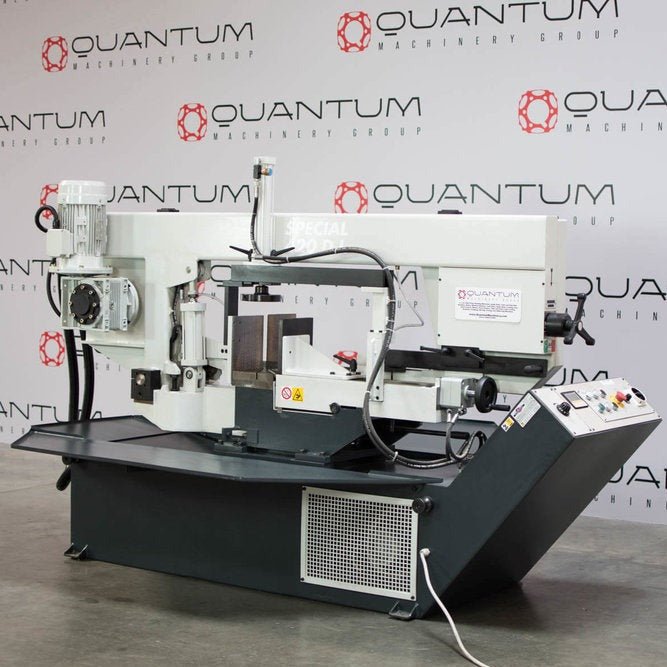

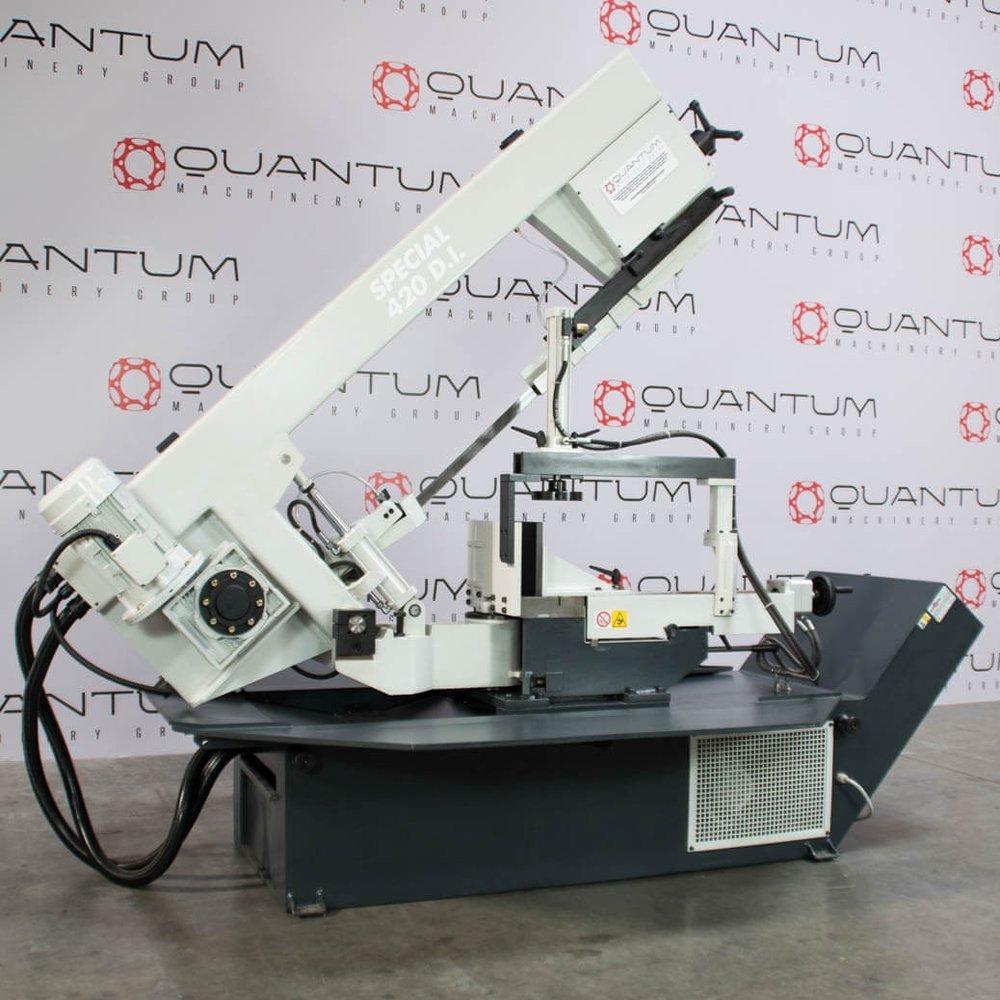

S 420 DI: Semi-Automatic Band Saw with Variable Speed Inverter (15-5/8" Round Tube Capacity)
S 420 DI: Semi-Automatic Band Saw with Variable Speed Inverter (15-5/8" Round Tube Capacity)
Sale price$24,200
Regular price (/)
MAXIMUM CUTTING CAPACITIES:
Solid Round:
- Straight Cut: 5-3/4" or 5.75"
- 45° Left Cut: 5-3/4" or 5.75"
- 45° Right Cut: 5-3/4" or 5.75"
- 60° Left Cut: 5-3/4" or 5.75"
- 60° Right Cut: 5-3/4" or 5.75"
Round Tube:
- Straight Cut: 14-3/4" or 14.75"
- 45° Left Cut: 14-3/4" or 14.75"
- 45° Right Cut: 14-3/4" or 14.75"
- 60° Left Cut: 10-1/8" or 10.125"
- 60° Right Cut: 10-1/2" or 10.5"
Square Tube:
- Straight Cut: 14-1/4" or 14.25"
- 45° Left Cut: 13-1/4" or 13.25"
- 45° Right Cut: 13-1/4" or 13.25"
- 60° Left Cut: 9-3/4" or 9.75"
- 60° Right Cut: 9-3/4" or 9.75"
Rectangular Tube:
- Straight Cut: 14-1/4"H x 19-1/2"W or 14.25"H x 19.5"W
- 45° Left Cut: 11-3/4"H x 14-1/8"W or 11.75"H x 14.125"W
- 45° Right Cut: 11-3/4"H x 14-1/8"W or 11.75"H x 14.125"W
- 60° Left Cut: 14-1/4"H x 9"W or 14.75"H x 9"W
- 60° Right Cut: 11-3/4"H x 9-1/2"W or 11.75"H x 9.25"W
- TECHNICAL DATA & FEATURES:

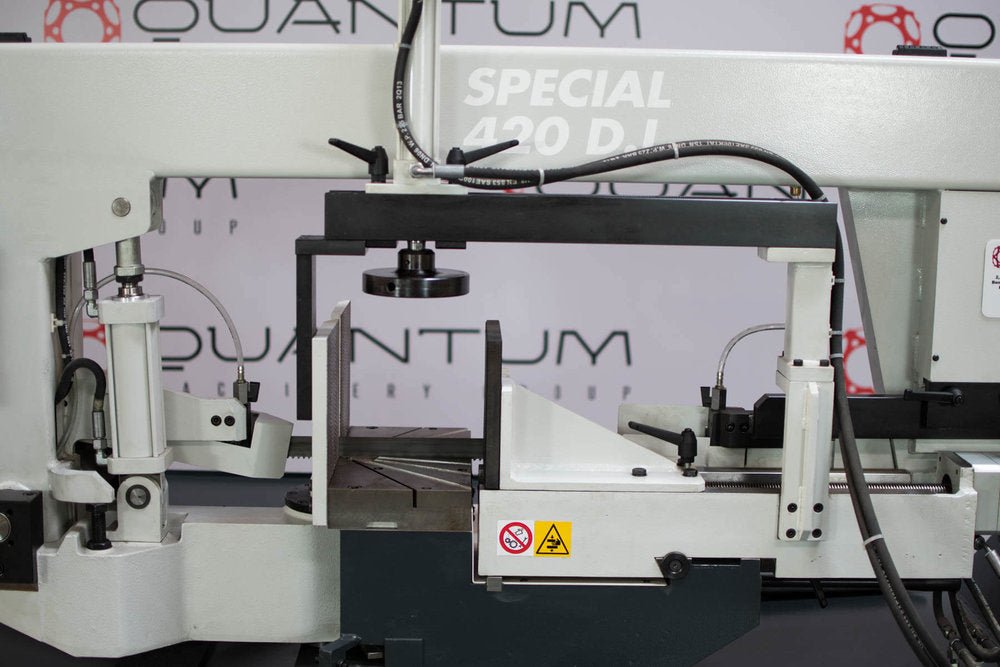

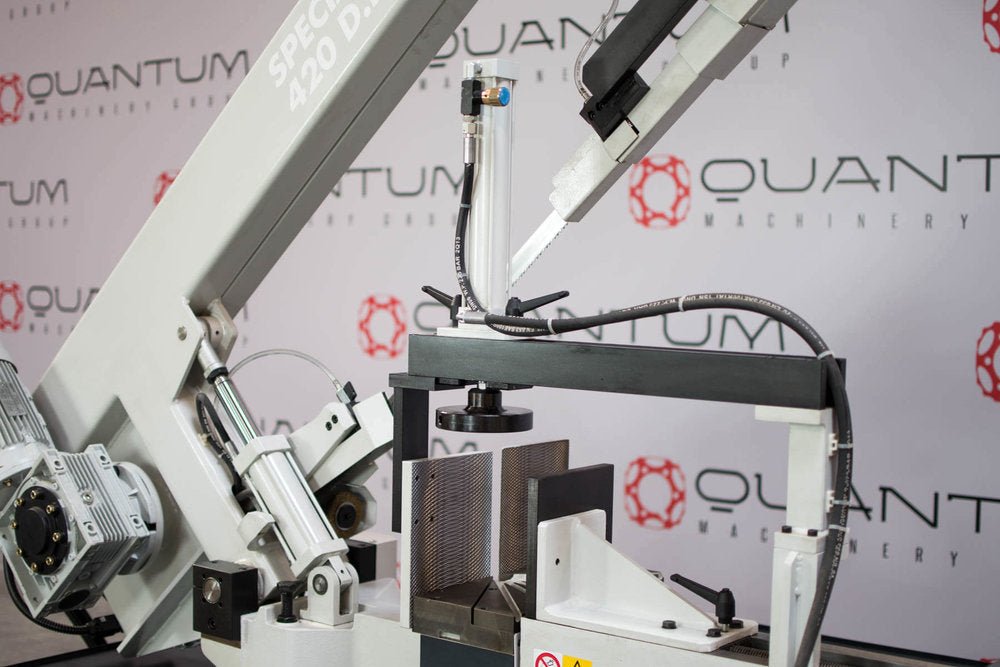

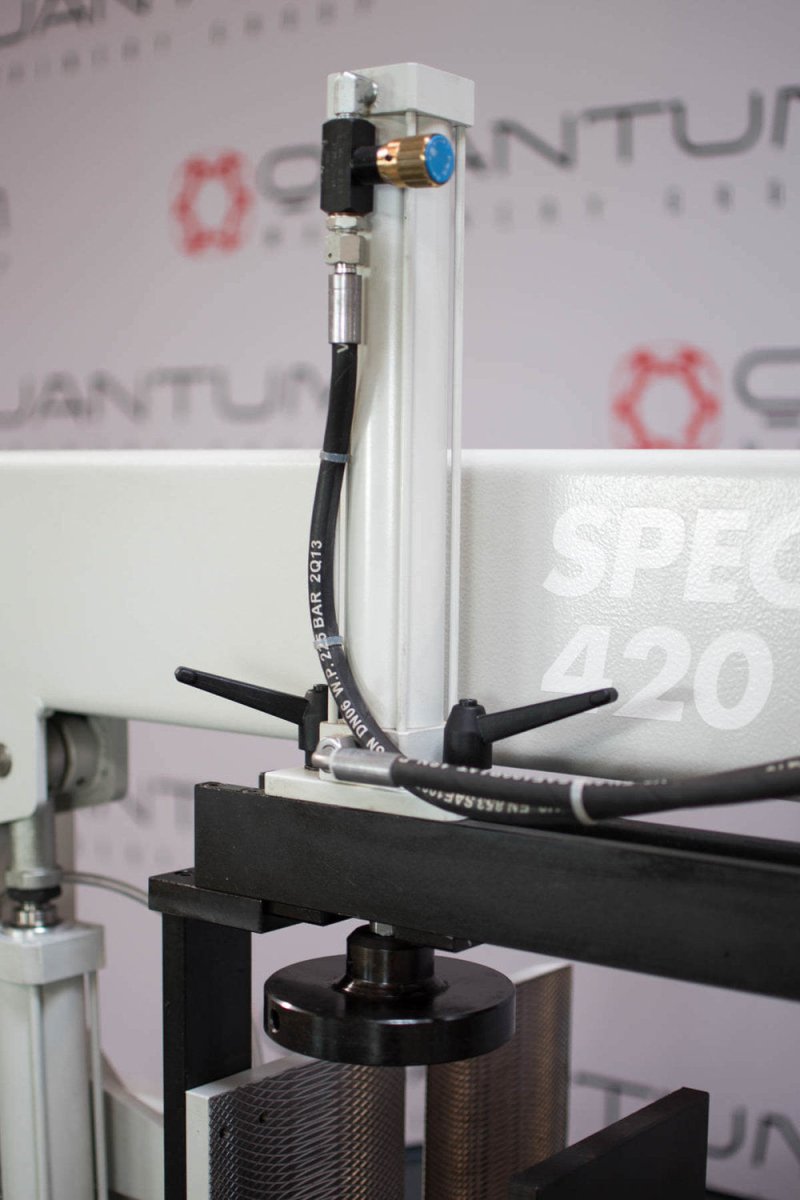

- Includes: Variable Speed Inverter, Vertical Hydraulic Clamp and Laser for Saw Cut.
- Appropriately dimensioned flywheels.
- Strong blade guides with tight stress-raiser bearings and adjustable widia tips.
- Band stretching is obtained by electro-mechanical blade tensioner with microswitch for blade rotation.
- Safety device on the flywheel casing and on the blade.
- Adjustable stop for cuts of the same size.
- Blade cleaning device with brush.

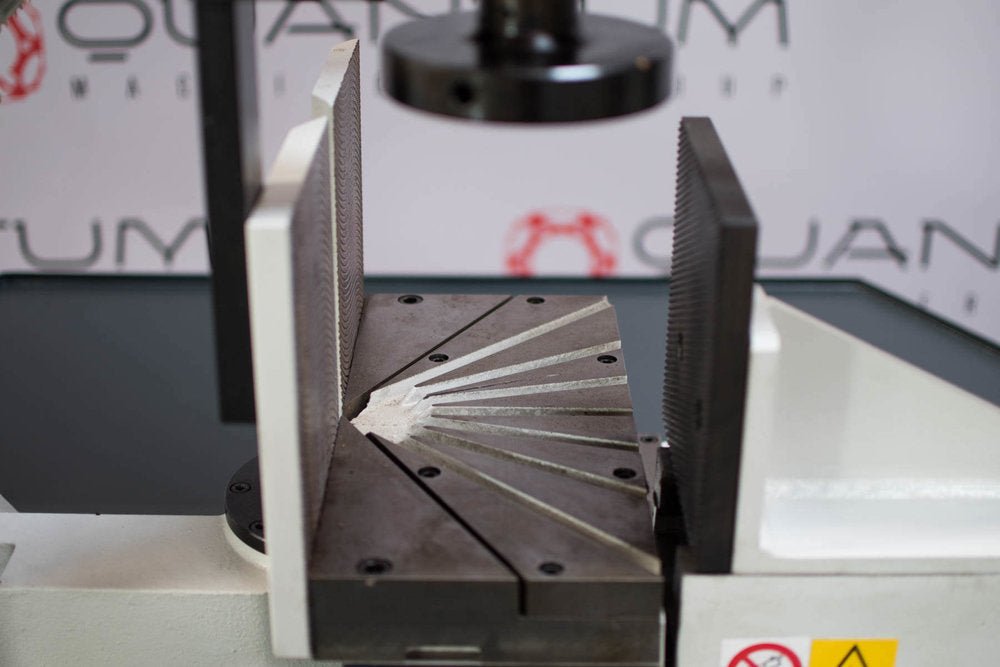

- Vice Jaws Height: 7.87" (200 mm)
- Vice Jaws Length: 7.28" (185 mm)
- Bed Height: 30" (760 mm)
- Cutting Thickness: 0.059" (1.5 mm)
- Cutting Range: 60° Left up to 60° Right.
- Blade Size: 4,610 x 34 x 1.1mm
- Maximum Vice Opening: 22" (559 mm)
- Machine Weight: 1,850 lbs. (839 kg.)
- Variable Speed Inverter: 37-75 Feet per Minute
- Motor Hydraulic Gearcase: 0.37 kW
- Electropump for Band Cooling: 0.09 kW
- Overall Dimensions (without Bar Stop): 7'-5”H x 2'-3”W x 9'-3”L or 90”H x 28”W x 112”L or 2,286 mm H x 711 mm W x2,845 mm L
- Overall Dimensions (with Bar Stop): 7'-5”H x 5'-6”W x 9'-3”L or 90”H x 68”W x 112”L or 2,286 mm H x 1,727 mm W x 2,845 mm L
- This Saw also Includes: Instruction Manual, Service Tools & 1 Band Saw Blade.
