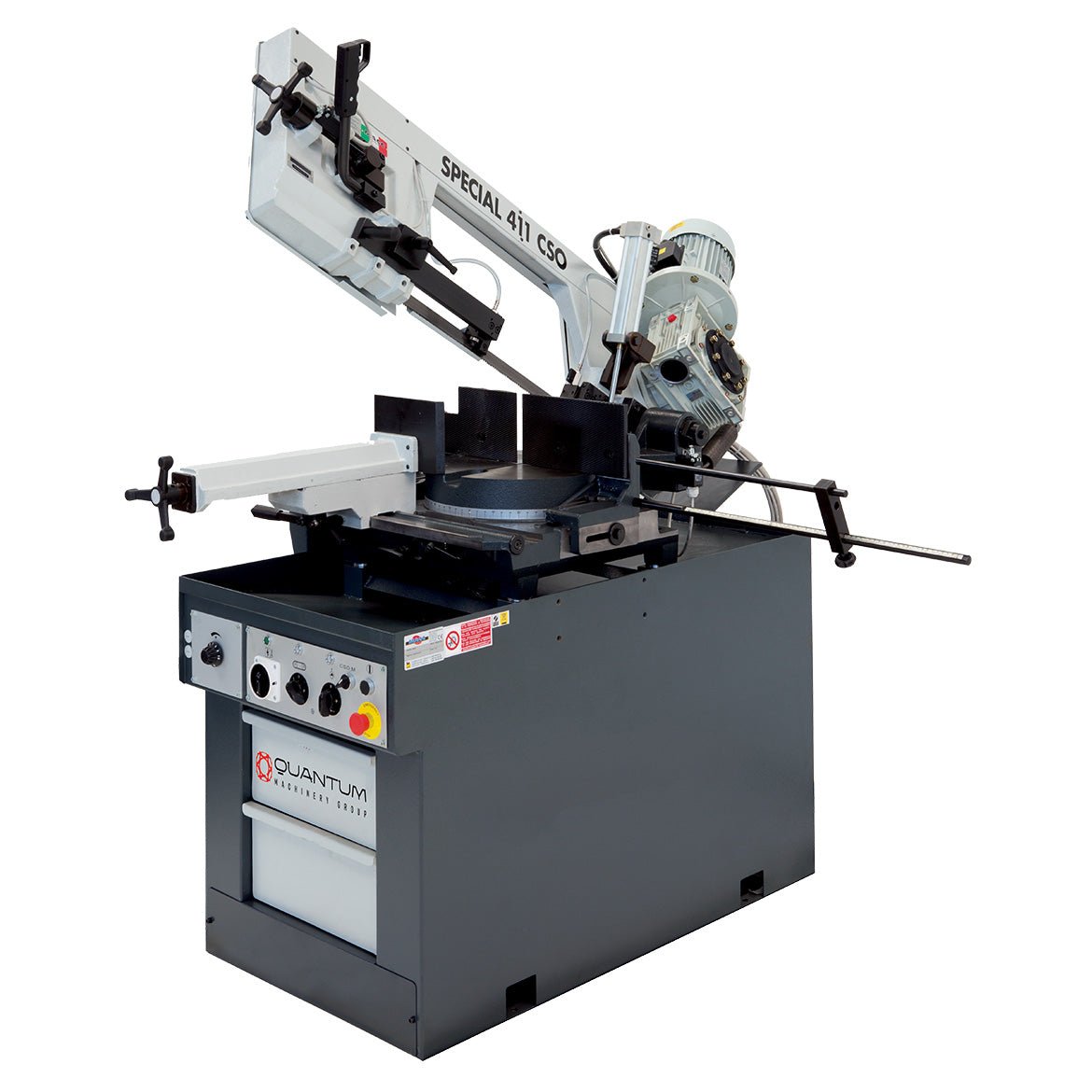

S 411 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter (11-3/4" Round Tube Capacity)

Sale price$13,200

Voltage Options: 220 Volt / 3 Phase / 60Hz

MAXIMUM CUTTING CAPACITIES:


Gray metal pipe with a smooth surface and hollow center.

Round Tube:

  • Straight Cut: 11-3/4" or 11.75"
  • 45° Left Cut: 7"
  • 45° Right Cut: 8-3/4" or 8.75"
  • 60° Right Cut: 5-1/4" or 5.25"

Metal rectangular hollow tube on a white background.

Square Tube:

  • Straight Cut: 11"
  • 45° Left Cut: 6-1/8" or 6.125"
  • 45° Right Cut: 8-1/4" or 8.25"
  • 60° Right Cut: 5-1/4" or 5.25"
  •

Rectangular Tube:

  • Straight Cut: 7-3/4"H x 15-1/2"W or 7.75"H x 15.5"W
  • 45° Left Cut: 4-1/4"H x 7"W or 4.25"H x 7"W
  • 45° Right Cut: 5-1/4"H x 8-3/4"W or 5.25"H x 8.75"W
  • 60° Right Cut: 5-1/4"H x 5-1/4"W or 5.25"H x 5.25"W
  •

  • TECHNICAL DATA & FEATURES:
  • Band Saw machine with Automatic Bow/Head-Descent, controlled by a hydraulic circuit upon cutting. The “Bar-Feeding”, Vice Closure and Head Return are manually operated.
  • Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.
  • Vertical rotation on bolt with adjustable tapered bearings without backlash.
  • High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw.
  • Appropriately dimensioned flywheels.
  • Strong band guides with tight stress-raiser bearings and adjustable widia tips
  • Band stretching is obtained by electro-mechanical blade tensioner with microswitch.

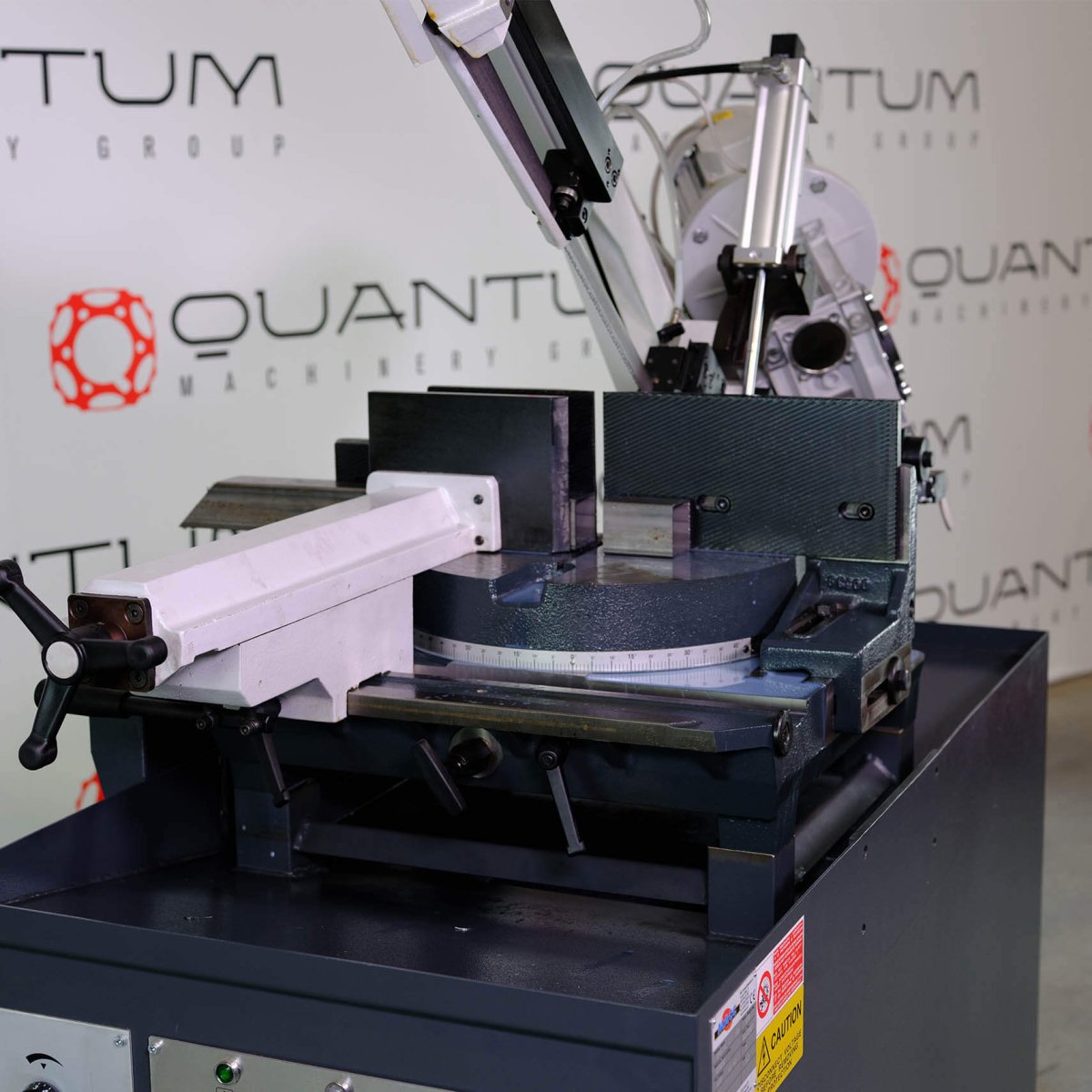

  • Vice with a device for quick approach.
  • Wide rotating material support table.
  • Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
  • Hydraulic cylinder for controlled descent.
  • Removable chip collection tray.
  • From 45° Left-Angled Cut up to 60° Right-Angled Cut.
  • Adjustable stop for cuts of the same size.
  • 24 V low tension plant.
  • 0,06 kW power-driver pump for band cooling.
  • Cutting Thickness: .047" (1.2 mm)
  • Cutting Range: 45° left to 60° Right.
  • Blade Size: 3,200 x 27 x 0.9 mm
  • Maximum Vice Opening: 15.75" (400 mm)
  • Machine Weight: 1,170 lbs. (530 kg)
  • 2 Speeds: 38 - 77' per Minute
  • This Saw Includes: Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Band Saw Blade.
  • Overall Dimensions (without Bar Stop): 6'-6"H x 5'-2"W x 6'L or 79”H x 26”W x 72”L or 2,006 mm H x 660 mm W x 1,829 mm L
  • Overall Dimensions (with Bar Stop): 6'-6"H x 4'-3"W x 6'L or 79”H x 52”W x 72”L or 2,006 mm H x 1,321 mm W x 1,829 mm L
  • Additionally, this Saw Includes: 1 Blade, Variable Speed Inverter, Pedal Controlled Pneumatic Vice, Digital Angle Reader and the Entry/Exit Side Support Brackets.
  • Electrical Options Available: 220 Volt / 3 Phase or 480 Volt / 3 Phase
