MAXIMUM CUTTING CAPACITIES:

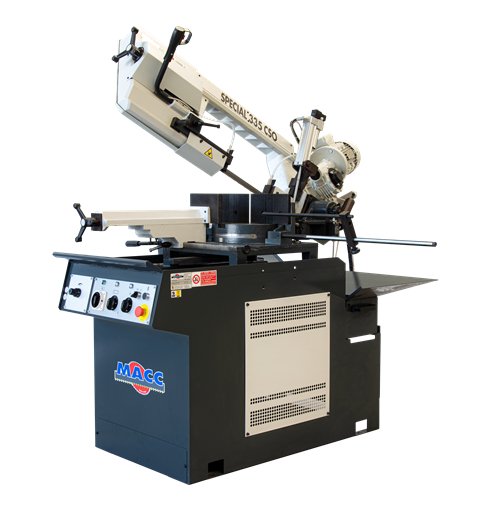

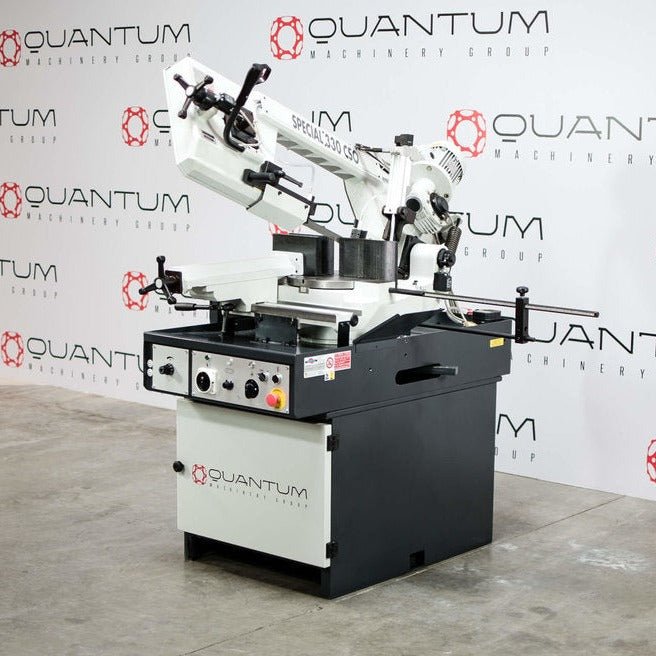

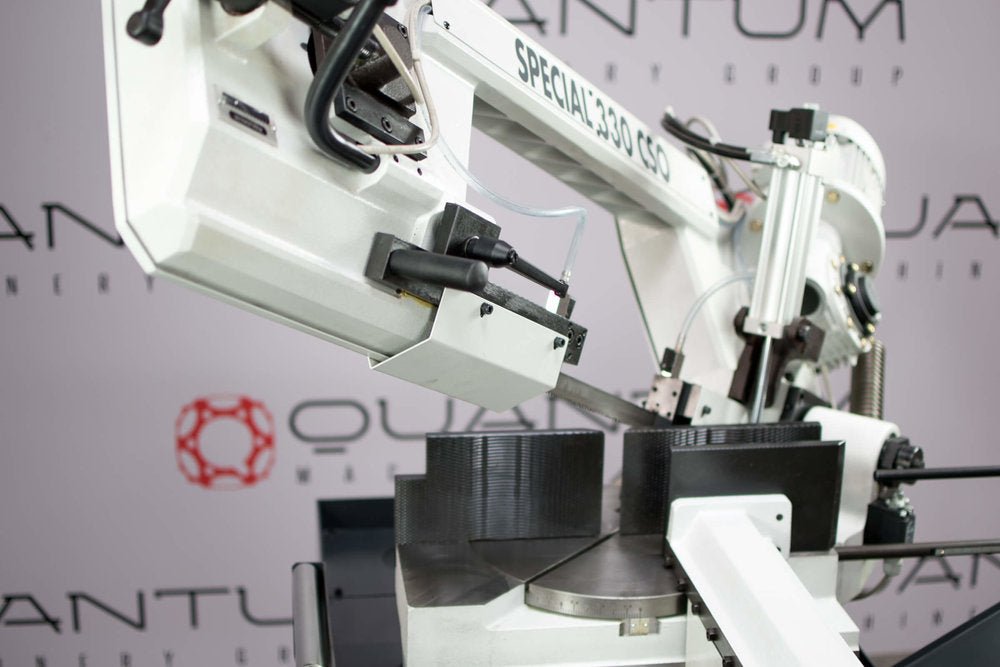

S 335 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter
S 335 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter
Sale price$9,900
Regular price (/)
Round Tube:
- Straight Cut: 10-1/8" or 10.125"
- 45° Left Cut: 7"
- 45° Right Cut: 8-1/4" or 8.25"
- 60° Right Cut: 5-1/8" or 5.125"
Square Tube:
- Straight Cut: 9-3/4" or 9.75"
- 45° Left Cut: 6"
- 45° Right Cut: 7-3/4" or 7.75"
- 60° Right Cut: 5-1/8" or 5.125"
Rectangular Tube:
- Straight Cut: 7"H x 12-3/4"W or 7"H x 12.75"W
- 45° Left Cut: 2-1/4"H x 8-3/4"W or 2.25"H x 8.75"W
- 45° Right Cut: 6-1/4"H x 8-1/4"W or 6.25"H x 8.25"W
- 60° Right Cut: 5-1/8"H x 5-1/4"W or 5.125"H x 5.25"W
TECHNICAL DATA & FEATURES:
- Band Saw machine with Automatic Bow/Head-Descent, controlled by a hydraulic circuit upon cutting. The “Bar-Feeding”, Vice Closure and Head Return are manually operated.
- Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.
- Vertical rotation on bolt with adjustable tapered bearings without backlash.
- High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw.
- Appropriately dimensioned flywheels.

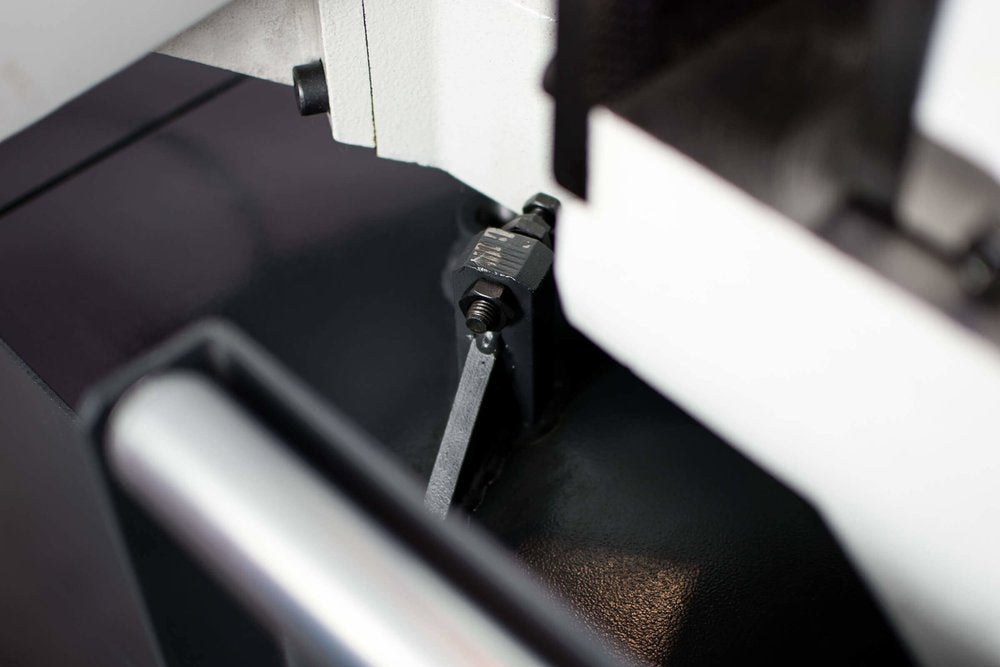

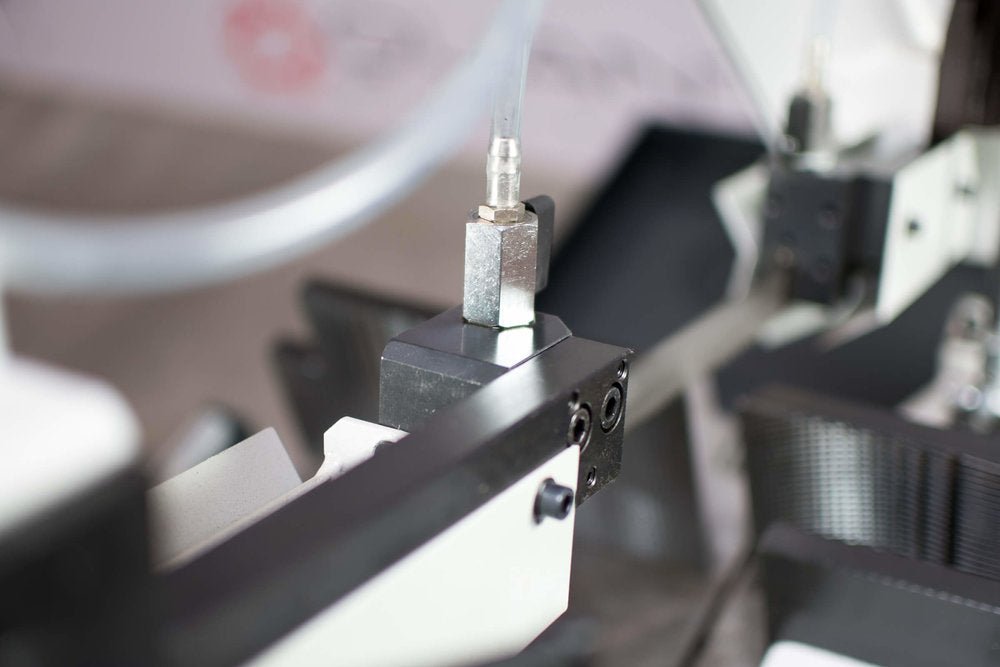

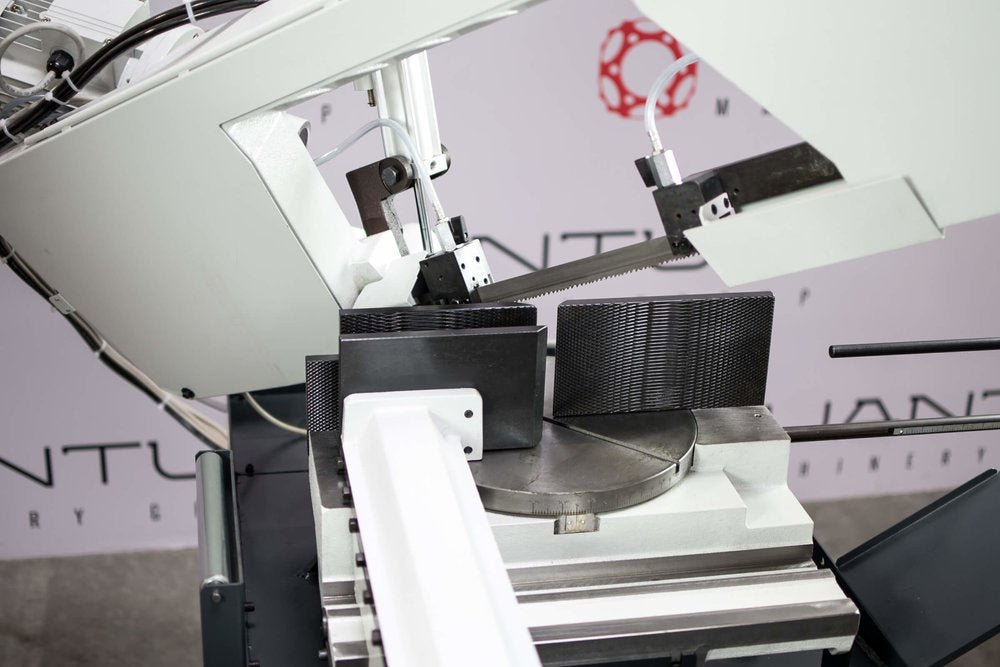

- Strong band guides with tight stress-raiser bearings and adjustable widia tips

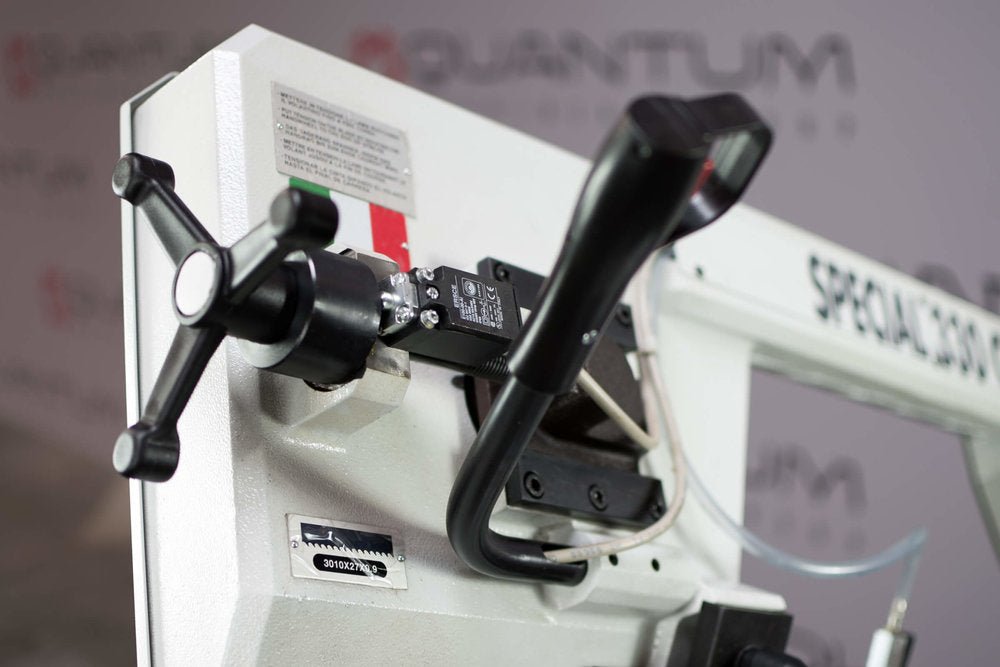

- Band stretching is obtained by electro-mechanical blade tensioner with microswitch.

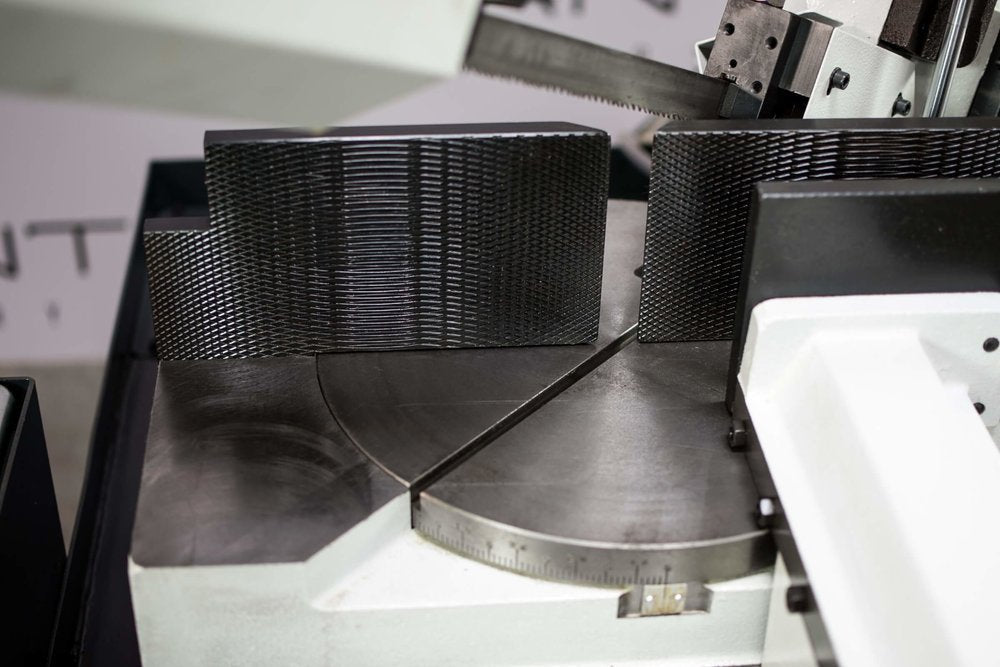

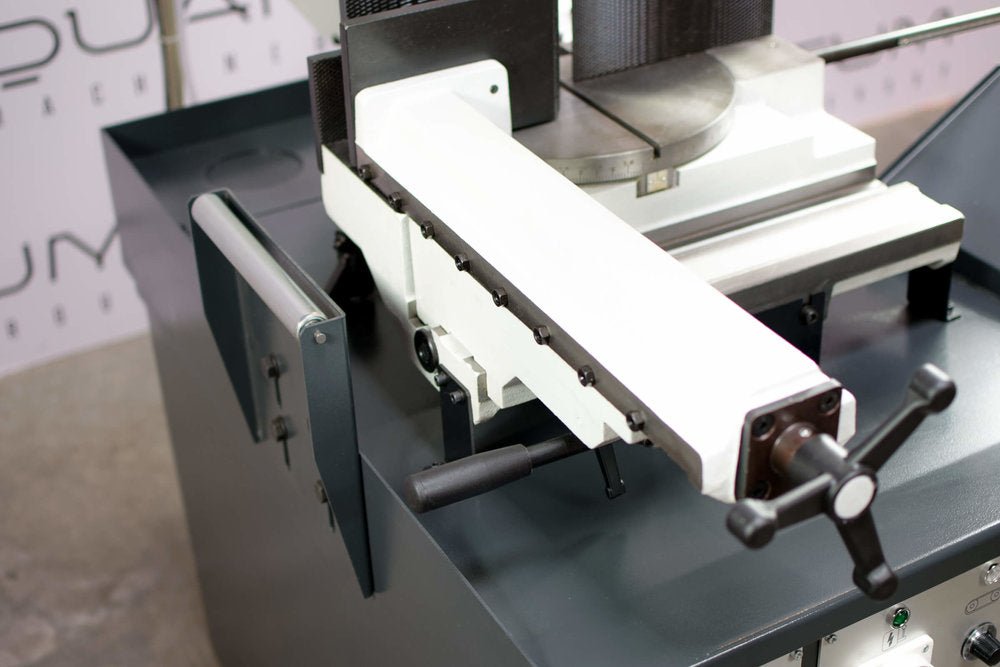

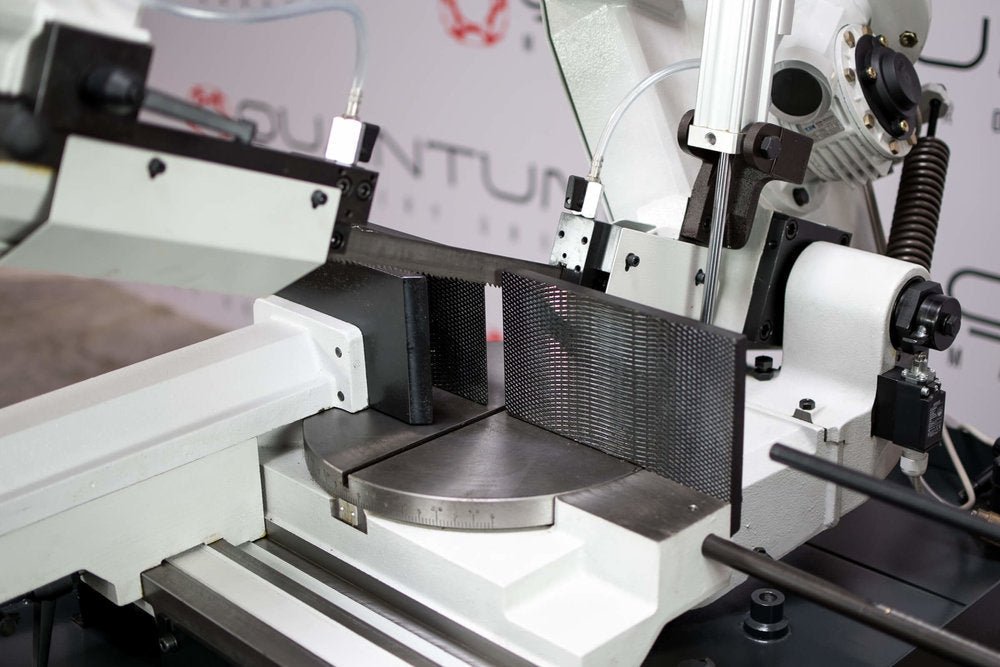

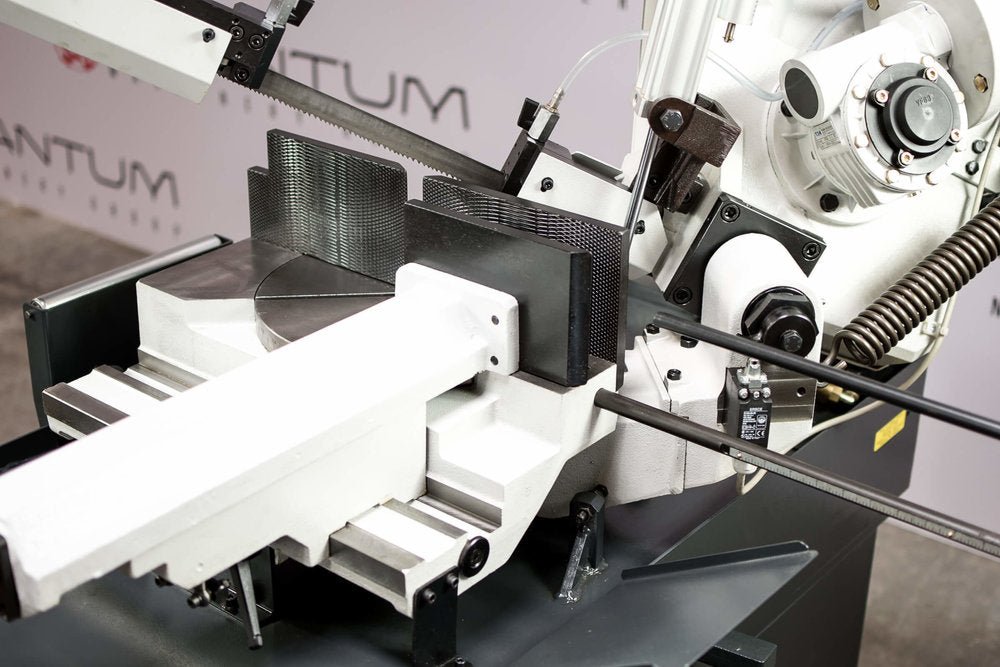

- Vice with a device for quick approach.
- Wide rotating material support table.
- Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.

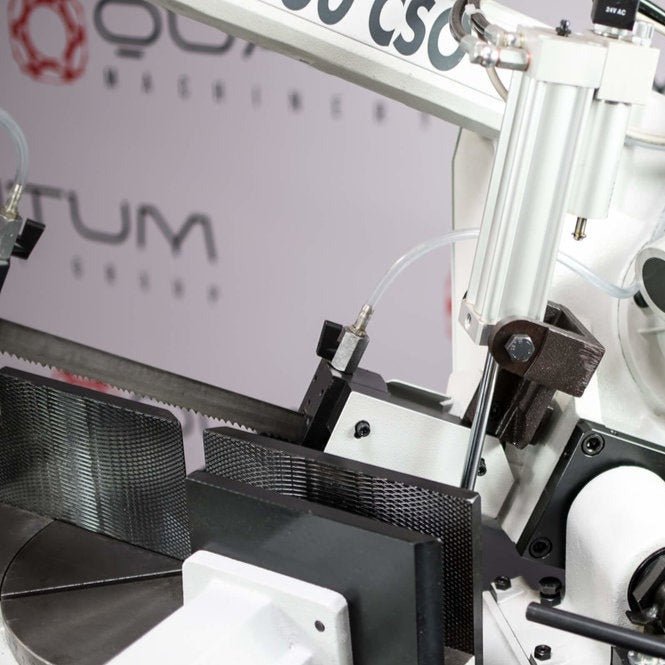

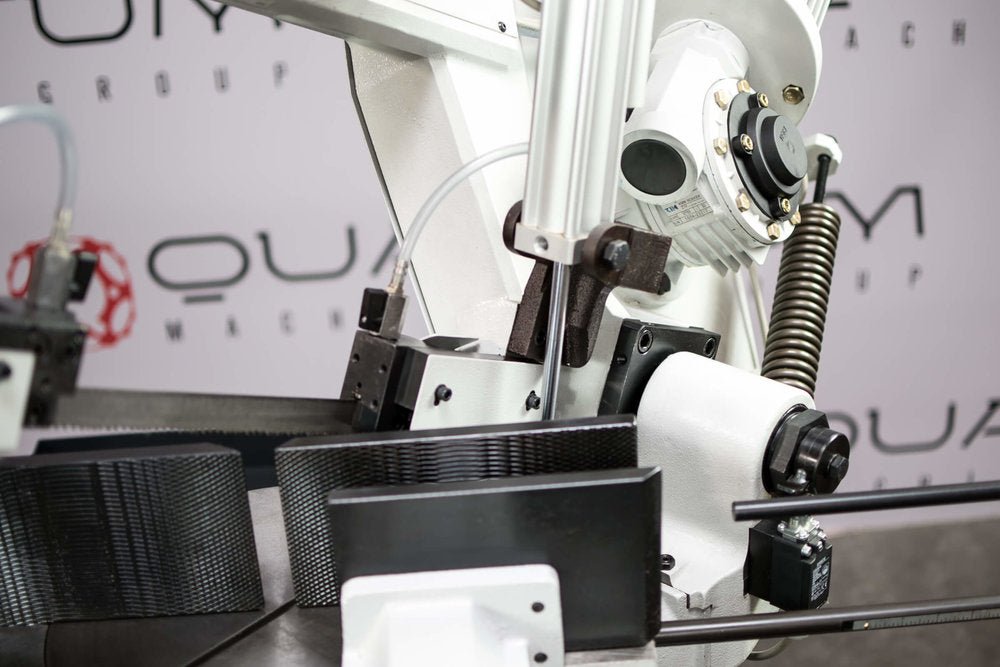

- Hydraulic cylinder for controlled descent.
- Removable chip collection tray.

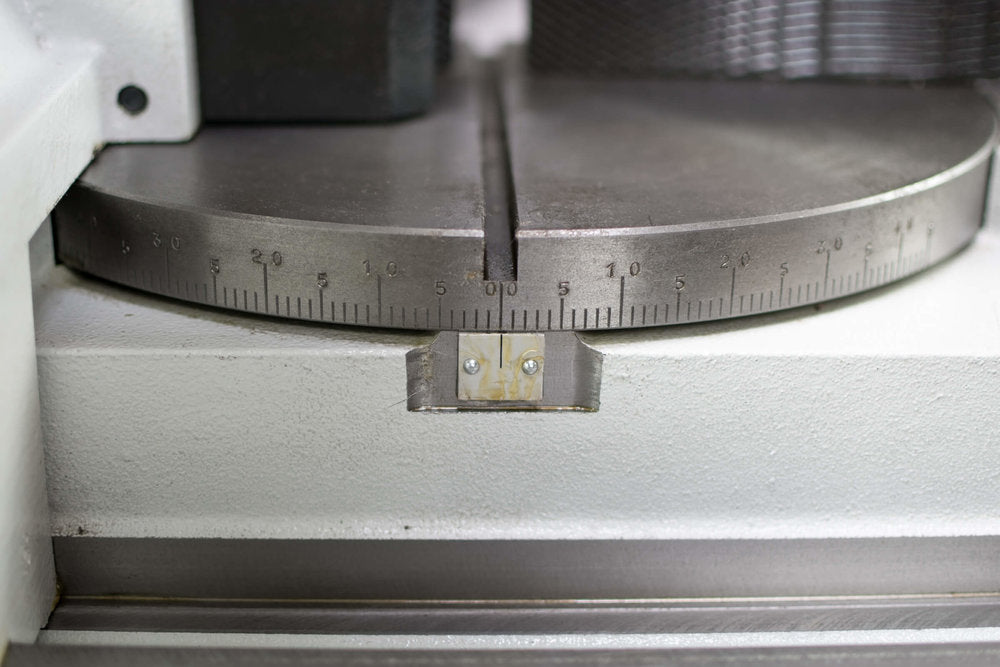

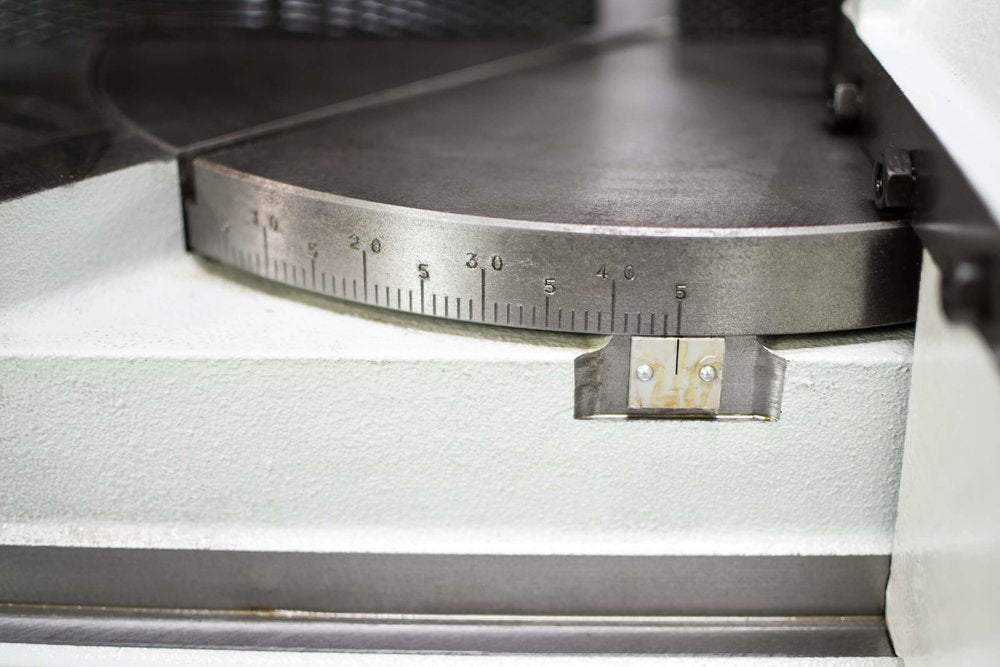

- Cutting range 45° left 60° right.
- Adjustable stop for cuts of the same size.
- 24 V low tension plant.
- 0.06 kW power-driver pump for band cooling.
- Cutting Thickness: .047" (1.2 mm)
- Cutting Range: 45° left to 60° Right.
- Blade Size: 3,010 x 27 x 0.9 mm
- Maximum Vice Opening: 13" (330 mm)
- Machine Weight: 915 lbs. (415 kg.)
- Motor Power: 0.75 - 1.1 kW
- This Saw Includes: Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Band Saw Blade.
- Alternate Electrical: 480V / 3 PH, instead of 220V / 3 PH
