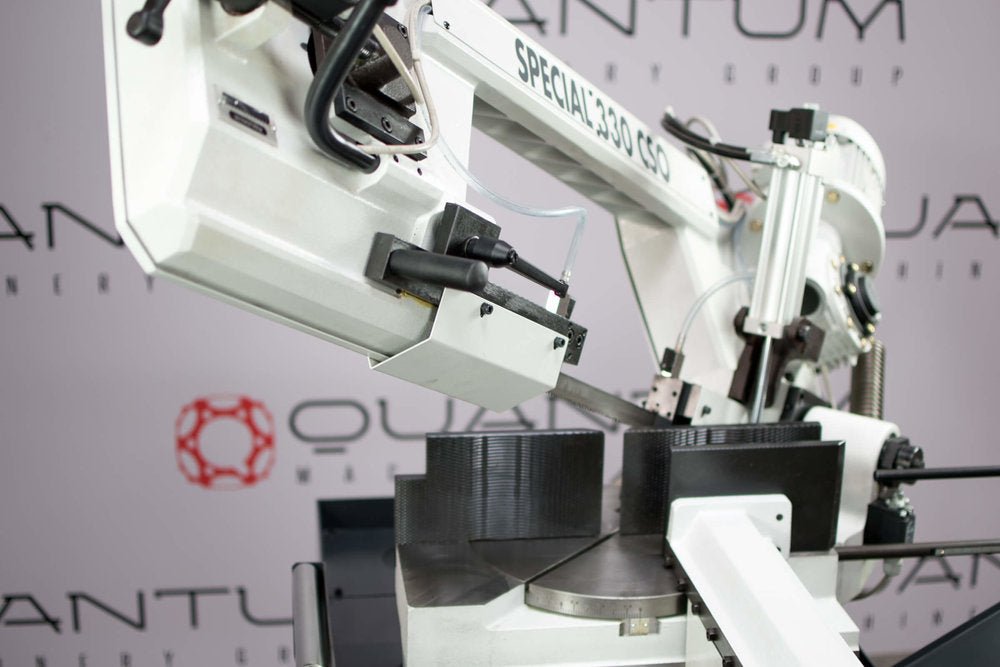

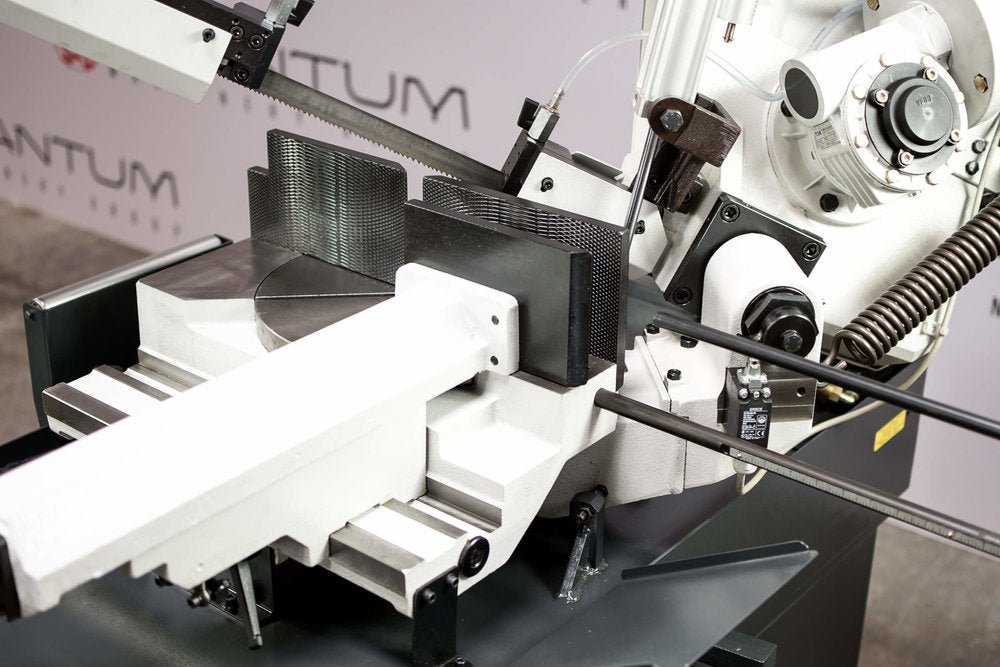

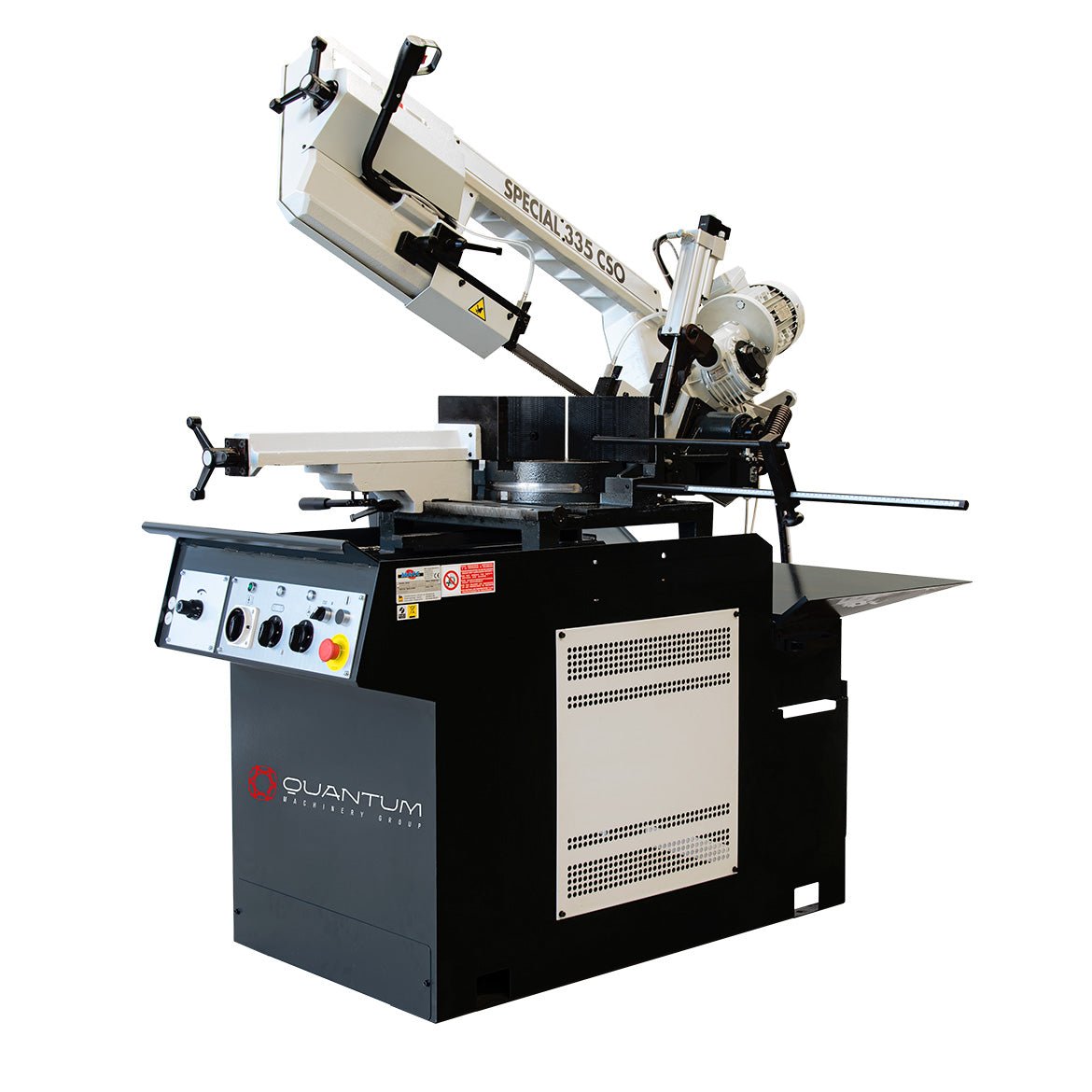

S 335 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter

MAXIMUM CUTTING CAPACITIES:

Round Tube
Straight Cut: 10.2"
45° Right Cut: 8.5"
45° Left Cut: 7"
60° Right Cut: 5.1"

Square Tube
Straight Cut: 9.8"
45° Right Cut: 7.9"
45° Left Cut: 6.1"
60° Right Cut: 5.1"

Rectangular Tube
Straight Cut: 8.5"H x 13"W
45° Right Cut: 6.3"H x 8.3"W
45° Left Cut: 2.4"H x 8.9"W
60° Right Cut: 5.1"H x 5.5"W

TECHNICAL DATA & FEATURES:

• Band Saw machine with Automatic Bow/Head-Descent, controlled by a hydraulic circuit upon cutting. The “Bar-Feeding”, Vice Closure and Head Return are manually operated.
• Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.
• Vertical rotation on bolt with adjustable tapered bearings without backlash.
• High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw.
• Appropriately dimensioned flywheels.

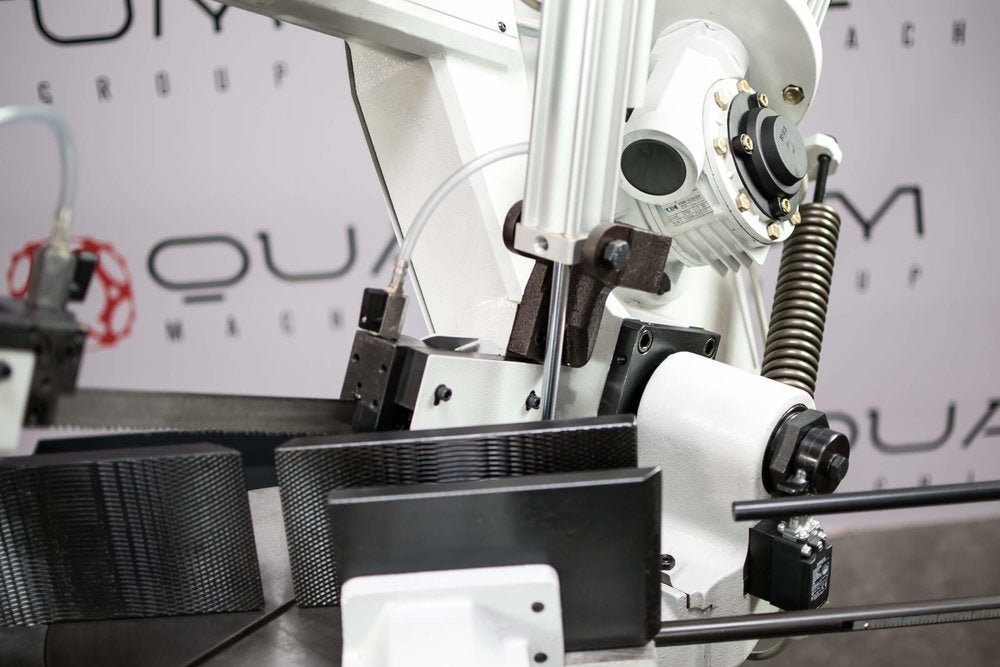

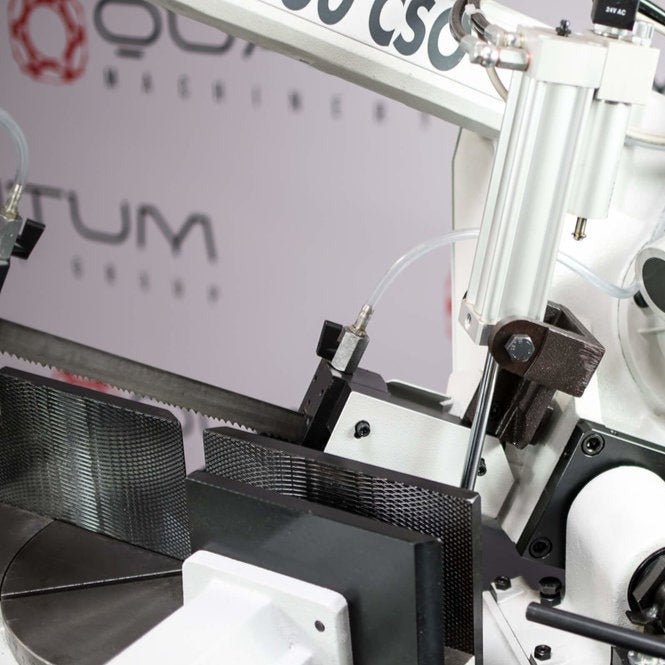

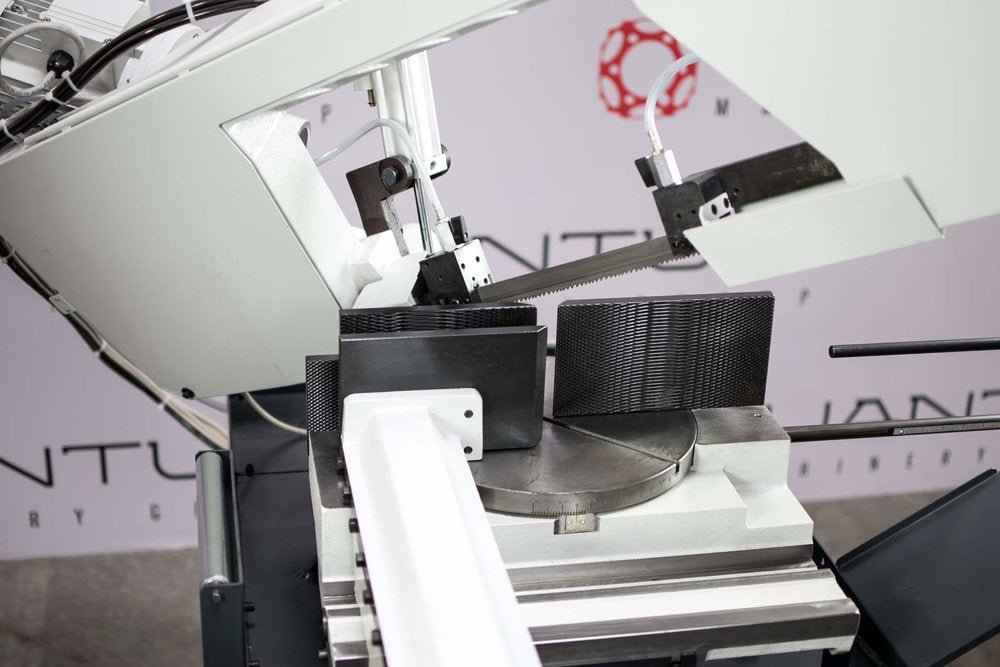

• Strong band guides with tight stress-raiser bearings and adjustable widia tips

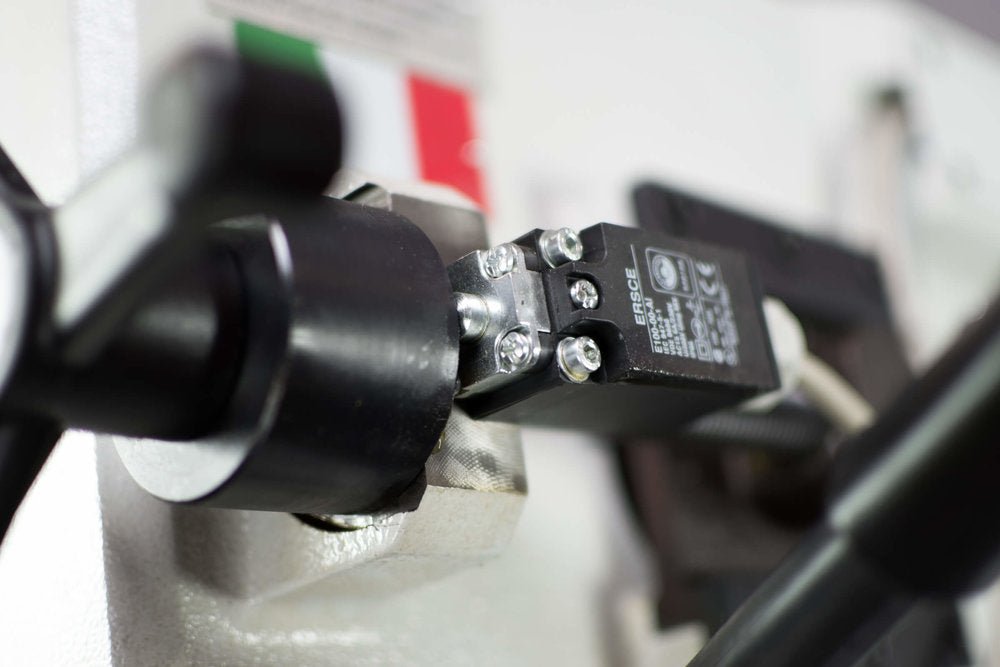

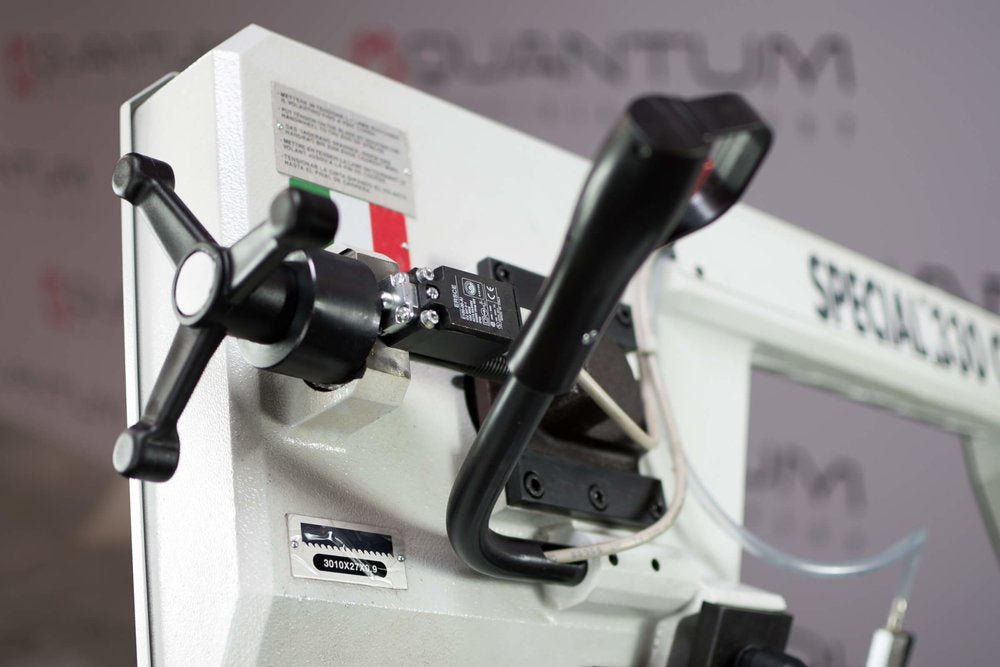

• Band stretching is obtained by electro-mechanical blade tensioner with microswitch.

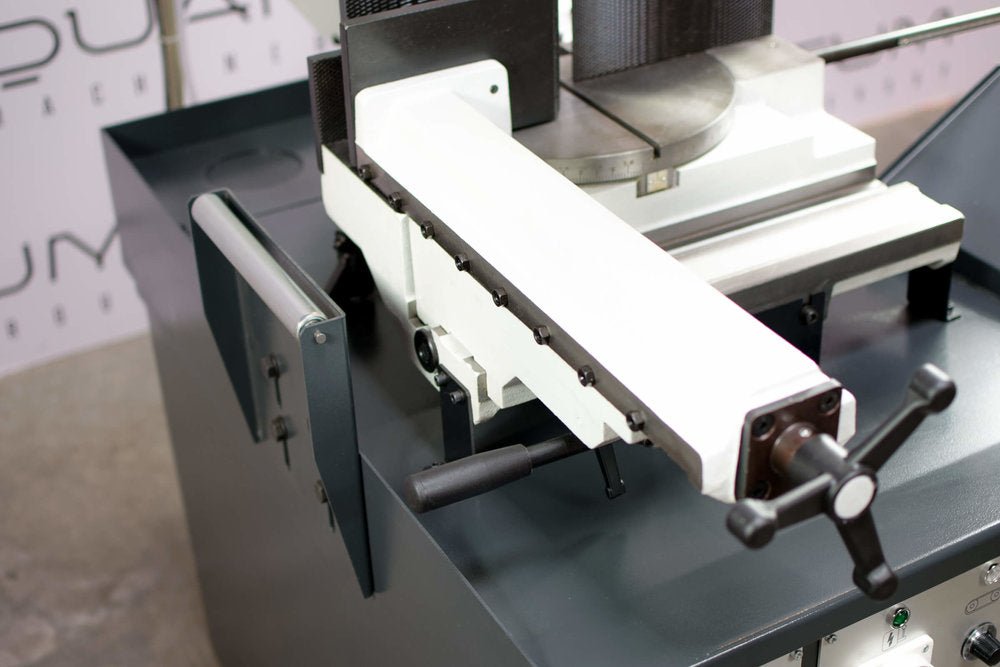

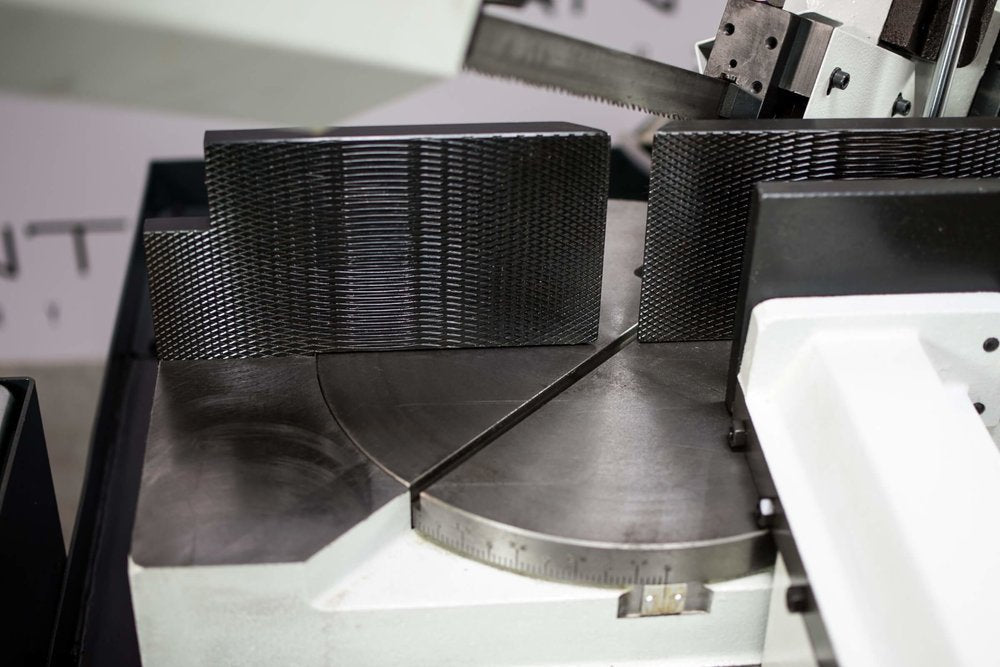

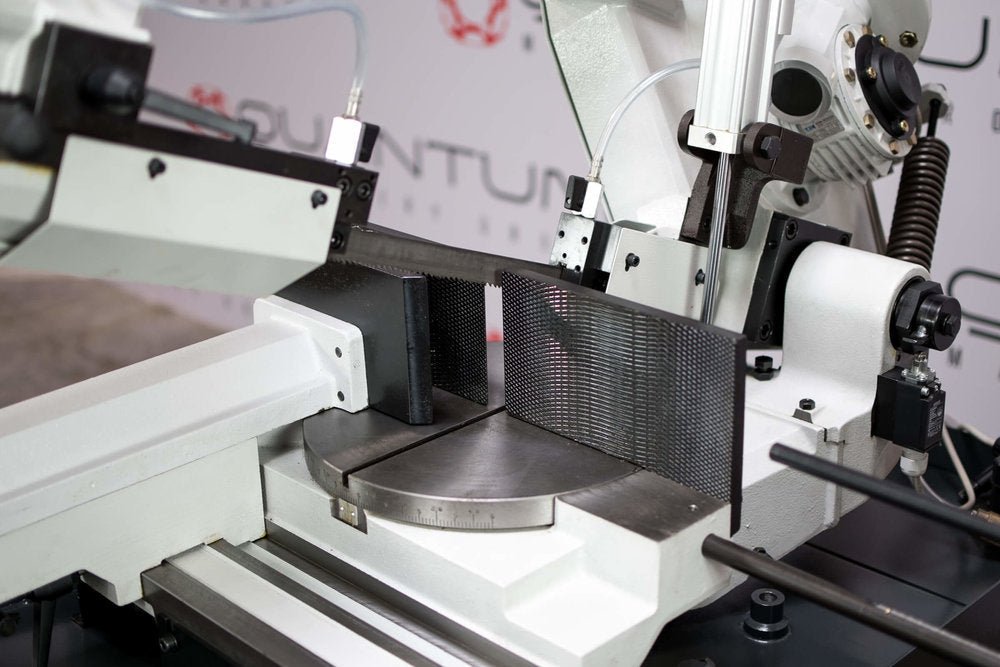

• Vice with a device for quick approach.
• Wide rotating material support table.
• Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
• Hydraulic cylinder for controlled descent.
• Removable chip collection tray.

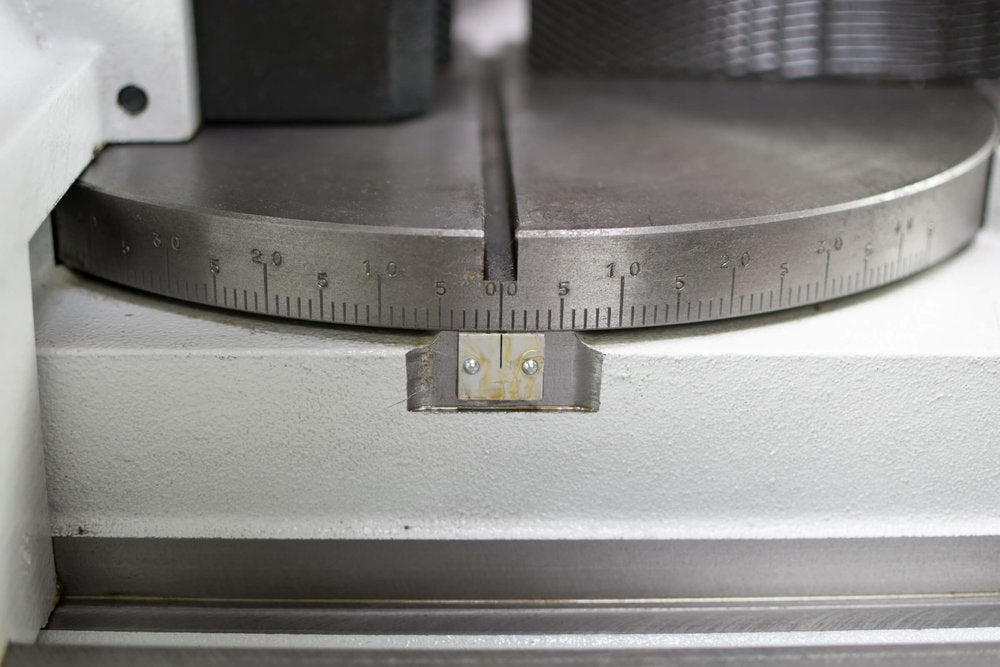

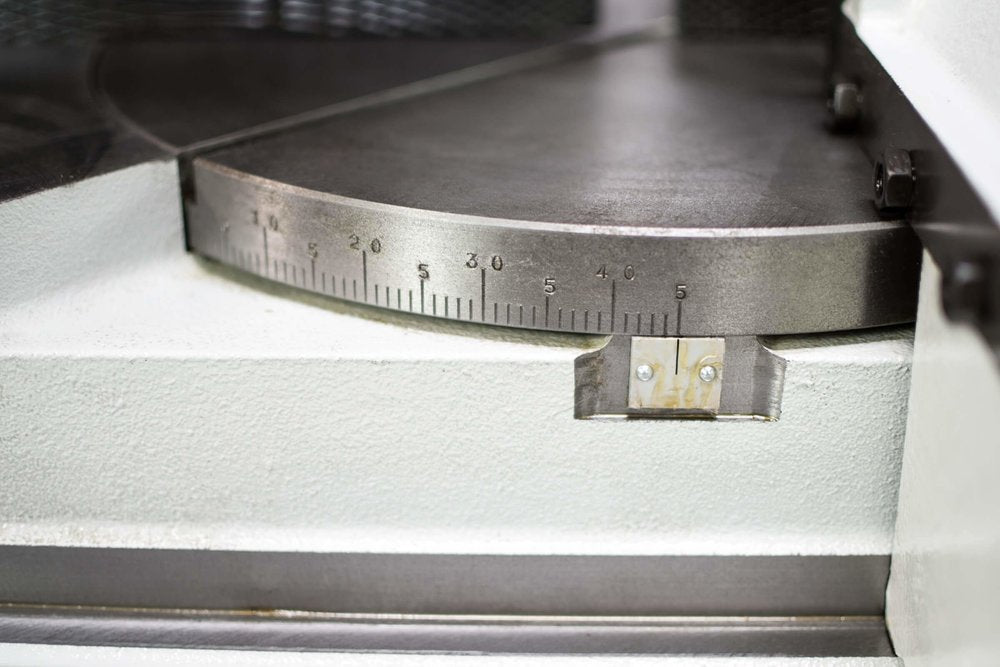

• Cutting range 45° left 60° right.
• Adjustable stop for cuts of the same size.
• 24 V low tension plant.

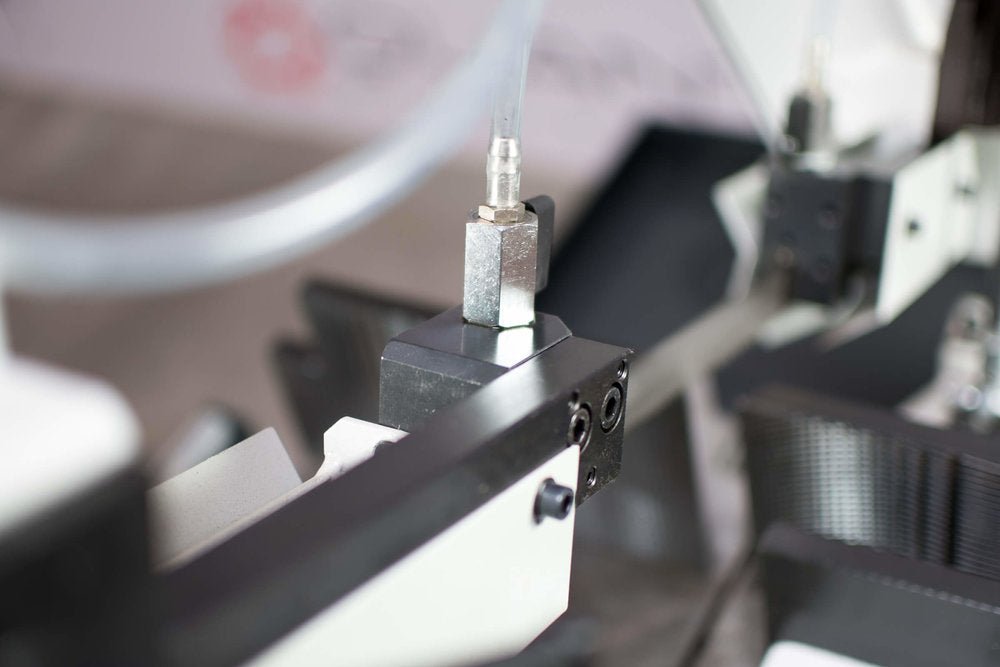

• 0.06 kW power-driver pump for band cooling.
• Cutting Thickness: .047" (1.2 mm)
• Cutting Range: 45° left to 60° Right.
• Blade Size: 3,010 x 27 x 0.9 mm
• Maximum Vice Opening: 13" (330 mm)
• Machine Weight: 915 lbs. (415 kg.)
• Motor Power: 0.75 - 1.1 kW
• This Saw Includes: Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Band Saw Blade.
• Alternate Electrical: 480V / 3 PH, instead of 220V / 3 PH
