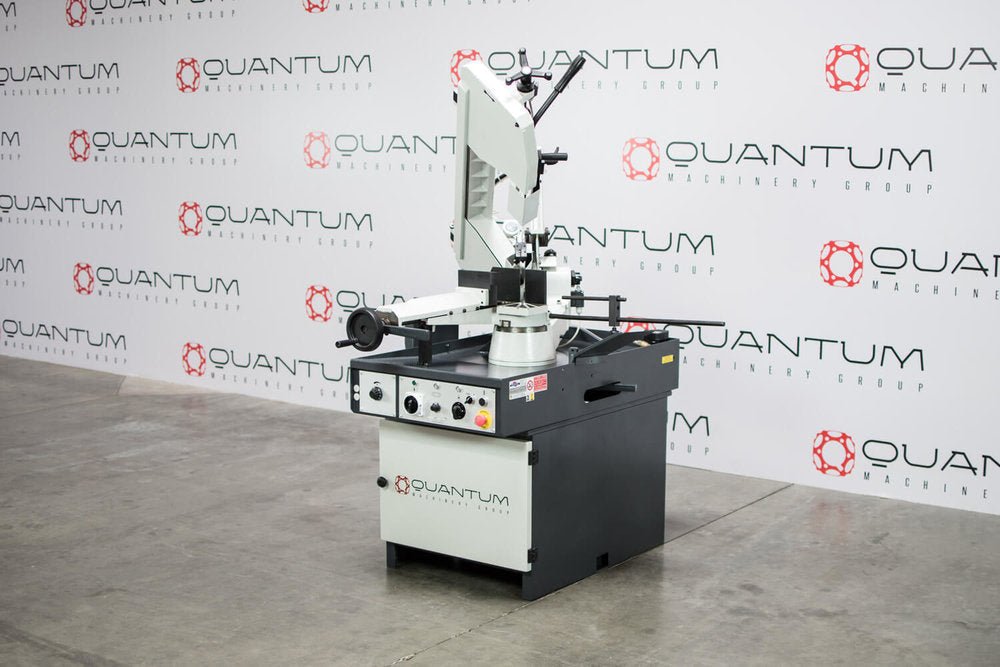

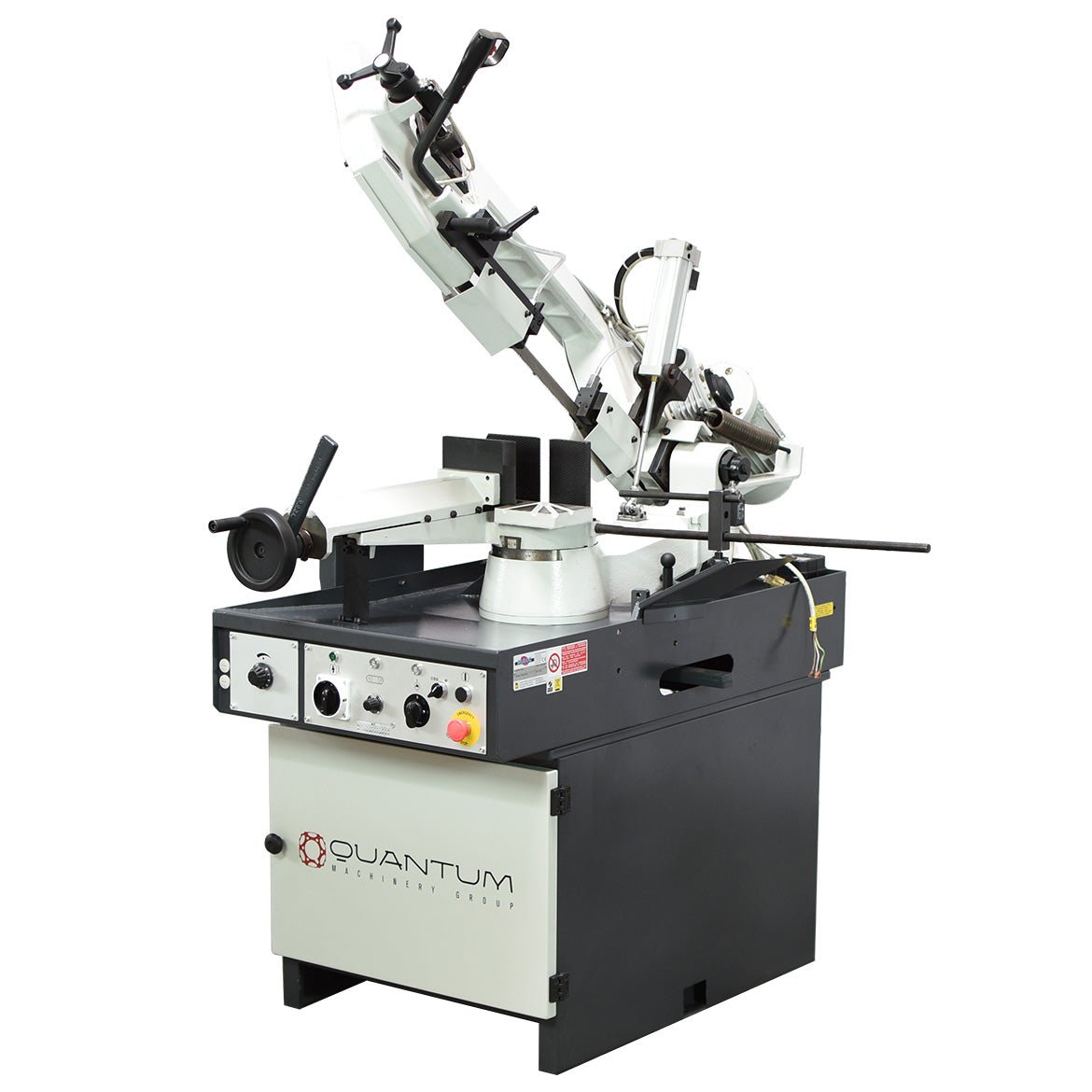

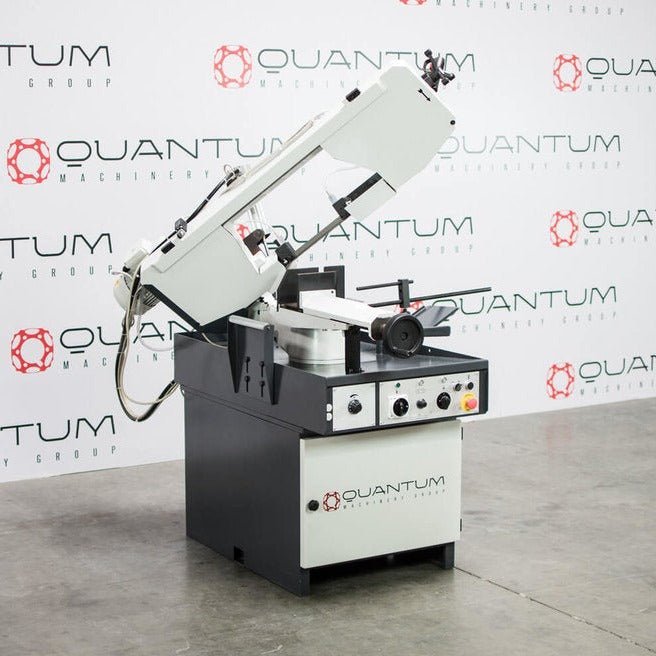

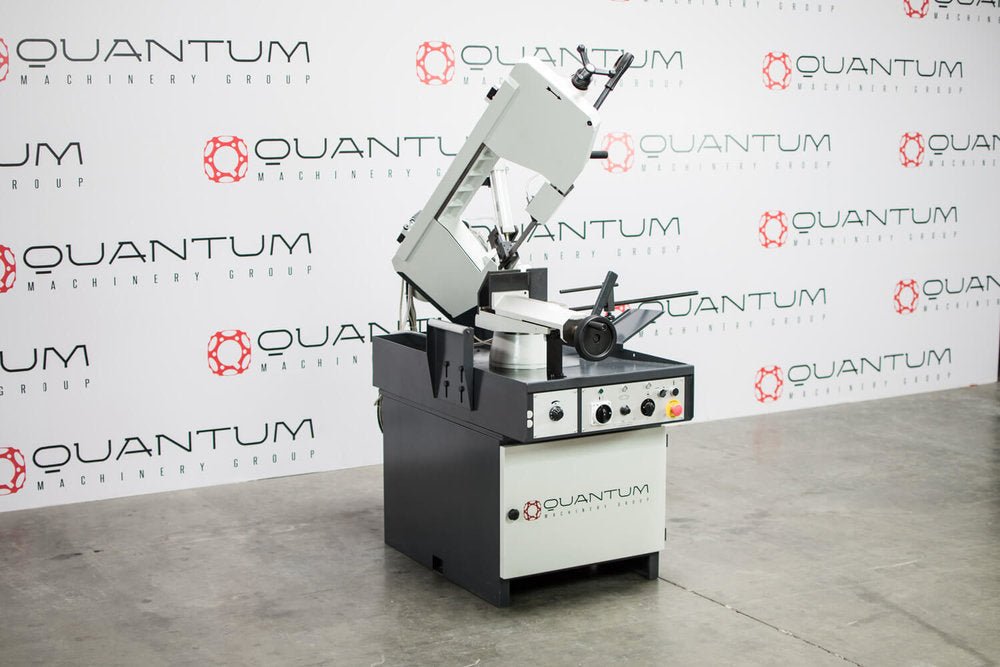

S 320 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter (9" Round Tube Capacity)

MAXIMUM CUTTING CAPACITIES:

Round Tube

• Straight Cut: 9"
• 45° Right Cut: 7.75"
• 60° Right Cut: 5"

Square Tube

• Straight Cut: 8.5"
• 45° Right Cut: 7"
• 60° Right Cut: 4.5"

Rectangular Tube

• Straight Cut: 6.5"H x 11.75"W
• 45° Right Cut: 7"H x 9"W
• 60° Right Cut: 4.25"H x 5"W

TECHNICAL DATA & FEATURES:

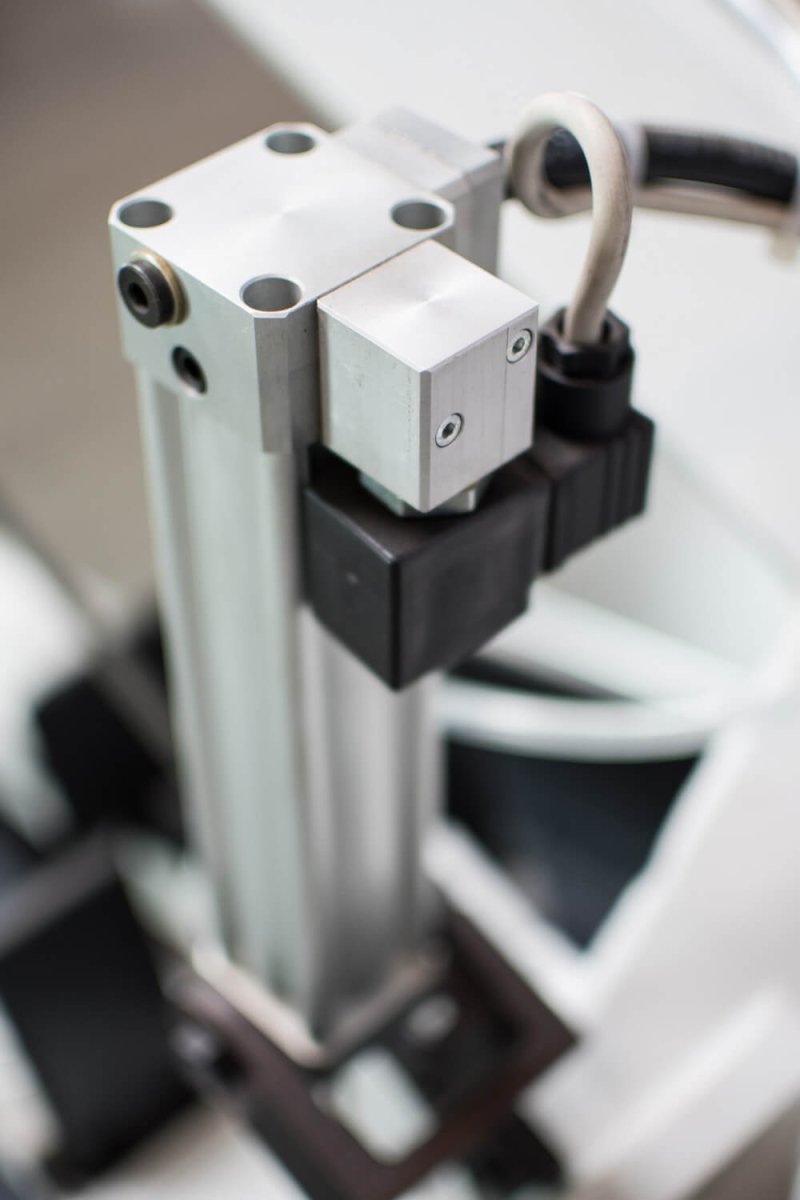

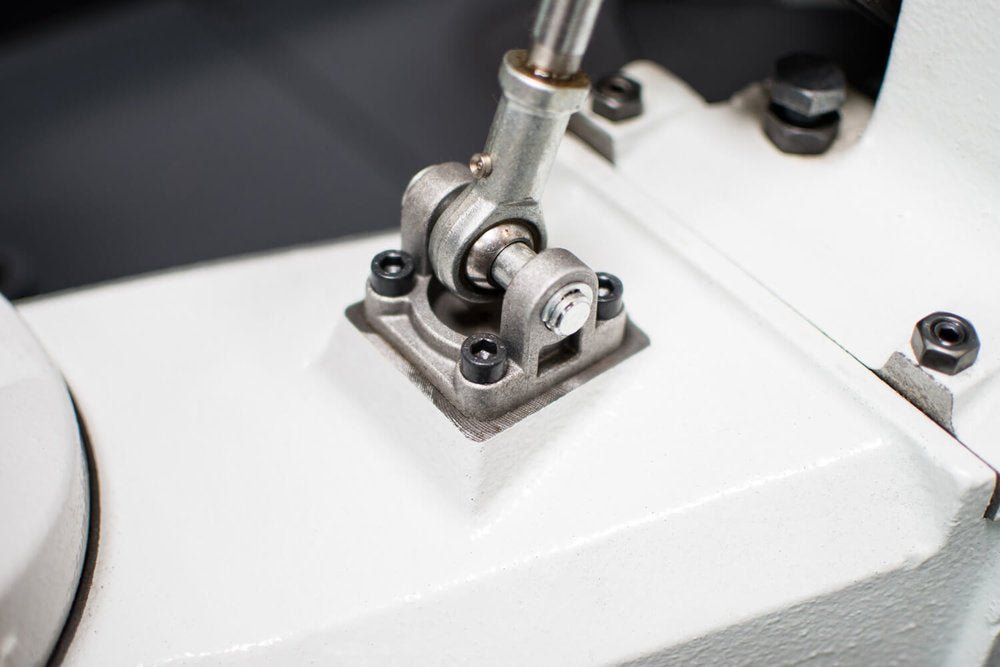

• • Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.

  • Vertical rotation on bolt with adjustable tapered bearings without backlash.

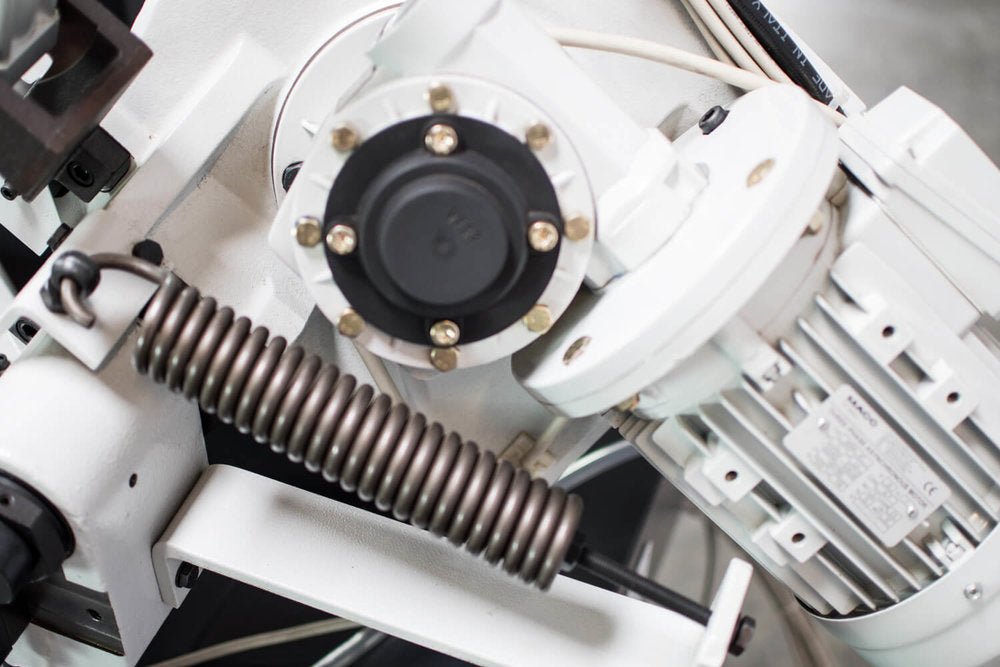

  • High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw.
  • Appropriately dimensioned flywheels.

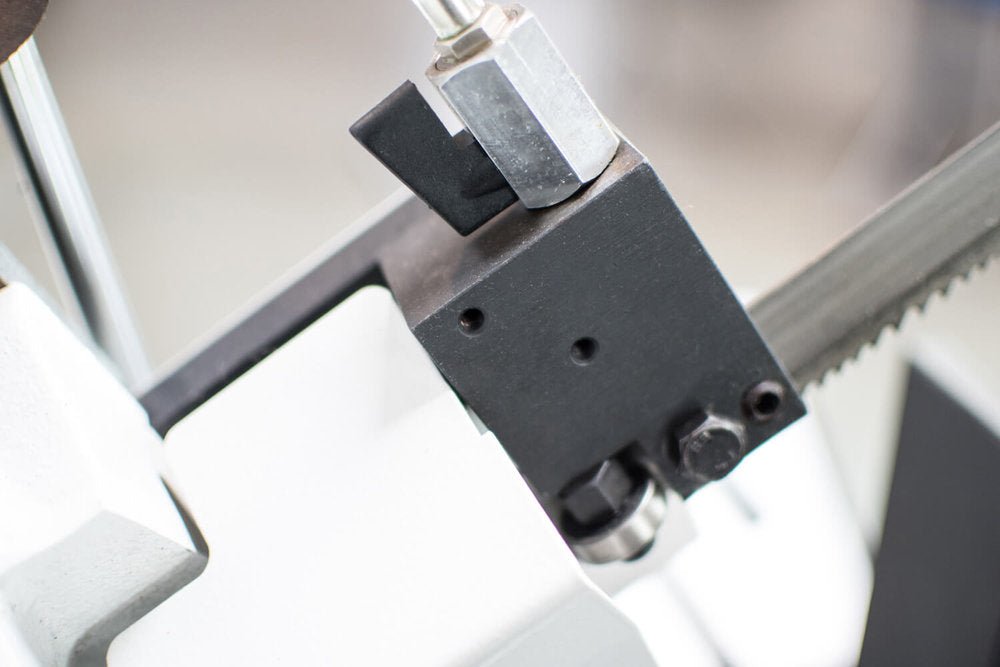

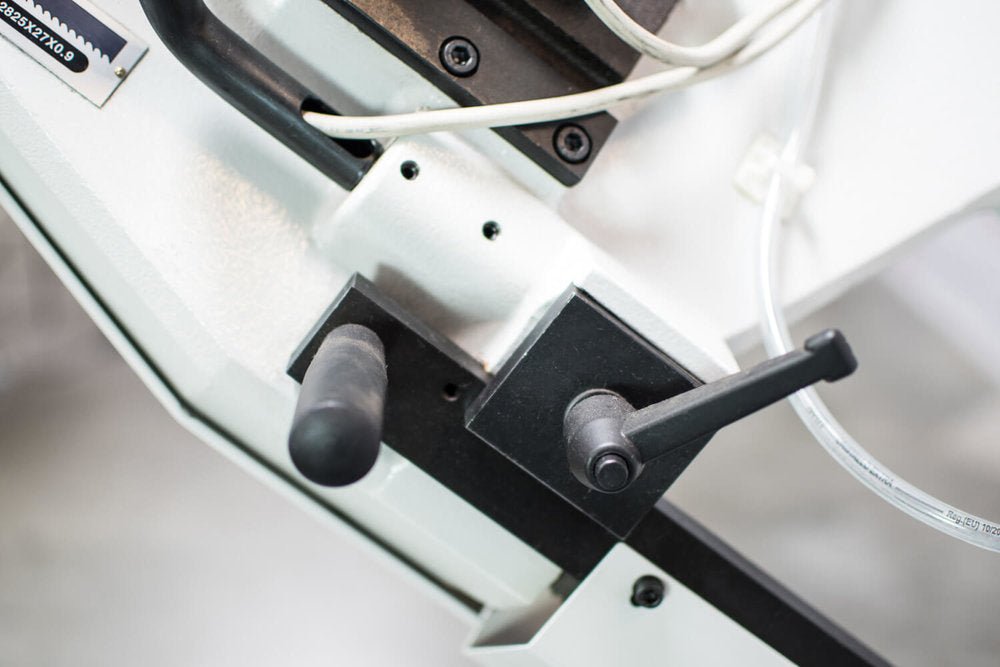

  • Strong band guides with tight stress-raiser bearings and adjustable widia tips.

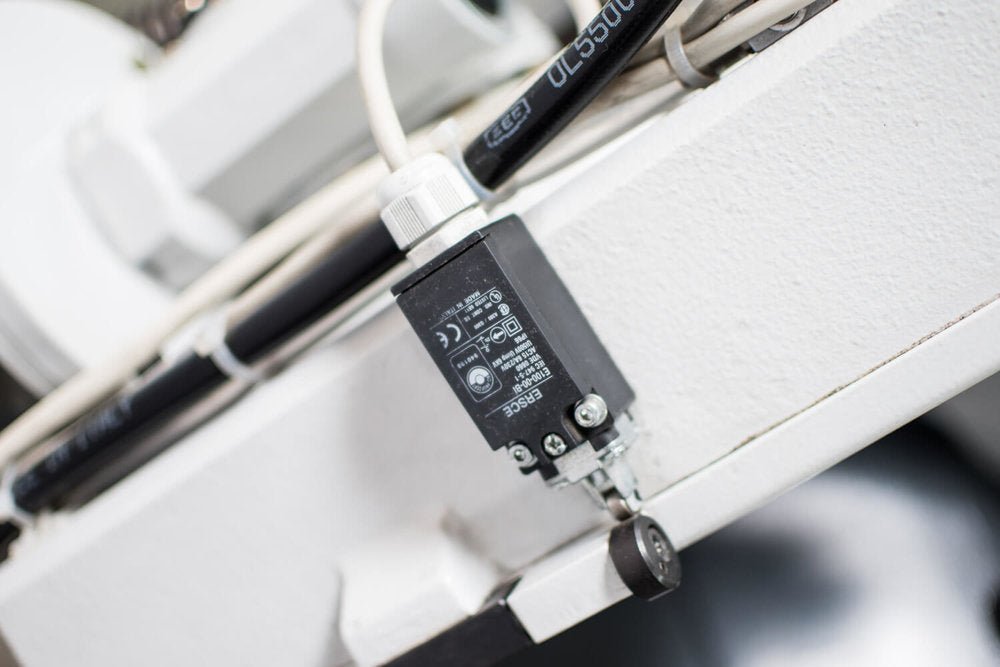

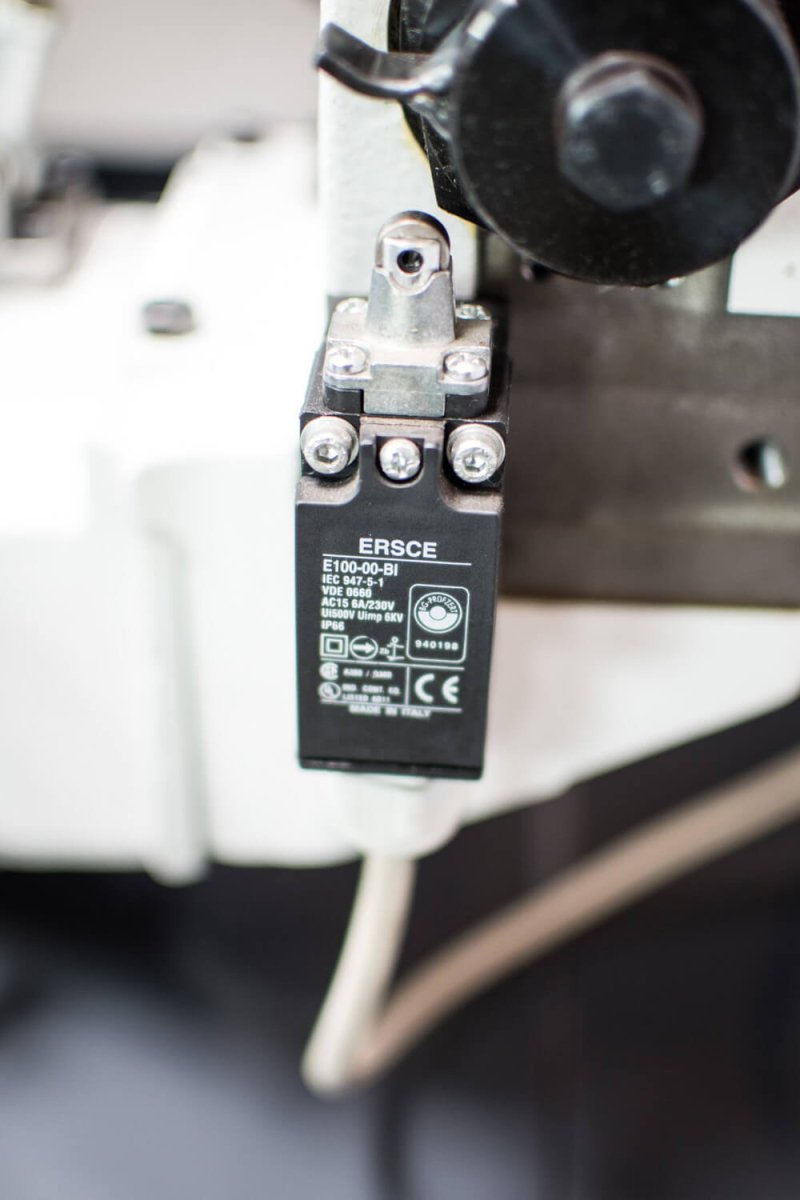

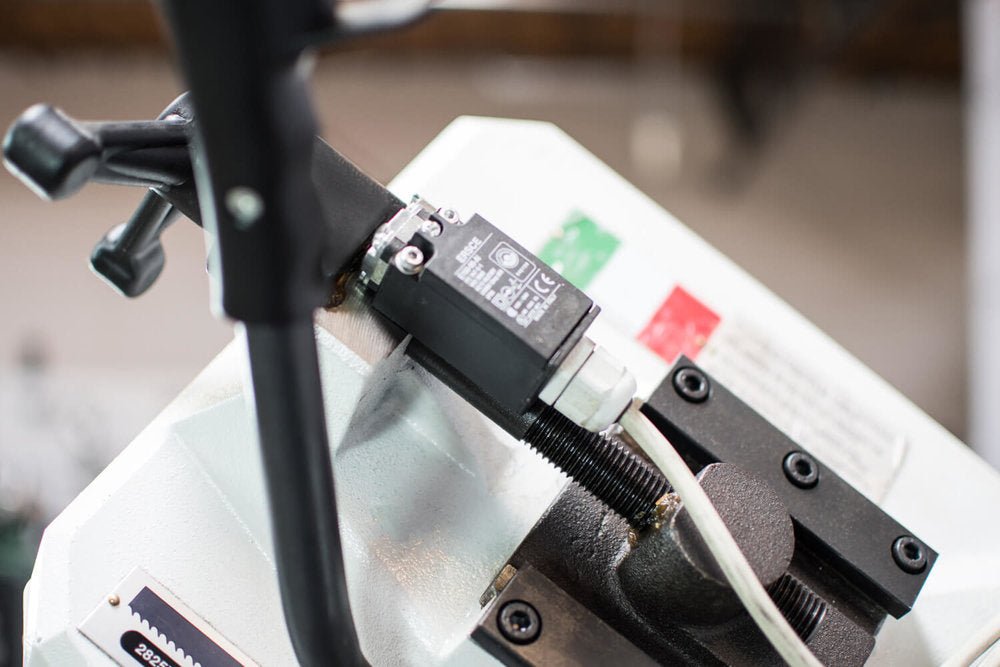

  • Band stretching is obtained by electro-mechanical blade tensioner with microswitch.

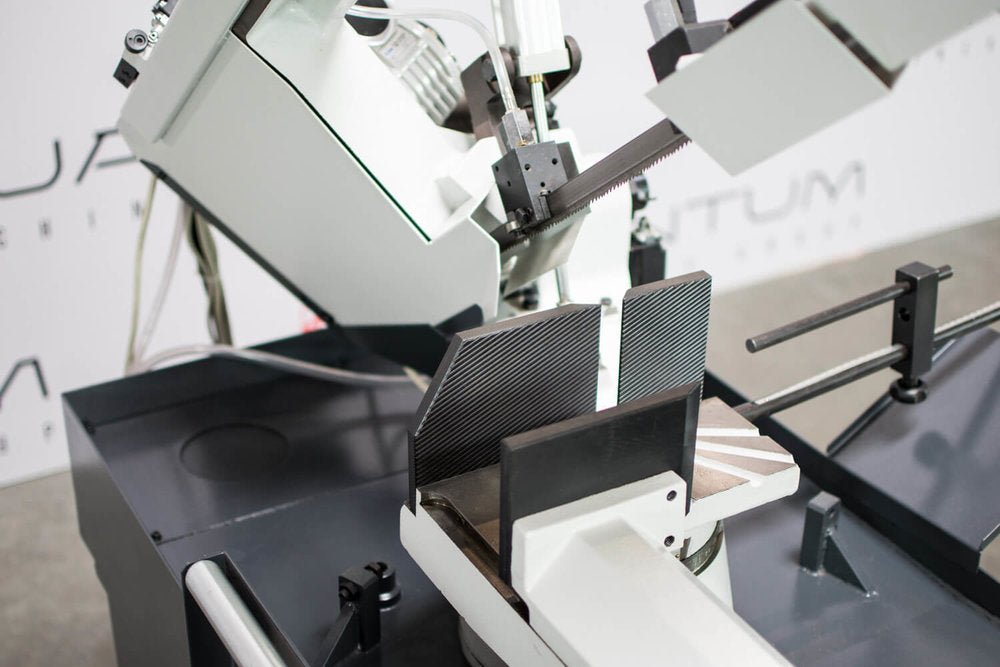

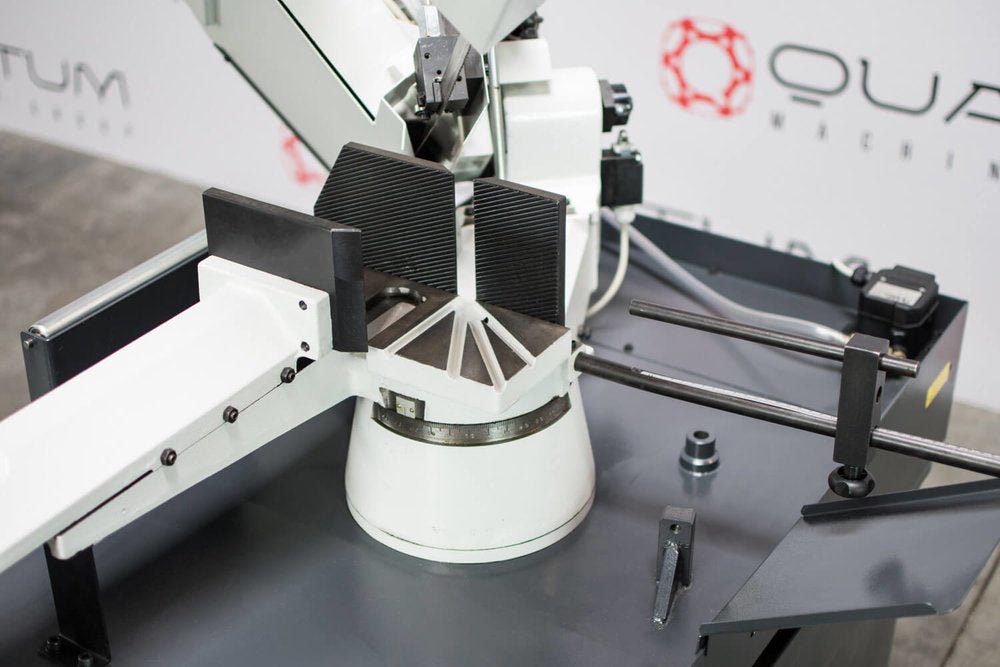

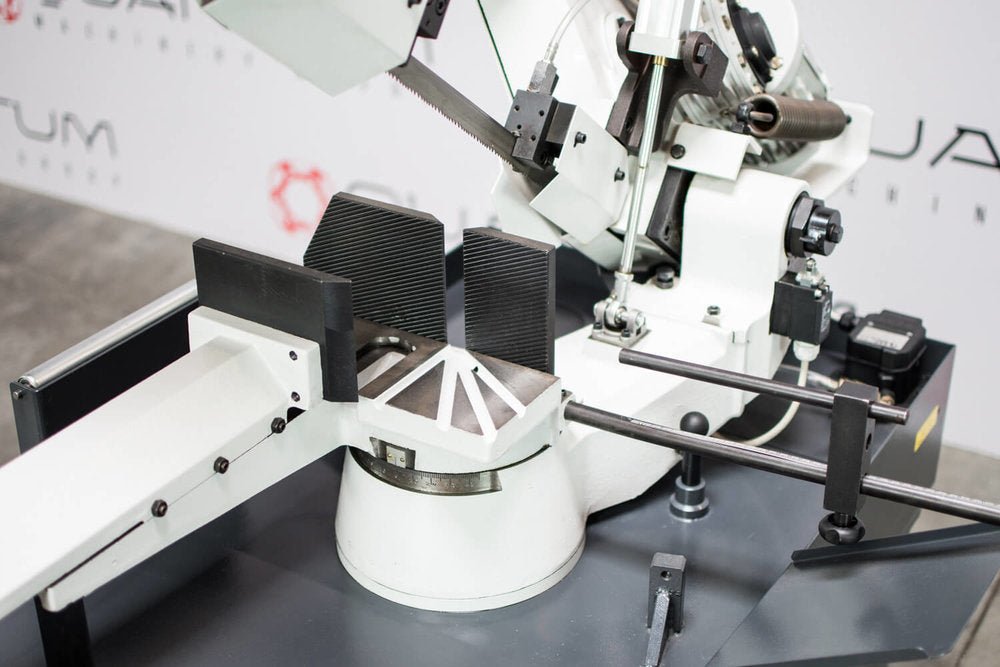

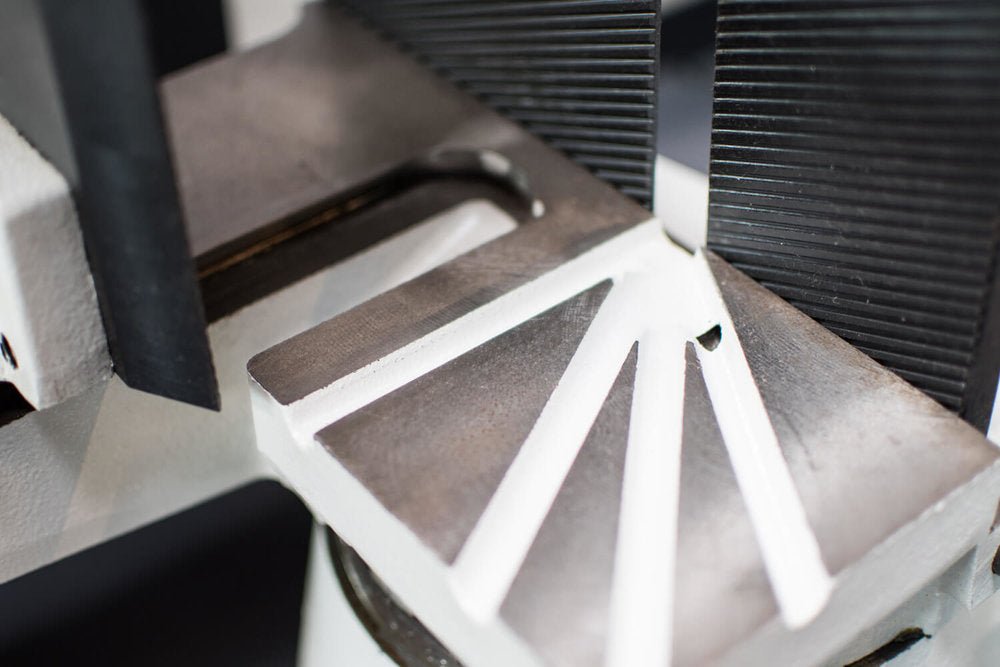

  • Vice with a device for quick approach.
  • Wide rotating material support table.

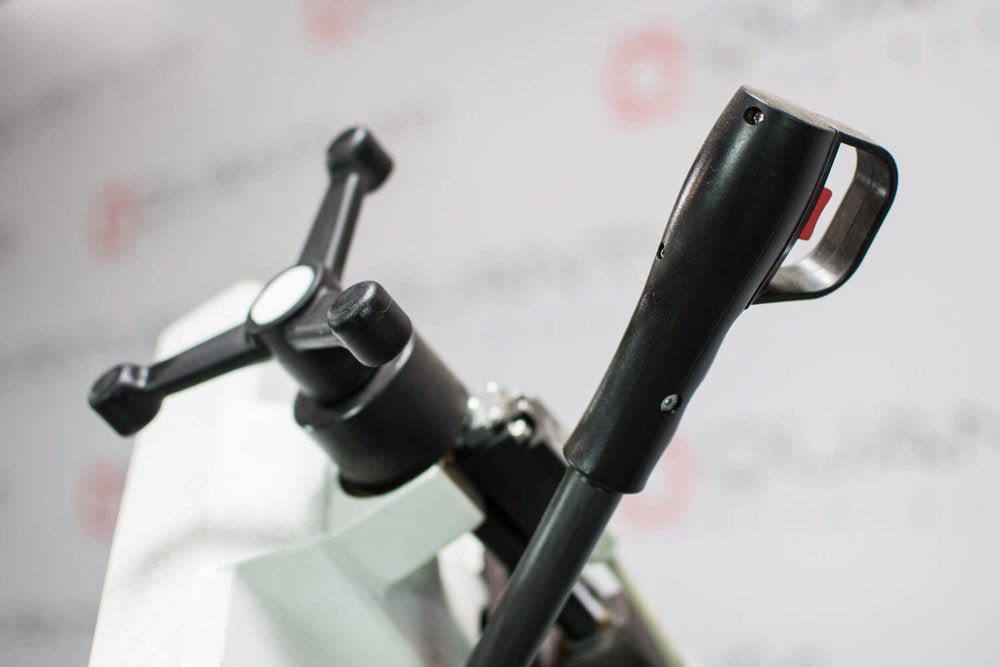

  • Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.

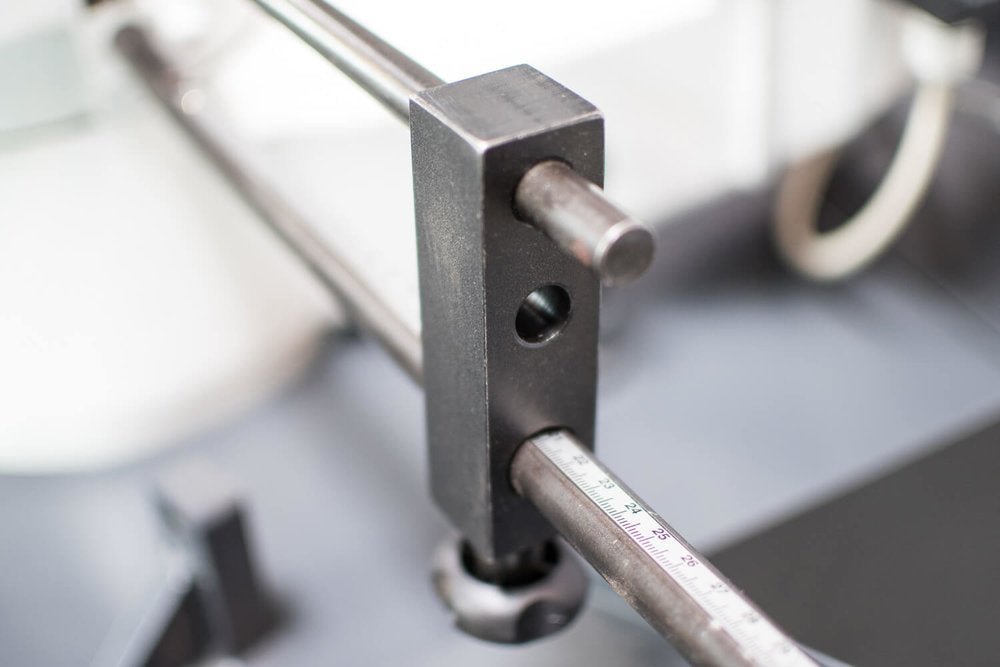

  • Adjustable stop for cuts of the same size.
  • 24 V low tension plant.

• 0.06 kW power-driven pump for band cooling.
• Cutting Thickness: 1.2mm

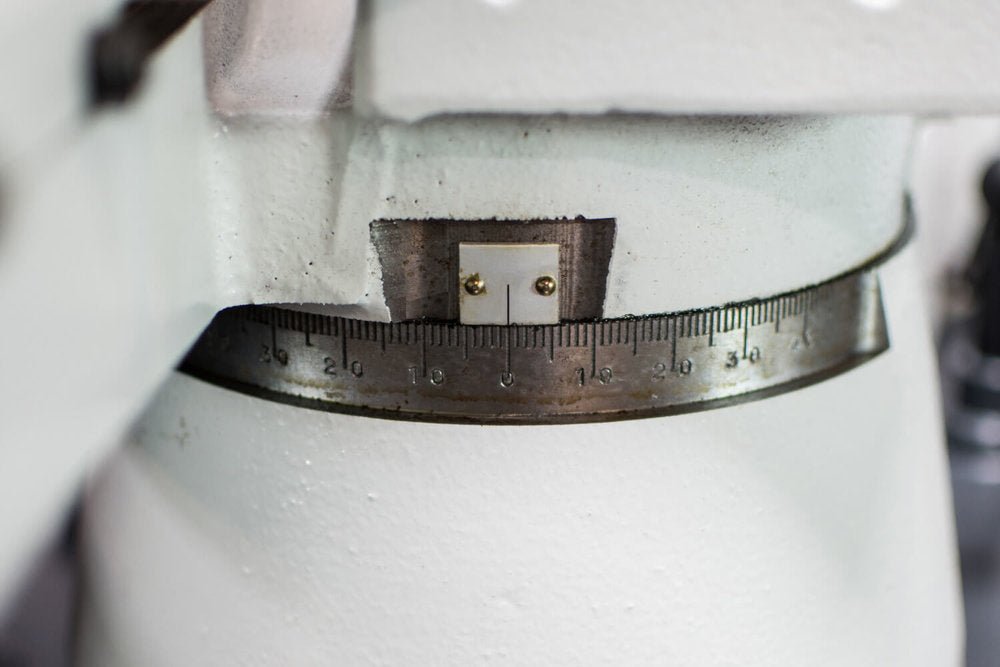

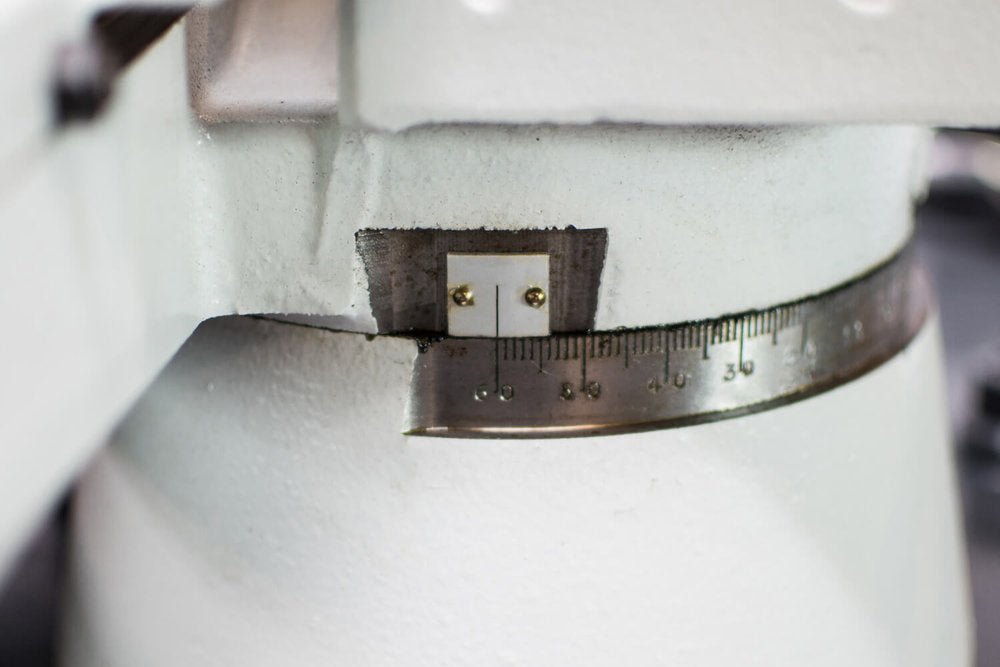

• Cutting Range: 90° Straight up to 60° Right.
• Blade Size: 2,825 x 27 x 0.9mm
• Maximum Vice Opening: 12.4"
• Machine Weight: 780 lbs.
• 2 Speeds: 35 - 71
• Overall Dimensions (without Bar Stop): 6'-3"H x 2'-7"W x 6'-1"L or 75”H x 31”W x 73”L or 1,900mm H x 795mm W x 1,870mm L
• Overall Dimensions (with Bar Stop): 6'-3"H x 3'-9"W x 6'-1"L or 75”H x 45”W x 73”L or 1,900mm H x 1,130mm W x 1,870mm L
• This Saw Includes: Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Band Saw Blade.
