MAXIMUM CUTTING CAPACITIES:

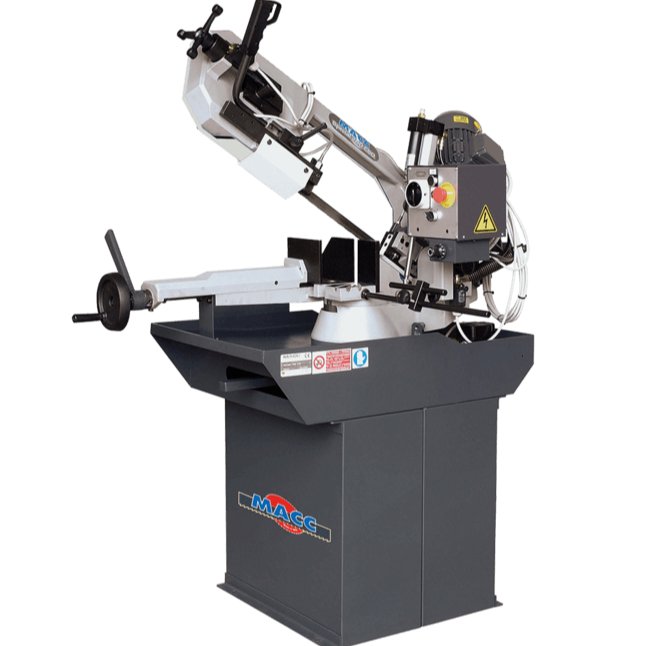

S 280 CSO: Manual Band Saw with Automatic Head Descent (8-5/8" Round Tube Capacity)
S 280 CSO: Manual Band Saw with Automatic Head Descent (8-5/8" Round Tube Capacity)
Sale price$5,500
Regular price (/)
Round Tube:
- Straight Cut: 7-3/4" or 7.75"
- 45° Right Cut: 6-1/8" or 6.125"
- 60° Right Cut: 3-1/8" or 3.125"
Square Tube:
- Straight Cut: 8-1/4" or 8.25"
- 45° Right Cut: 5-3/4" or 5.75"
- 60° Right Cut: 3-1/4" or 3.25"
Rectangular Tube:
- Straight Cut: 6"H x 9-3/4"W or 6"H x 9.75"W
- 45° Right Cut: 4-1/4"H x 6-1/8"W or 4.25"H x 6.125"W
- 60° Right Cut: 3-1/8"H x 3-1/2"W or 3.125"H x 3.5"W
- TECHNICAL DATA & FEATURES:
- Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.
- Vertical rotation on bolt with adjustable tapered bearings without backlash.
- High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw.
- Appropriately dimensioned flywheels.
- Strong band guides with tight stress-raiser bearings and adjustable widia tips.
- Band stretching is obtained by electro-mechanical blade tensioner with microswitch.
- Vice with a device for quick approach.
- Wide rotating material support table.
- Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
- Adjustable stop for cuts of the same size.
- 24 V low tension plant. 0.06 kW power-driven pump for band cooling.
- 0.06 kW power-driven pump for band cooling.
- Cutting Thickness: .047" (1.2 mm)
- Cutting Range: 90° Straight up to 60° Right.
- Blade Size: 2,450 x 27 x 0.9 mm
- Maximum Vice Opening: 9.80" (250 mm)
- Machine Weight: 485 lbs. (200 kg.)
- 2 Speeds: 32-66 Feet per Minute
- Overall Dimensions (without Bar Stop): 5'-3"H x 2'W x 5'-2"L or 68.7”H x 23.6”W x 61.8”L or 1,744mm H x 599mm W x 1,569 mm L
- This Saw Includes: Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Band Saw Blade.
