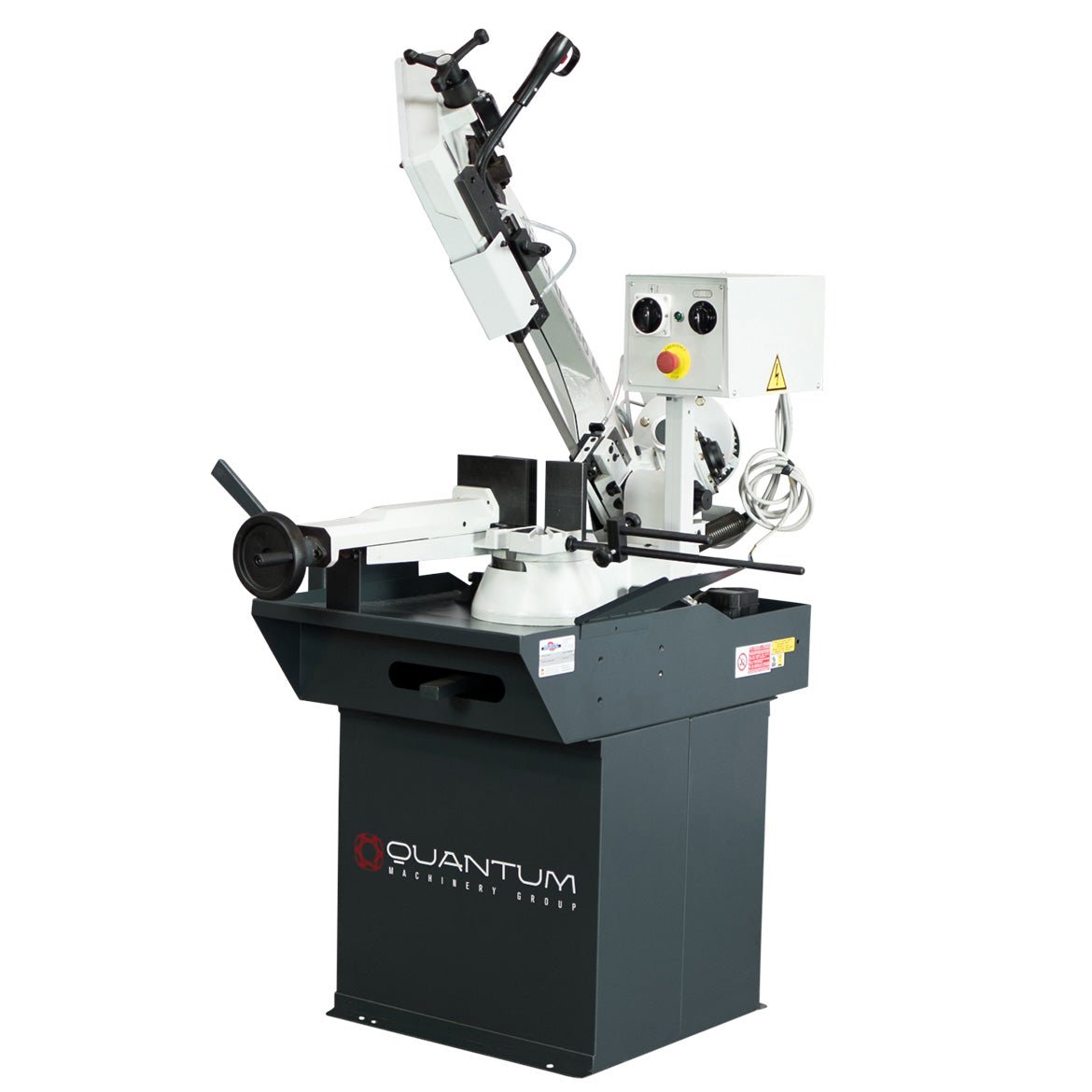

S 280 CSO: Manual Band Saw with Automatic Head Descent (8-5/8" Round Tube Capacity)

MAXIMUM CUTTING CAPACITIES:

Round Tube

• Straight Cut: 8.6"
• 45° Right Cut: 6.25"
• 60° Right Cut: 4"

Square Tube

• Straight Cut: 8.4"
• 45° Right Cut: 5.9"
• 60° Right Cut: 3.25"

Rectangular Tube

• Straight Cut: 6"H x 9.75"W
• 45° Right Cut: 4.25"H x 6.25"W
• 60° Right Cut: 3.13"H x 3.6"W

• TECHNICAL DATA & FEATURES:

• Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.
• Vertical rotation on bolt with adjustable tapered bearings without backlash.
• High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw.
• Appropriately dimensioned flywheels.
• Strong band guides with tight stress-raiser bearings and adjustable widia tips.
• Band stretching is obtained by electro-mechanical blade tensioner with microswitch.
• Vice with a device for quick approach.
• Wide rotating material support table.
• Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
• Adjustable stop for cuts of the same size.
• 24 V low tension plant. 0.06 kW power-driven pump for band cooling.
• 0.06 kW power-driven pump for band cooling.
• Cutting Thickness: .047" (1.2 mm)
• Cutting Range: 90° Straight up to 60° Right.
• Blade Size: 2,450 x 27 x 0.9 mm
• Maximum Vice Opening: 9.80" (250 mm)
• Machine Weight: 485 lbs. (200 kg.)
• 2 Speeds: 32-66 Feet per Minute
• Overall Dimensions (without Bar Stop): 5'-3"H x 2'W x 5'-2"L or 68.7”H x 23.6”W x 61.8”L or 1,744mm H x 599mm W x 1,569 mm L
• This Saw Includes: Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Band Saw Blade.
