NTS 370: 14.50" Semi-Auto, Double-Column Cold Saw (5" Round Tube Capacity)

Sale price$21,945

Voltage Options: 220 Volt / 3 Phase / 60Hz

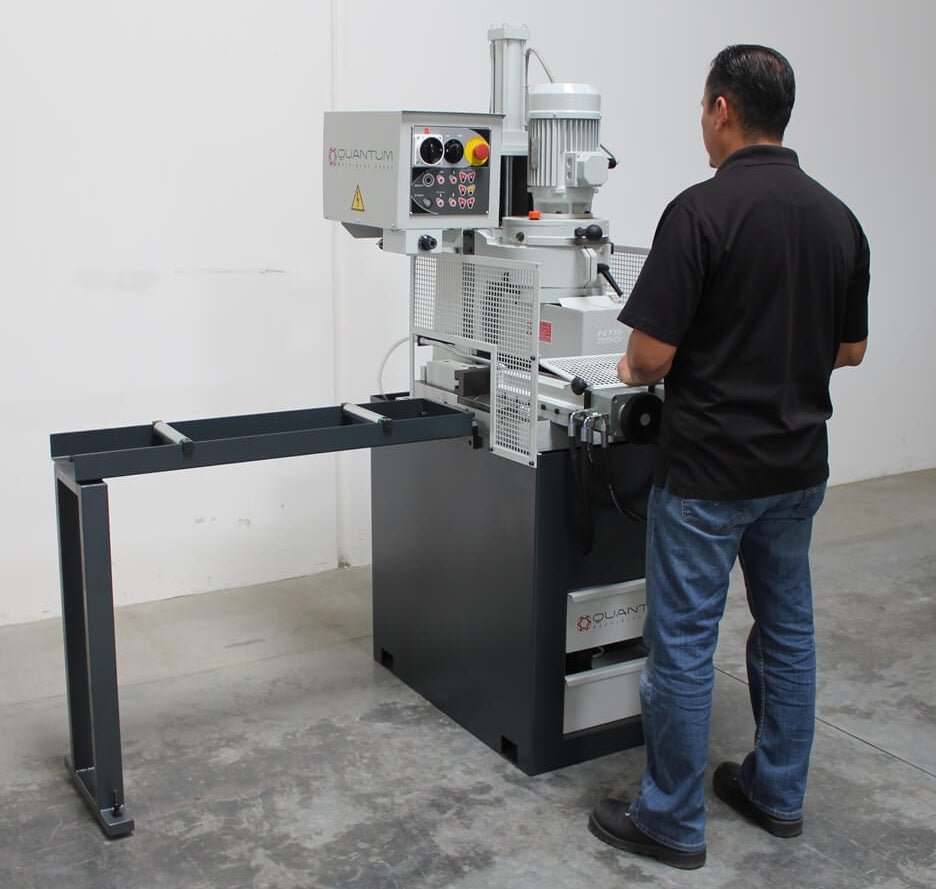

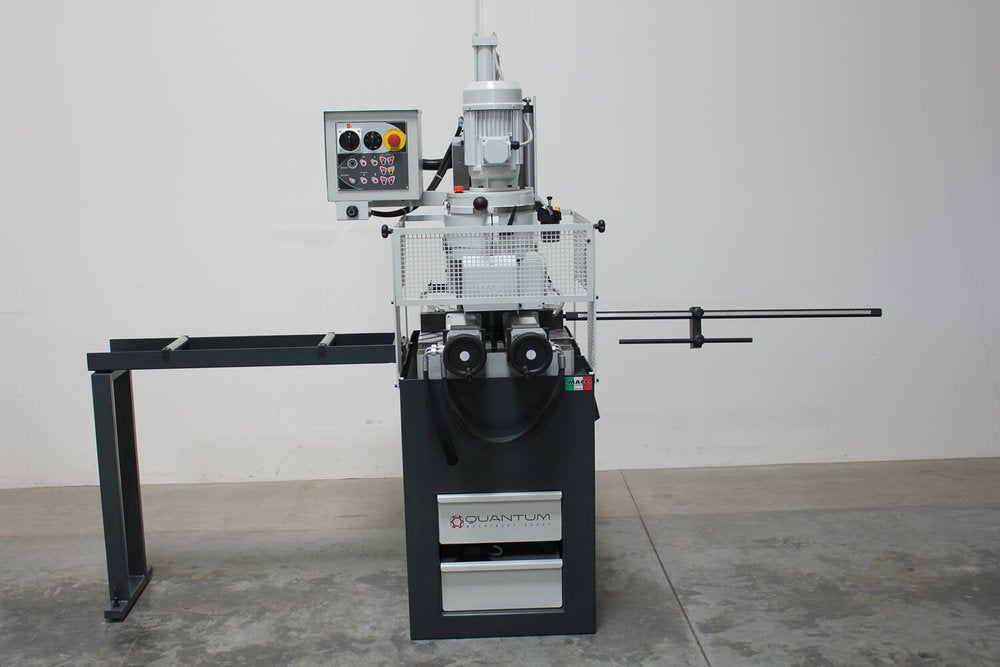

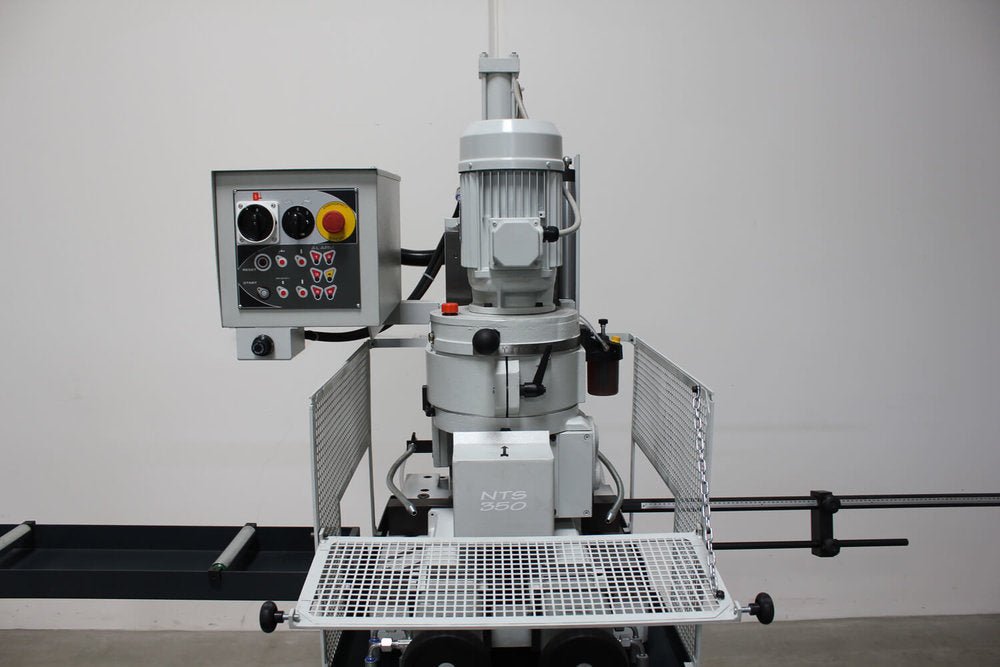

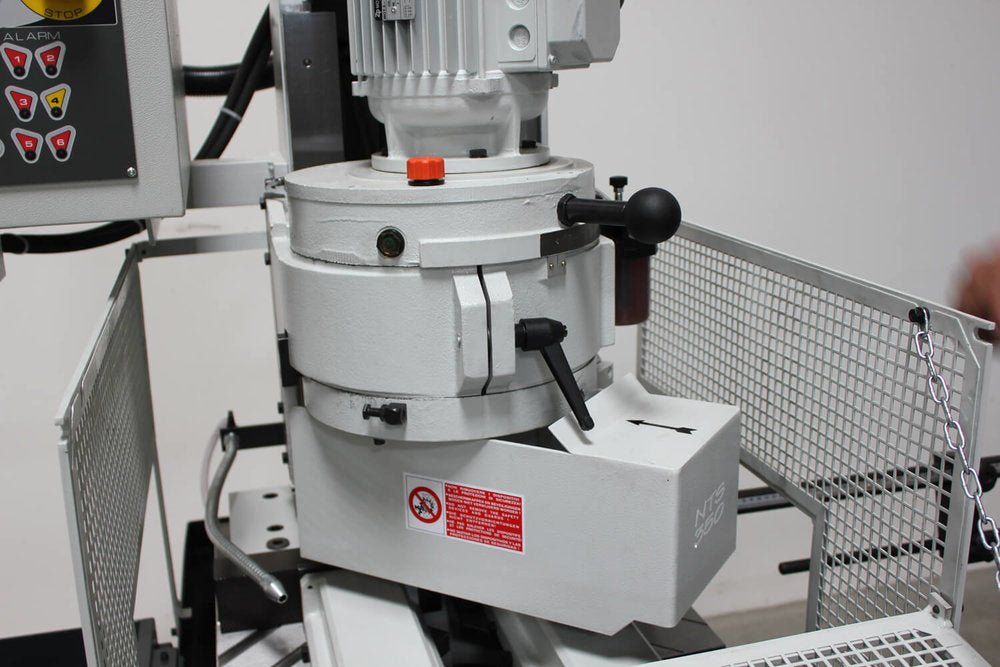

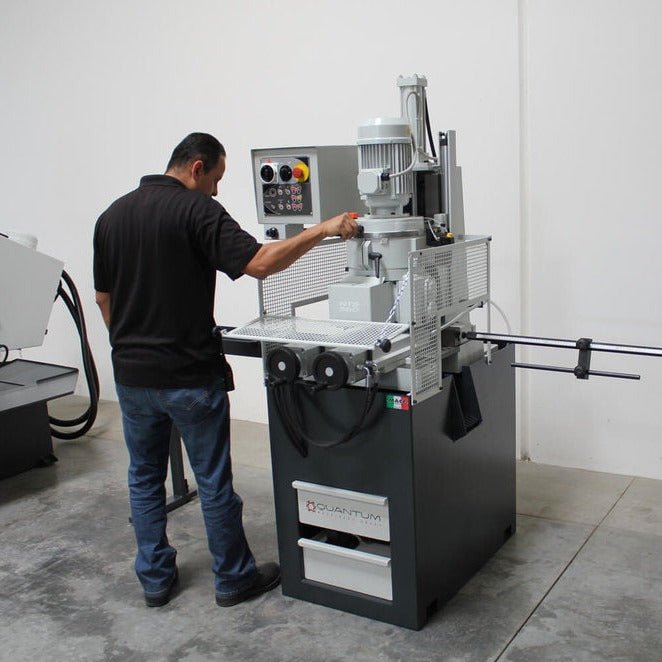

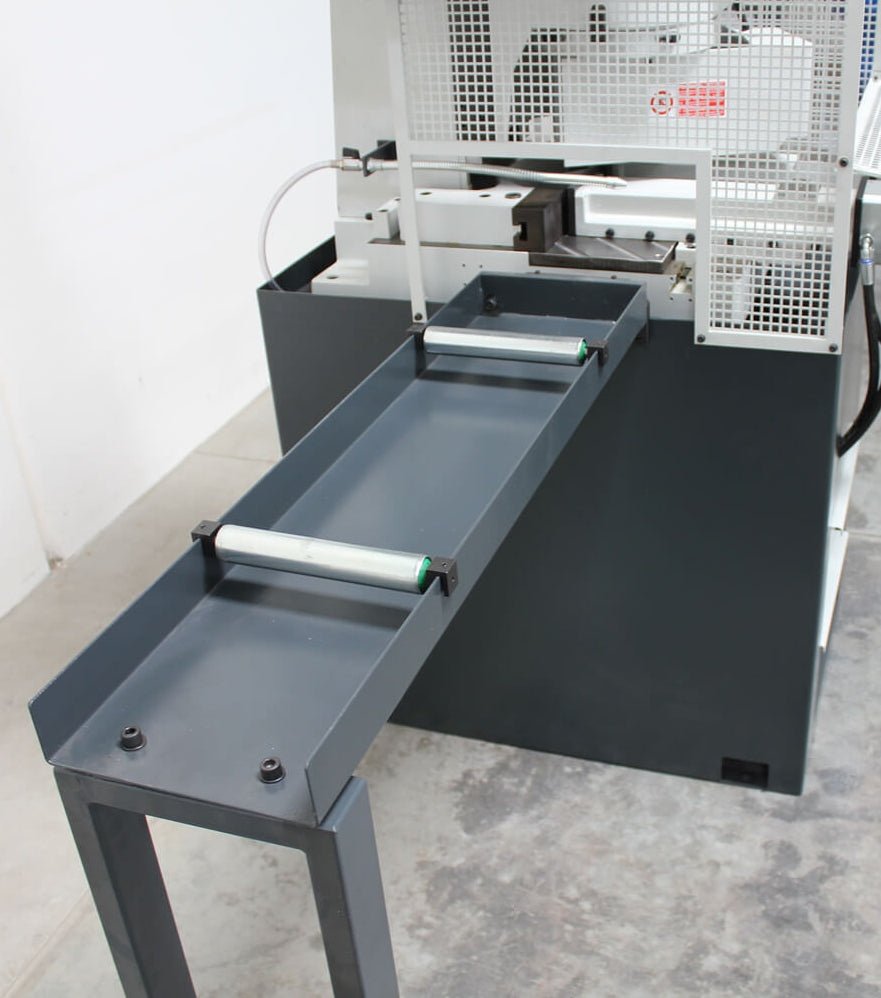

The Quantum Macc NTS 370 Vertical Semi-Automatic Cold Saw has a moveable head that can move up to 45 degrees right and left; and the head also has rotation stops at 45° - 0° - 45°. The NTS 370 has a vice that is complete with an anti-burr device, and a motor pump for blade lubrication. This unit is equipped with a bar stop, bar support arm, and service tools, as well as the machine's manual and steel pedestal.

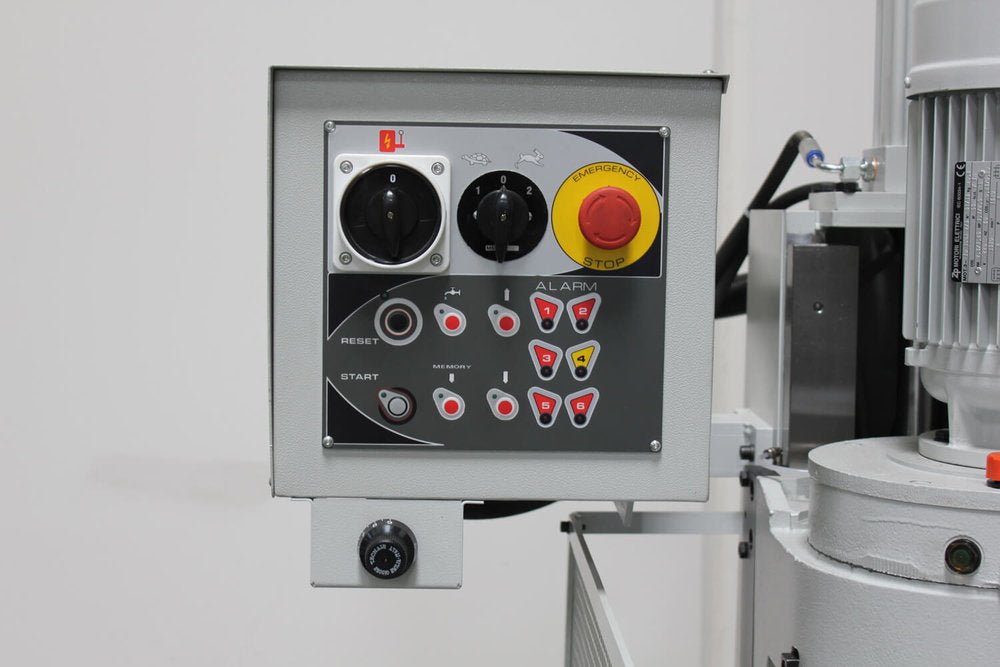

Cycle start is obtained by pressing the relevant start pedal.
The machine performs the following operations during the cutting cycle:

1.Closing of Vice & Activation of Blade Motor.
2.Cutting Head Begins Down-Stroke.
3.Completes Cut & Head Returns to Initial Position & Blade Motor Stops.
4.The Vice will then Open.
(REPEAT)


MAXIMUM CUTTING CAPACITIES:


Gray metal pipe with a smooth surface and hollow center.

Round Tube:

  • Straight Cut: 5"
  • 45° Left Cut: 5"
  • 45° Right Cut: 5"

Metal rectangular hollow tube on a white background.

Square Tube:

  • Straight Cut: 4-1/2" or 4.5"
  • 45° Left Cut: 3-3/4" or 3.75"
  • 45° Right Cut: 3-3/4" or 3.75"
  •

A smooth, metallic cylindrical rod on a plain background.

Solid Round:

  • Straight Cut: 3-3/4" or 3.75"
  • 45° Left Cut: 3-3/4" or 3.75"
  • 45° Right Cut: 3-3/4" or 3.75"
  •

Rectangular Tube:

  • Straight Cut: 3-3/4"H x 6-1/2"W or 3.75"H x 6.5"W
  • 45° Left Cut: 3-3/4"H x 5-1/4"W or 3.75"H x 5.25"W
  • 45° Right Cut: 3-3/4"H x 5-1/4"W or 3.75"H x 5.25"W
  •

TECHNICAL DATA & FEATURES:

  • Vertical Semi-Automatic Cold Saw has a moveable head that can move up to 45 degrees left to right.

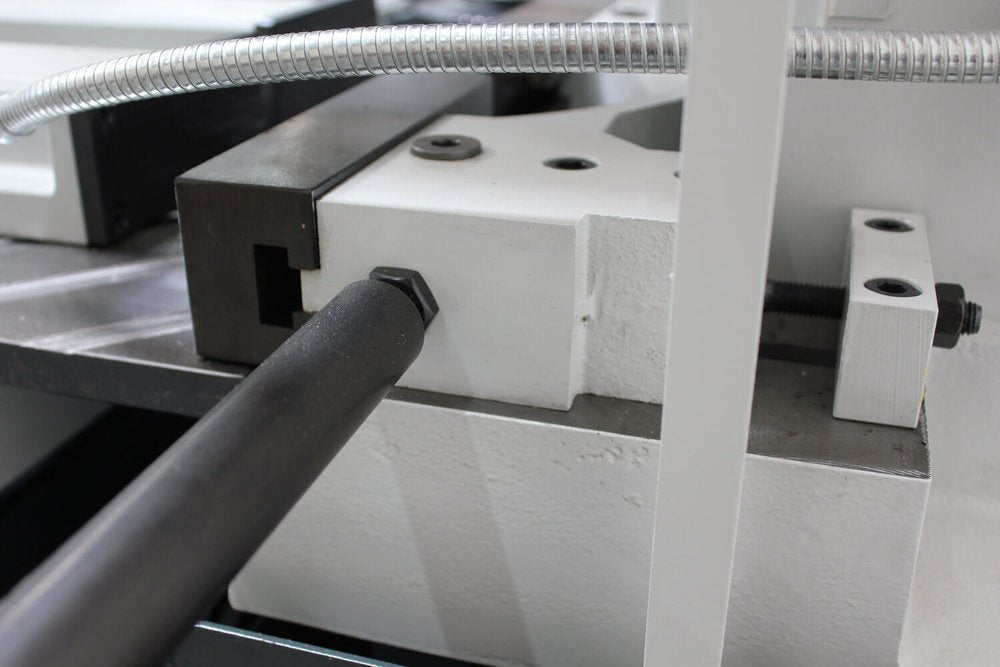

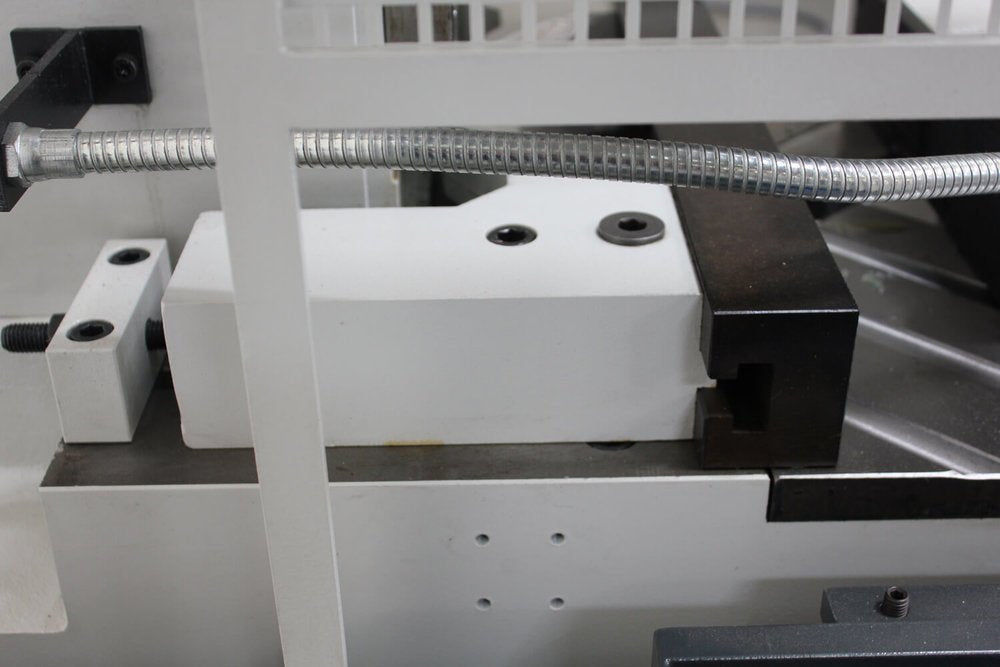

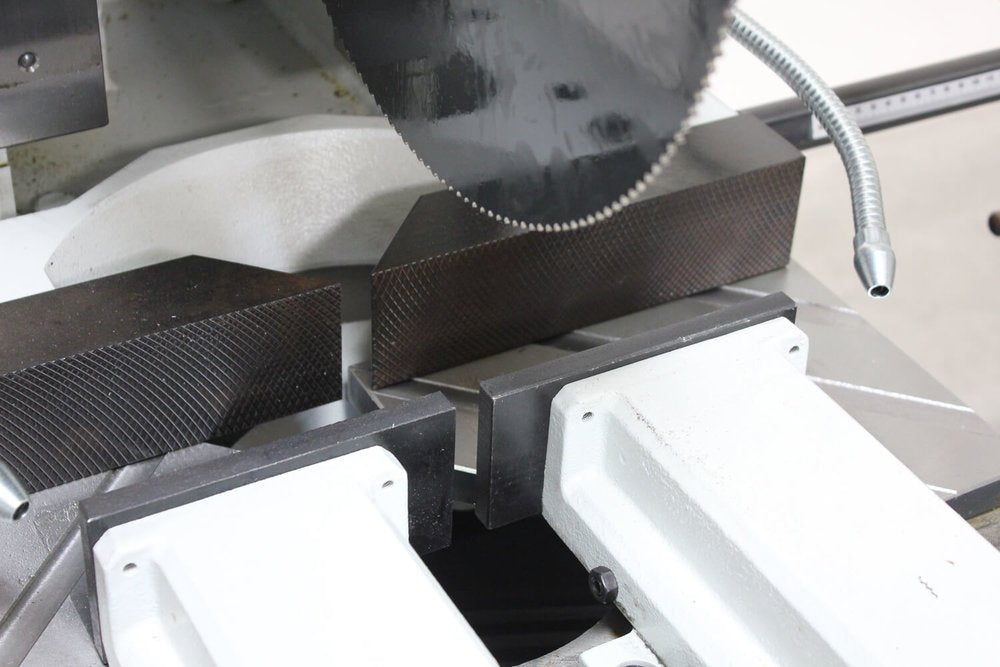

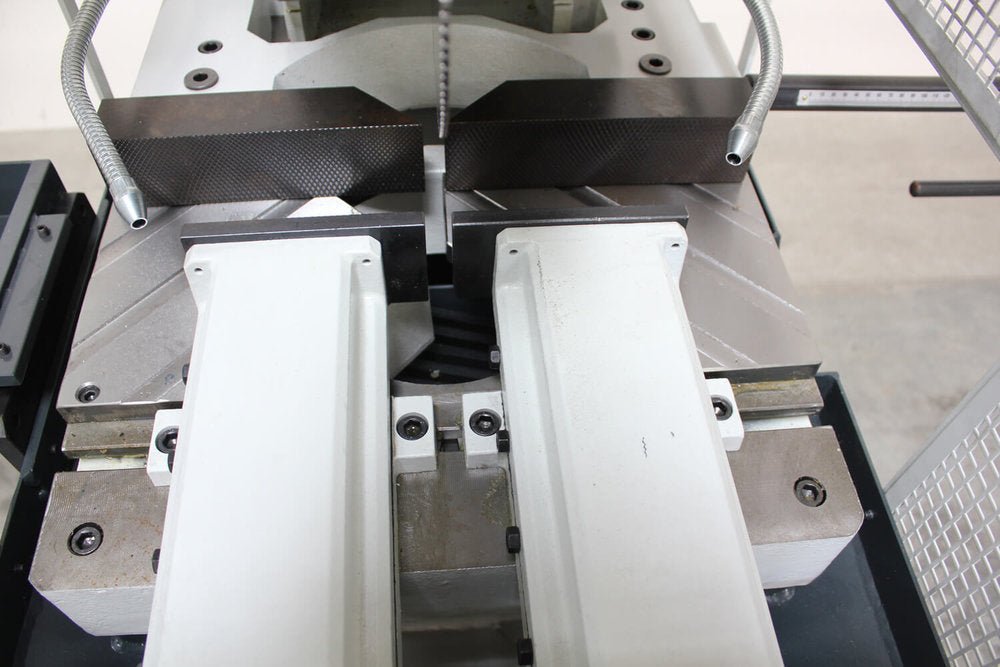

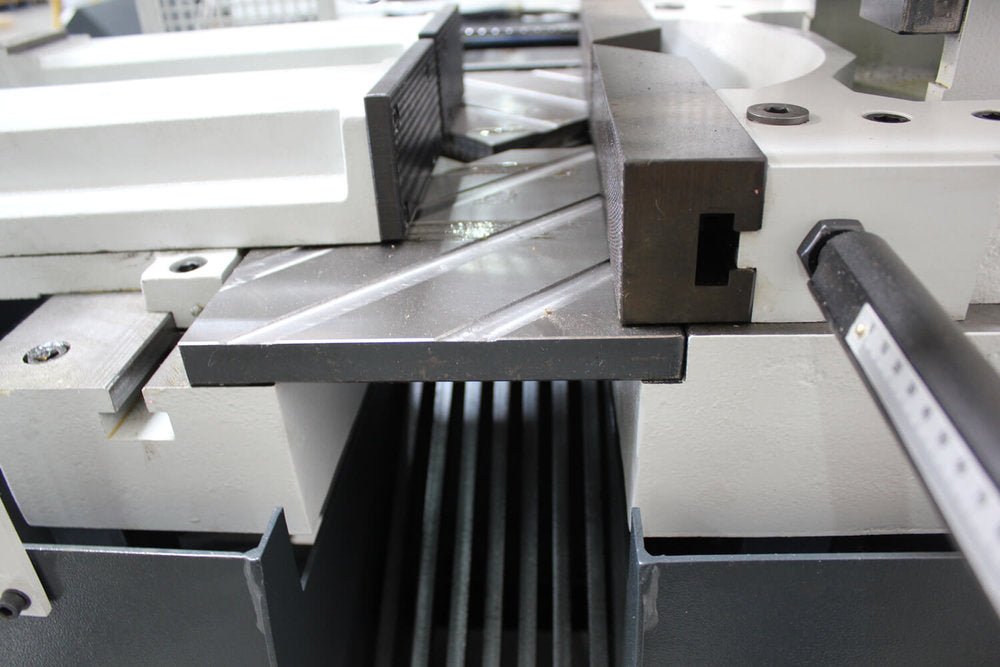

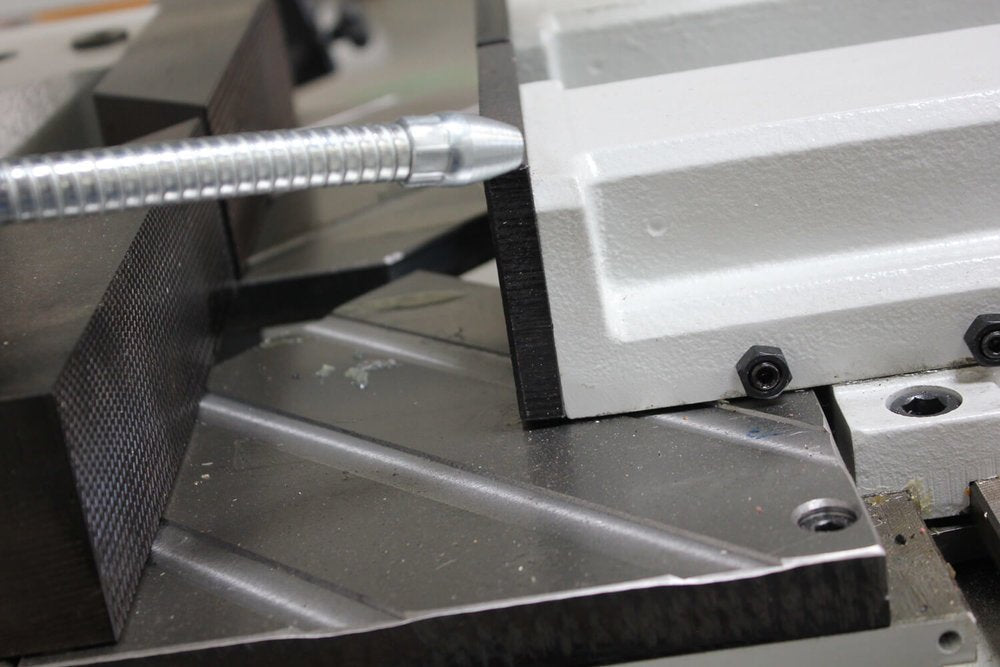

  • Vice complete with anti-burr device.
  • Motor pump.

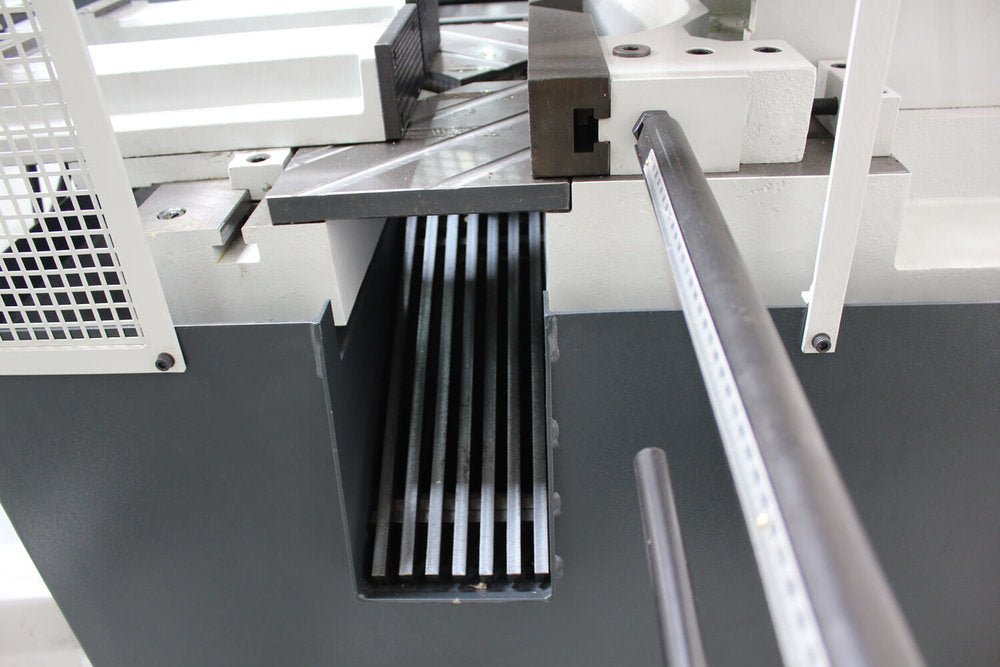

  • Chip breaker to keep the blade clean.
  • Adjustable stops for head vertical stroke.
  • Service tools.
  • Instruction manual and exploded view of spare parts.

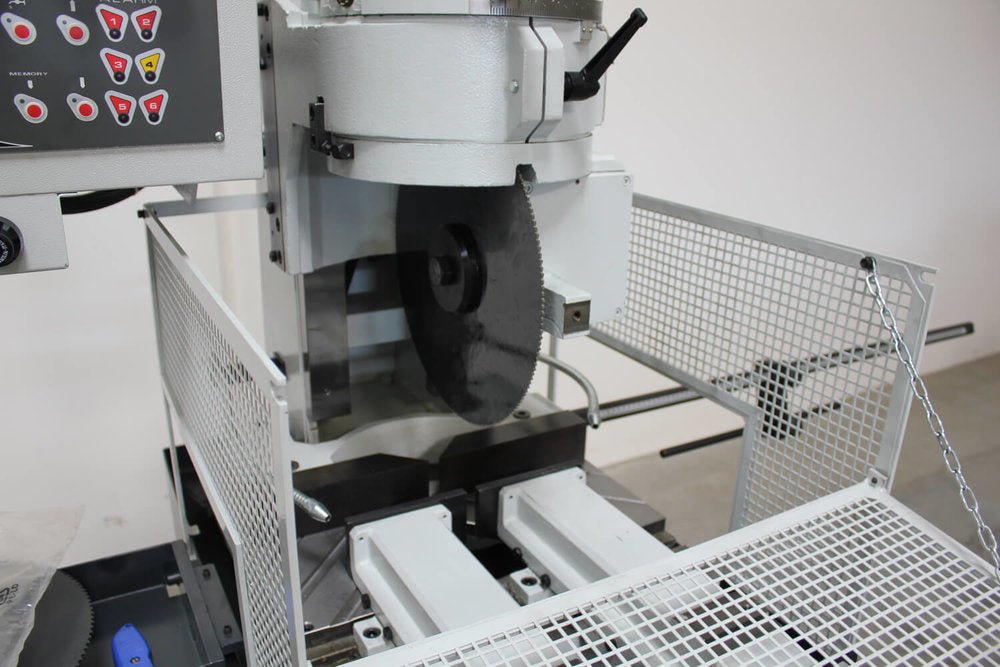

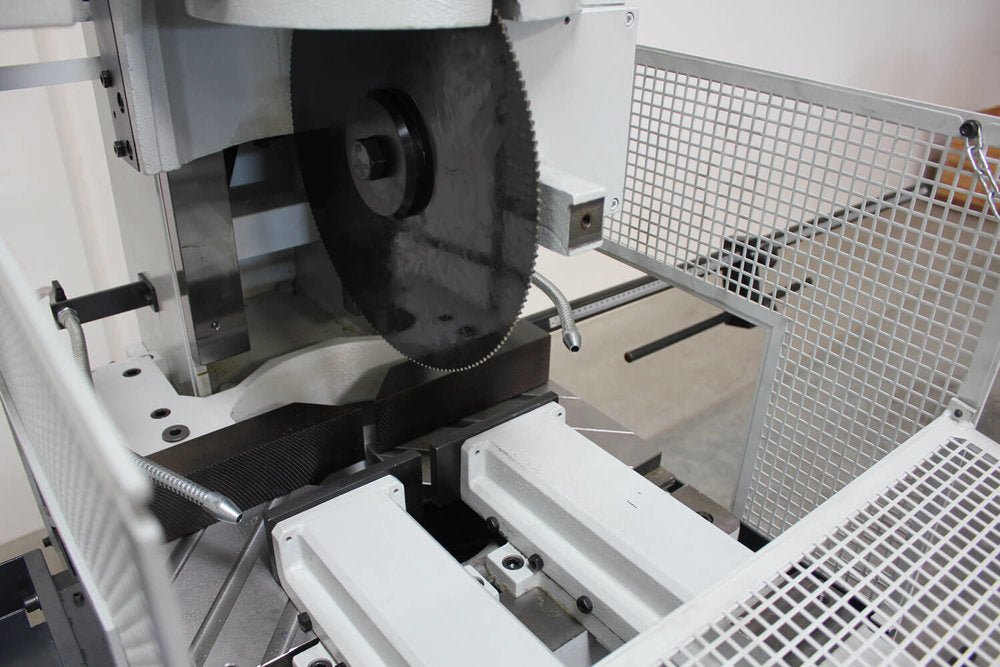

  • Blade Size: 370 x 2.5 x 32mm Bore HSS Blade
  • Maximum Vice Opening: 7.2” (185mm)
  • Machine Weight: 1,100 lbs. (500 kg.)
  • Variable Speed Inverter: 25 - 50 R.P.M.
  • Overall Dimensions: 6'-1” H x 8'-9” W x 4' L or 73” H x 104” W x 48” L or 1,854 mm x 2,640 mm x 1,200 mm
  • Additionally, this Saw Includes:  Instruction Manual, Service Tools & 1 HSS 370mm Cold Saw Blade.
