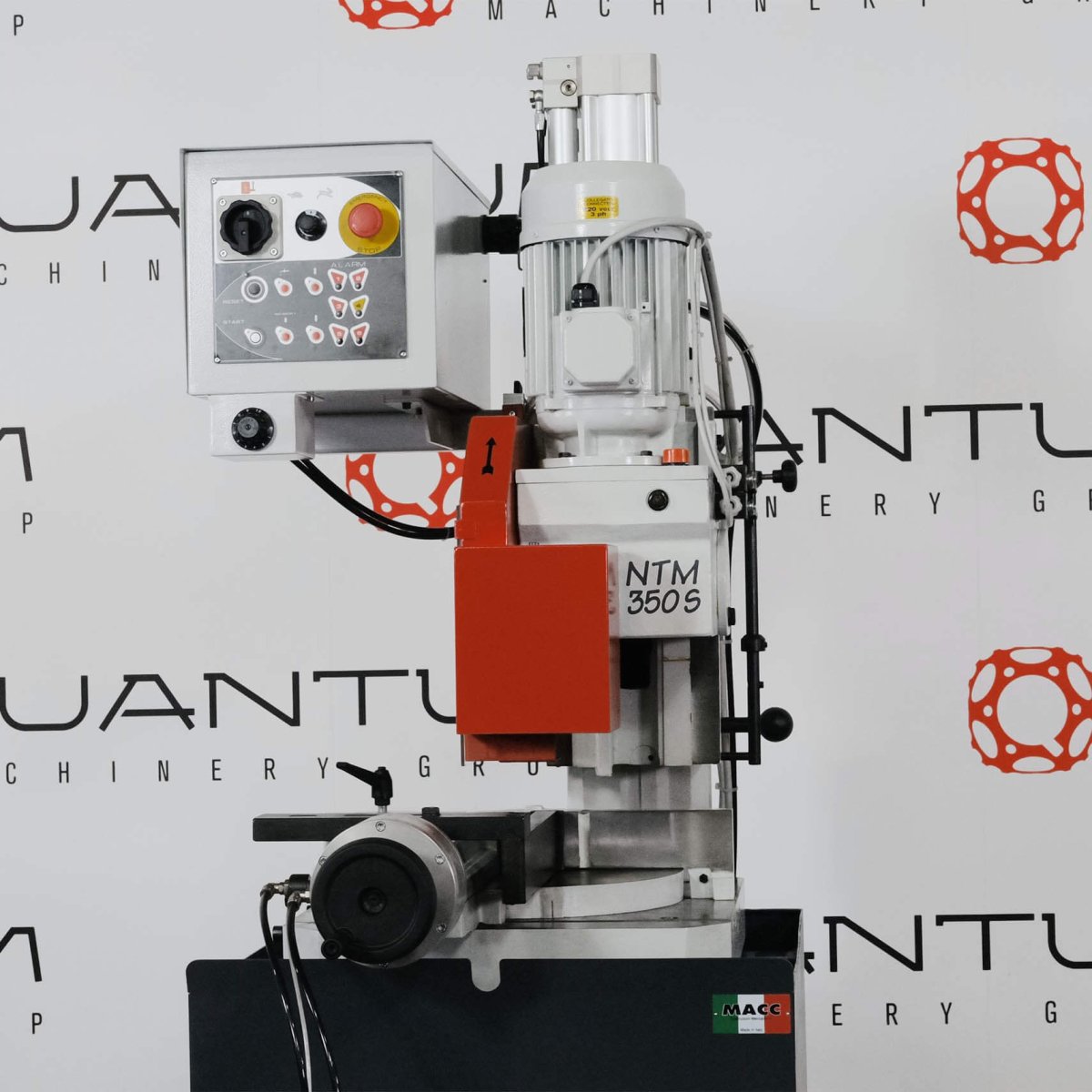

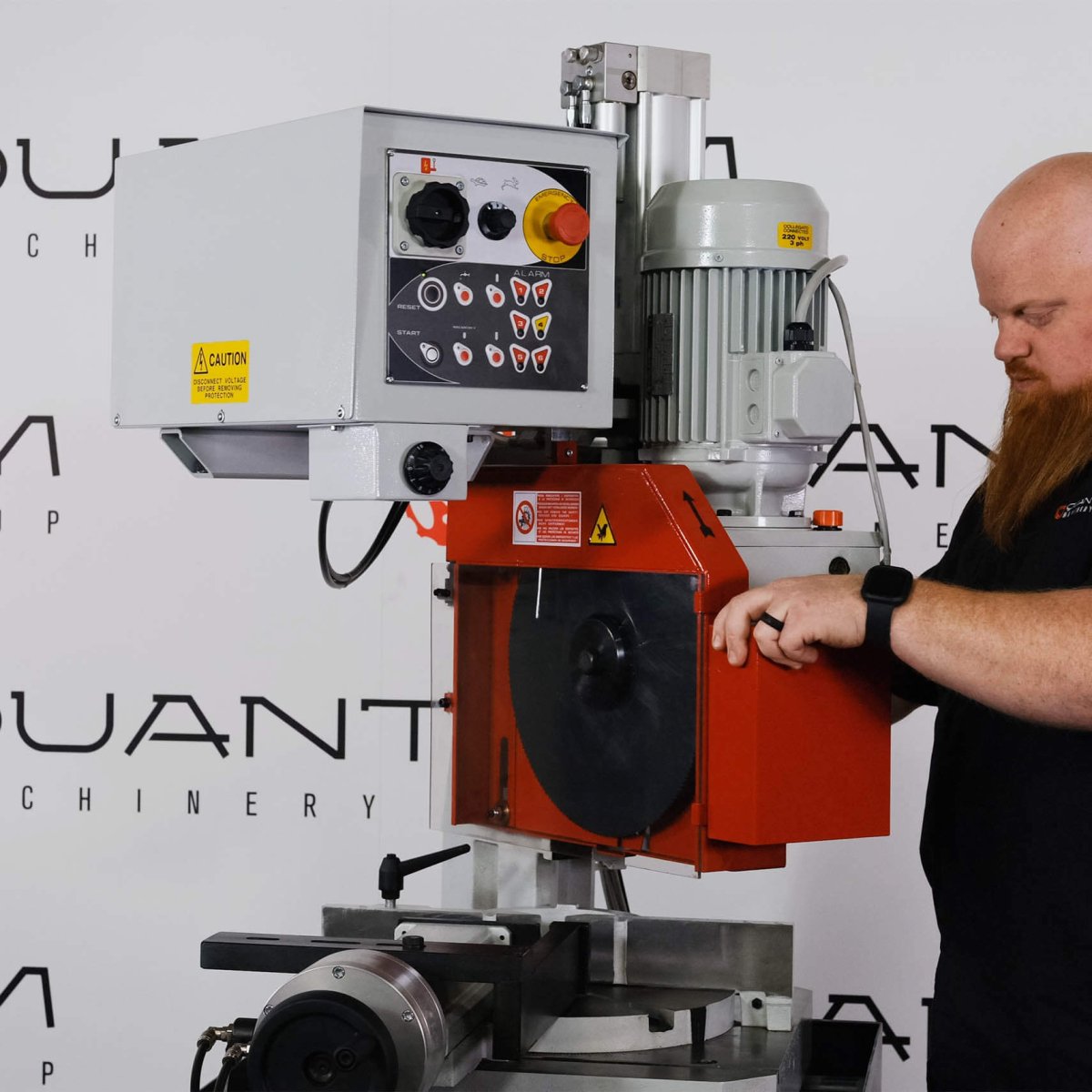

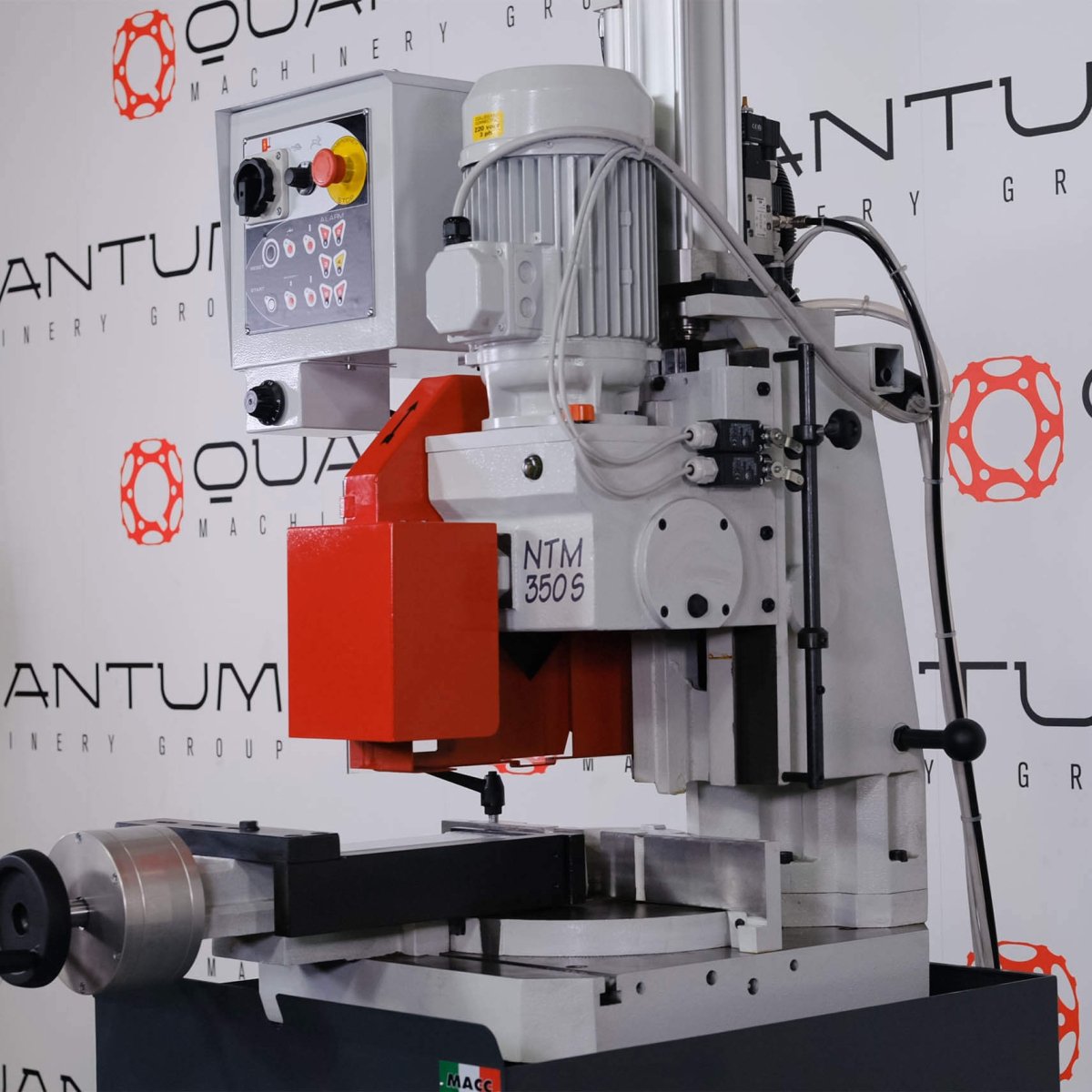

NTM 350-S: 14" Semi-Auto, Double-Column Cold Saw (4-5/8" Round Tube Capacity)

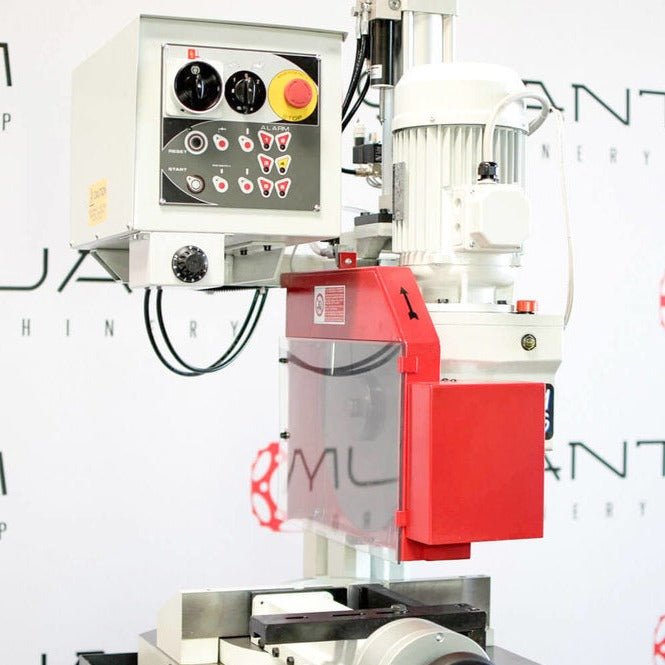

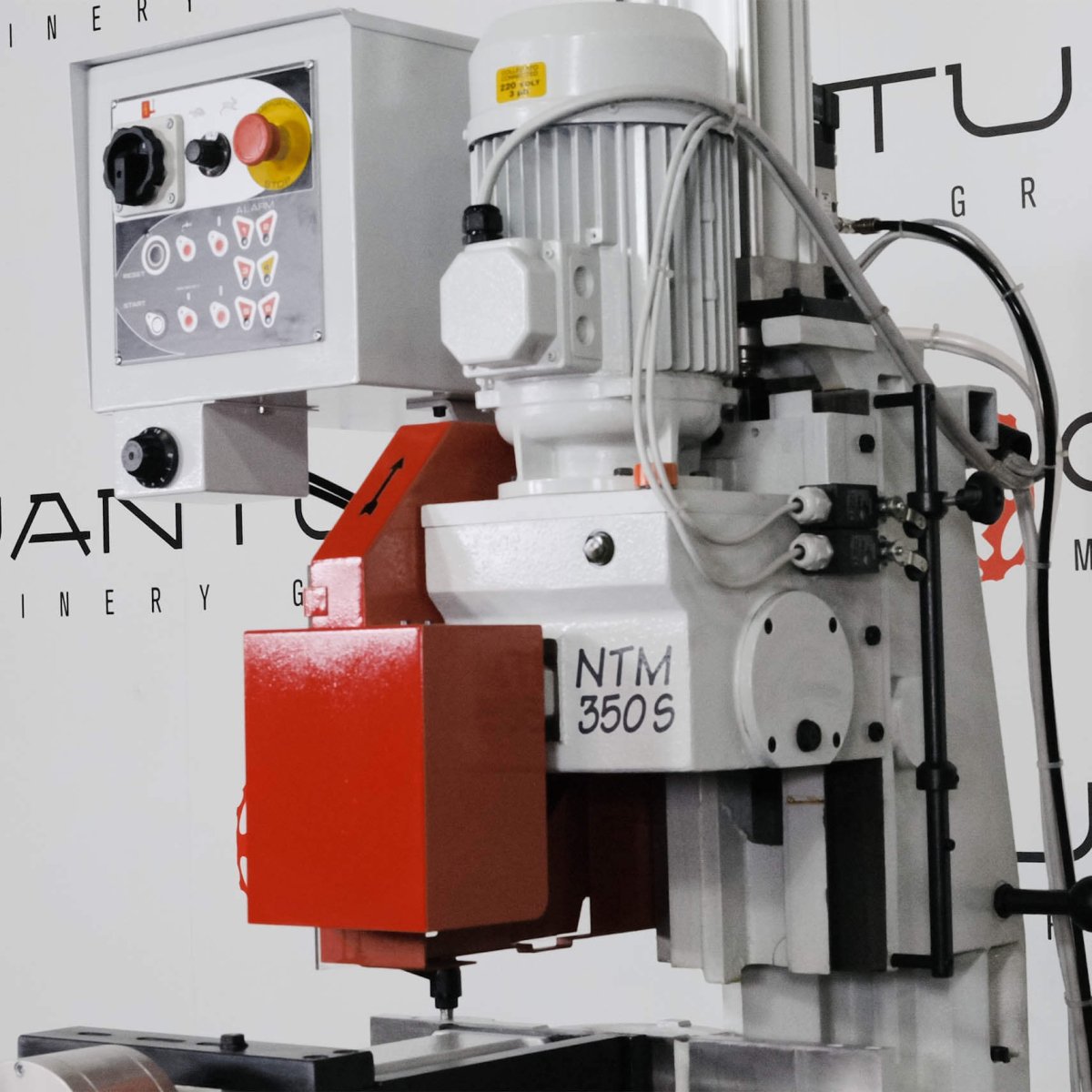

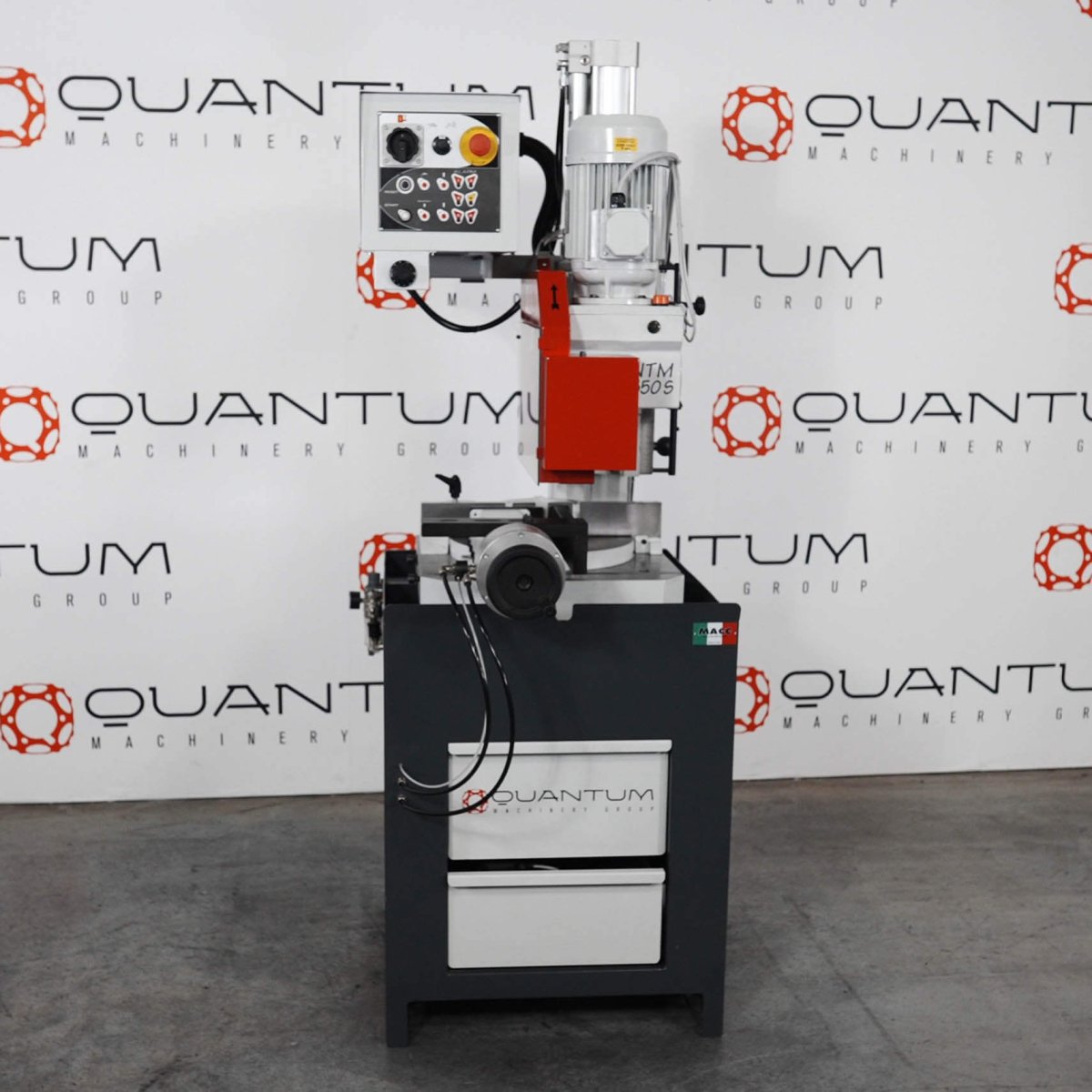

The Quantum Macc NTM 350-S Vertical Semi-Automatic Cold Saw has a moveable head that can move up to 45 degrees left and 60 degrees right; and the head also has rotation stops at 45° - 0° - 45° - 60°. The NTM 350-S has a vice that is complete with an anti-burr device, motor pump for blade lubrication, shave breaker to keep the blade clean. This unit is equipped with a a 1 meter long bar stop, 1 meter long bar support arm, and service tools, as well as the machine's manual and steel pedestal.

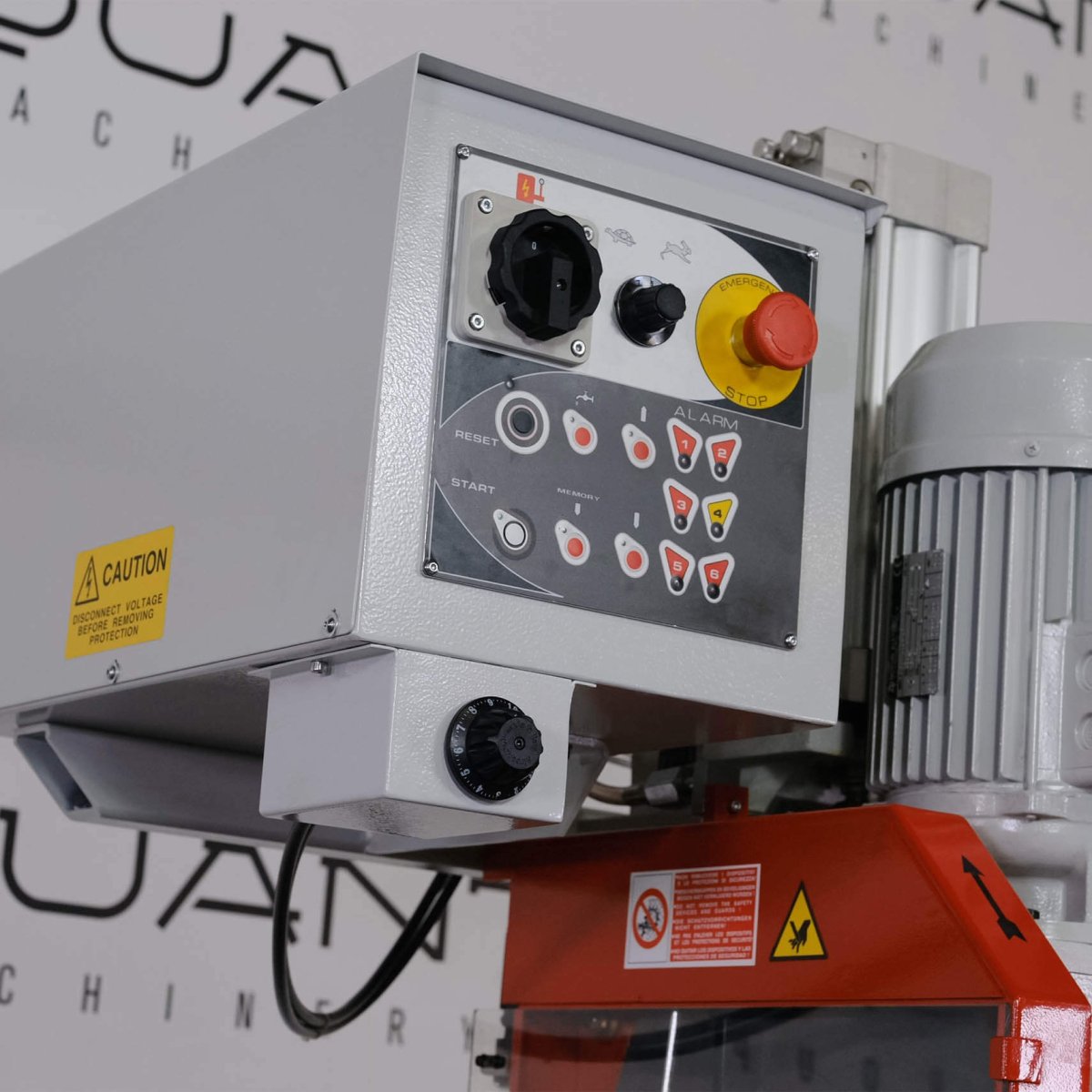

Cycle start is obtained by pressing the relevant start pedal.
The machine performs the following operations during the cutting cycle:

1.Closing of Vice & Activation of Blade Motor.
2.Cutting Head Begins Down-Stroke.
3.Completes Cut & Head Returns to Initial Position & Blade Motor Stops.
4.The Vice will then Open.
(REPEAT)

MAXIMUM CUTTING CAPACITIES:

Round Tube

• Straight Cut: 4.6"
• 45° Left Cut: 4.6"
• 45° Right Cut: 4.6"
• 60° Right Cut: 3.2"
•

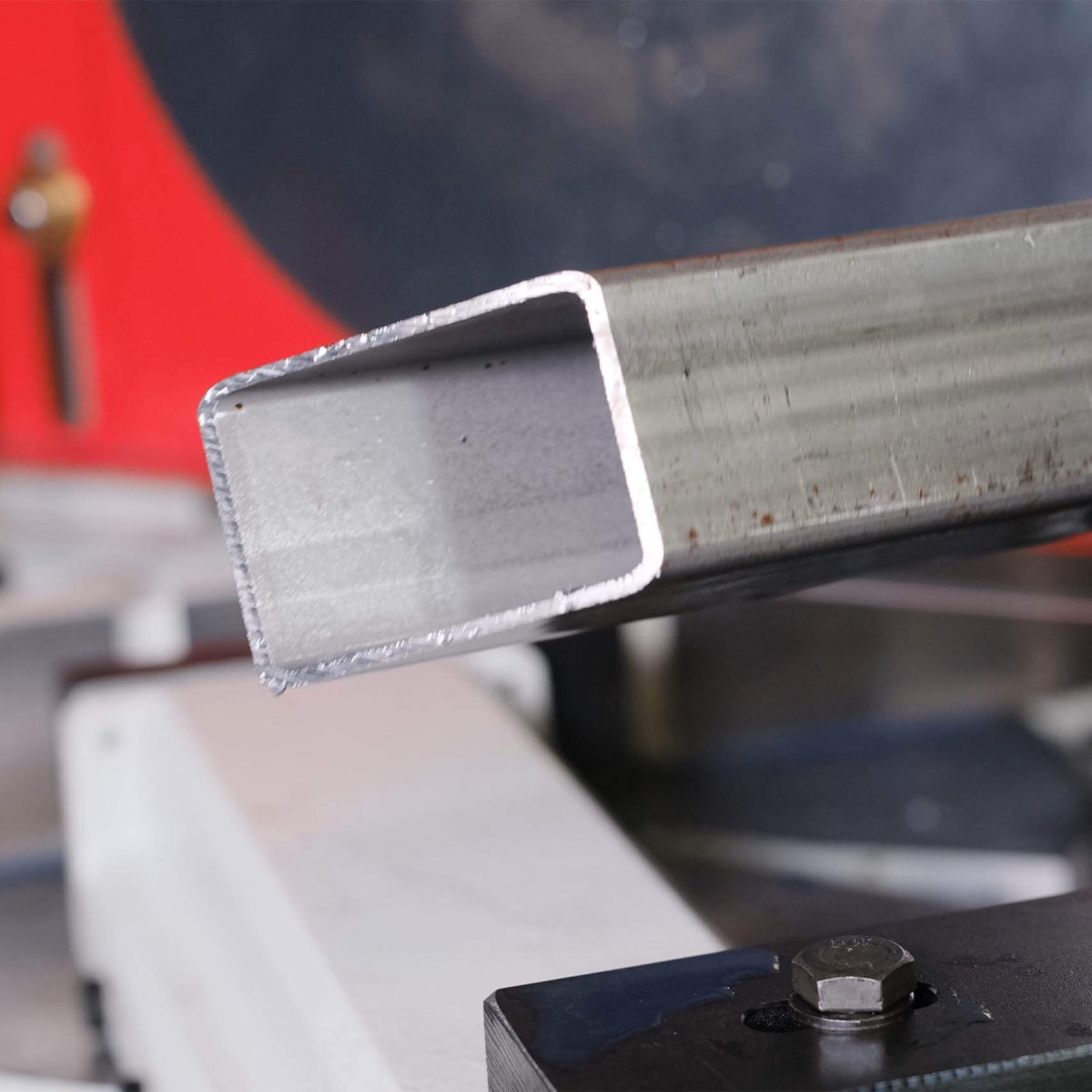

Square Tube

• Straight Cut: 3.9"
• 45° Left Cut: 3.5"
• 45° Right Cut: 3.5"
• 60° Right Cut: 3.5"
•

Solid Round Tube

• Straight Cut: 3.9"
• 45° Left Cut: 3.9"
• 45° Right Cut: 3.9"
• 60° Right Cut: 3.5"
•

Rectangular Tube

• Straight Cut: 3.5"H x 6.6"W
• 45° Left Cut: 3.5"H x 4.9"W
• 45° Right Cut: 3.5"H x 4.9"W
• 60° Right Cut: 3.5"H x 3.5"W

• TECHNICAL DATA & FEATURES:

• • Vertical Semi-Automatic Cold Saw has a moveable head that can move up to 45 degrees left to right and 60 degrees right.

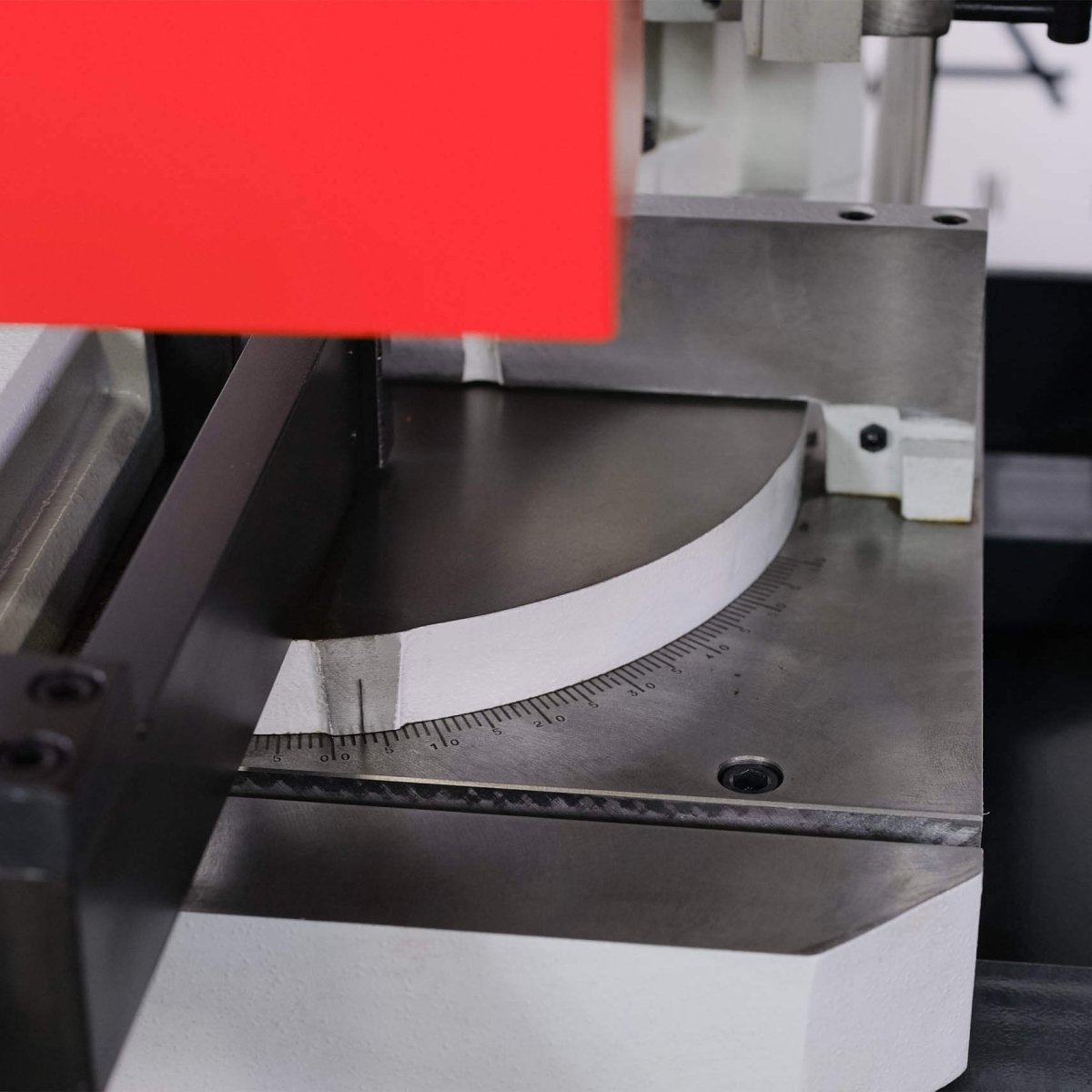

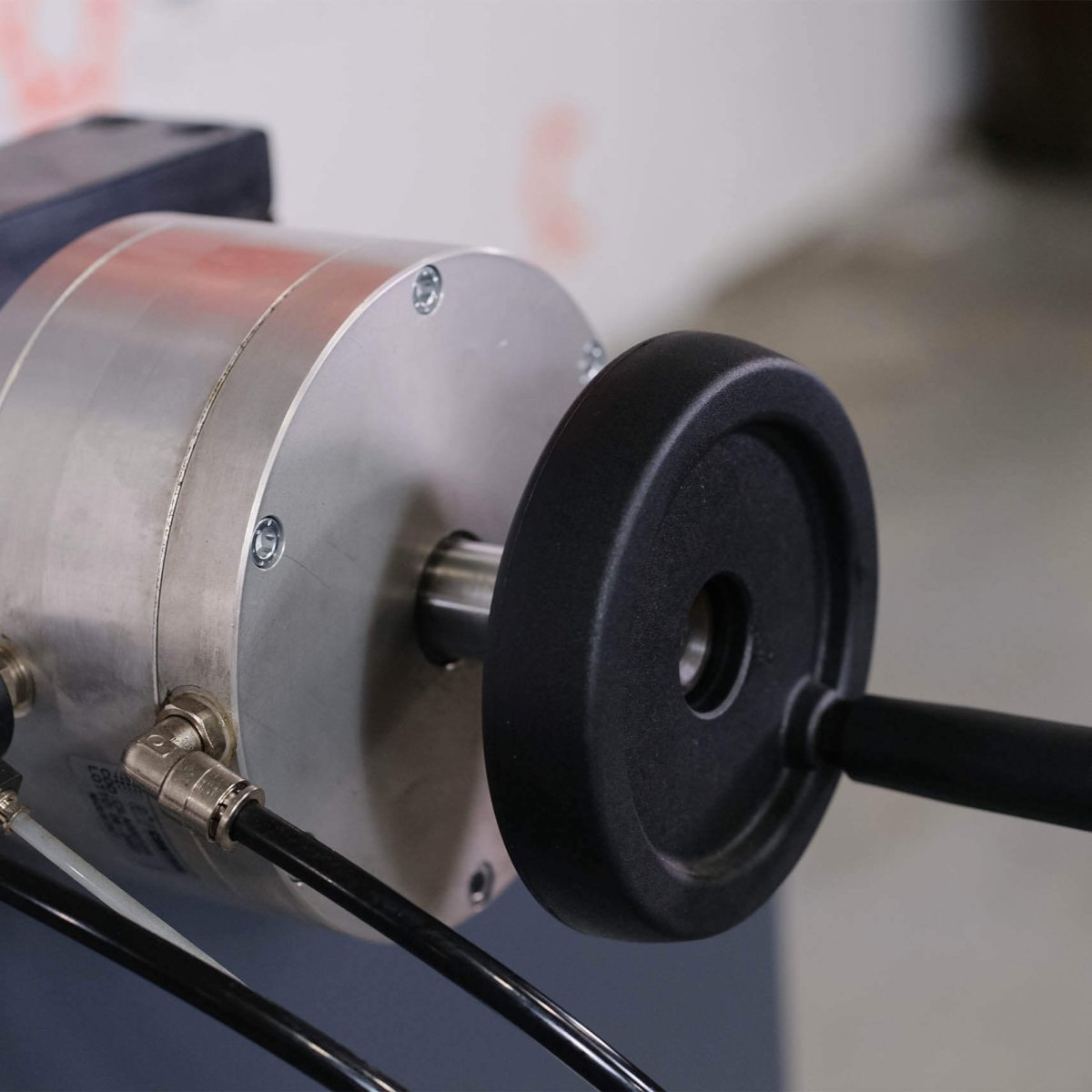

  • Vice complete with anti-burr device.

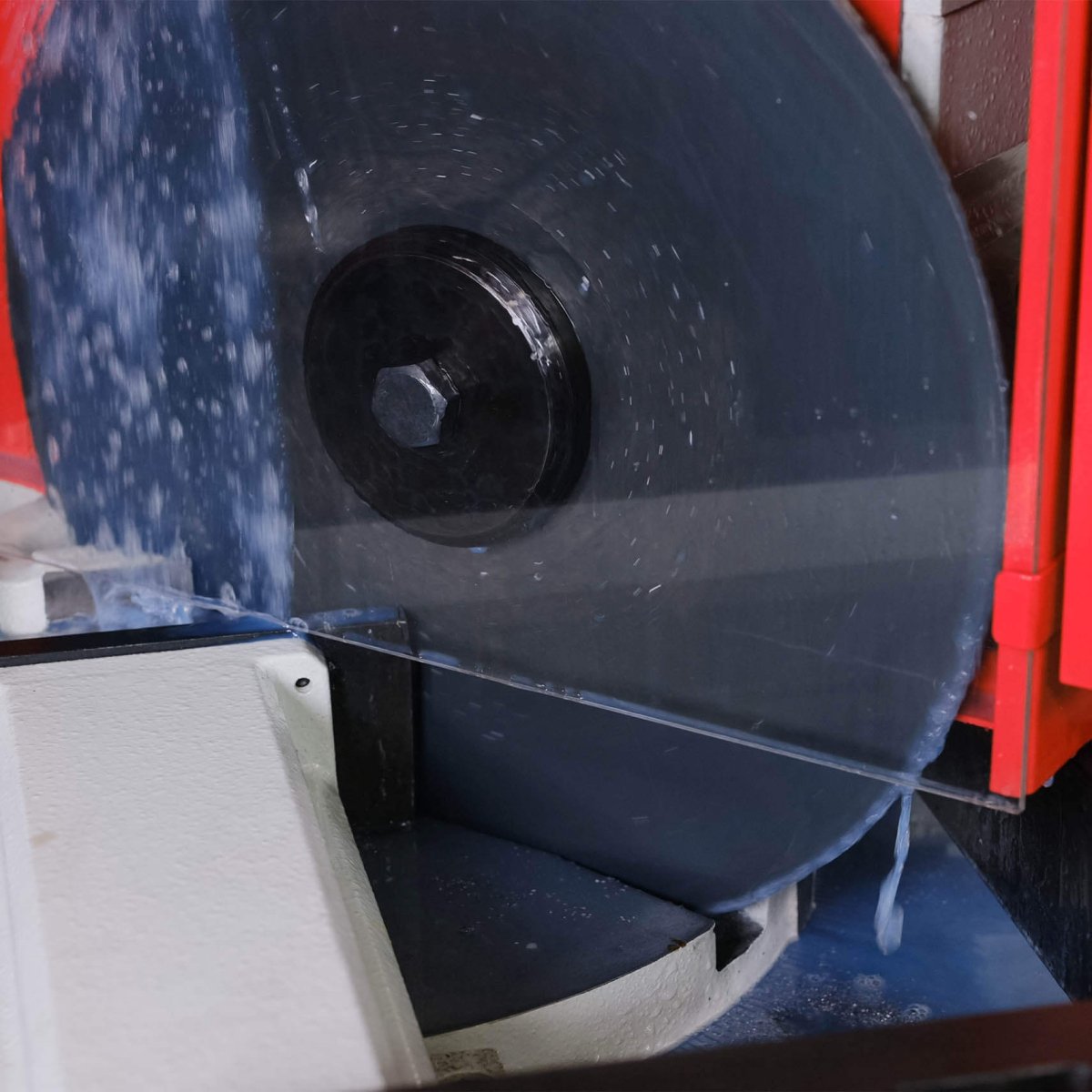

  • Motor pump.
  • Chip breaker to keep the blade clean.

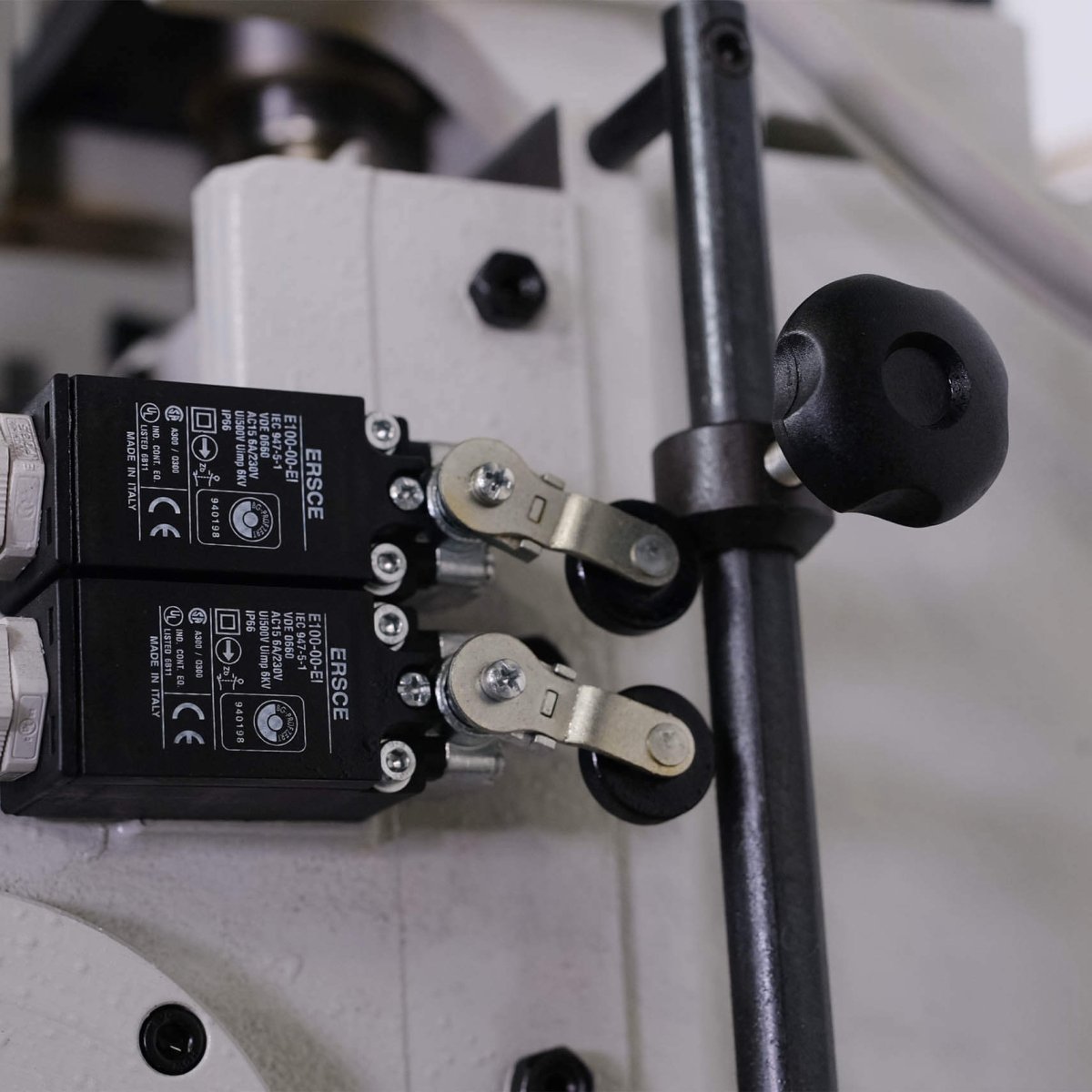

  • Adjustable stops for head vertical stroke.
  • Service tools.
  • Instruction manual and exploded view of spare parts.

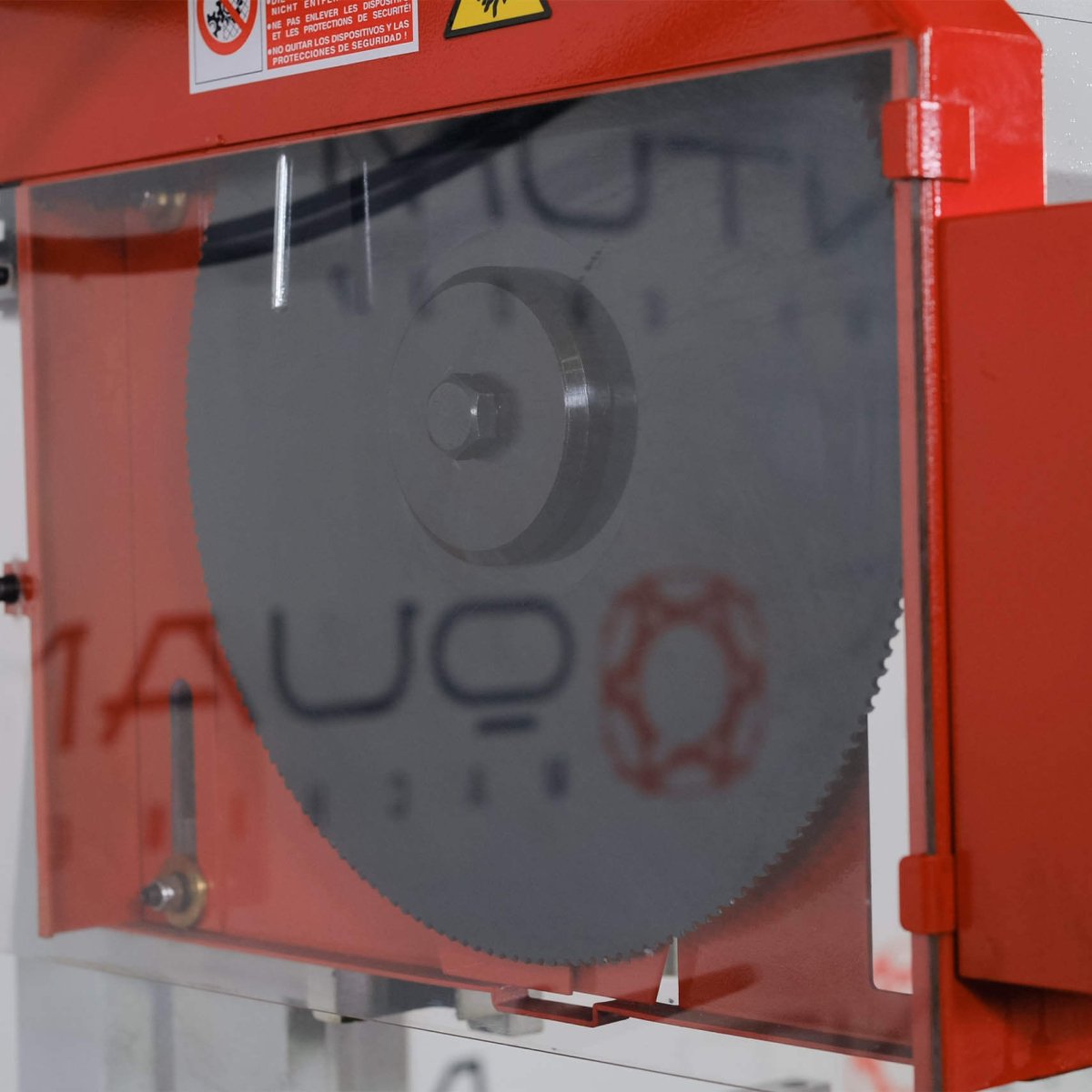

  • Blade Size: 370 x 2.5 x 32mm Bore HSS Blade
  • Maximum Vice Opening: 7.2” (185mm)
  • Machine Weight: 1,059 lbs. (480 kg.)

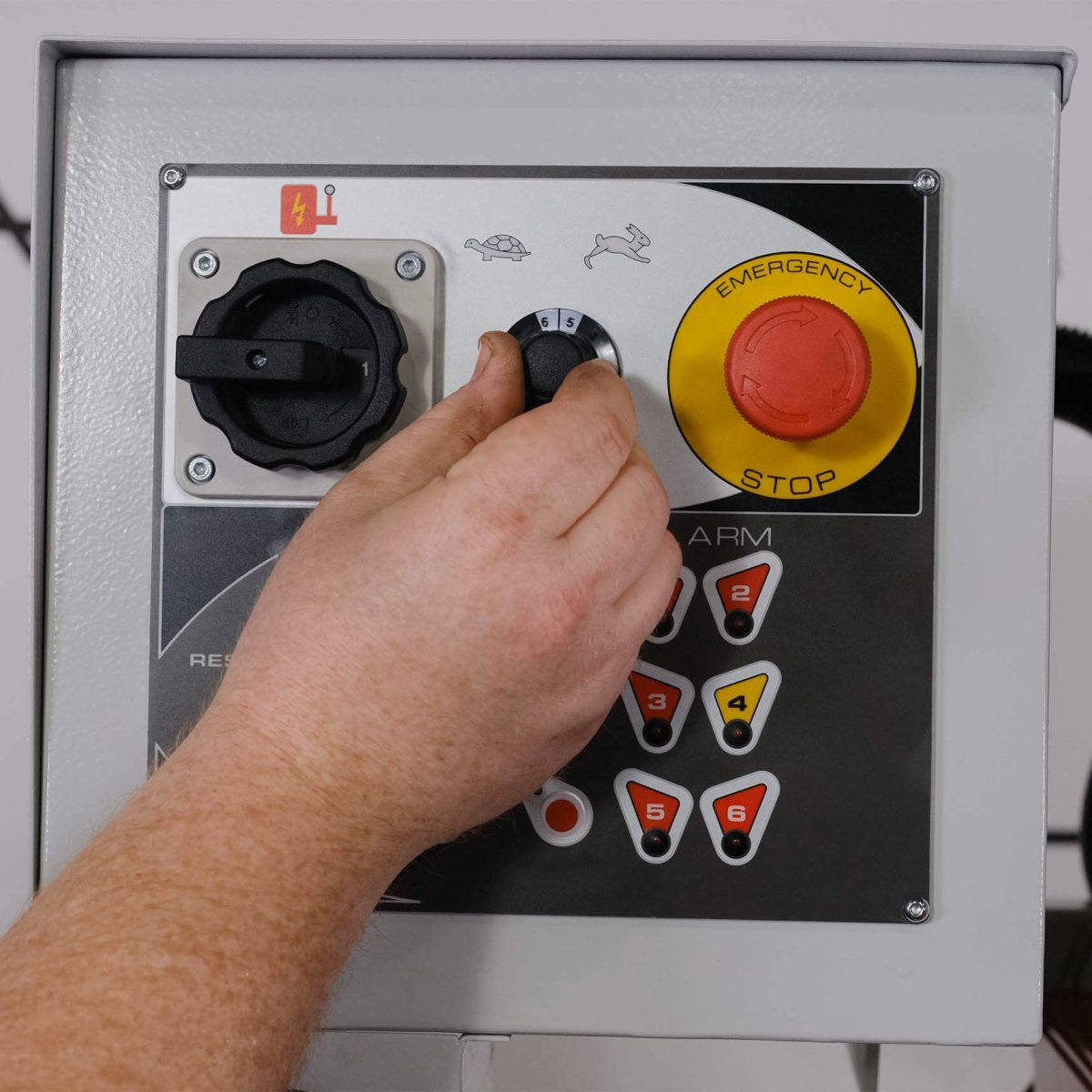

  • 2 Speeds: 36 & 72 R.P.M. (Saw can be equipped with Variable Speed Inverter)
  • Overall Dimensions: 6'-6” H x 8'-9” W x 4' L or 79” H x 104” W x 48” L or 2,000 mm x 2,640 mm x 1,200 mm
  • Additionally, this Saw Includes:  Instruction Manual, Service Tools & 1 HSS 370mm Cold Saw Blade.
