The Wrought iron Machine QUANTUM NARGESA NF70 smashes and molds irons up to obtaining the desired shape depending on the mold design. It forges arrow ends or lances of different kinds; flat, pyramidal, etc. It also makes baluster extremes to accomplish nice ornamental parts by changing the die. It forges and smashes balusters in the middle to make different designs. These ornamental pieces are used to make gates, fences, windows, doors, headboards for beds, metal furnishing, etc…

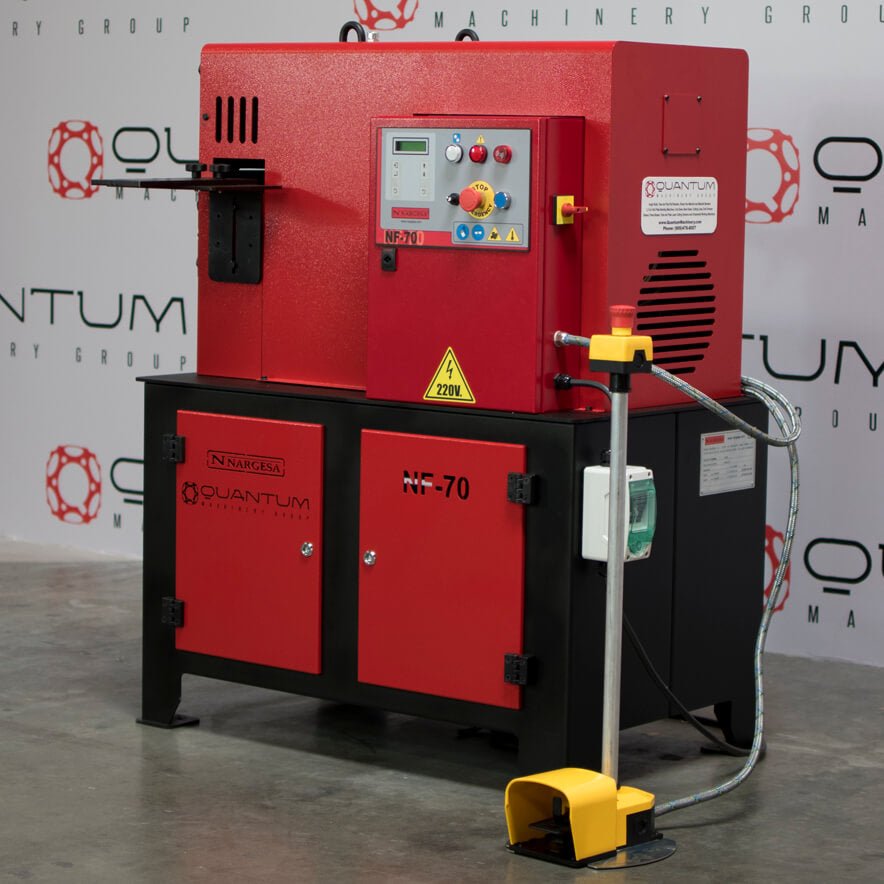

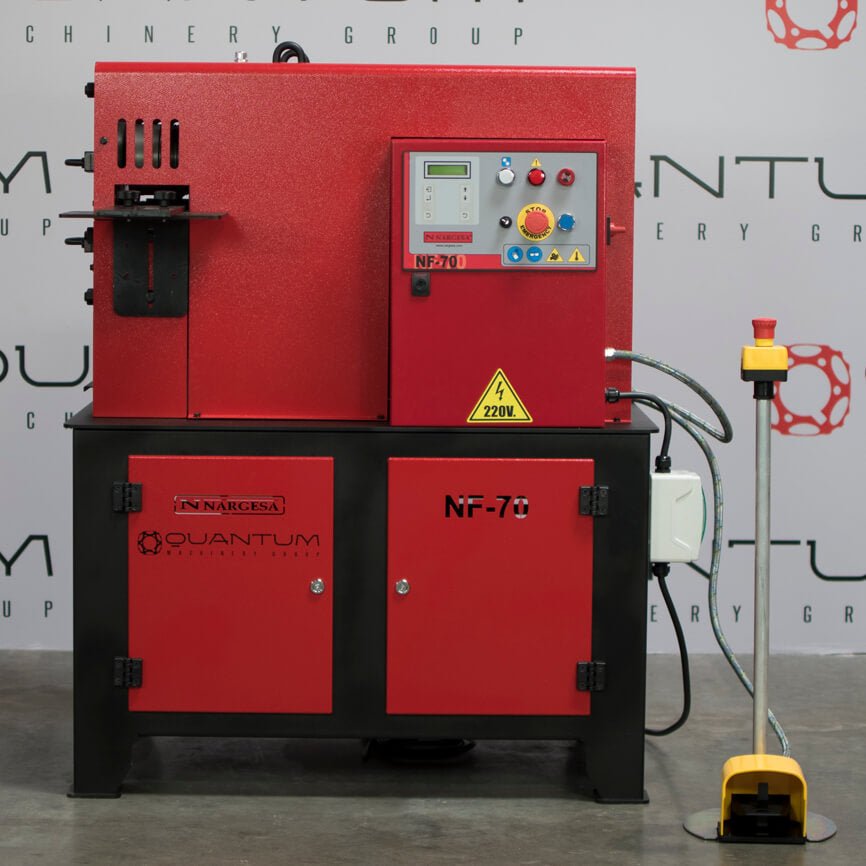

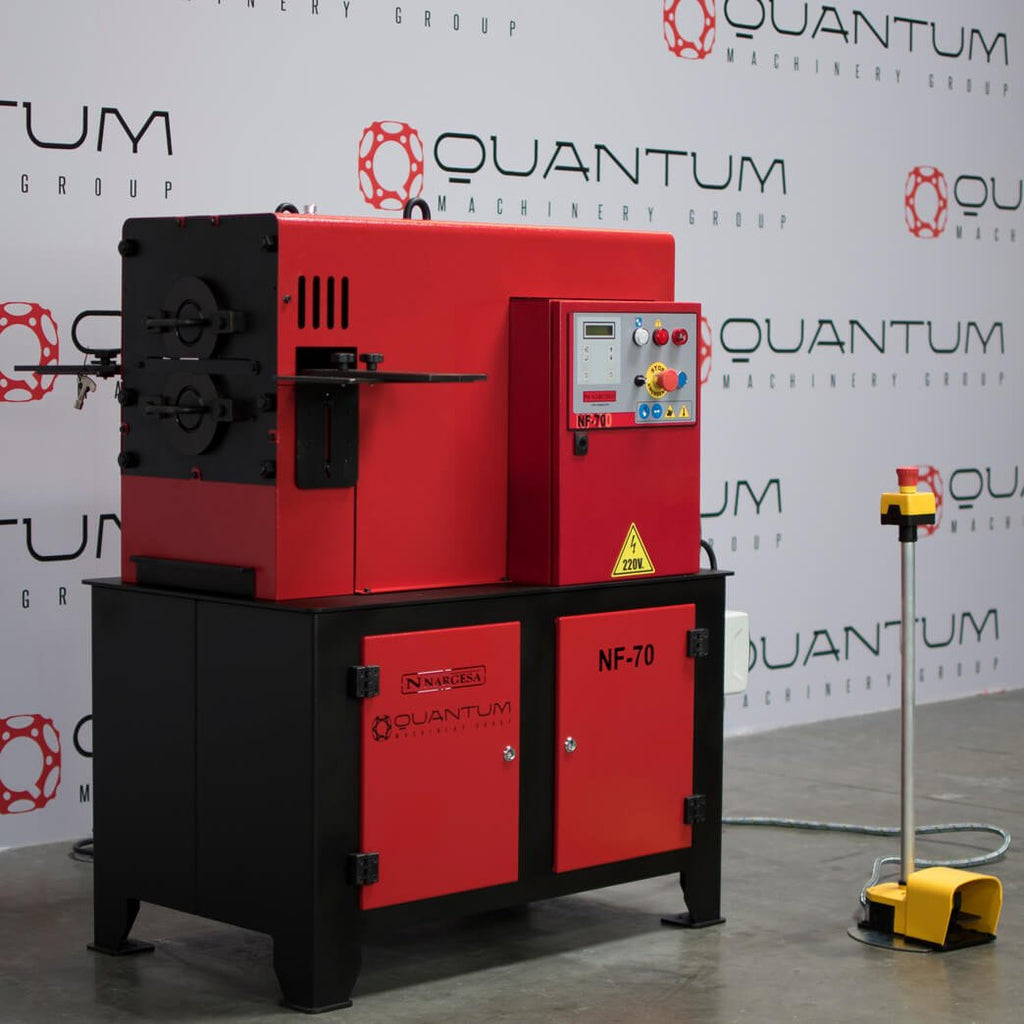

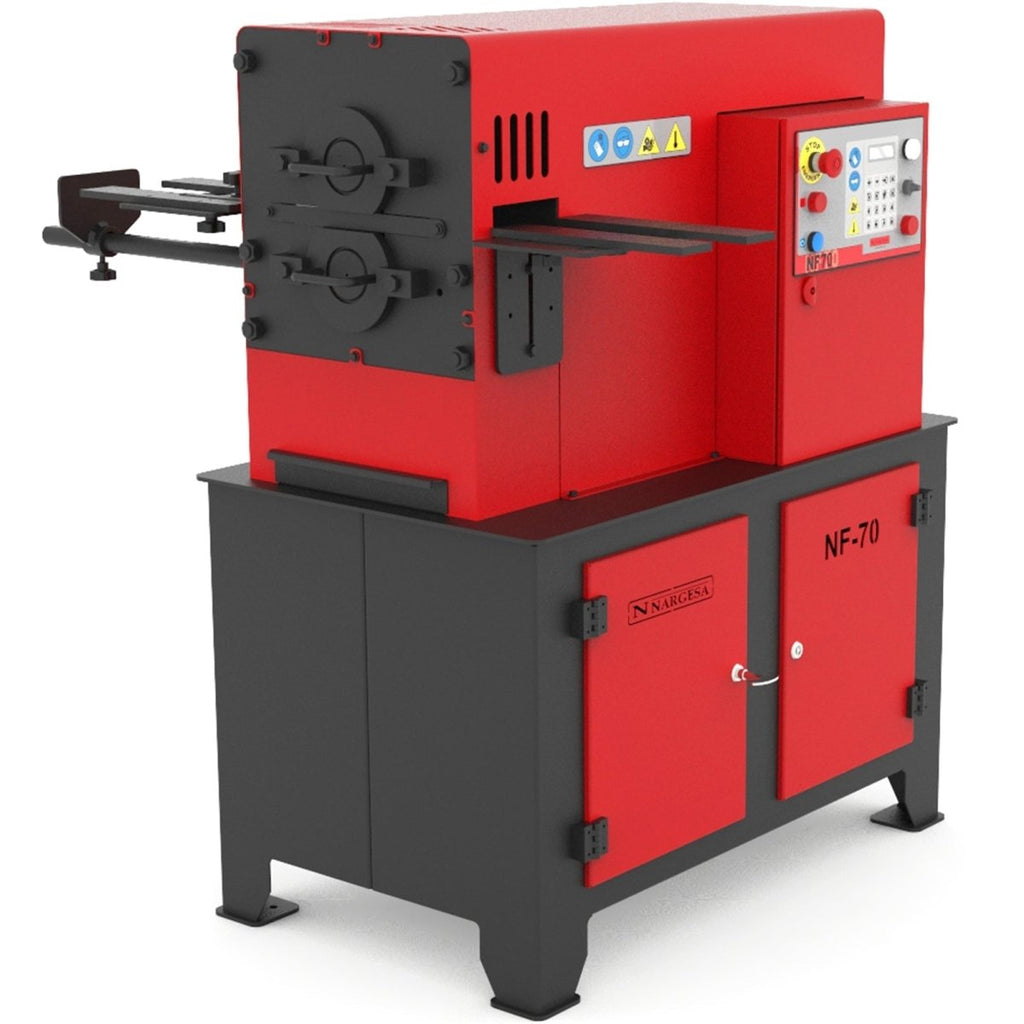

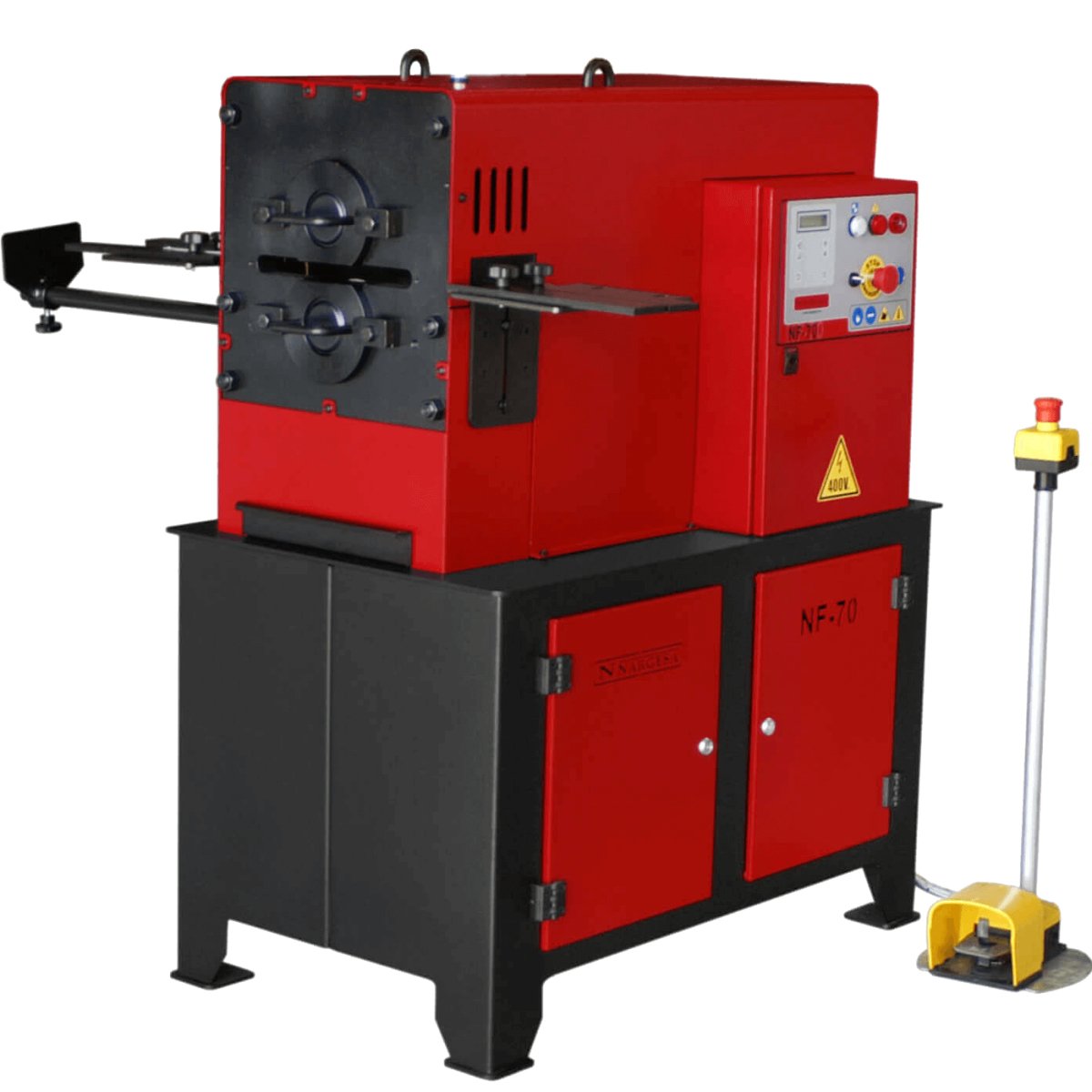

NF70: Industrial End-Wrought Iron Machine
WATCH THE VIDEO TO SEE EXACTLY HOW THE NARGESA NF70 END WROUGHT IRON MACHINE WORKS ALONG WITH SOME OF IT’S FEATURES
NF70 TECHNICAL SPECIFICATIONS
-
- Max. Round Capacity: 0.78” (20mm) Mild Steel
- Max. Square Capacity: 0.78” (20mm) Mild Steel
- Max. Flat Bar Capacity: 1.57”x0.39” (40x10mm) Mild Steel
- Rotation Speed: 20 RPM
- Engine Power: 7 HP / 5.5 kw
- Machine Dimensions: 40" x 50" x 49"
- Approx. Machine Weight: 1,010 lbs.

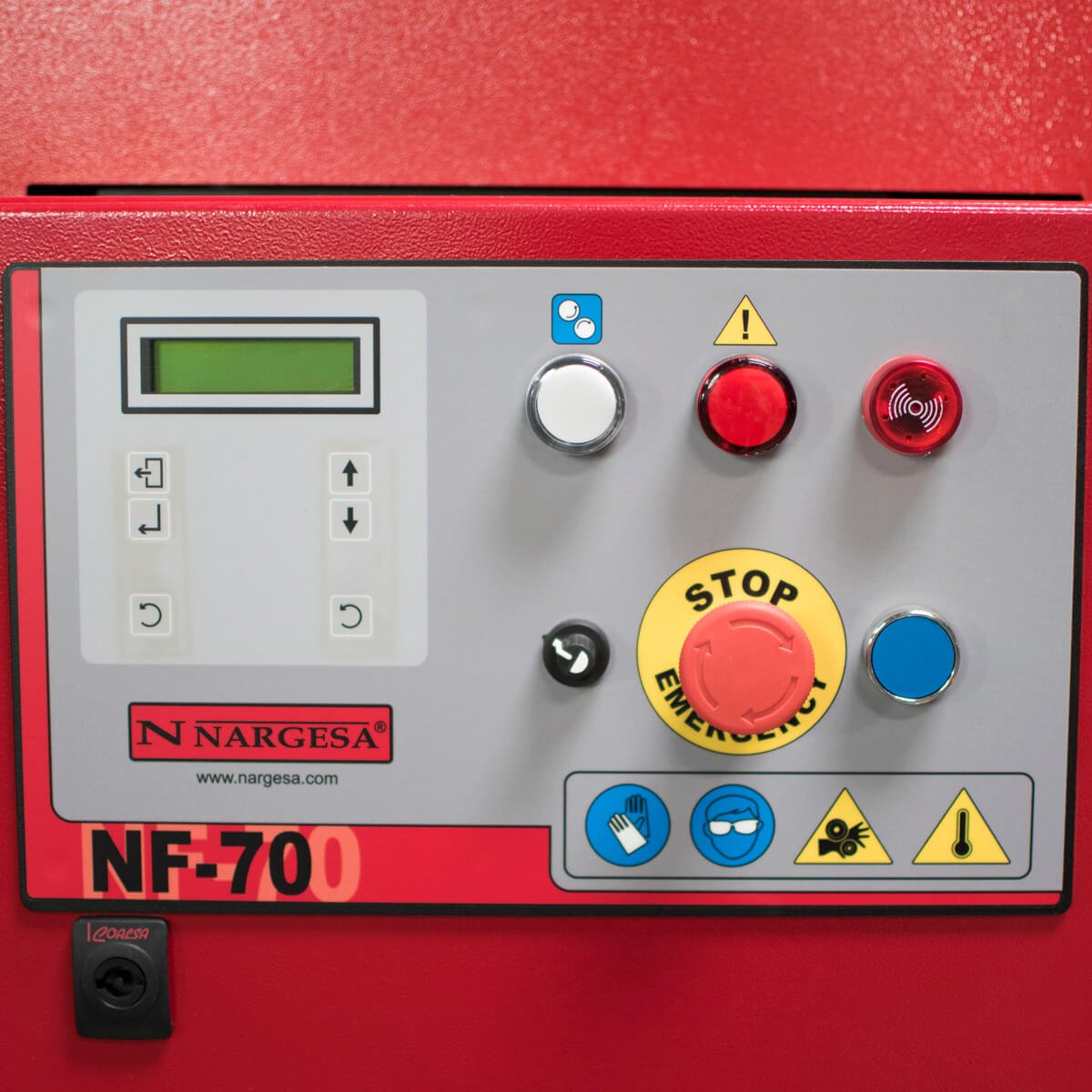

- Digital screen.
- Turns programmer.

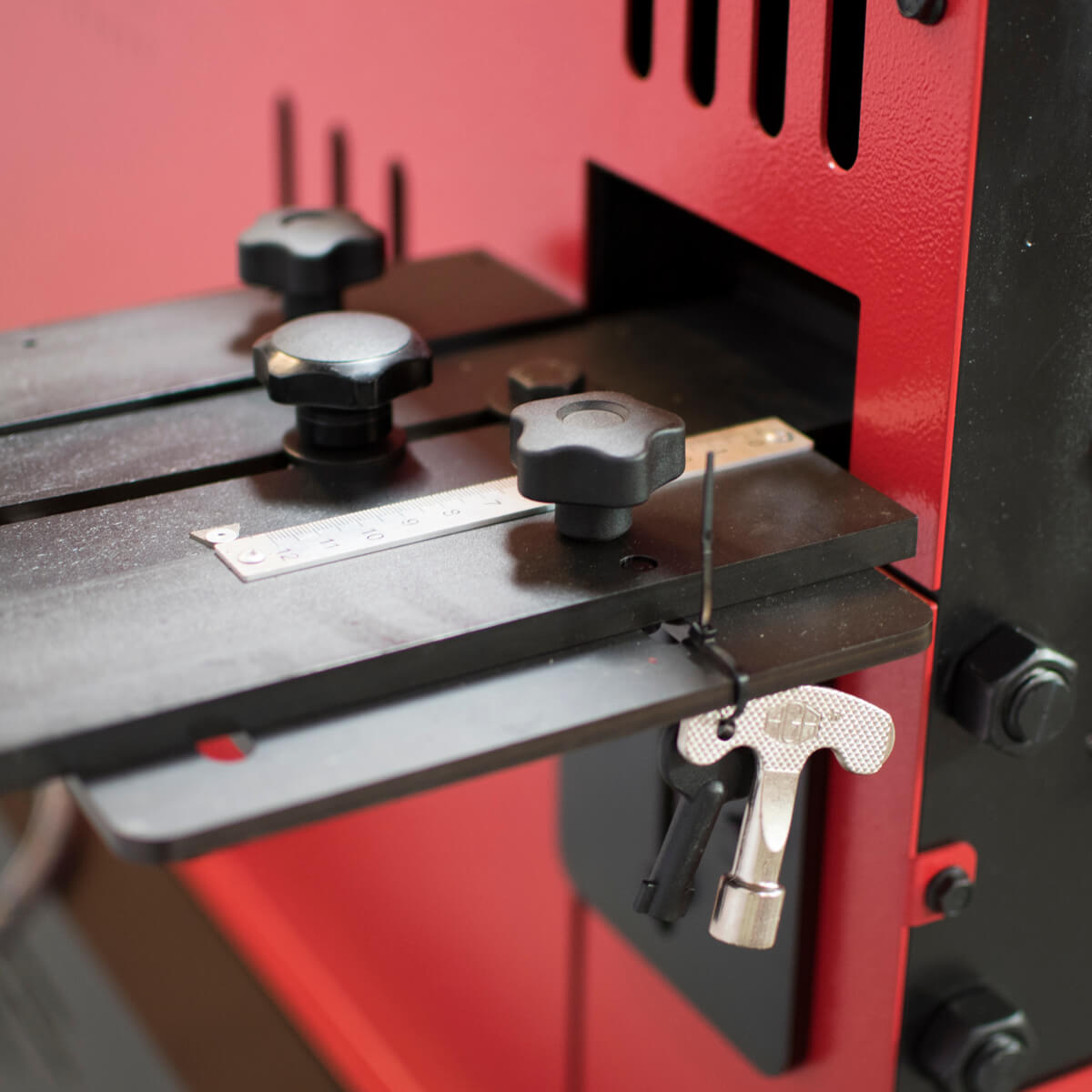

- Adjustable back gauge.
- With standard accessories wrought ends, flat ends, striated and pyramidal ends can be made.
- OPTIONAL ACCESSORIES - If the customer asks for it, we make molds under request.
- For other tension or single phased machines, please ask the manufacturer.
- Palletized lower bench to easily move the machine up to its working place or storage.
- The machine is sent completely mounted.
Advantages:
-
- Easy Handling: Any worker is able to carry out this job, even without any previous preparation.
- Readiness: Thousands of parts can be made in one working day.
- Value and Prestige: There are few craftsmen who can make these kinds of wrought jobs.
- Sales: Possibility of selling parts with the forged extremes to different companies or steel stores.
- 3-Year Defective Parts Warranty: Nargesa machines have 3-year warranty, provided that the customer registers it in the Nargesa website upon arrival. Otherwise it would be only one year warranty. Enclosing any manufacturing default all along these 3 years for components. Any misuse is excluded from this condition. Labor, back and forth shipping and any eventual repair, are not included in this warranty.
Properly Heat Up Your Material: In order to achieve the best, optimum result for your different applications, it is very important to have piece that you are working on and shaping, heated to a good temperature. Our Nargesa Propane Gas Forging Furnaces , and are manufactured to reach these high temperatures with the lowest possible emission rates in the industry.
INCLUDED & OPTIONAL ACCESSORIES
INCLUDED - Set of Flat Rollers
(REF: 140-12-02-00001)
Set of flat rollers to make flat and piramidal extremes.
Max. Round & Square Capacity: 0.78” (20mm)
Max. Rectangular Capacity: 1.9”x0.39” (50x10mm)
Units Per Set: 2 units.
(Accessory Weight: 9 lbs.)
INCLUDED - Set of Striated Rollers
(REF: 140-12-02-00002)
Set of striated rollers to make "fishtail" shaped ends.
Max. Round & Square Capacity: 0.78” (20mm)
Max. Rectangular Capacity: 1.9”x0.39” (50x10mm)
Units Per Set: 2 units.
(Accessory Weight: 9 lbs.)
OPTIONAL - Set of Trilobular Rollers
(REF: 140-12-02-00003)
Set of trilobular rollers to emboss decoration in the middle of a baluster.
Max. Round & Square Capacity: 0.78” (20mm)
Max. Rectangular Capacity: 1.9”x0.39” (50x10mm)
Units Per Set: 2 units.
(Accessory Weight: 9 lbs.)
OPTIONAL - Set of Tripple Middle Marking Rollers
(REF: 140-12-02-00004)
Set of trilobular rollers to emboss decoration in the middle of a baluster.
Max. Round & Square Capacity: 0.78” (20mm)
Max. Rectangular Capacity: 1.9”x0.39” (50x10mm)
Units Per Set: 2 units.
(Accessory Weight: 19 lbs.)
OPTIONAL - Set of Fishtail Rollers
(REF: 140-12-02-00005)
Two-grooved roller, one for big diameters and the other one for smaller diameters.
Max. Round & Square Capacity: 0.78” (20mm)
Max. Rectangular Capacity: 1.9”x0.39” (50x10mm)
Units Per Set: 1 units.
(Accessory Weight: 17 lbs.)
OPTIONAL - Set of Custom / Special Rollers
Two-grooved roller, one for big diameters and the other one for smaller diameters.
We design and manufacture all kind of special rollers under request. Consult with your Quantum Machinery Sales Engineer.
