MC550: Roll Bender (Bend up to 3" O.D. Round Tube)

Sale price$22,800 Regular price$31,712
Save $8,912

Electrical Options: 220V / 1PH / 60Hz

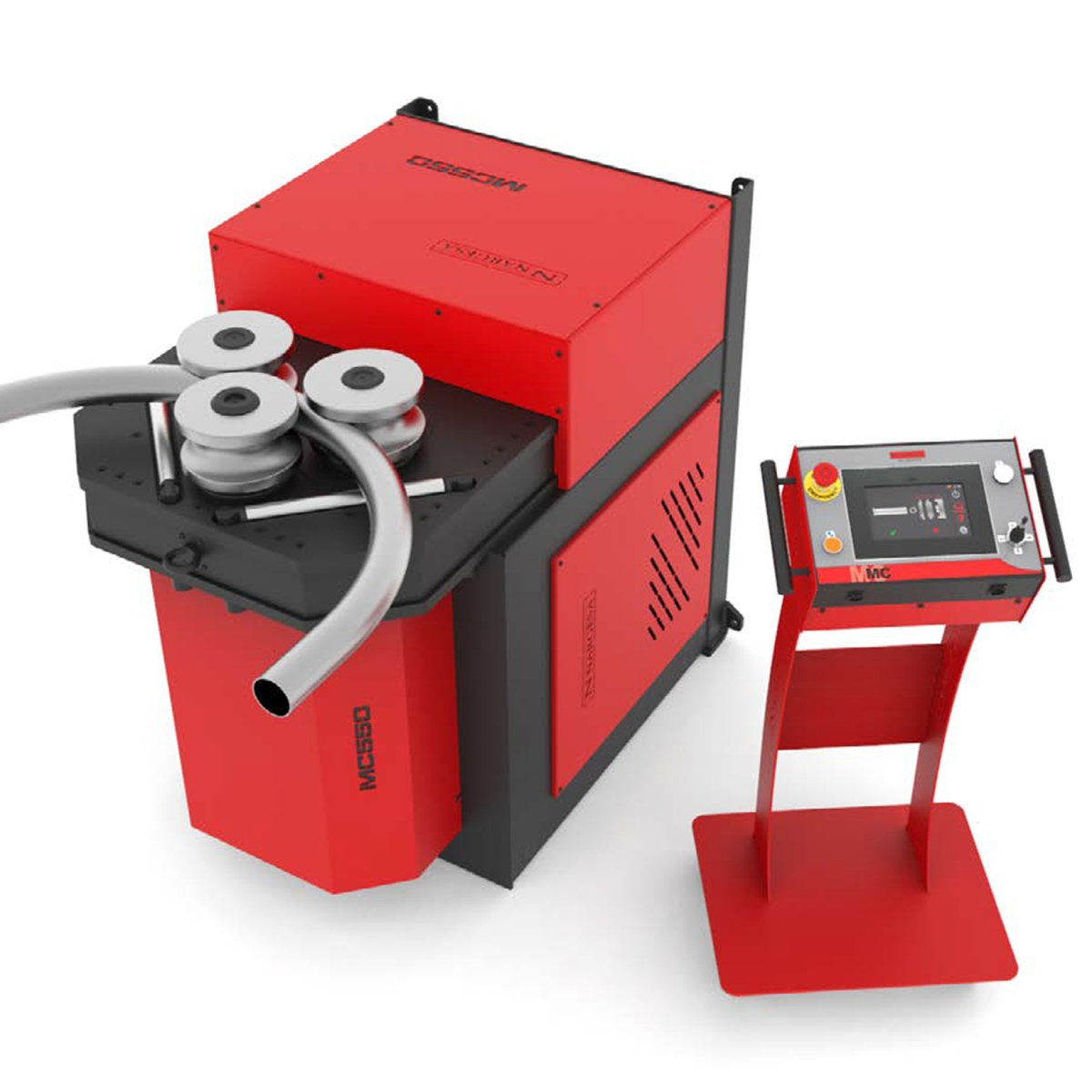

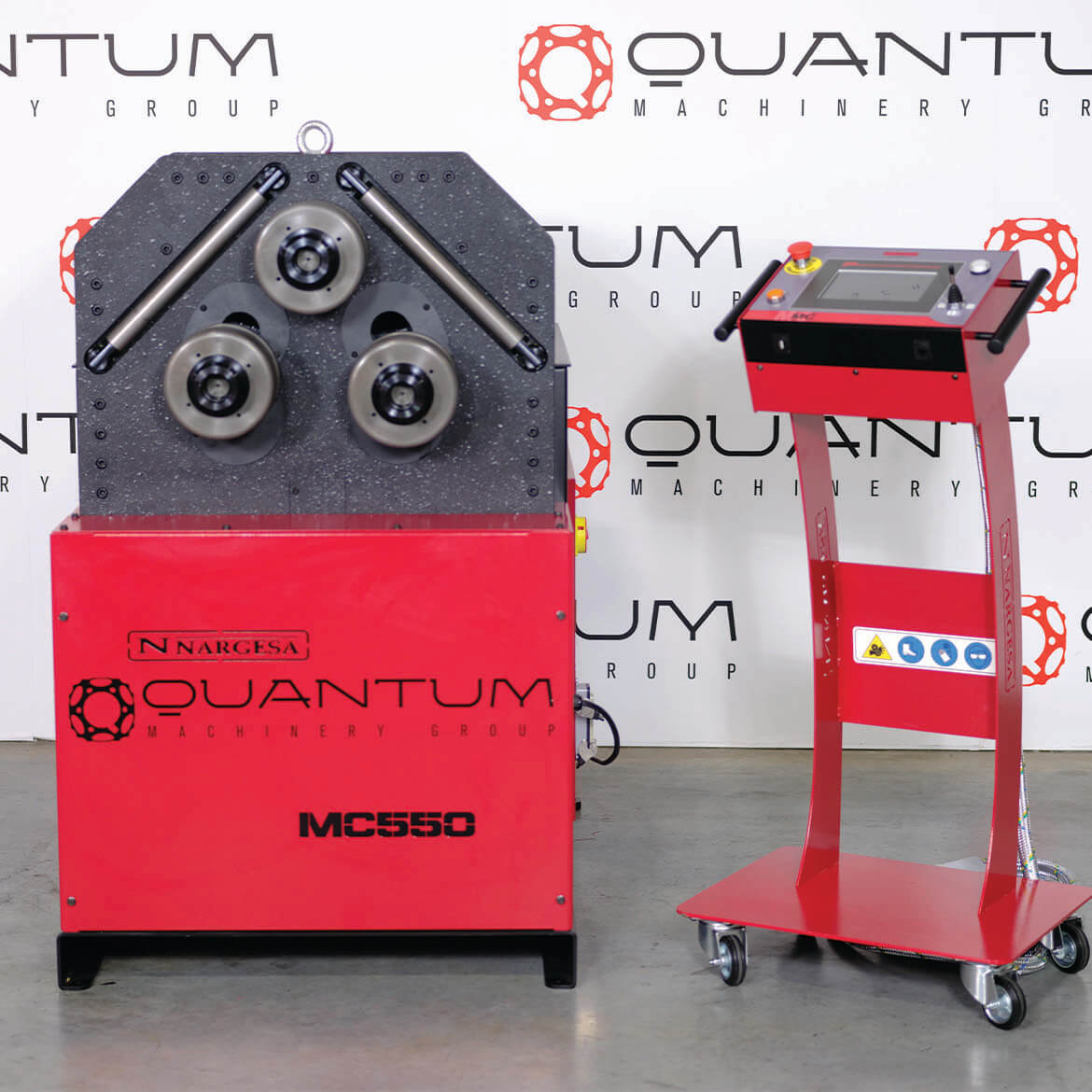

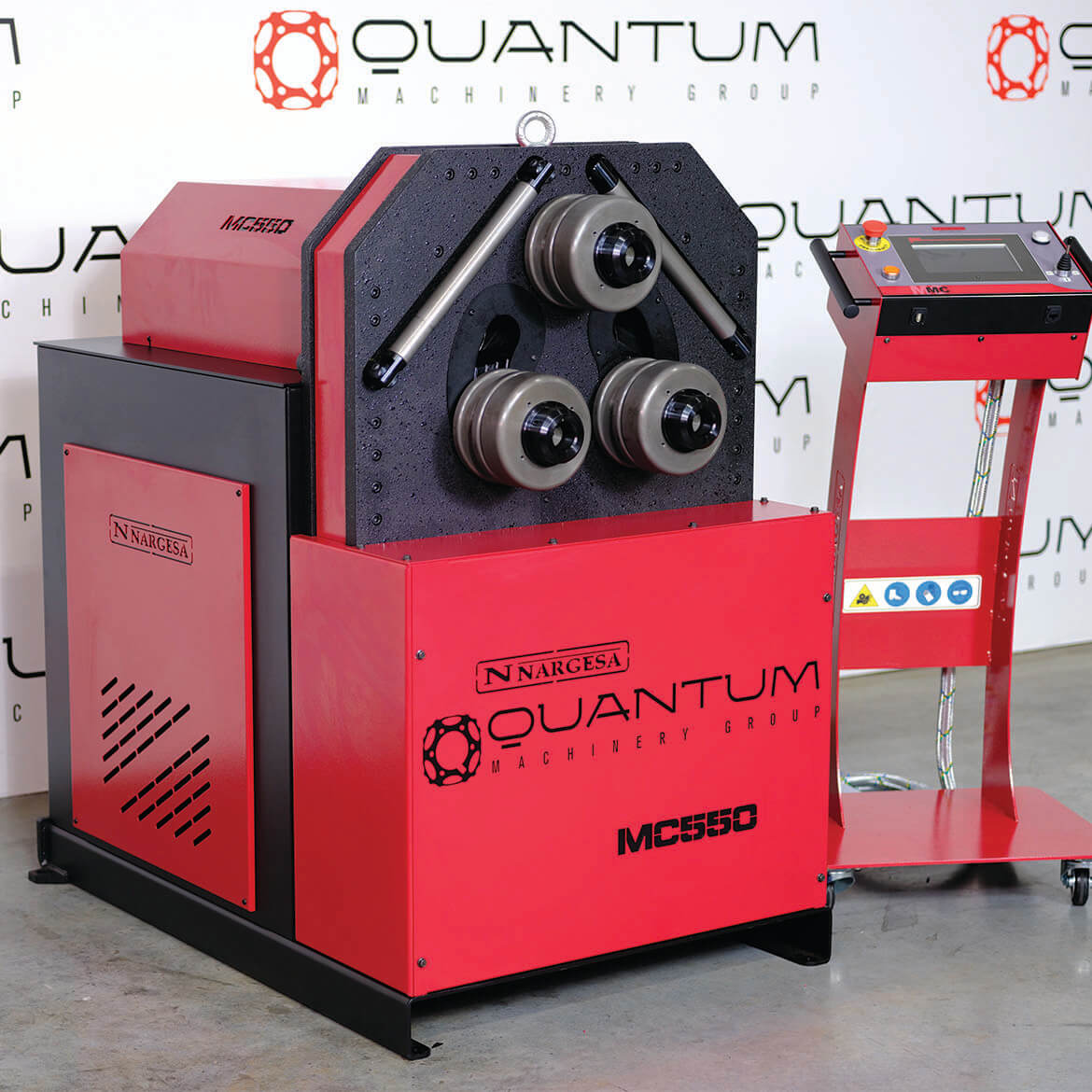

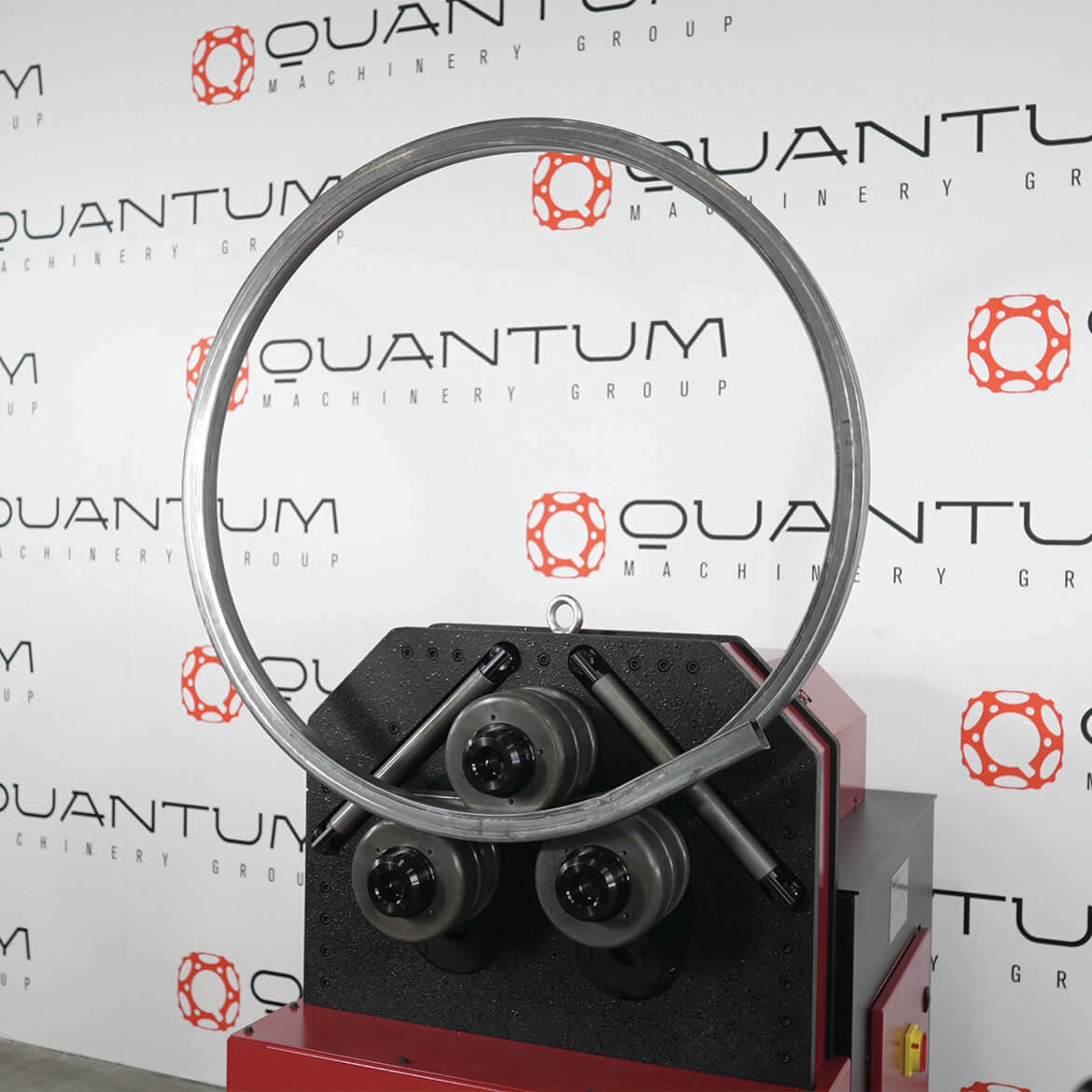

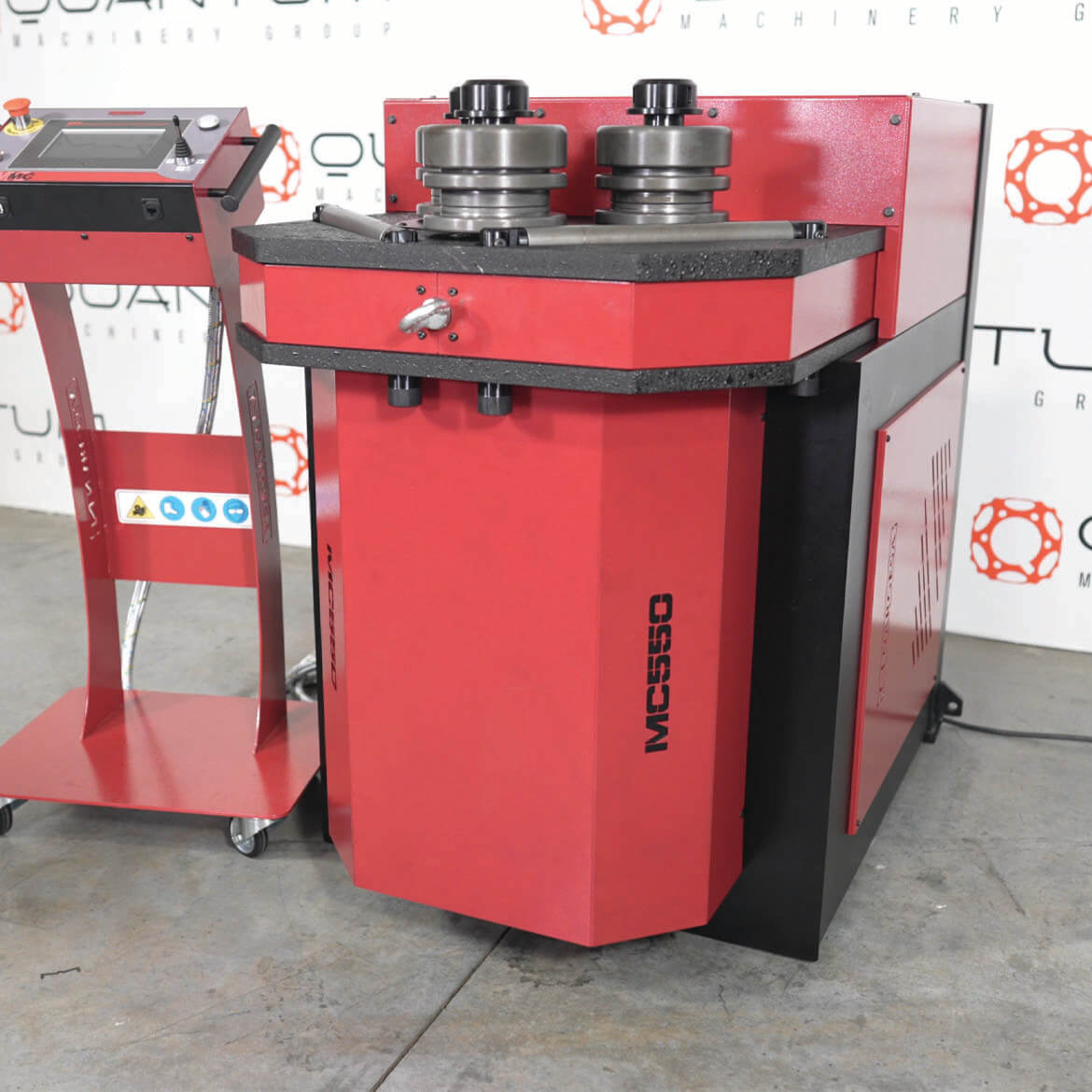

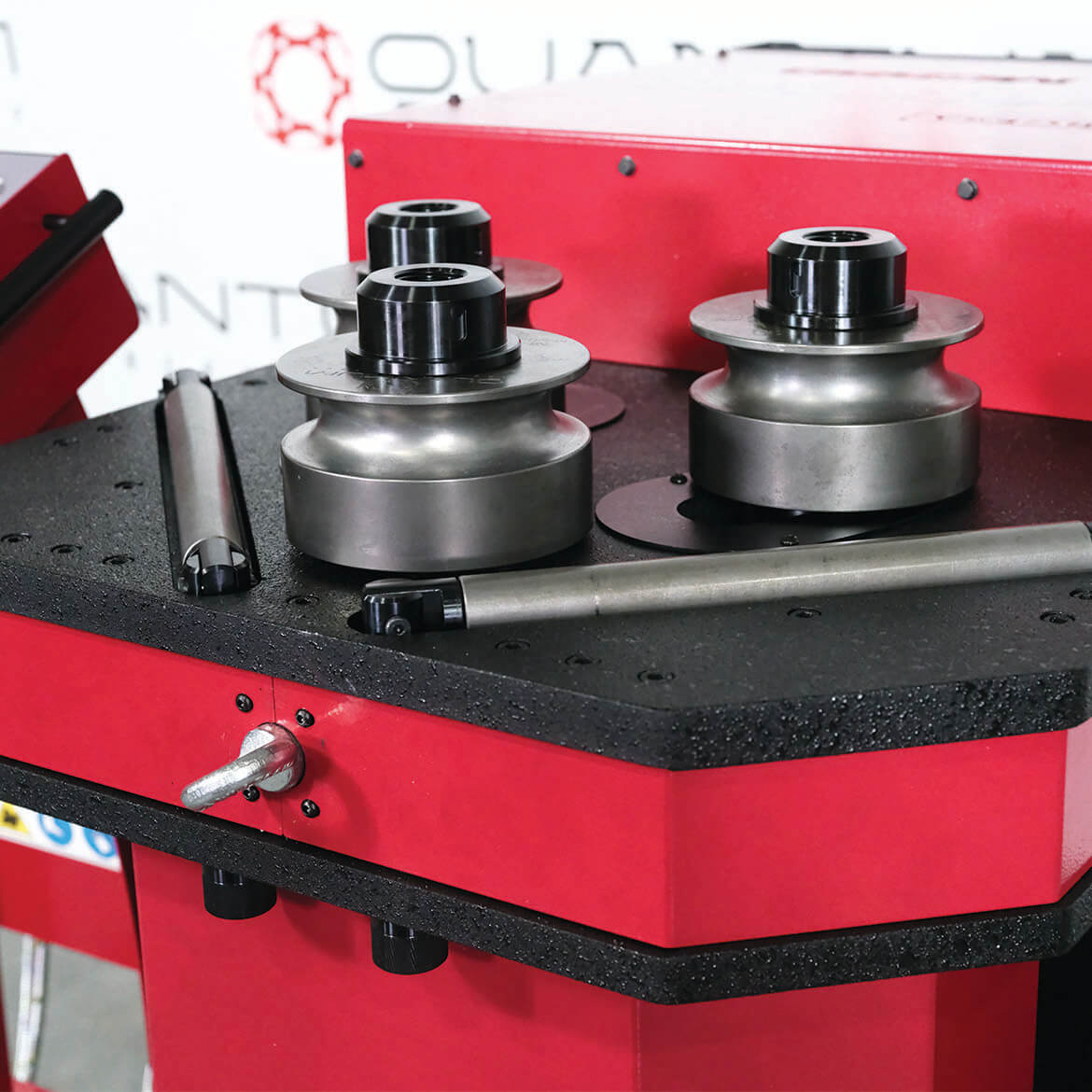

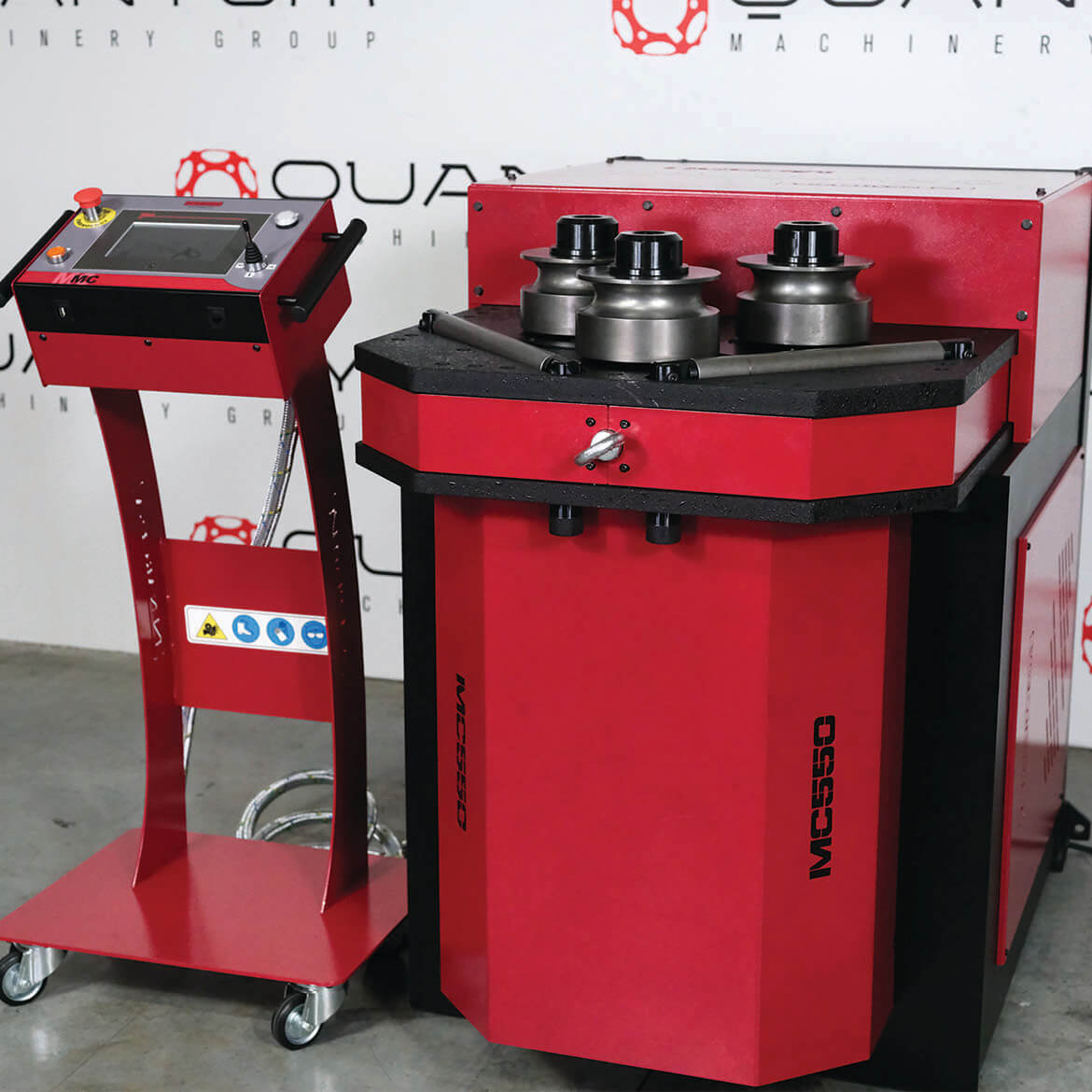

The NARGESA MC550 Section and pipe bending Roll Bender. Our pipe bender MC550 is made of welded and machined sheet steel, making it very tough and stable. It is ideal for manufacturing flanges, greenhouses, railings, large structures for buildings such as circular beams for roofs, domes, bridge abutments, metal pergolas, curved marquees, structures for tunnels... Urban furniture such as street lamps, protections for roundabouts, bicycle parking stands, tree protectors, railings, public transport marquees, bollards or moveable bollards, children's play parks and all sorts of circular figures in different large and small sections and tubes. Its capacity, versatility, control panel and 4.0 technology make the MC550 bender an ideal machine for bending not only for your company, but for other clients as well.



All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...



    • Rollers Speed: 3 to 7 RPM
    • Diameter of Axes: 1.5" / 50mm
    • Useful Axes Length: 3.5" / 90mm
    • Motor Power: 1.5 KW / 2 CV
    • Dimensions: 42"L x 54"W x 82"H
    • Approx. Machine Weight: 2,010 lbs.
    • Millimeter scale for bending in the upper shaft.
    • Maximum Capacity for Bending Round Tube: 3" inches or 80mm
    • Two working positions, horizontal and vertical in the same workbench.
    • Three Power rollers. All bending work is done faster with a 3-power axle bender.
  • Manufacturer's Warranty: 3 Years on All Parts (Fulfilled by Quantum Machinery Group.)
  • Nargesa MC550 comes standard with this speed variator for roller rotation and position adjustment.
  • Nargesa MC550 pipe benders are controlled with a very intuitive and easy-to-use 7” color touchscreen with the latest 4.0 technology.
  • Lower axles rise and drop in a kidney-shaped movement which saves materials andprovides for optimal use of the profile or pipe.
  • Secure transmission by using flat hardened pinions.
  • Base cupboard for rollers and accessories.

FEATURES OF THE MC550

4.0 TECHNOLOGY

The advantages of having this technology in a machine are endless, so we’re only going to mention the most relevant. Whenever a customer agrees, the manufacturer may remotely connect to their machine to do any software updates completely free of cost and detect any anomalies in the machine without needing to travel to the machine site. Customers are notified when preventive maintenance must be done on the machine along with many other advantageous features.

ROBUSTNESS

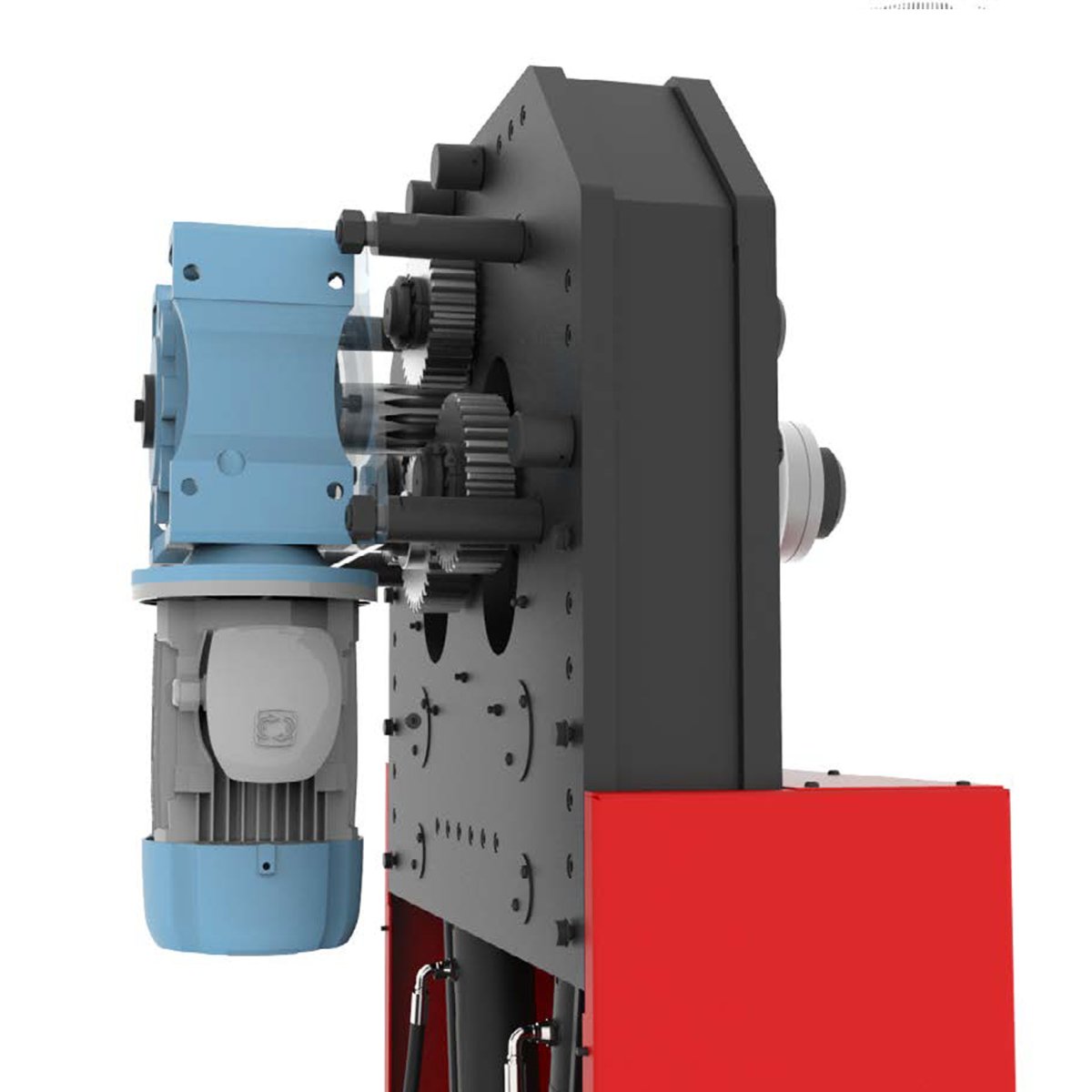

The weight of the machine in comparison to other brands provides an idea of how it’s built. Some models can double the others in weight. These are not DIY machines; they’re pipe benders that can work 24 hours a day. Made of steel sheet, which is tempered in areas subject to wear, and activated with a pinion planetary gear system. We do not use chains or other weak devices that could affect how the machine operates in the future.

AN ELECTRONICALLY-CONTROLLED ASYMMETRIC ROLLER POSITION

Asymmetric bending machines offer certain advantages over pyramidal bending machines. The lower axles rise and drop in a kidney-shaped movement. This means the distances between centers are variable which saves materials and, as a result, provides for optimal use of the profile or pipe which can be bent almost to the end. Another advantage is that bends can be made with much smaller radiuses than with pyramidal bending machines as the rollers can be practically moved together.

EASY TRANSPORTATION OF THE MACHINE TO THE WORKPLACE

There are several times when it is required to bend a complex piece such as a stair railing with multiple radii, so taking the machine to the customer’s location and use it there, saves a lot of time. The construction of the chassis of all Nargesa bending machines incorporates a hole to be able to transport the machine comfortably with a pallet truck and an upper lifting hook for its movement with a crane. The single-phase electrical connection, common to all construction sites, also eases this change of workplace for the machine, without needing to manufacture templates and travel from the workshop to the construction site.

THE ALL-NEW ECOMODE

We are well aware of the importance of saving energy nowadays. This is why our new machinery features an EcoMode which automatically disconnects the electric parts consuming the most energy if it detects any period of inactivity. Just press the movement button to restart production. We believe this feature is of vital importance to our customers for their savings as well as for the sustainability of the planet. After all, we’re a company that’s highly committed to the environment.

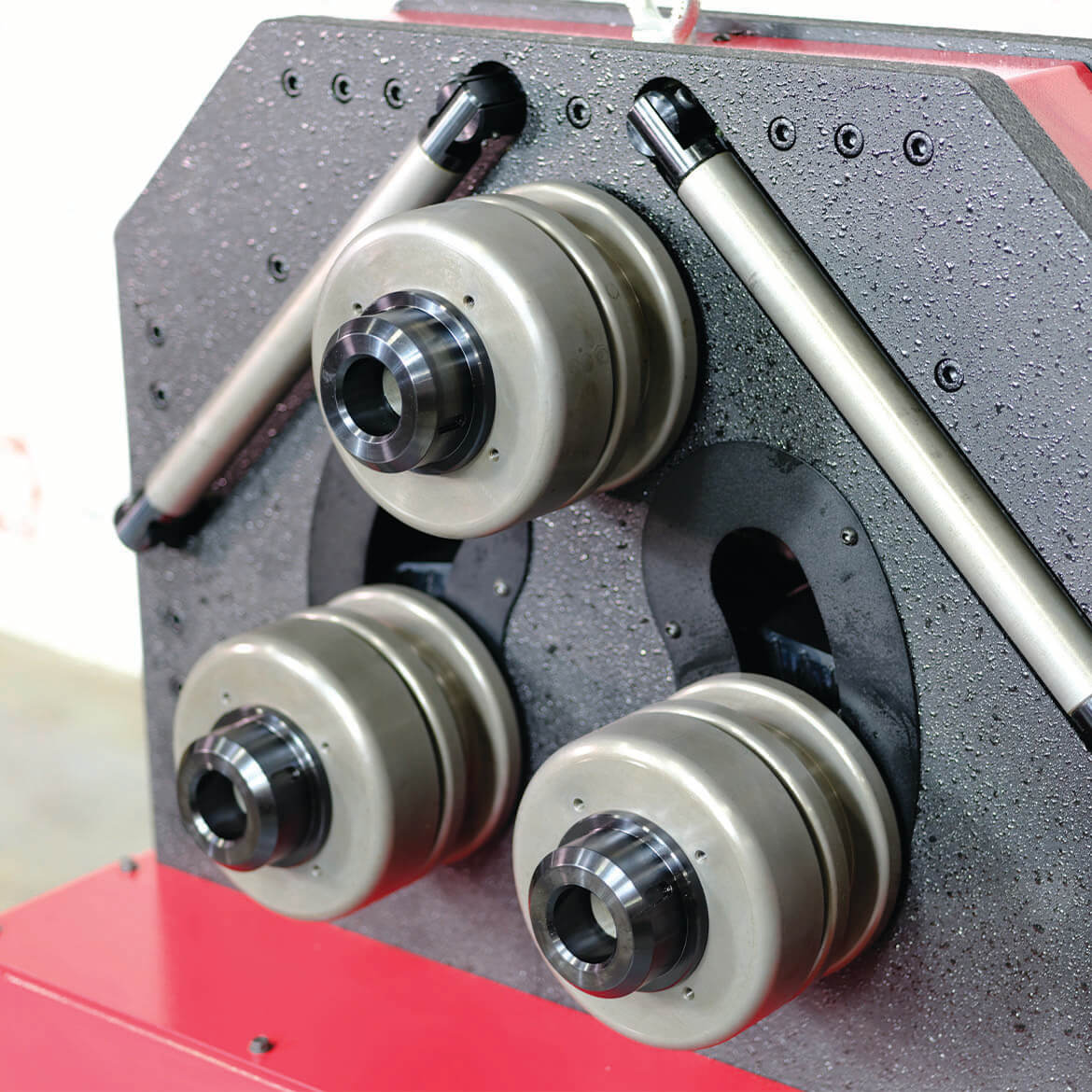

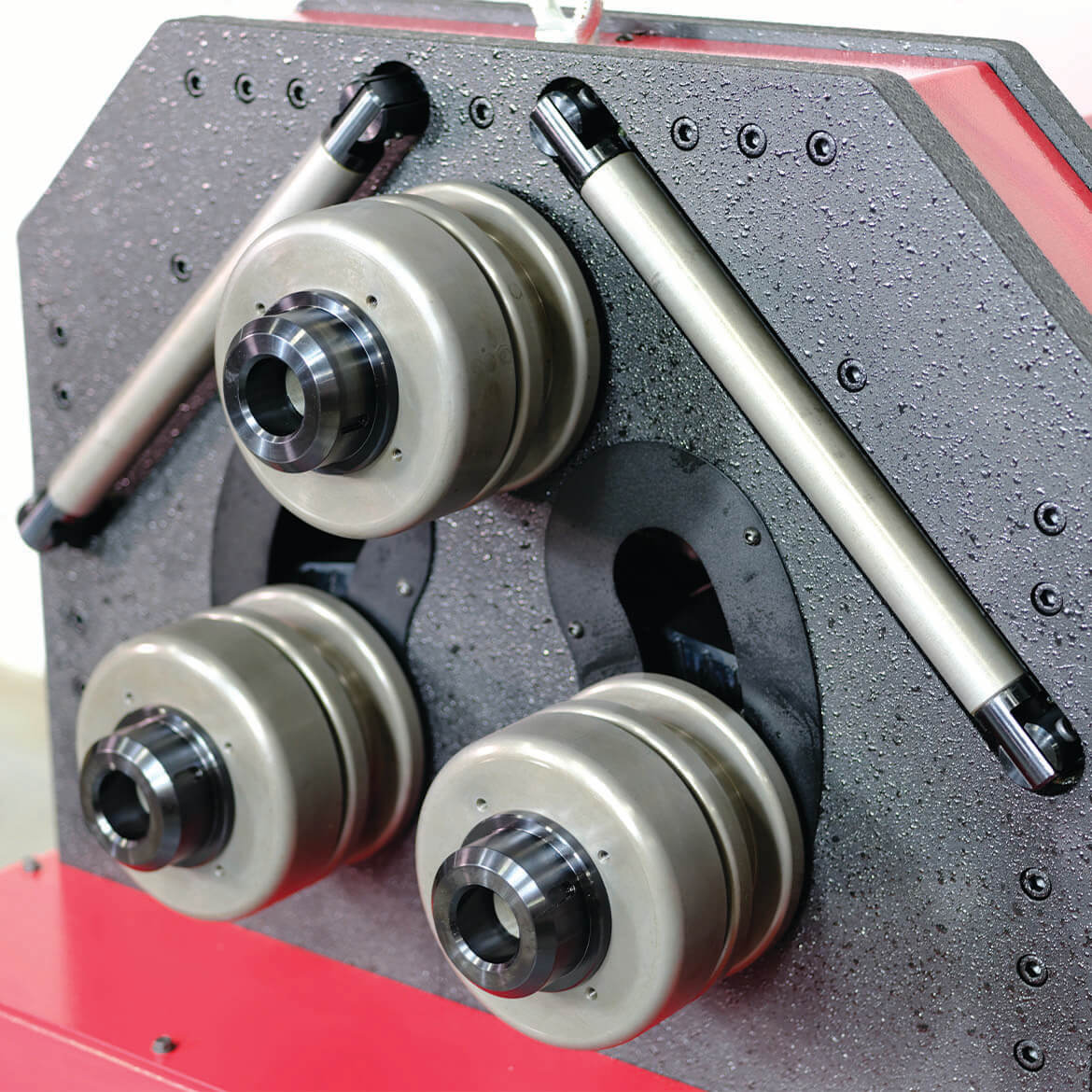

3 POWERED ROLLERS

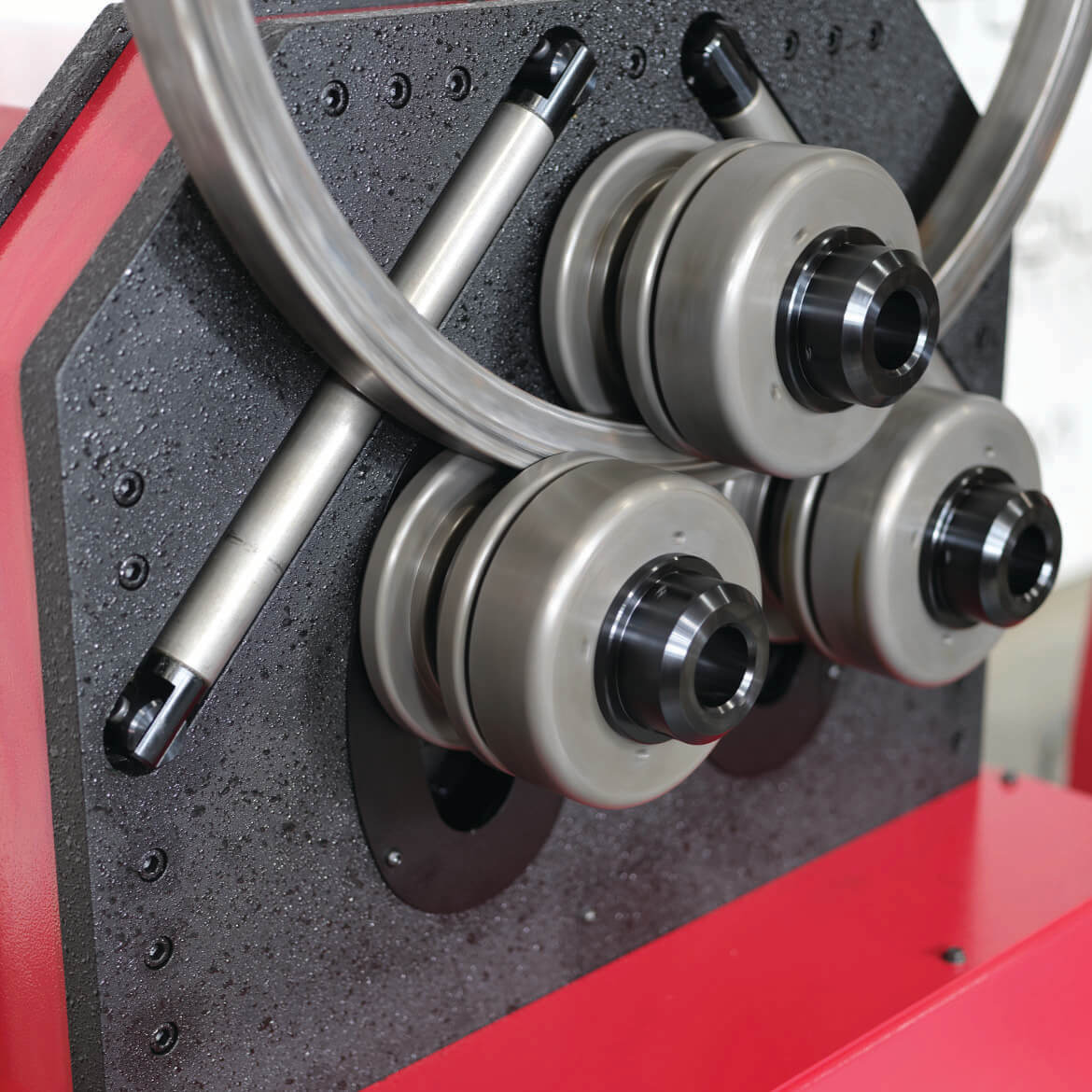

The 3-roller drag system makes the work easier, mainly when bending round or square pipes. This prevents possible marks on the material which is a significant improvement over 2-power axle bending machines which feature lower layer-cut rollers for good traction. All bending work is done faster with a 3-power axle bender.

VERTICAL & HORIZONTAL POSITION

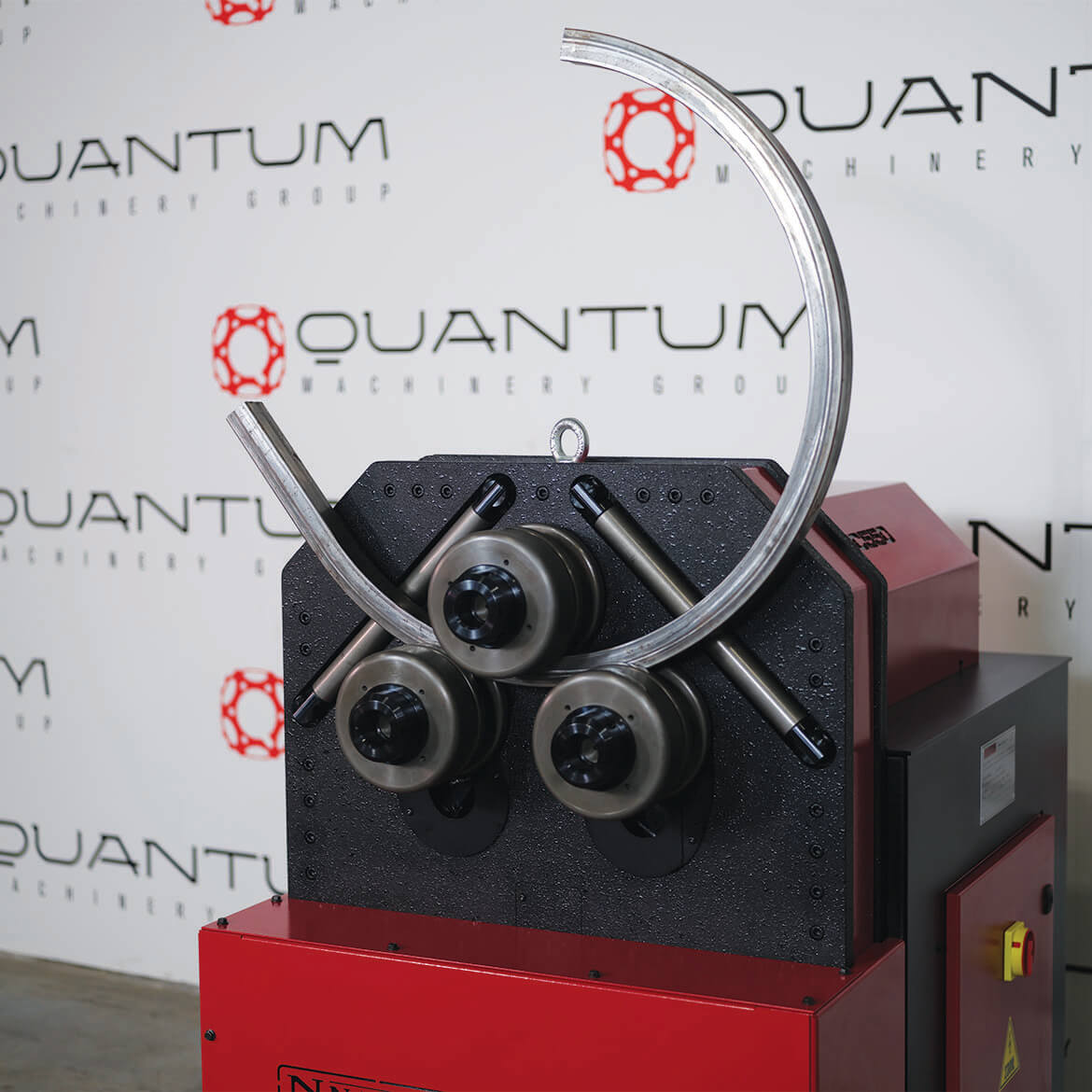

It is important to note that when purchasing a bending machine, you need to be able to position it horizontally as well as vertically. If the piece to be manufactured has diameters less than 1500 mm, working in a vertical position is recommended. On the contrary, when the bend diameters are increased above this level, work should be done in a horizontal position. Due to the proper support, this prevents the weight of the piece from affecting the end results. Bending is also done in a horizontal position to overcome clearance issues at the customer’s facilities. The MC550 bending machine can be operated in both positions (vertical and horizontal) which proves its great versatility.

ROTATION SPEED & PROGRAMMABLE AXLE ADJUSTMENT

In most cases, the production speed can be increased when the profile to be bent is small and the machine is programmed to do so. When the profile used is larger, you can also reduce the operating speed to adjust it appropriately for a proper bend. Likewise, the bend adjustment speed can be programmed on the first piece or only piece, facilitating and streamlining the most complex bending work. Unlike other brands, the Nargesa MC550 comes standard with this speed variator for roller rotation and position adjustment.

THE MC550 ESA625 CONTROL

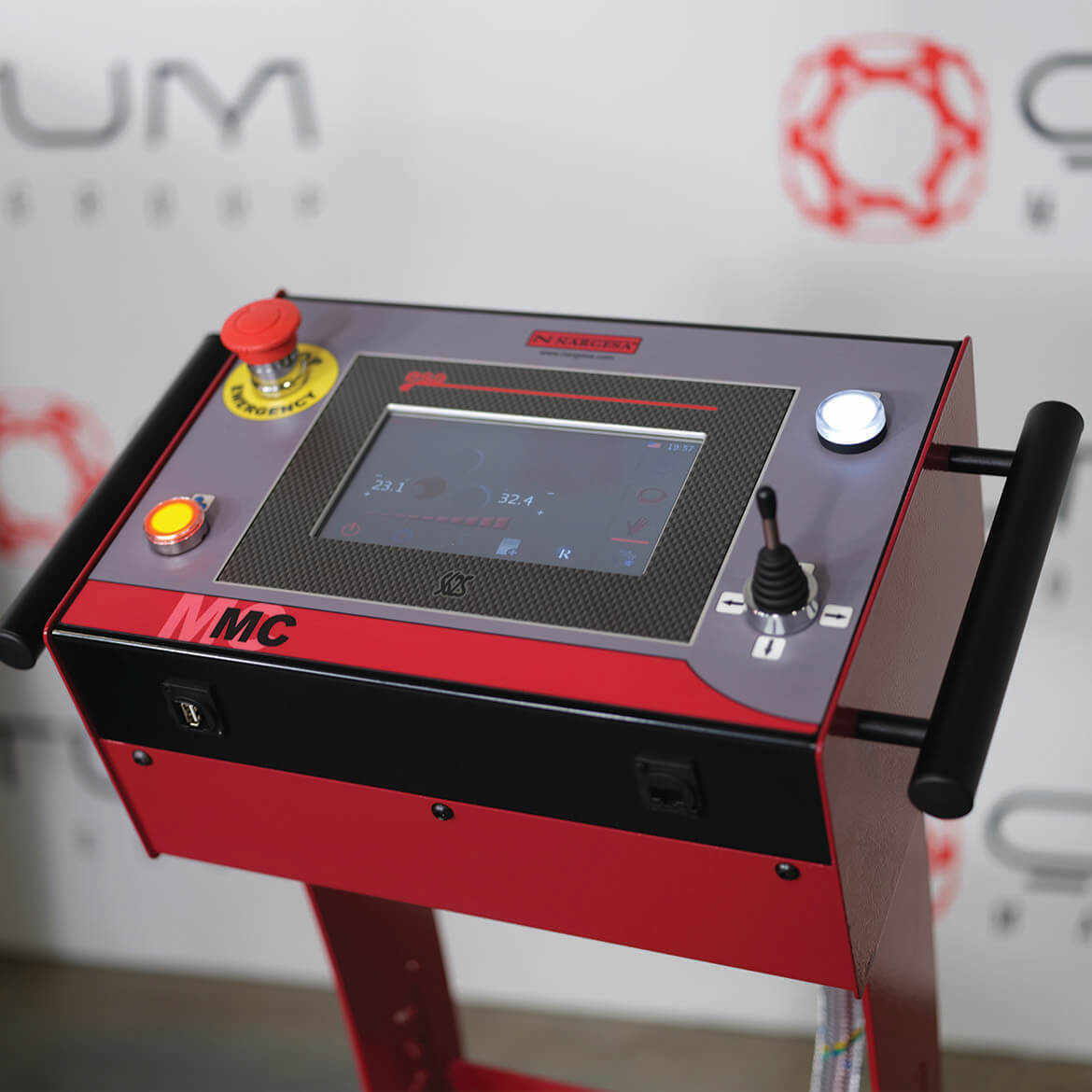

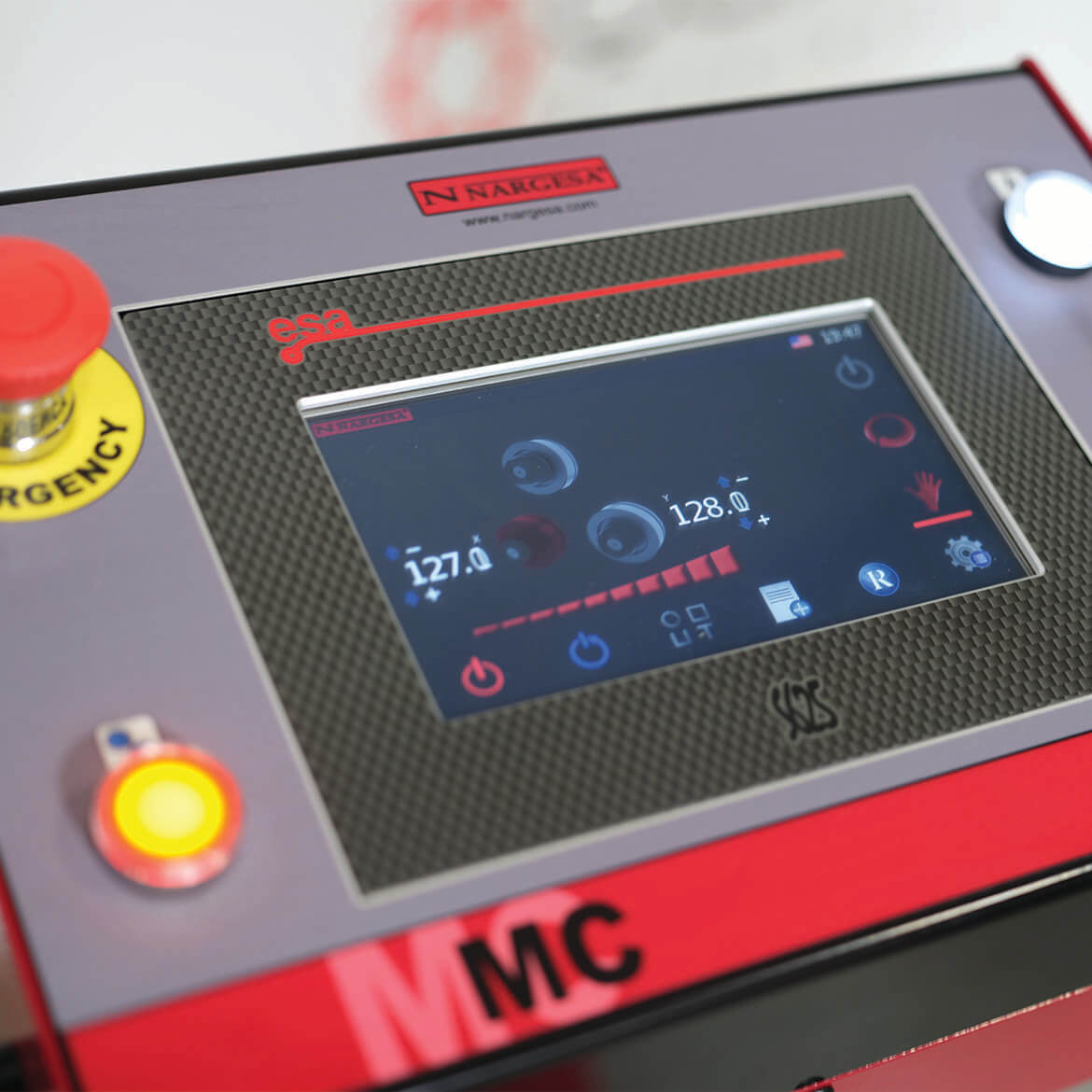

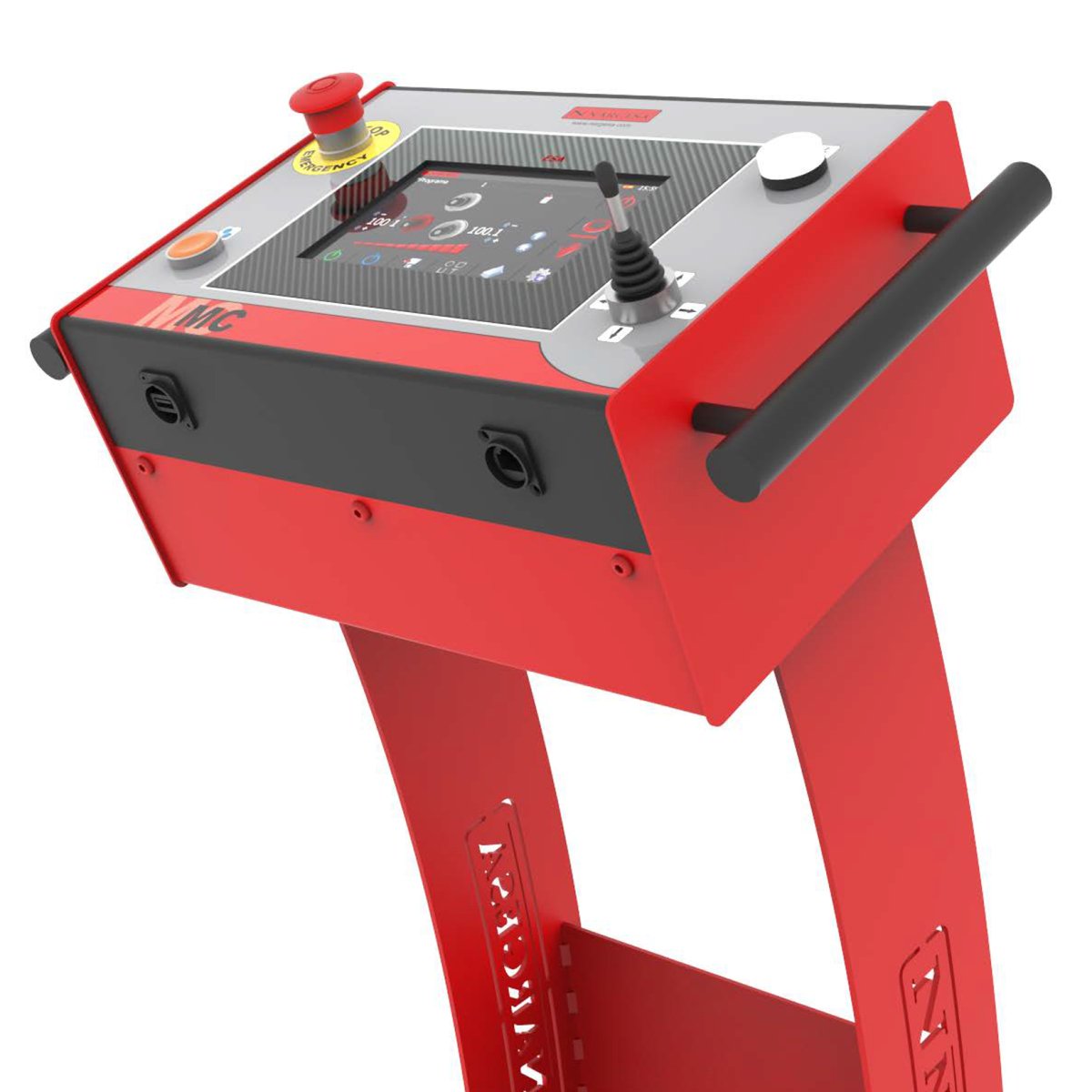

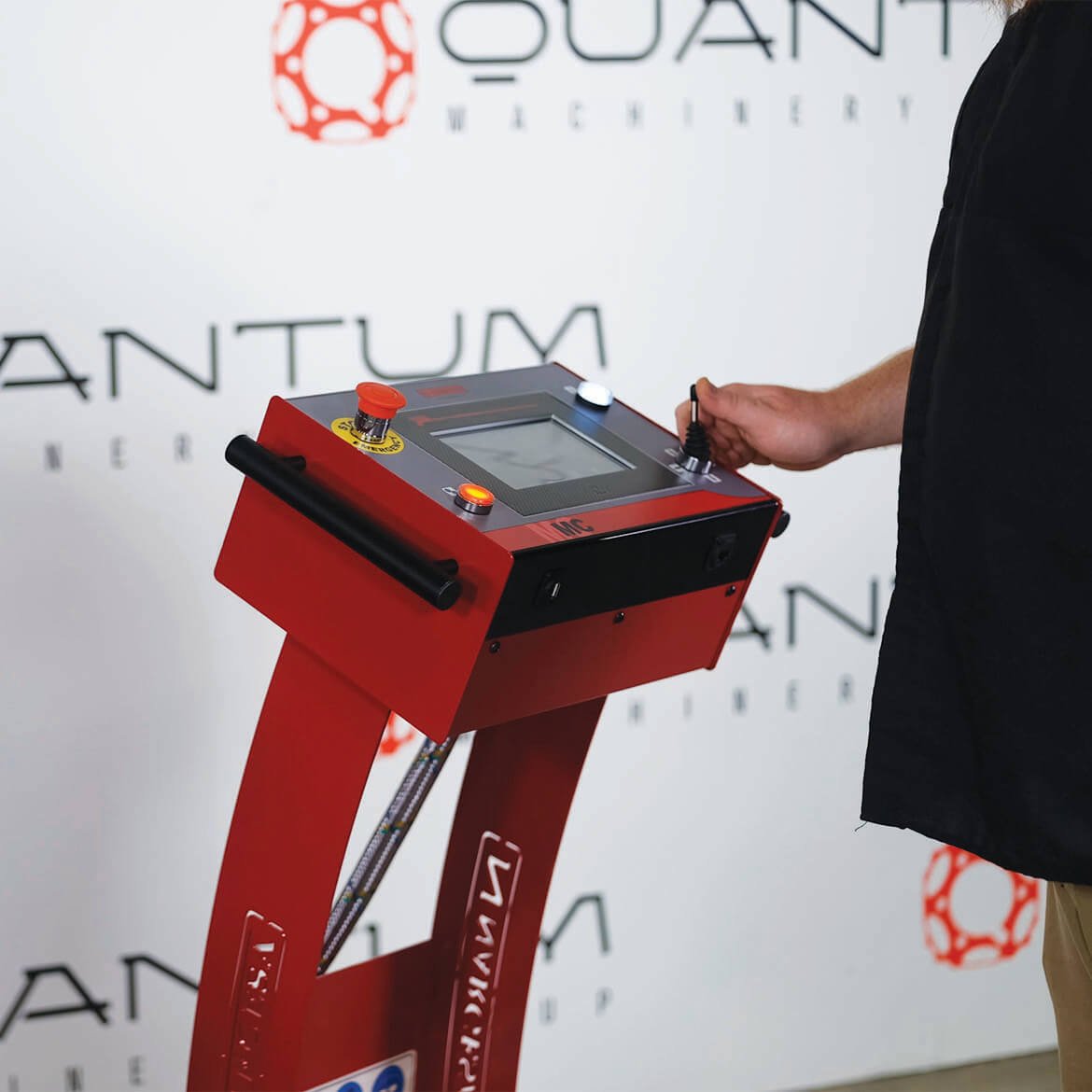

Nargesa MC550 pipe benders are controlled with a very intuitive and easy-to-use 7” color touchscreen with the latest 4.0 technology. You only need to do the first piece and save each step so that the control will repeat the same operations on the other pieces in the same series automatically without longitudinal positioning control. You can add the type and dimensions of the pipe or profile, the material and position of the rollers to the program so all of this is saved for the following series. These are some of the most relevant features of this control system. Many months have gone into testing, programming and fine-tuning to achieve the perfect “assistant” for present and future generations of operators.


CAPACITIES OF THE MC550 ROLL BENDER

The Nargesa MC550 Roll Bender includes a Universal Toolset, which has 9 standard pieces, by means of which the user can work all kinds of profiles. Square, rectangular pipe, solid round and square bars. U Profile, T profile, angle leg-out, flat bar, edged flat bar... Adjustable rollers, by washers with the size of profile or pipe which allows us to make bending to different pipe or profile sizes.

ROUND TUBE

RT1: 3" x 0.120" with a Minimum Radius of 20" Inches
RT2: 1.50" x 0.080" with a Minimum Radius of 10" Inches
RT3: 0.75" x 0.080" with a Minimum Radius of 6" Inches

SOLID ROUND

SR1: 1.50" O.D. with a Minimum Radius of 12" Inches
SR2: 1.40" O.D. with a Minimum Radius of 10" Inches
SR3: 0.75" O.D. with a Minimum Radius of 6" Inches

SQUARE TUBE

ST1: 2.3" x 2.3" x 0.120" with a Minimum Radius of 32"
ST2: 2" x 2" x 0.120" with a Minimum Radius of 24"
ST3: 1.38" x 1.38" x 0.120" with a Minimum Radius of 8"

SOLID SQUARE

SS1: 1.3" x 1.3" with a Minimum Radius of 16" Inches
SS2: 1.125" x 1.125" with a Minimum Radius of 8" Inches
SS3: 0.75" x 0.75" with a Minimum Radius of 6" Inches

RECTANGULAR TUBE

RT1 Hard Way: 2.75" x 1.20" x 0.120" with a Minimum Radius of 20"
RT2 Hard Way: 2.25" x 1.20" x 0.120" with a Minimum Radius of 16"
RT3 Hard Way: 2" x 1.20" x 0.120" with a Minimum Radius of 12"

FLAT BAR

FB1 Easy Way: 4" x 0.80" with a Minimum Radius of 10"
FB2 Hard Way: 2" x 0.60" with a Minimum Radius of 14"
FB3 Hard Way: 1.2" x 0.20" with a Minimum Radius of 6"

C-CHANNEL

CC1 Easy Way: 1.50" x 0.80" x 0.20" with a Radius of 7"
CC2 Easy Way: 3.15" x 1.75" x 0.23" with a Radius of 16"
CC3 Hard Way: 3.15" x 1.75" x 0.23" with a Radius of 24"

T-CHANNEL

TC1 Easy Way: 1.50" x 1.50" x 0.20" with a Radius of 8"
TC2 Easy Way: 2.25" x 2.30" x 0.275" with a Radius of 12"
TC3 Hard Way: 1.50" x 1.50" x 0.20" with a Radius of 12"

*Please Note - Minimum Radii shown may require multi-pass. The sizes shown above are the maximum capacity with minimum radii. Round Profiles and Special Profiles shown above will require dedicated tooling. When bending smaller sections, the machine will be able to bend very small radii.*
