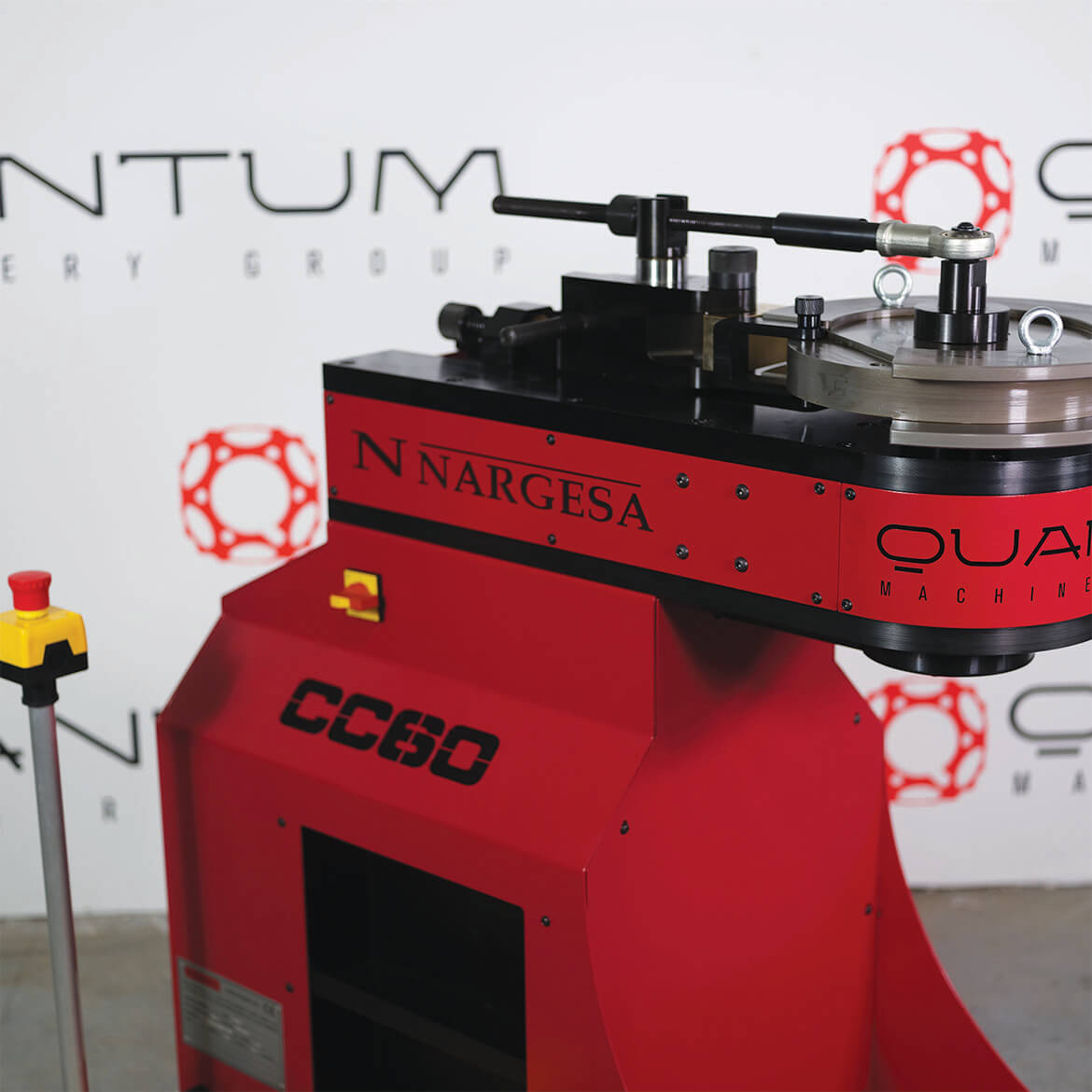

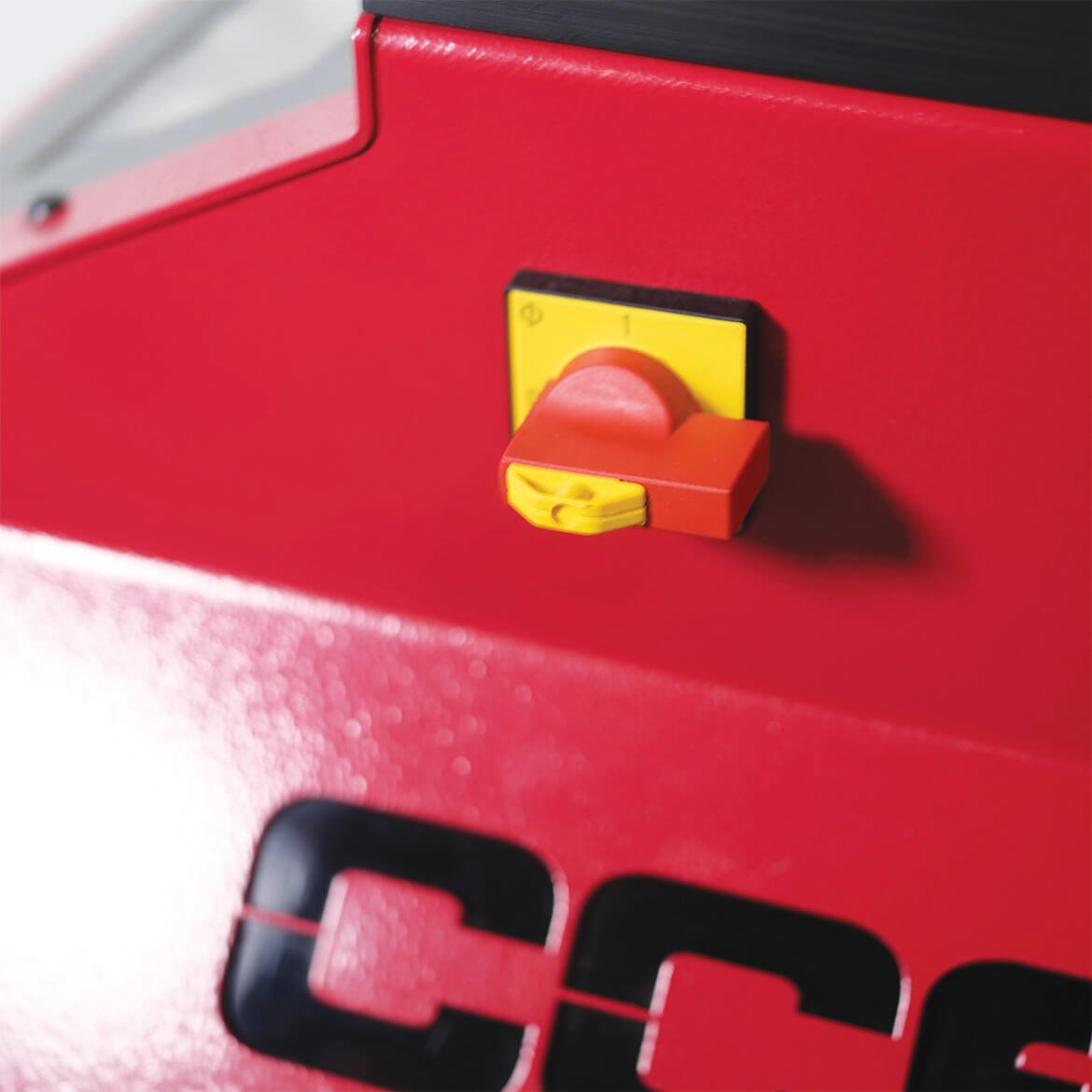

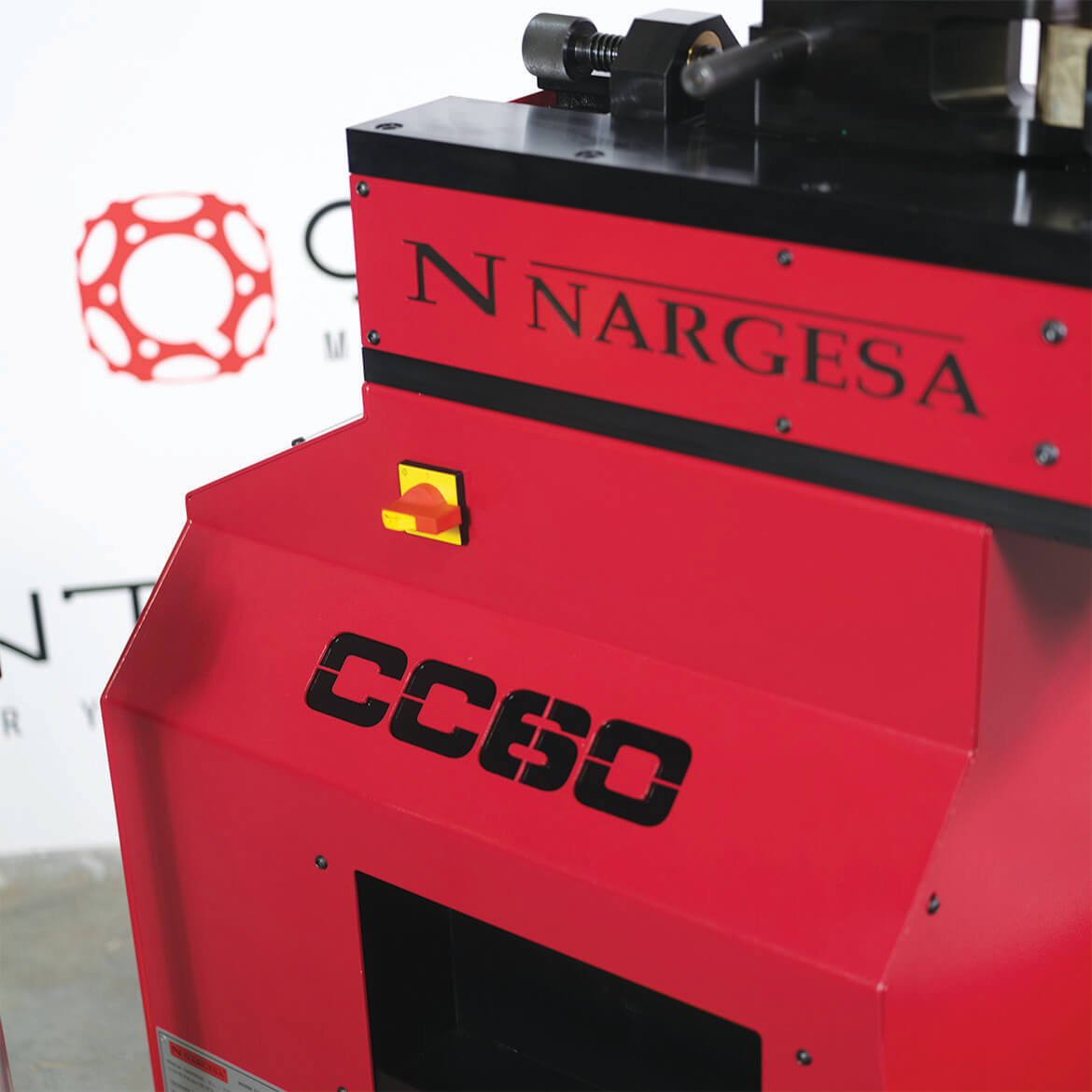

CC60CNC: Non-Mandrel Rotary Bender (Bend up to 2" Pipe)

Sale price$18,500 Regular price$22,530
Save $4,030

Electrical Options: 220V / 1PH / 60Hz

WATCH THE VIDEO TO SEE EXACTLY HOW THE NARGESA CC60CNC NON-MANDREL ROTARY BENDER WORKS ALONG WITH SOME OF IT’S FEATURES

The new generation of the Nargesa CC60CNC Non-Mandrel Rotary Bending Machines can bend up to 180º curves on hollow profiles ensuring the best bent finishes in today’s market. Equipped with a Touch Screen control grant the user interactaction with the standard features offered using the latest 4.0 technology. The sleek look, versatility and faster bending speeds also allows us to have one of best machines offered in our industry. Materials can be round, oval, square, rectangular and made of different metals such as steel, aluminum, stainless steel, copper...

All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...


TECHNICAL SPECS AND FEATURES

  • Max. Size on S275 Round Steel Pipe: 2" Schedule 40 or 2" Gas x 0.15" (4mm) or 2.375" O.D. (60.3mm O.D.)
  • Max. Size on Stainless Steel 304 / 316 Pipe: 2.375" O.D. x 0.160" Thick or 60.3mm O.D. x 3mm Thick
  • Max. Size on Square Tube: 1.50" x 1.50" x 0.160" Thick or 40mm x 40mm x 4mm Thick
  • Max. Size on Aluminum Pipe: 2.375" O.D. x 0.315" Thick or 60.3mm O.D. x 8mm Thick
  • Max. Radius of Curvature: 12.60" (320mm) > Repetition on the curve of +/- 0.1 Degrees
  • Min. Radius of Curvature: 3 Times the Tube / Pipe Diameter
  • Automatic Rotation Speeds: 0.7 up to 4.5 R.P.M.
  • Bending Direction: Left and Right
  • Dimensions: 40"L x 24"W x 45"H
  • Manufacturer's Warranty: 3 Years on All Parts (Fulfilled by Quantum Machinery Group.)
  •

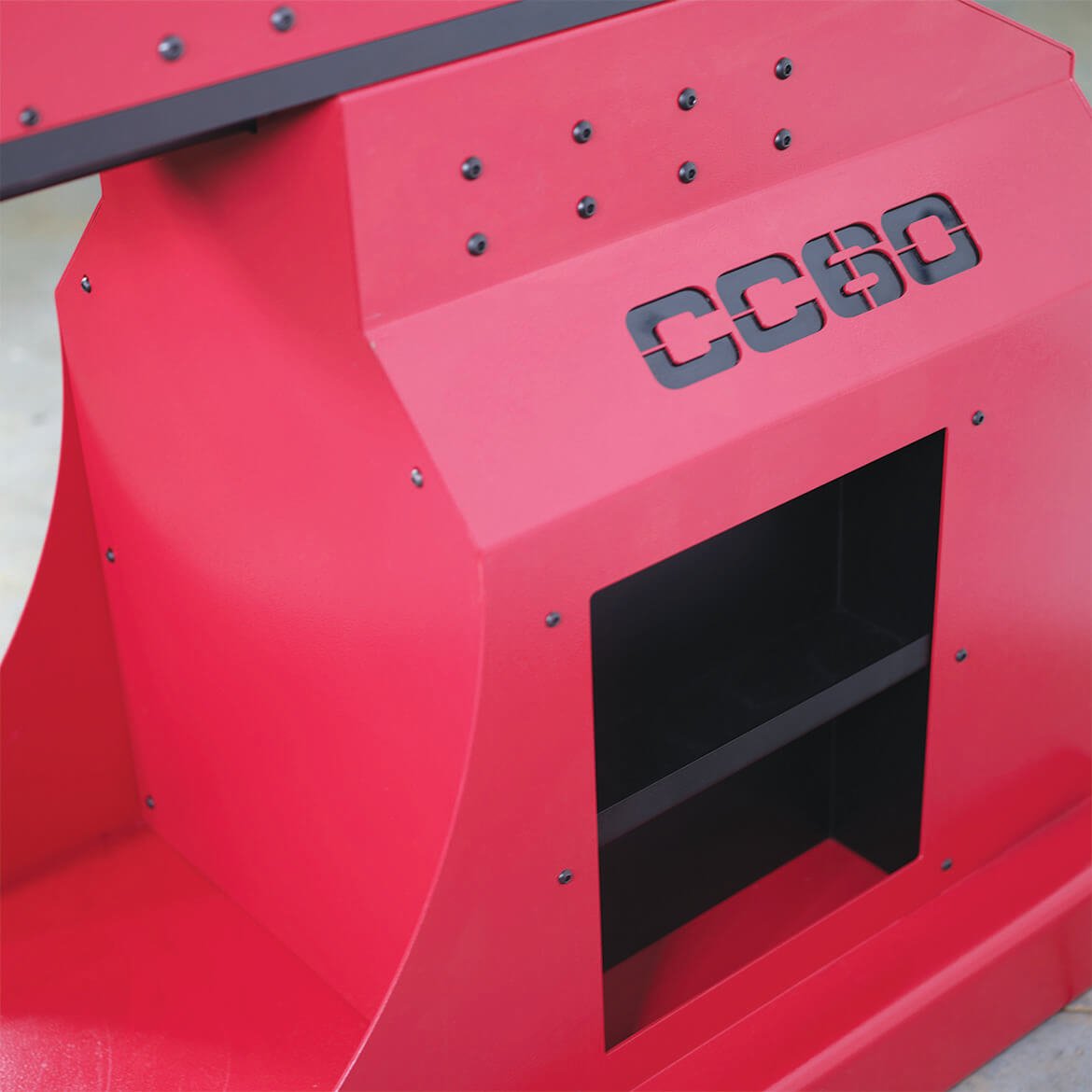

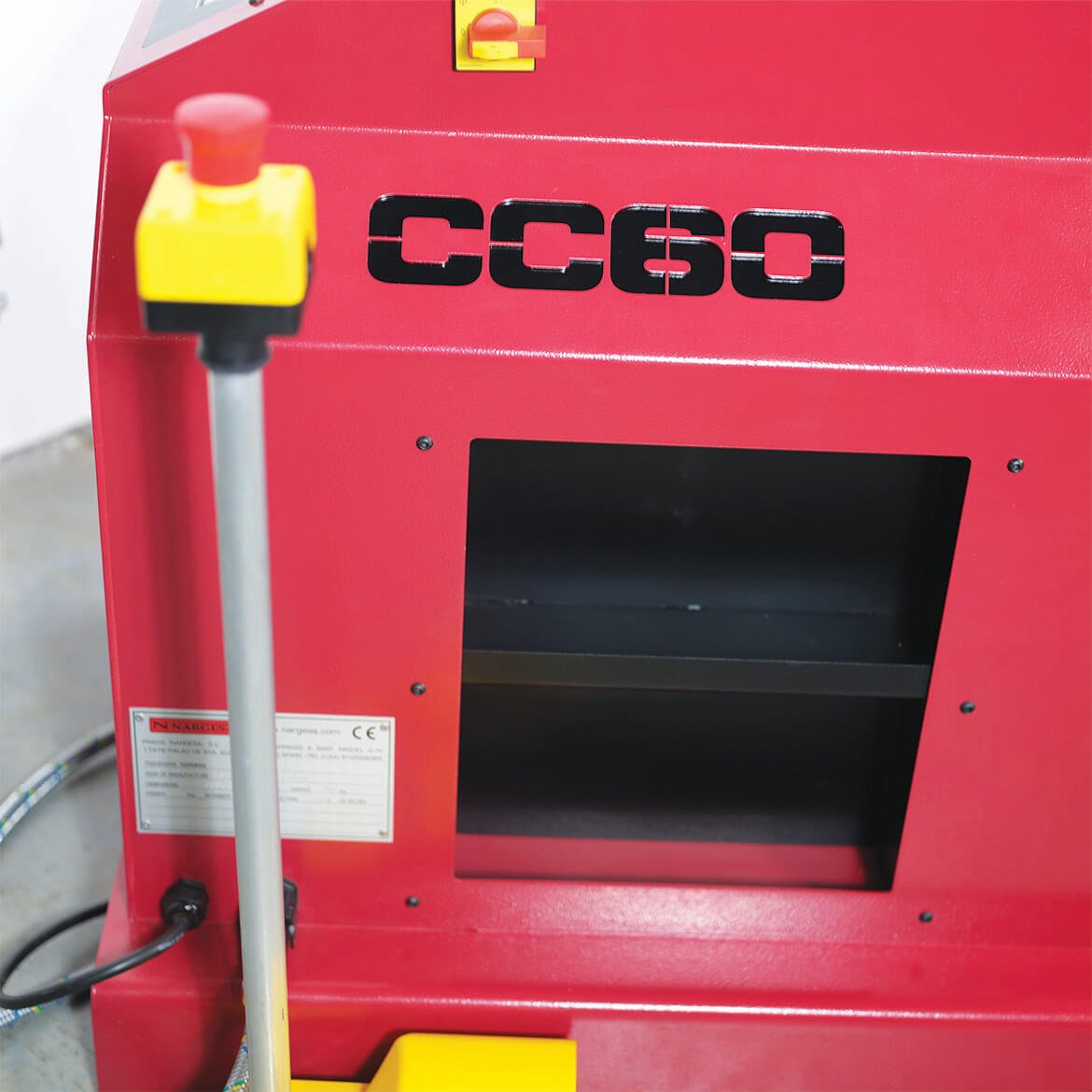

    • Side shelving to store tools.

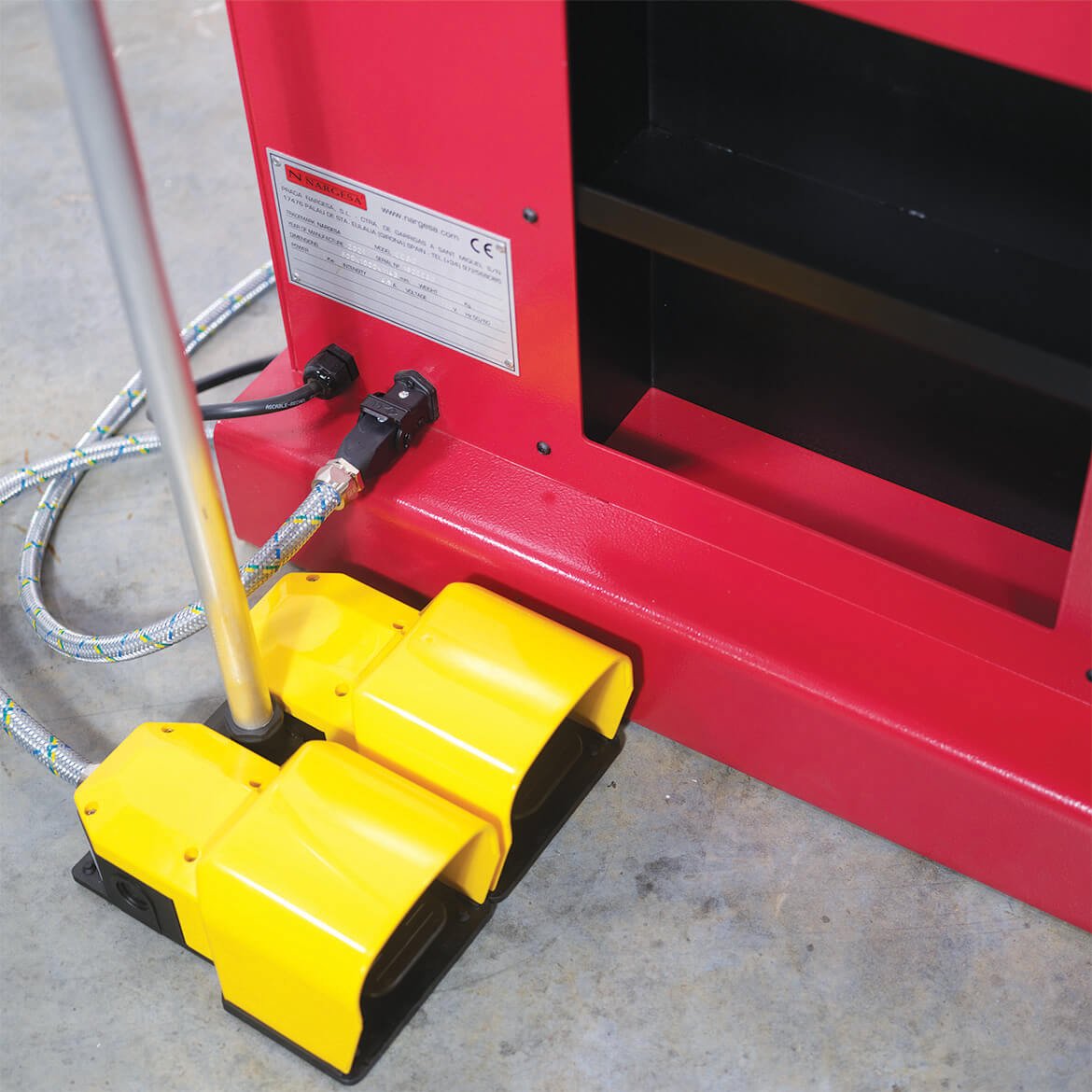

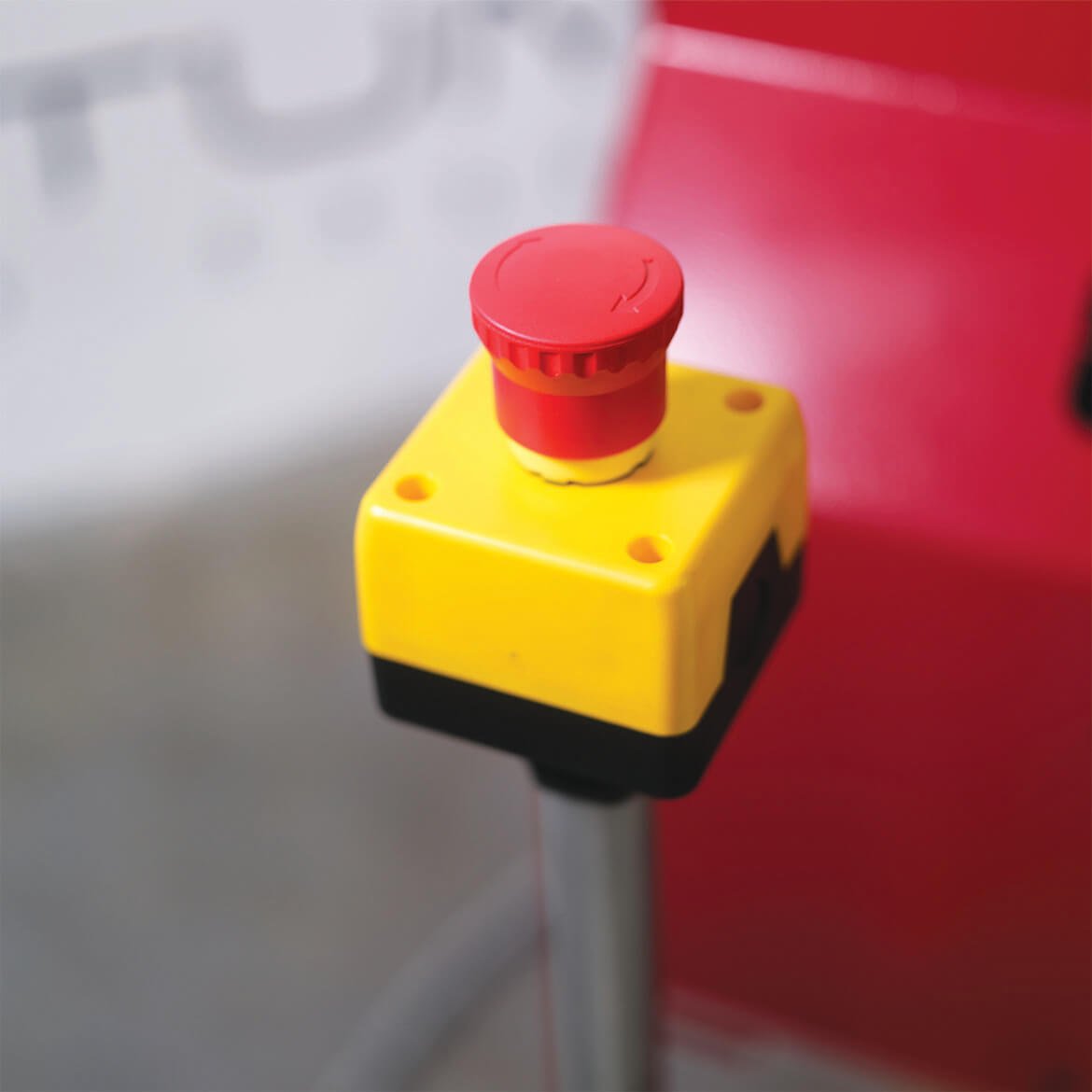

    • Safety pedal to the right and left.
    • Quick Die Change Over: Maximum 60 Seconds.
    • Automatic and programmable spring back correction.
    • Dimensions can be programmed in inches or millimeters.
    • Two bending directions, right or left for easier bending.
    • Up to 50 different angles on the same piece can be programmed.
    • Pivot system with automatic unlocking to help remove material.
    • All bend dies are made of tempered steel for longer tool life.
    • CNC control with 7” touchscreen with more than 20 different languages.
    • Reinforcement tool post support arm for pipes with diameters over 1.5" (40mm) included.
    • The counter dies are made of bronze alloys to help prevent markings on the outside of the bent profiles.

THE NARGESA CC60CNC FEATURES

Robustness & Speed

The weight of the machine in comparison to other brands provides an idea of how it’s built. Some of our units are almost double in weight than our competitors. These are not DIY machines; they’re pipe benders that can work 24 hours a day. Made of robust materials, which are tempered in areas subject to wear, and activated with a helical-cut pinion planetary gear system. The rotation speed is also something to be taken into account. It can reach 4.5 RPM for more aggressive production; in many cases, more than twice as much when compared to similar machines in today’s market.

4.0 Technology

The advantages of having this technology in a machine are endless, so we’re only going to mention the most relevant. Whenever a customer agrees, the manufacturer may remotely connect to their machine to do any software updates completely free of cost and detect any anomalies in the machine without needing to travel to the machine site. Customers are notified when preventive maintenance must be done on the machine along with many other advantageous features.

Curve Thicknesses & Finishes

Most tube & pipe benders can only bend very thick-walled pipes with a 10% minimum thickness of the diameter of the pipe normally calculated. For example, a good curve on a 40 mm pipe is usually guaranteed with a 0.13" / 3.5mm or 0.15" / 4mm wall thickness. The original counter-shape designed by Nargesa guarantees a good finish even with a thin-walled pipe. The minimum thickness for a 1.5" / 40mm pipe can be 0.060" / 1.5mm or 0.080" / 2mm. This significantly lowers raw material cost.

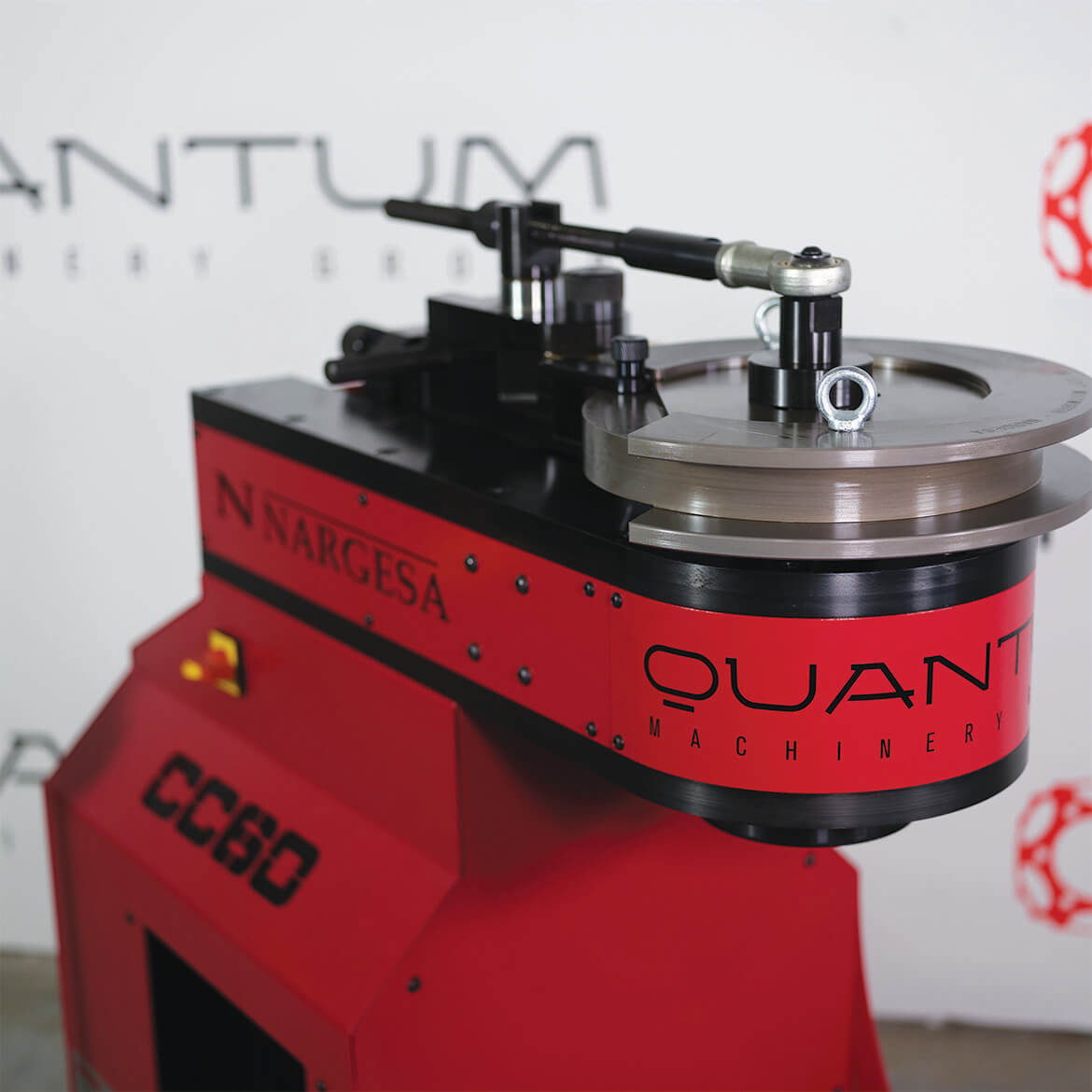

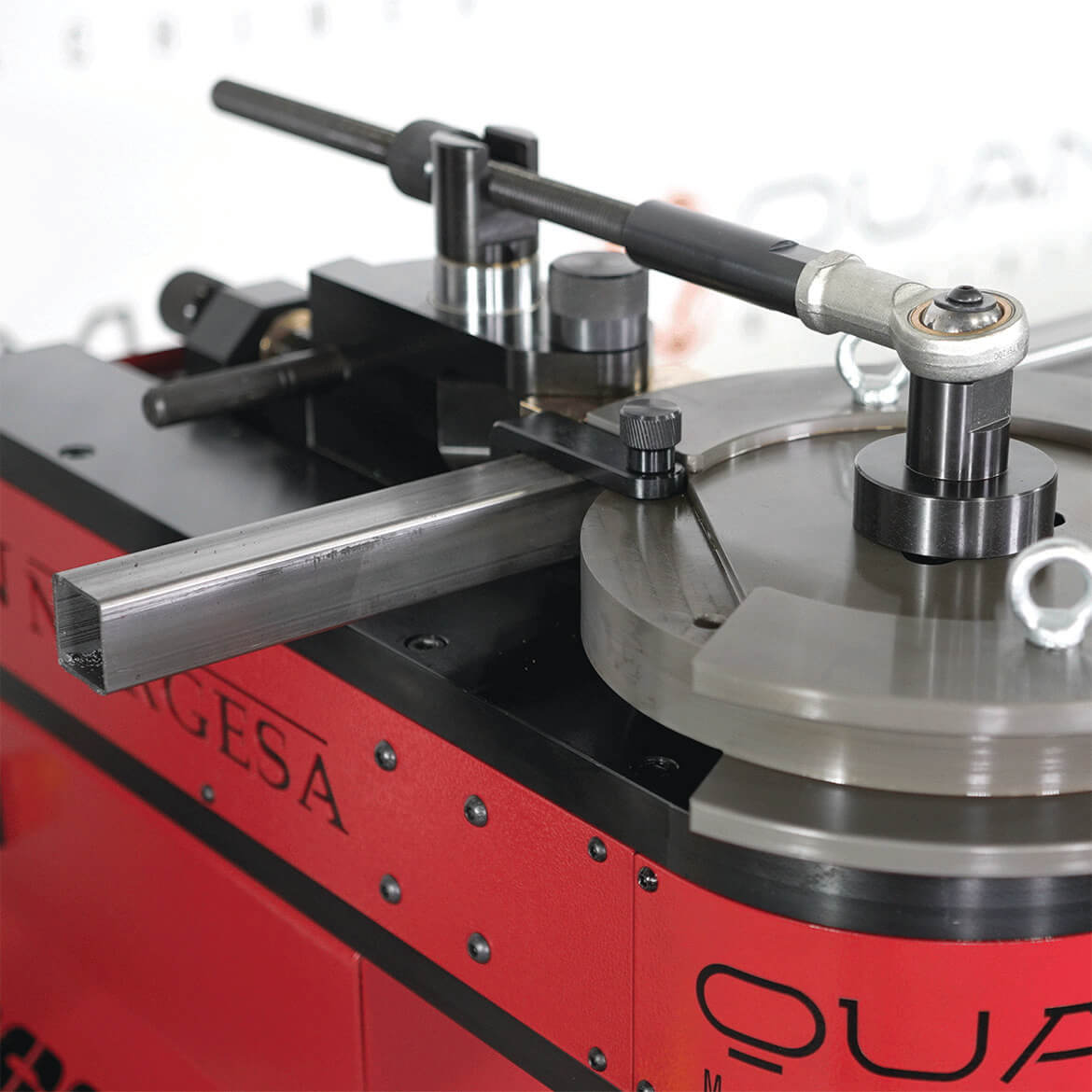

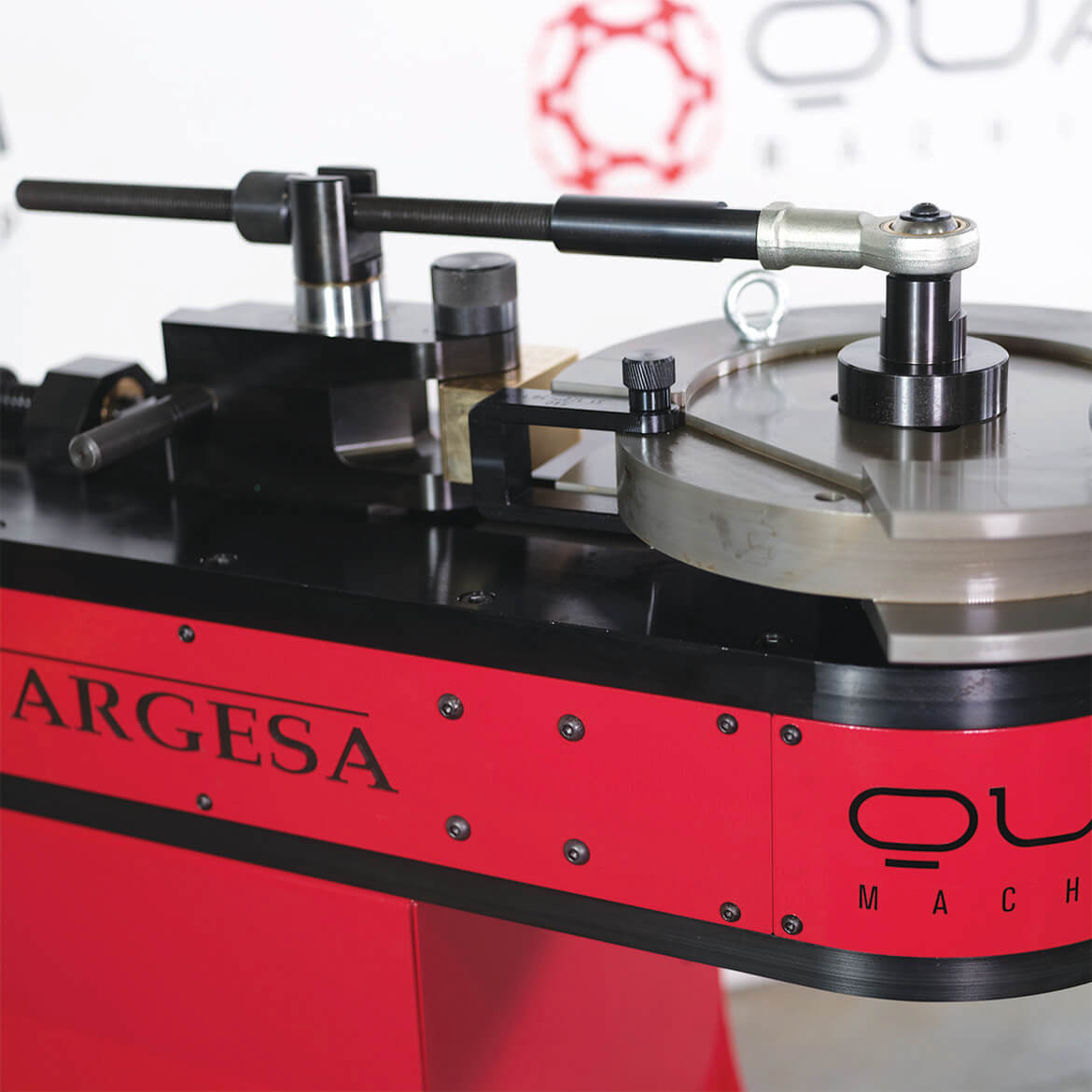

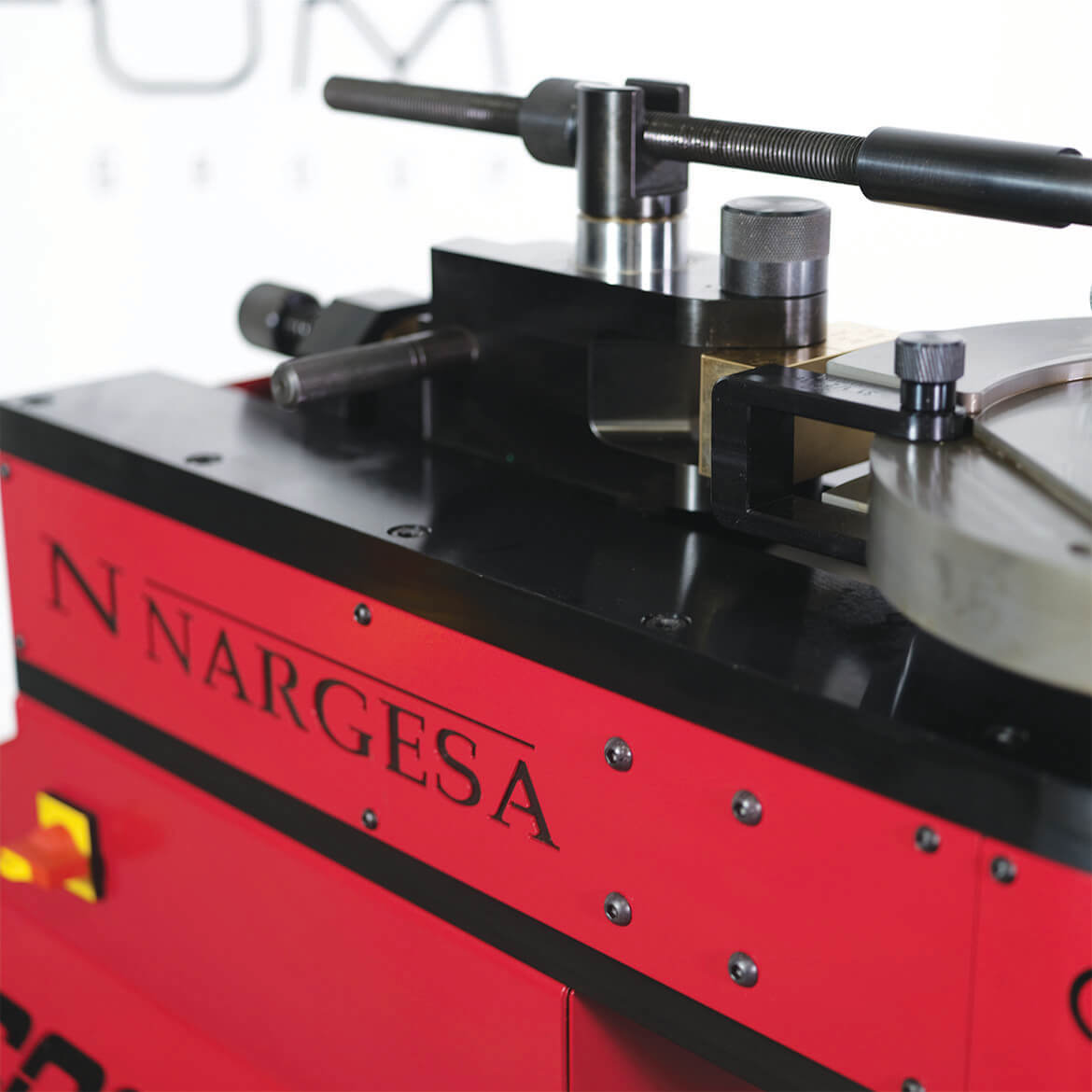

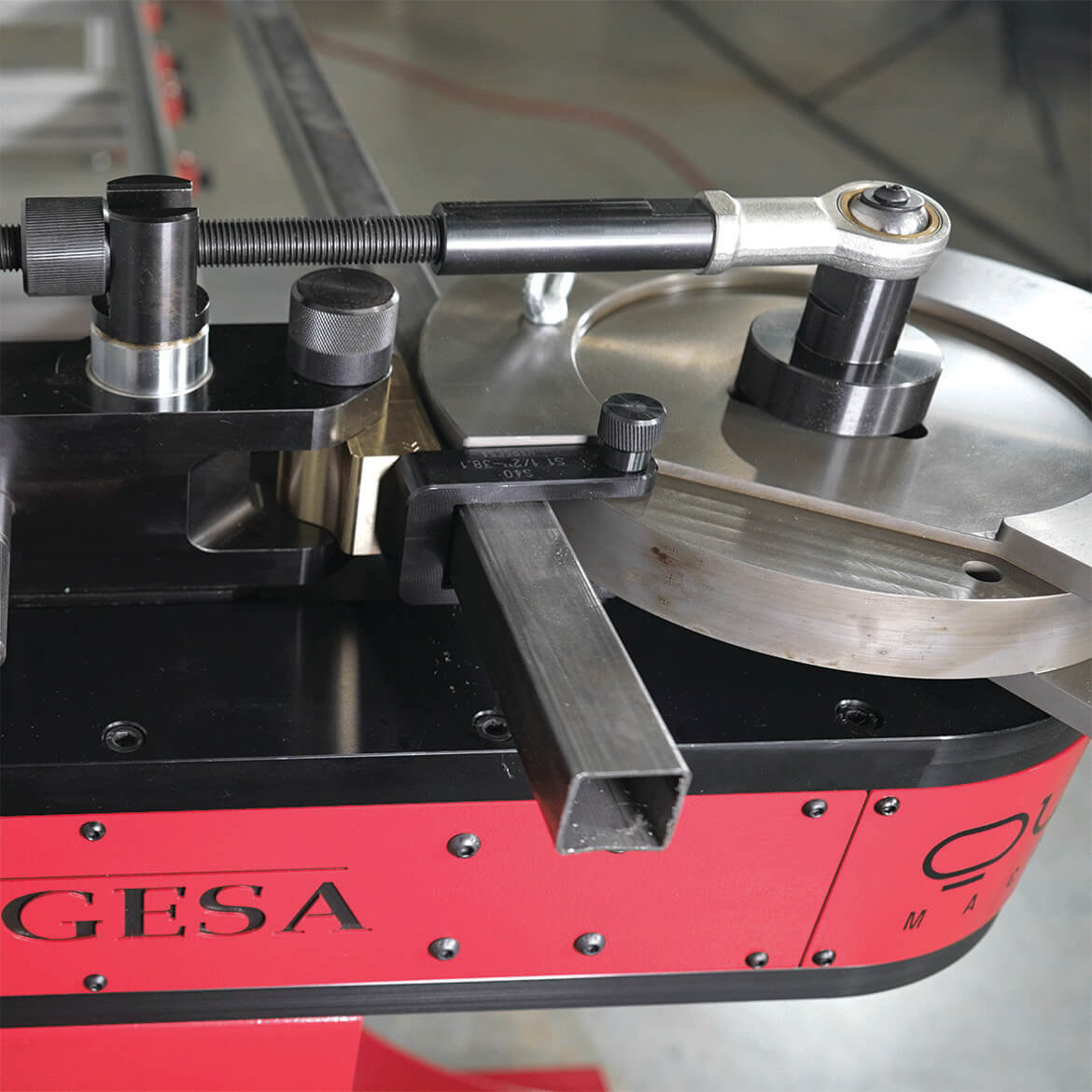

Offset Head & 2-Directional Bending

The offset head design allows for complex curves as the pipe goes underneath the head. Bending pipe below the head is not possible with some pipe bender models. The all-new CC60CNC and CC90CNC benders can curve to the right and left without needing to rotate the die, meaning any piece can be bent regardless its complexity.

Enhanced Energy Effeciency

The CC60CNC elbow bender can be connected to 110 V or 220 V single phase voltage so it can be taken to a worksite, if necessary, and be connected to a simple outlet. The consumption per machine working stroke has been significantly reduced to save energy. Only 1.1 Kw with a working stroke of up to 2.37" / 60.3mm.

Automatic Unlocking

The bending carriage moves automatically to the right or to the left depending on the direction of the curve to more easily release the piece without needing to re-adjust the grip. This original system can complete pieces in much less time.

Reinforcement Tool Post Support
(Included)

The CC60CNC pipe bender comes standard with a reinforcement arm. It’s used to prevent machine chassis deformations. The Control indicates when this device is required or not required.

Bend 8 Lubricant
(Optional)

With the purchase of the CC60CNC pipe bender, you’ll receive a 400 ml bottle of special bending lubricant: for a better finish on the outside of the curve, to prevent roughness and inner corrugation and reduce wear on the counter-shape die. Lubricates to reduce friction. Prevents and dissolves corrosion. Polishes and protects.

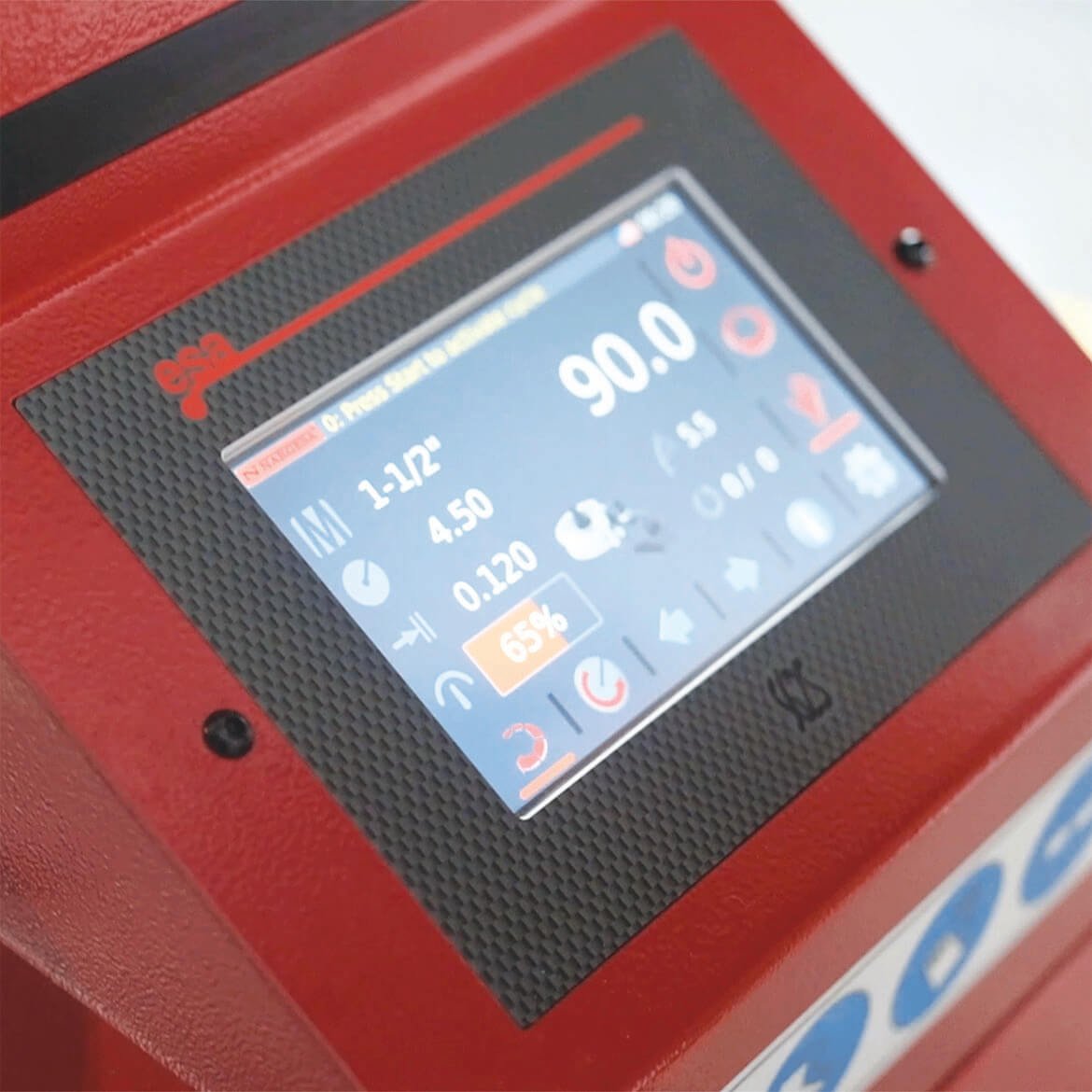

The CC Series ESA S625 Control Panel

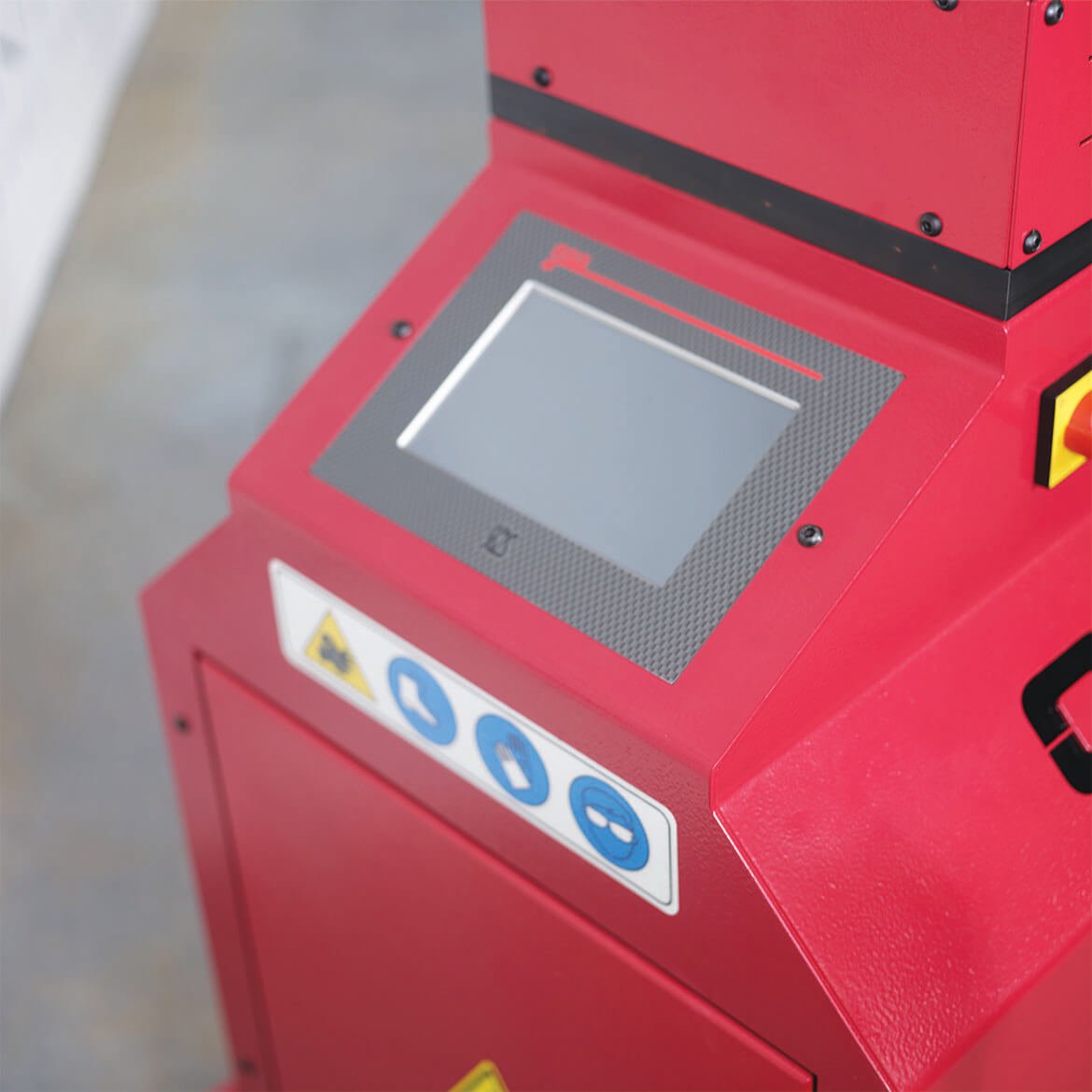

Nargesa tube and pipes benders are controlled with a very intuitive and easy-to-use 7” color touchscreen with the latest 4.0 technology. Just enter the pipe dimensions, thickness, angle of the curve or curves and choose a die from the library and the control programs the rest of the parameters automatically; elastic recovery correction (springback), recommended rotation speed, whether a tool post support is necessary or not, and if the intended curve is possible... All of this may be modified by the end user based on their own needs. These are some of the most relevant features of this control system.

    • 4.0 Technology
    • Stores up to 10,000 programs.
    • On-screen alarm diagnostics.
    • Preventive maintenance warning.
    • Manual or automatic operation.
    • Piece counter.
    • 1 RS232 serial port
    • 1 CAN port with 9 D-Sub F connector contacts.
    • 1 USB port
    • 2 analog inputs, 12 bit resolution.
    • 16 digital inputs (24 Vdc).
    • 16 digital outputs (24 Vcc, 0.7 A max.) Protected against overloads and short circuits.
    • Up to 50 different angles on the same piece can be programmed.
  • Dimensions may be programmed in inches or millimeters.
  • Can be remotely connected by the manufacturer without having to travel to the machine site.
  • A library of available dies with the possibility of programming new ones.
  • Automatic or manual rotation speed adjustment from 0.7 to 4.5 rpm.
  • A library of differently shaped pipes with varying thicknesses.
  • Warning on screen if the tool post support needs to be used.
  • 7” color touchscreen with 800 x 480 resolution
  • Independent correction of the programmable final curve degree.
  • Automatic elastic recovery correction (springback).
  • The CNC can be supplied in more than 20 different languages.

OPTIONAL TOOLING FOR THE CC60CNC NON-MANDREL ROTARY BENDER

CC60CNC 2-Axis Positioning Carriage (REF: 140-17-01-50000)
The gauge of the CC60CNC allows to make mass produced parts, much faster, more accurate and repetitively.

  • Adjustable longitudinal positioning with 6 positions
  • Angular head rotation every 5 degrees
  • Four-clamp plate adjustable to round and square tube
  • Longitudinal movement with high precision linear guides
  • Automatic anti-collision control
  • Easy handling and preparation for difficult parts.

Gauge length: 9'-10" / 118" / 3,000mm
Maximum Capacity: 2" Sch. 40 Pipe / 60.3mm
(Accessory Weight Starting at: 276 lbs.)


3/8" Schedule 40 Pipe Tooling for the CC60CNC (REF: 140-17-01-20001)
Pipe Size: 3/8" (0.675" O.D. x 0.090" Wall Thickness)Radius:2.36" (60 mm)
(For other radius options, contact your sales engineer.)
(Accessory Weight: 9.3 lbs.)

The following is supplied with the unit:Main Roller: made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-Shape: designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a Fastener: to firmly secure the material during the bending process.


1/2" Schedule 40 Pipe Tooling for the CC60CNC (REF: 140-17-01-20002)
Pipe Size: 1/2" (0.840" O.D. x 0.109" Wall Thickness)Radius: 3D = 2.51" (63.9 mm)
(For other radius options, contact your sales engineer.)
(Accessory Weight: 8 lbs.)

The following is supplied with the unit:Main Roller: made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-Shape: designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a Fastener: to firmly secure the material during the bending process.


3/4" Schedule 40 Pipe Tooling for the CC60CNC (REF: 140-17-01-20003)
Pipe Size: 3/4" (1.050" O.D. x 0.113" Wall Thickness)Radius: 3D = 3.15" (80.1 mm)
(For other radius options, contact your sales engineer.)
(Accessory Weight: 15 lbs.)

The following is supplied with the unit:Main Roller: made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-Shape: designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a Fastener: to firmly secure the material during the bending process.


1" Schedule 40 Pipe Tooling for the CC60CNC (REF: 140-17-01-20004)
Pipe Size: 1" (1.315" O.D. x 0.133" Wall Thickness)Radius: 3D = 3.98" (101.1 mm)
(For other radius options, contact your sales engineer.)
(Accessory Weight: 25 lbs.)

The following is supplied with the unit:Main Roller: made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-Shape: designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a Fastener: to firmly secure the material during the bending process.


1-1/4" Schedule 40 Pipe Tooling for the CC60CNC (REF: 140-17-01-20005)
Pipe Size: 1-1/4" (1.660" O.D. x 0.140" Wall Thickness)Radius: 3D = 5" (127.2 mm)
(For other radius options, contact your sales engineer.)
(Accessory Weight: 42 lbs.)

The following is supplied with the unit:Main Roller: made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-Shape: designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a Fastener: to firmly secure the material during the bending process.
