C2006: 6.5 Foot Hydraulic Shear

The last generation of QUANTUM NARGESA CNC Vertical cut shears are made of stabilized, welded steel that allows to take on big jobs without deformation.

ADVANTAGES OF VERTICAL CUT INSTEAD OF SWING CUT:

• Energy Savings: Resistance of material in vertical cut is much lower, which becomes a considerable energetic saving.
• Cutting Quality: Clean, perfect and accurate cut.

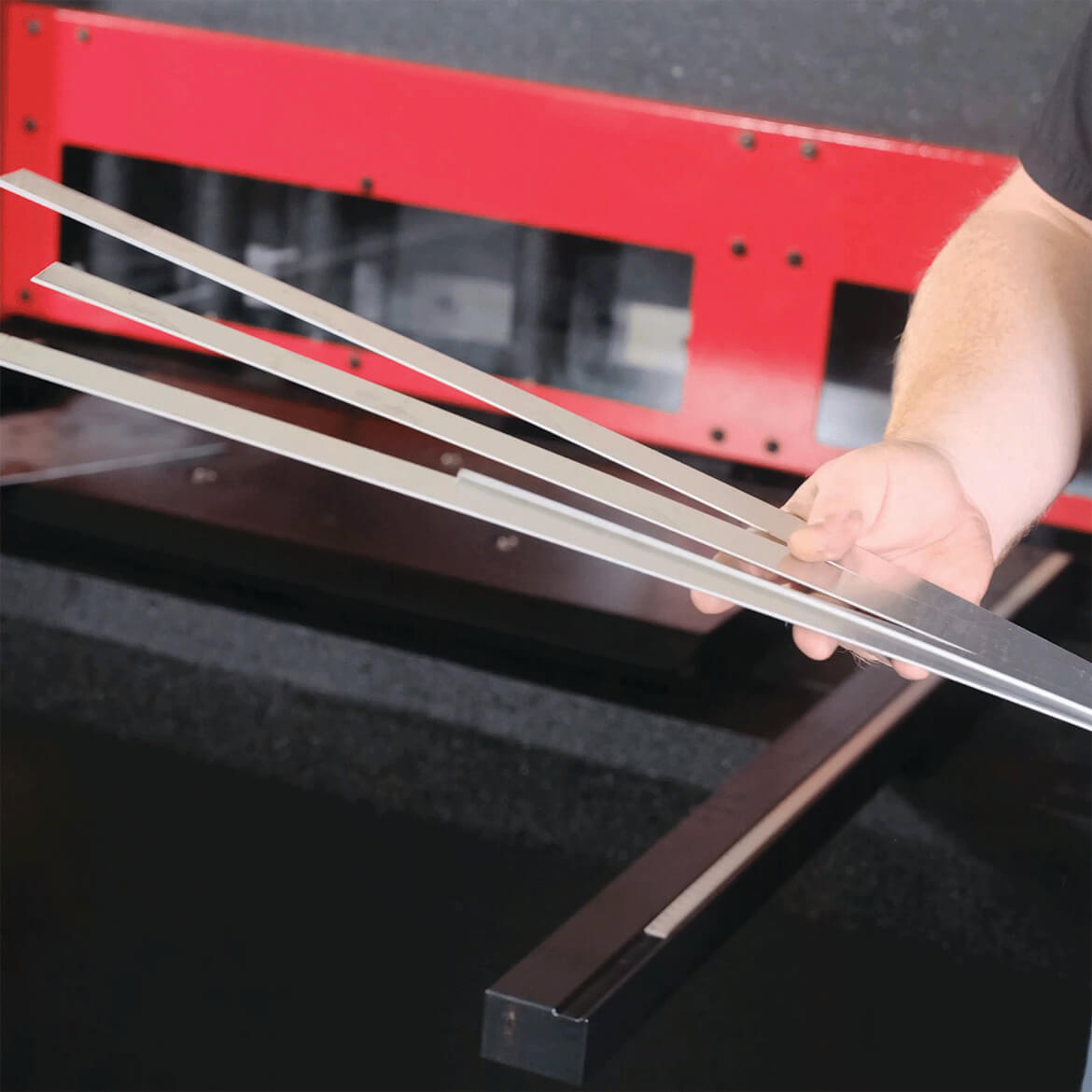

• Life of the Blades: The blades wear is almost nule. The life of the blades is 4 times higher than other shearing systems.

• Cutting Length: 79” / 6’-7” / 2,030mm
• Max. Thickness in Mild Steel (450N/mm2): 0.23” (6mm)
• Max. Thickness in Stainless Steel (700N/mm2): 0.15” (4mm)

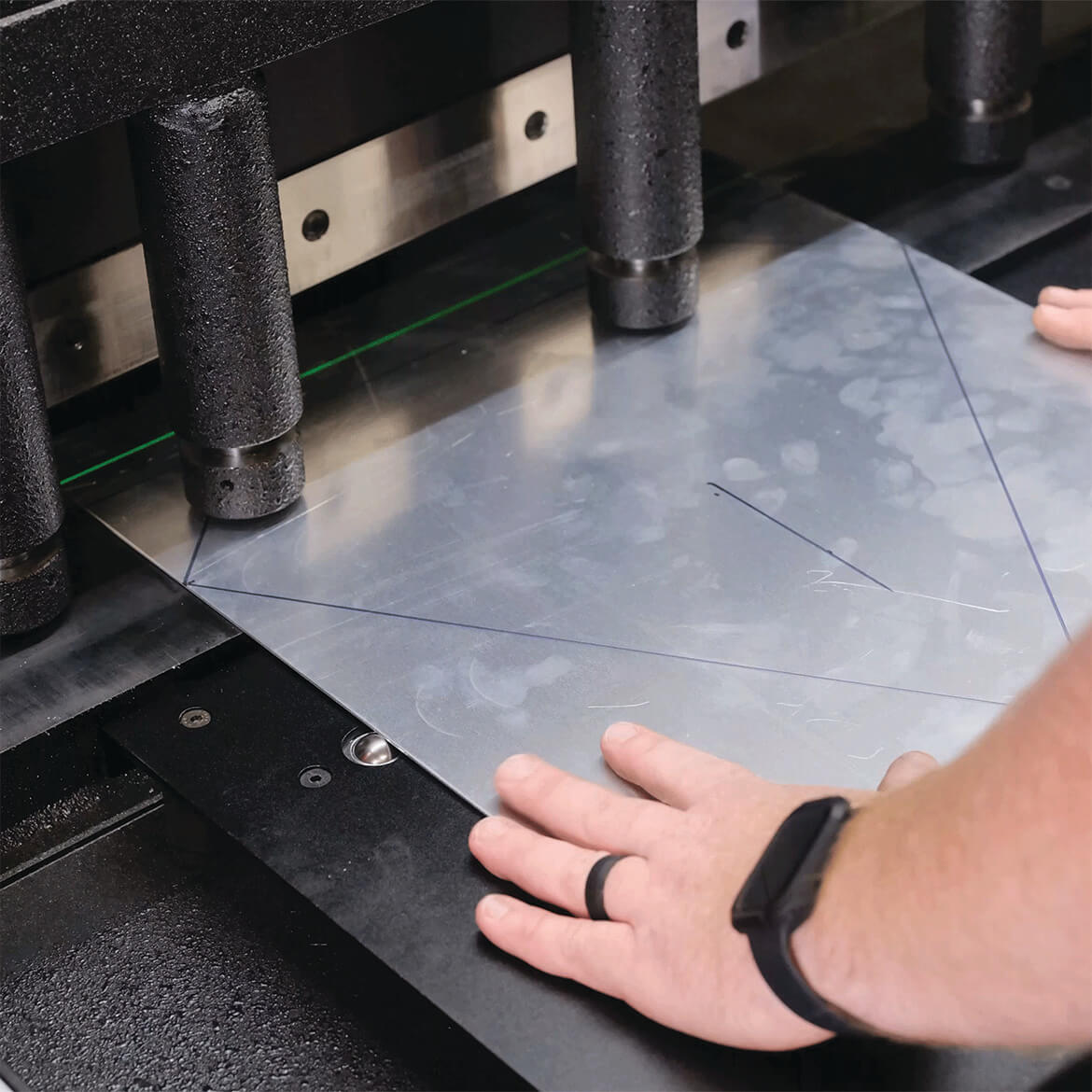

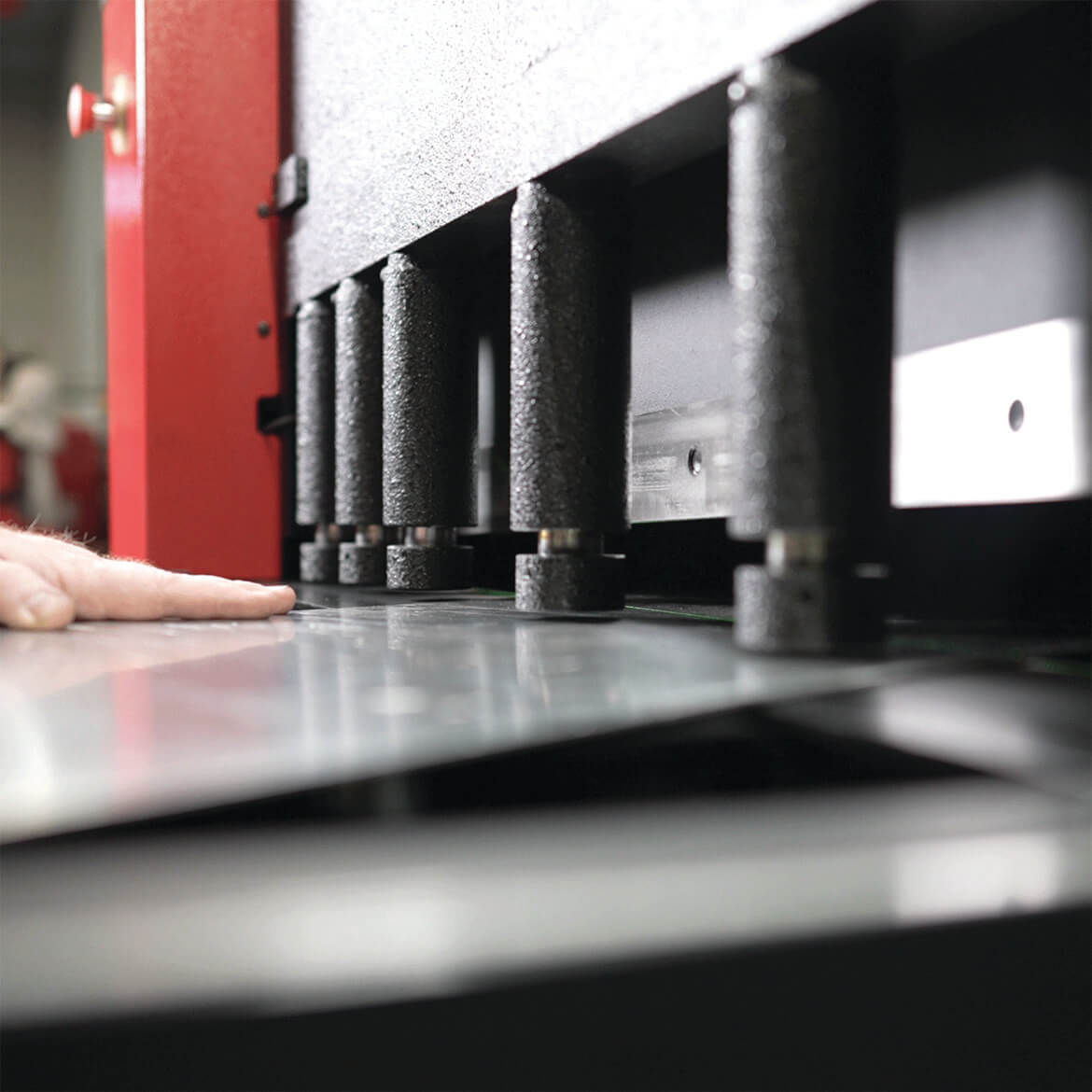

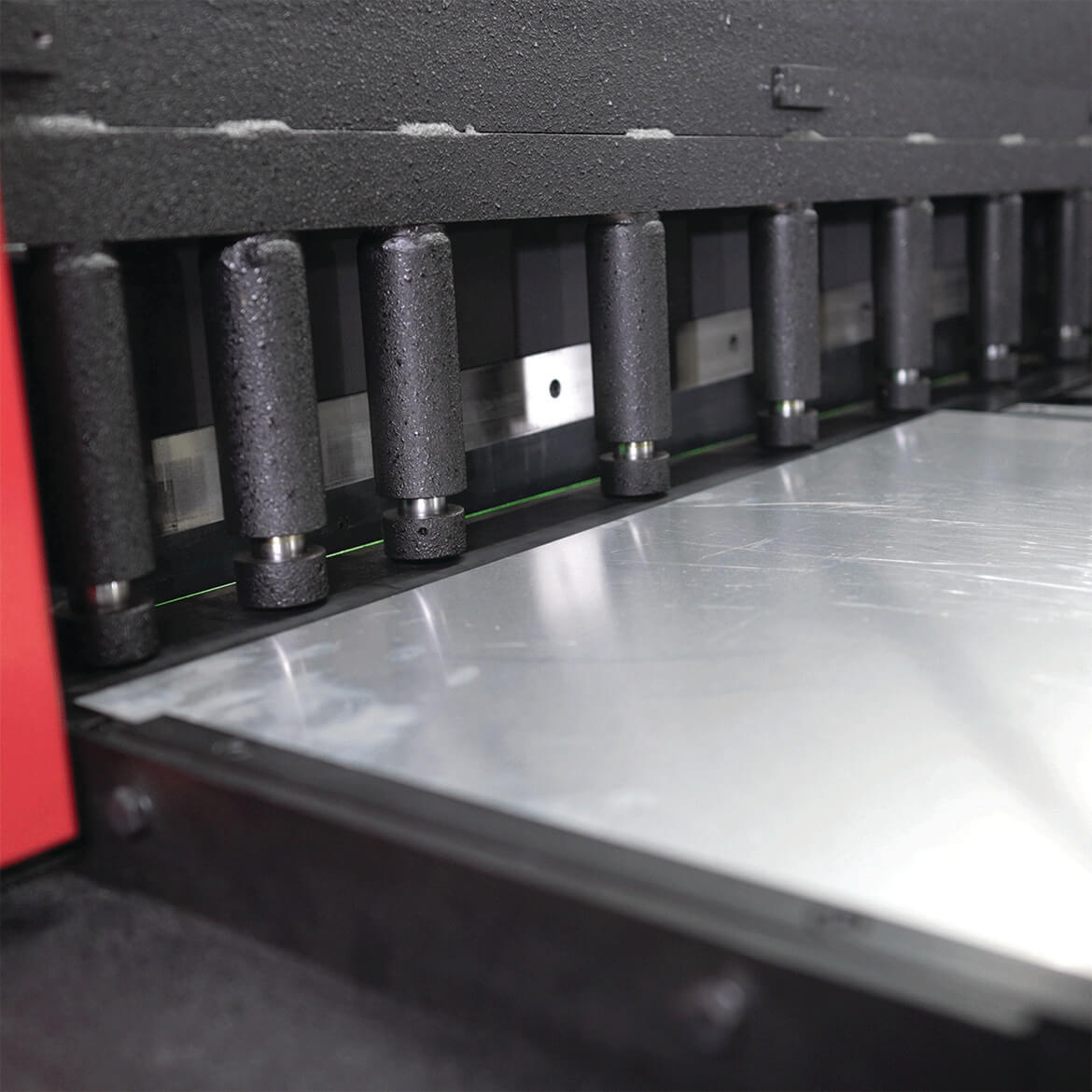

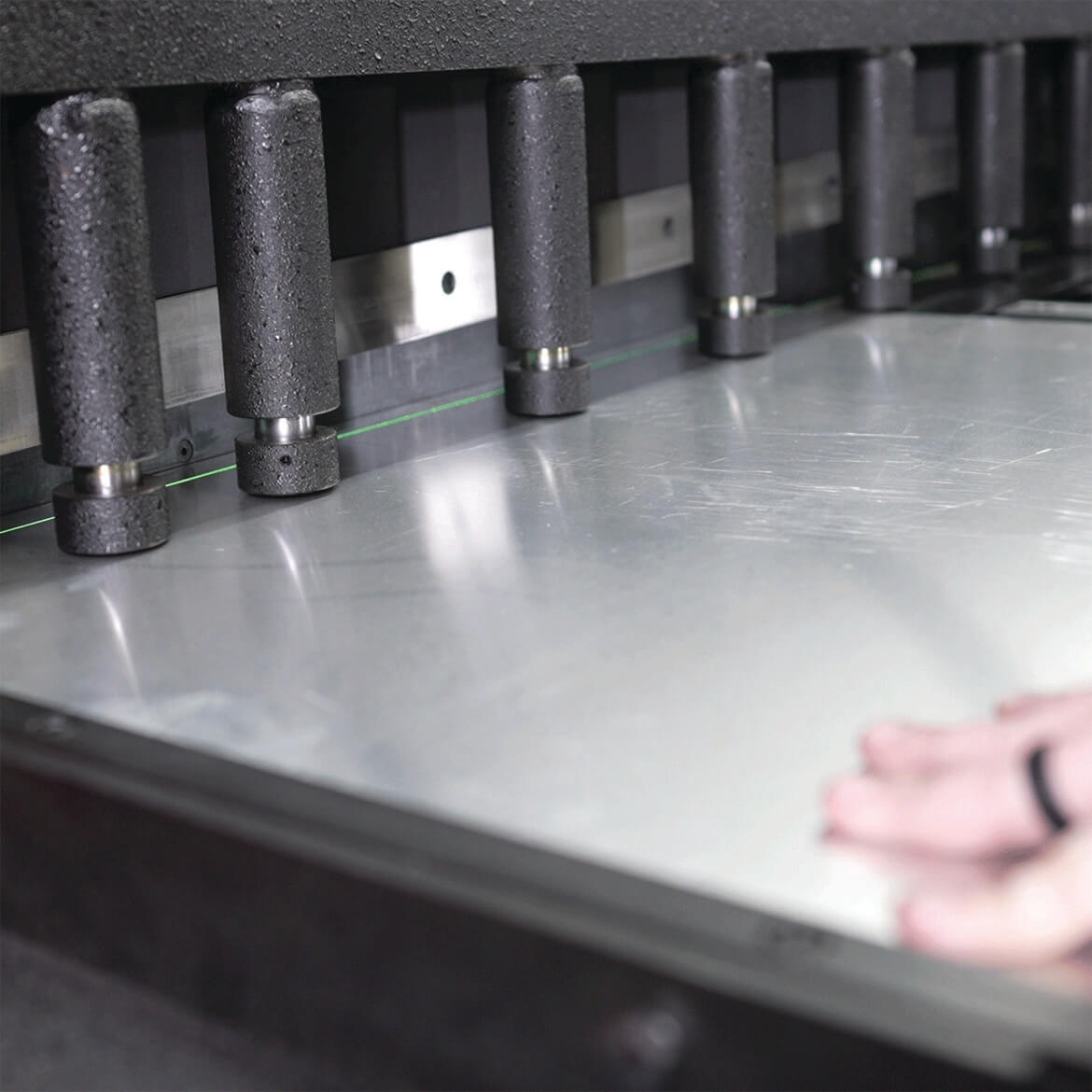

• Independent Hydraulic Rammers: 10 Units
• Goose Neck for Cuts with Bigger Length: 7.5” (190mm)
• Accuracy & Repeatability of Positioning: from +/- 0.004” (0.1mm)

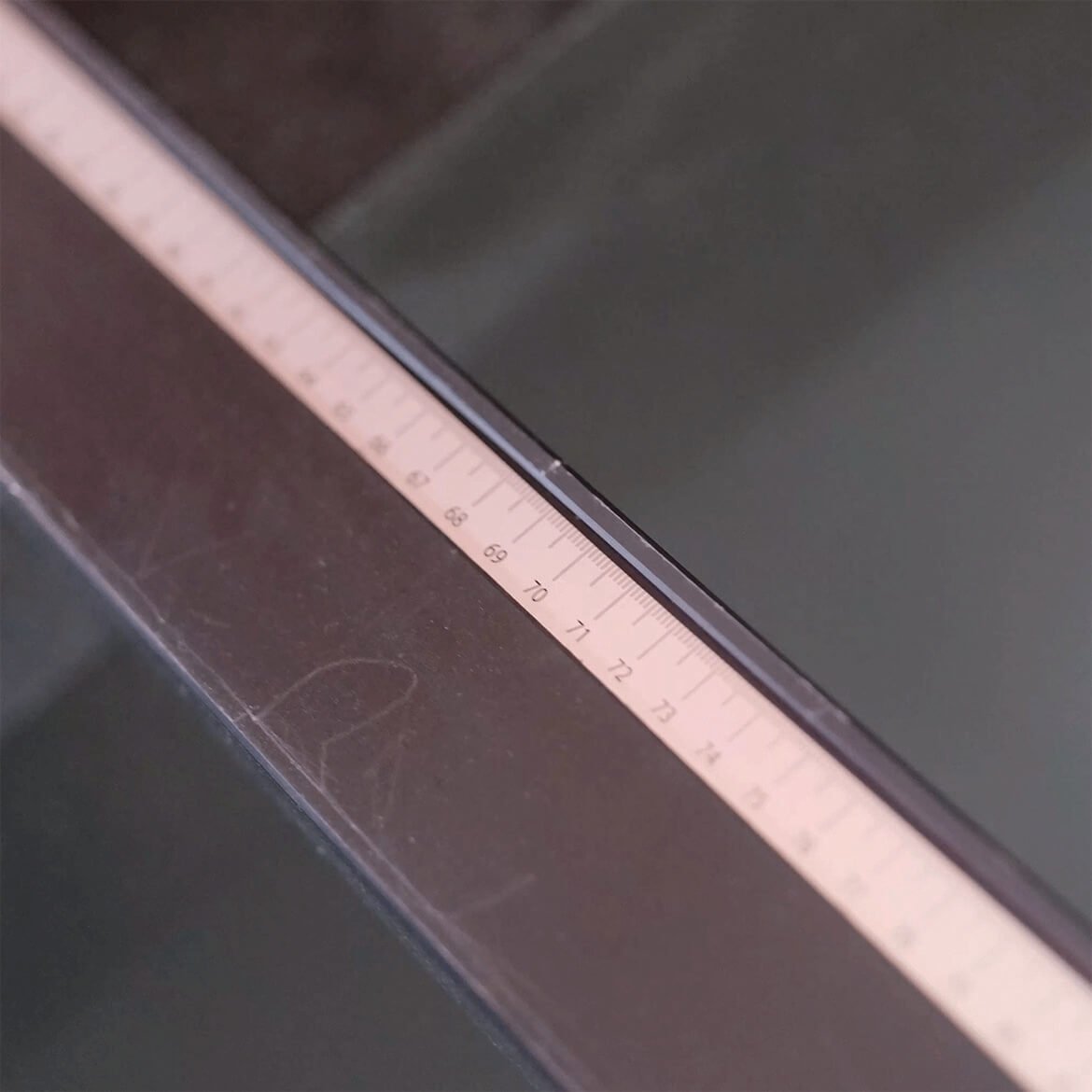

• Millimeter Squaring Arm Length: 39.3” (1,000mm)
• Squaring Arms: Two 39.3” (1,000mm)
• Strokes Per Minute: 10 Strokes. (All length)
• Fixed Cut Inclination: 1.75º
• Gauge Displacement: 27.5” (700mm)
• Approx. Machine Weight: 11,250 lbs.
• Motor Power: 7.5 HP (5.5 kw)
• Hydraulic Pump: 16 liters.
• Container Capacity: 73 liters.
• CNC back gauge.

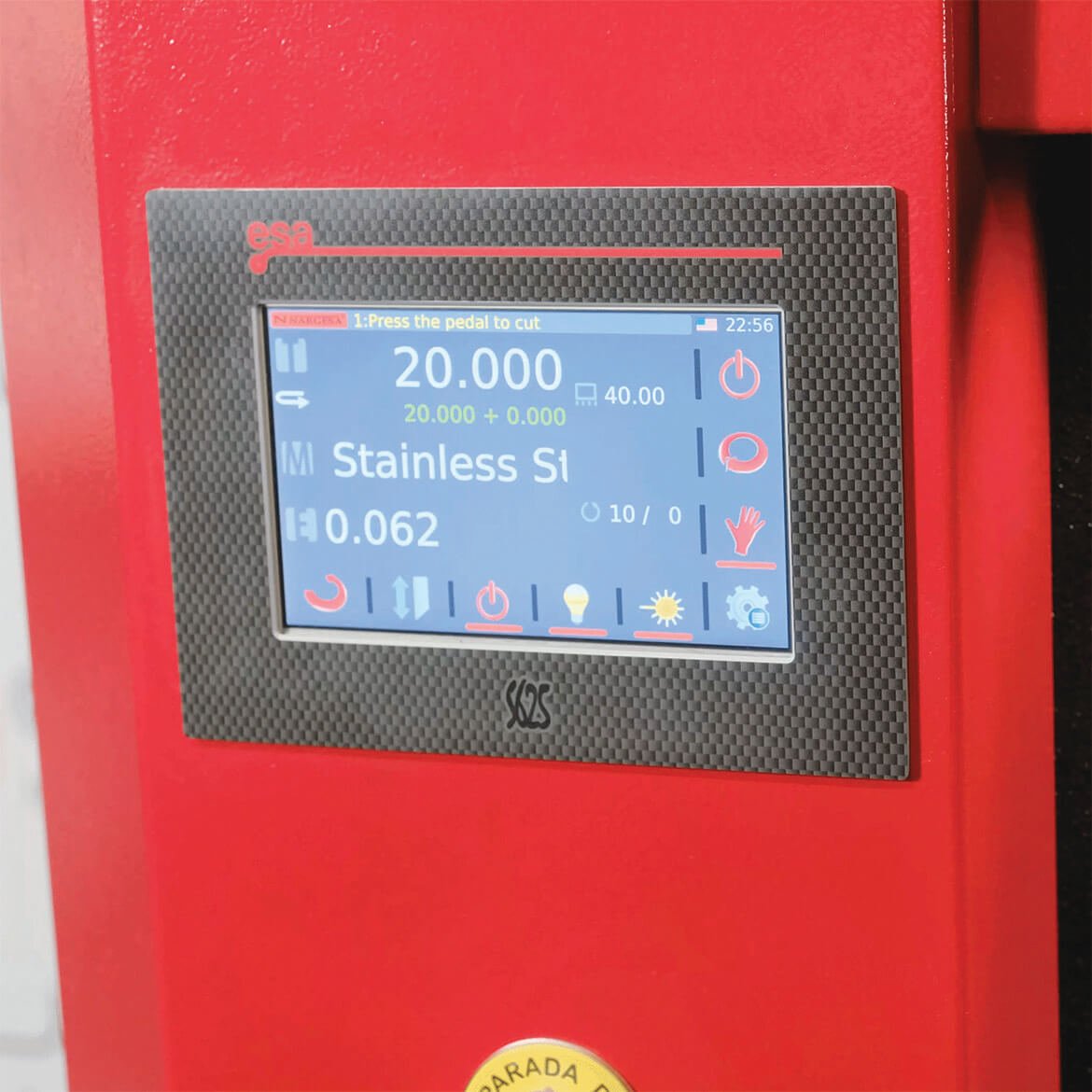

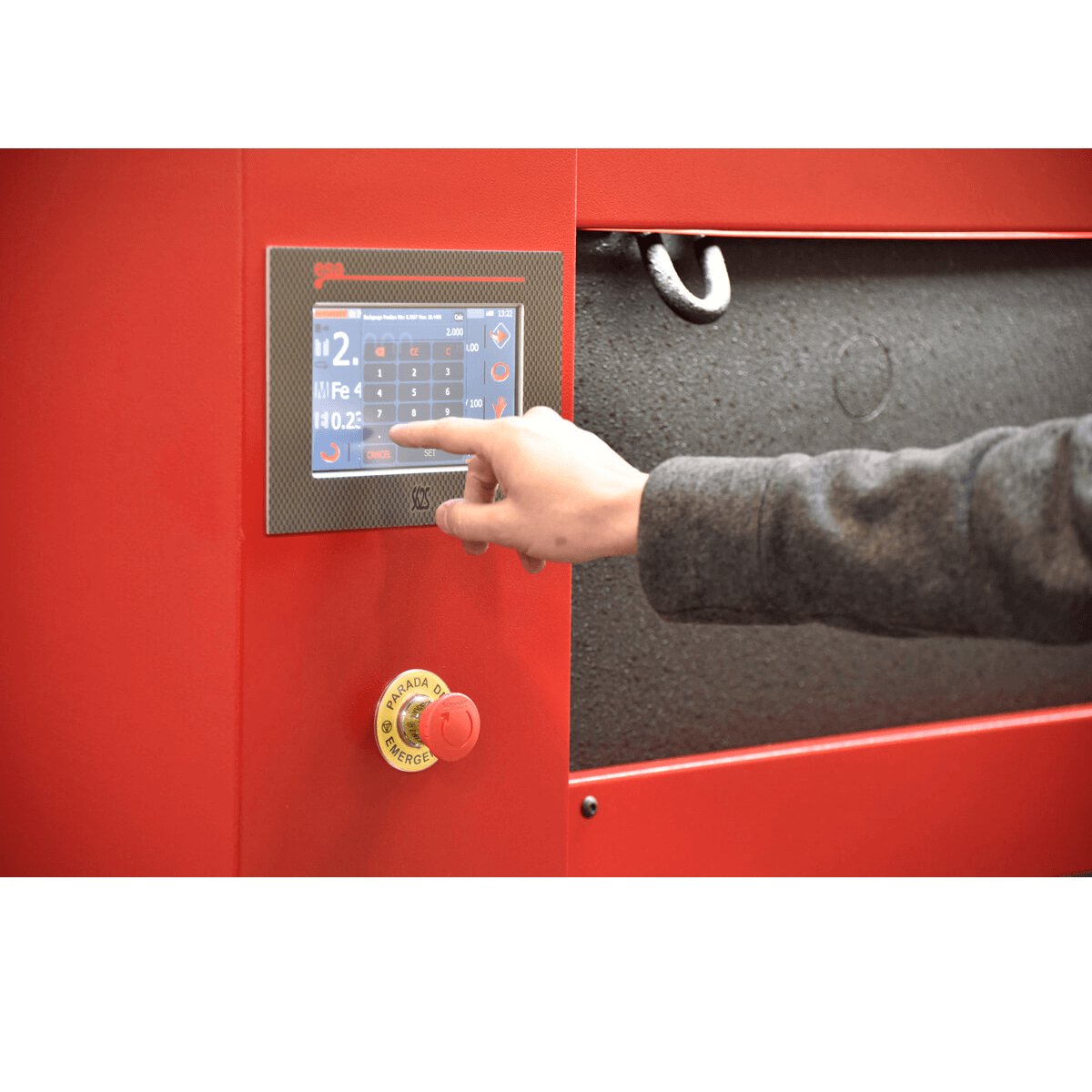

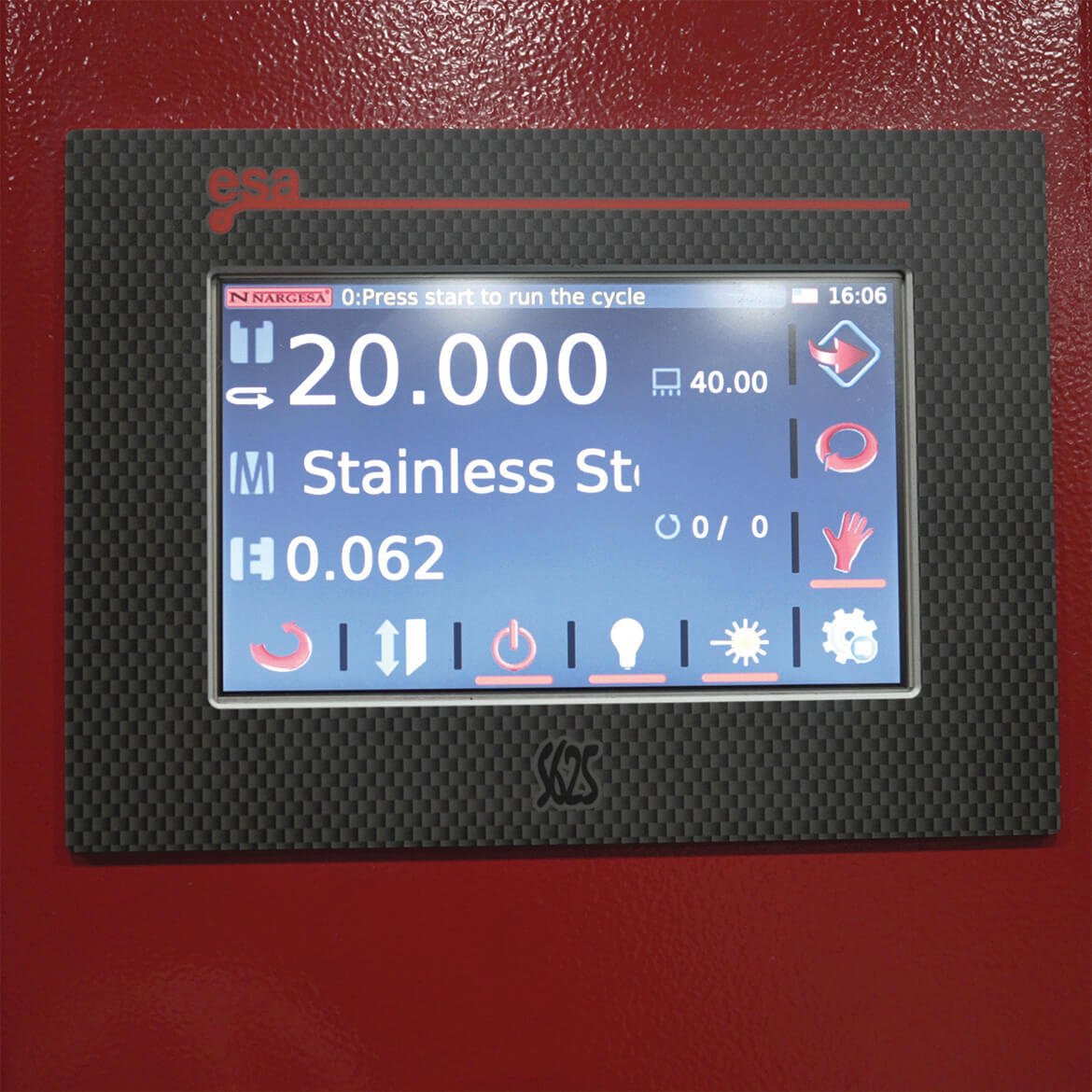

• Digital display.
• 4-edged lower and upper blades Suitable for stainless steel.
• Cutting area lit up by LED’s.

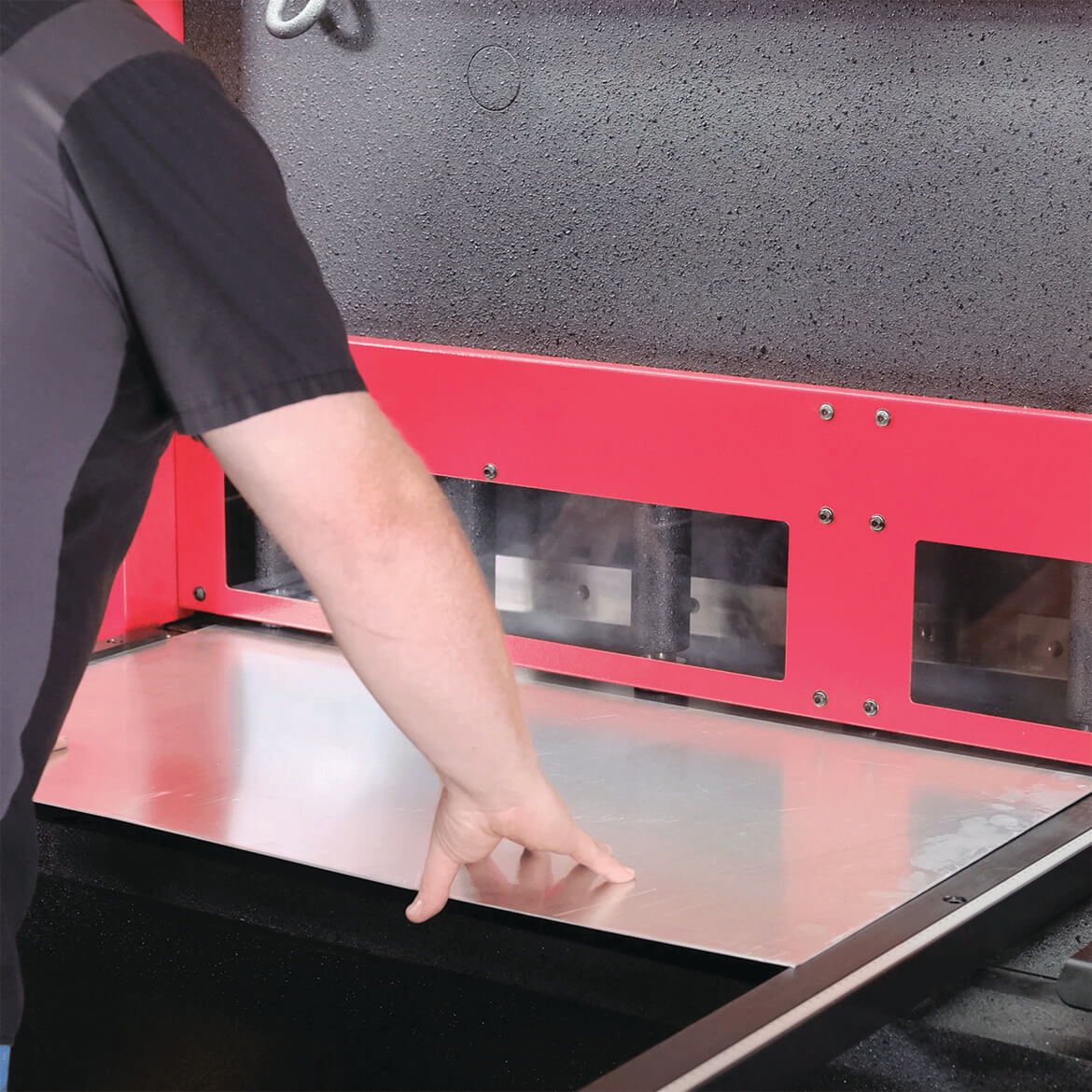

• Thin marking zone for manual cutting.

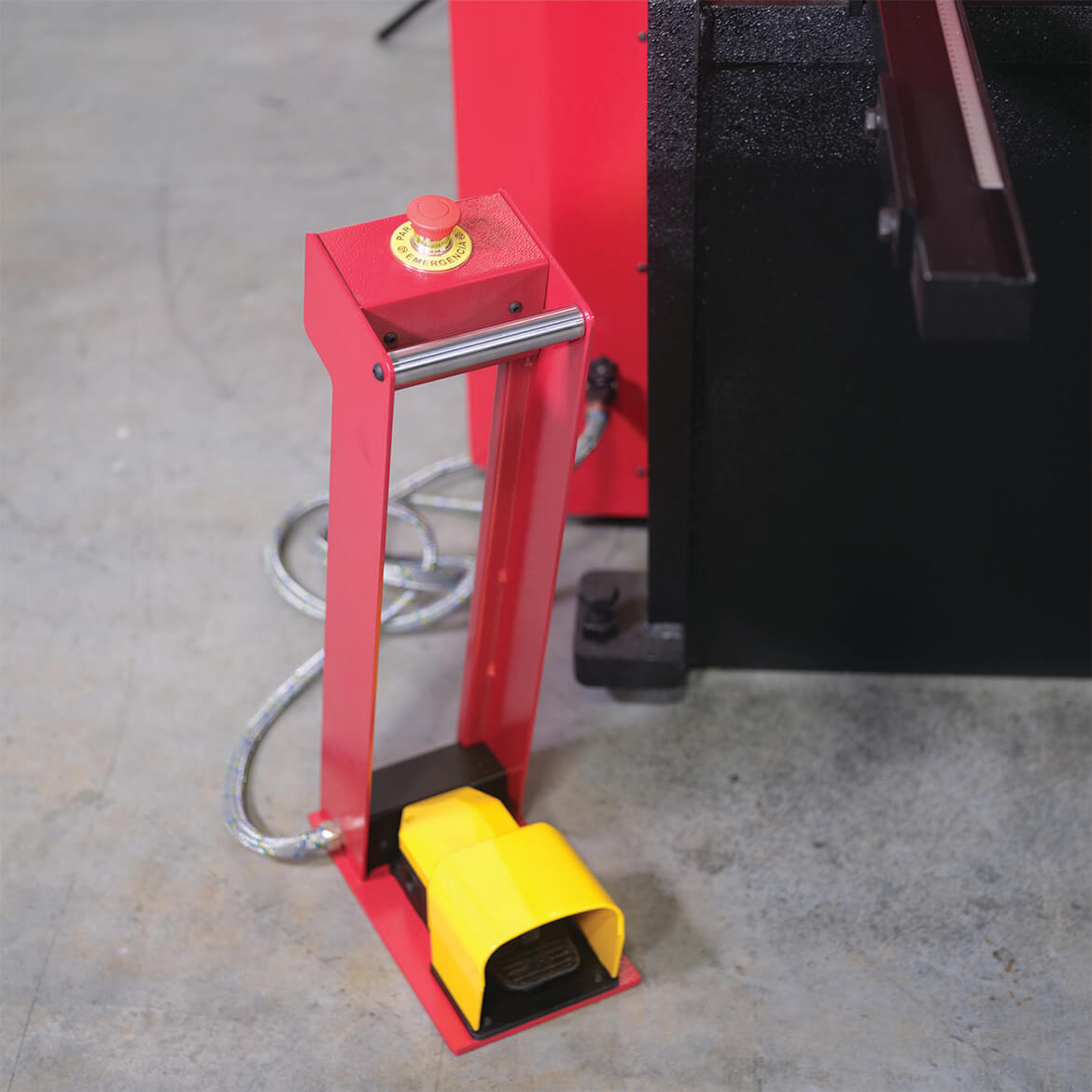

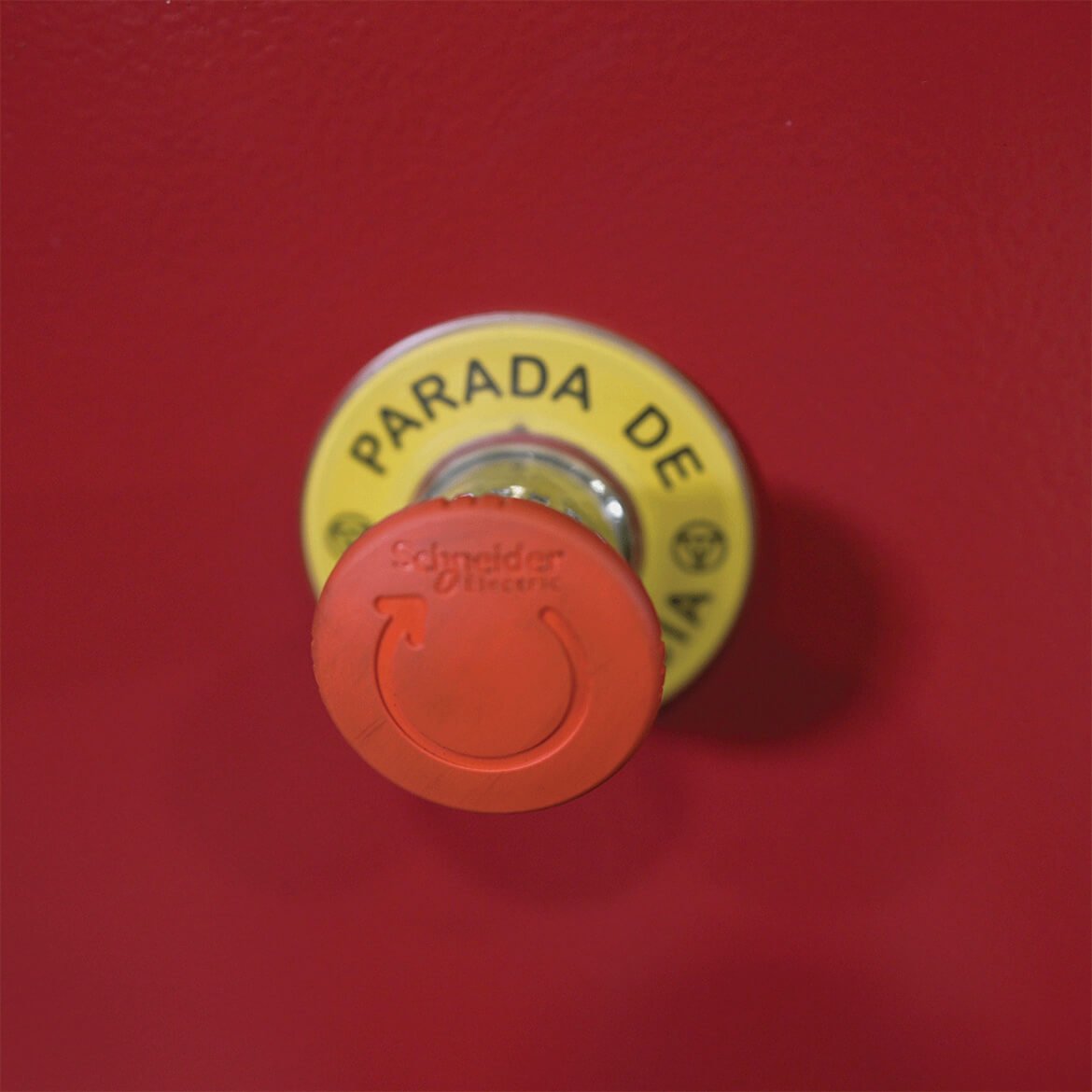

• Driving with safety pedal and emergency stop.
• Back overture with safety optoelectronic devices.
