SEMI-AUTOMATIC OPERATION:
Cycle start is obtained by pressing the relevant start button.
The machine performs the following operations during the cutting cycle:
1. Vice closing and activation of band motor.
2. Cutting bow down stroke.
3. Return of bow to initial position.
4. Band motor stop.
5. Vice opening.

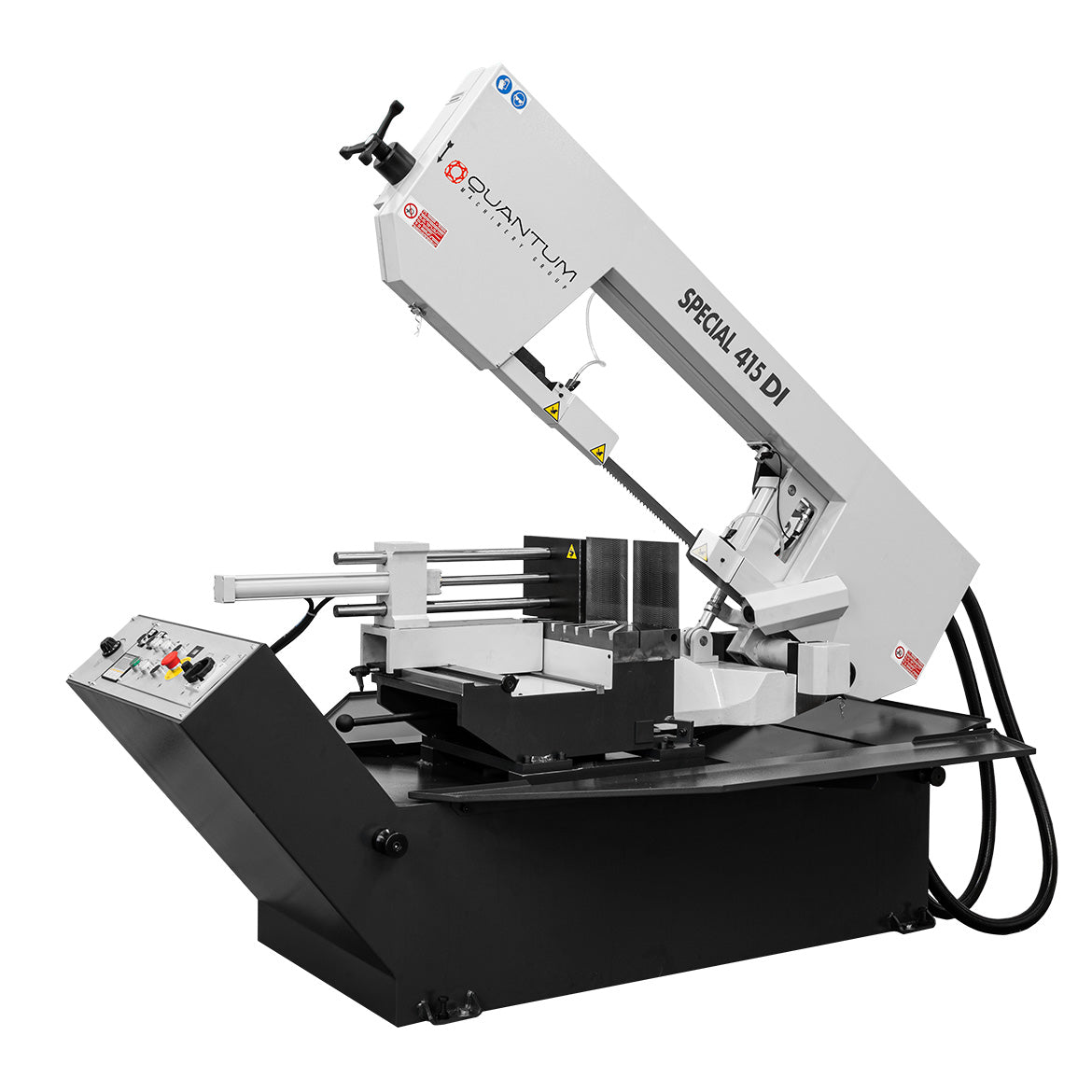

S 415 DI: Semi-Automatic Band Saw with Variable Speed Inverter (13-3/4" Round Tube Capacity)
S 415 DI: Semi-Automatic Band Saw with Variable Speed Inverter (13-3/4" Round Tube Capacity)
Sale price$20,900
Regular price (/)
MAXIMUM CUTTING CAPACITIES:
Solid Round:
- Straight Cut: 13-3/4" or 13.75"
- 45° Left Cut: 12-1/8" or 12.125"
- 45° Right Cut: 12-1/8" or 12.125"
- 60° Left Cut: 7-3/4" or 7.75"
- 60° Right Cut: 8-1/4" or 8.25"
Round Tube:
- Straight Cut: 12-3/4" or 12.75"
- 45° Left Cut: 11" or 11"
- 45° Right Cut: 7-3/4" or 7.75"
- 60° Left Cut: 7-1/4" or 7.25"
- 60° Right Cut: 7-3/4" or 7.75"
Square Tube:
- Straight Cut: 5-3/4" or 5.75"
- 45° Left Cut: 5-3/4" or 5.75"
- 45° Right Cut: 5-3/4" or 5.75"
- 60° Left Cut: 5-3/4" or 5.75"
- 60° Right Cut: 5-3/4" or 5.75"
Rectangular Tube:
- Straight Cut: 12-3/4"H x 15-1/2"W or 12.75"H x 15.5"W
- 45° Left Cut: 5-3/4"H x 12-1/2"W or 5.75"H x 12.25"W
- 45° Right Cut: 3-3/4"H x 8-1/2"W or 3.75"H x 8.5"W
- 60° Left Cut: 14-1/4"H x 8-1/4"W or 14.25"H x 8.25"W
- 60° Right Cut: 3-3/4"H x 8-1/2"W or 3.75"H x 8.5"W
- TECHNICAL DATA & FEATURES:
- High-efficiency semiautomatic bandsaw designed for cutting medium-sized and solid bars with excellent precision.
- Rigid and durable structure provides maximum cutting accuracy and stability during operation.
- Two-speed motor with inverter-controlled blade drive and a special reduction gearbox featuring a bronze gear and tempered worm screw for long-lasting performance.
- Oversized flywheels for optimal blade control and smooth rotation.
- Heavy-duty blade guides with sealed roller bearings and adjustable carbide inserts for extended blade life and precise alignment.
- Manual blade tensioning system via handwheel, secured by electromechanical microswitch.
- Integrated safety systems on both the flywheel housing and the blade zone for operator protection.
- Cutting thickness: 1.5 mm (0.059 in)
- Cutting angle range: 60° left / 60° right
- Adjustable stop for repeatable, consistent-length cuts.
- Blade cleaning system with built-in rotating brush.
- Hydraulic unit motor: 0.55 kW (0.74 hp)
- Coolant electropump: 0.06 kW (0.08 hp)
- Vice jaw height: 200 mm (7.87 in)
- Vice jaw length: 257 mm (10.12 in)
- Working table height: 760 mm (29.92 in)
- Machine weight: 780 kg (1,720 lbs / 7650 N
