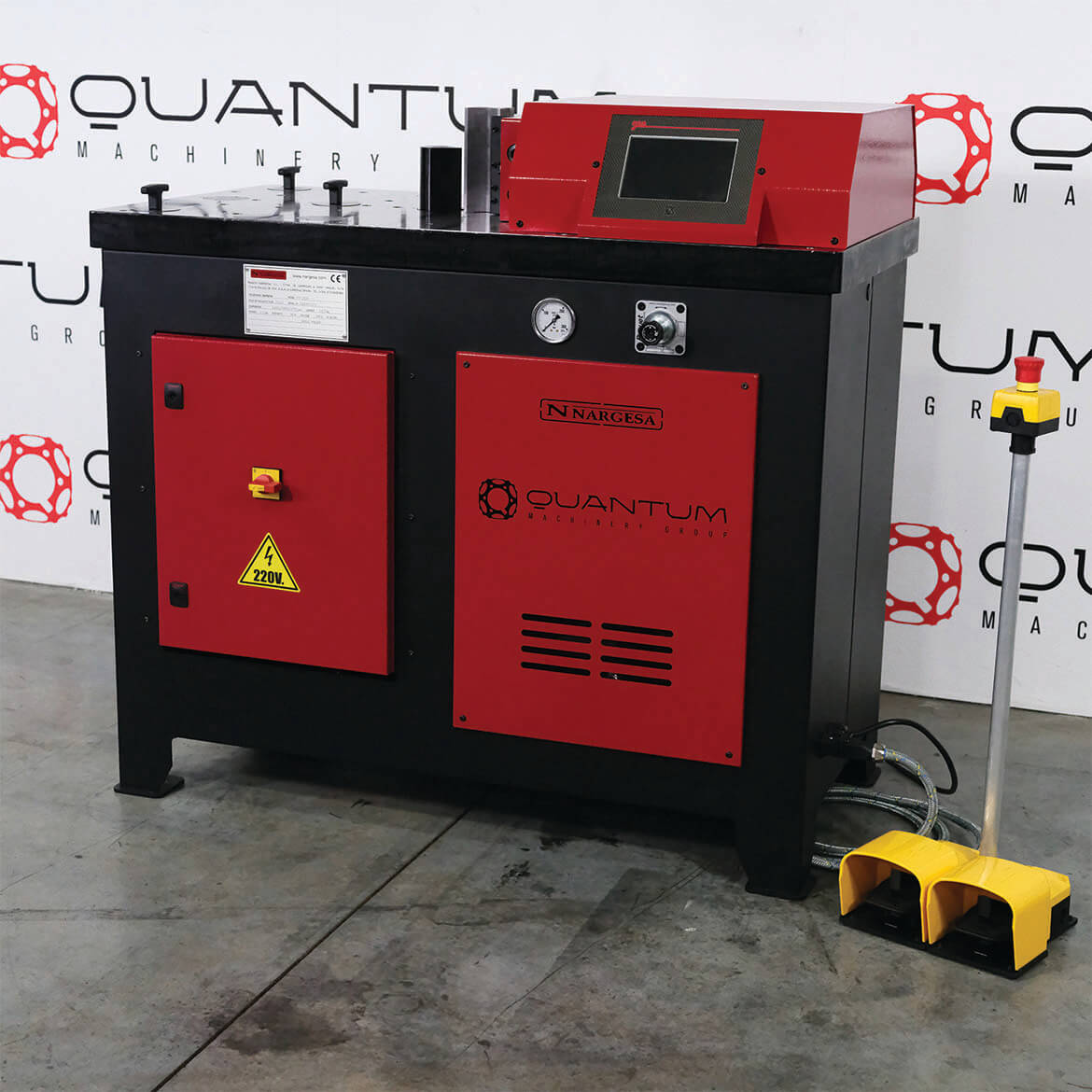

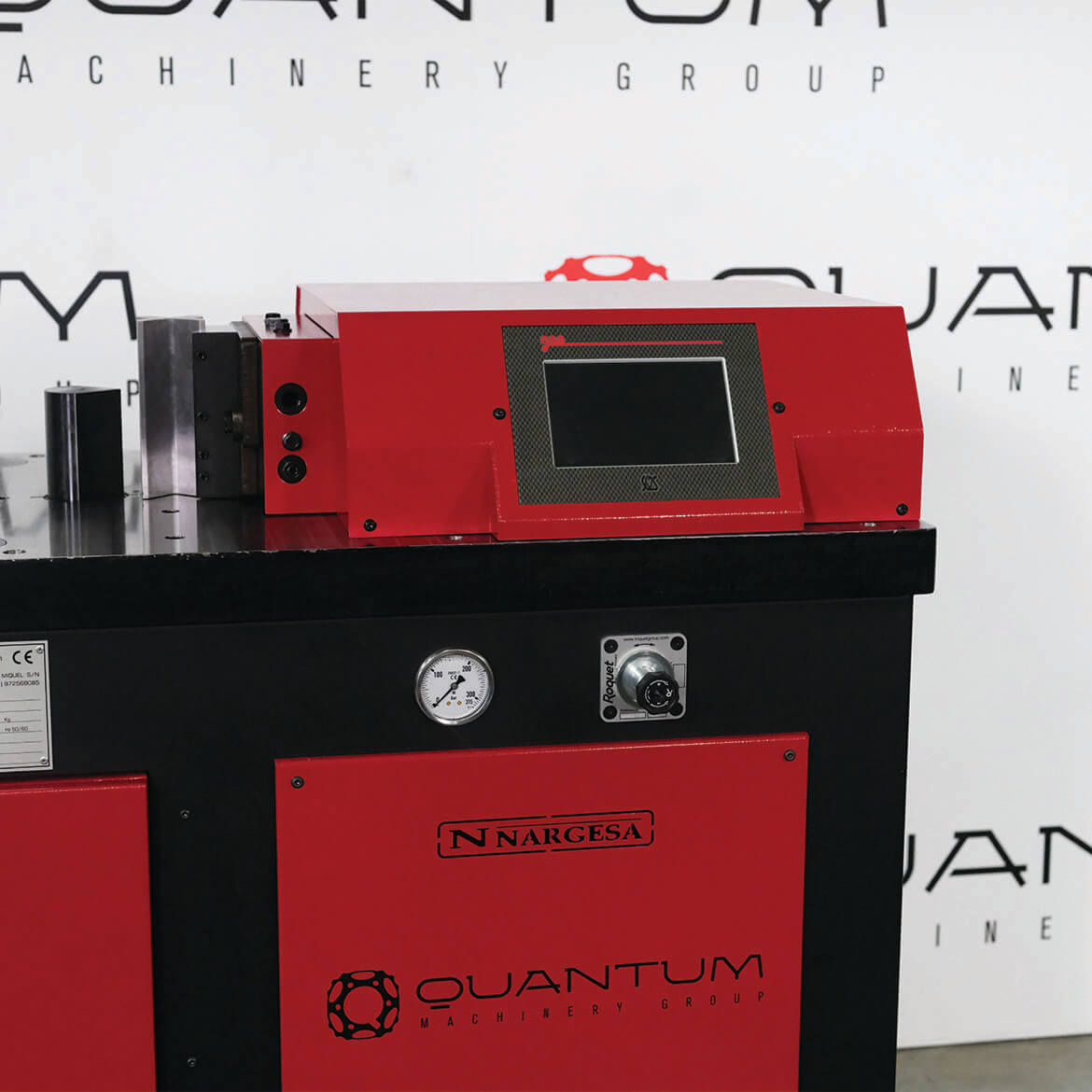

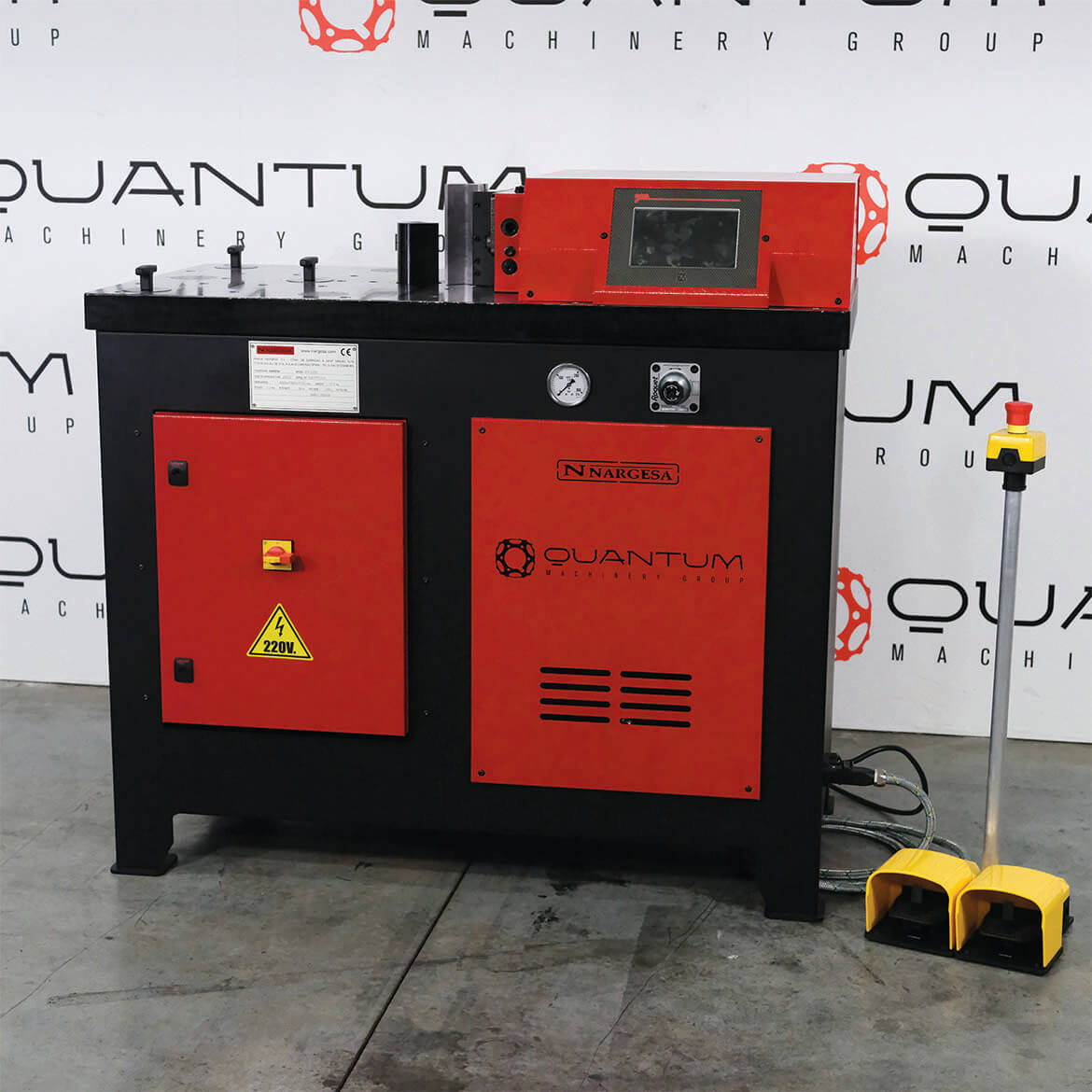

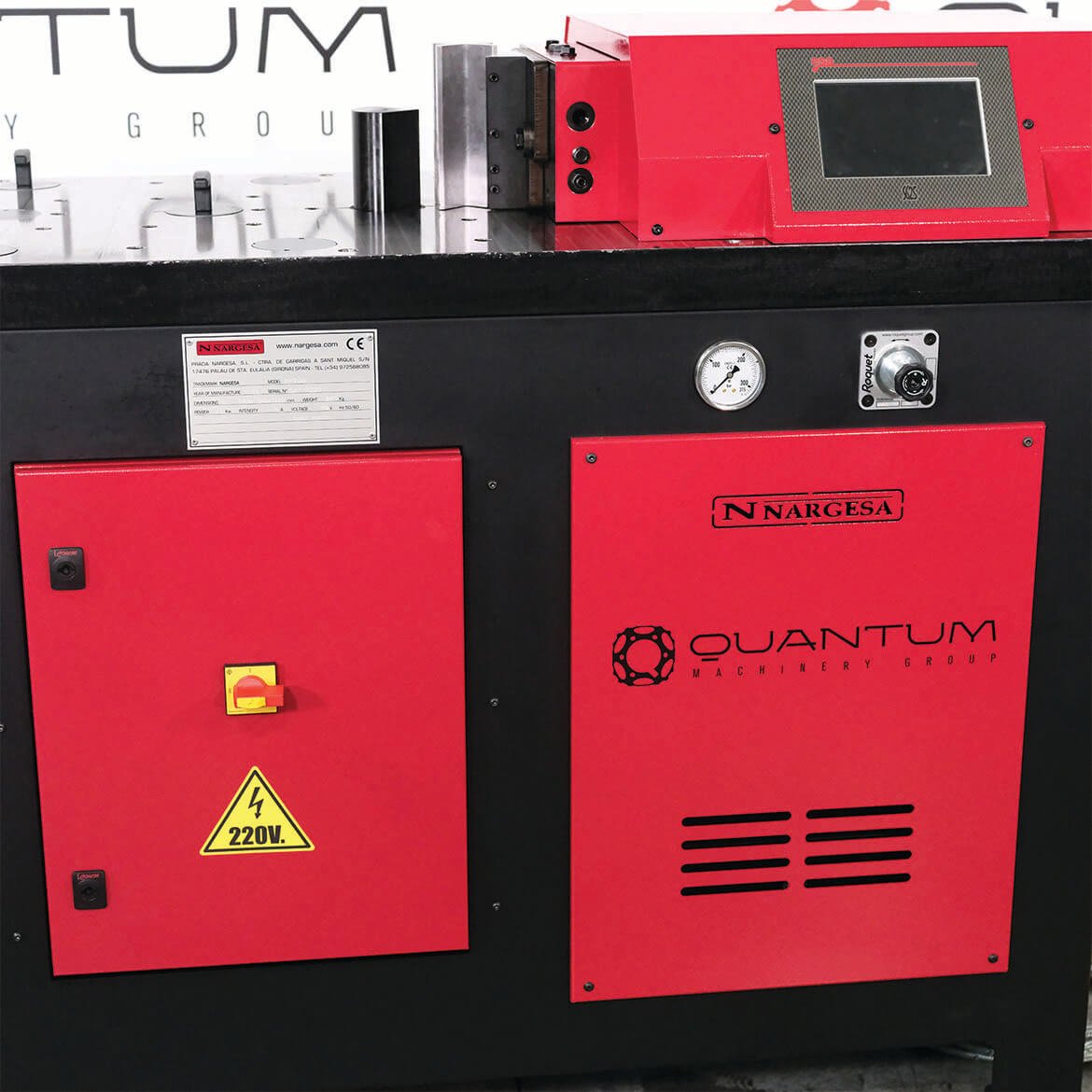

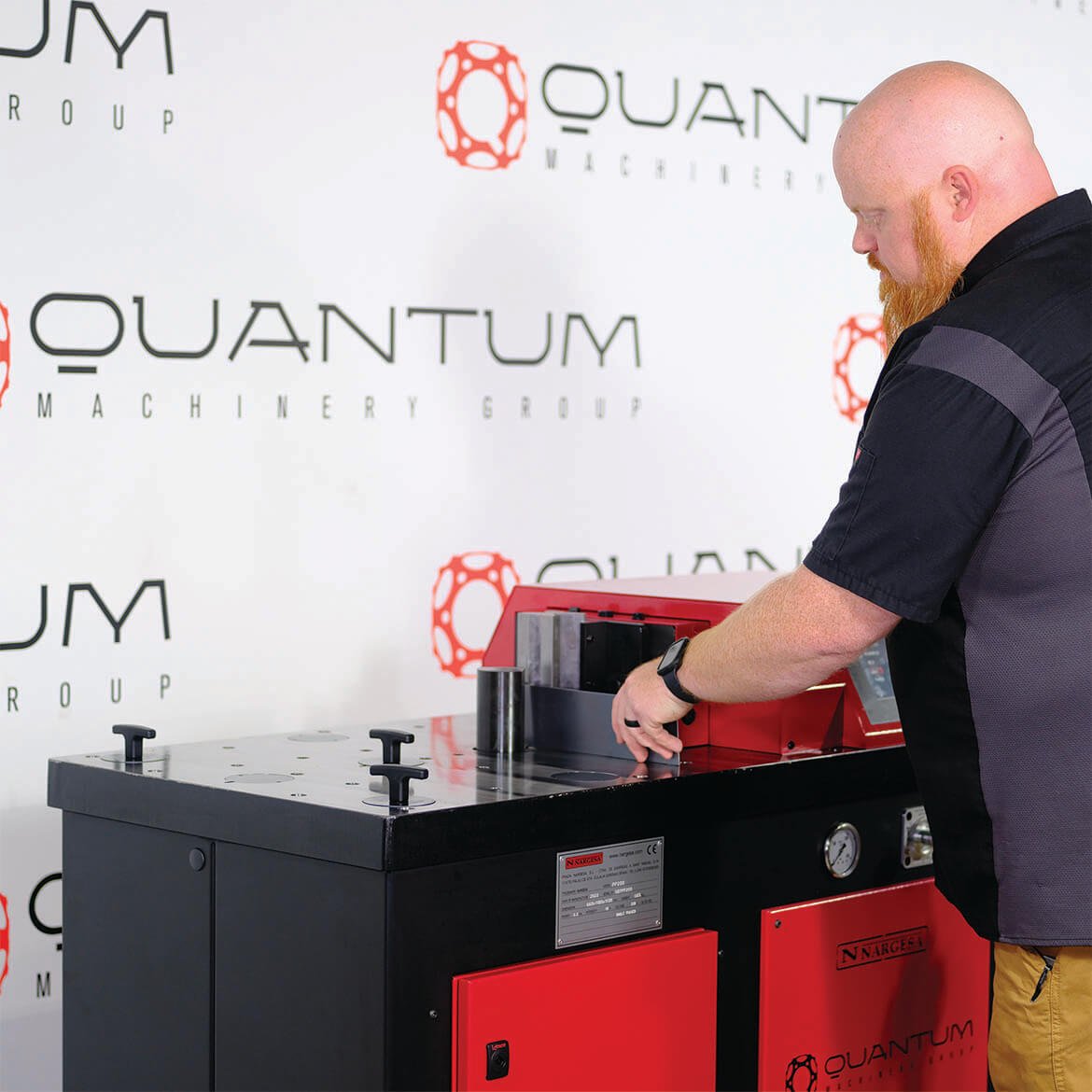

PP200CNC: 20 Ton Horizontal Press Brake

Sale price$17,700 Regular price$21,927
Save $4,227

Electrical Options: 220V / 1PH / 60Hz

WATCH THE VIDEO TO SEE EXACTLY HOW THE NARGESA PP200: 20 TON HORIZONTAL PRESS BRAKE WORKS, ALONG WITH SOME OF IT'S FEATURES

Straightening and bending large profiles to conform bus chassis, prototypes with complicated curves and bends, straightening faulty profiles ... Cutting flat bars or metal sheets a lot faster than any other saw or cutting machine. Punching, boring, drilling or punching plates to make perforations on fences, doors, windows and other parts. Cutting and shaping are other features of this versatile forming press for manufacturing flanges and clamps for fastening pipes. Flaring tube or pipe for assembly and subsequent welding to produce exhaust pipes, water pump distributors, metal furniture, railings tube... Widening and reducing the pipe ends permit joining different pipes to make berths, chairs, irrigation systems, tents, greenhouses etc... Folding and bending solid rods will enable the user to manufacture all kinds hooks, chain links and also form balusters out of square or round bars, tubes for the manufacturing of parts for cold forging, railings, fences, gates, doors, railings... Making hinges is another widely used application in this type of hydraulic press. As you can see, the uses of Hydraulic Horizontal Bending Press Nargesa PP200CNC are really limitless.

The versatility of the 20 Tons Horizontal Press Brake NARGESA PP200 allows us to bend, fold, cut and shape in cold, stretch and reduce, inlay, notch and assemble... Horizontal Bending Press Brake PP200 has been manufactured in a 60mm thick welded steel monoblock, stabilized and mechanized. Its robustness, versatility and easy handling are just three of the best features our hydraulic horizontal bending machine has.



Main Advantages of the PP200CNC:

    • Easy handling: The machine is sent completely assembled, it is only necessary to connect it to the required power supply and start performing.
    • Versatility: Nargesa PP200CNC has a catalog with a great deal of optional tooling.
    • Easy fabrication of tooling: The customer himself or any toolmaker can manufacture dies and punches. Folding operation with no risk of damaging the punches and dies with thick materials unlike conventional press brakes. Folding flat bars and sheets into completely close shapes. Conception of this horizontal bending press brake allows to make folding operations that are impossible to be carried out on a conventional press brake.
    • Fast tool change, punches and dies: This change does not take more than 30 seconds most of the times.

TECHNICAL SPECS AND FEATURES

    • Working Strength: 20 Tons / 20,000kg / 200kN
    • Working Speed: 0.39” Per Second
    • Return Speed: 0.37” Per Second
    • Tooling Support Table: 23.6” x 46”
    • Max. Displacement: 9.8”
    • Motor Power: 3 HP / 2.2 kW
    • Machine Weight: 1,450 lbs.
    • Machine Dimensions: 38” x 47” x 45”
    • Warranty: 3 Years (On any defective parts.)
    • Extremely Fast Tooling Changeover: 30 Seconds Max.
    • Tooling Included?: Yes
    • What Tooling is Included?: A Folding Die at 3.93” & 4-Way V-Die
    • Voltages Available: 220 Volt / 3 Phase, 480 Volt / 3 Phase, 220 Volt / 1 Phase
    • Easy handling: The machine is sent completely assembled, it is only necessary to connect it to the required power supply and start performing.
    • Versatility: Nargesa PP200 has a catalog with a great deal of optional tooling.
    • Easy fabrication of tooling: The customer himself or any toolmaker can manufacture dies and punches.

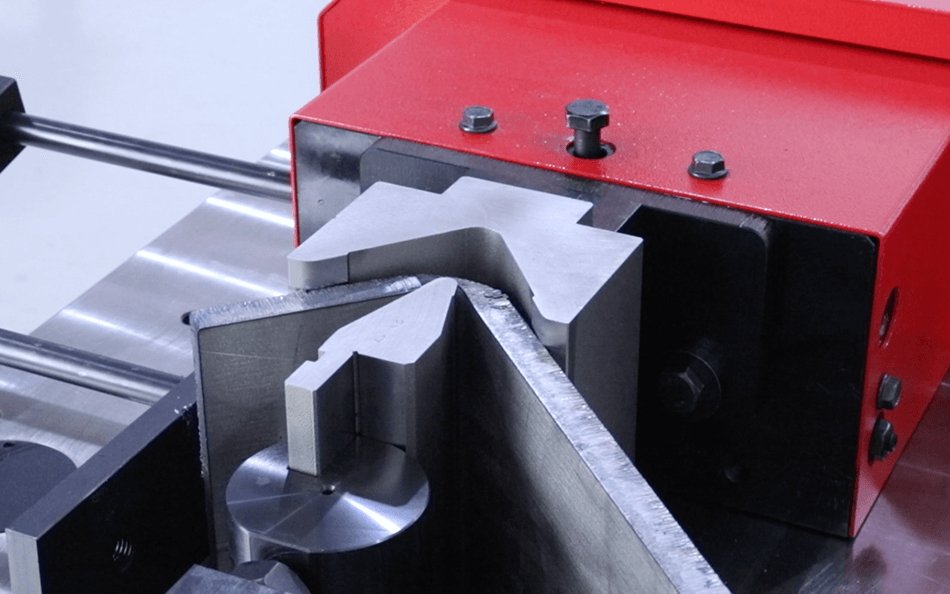

    • Folding operation with no risk of damaging the punches and dies with thick materials unlike conventional press brakes.

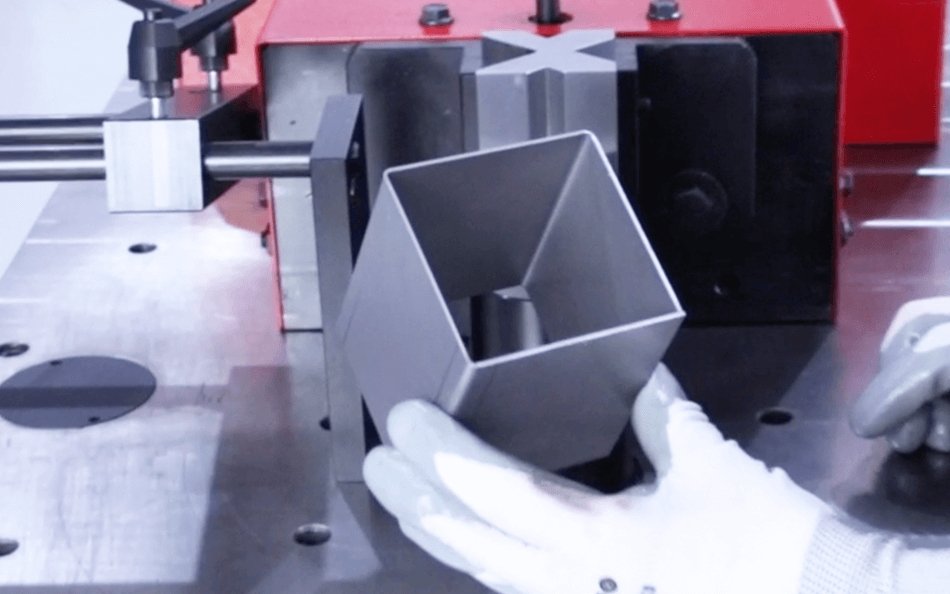

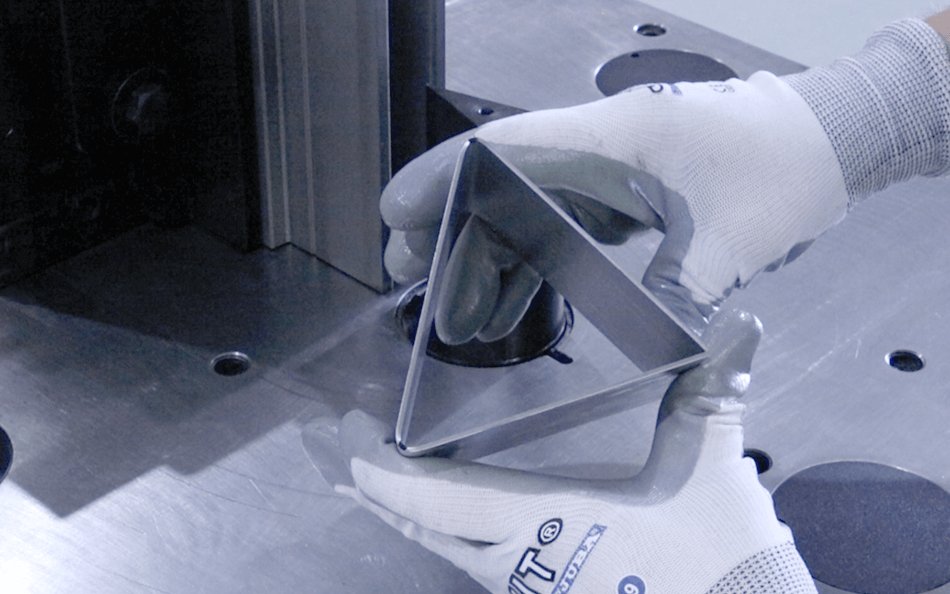

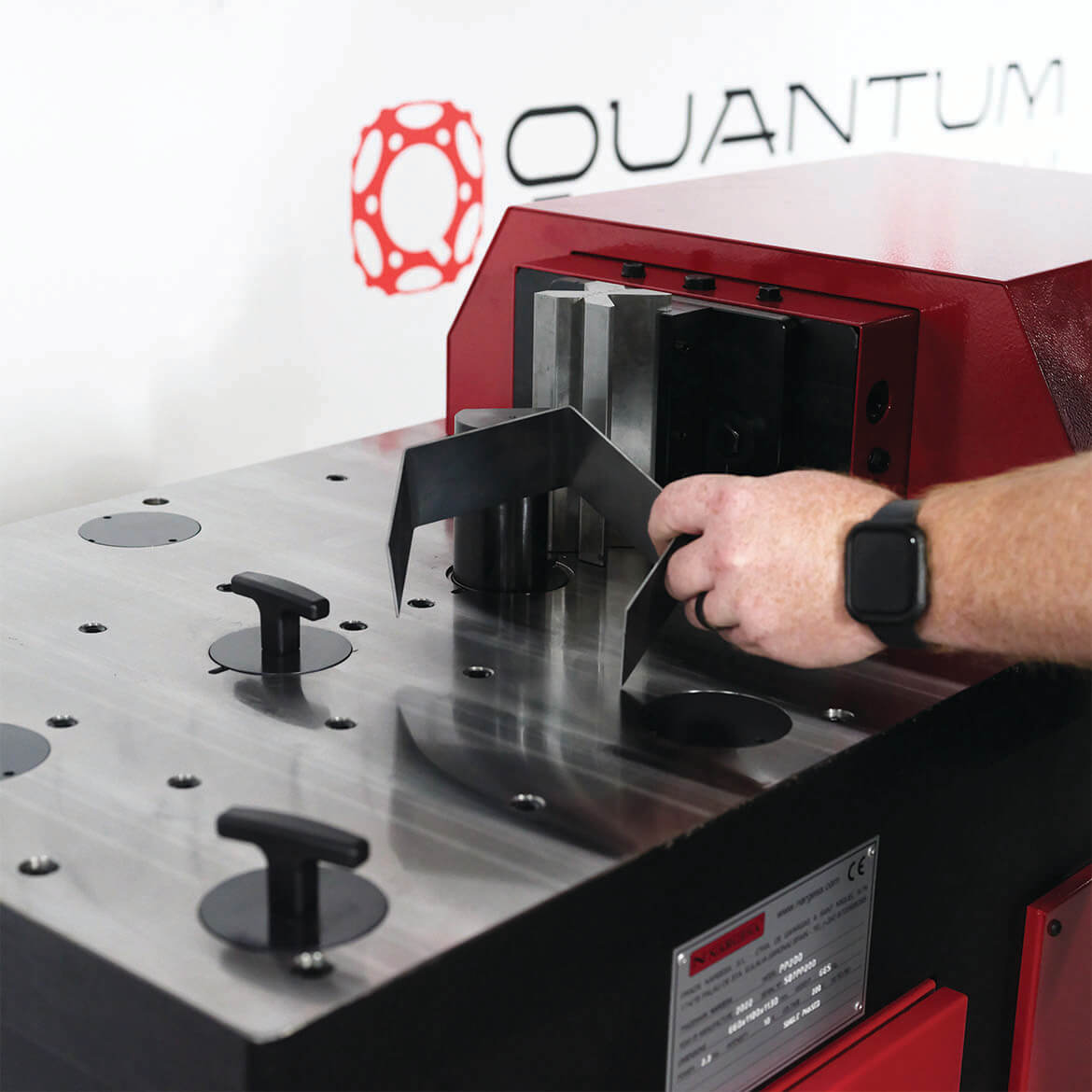

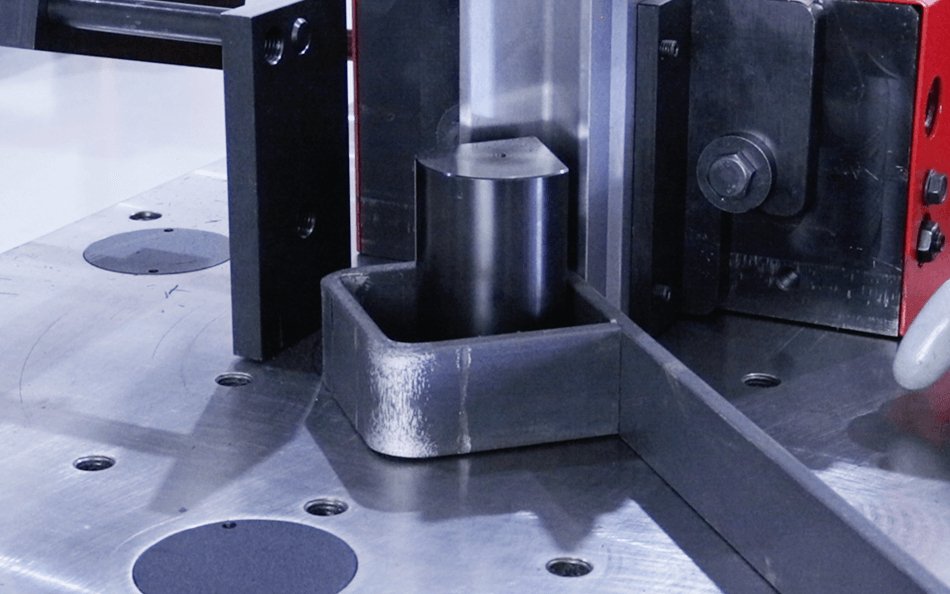

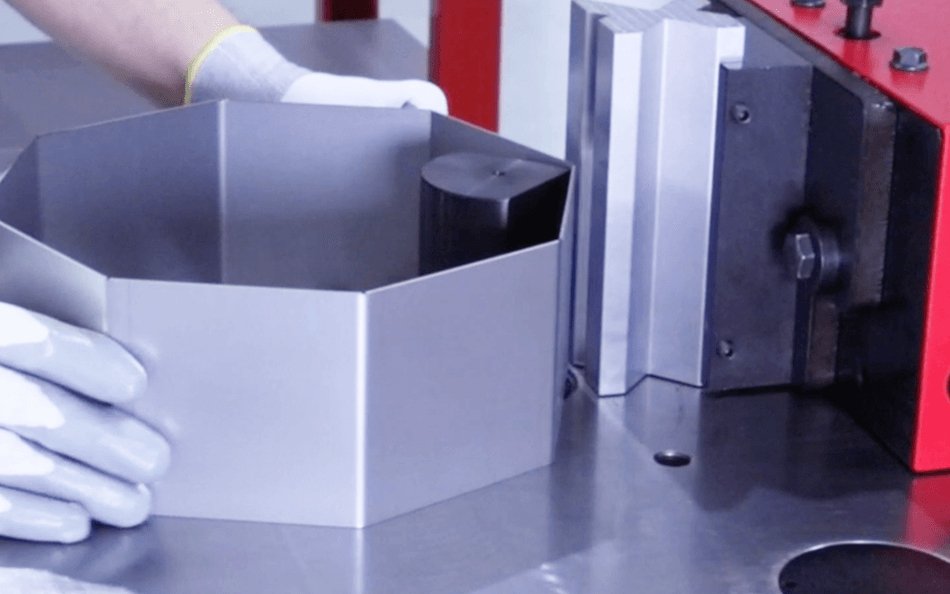

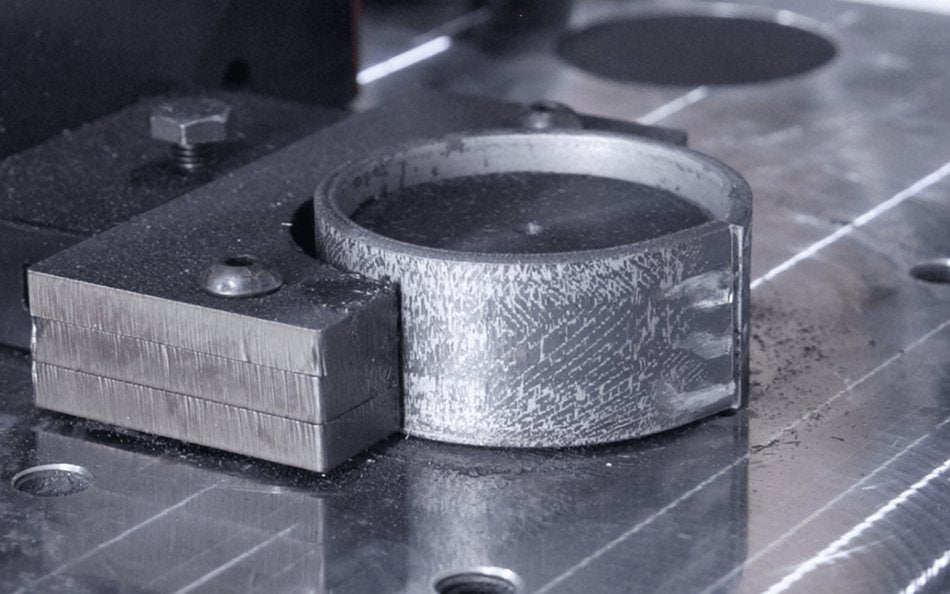

    • Folding flat bars and sheets into completely close shapes. Conception of this horizontal bending press brake allows to make folding operations that are impossible to be carried out on a conventional press brake.
    • Fast tool change, punches and dies: This change does not take more than 30 seconds most of the times.
    • STANDARD EQUIPMENT PROVIDED WITH THE MACHINE: Horizontal press brake PP200 includes the complete 4V’s folding die.
      • Folding operation with no risk of damaging the punches and dies with thick materials unlike conventional press brakes.
      • Folding flat bars and sheets into completely close shapes. Conception of this horizontal bending press brake allows to make folding operations impossible to be carried out on a conventional press brake.
      • Fast tool change, punches and dies: This change does not take more than 30 seconds most of the times.
      • A set of punch and folding die is supplied along with the machine.
      • Performance by a safety double activation hold pedal.
      • Low noise level, improving the quality of work of the operator.
      • The machine is shipped completely assembled and ready to work.
      • Palletized lower bench to easily transport the machine up to its working or storage site.

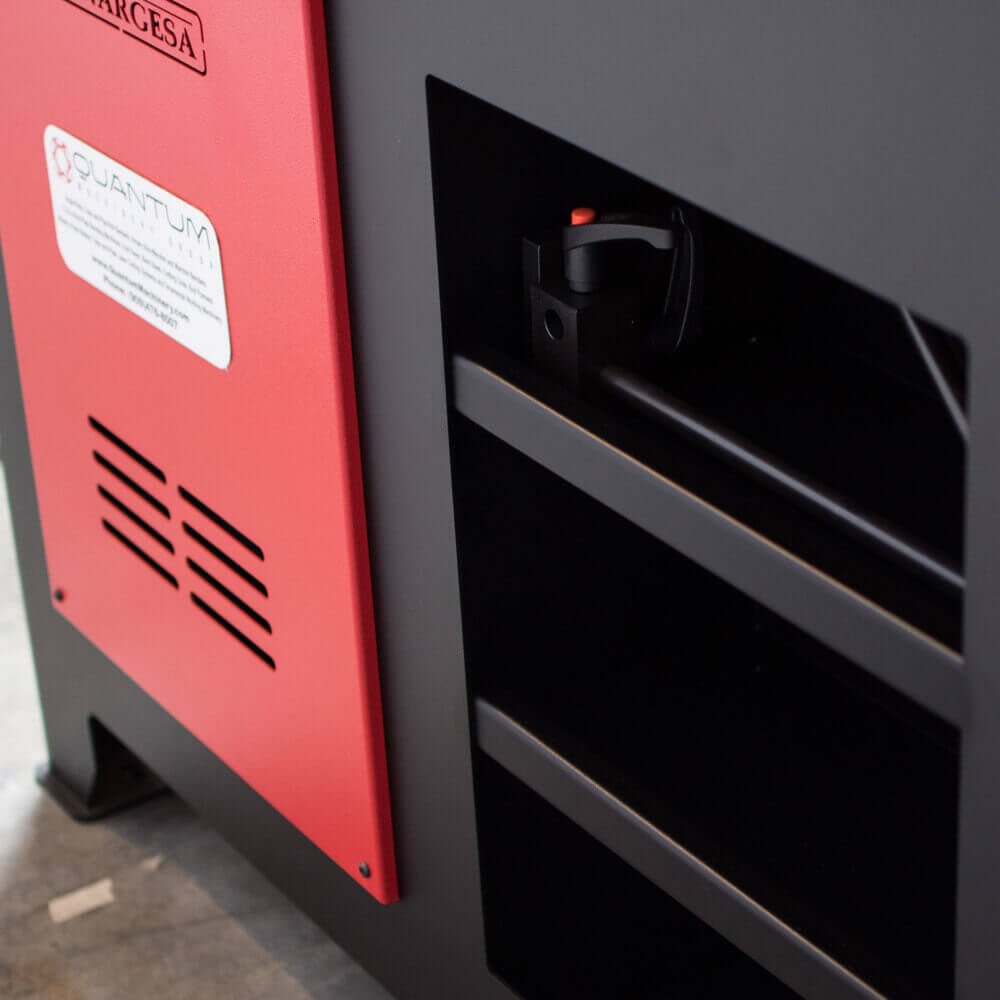

      • Dies support shelf included.
      • Lateral stop to place it right or left.
      • All our products are manufactured in our facilities in Spain. Hydraulic and electrical components are all standard from the best leading European trademarks with technical support all over the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato...

SAMPLES OF JOBS DONE WITH THE PP200CNC

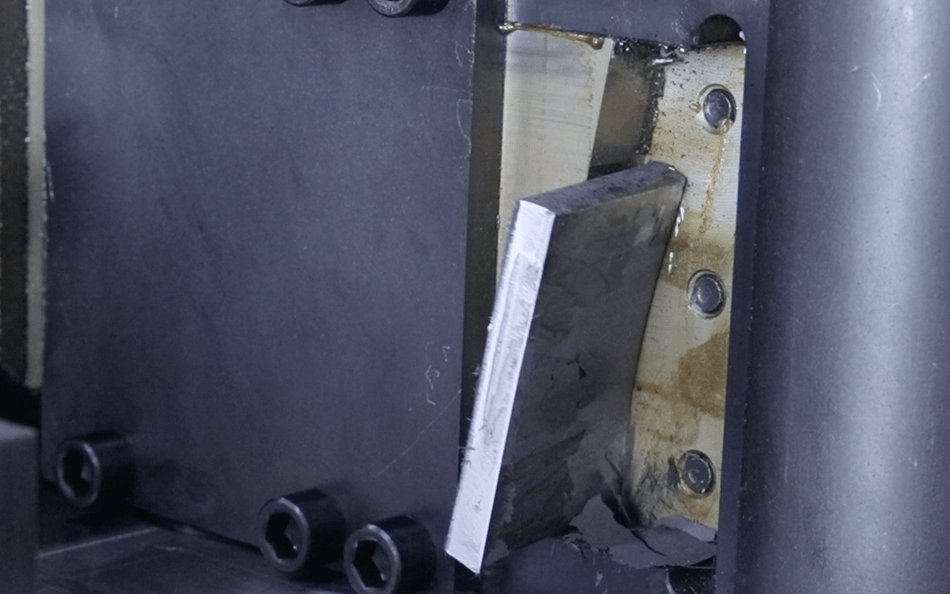

  • Cutting, Piercing and Punching Flat Bars, or Sheet Metal, turn this Horizontal Bending Press into a Punching & Shearing Machine.
  • The PP200CNC is capable of Bending Pipe at a fixed radius of up to 150°.
  • This machine is capable of End Forming Tubes by Stretching and Reducing the tube ends; allowing the tubes to fit over each other or to weld together later.

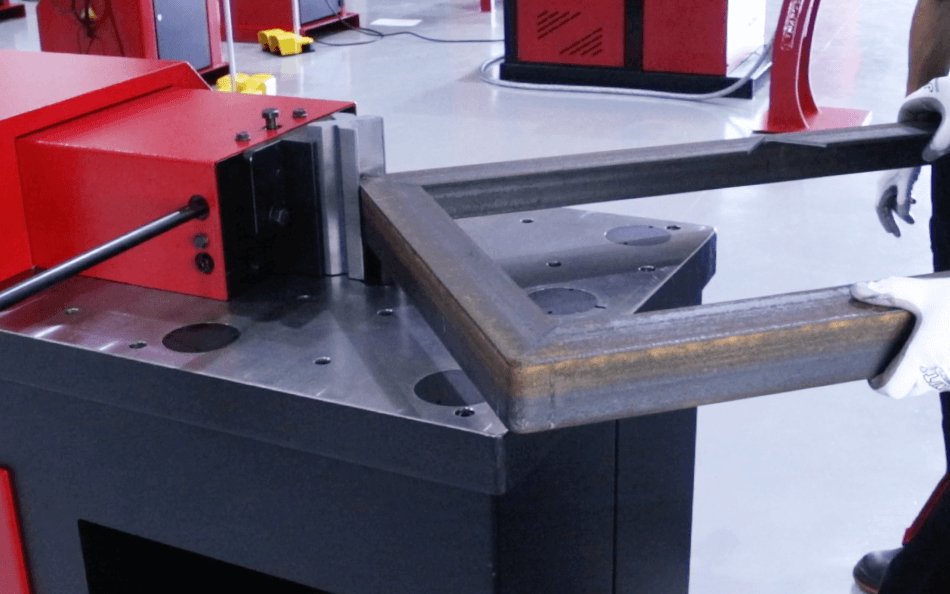

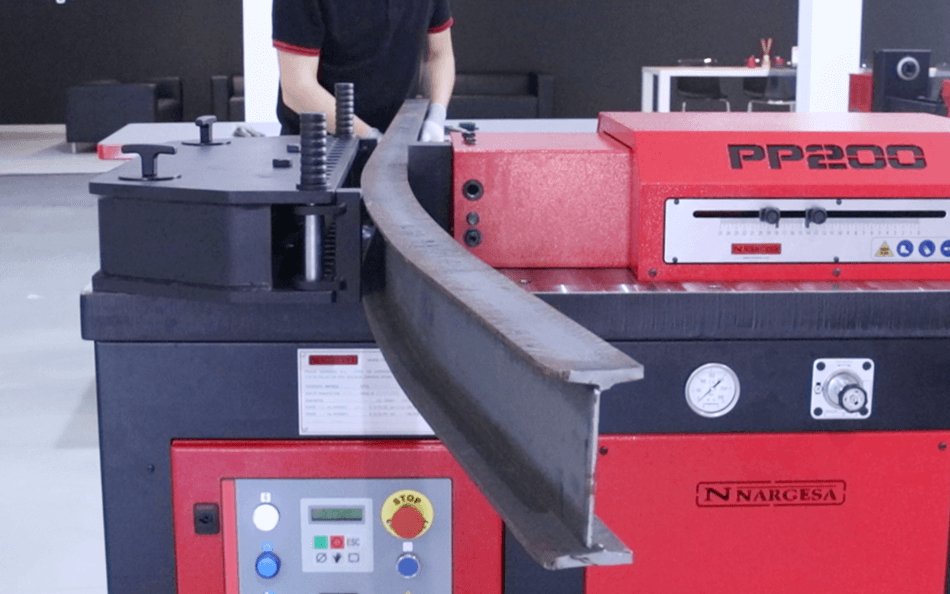

  • The PP200CNC is also a solution to bend different profiles at different radii while keeping the ends straight. An example of this would be for when you are manufacturing handles and flanges.
  • Utilizing the power of the PP200CNC, this unit Cold Forges applications to make and form different shapes of balusters.
  • The capability of Tube notching to assemble at 90°.
  • Folding operations with wrought iron machines permit to completely bend the parts or pieces - unlike conventional flat bar section bending machines.

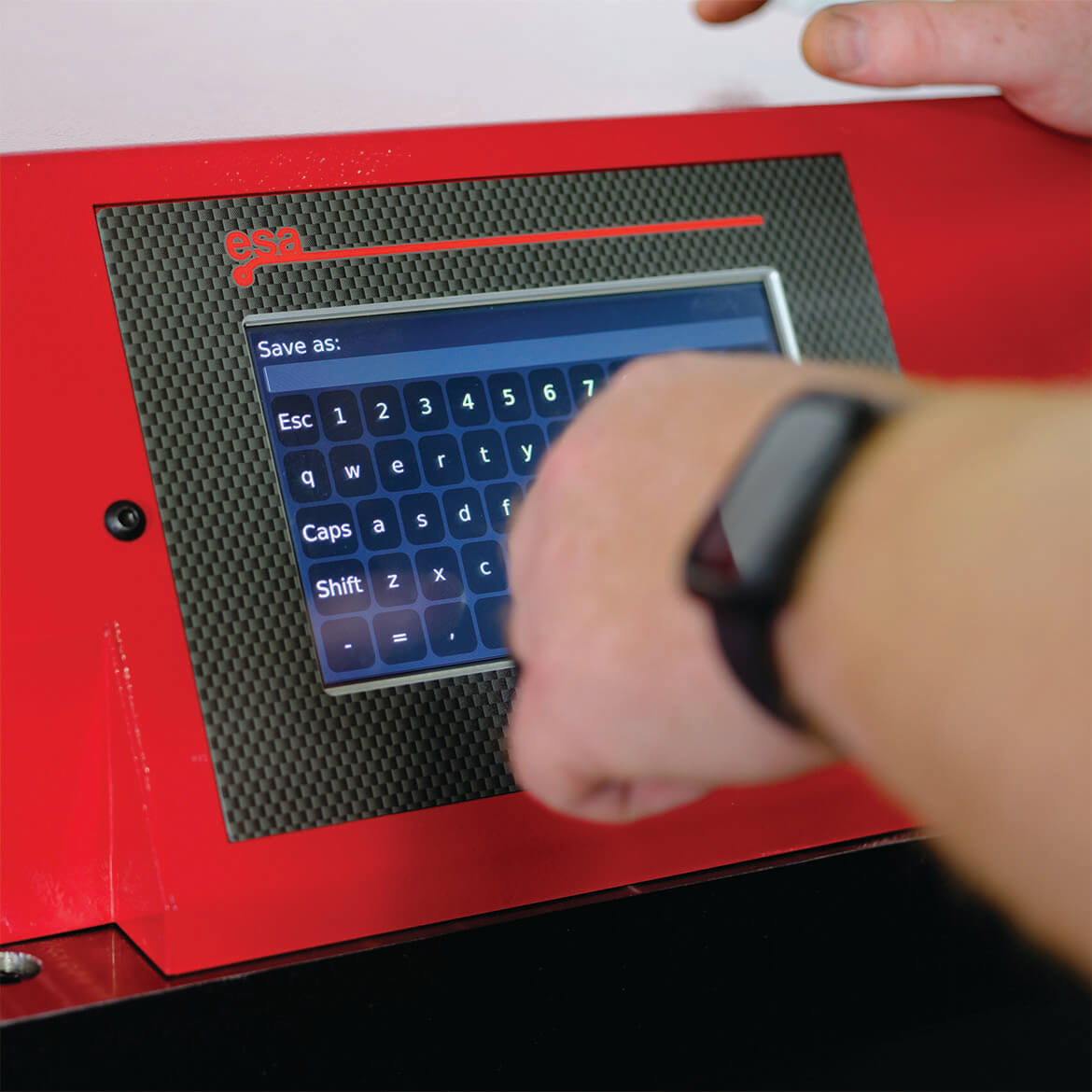

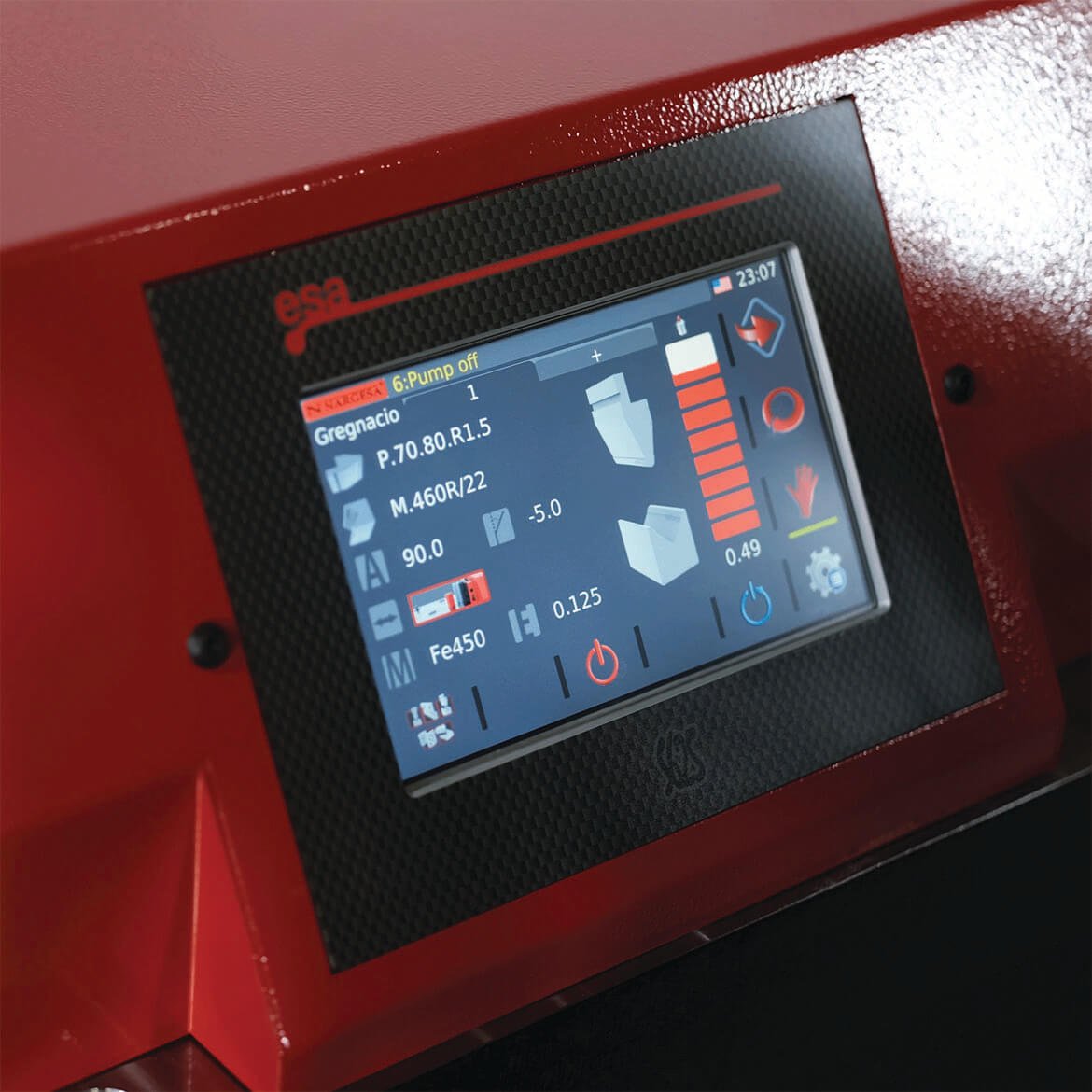

ESA S652 CONTROL PANEL

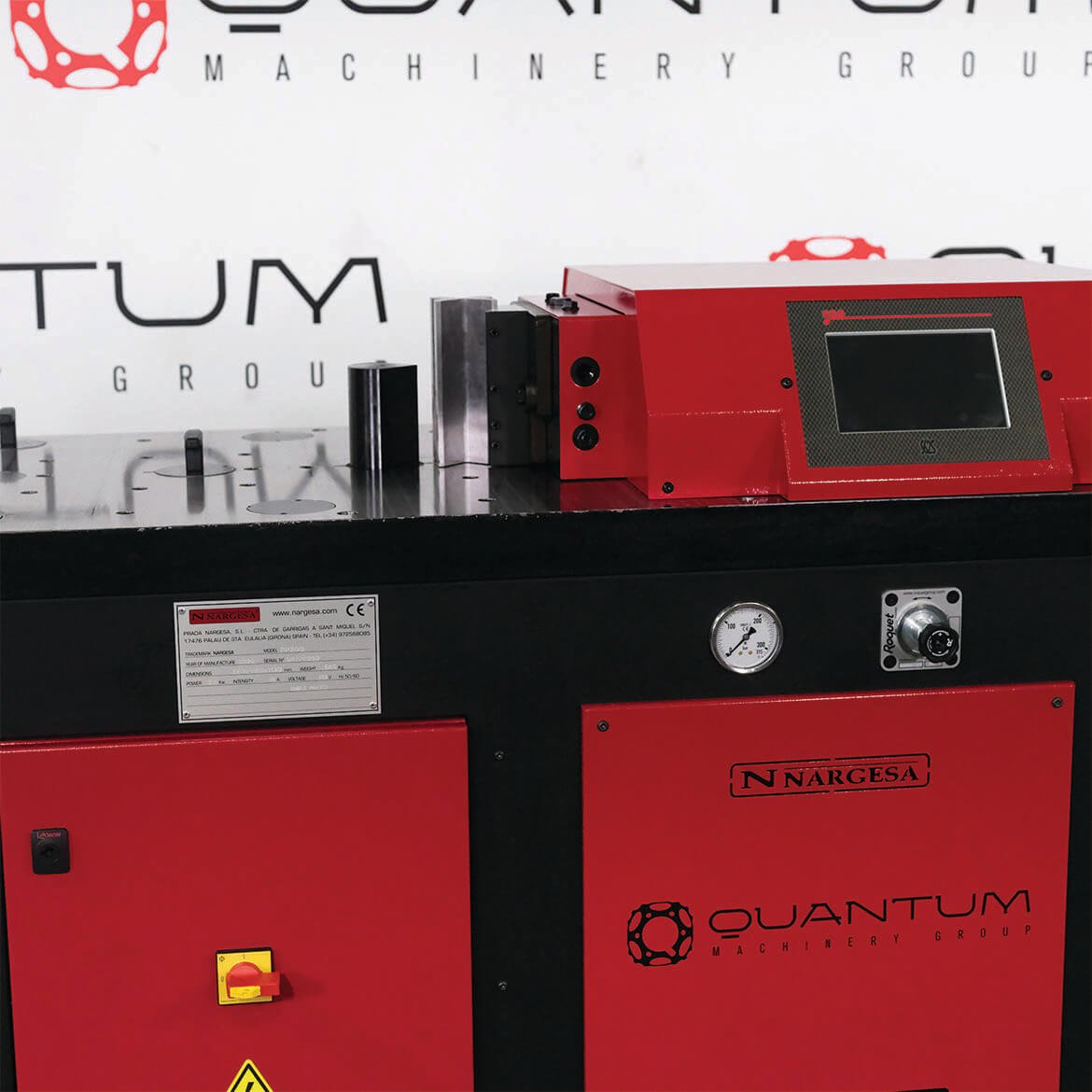

Nargesa horizontal press brakes have a 7” color touch screen control, very intuitive and easy to handle, with the latest 4.0 technology and a more comfortable and accurate regulation. We only have to introduce the material, the thickness, the bending angle, choose the punch and the die from the library and the control will program the rest of the parameters automatically. These are some of the most relevant features of this control system.

  • Our Control Stores up to 10,000 programs.
  • Up to 50 different angles on the same piece can be programmed at a time.
  • Dimensions may be programmed in inches or millimeters.
  • A library of available dies with the possibility of programming new ones.
  • Library of materials and thicknesses available with the possibility of programming new options.
  • The CNC can be supplied in more than 20 different languages.
  • 9.8mm/s working speed and 35mm/s reversing speed.
  • Manual or automatic operation.
  • Automatic elastic recovery correction (springback).
  • Can be remotely connected by the manufacturer without having to travel to the machine site.
  • Automatic control of the angle to fold, in degrees.
  • 7” Color Touch-Screen with 800 x 480 Resolution.
  • Manual or automatic operation.
  • Integrated Piece Counter.
  • 4.0 Technology.
  • On-screen alarm diagnostics.
  • Preventive maintenance warning.
  • 128 MB silicon disk. 2 analogue inputs, 12 bit resolution. 1 RS232 serial port. 24 Vdc power source. 1 USB port. 1 Ethernet port. 16 digital inputs (24 Vdc). 16 digital outputs (24 Vcc, 0.7 A max.) Protected against overloads and short circuits. 1 CAN port with 9 D-Sub F connector contacts.

A MAJOR ADVANTAGE OF THE PP200CNC IS TO HAVE A REALLY SIMPLE, NON-COMPLEX HEAD DRIVE. THAT WAY, ALL CUSTOMERS CAN ADAPT ANY DIE MANUFACTURED BY THEMSELVES.

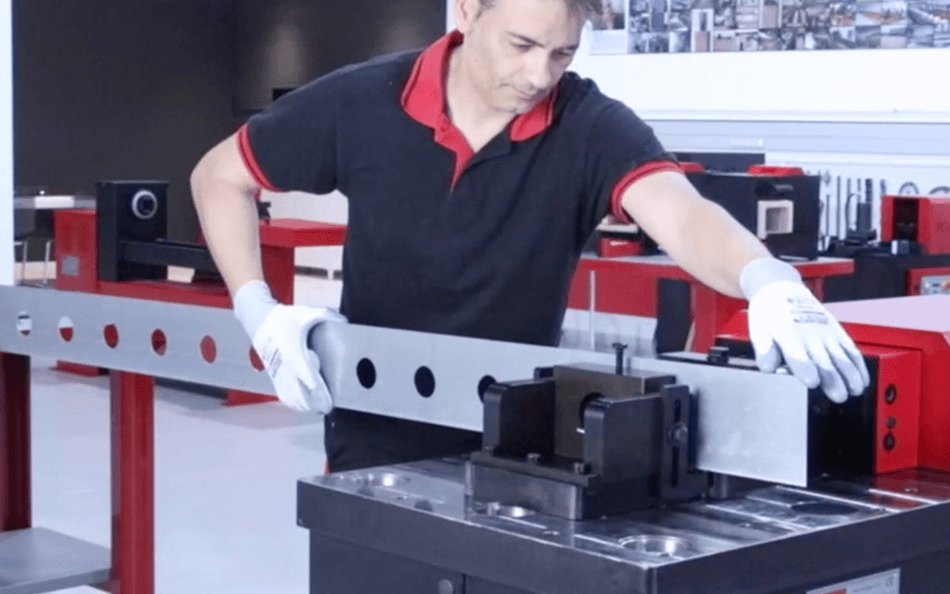

To add more options when fastening tools, the workbench has a series of clamping holes distributed throughout the area to ease up the fixing. If you need a special die, Quantum Machinery Group offers technical support to all our customers who wish to make their own tools. Moreover, we have an extra service for designing and manufacturing exclusive tooling on request, for each of the machines Nargesa manufactures.

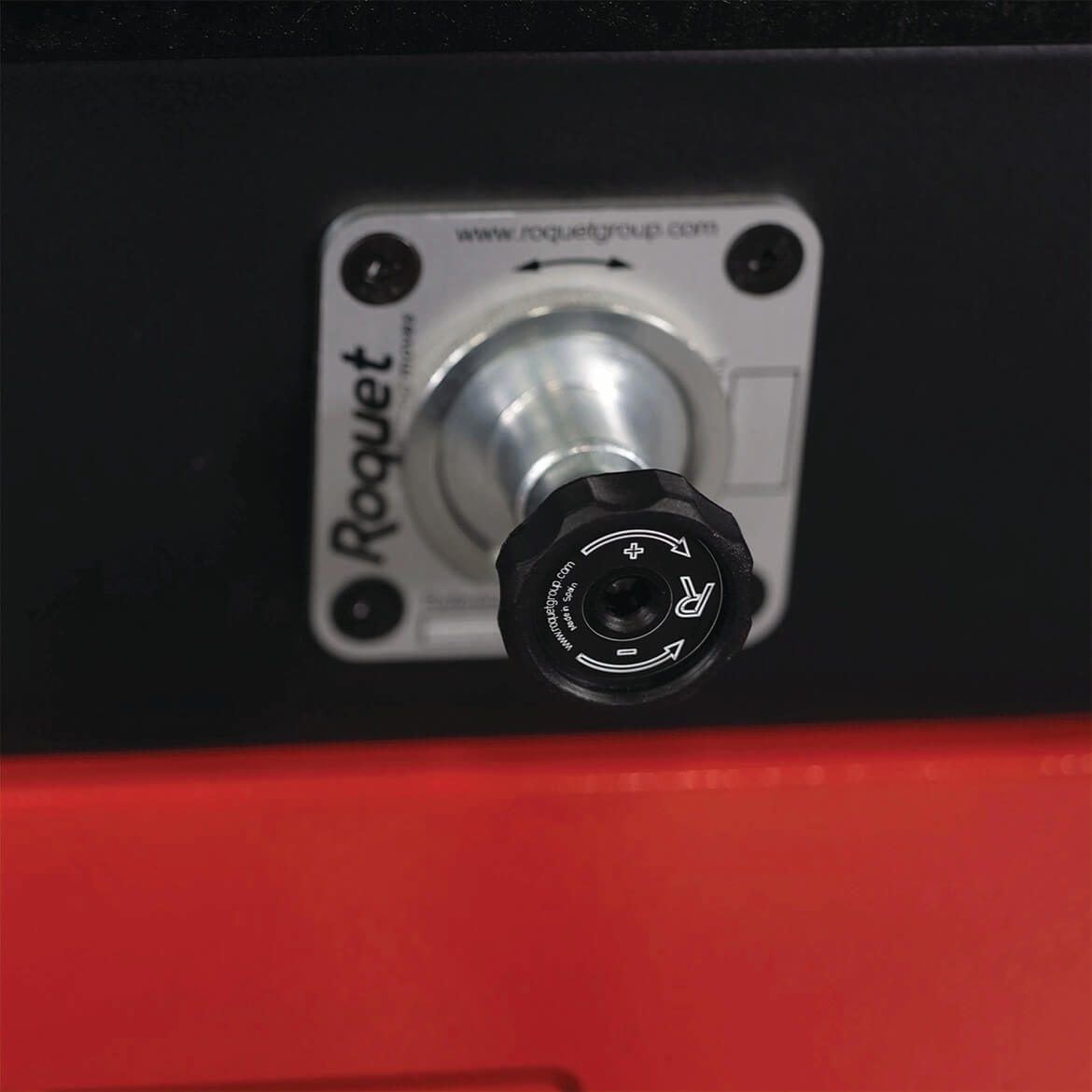

MONOBLOCK HYDRAULIC SYSTEM

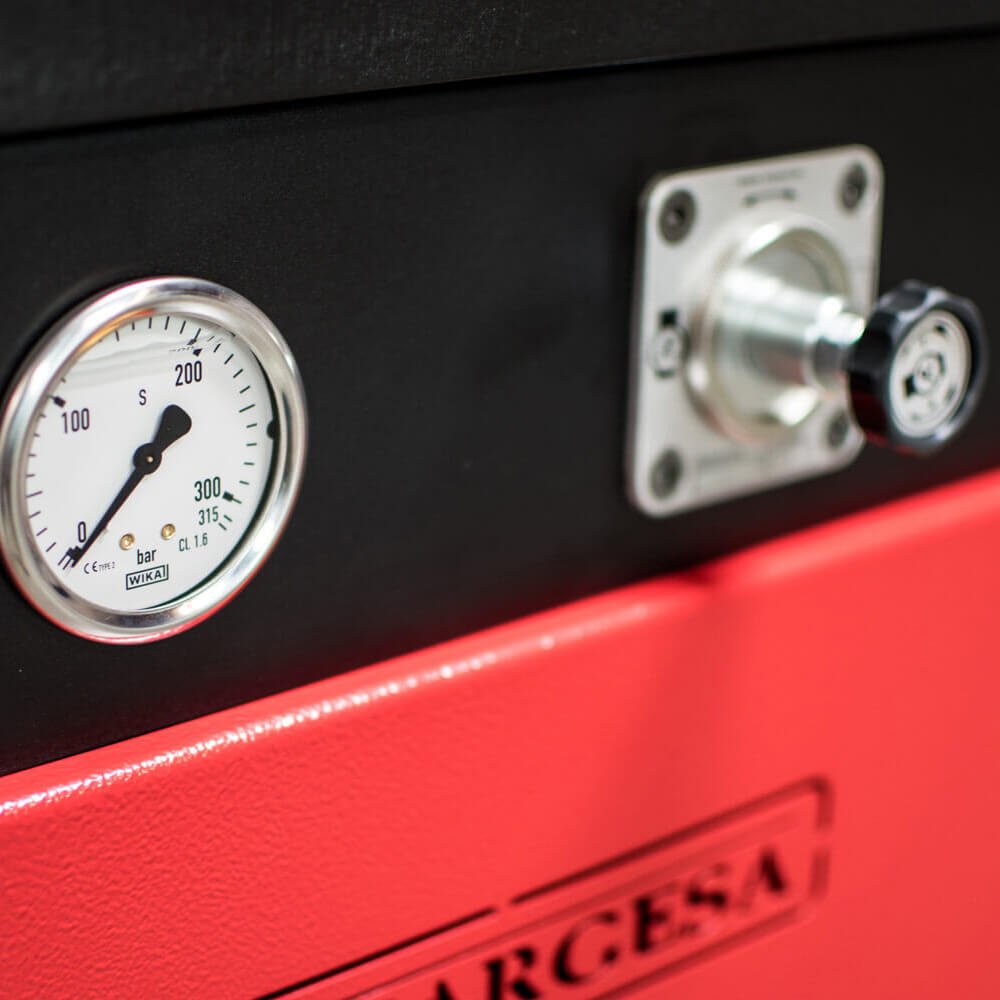

Monoblock hydraulic power unit with positioning and pressure regulation valves. The hydraulic system can be regulated by means of pressure adjustment valves that affect the piston force. Pressure regulator with pressure gauge that allows to control the force carried out at any time.


FULLY GUIDED HYDRAULIC CYLINDER

The hydraulic cylinder placed on the work bench allows us to transfer all the force directly on the tools. Fully guided hydraulic piston to prevent any bending during the folding operation.

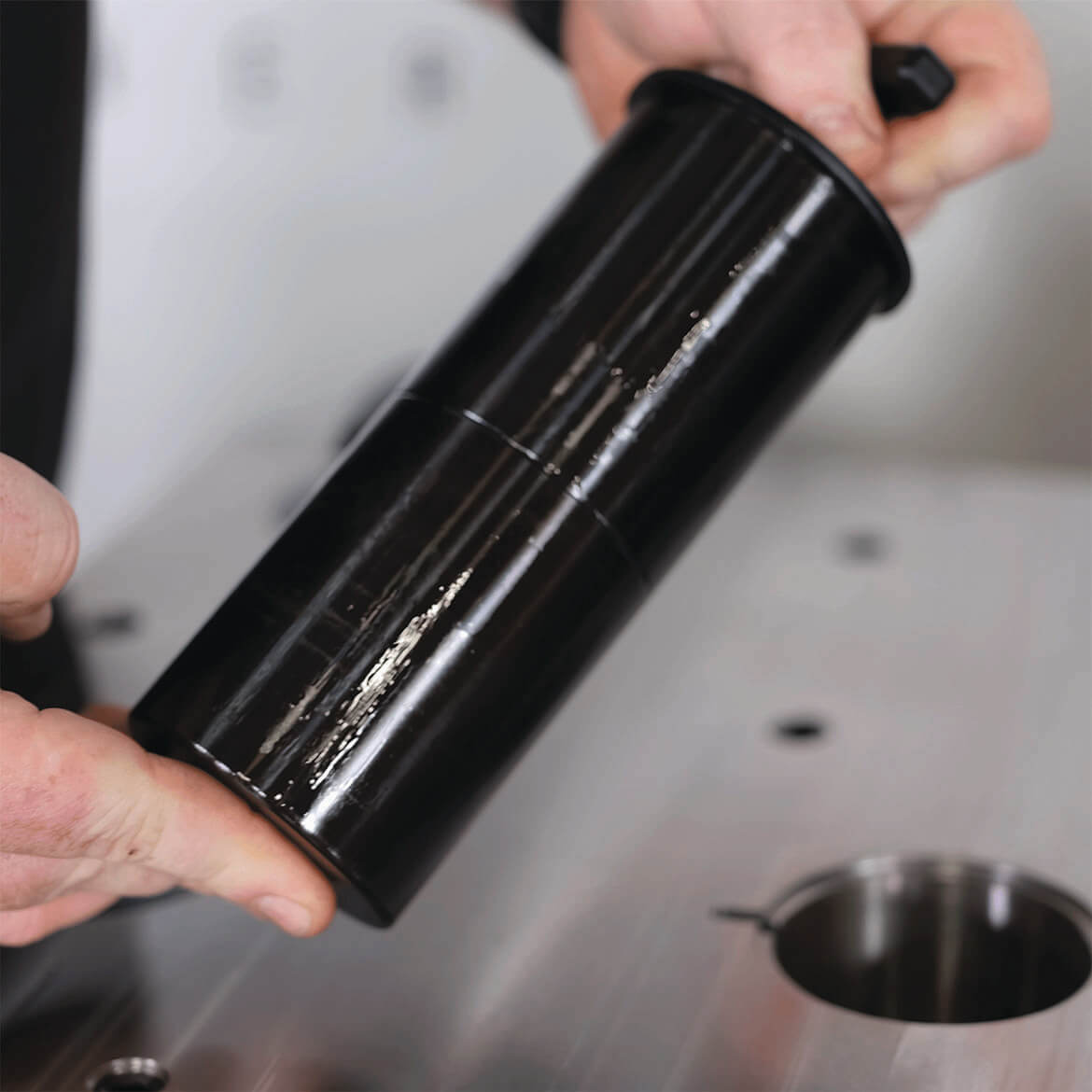

CYLINDRICAL FASTENING BOLTS

Cylindrical fastening bolts easy to install, to guarantee maximum firmness to the tools during machining operations. Plugs to prevent the residues of the folding from entering inside the machine.


A WORK TABLE WITHOUT THE FRAME

The work bench is frameless, this is great for the movement of the parts to be machined for there isn’t any element that obstructs its movement. The table is manufactured in a 60mm monoblock of welded steel, stabilized and machined. The operator’s working position must be at the side of the machine for accomplishing a better vision and control, as well as greater safety for the user since he will be outside the radius of action of the tools.


THE ALL-NEW ECO MODE OF THE LATEST NARGESA PRODUCTS SAVES ENERGY AND CONTRIBUTES TO THE CONSERVATION OF THE ENVIRONMENT

Nowadays, we know the remarkable importance of saving energy. This is the main reason why our new machinery incorporates an “ECO mode” that automatically disconnects the electrical parts that generate greater energy consumption if a period of inactivity is detected. Thus, when it is necessary to restart the operation, all you have to do is press the pedal to continue working. We strongly believe that this feature is a core point both for the savings of our clients and for the sustainability of our planet, since we are a company very committed to the environment.

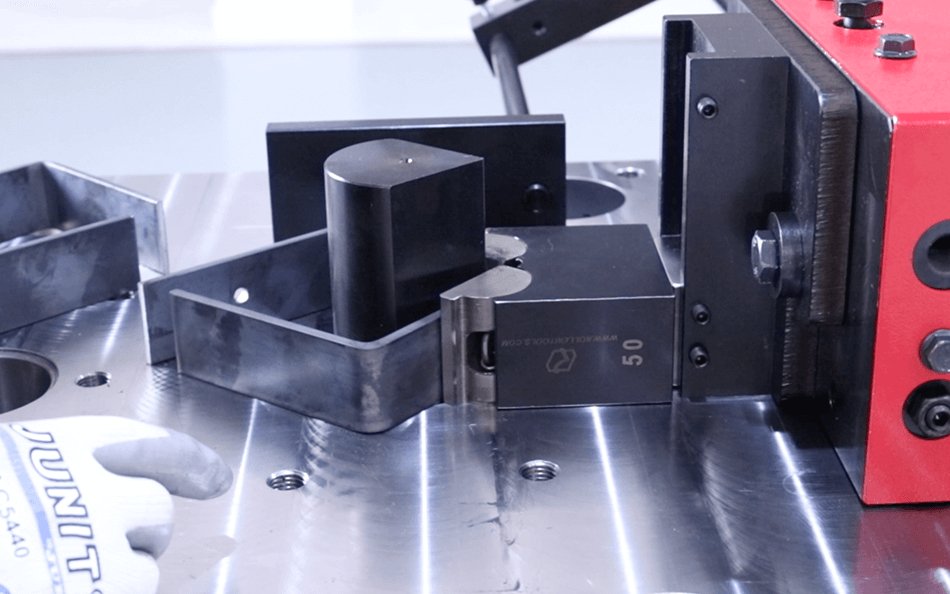

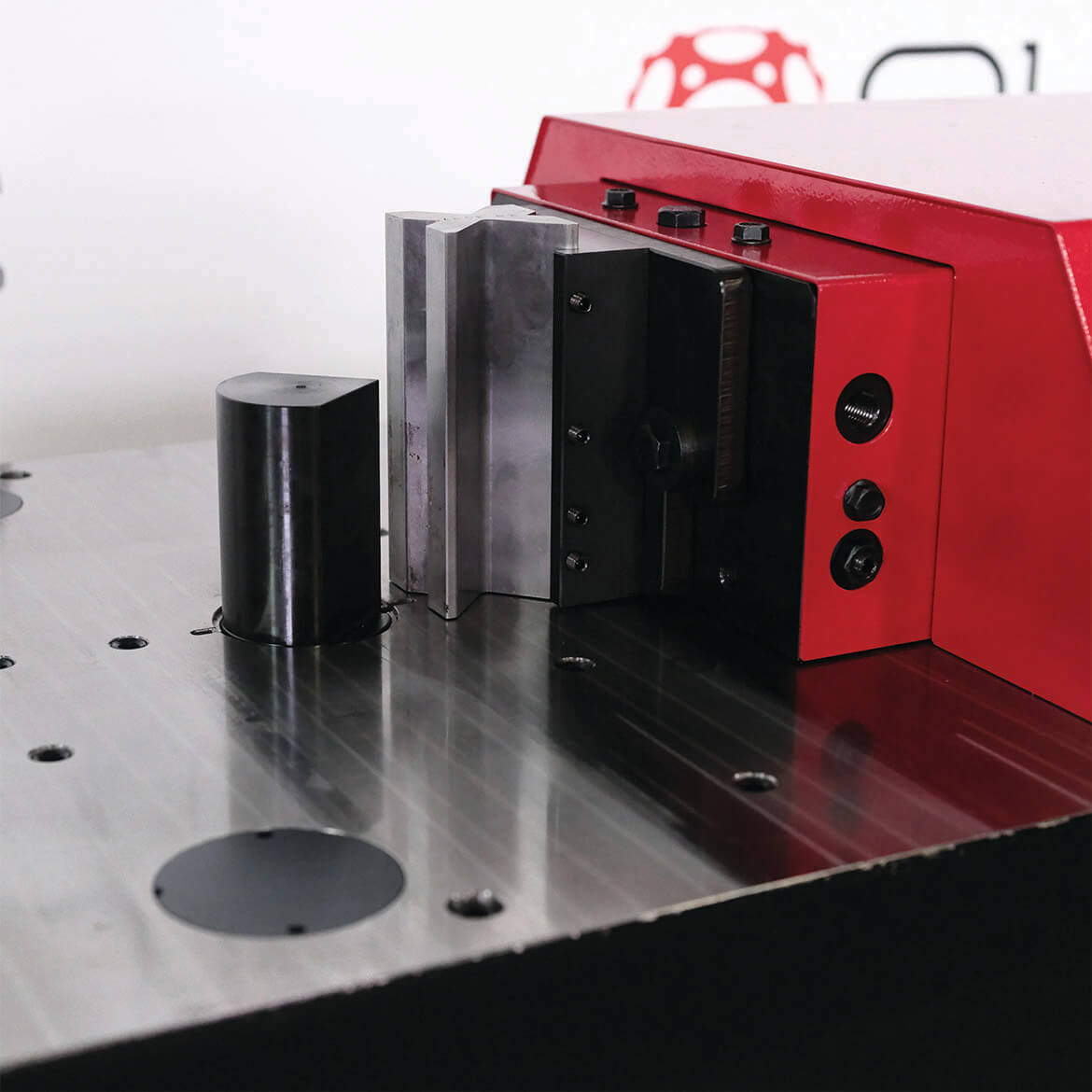

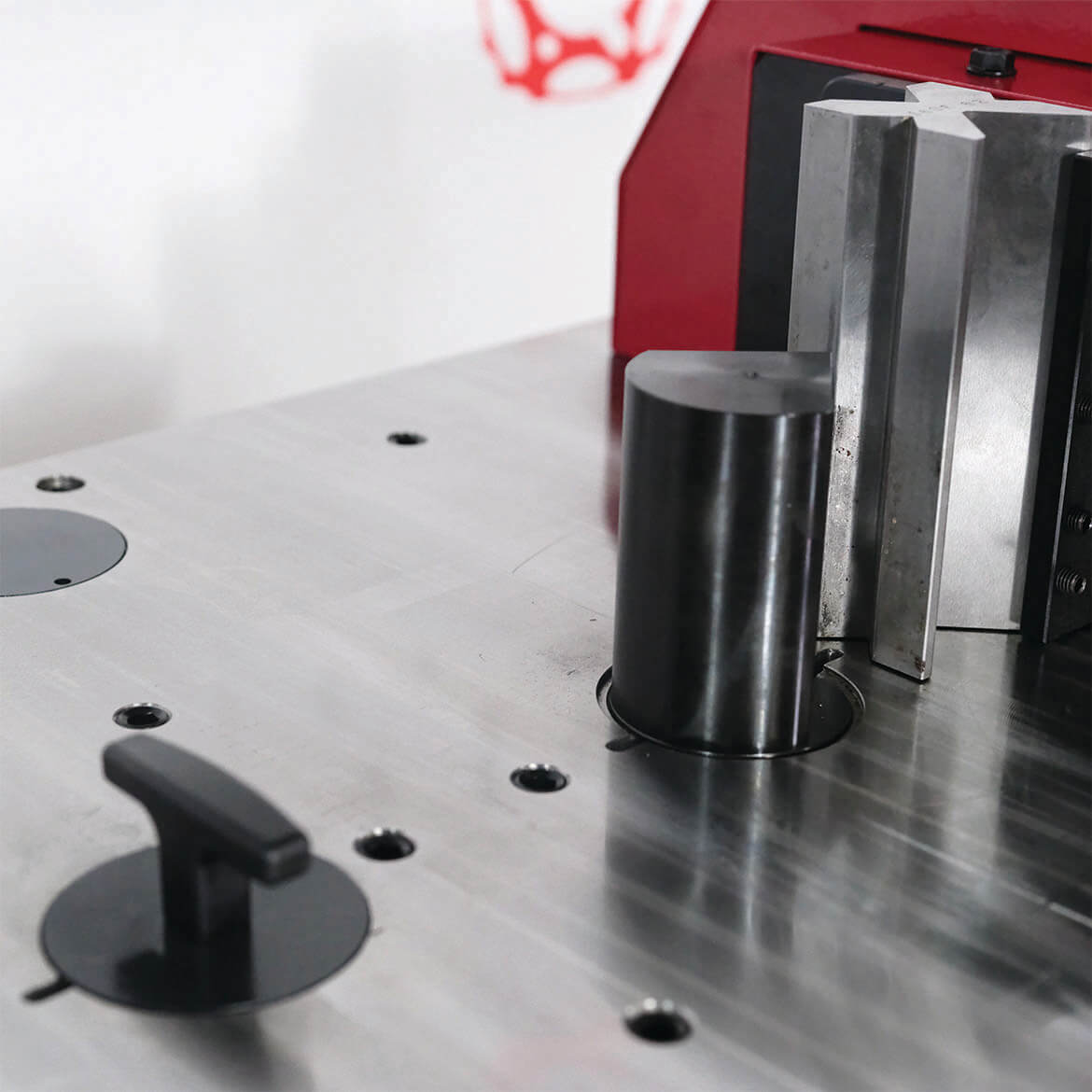

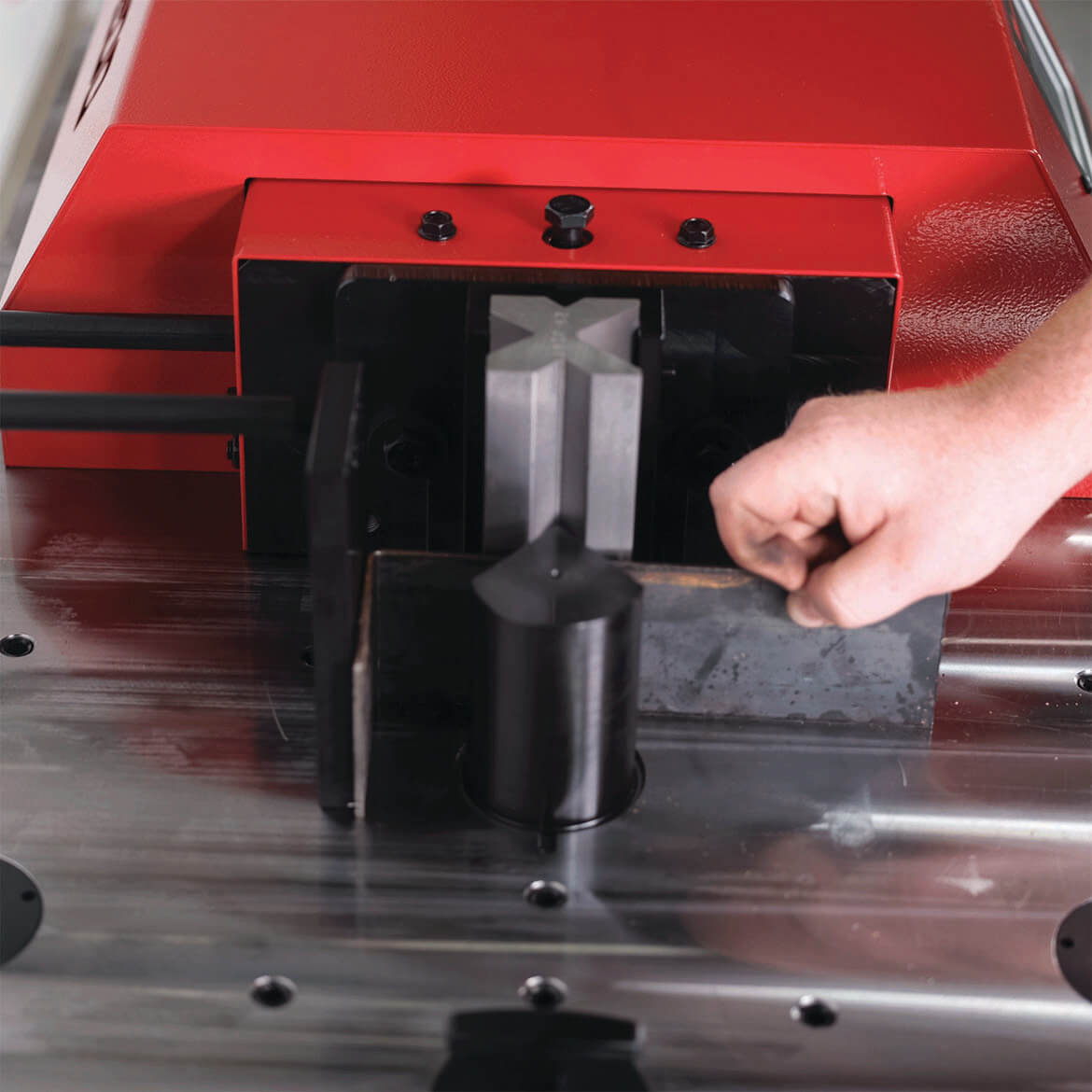

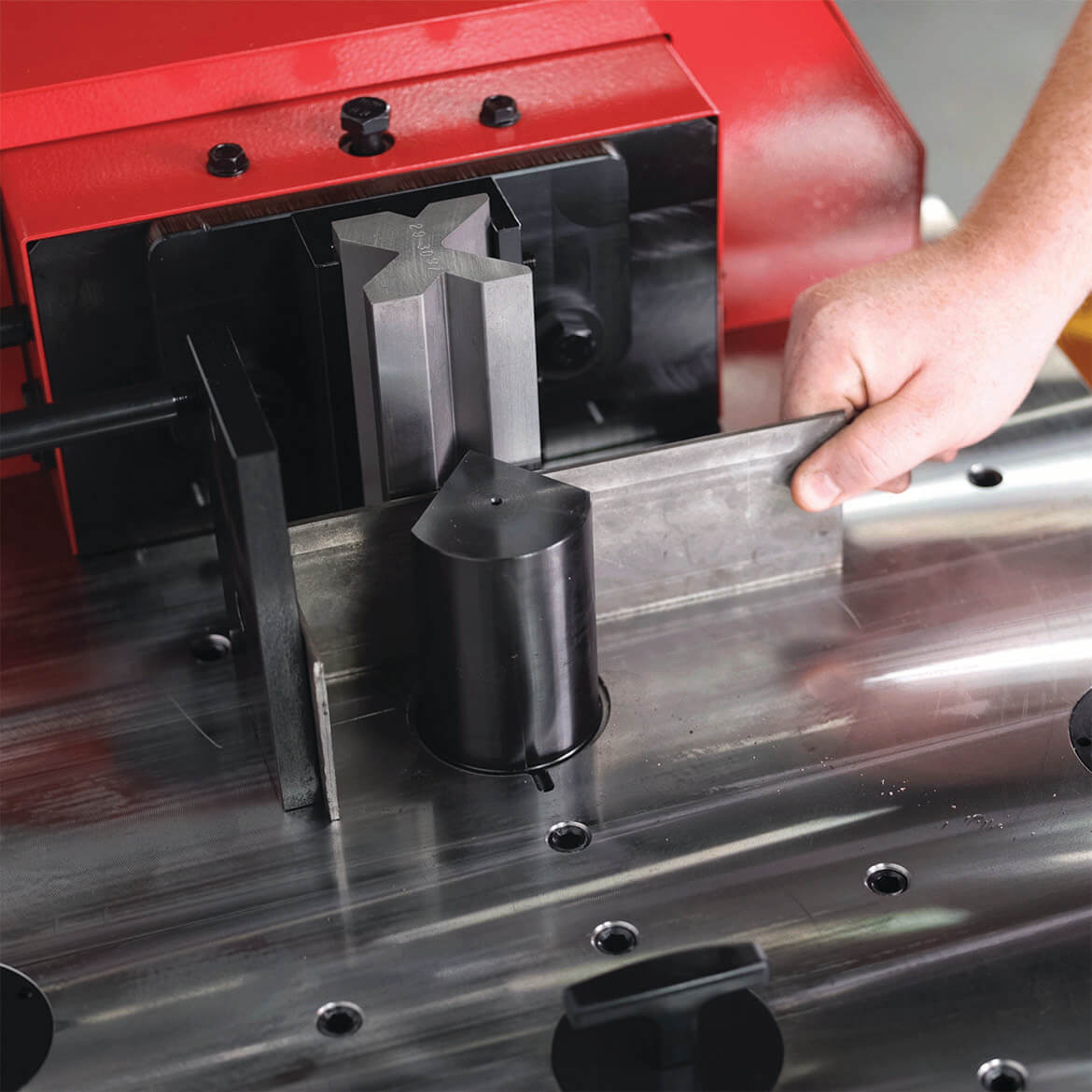

(INCLUDED) FOLDING DIE AT 3.93” & 4-WAY V-DIE 0.63”, 0.86”, 1.37”, 1.96”

  • V 16: Sheet from 0.039” to 0.0118” (1 to 3mm)
  • V 22: Sheet from 0.078” to 0.15” (2 to 4mm)
  • V 35: Sheet from 0.118” to 0.23” (3 to 6mm)
  • V 50: Sheet from 0.157” to 0.315” (4 to 8mm)
  • MAX. FOLDING LENGTH: 3.93” (100mm)
  • MAX. FOLDING THICKNESS: 0.315” (8mm)

DIMENSIONS FOR THE PP200 HORIZONTAL PRESS:

  • 46.45” Wide
  • 41.33" Long (with Bar Stop)
  • 25.98” Long (without Bar Stop)
  • 44.48” High (from Bottom to Top)
  • 37.3” High (from Bottom to Table Top)

OPTIONAL ACCESSORIES FOR THE PP200CNC

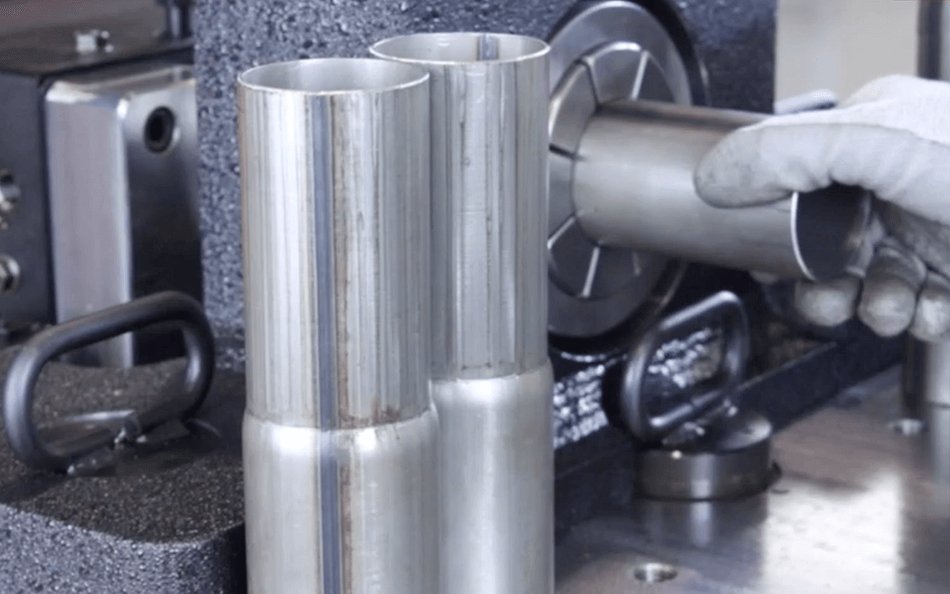

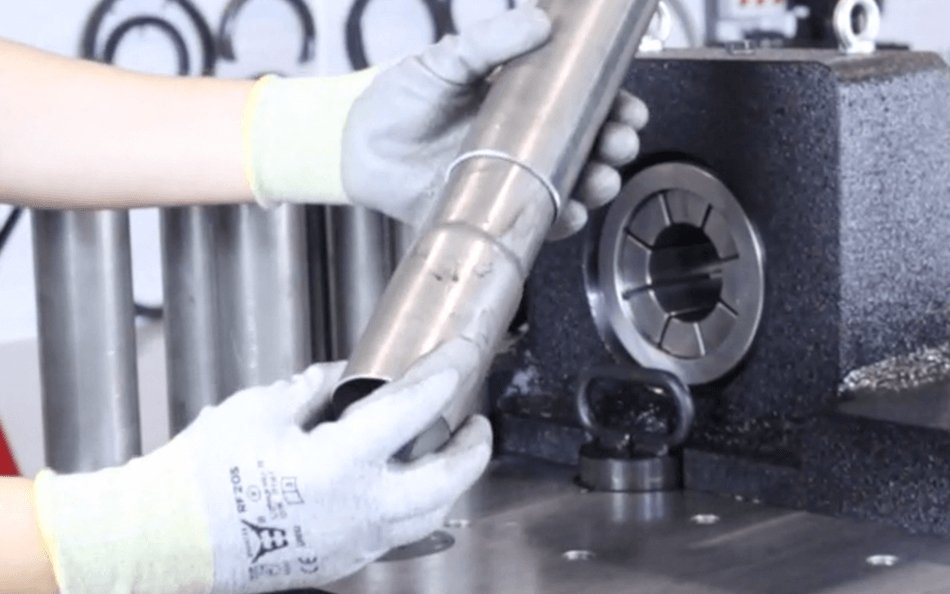

End Forming Tooling
(REF: 140-16-01-00016)
Die to reduce and expand the pipe ends to be assembled. You can make all kinds of shapes and flaps according to the customer needs. (For special forms consult with your Quantum Machinery Sales Engineer.)
Max. Capacity: 2.3”x0.078" (60x2mm)
Max. Forming Capacity: 3.9” (100mm)
(Accessory Weight: 243 lbs.)

Promecam Punch Holder
(REF: 140-16-01-00023)
Punch holder for all kind of punches for Promecam bending or folding press.
Max. Folding Length: 5.9" (150mm)
(Accessory Weight: 31 lbs.)

Promecam Punches
Promecam punches of different shapes to bend and manufacture complex part. There are a lot more shapes, please consult the manufacturer.

Nº1 Punch Promecam PS.135.85.R08REF: 140-16-01-00030

Folding Length: 5.9” (150mm)

Weight: 7 lbs. (3.2 kg.)

Nº2 Punch Promecam P.95.35.R5REF: 140-16-01-00031

Folding Length: 5.9” (150mm)

Weight: 5 lbs. (2.3 kg.)

Nº3 Punch Promecam PS.134.30.R08REF: 140-16-01-00032

Folding Length: 5.9” (150mm)

Weight: 6 lbs. (2.7 kg.)


Special PunchesFolding punches to bend special pieces of small sizes or folded up to 30º.Nº1 Folding Punch D70 30º
REF: 140-16-01-00025
Max. Folding Length: (3.93”) 100mm
Punch Degrees: 30º
Punch Diameter: 2.75” (70mm)
Nº2 Folding Punch D40 80º
REF: 140-16-01-00026
Max. Folding Length: (2.3”) 60mm
Punch Degrees: 80º
Punch Diameter: 1.57” (40mm)

Nº3 Folding Punch D22 80º PP200
REF: 140-16-01-00027
Max. Folding Length: (2.3”) 60mm
Punch Degrees: 80º
Punch Diameter: 0.86” (22mm)


V-Dies to Fold Thick Sheet MetalPromecam dies of different openings to fold sheets, flat bars or thicker plate sections up to 15mm. in order to fold even thicker sizes, ask your Quantum Machinery Sales Engineer.Nº1 Folding die T80.25.35

REF: 140-16-01-00036

Folding Length: 5.9” (150mm)

Thickness: From 0.060” to 0.19” (1.5 to 5mm)

Weight: 8.8 lbs. (4 kg.)

Nº2 Folding die M75-85-63REF: 140-16-01-00033

Folding Length: 5.9” (150mm)

Thickness: From 0.19” to 0.39” (5 to 10mm)

Weight: 11 lbs. (5 kg.)

Nº3 Folding die M80-85-80REF: 140-16-01-00034

Folding Length: 5.9” (150mm)

Thickness: From 0.23” to 0.47” (6 to 12mm)

Weight: 13.2 lbs. (6 kg.)

Nº4 Folding die M95-80-100REF: 140-16-01-00035

Folding Length: 5.9” (150mm)

Thickness: From 0.315” to 0.59” (8 to 15mm)

Weight: 19.8 lbs. (9 kg.)


Corner Rounding Tool
Die to get metal sheet corners rounded at different radius.

Metal Tabs Forming Tool
Tool to fabricate all kinds of tabs, with or without perforation, straight or rounded... they are very used as clamps, handles etc. Starting from a metal strip, there will be obtained one piece of the desired length at every stroke. Consult with your Quantum Machinery Sales Engineer about this tool.

Die to Straighten Out Profiles
(REF: 140-16-01-00017)
Tool used to bend straight profiles or parts. It is adjustable to different capacities according to the profiles.
Max. Capacity: 7.8" H (200mm)
(Accessory Weight: 160 lbs.)

Round, Square, Oval & Rectangular Punches and Dies
At Nargesa, we offer a wide catalog of punches and dies of all kinds. Consult with your Quantum Machinery Sales Engineer regarding this type of tooling.

Pipe Notching Tooling
Dies for notching pipes from Ø0.63” (Ø16mm) to a Ø2.36” (Ø60mm). It crops the pipe end so it could be joined perpendicularly to another pipe. Consult with your Quantum Machinery Sales Engineer about this tooling

Forming Die Adapter
(REF: 140-16-01-00029)
It is an exchangeable fitting device for the forming dies, suitable for each of the different baluster forming tools. It is advisable to get one in order to work with the specified baluster dies shown.
(Accessory Weight: 7 lbs.)

Baluster Forming Die #01
(REF: 140-16-01-00001)
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, consult with your Quantum Machinery Sales Engineer. (Requires Forming Die Adapter - REF:140-16-01-00029)
Max. Flat Bar Size: 0.63”x0.23” (16x6mm)
Length of Die: 25.8” (656mm)
(Accessory Weight: 47 lbs.)

Baluster Forming Die #04
(REF: 140-16-01-00004)
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, consult with your Quantum Machinery Sales Engineer. (Requires Forming Die Adapter - REF:140-16-01-00029)
Max. Square Size: 0.47” (12mm)Length of Die: 23.6” (600mm)(Accessory Weight: 46 lbs.)

Baluster Forming Die #08
(REF: 140-16-01-00008)
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, consult with your Quantum Machinery Sales Engineer. (Requires Forming Die Adapter - REF:140-16-01-00029)
Max. Flat Bar Size: 0.78”x0.15” (20x4mm)Length of Die: 25.6” (650mm)(Accessory Weight: 43 lbs.)

Baluster Forming Die #09
(REF: 140-16-01-00009)
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, consult with your Quantum Machinery Sales Engineer. (Requires Forming Die Adapter - REF:140-16-01-00029)
Max. Square Size: 0.47” (12mm)Length of Die: 20.5” (522mm)(Accessory Weight: 49 lbs.)

Baluster Forming Die #10
(REF: 140-16-01-00010)
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, consult with your Quantum Machinery Sales Engineer. (Requires Forming Die Adapter - REF:140-16-01-00029)
Max. Square Size: 0.47” (12mm)Length of Die: 45.8” (1,165mm)(Accessory Weight: 110 lbs.)

Baluster Forming Die #11
(REF: 140-16-01-00011)
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, consult with your Quantum Machinery Sales Engineer. (Requires Forming Die Adapter - REF:140-16-01-00029)
Max. Square Size: 0.47” (12mm)Length of Die: 29.9” (760mm)(Accessory Weight: 72 lbs.)

Baluster Forming Die #20
(REF: 140-16-01-00020)
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, consult with your Quantum Machinery Sales Engineer. (Requires Forming Die Adapter - REF:140-16-01-00029)
Max. Square Size: 0.47” (12mm)Circumference Size: 3.5” (90mm)(Accessory Weight: 25 lbs.)

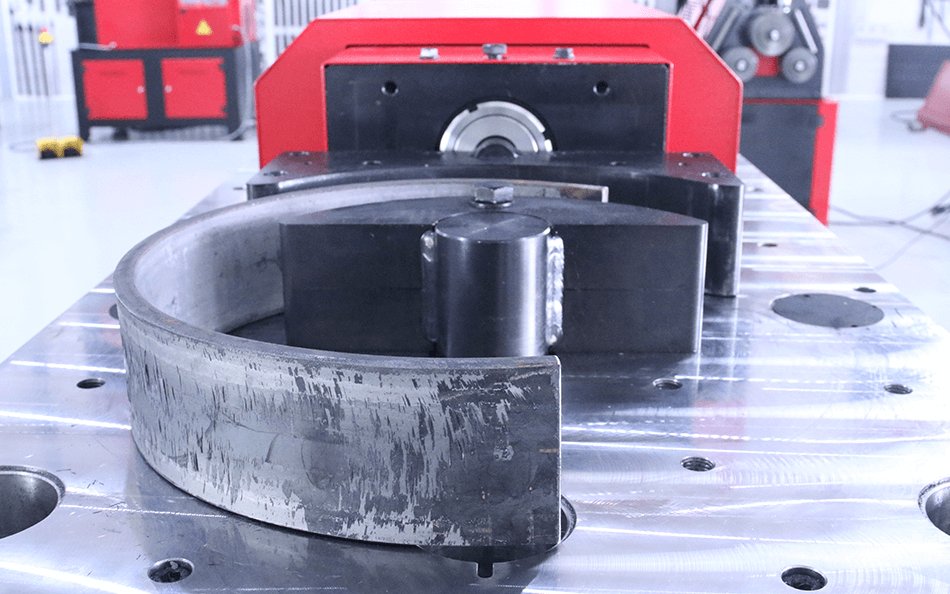

Bending Tool for Large Radius
(REF: 140-16-01-00006)
Die to form curves in flat bars, pipes, bars or profiles at big radius. It’s perfect for bending small series or special parts without requiring a specific custom mold.Max. Bar Capacity: 1.5” (40mm)Max. Tube Capacity: 3.15”x3.15” (80x80mm)Min. Diameter: 11.8” (300mm)Max. Diameter: There is no maximum.

Flat Bar Cutting Tooling 3.9"x0.39" (100x10mm)
(REF: 140-16-01-00014)
Flat bar and metal sheet cutting die up to 3.9” (100mm) through a maximum thickness of 0.39” (10mm) in mild steel.Max. Cutting Length: 3.9” (100mm)Max. Cutting Thickness: 0.39” (10mm)(Accessory Weight: 51 lbs.)

Punching Die Tooling
(REF: 140-16-01-00022)
Punch-holder die, compatible with our NARGESA brand punches.Punching Capacities (It will always depend on the thickness to be pierced.):Max. Round: 1.9” (50mm)Max. Square: 1.37” (35mm)Max. Rectangular: 0.98”x1.6” (25X43mm)Max. Oval: 0.98”x1.96” (25X50mm)(Accessory Weight: 115 lbs.)

Twisted Bars Forming Die
(REF: 140-16-01-00013)
Die to bend metal plate, flat bar or square bar to obtain a nice braid twisted effect. It’s very used to make fences and grills. For flat bars from to 0.23”, 0.47” and 0.55” (6, 12 and 14mm). For different sizes, please consult with your Quantum Machinery Sales Engineer.Max. Square Capacity: 0.55” (14mm)Min. Sheet Metal Capacity: 0.078”x1.57” (2x40mm)(Accessory Weight: 40 lbs.)

Bar Clamps Forming Die
(REF: 140-16-01-00028)
Clamp forming die, used to manufacture the clamps used to join different forging bars with no need to get them welded.Max. Capacity: 0.98”x0.19" (25x5mm)(Accessory Weight: 20 lbs.)

Clamp Forming Die
(REF: 140-16-01-00024)
Die to form all kinds of clamps. This tooling is manufactured according to the user’s needs thus it is required to have a technical drawing or a sample piece.Max. Capacity: 3.93”x0.15" (100x4mm)
