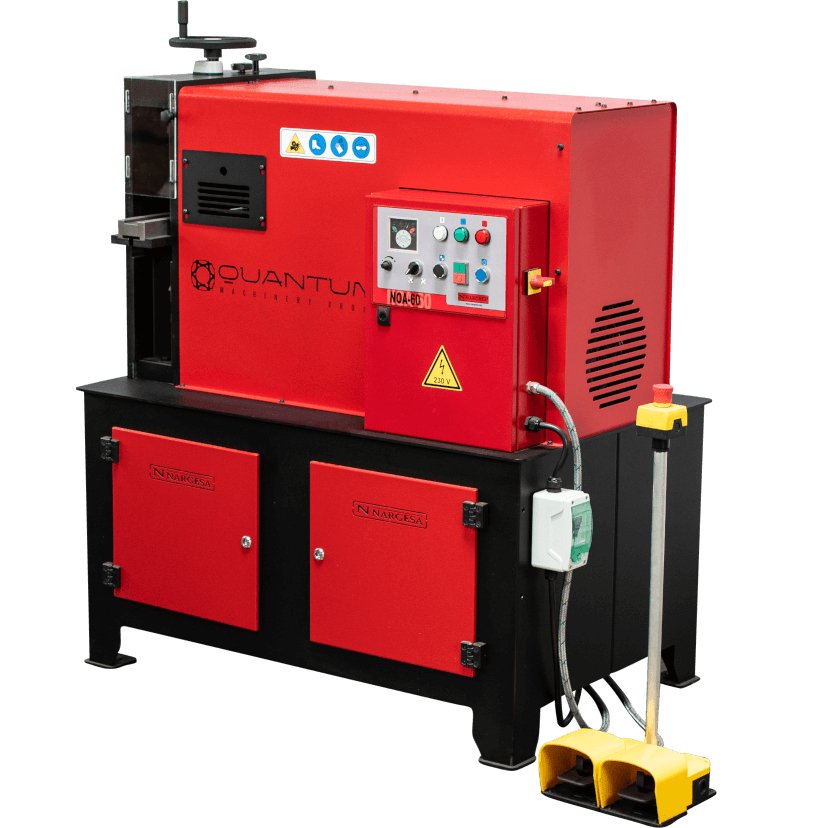

NOA60: Cold Embossing Ornamental Iron Machine

Sale price$31,855 Regular price$40,267
Save $8,412

Electrical Options: 220V / 1PH / 60Hz

WATCH THE VIDEO TO SEE EXACTLY HOW THE NARGESA NOA60 COLD IRON EMBOSSING MACHINE WORKS ALONG WITH SOME OF IT’S FEATURES


TECHNICAL SPECS AND FEATURES

    • Max. On Square Tube: 2.3" x 2.3"
    • Max. On Square Bar: 0.78" x 0.78"
    • Max. On Handrail or Flat Bar: 2.3"W x 0.39"H
    • Nominal Working Speed: 20 R.P.M.
    • Weight: 1,525 lbs.
    • Dimensions: 52”W x 47”L x 59”H
    • Tempered and ground shafts.
    • Upper and lower shafts motorized, indispensable for good operation.

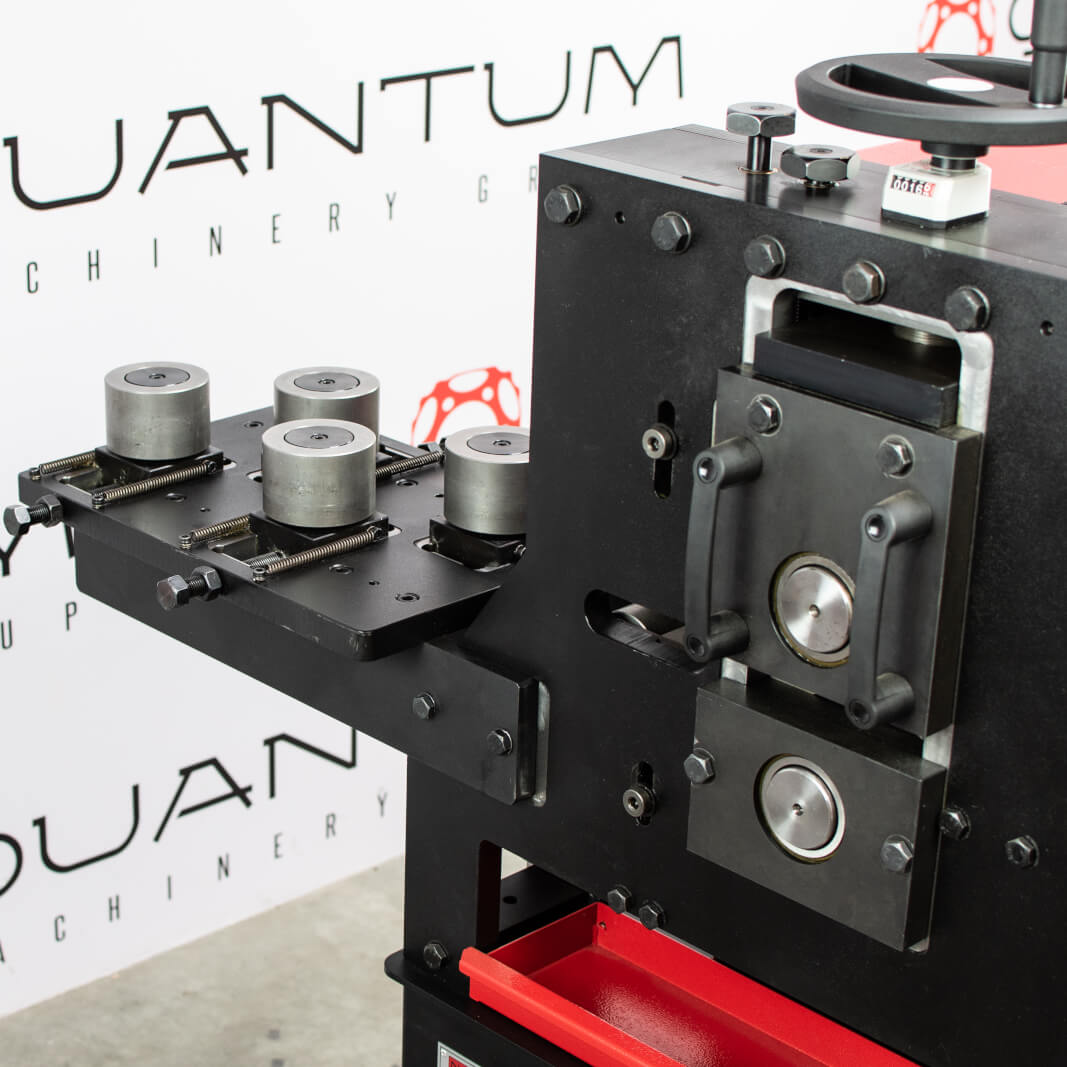

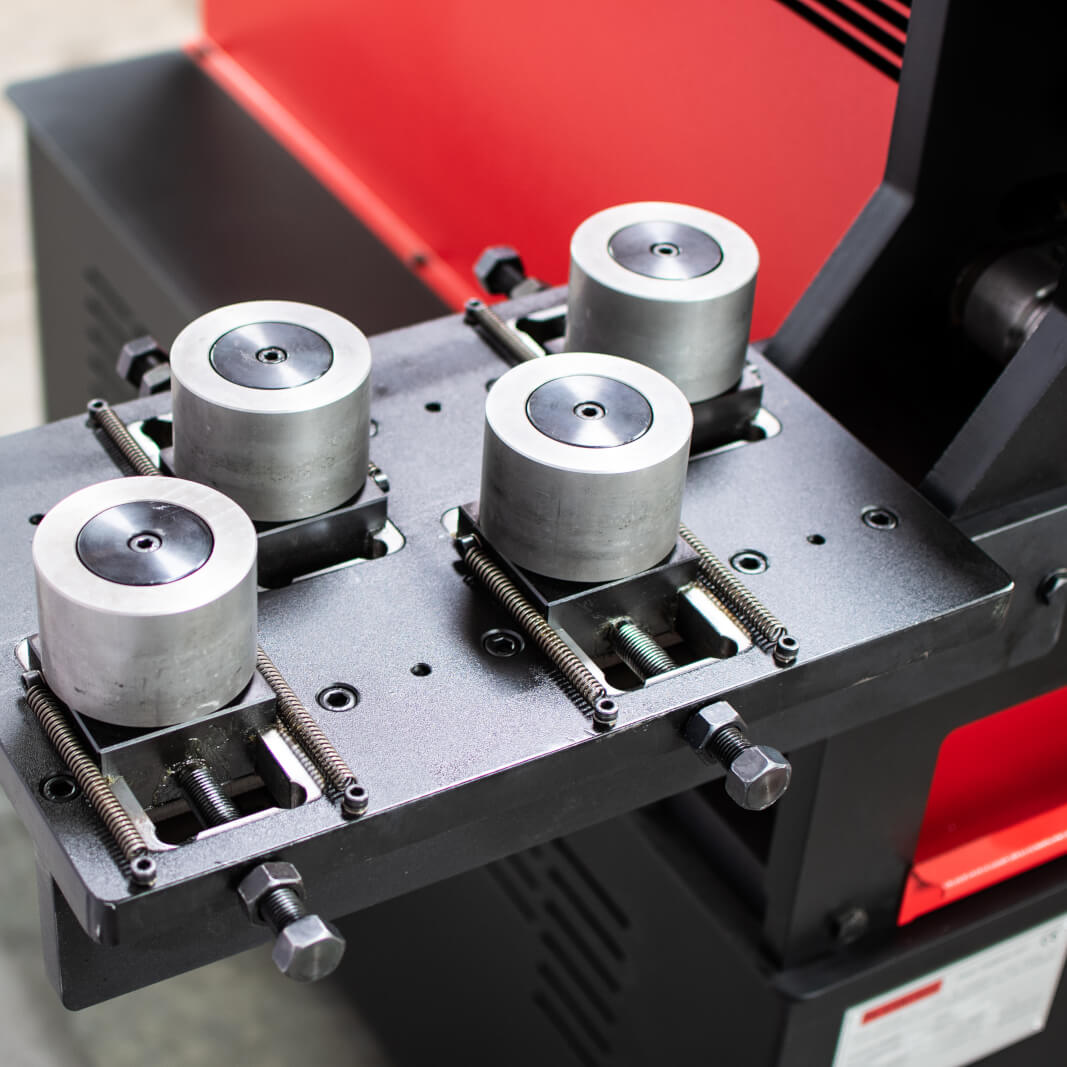

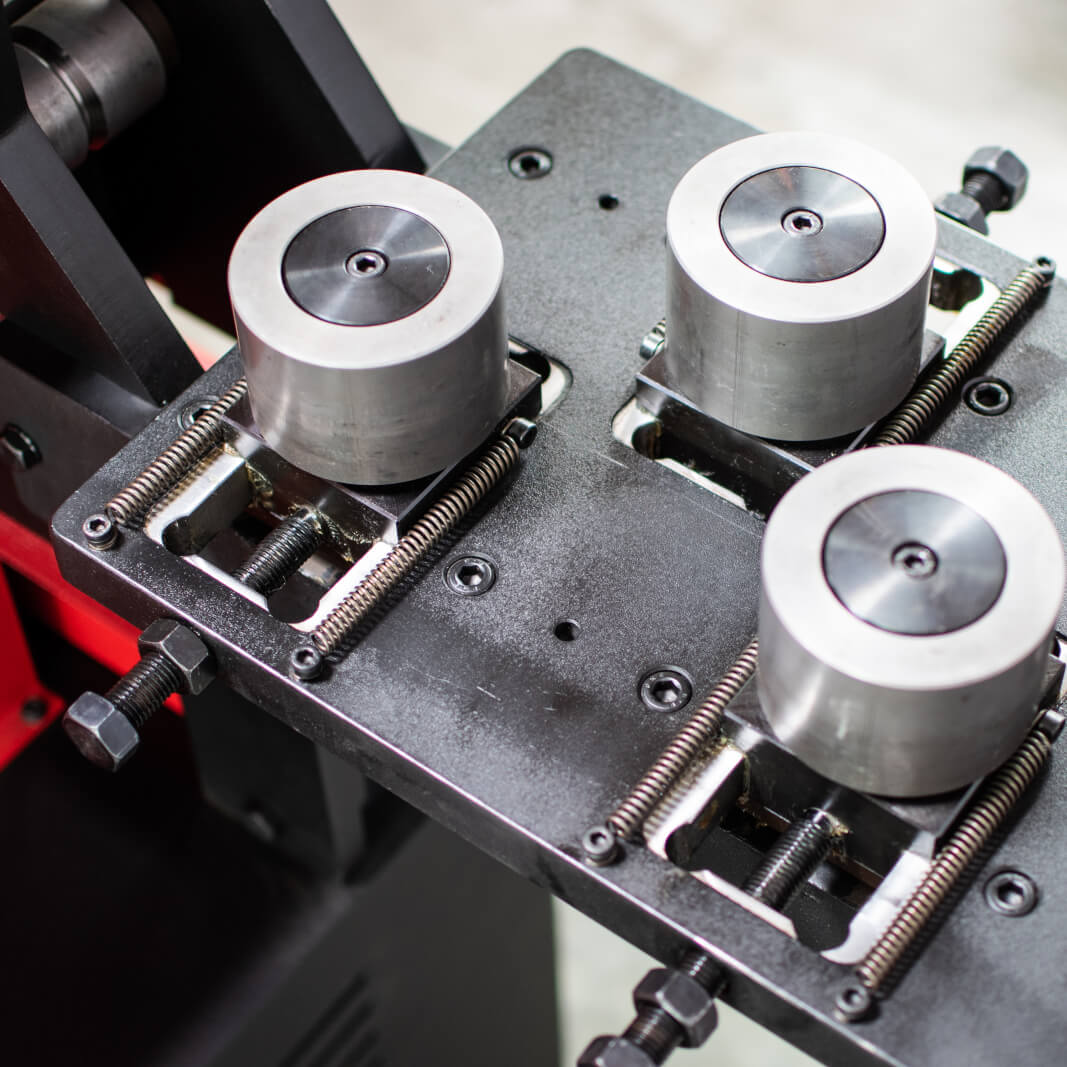

    • Includes a straightening device with adjustable 7 rollers, 3 vertical and 4 horizontal. This mechanism ensures the material comes out perfectly straight.
    • The machine is compatible with 50 different designs to be chosen by the customer.
    • Large catalog of rollers of different designs (See accessories below). At the client's request, we can also manufacture tailor made molds, increasing the value of the finished product with exclusivity and personalization.
  • Ease of use: Any worker can do the job; no training is necessary.
  • Highly efficient production: Thousands of components can be made in a single working day.
  • No surplus material: The design of the machine enables the surface of the material to be completely embossed, so there is no loss of material.
  • Value and exclusivity: All the work with a design is exclusive and adds economic value to the components manufactured.
  • Sales: Offers the possibility of selling the embossed components to different companies or iron warehouses.
  • Toughness: This embossing and stamping machine is designed to supply medium and large-scale production, working up to 20 hours a day.
