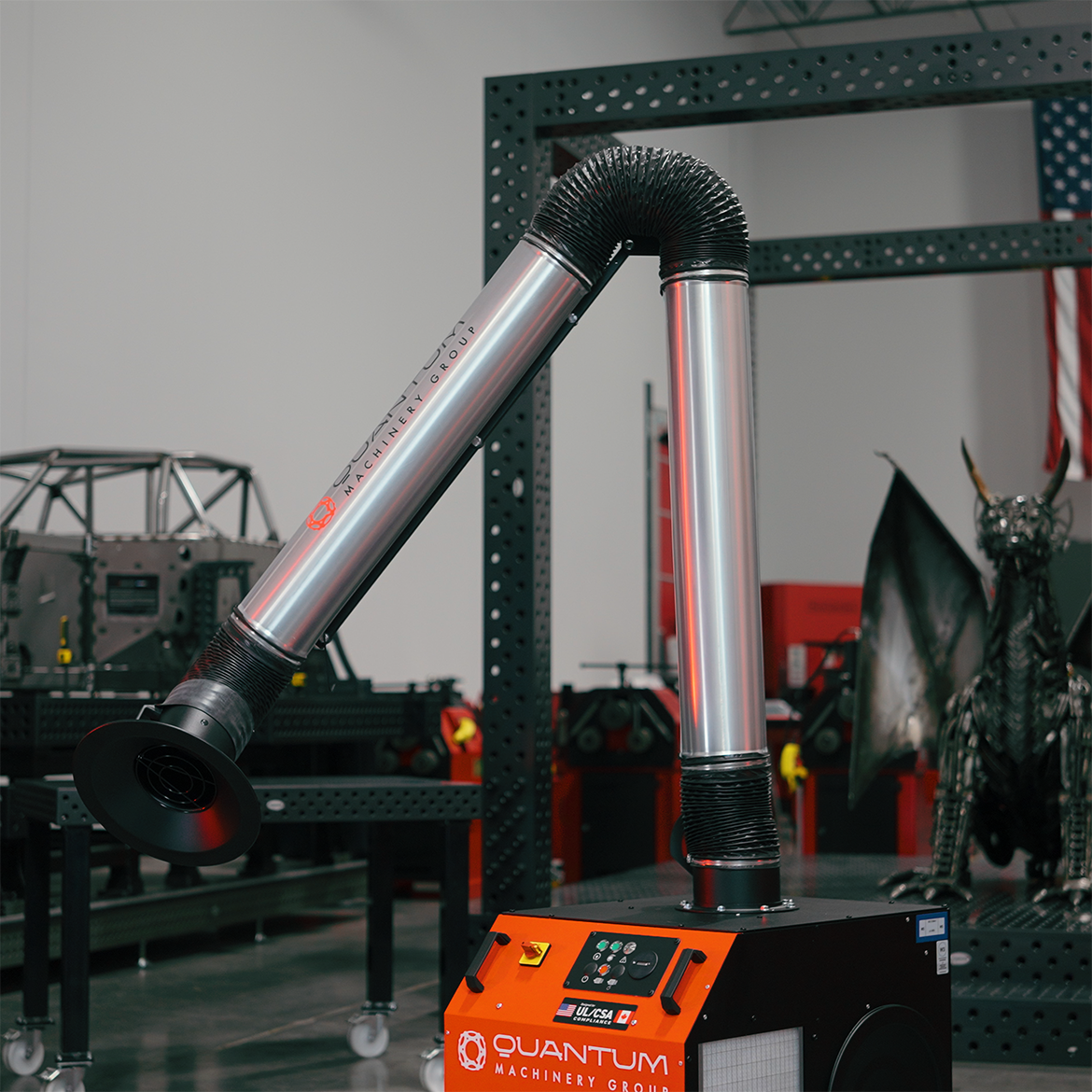

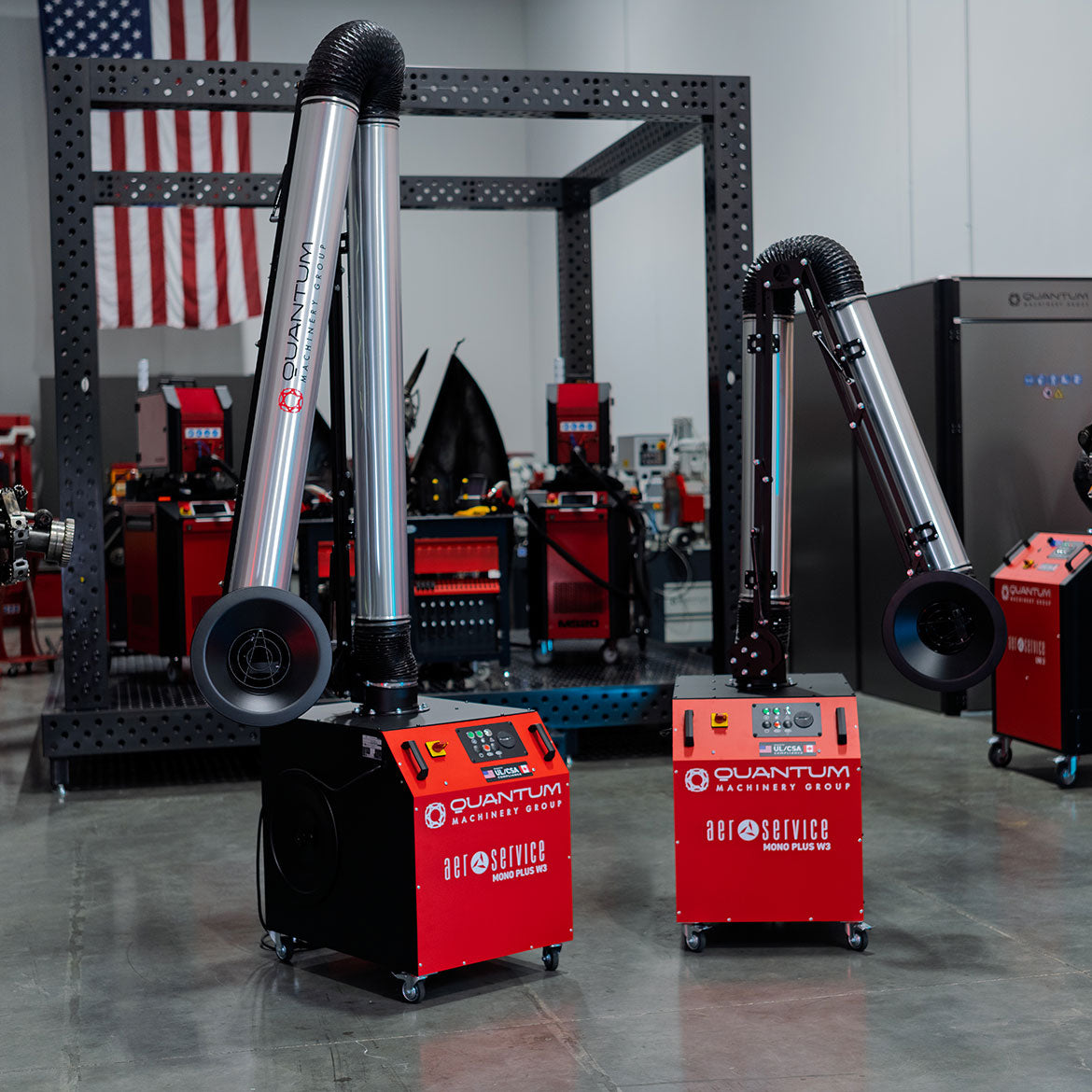

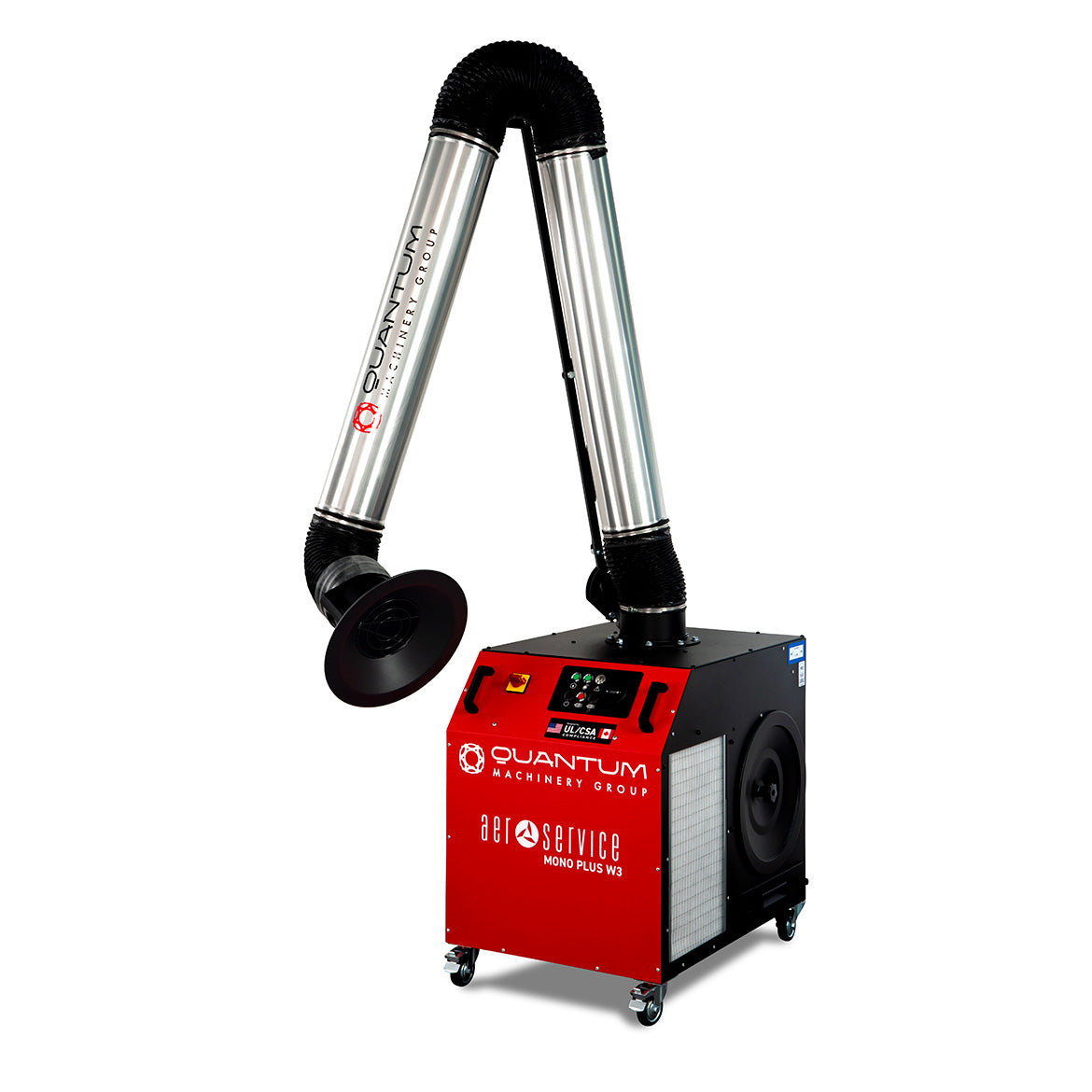

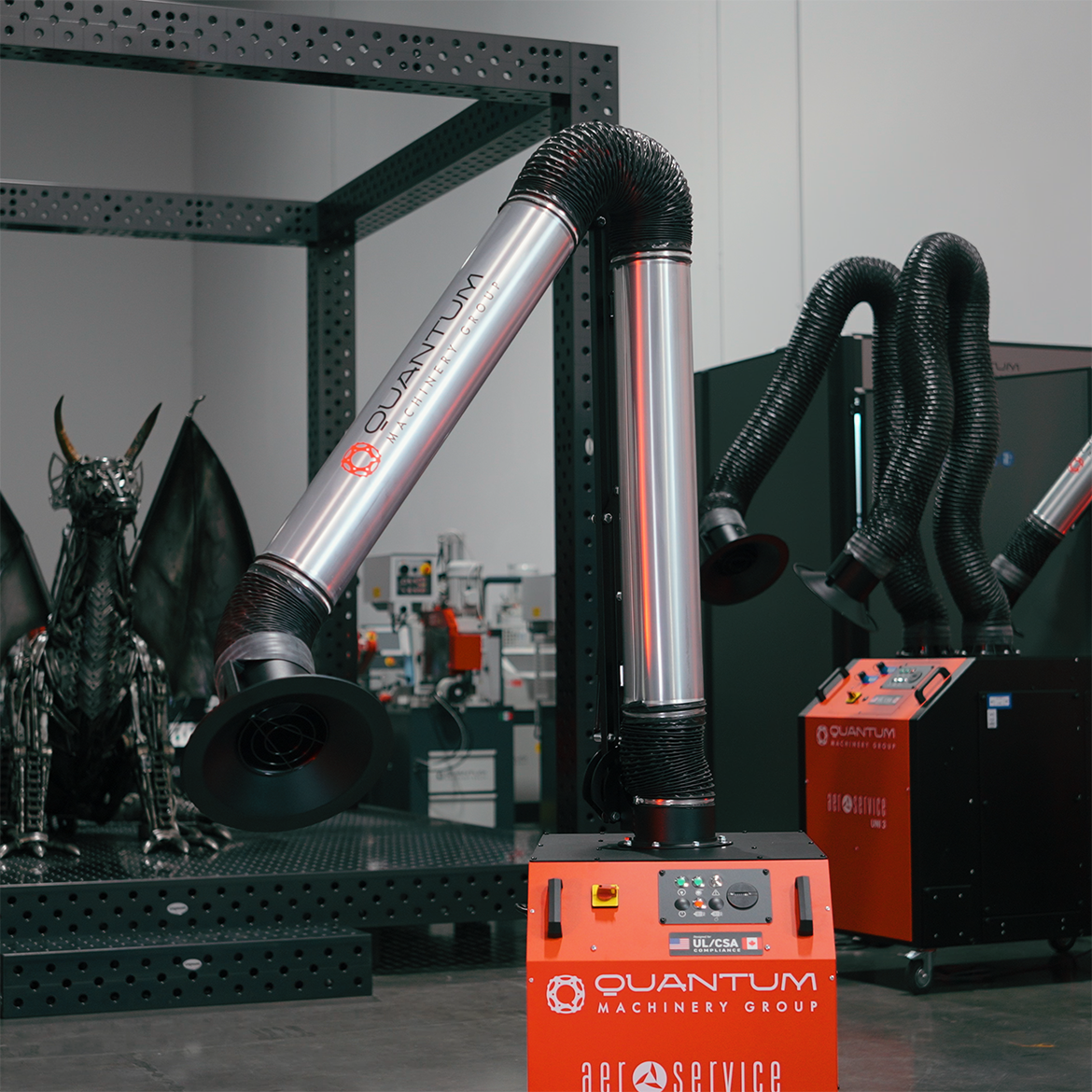

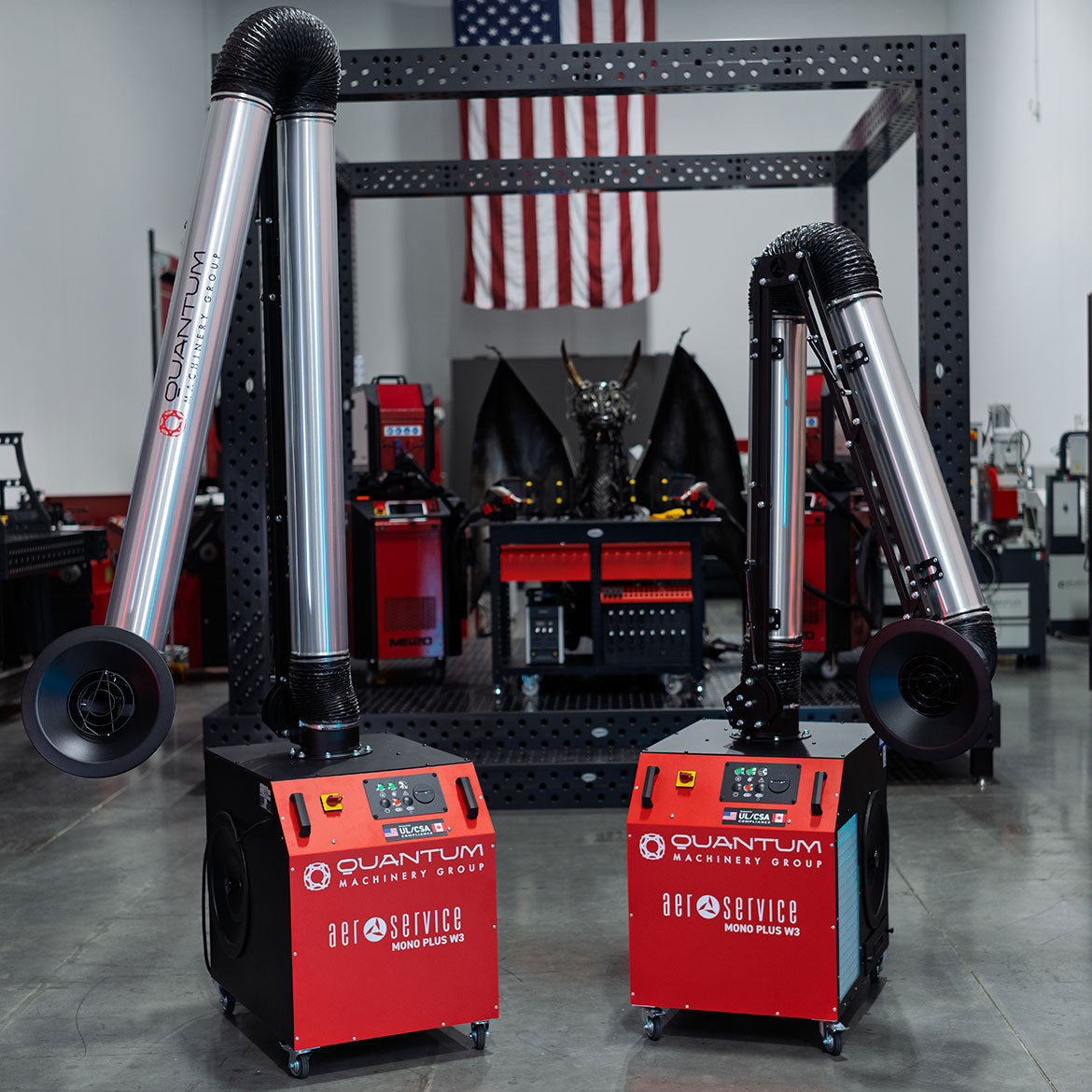

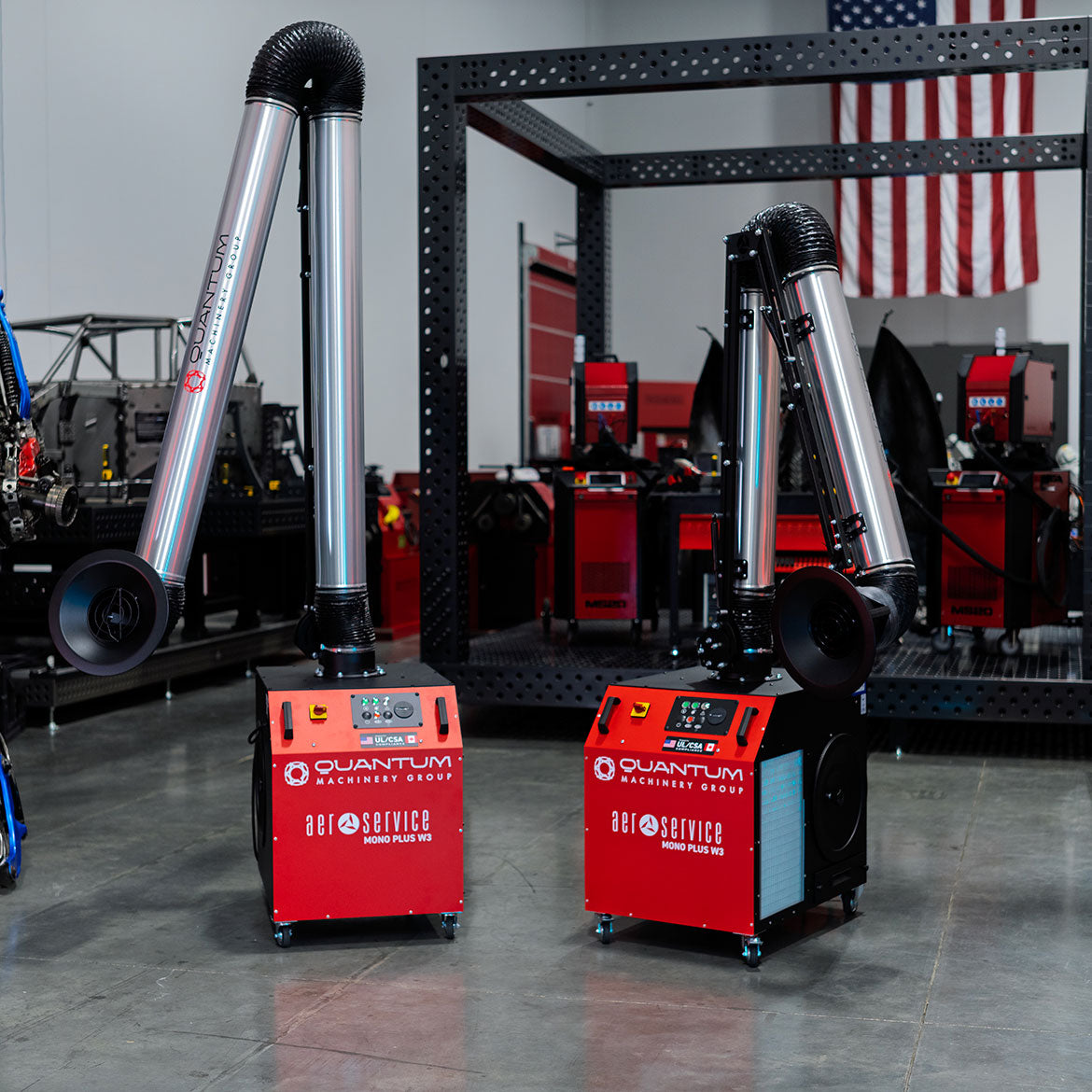

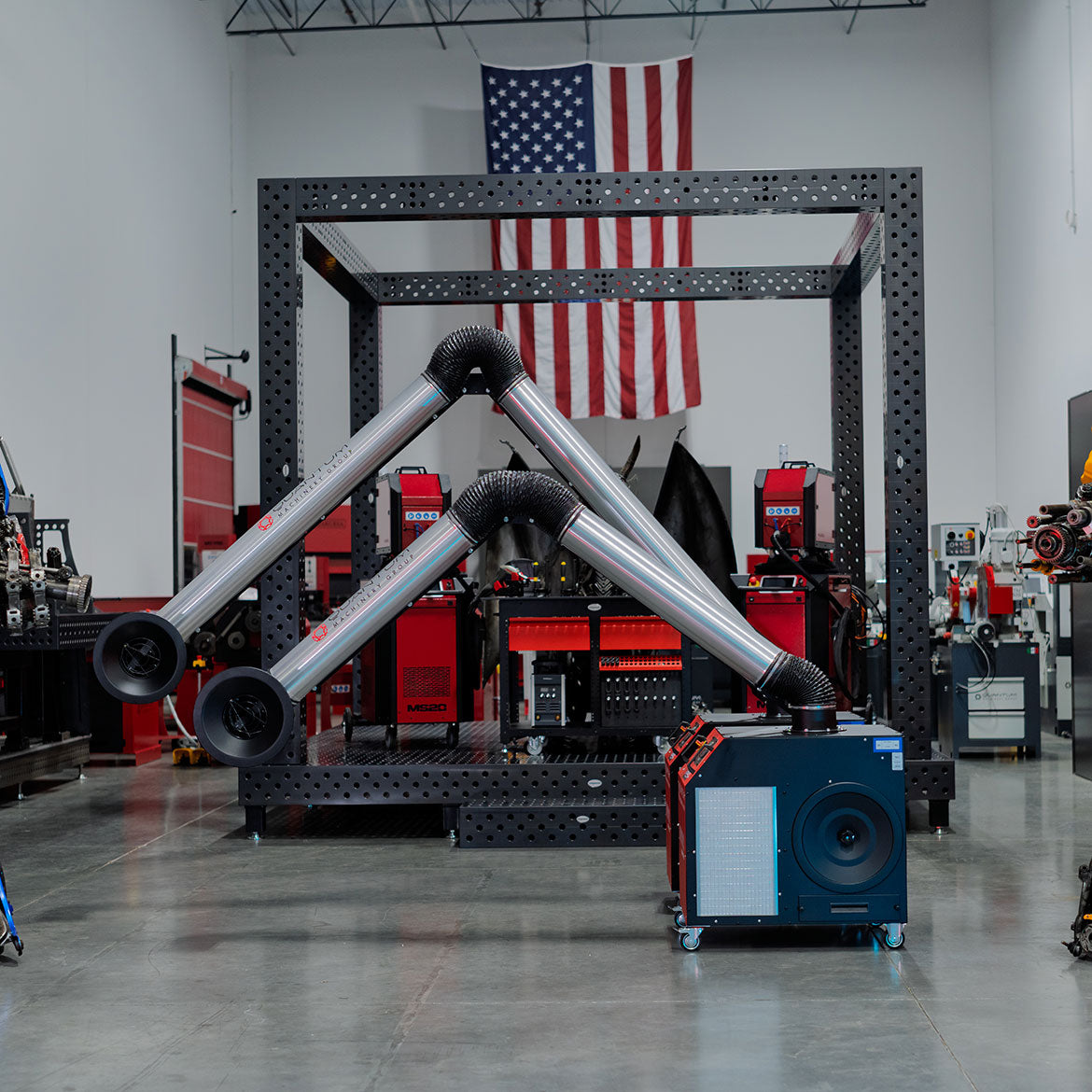

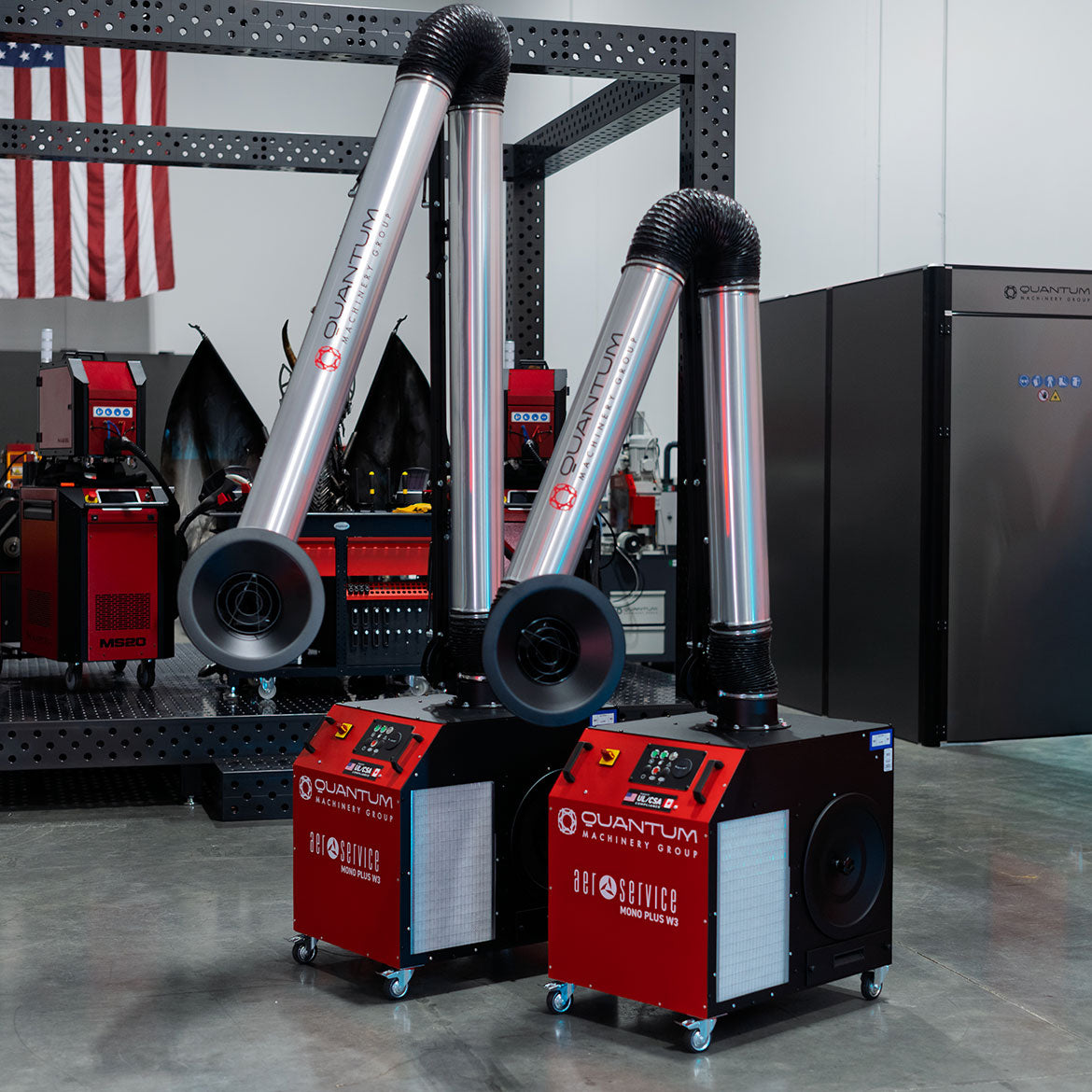

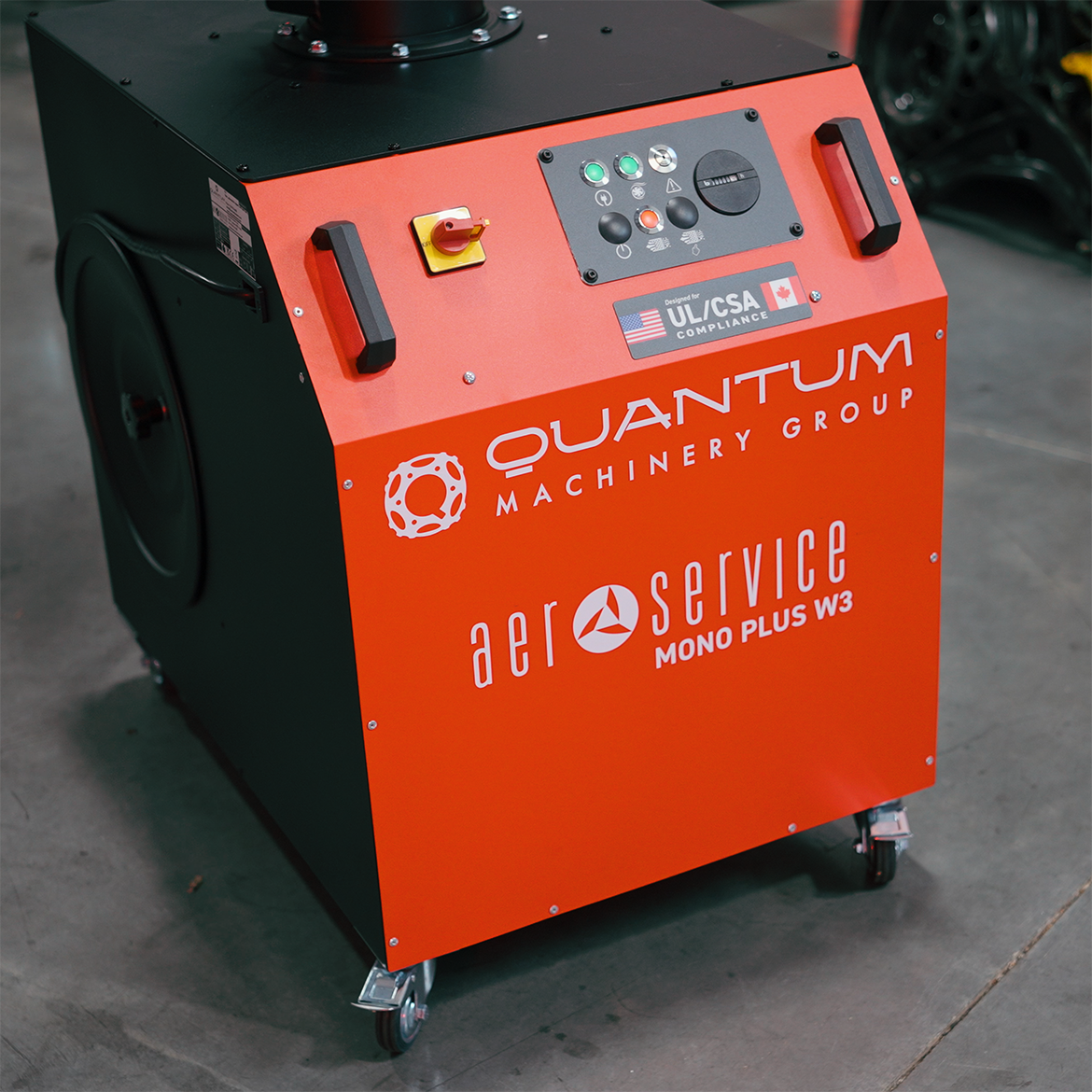

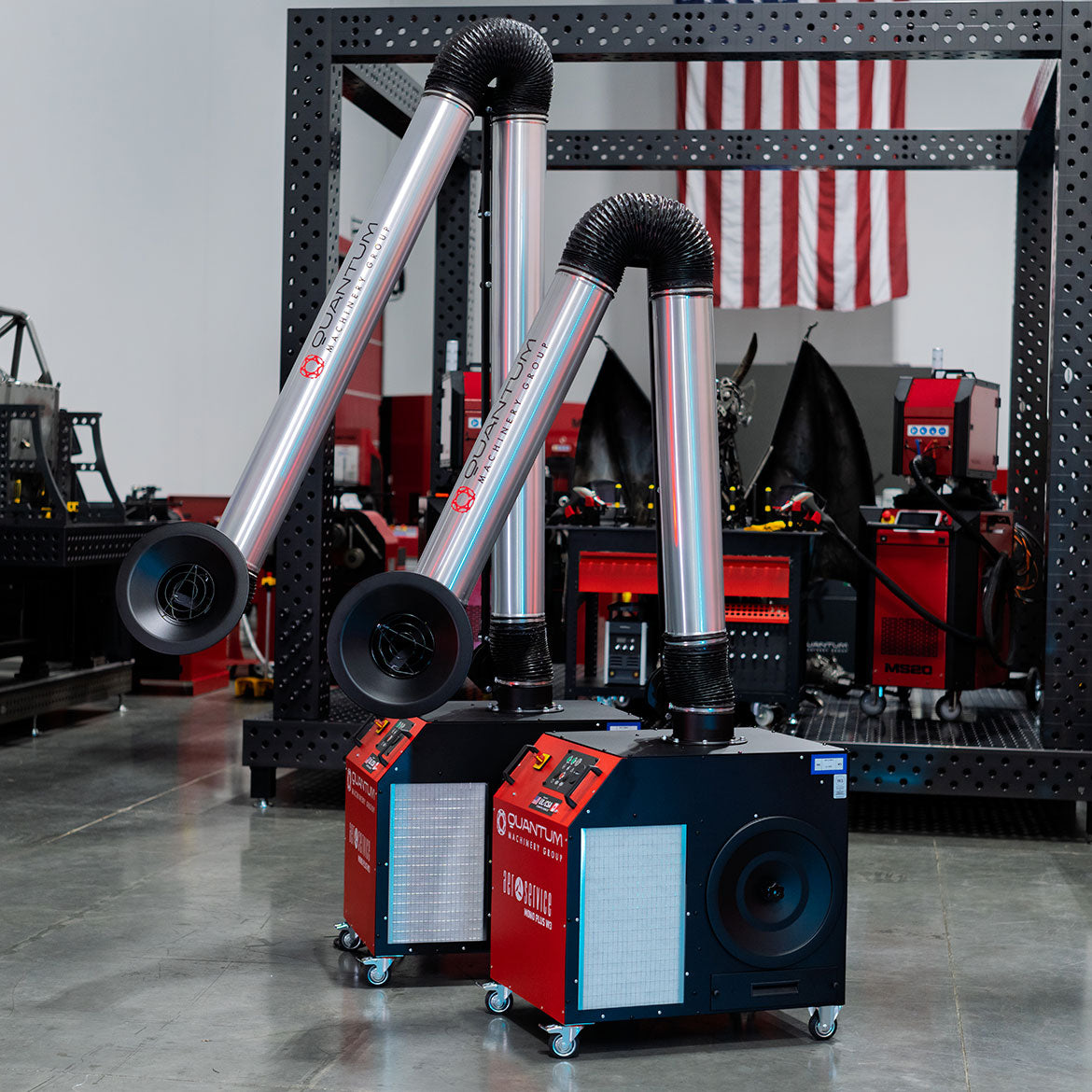

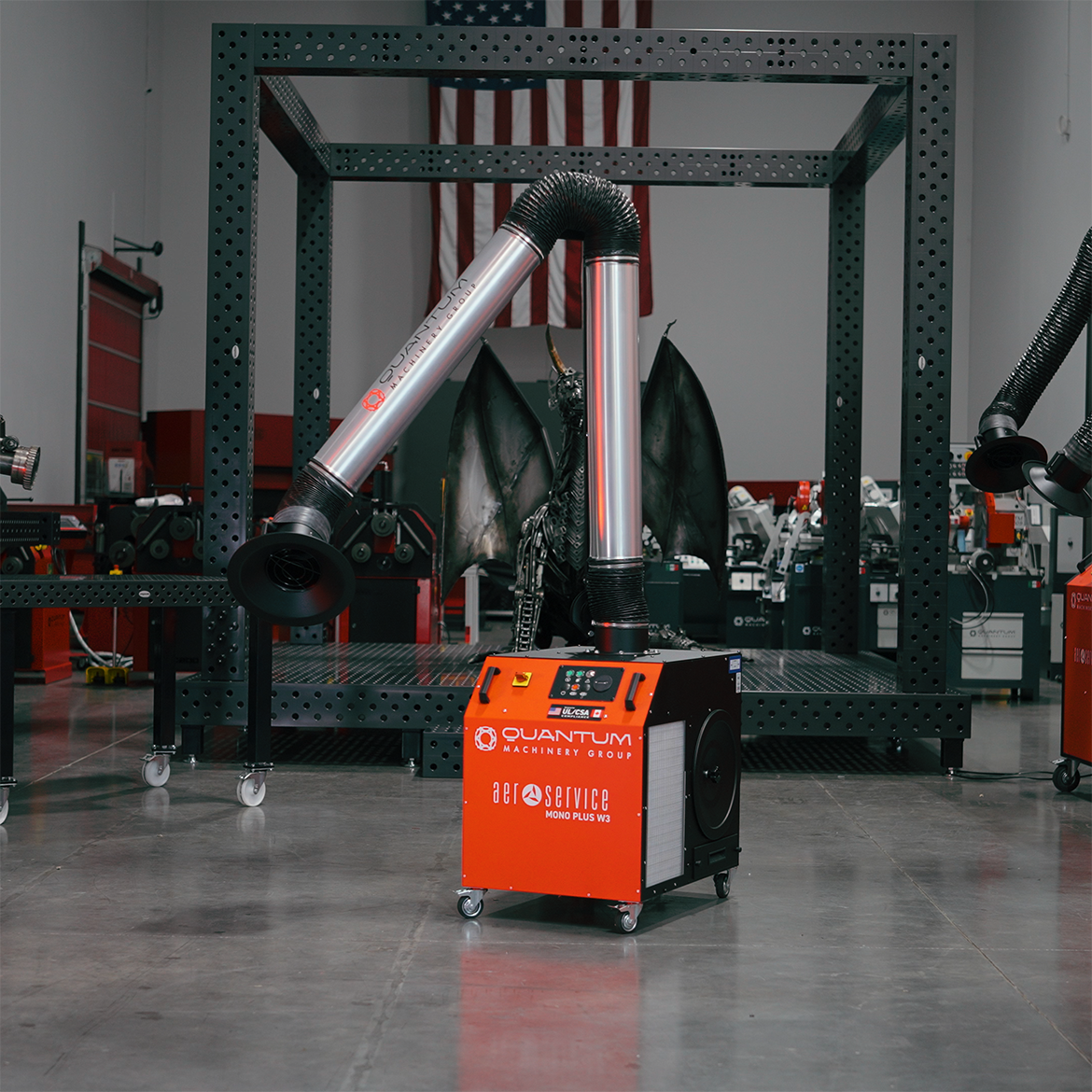

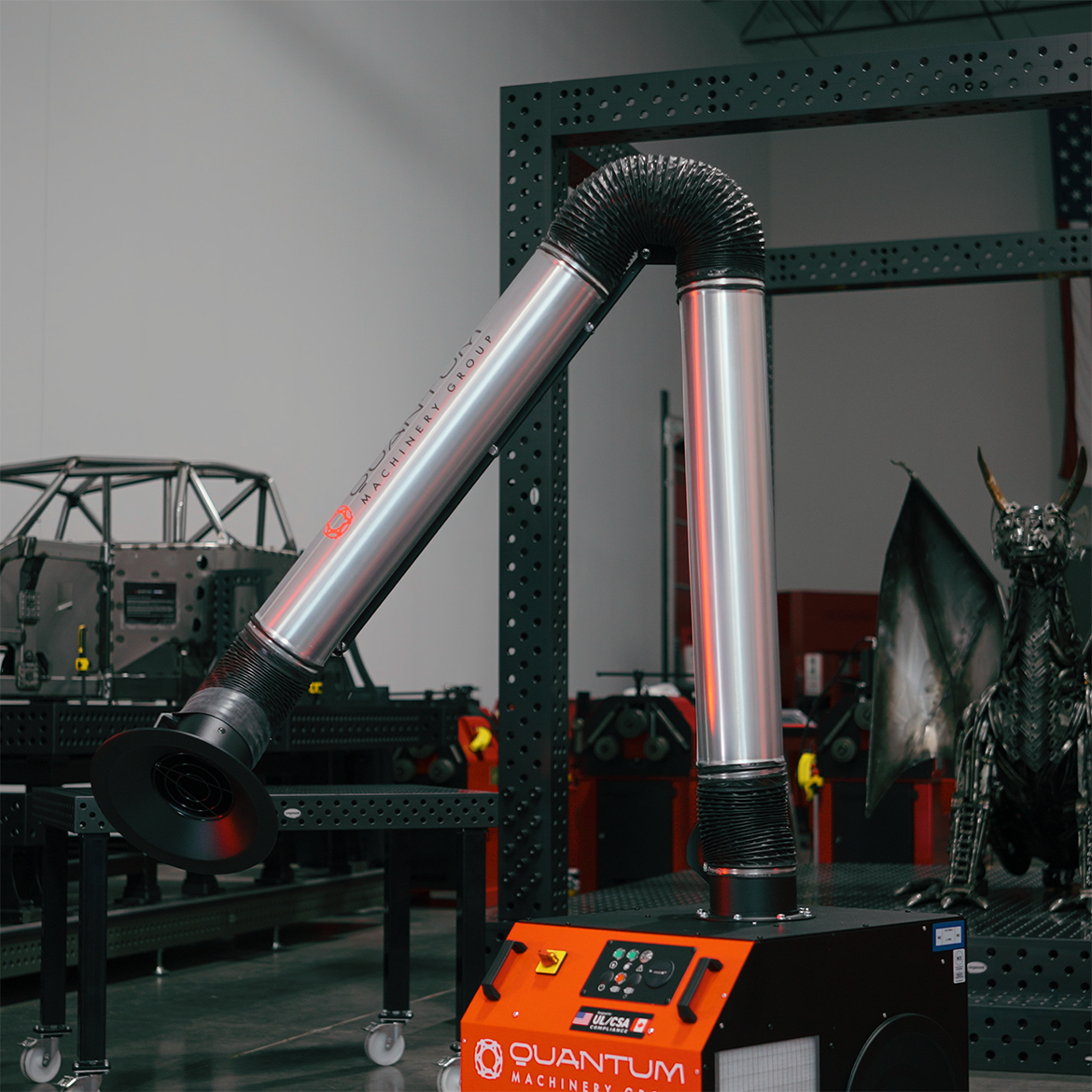

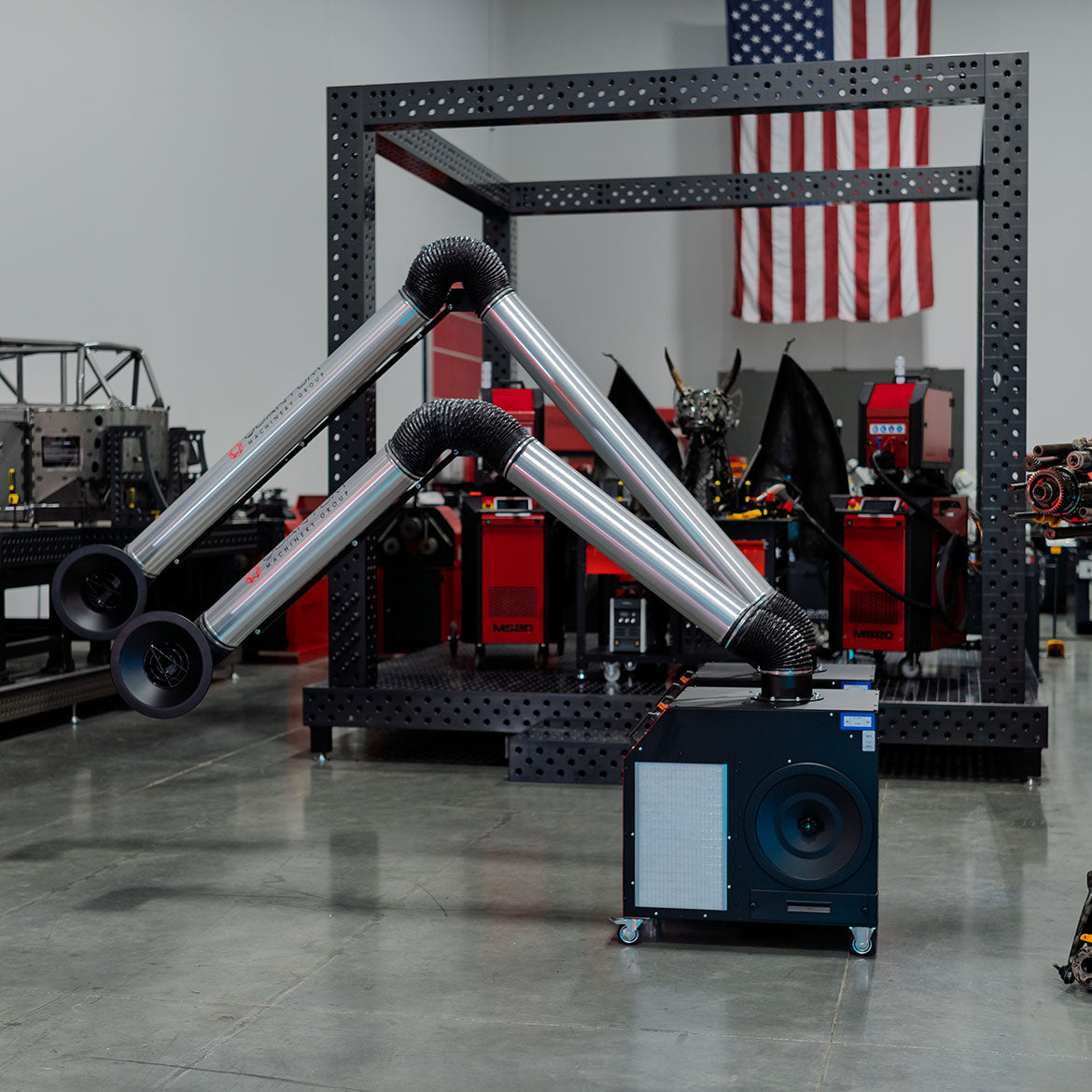

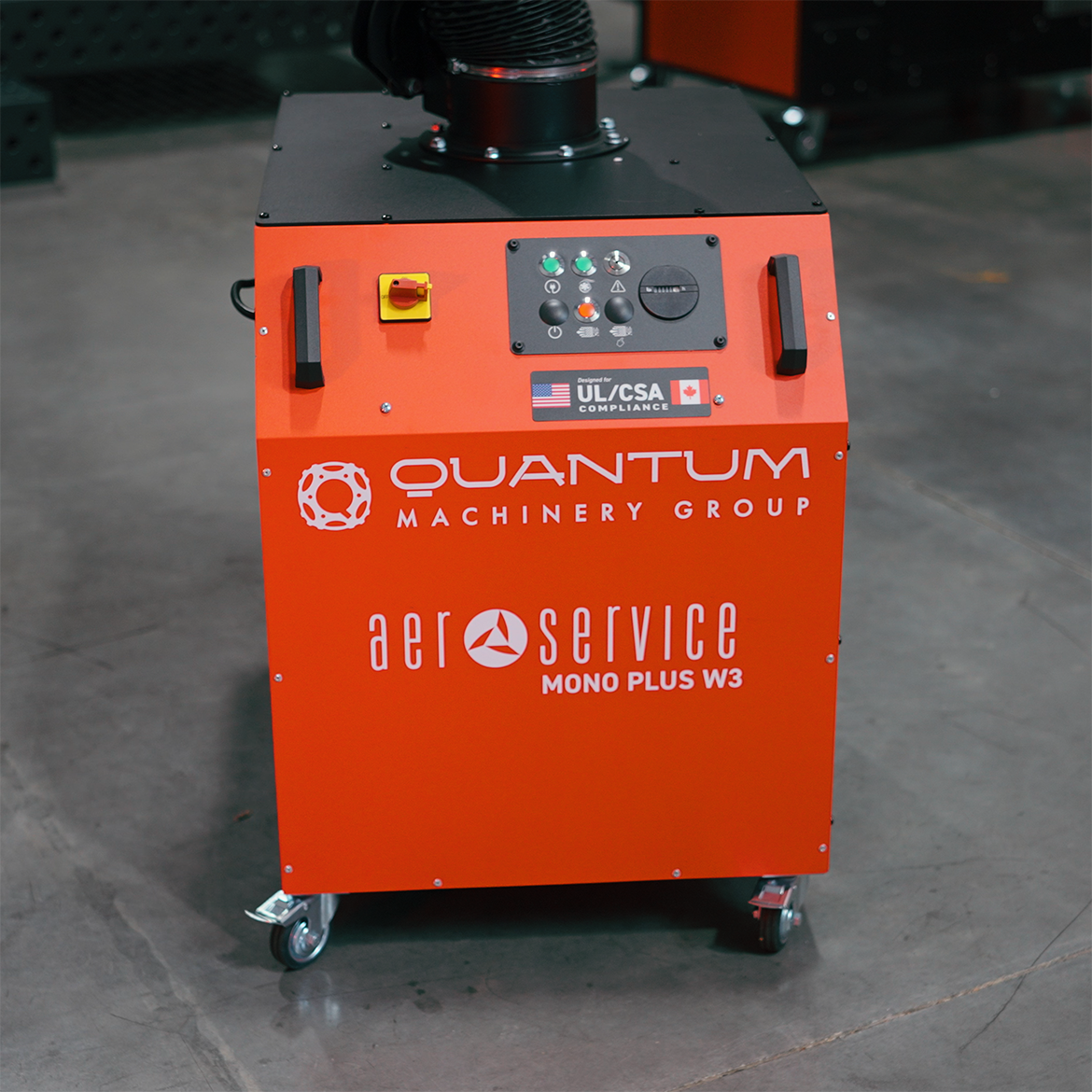

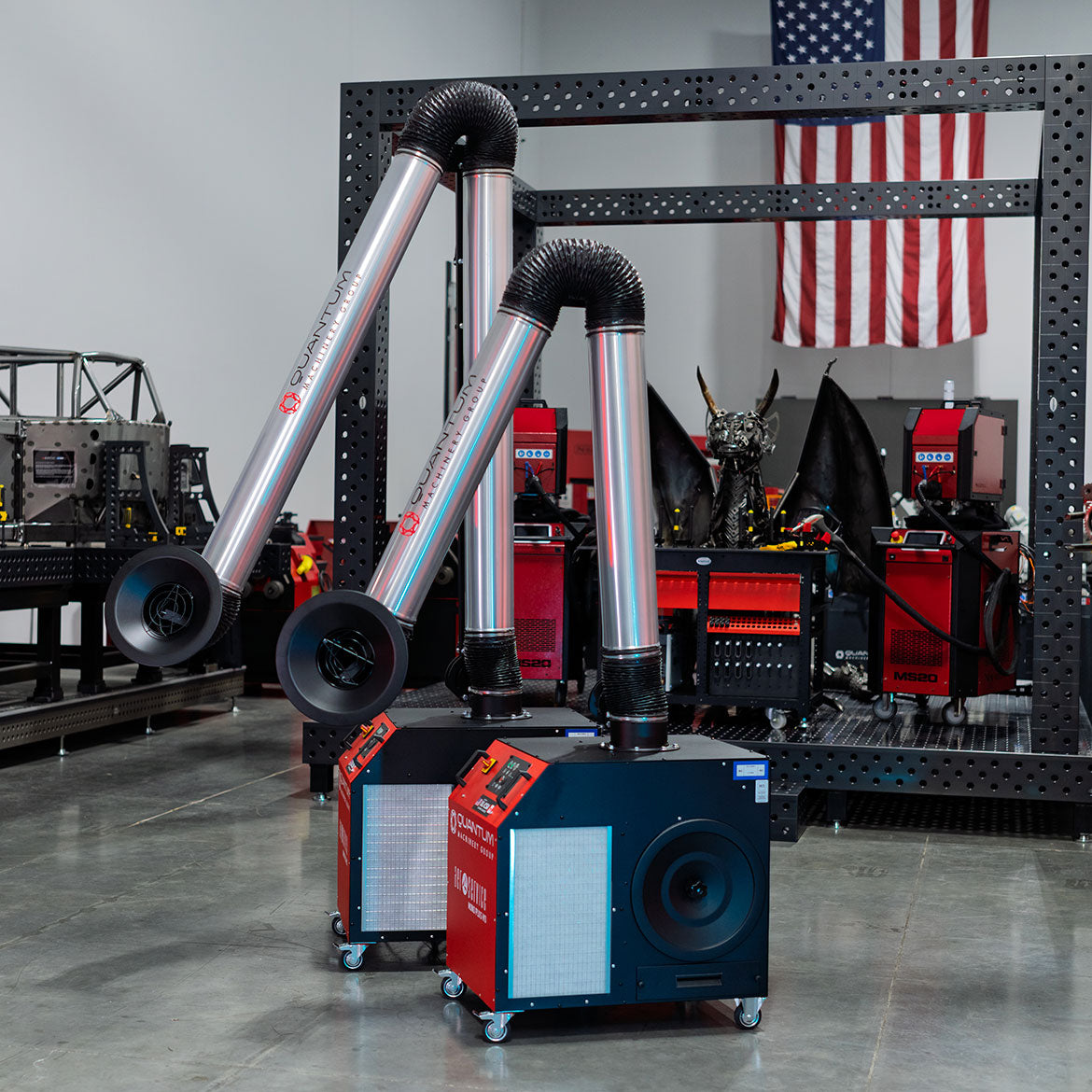

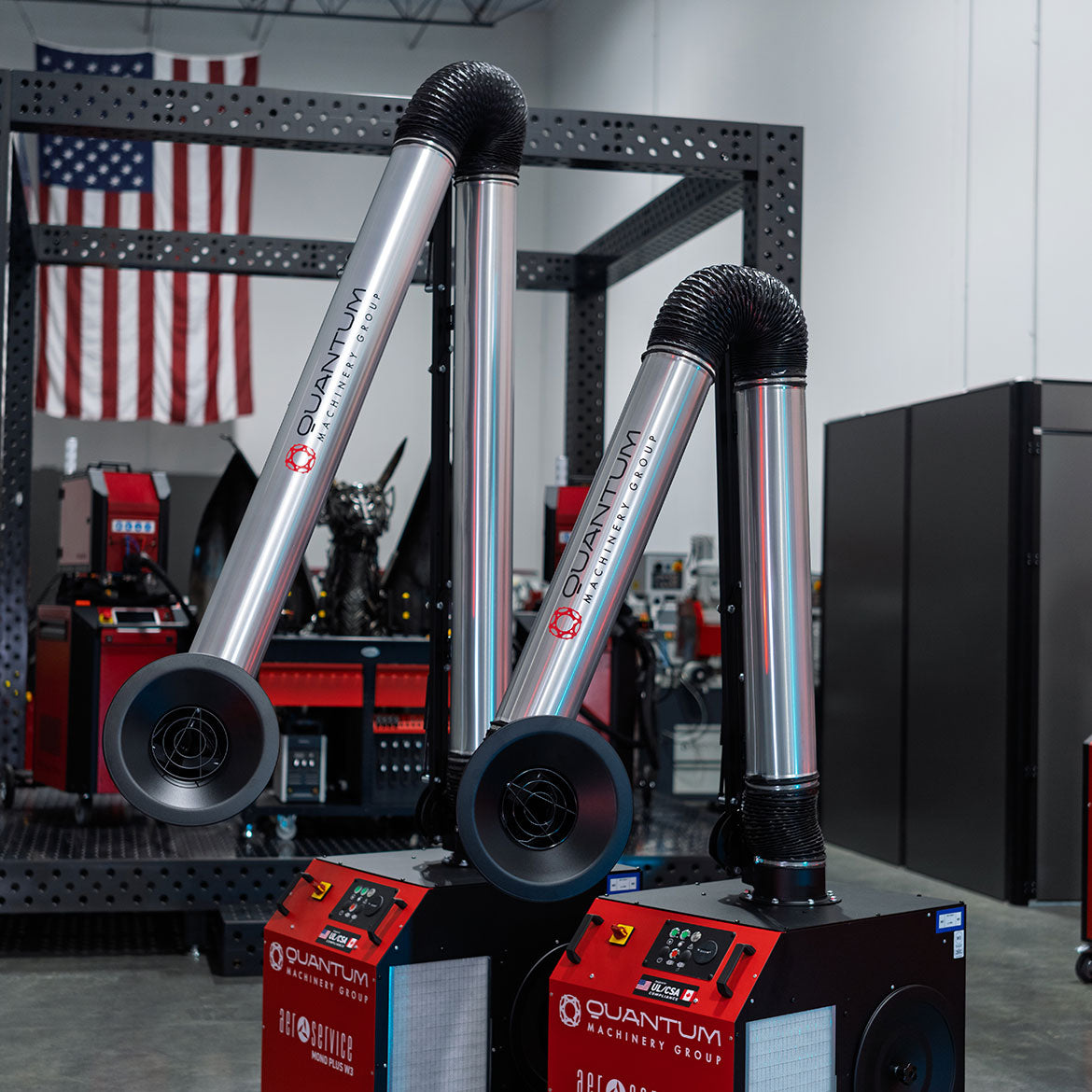

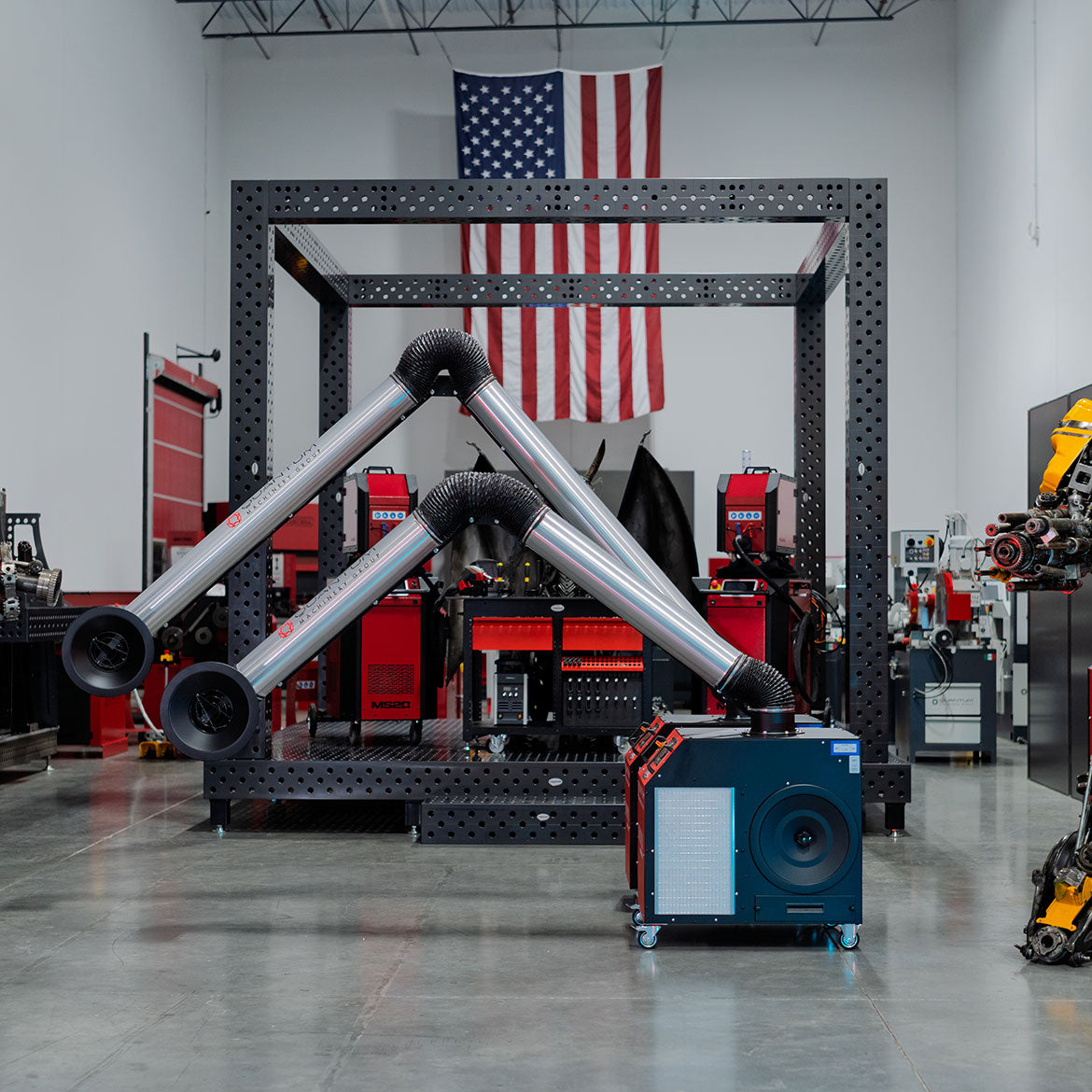

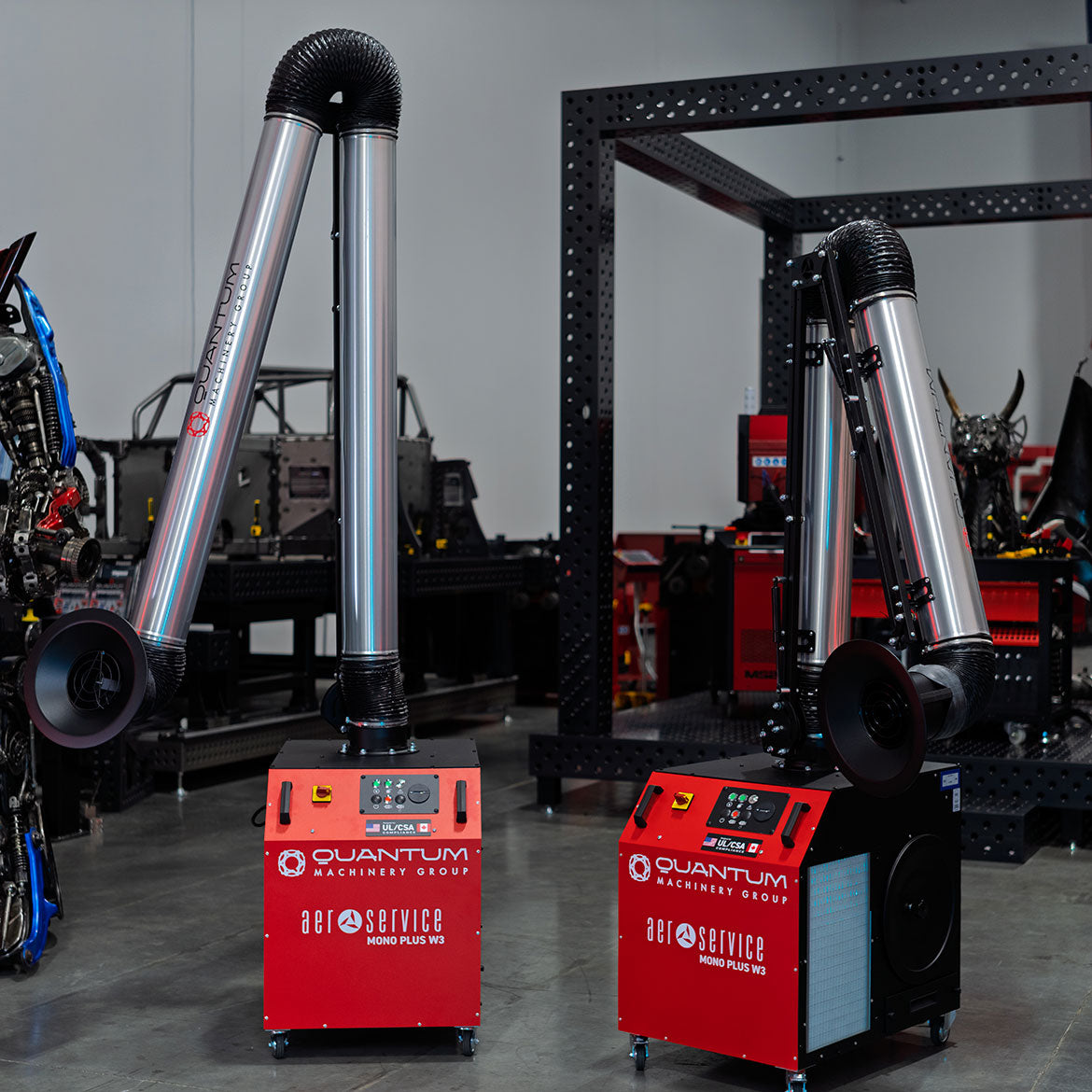

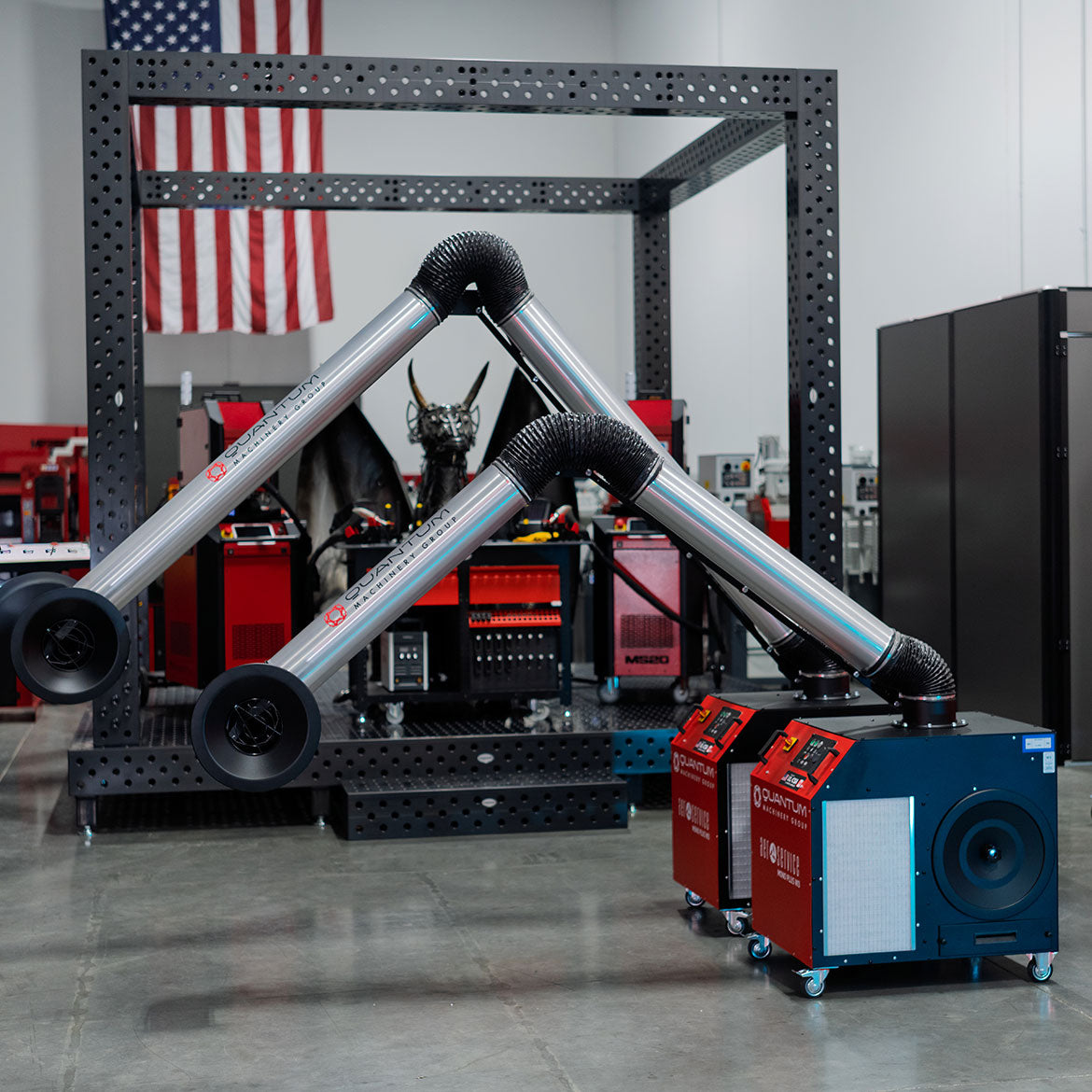

MONO PLUS W3: Mobile Filter Unit for Welding Fumes with 10' Aluminum Extraction Arm

Mobile Welding Fume Extraction with Professional Reach and Precise Positioning

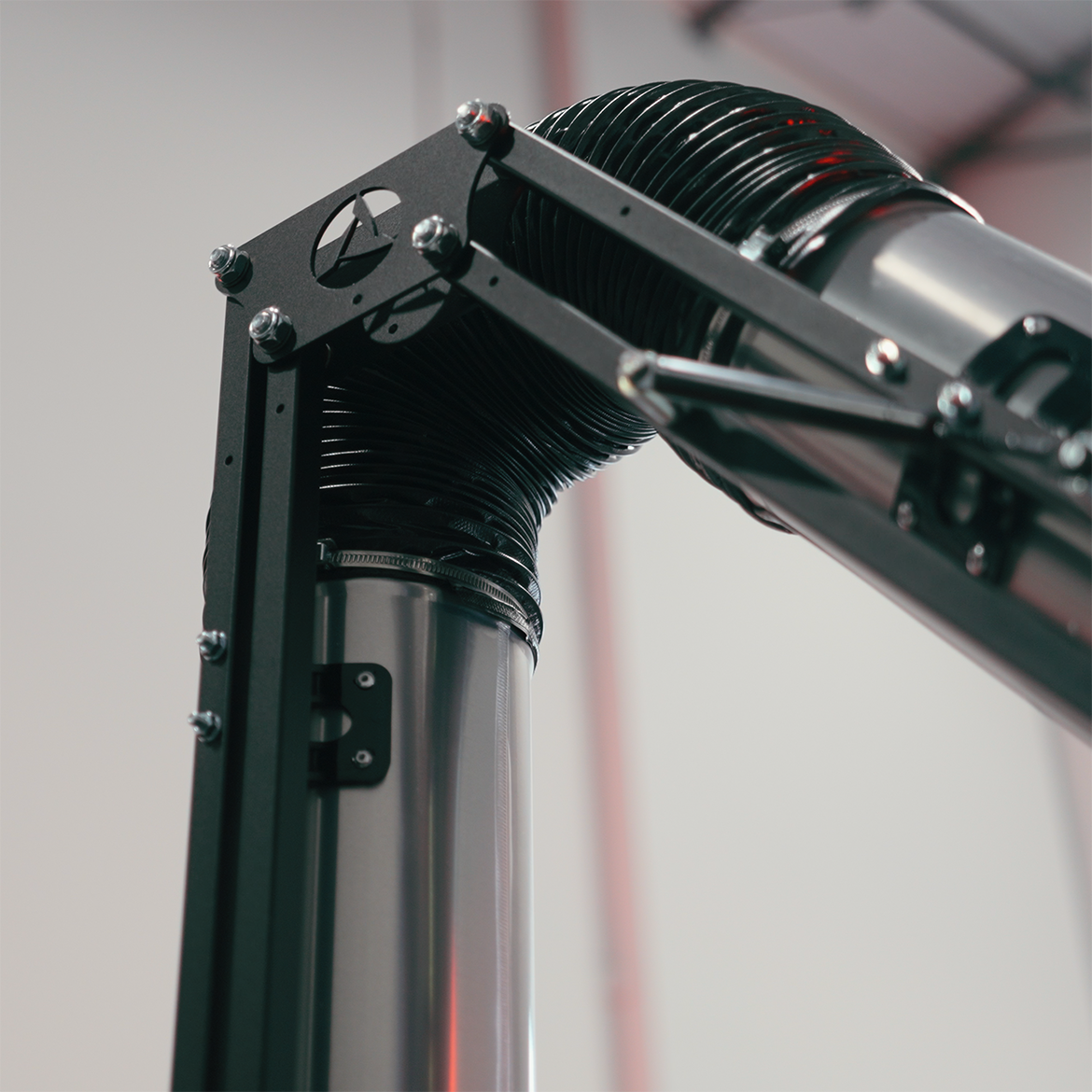

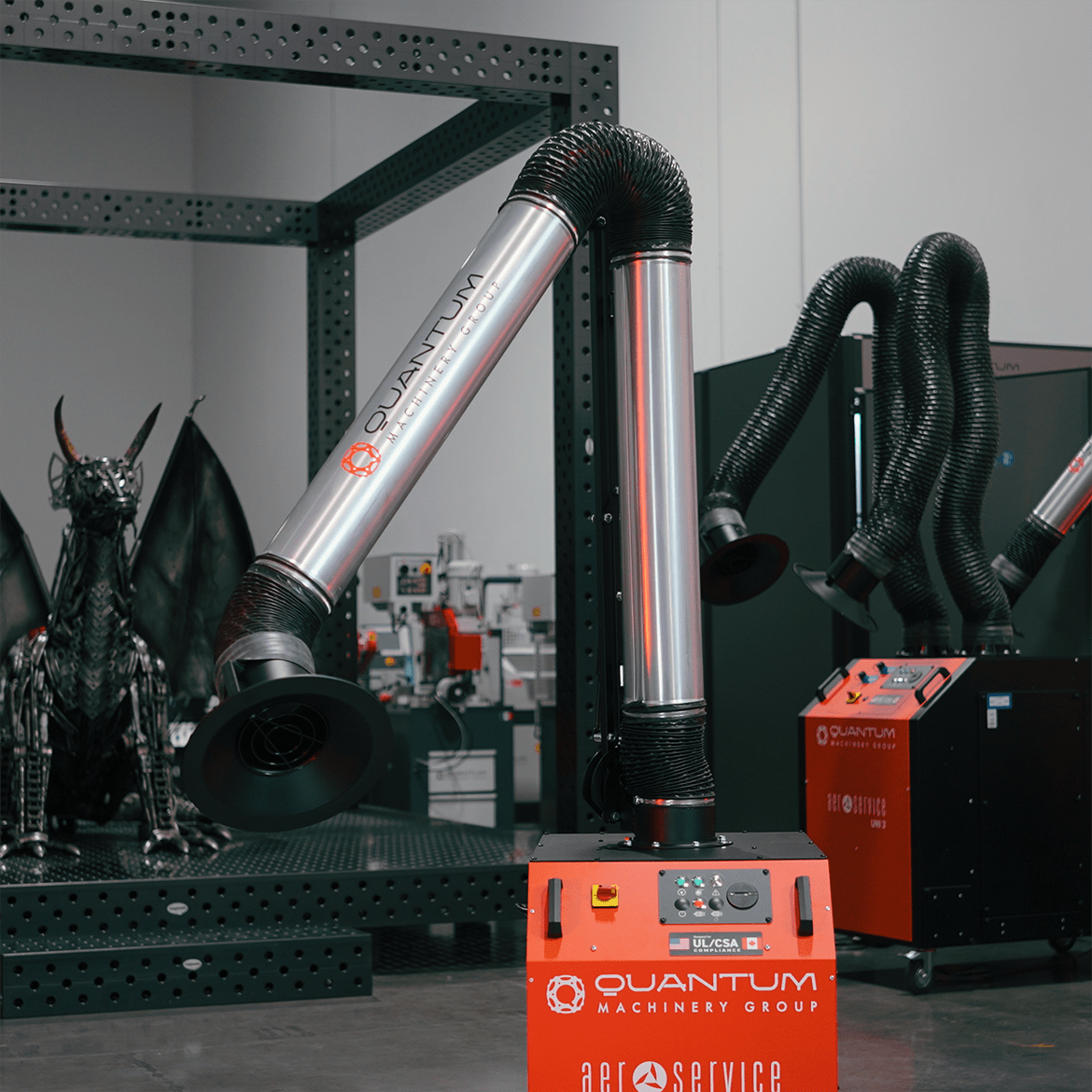

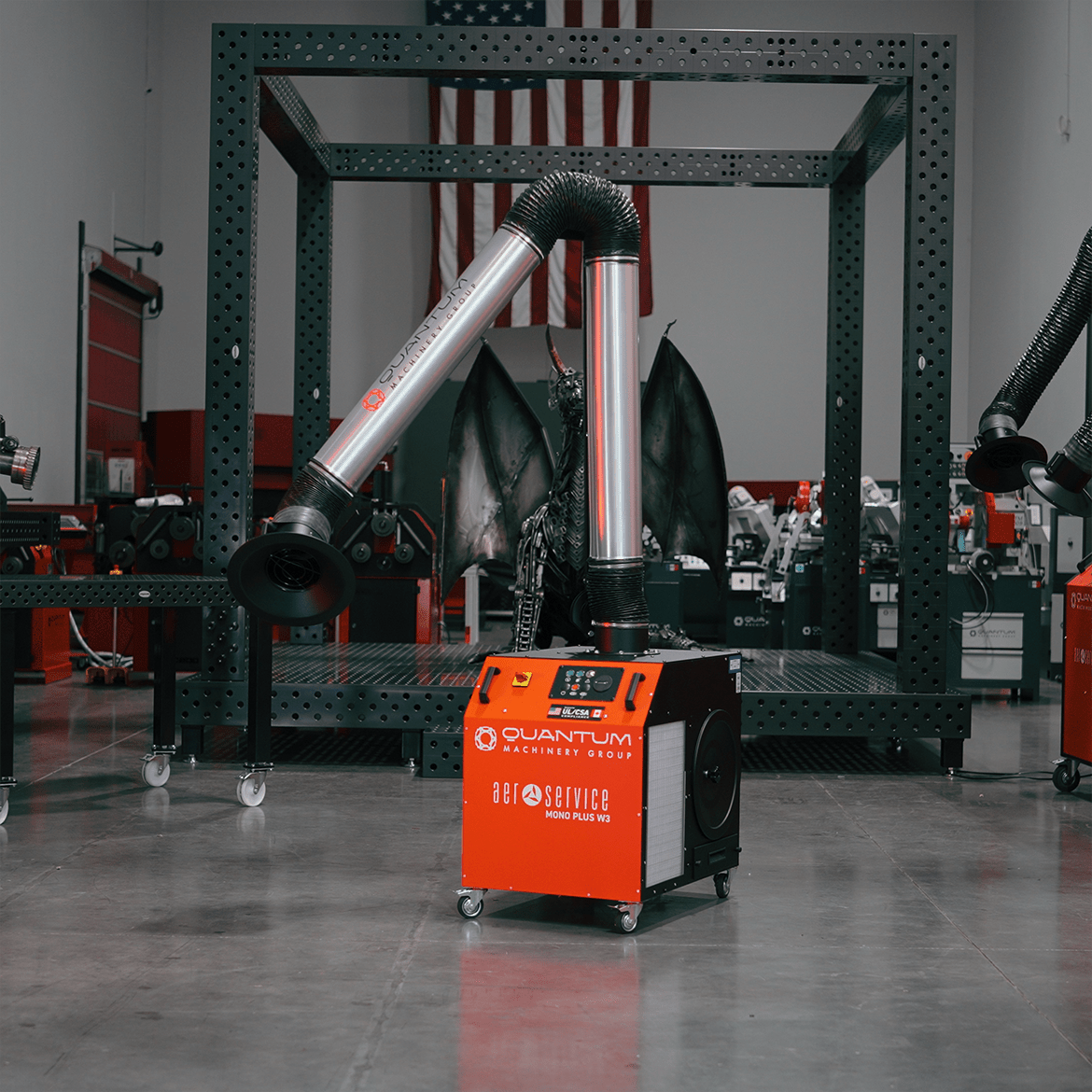

The AerService MONO PLUS W3 with 10' Aluminum Extraction Arm is a mobile welding fume extraction system designed for fabrication shops and production environments requiring reliable source-capture extraction, professional arm stability, and consistent airflow performance. Combining W3-certified filtration, high-efficiency cartridge filtration, and a 10' articulated aluminum extraction arm, this configuration delivers effective welding fume control while providing the reach and positioning accuracy required for daily welding operations.

Designed for routine fabrication and manufacturing applications, the MONO PLUS W3 provides professional-grade extraction performance in a compact mobile package. The included 10' Aluminum Extraction Arm (3m) offers an excellent balance of reach, hood stability, and ease of positioning, making it a popular choice for dedicated welding workstations and general fabrication environments.

Why Choose the 10' Aluminum Extraction Arm Configuration?

For many fabrication shops, an articulated aluminum extraction arm provides the ideal combination of reach, durability, and positioning control.

The 10' Aluminum Extraction Arm configuration provides:

• Excellent workstation coverage.

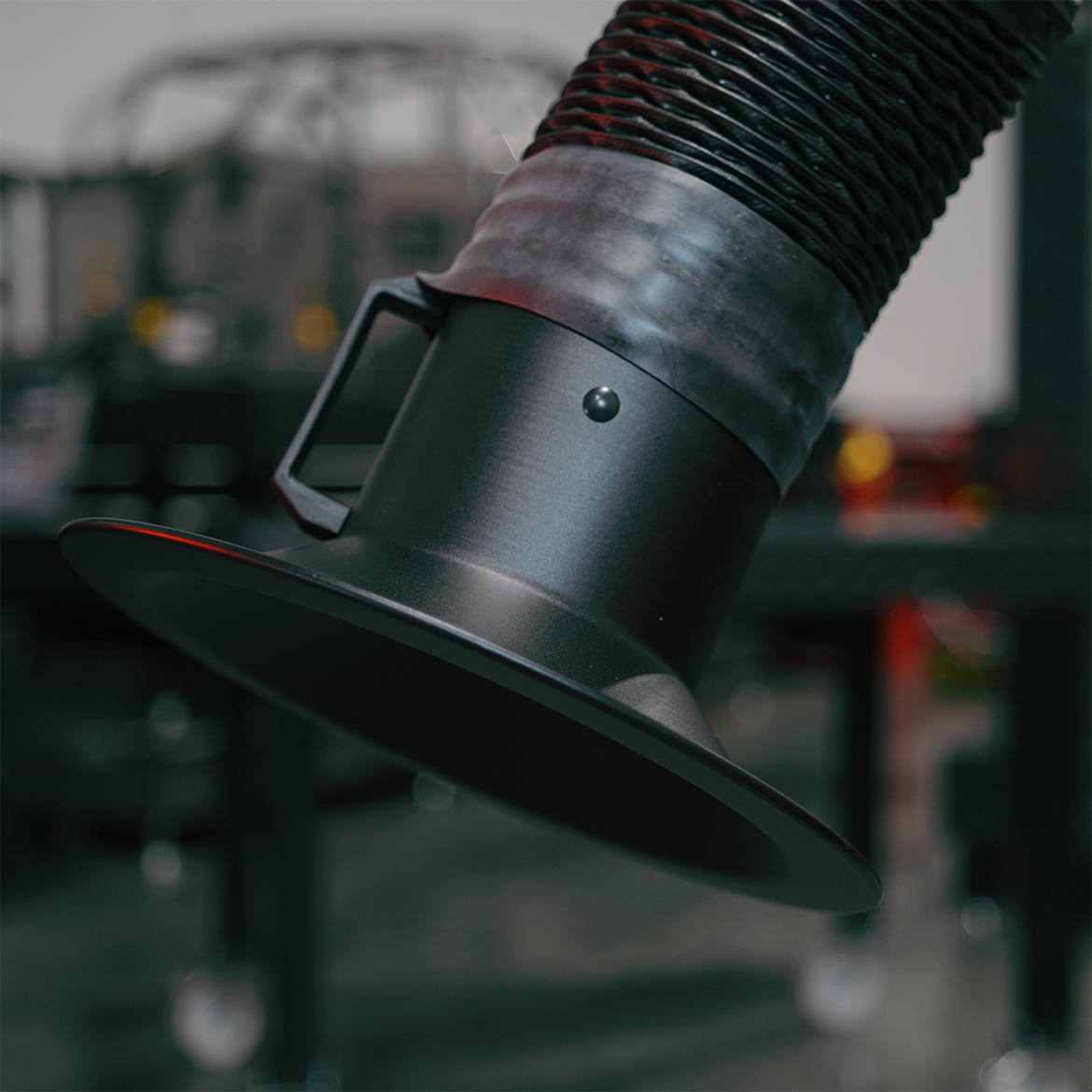

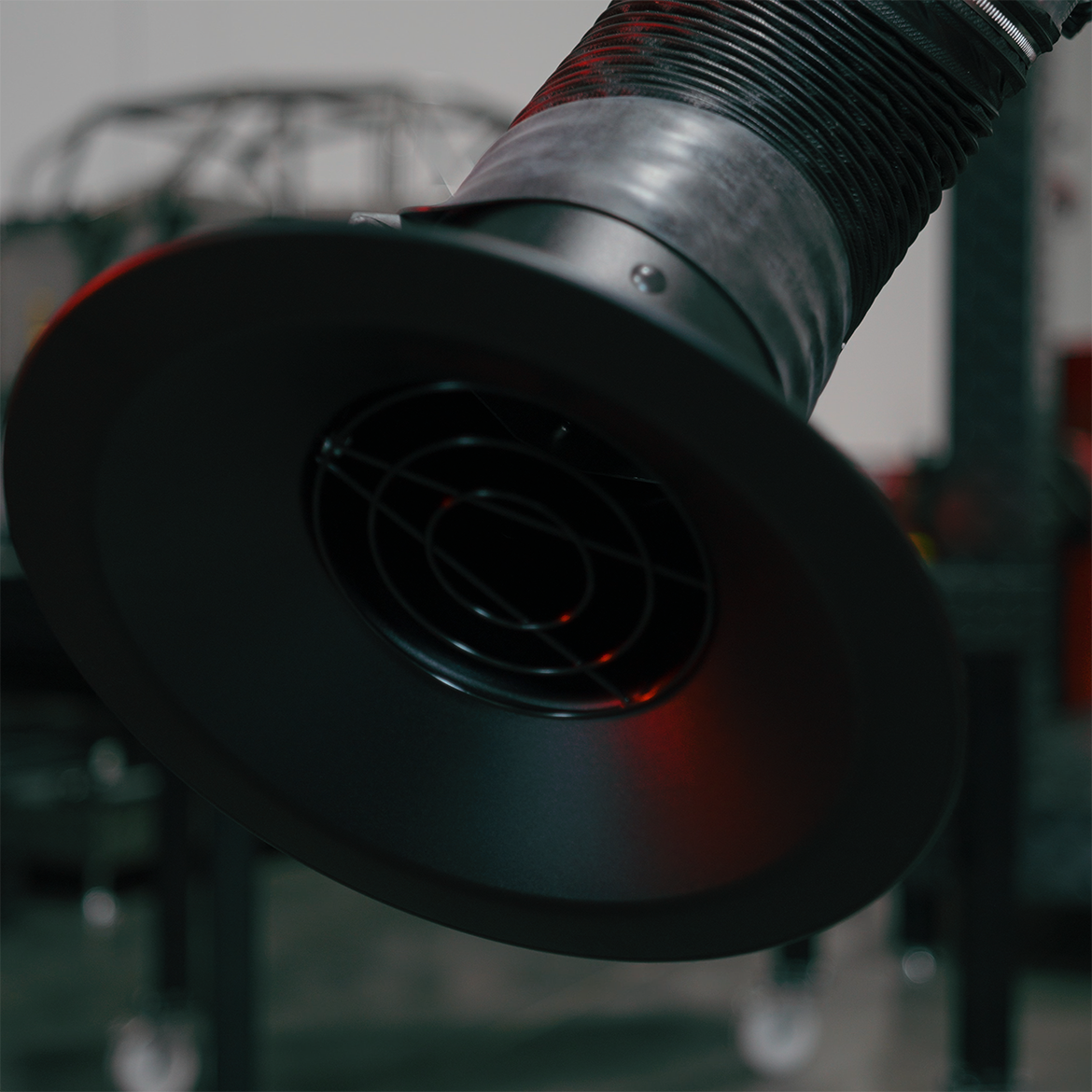

• Stable hood positioning.

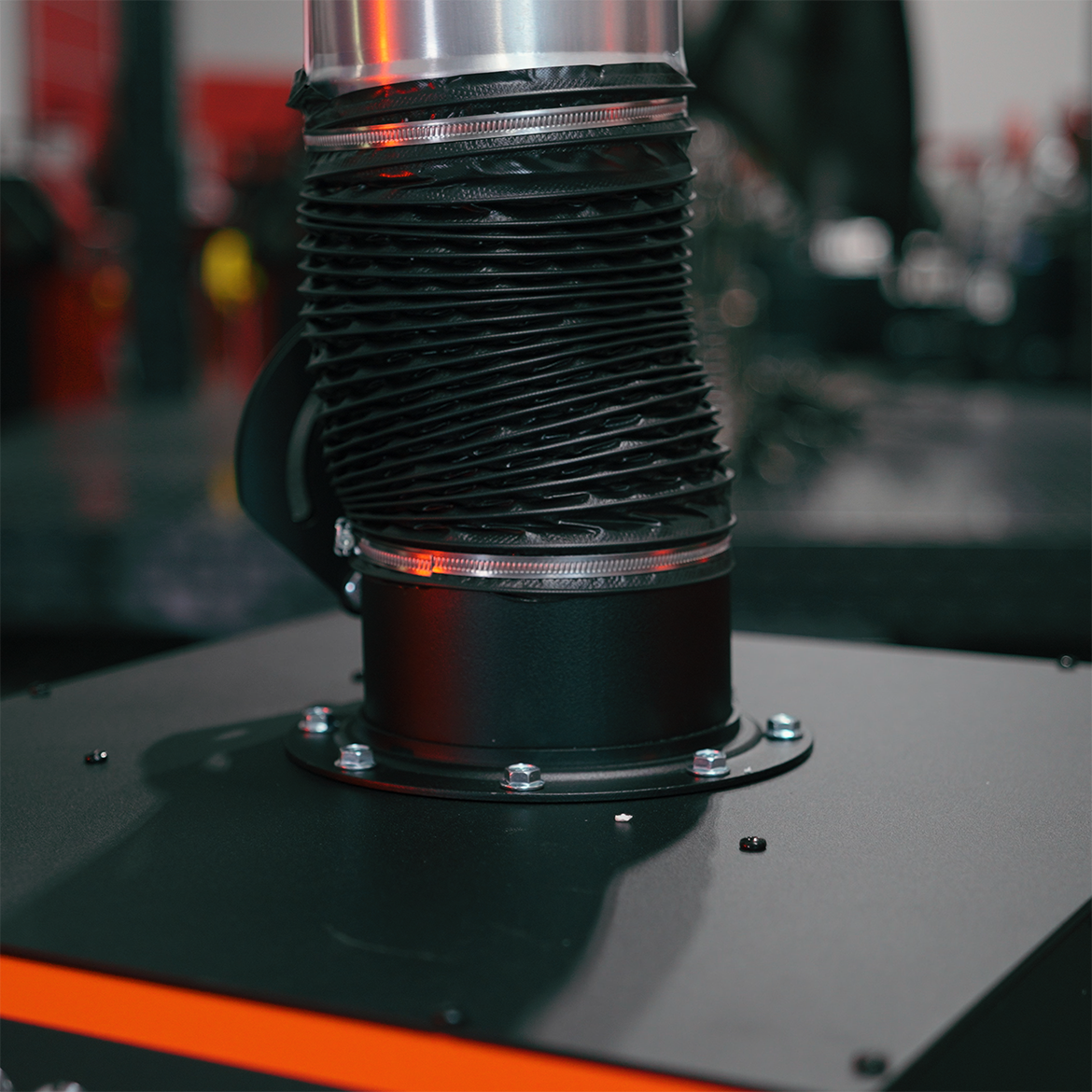

• Smooth arm articulation.
• Consistent source-capture performance.
• Professional-grade construction.
• Reliable operation in daily production environments.

This configuration is particularly well suited for fabrication facilities where welding operations occur at fixed or semi-fixed workstations and operators require dependable extraction throughout the workday.

Designed for Daily Welding Applications

The MONO PLUS W3 is engineered for facilities performing welding throughout the workday where dependable extraction performance and simplified maintenance are essential.

Ideal applications include:

• Fabrication shops.
• Manufacturing facilities.
• Metalworking operations.
• Maintenance departments.
• Repair facilities.
• Technical training centers.
• General production welding environments.

Its mobile platform allows extraction to be easily moved between workstations while maintaining professional filtration performance.

W3-Certified Filtration Performance

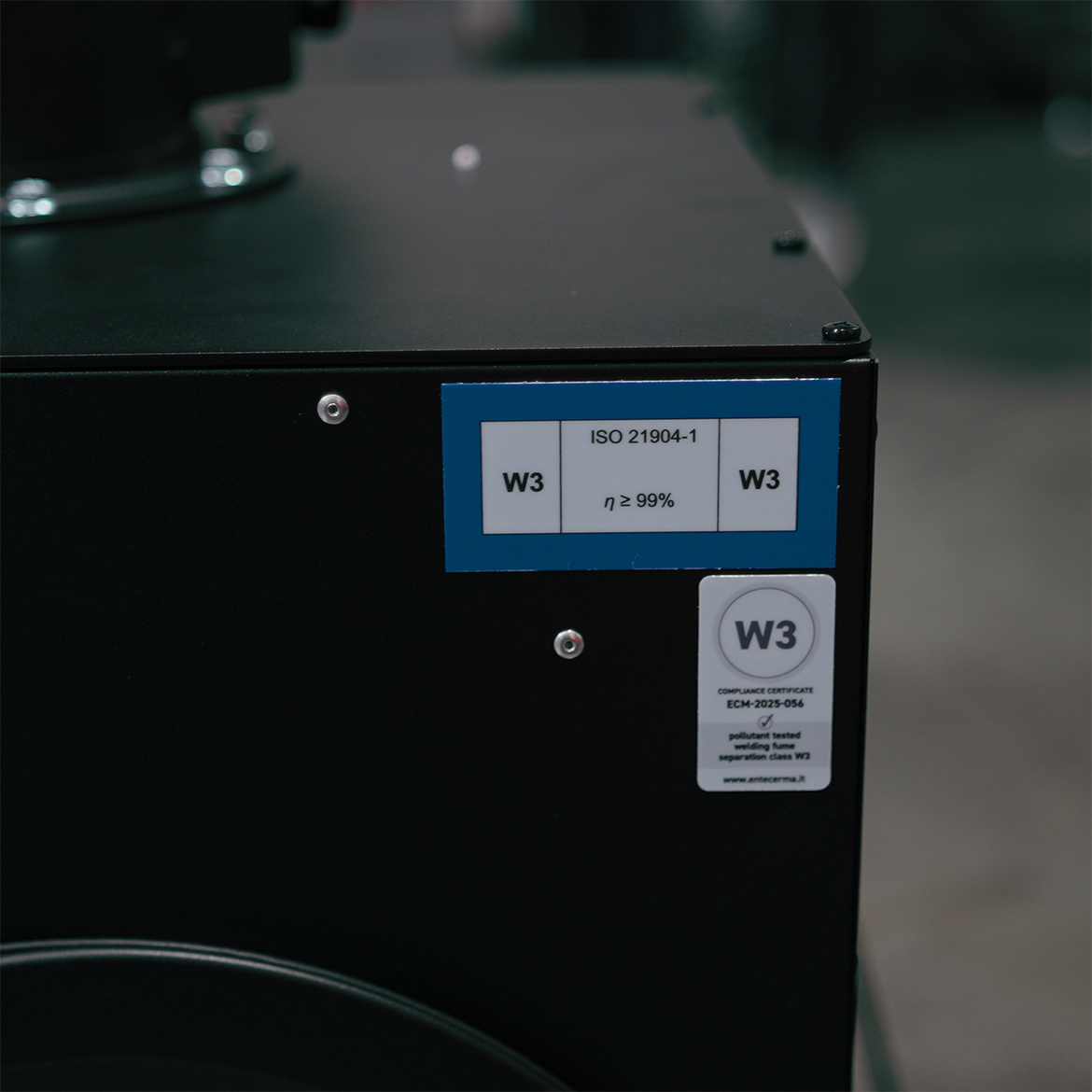

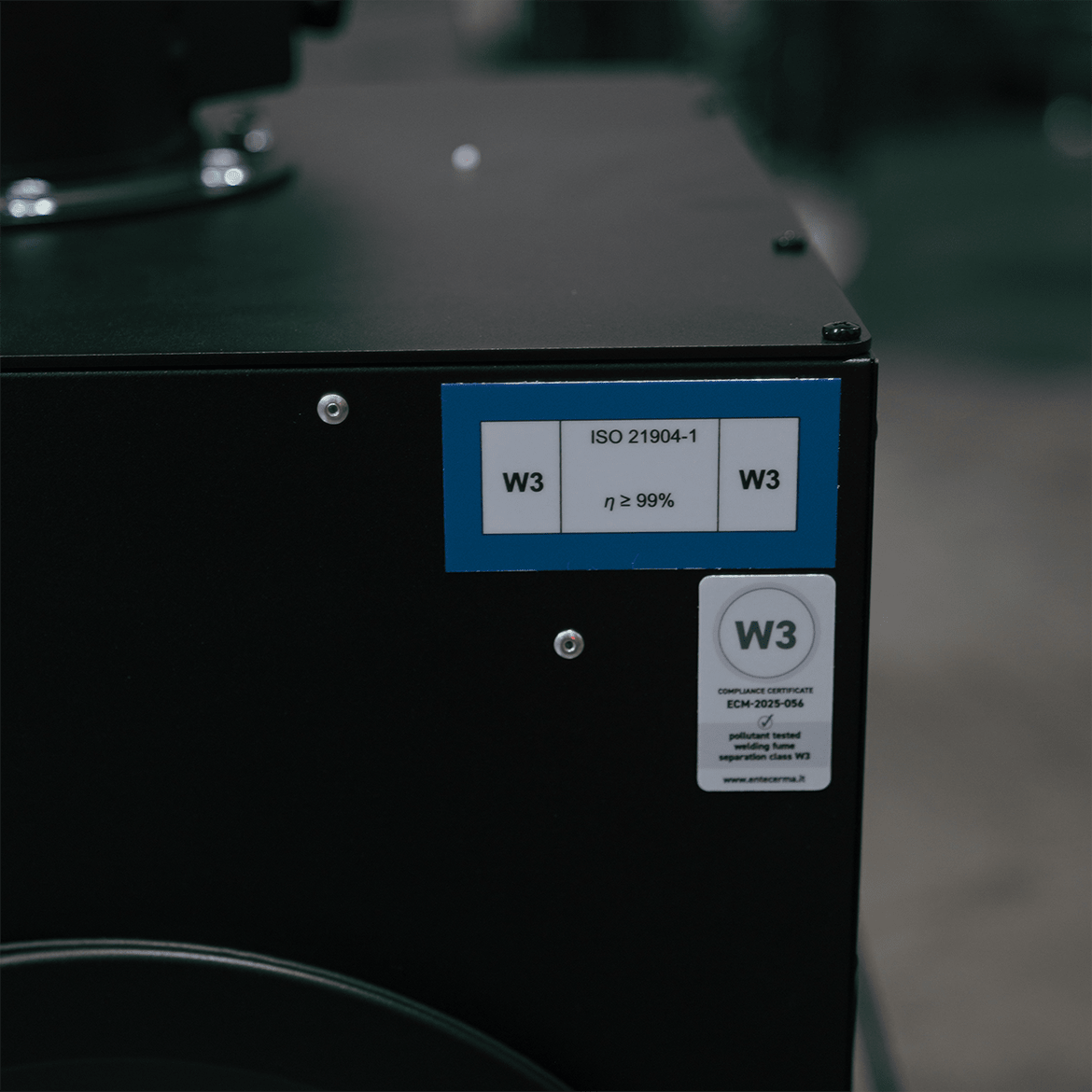

The MONO PLUS W3 is certified to W3 filtration standards with filtration efficiency exceeding 99%, providing effective welding fume control for daily industrial use.

The filtration system includes:

Spark Protection

An integrated spark trap helps protect the primary filtration media from sparks and larger particulate generated during welding operations.

High-Efficiency Cartridge Filtration

The primary cartridge filter utilizes Sintexx Plus nanofiber filtration media, engineered to maximize filtration performance and filter life while reducing environmental impact.

Safety Filtration

A secondary safety filter provides additional protection and helps maintain clean air recirculation within the workspace.

Easy Filter Maintenance

The MONO PLUS W3 is designed to simplify routine maintenance and minimize downtime.

Features include:

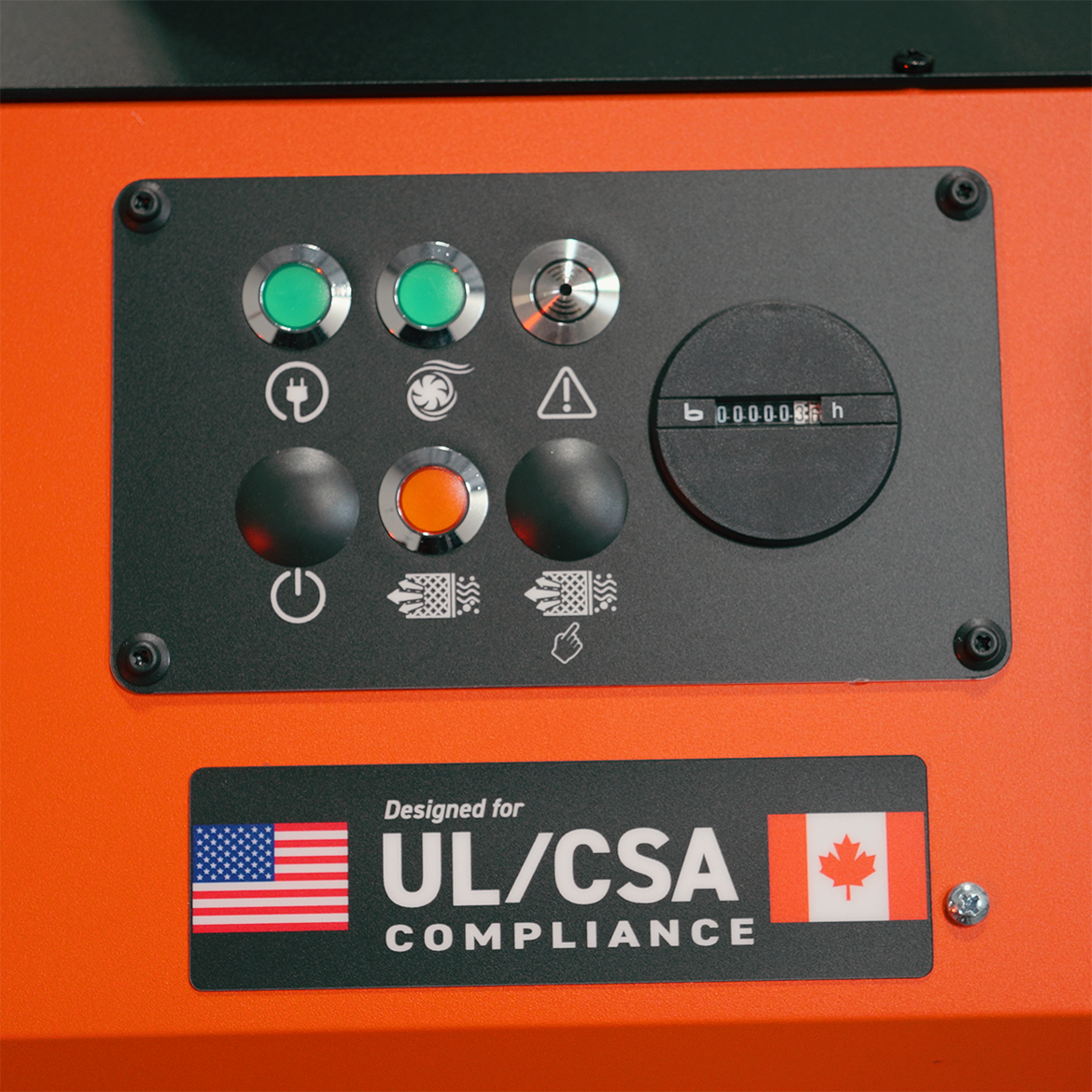

• Differential pressure monitoring.
• Clogged filter alarm.

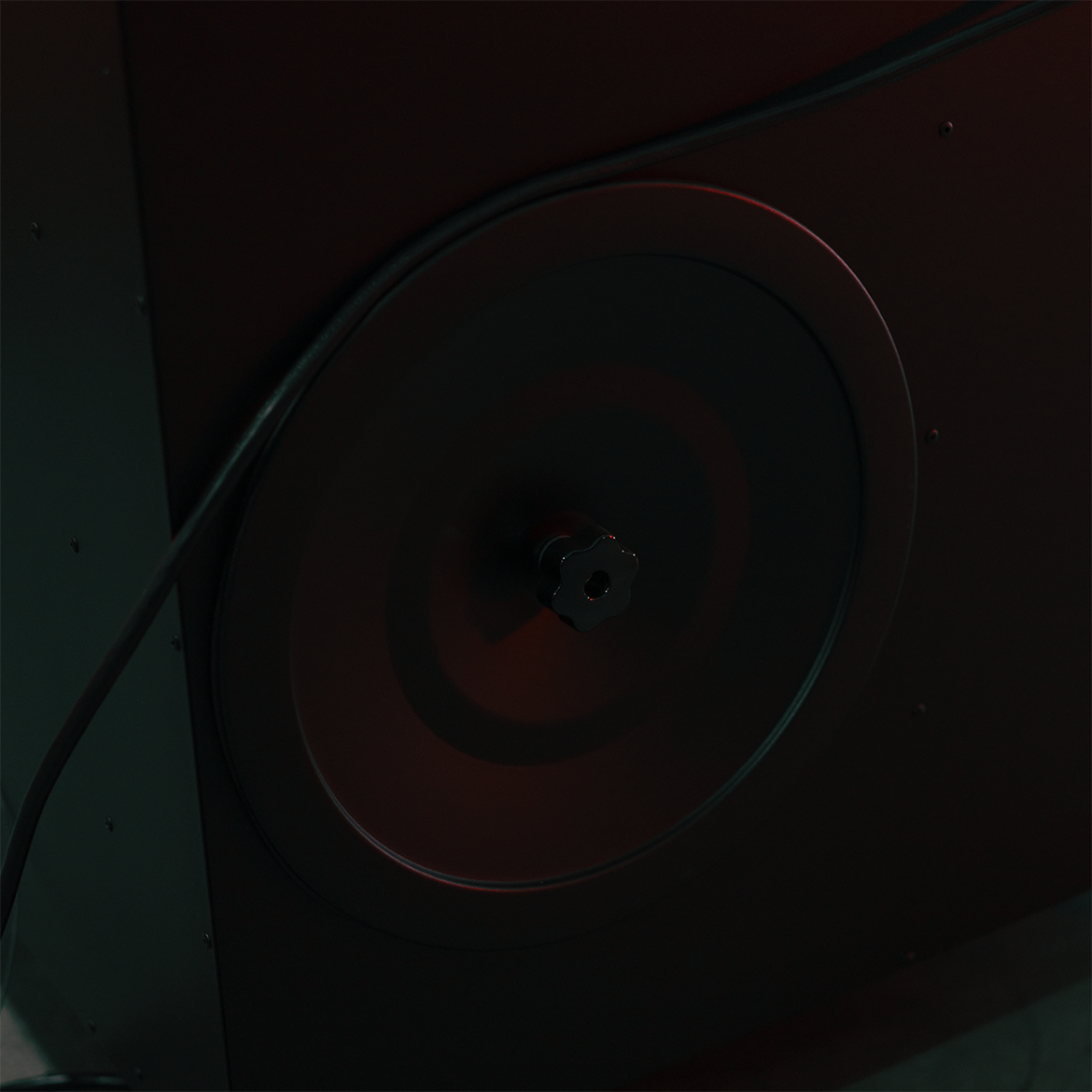

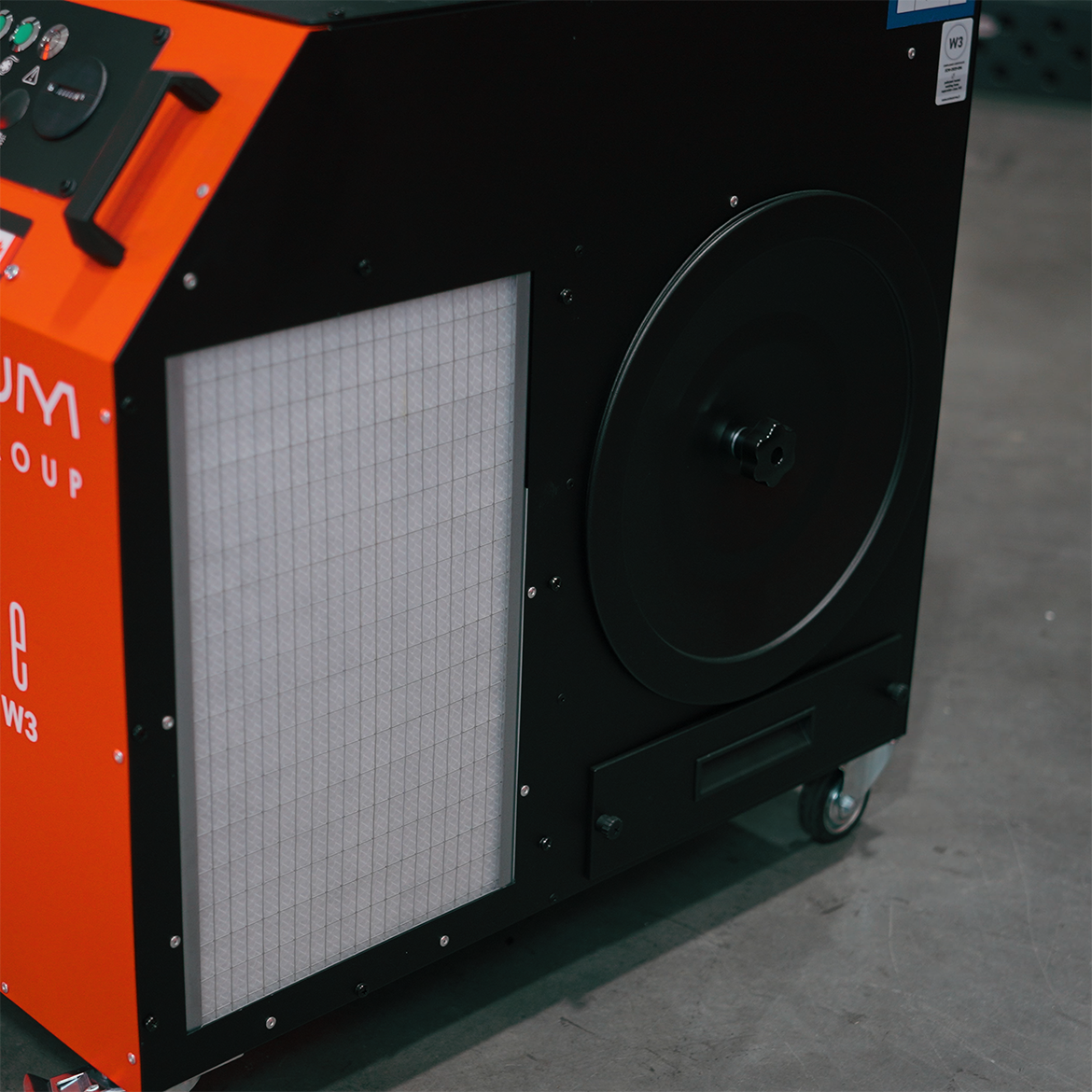

• Easy-access filter compartment.

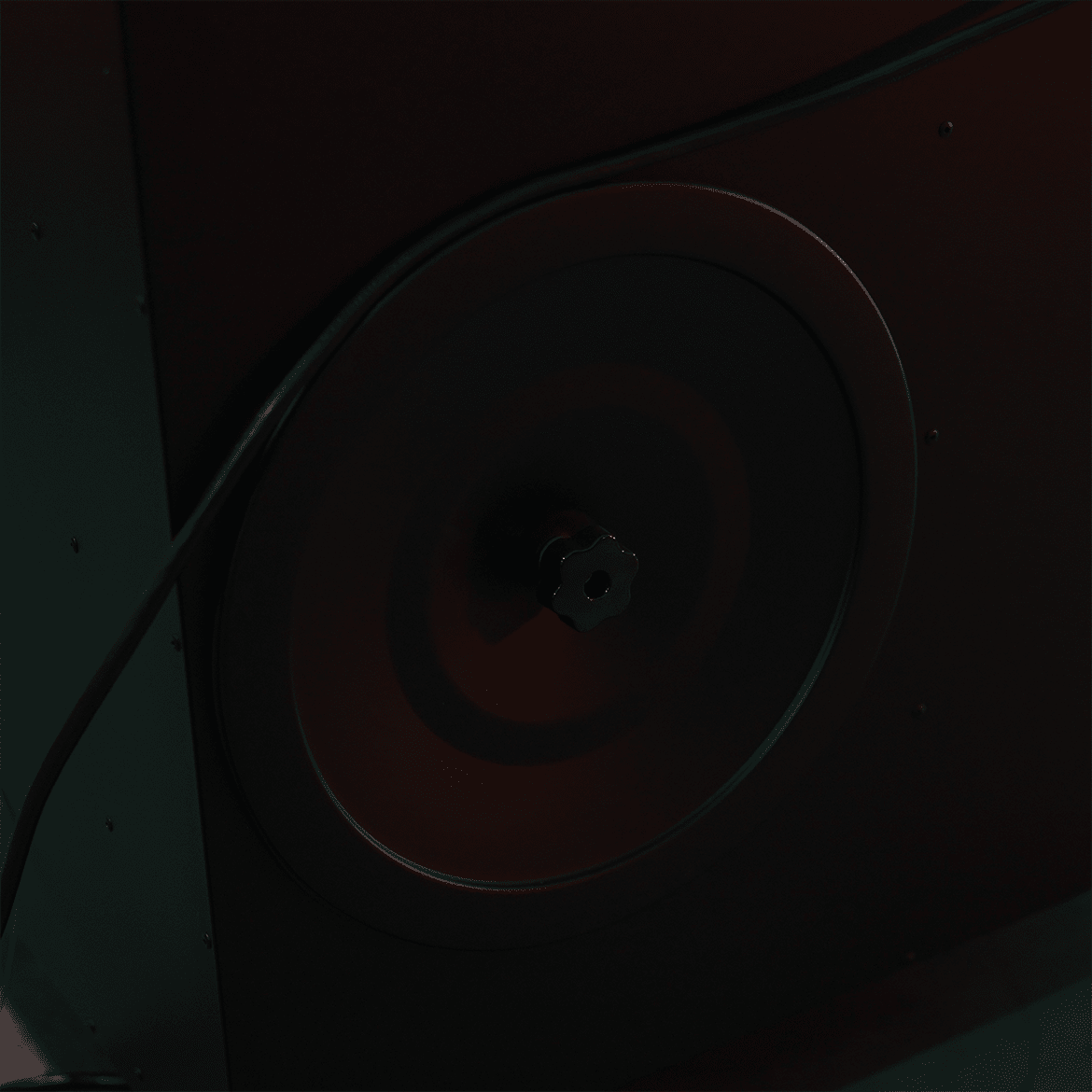

• Manual filter cleaning without cartridge removal.
• Integrated dust collection drawer.

These features help operators maintain airflow performance while reducing maintenance effort.

Supported Welding Processes

The MONO PLUS W3 is suitable for:

• MIG Welding
• MAG Welding
• Pulsed MIG/MAG Welding
• TIG Welding
• MMA / Stick Welding

The system is designed for dry welding fumes and is not intended for oily smoke or mist applications.

Ideal Applications

The MONO PLUS W3 with 10' Aluminum Extraction Arm is an excellent solution for:

• Production fabrication shops.
• Manufacturing facilities.
• Dedicated welding stations.
• Technical training centers.
• Maintenance departments.
• General metal fabrication.
• Daily welding operations.

Key Features

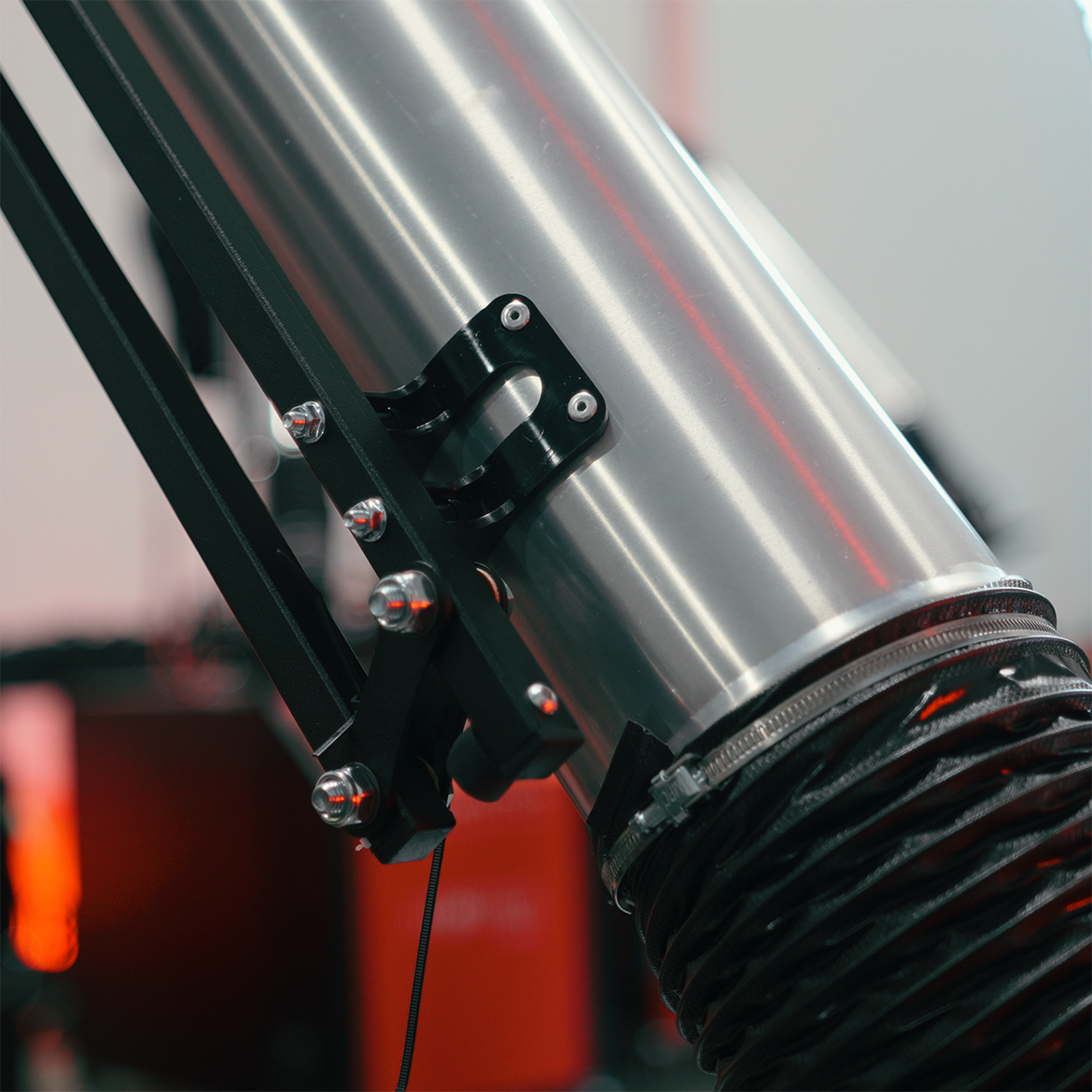

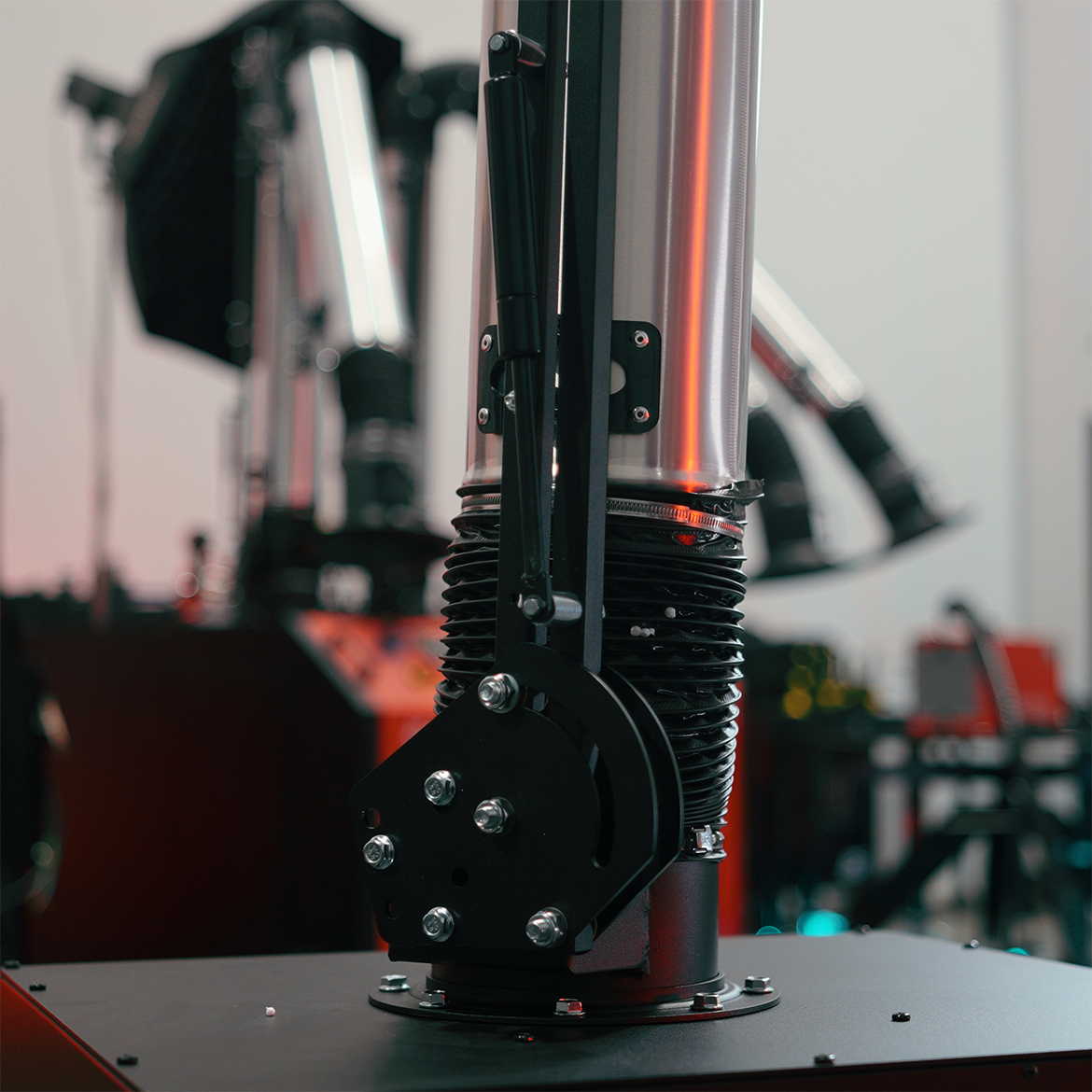

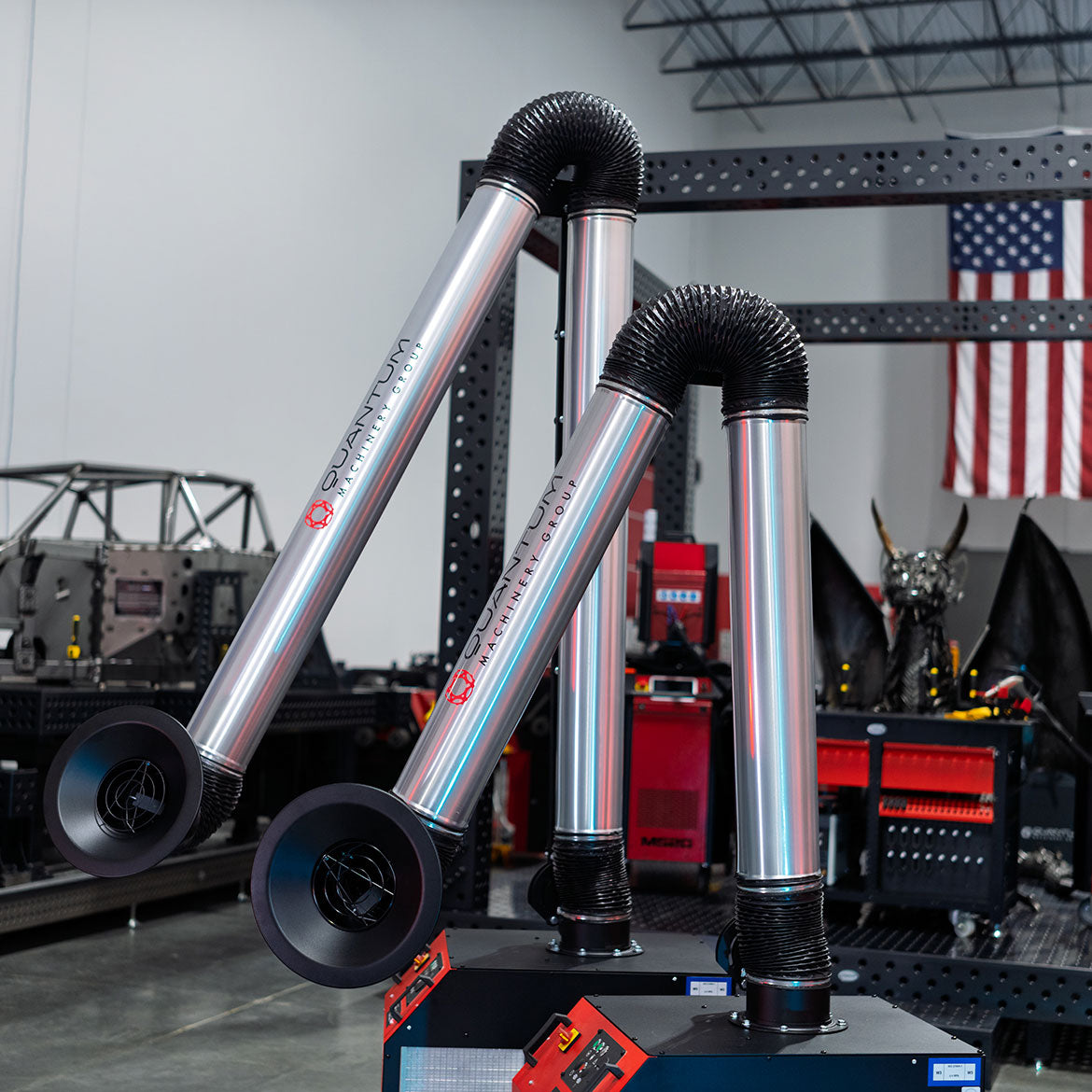

• Includes 10' Aluminum Extraction Arm (3m).
• W3-certified filtration efficiency greater than 99%.
• Mobile extraction platform.
• High-capacity cartridge filtration.
• Sintexx Plus nanofiber filter media.
• Integrated spark trap.
• Differential pressure monitoring.
• Clogged filter alarm.
• Easy-access manual filter cleaning.
• Dust collection drawer.
• Hour meter.

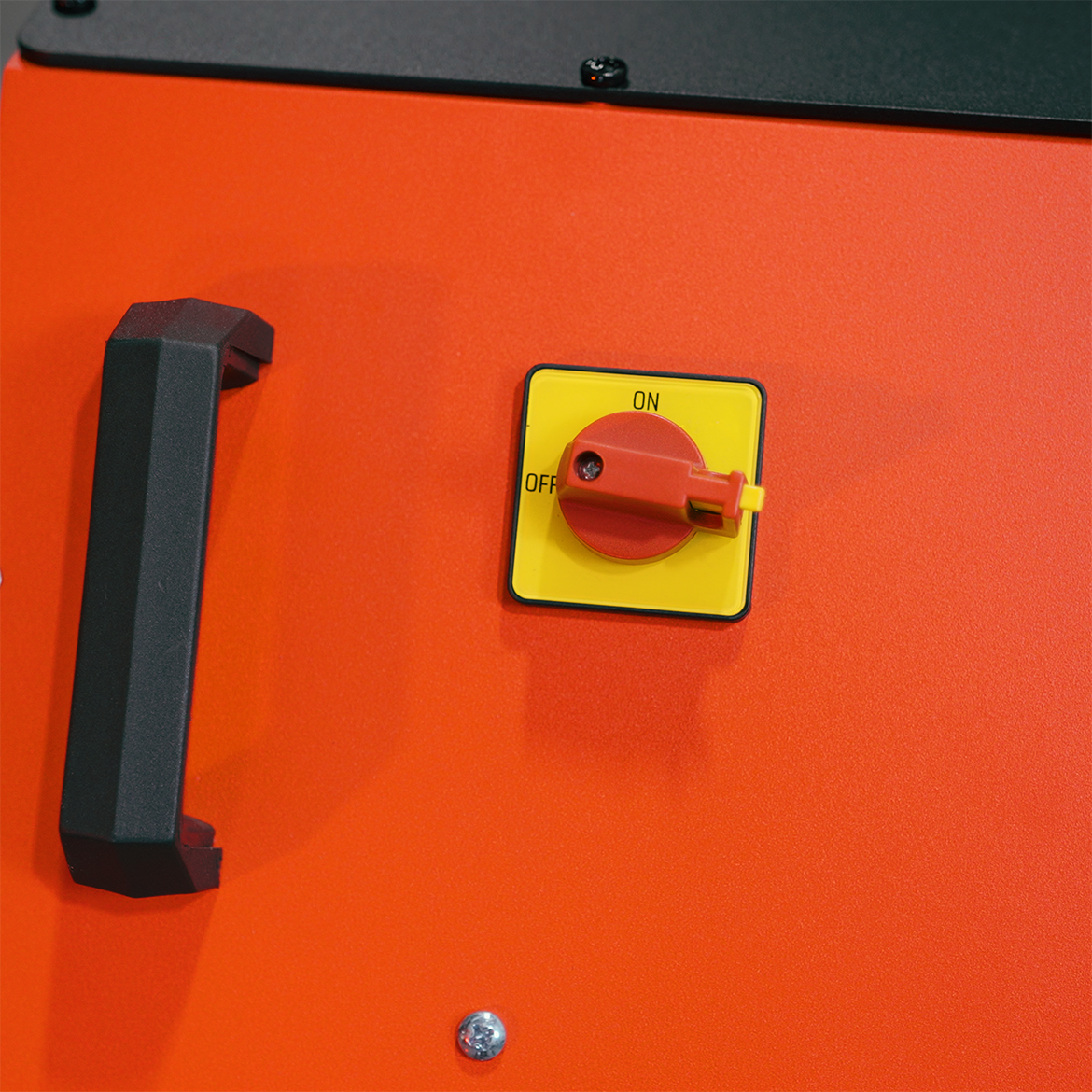

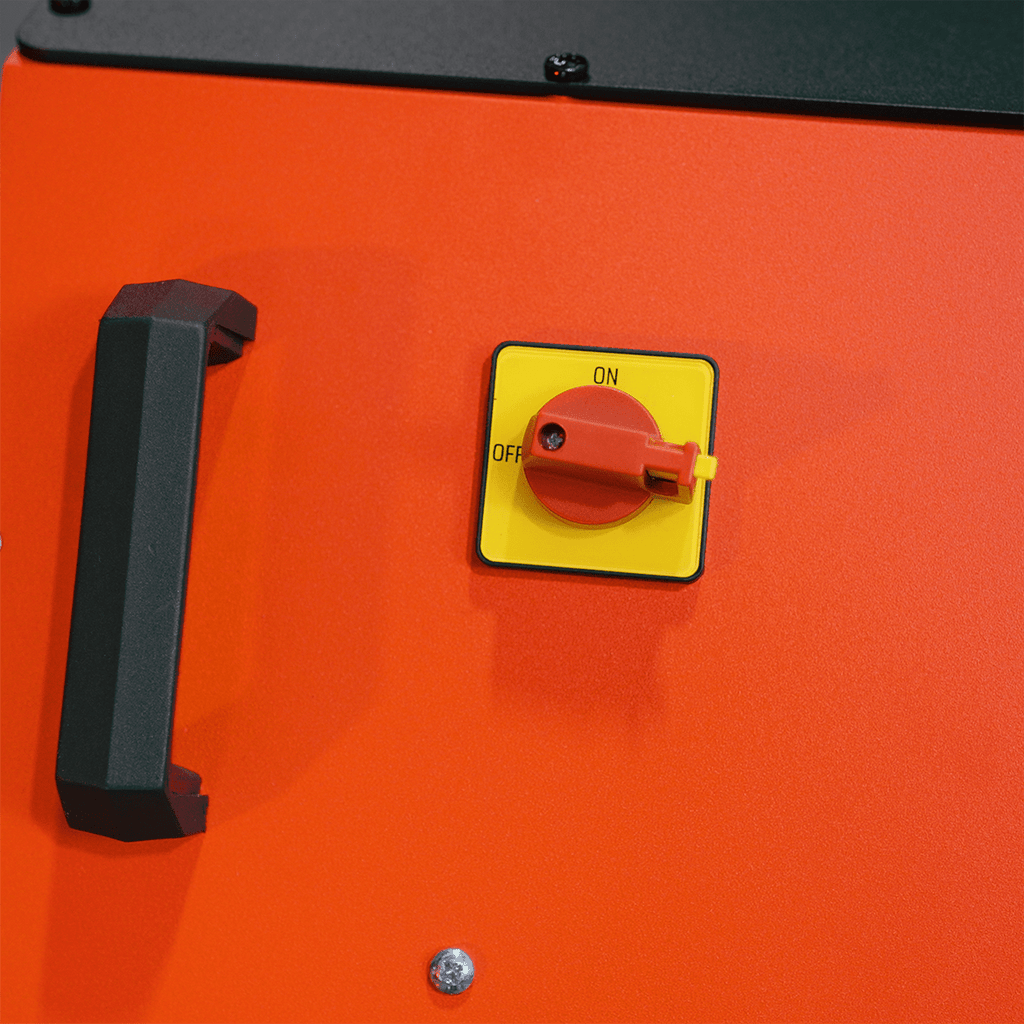

• Main power disconnect switch.
• PTFE-free filter media design.

Configuration

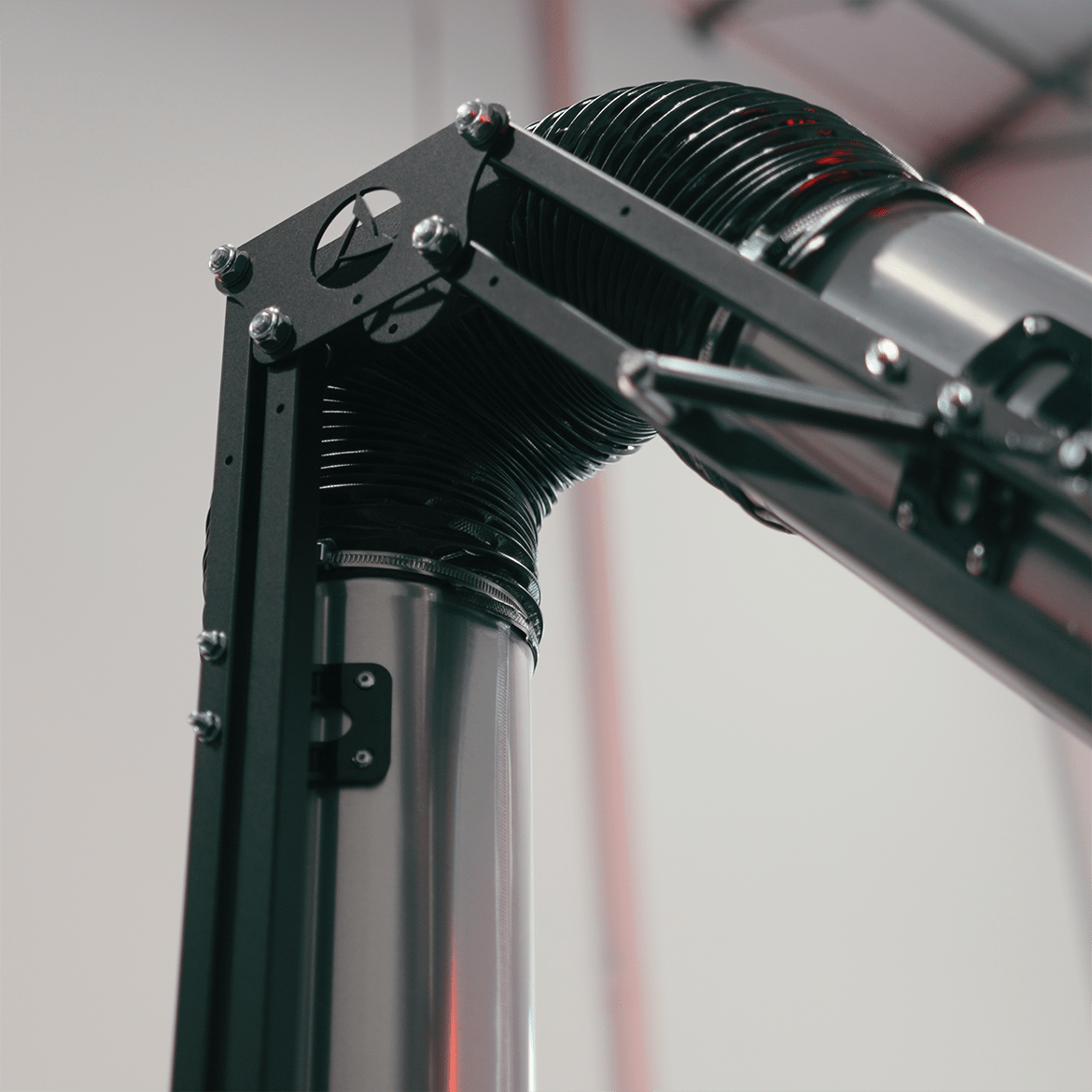

Included Arm: 10' Aluminum Extraction Arm (3m)

Technical Specifications

Fan Capacity: 1,471 CFM (2,500m³/h)

Extraction Capacity: 647 CFM (1,100m³/h)

Filtration Efficiency: W3 Certified >99%

Filter Area: 67.8 sq ft (6.3m²)

Filter Media: Sintexx Plus Nanofiber

Motor Power: 1.5 HP (1.1kW)

Voltage: 230V / 1 Phase / 50Hz*

Noise Level: 75 dB(A)

Dimensions: 22.1" x 30.1" x 29.1" (561 x 765 x 740mm)

Weight: 130 lbs (59kg)

*Verify final electrical configuration for North American installations before publication.

Important Operating Considerations

The MONO PLUS W3 is designed for:

• Dry welding fumes only.
• Daily welding applications.
• Medium-duty fabrication environments.

The unit is not suitable for oily fumes and is not approved for use in potentially explosive or hazardous atmospheres.

Built for Professional Daily Welding Fume Control

The AerService MONO PLUS W3 with 10' Aluminum Extraction Arm delivers professional-grade welding fume extraction for fabrication facilities requiring dependable airflow performance, stable hood positioning, and reliable daily operation. Combining W3-certified filtration, simplified maintenance, and an articulated aluminum extraction arm, this configuration provides an effective source-capture solution for a wide range of welding applications.
