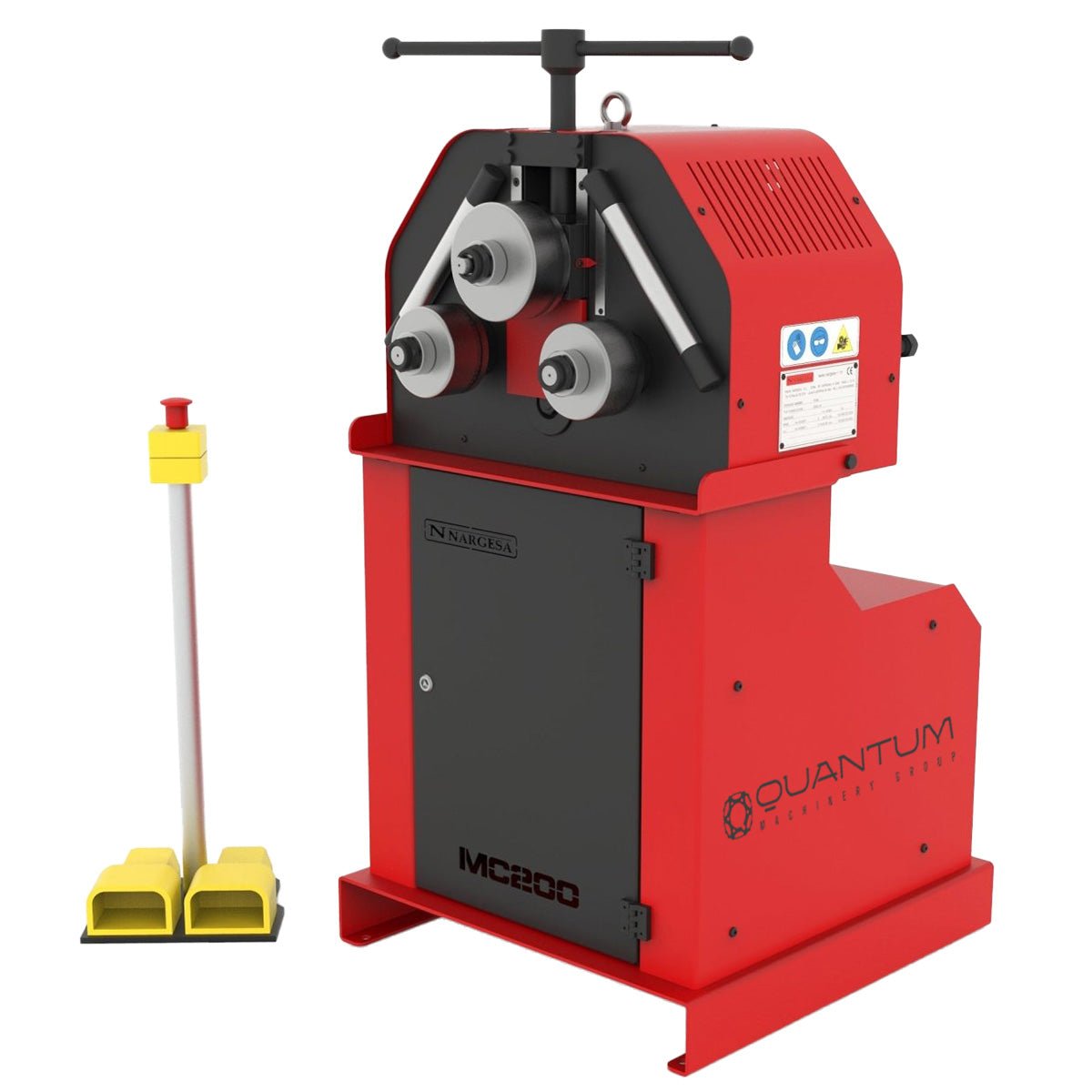

MC200: Roll Bender (Bend up to 2.5" O.D. Round Tube)

Sale price$11,060 Regular price$14,115
Save $3,055

Electrical Options: 220V / 1PH / 60Hz

WATCH THE VIDEO TO SEE EXACTLY HOW THE NARGESA MC200 ROLL BENDER WORKS ALONG WITH SOME OF IT’S FEATURES

The NARGESA MC200 Section and pipe bending Roll Bender. Our pipe bender MC200 is designed to minimize the manufacturing cost and provide maximum performance when bending pipes and profiles. It has been manufactured for different profiles such as flat bar or bar section, T-profile, rolling U-profile, bending angle, bending solid rod, both square and round types, spiral tube or even to perform square, rectangular or round pipe in different materials: iron, carbon steel, stainless steel, brass, copper, aluminum. The purpose of these bending operations varies from making greenhouses, tables, chairs, car guards, doors, windows, railings, fences up to countless metal products.

All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...

THE MC200 BENDING CAPACITIES

    • Round Tube: 2.5" x .120" with a Minimum Radius of 20" Inches
    • Square Tube: 2" x 2" x .120" with a Minimum Radius of 28" Inches
    • Angle (Leg-Out): 1.5" with a Minimum Radius of 17" Inches
    • Flat Bar (Easy Way): 3.15" x 0.75" with a Minimum Radius of 6" Inches
    • Flat Bar (Hard Way): 2" x 0.39" with a Minimum Radius of 12" Inches
  • Solid Round: 1.15" with a Minimum Radius of 6" Inches
  • Solid Square: 1.15" x 1.15" with a Minimum Radius of 8" Inches
  • C-Channel (Easy Way): 2.25" with a Minimum Radius of 12" Inches
  • C-Channel (Hard Way): 2.25" with a Minimum Radius of 12" Inches
  • T-Channel (Easy Way): 1.5" x 1.5" with a Minimum Radius of 8" Inches

STANDARD TOOLING CONFIGURATION:

The Nargesa MC200 Roll Bender is equipped with 9 standard pieces, by means of which the user can work all kinds of profiles. Square, Rectangular Tube, Square Bars, C-Channel, T-Channel, Angle, Flat Bar, and Edged Flat Bar. Adjustable rollers, by washers with the size of profile which allows us to make bending to different profile sizes.


TECHNICAL SPECS AND FEATURES OF THE MC200

    • Rollers Speed: 8 RPM
    • Diameter of Axes: 1.57" / 40mm
    • Useful Axes Length: 2.9" / 74mm
    • Motor Power: 1.1 KW / 1.5 HP
    • Dimensions: 32"L x 28"W x 52"H
    • Approx. Machine Weight: 750 lbs.
    • Millimeter scale for bending in the upper shaft.
    • Maximum Capacity for Bending Round Tube: 2.5" inches or 63.5 mm
    • Two working positions, horizontal and vertical in the same workbench.
    • Two drive rollers. The two lower rollers are motorized and knurled for better grip.
    • Manufacturer's Warranty: 3 Years on All Parts (Fulfilled by Quantum Machinery Group.)
  • Lower bench palletized to easily transport the machine to the workplace or store it in case of lacking space.
  • Correction rollers on the sides to control the bending deformation when making spirals and spiral staircases.
  • Bending regulation by the upper shaft, which allows to curve tube and profile dimensions and profiles of large diameter without deformation.
  • Secure transmission by using flat hardened pinions.
  • Base cupboard for rollers and accessories.
