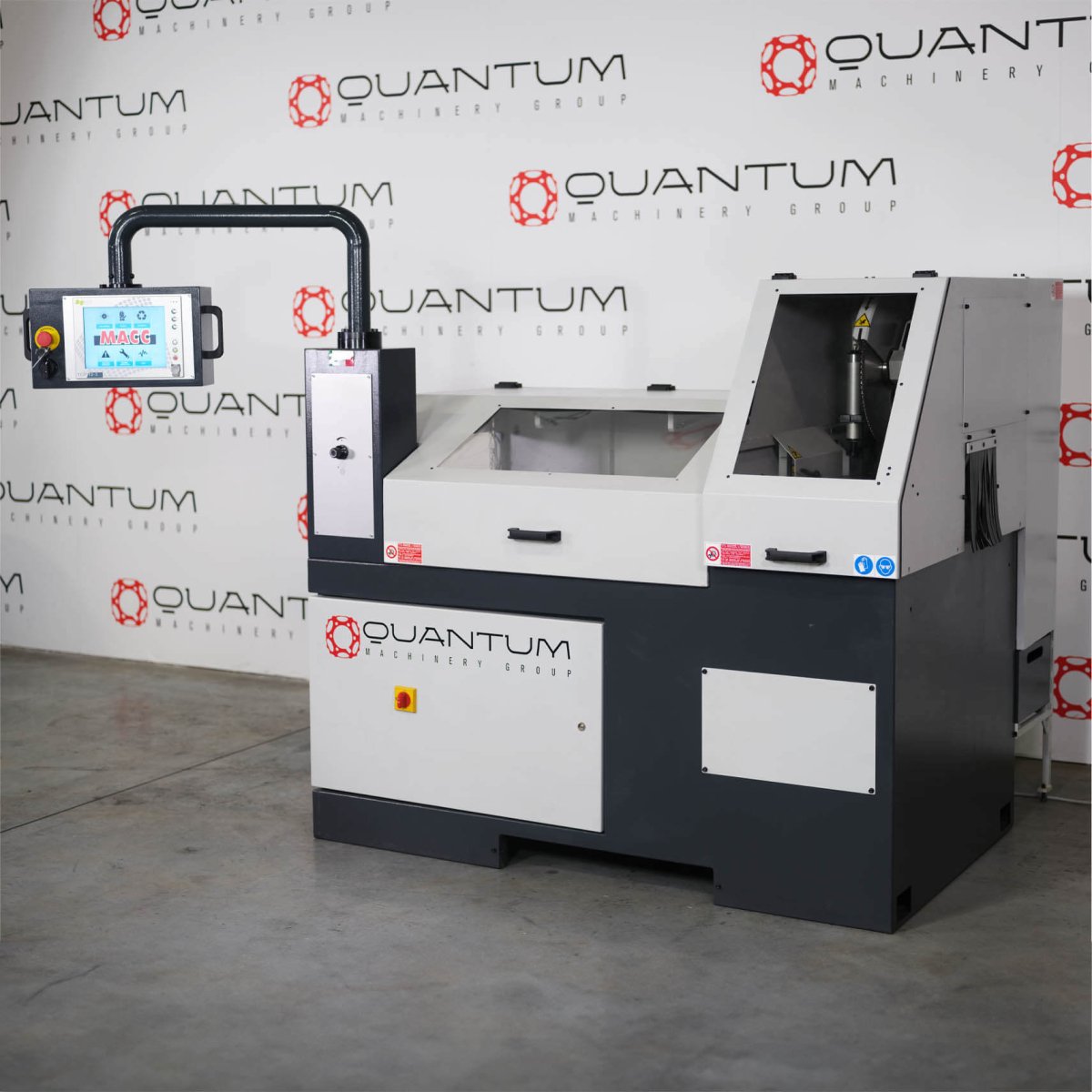

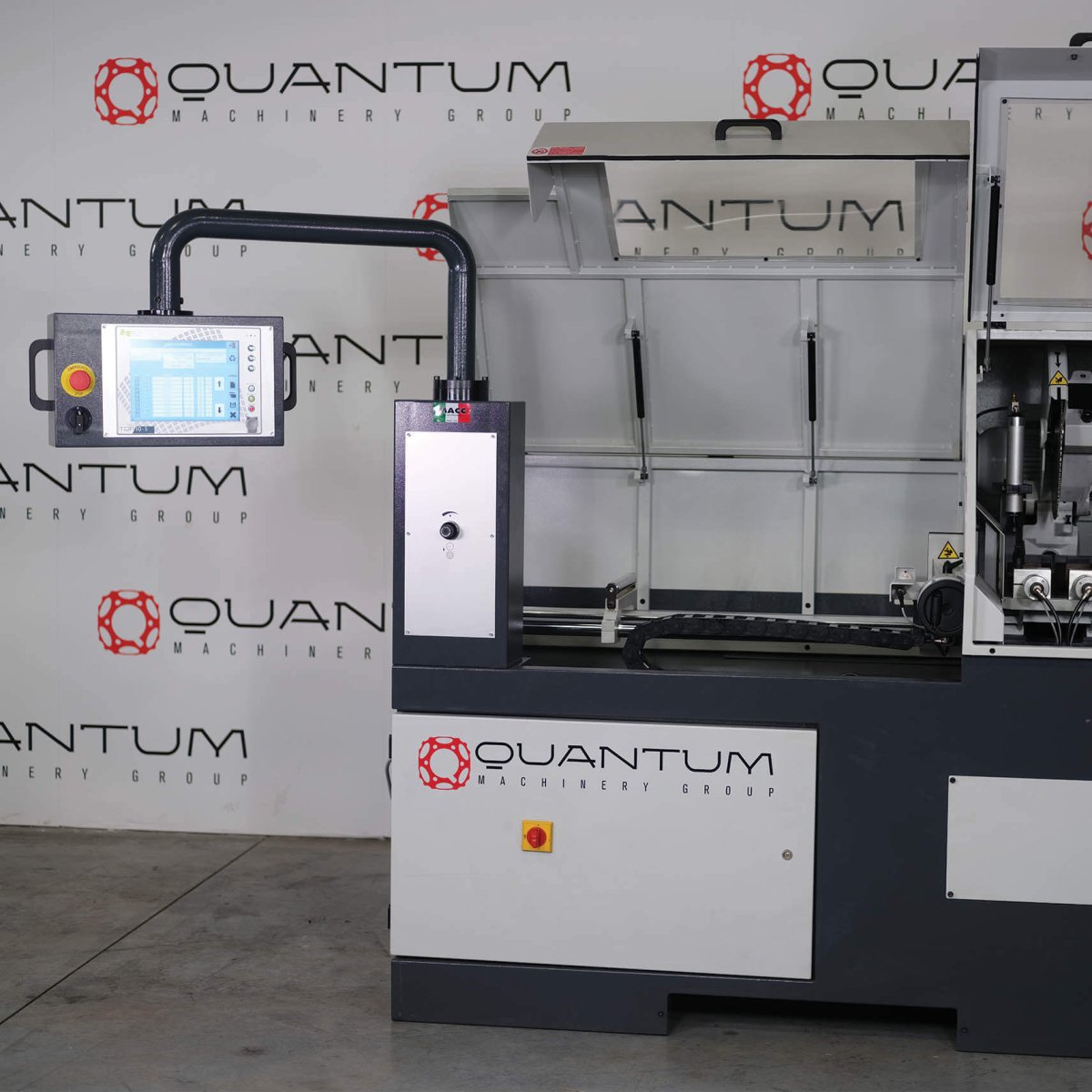

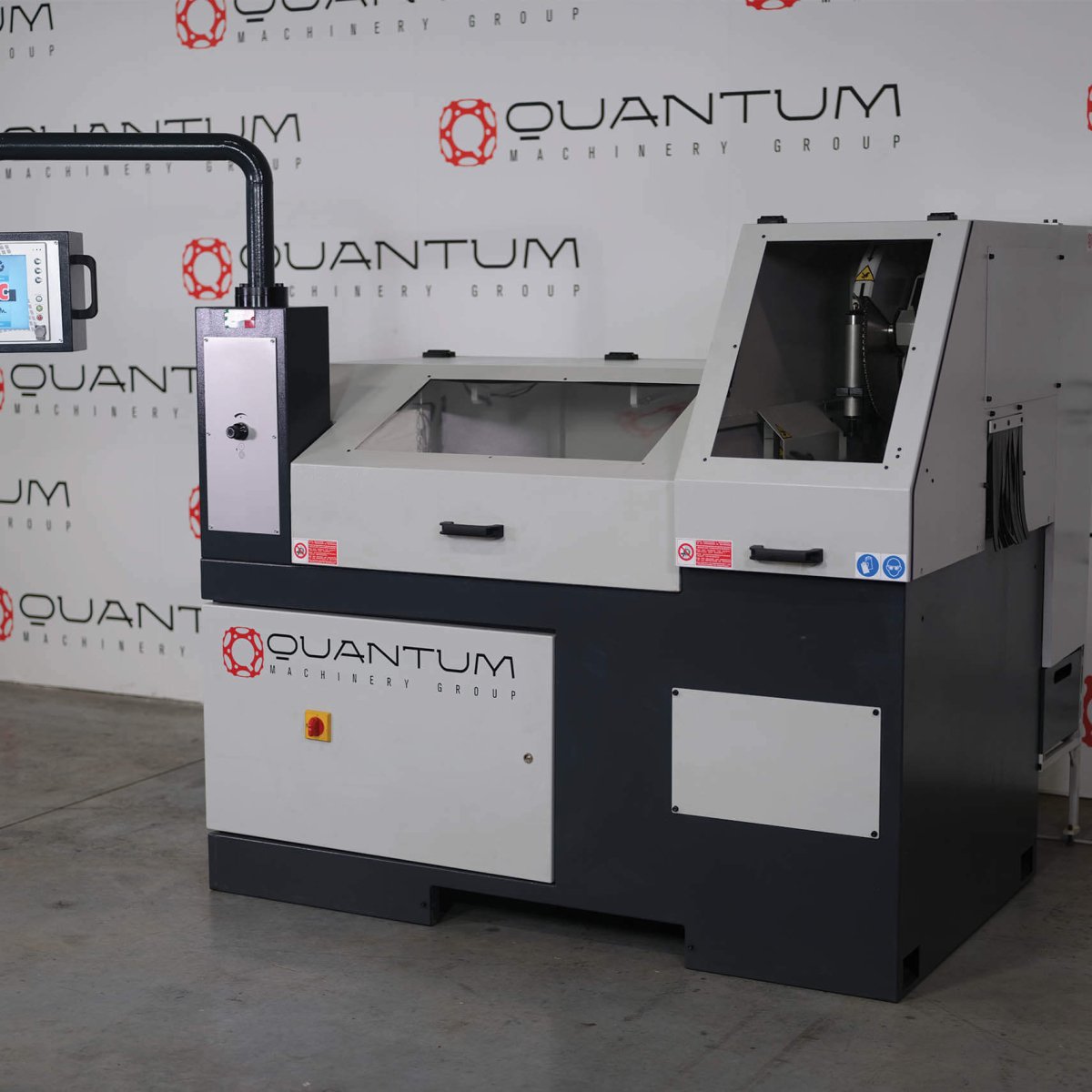

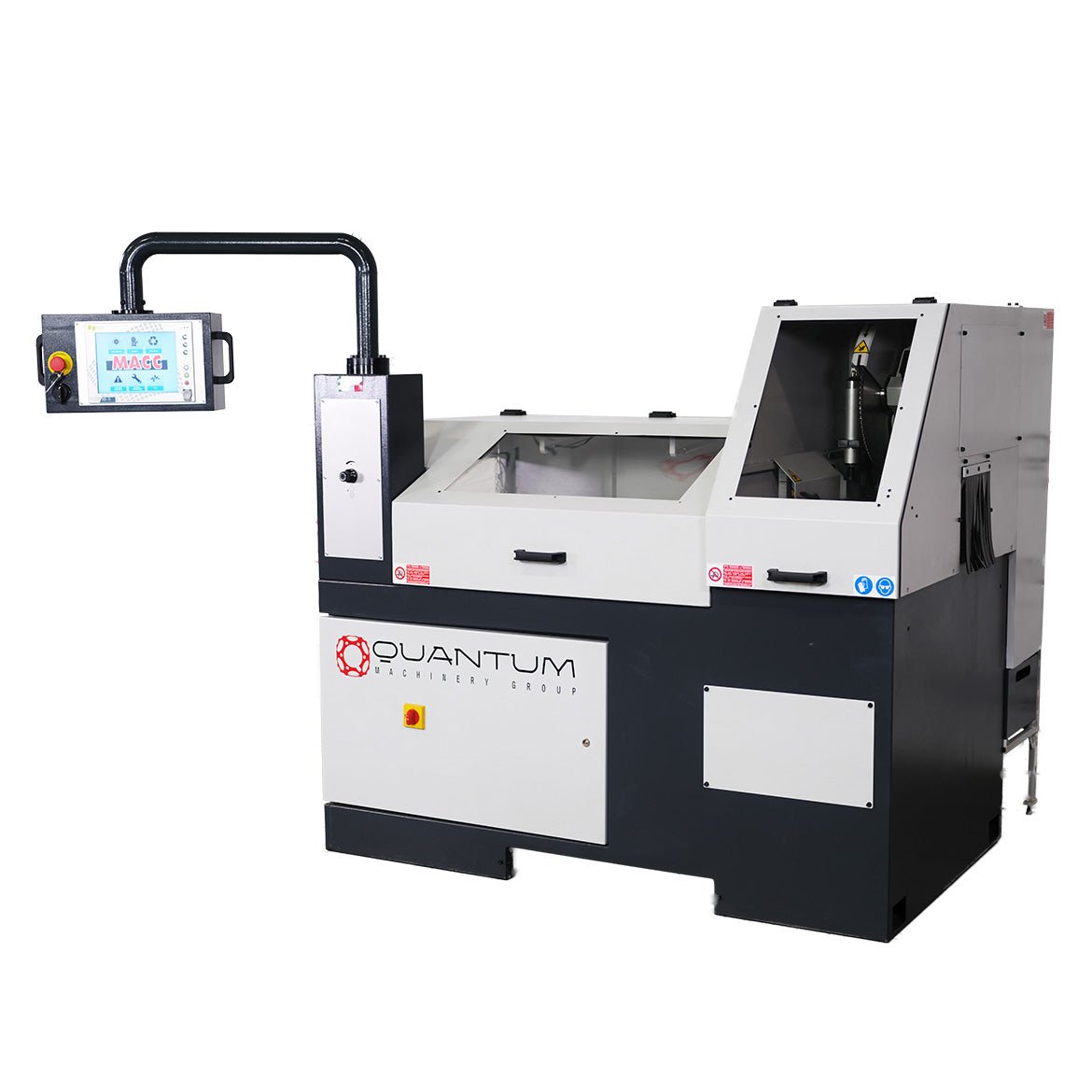

TA 400-A: 15.75" Fully-Automatic Non-Ferrous, Aluminum Cutting Saw

The TA 400 A is a fully automatic non-ferrous circular cold saw designed exclusively for straight, 90° cutting of aluminum profiles in production environments where consistency, safety, and throughput are required. Its automated cutting cycle, rigid fixed-head design, and stable clamping system deliver clean, repeatable cuts while minimizing operator involvement.

In standard cold saw sizing practice, the 400mm blade capacity places this machine in the 16" class. This positions the TA 400 A within a widely recognized blade size range, allowing straightforward blade selection while providing the cutting envelope required for larger aluminum extrusions and profiles.

- Performs fully automatic straight-cut (90°) cutting cycles for consistent production output.
- Designed exclusively for non-ferrous materials such as aluminum and light alloys.
- Operates within the widely recognized 16" blade class for straightforward blade sourcing.
- Maintains cut quality through a rigid fixed head and bearing-supported blade shaft.
- Reduces operator workload while improving safety and repeatability in production cutting.

Operating Cycle:

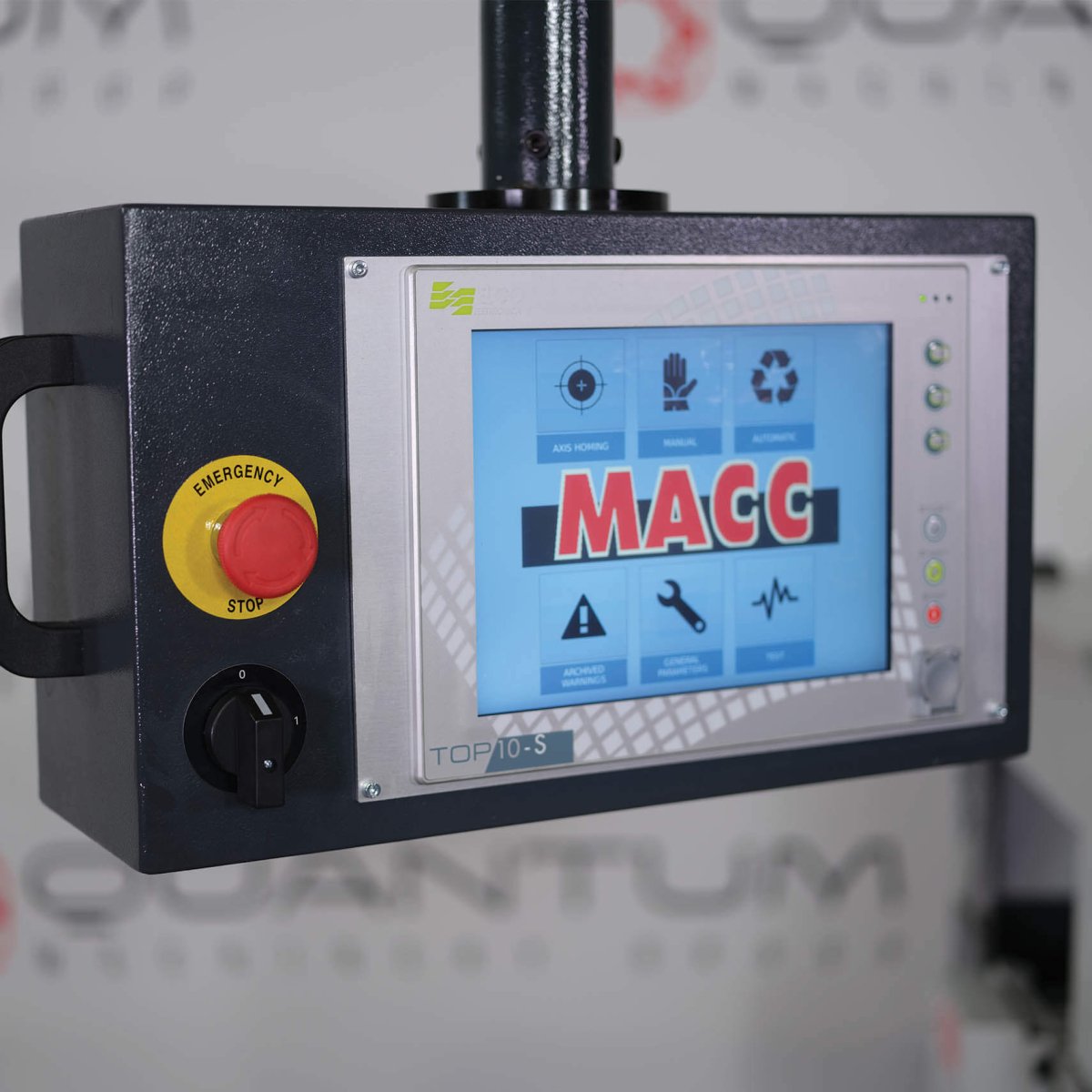

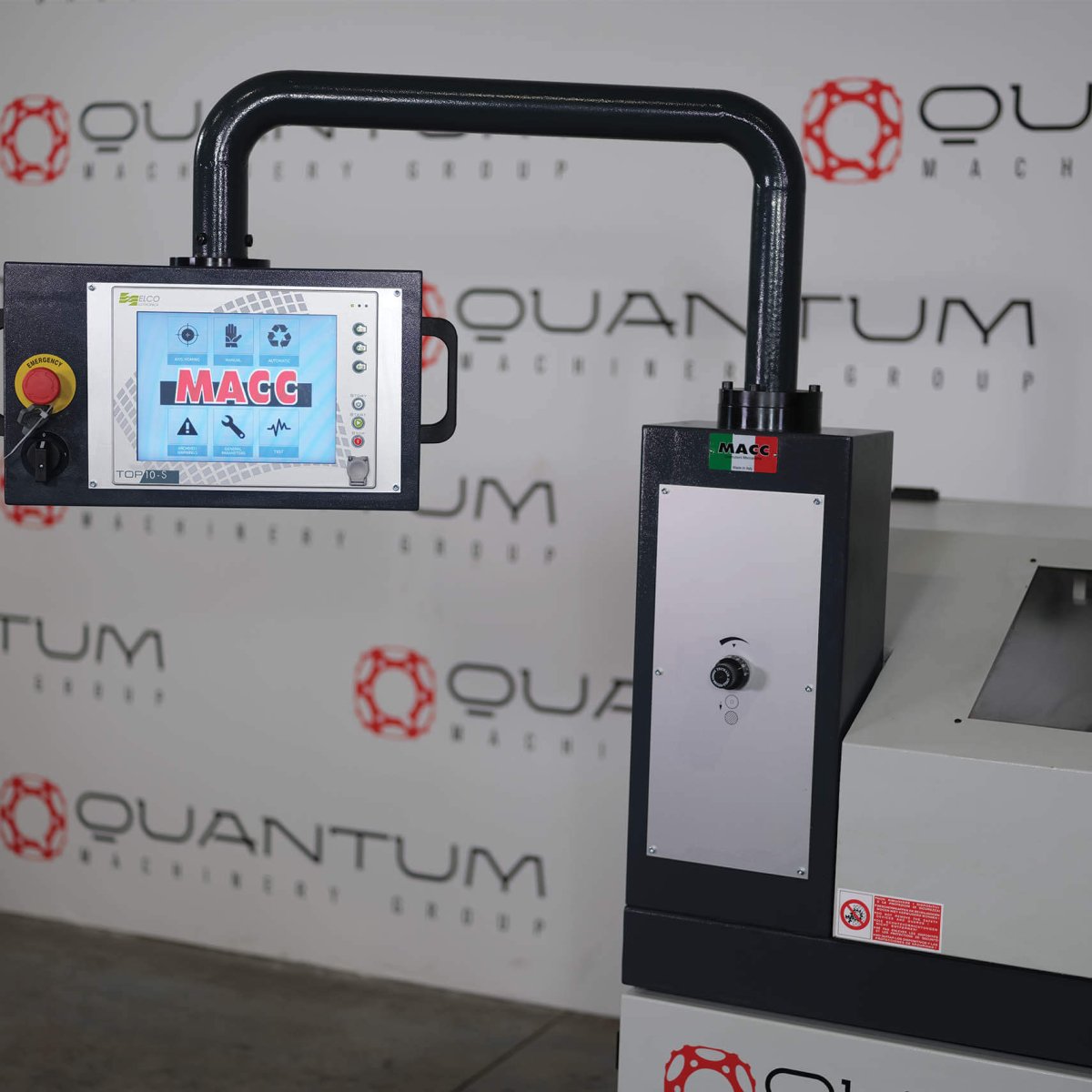

Cycle start is initiated by pressing the start button. Once activated, the machine performs the following operations automatically during each cutting cycle:
1. Automatic closing of the clamping vice and activation of the blade motor.
2. Cutting head begins the controlled down-stroke.
3. The cut is completed and the head returns to its initial position while the blade motor stops.
4. The vice opens, releasing the material.
(REPEAT)

Cutting Capacities:
- Round Tube at 90°: 2.36" (60mm).

- Rectangular Profile at 90°: 3.94" × 7.09" (100mm × 180mm).

Key Features:
- Fully automatic straight-cut cutting cycle improves consistency and throughput.
- Fixed cutting head design ensures rigidity and repeatable cut geometry.

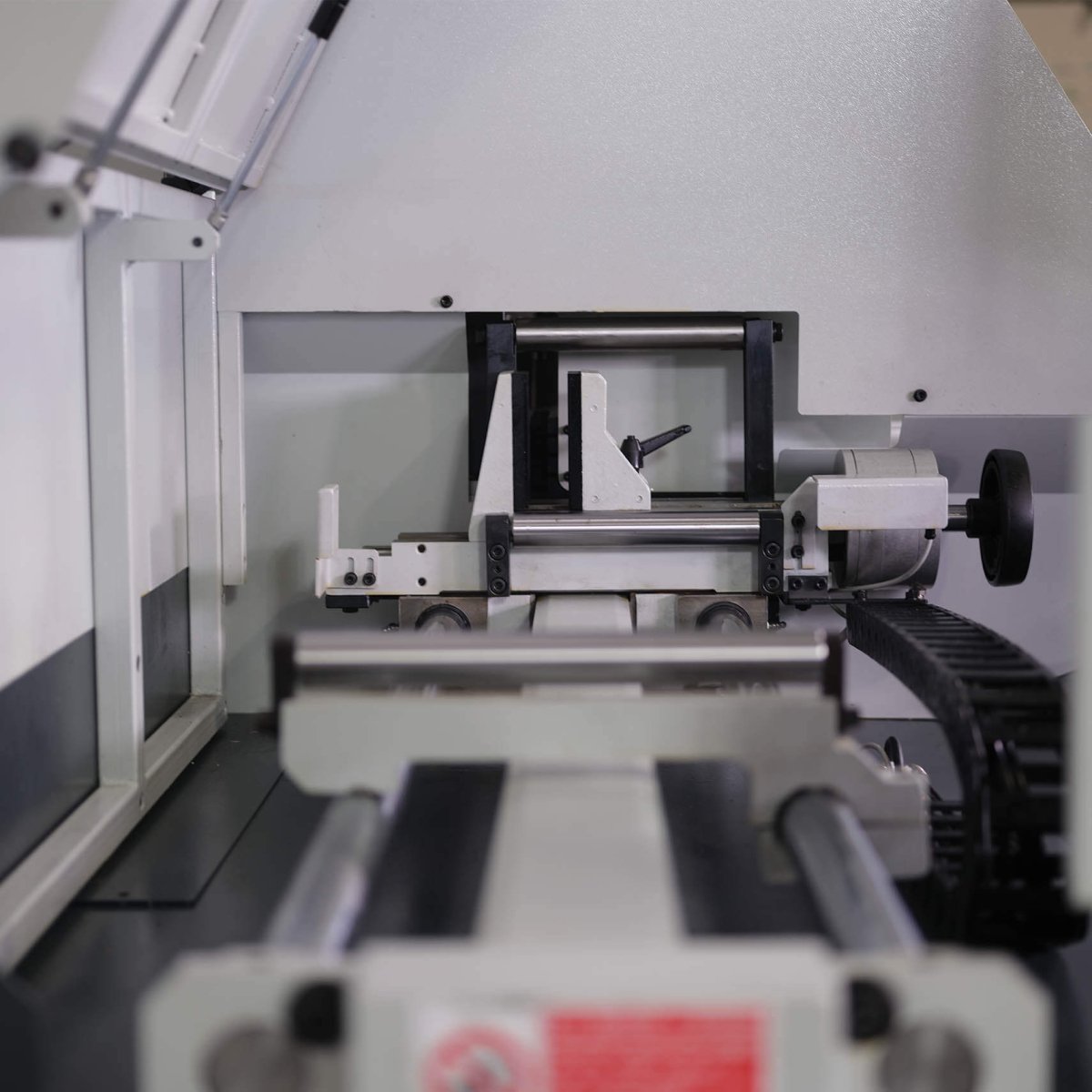

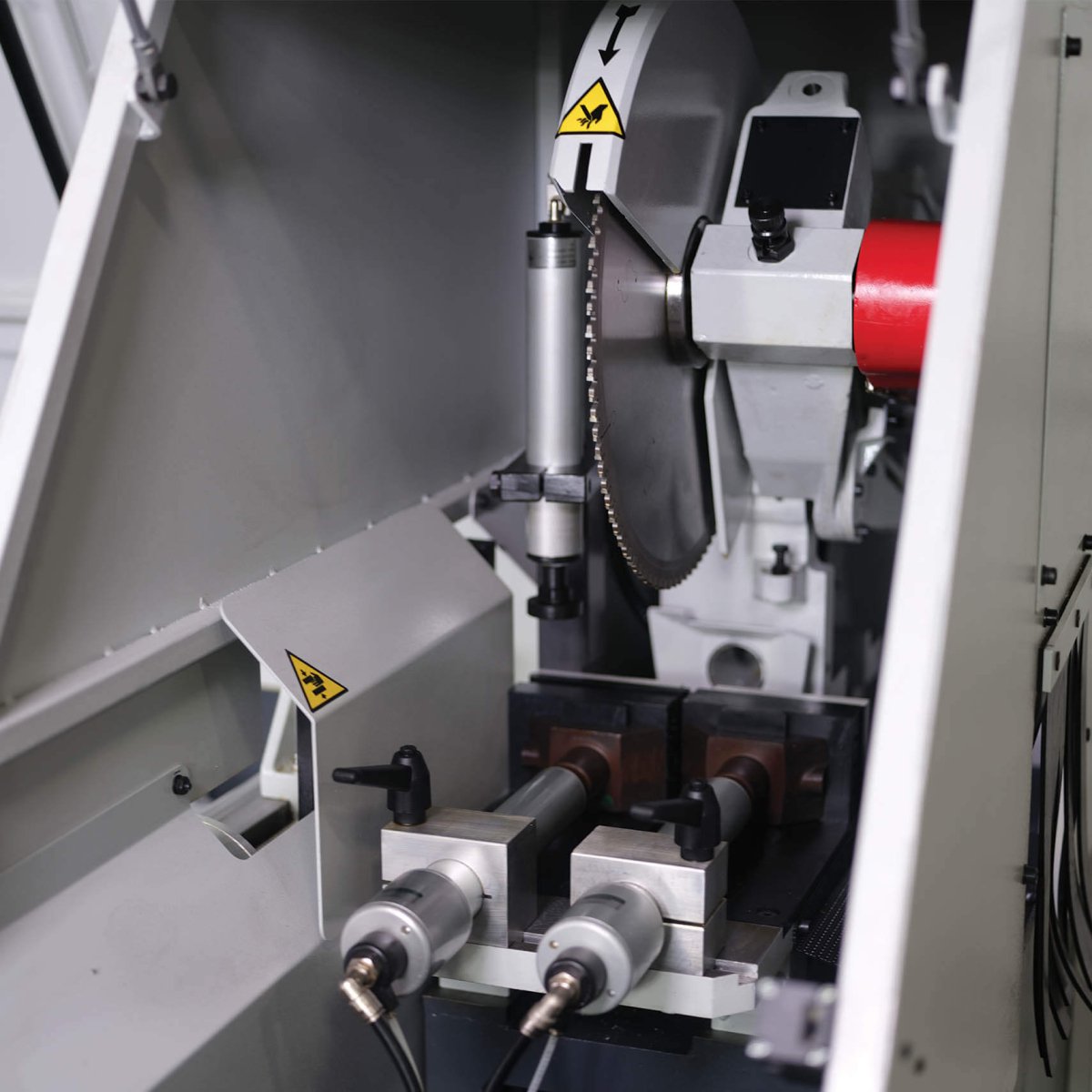

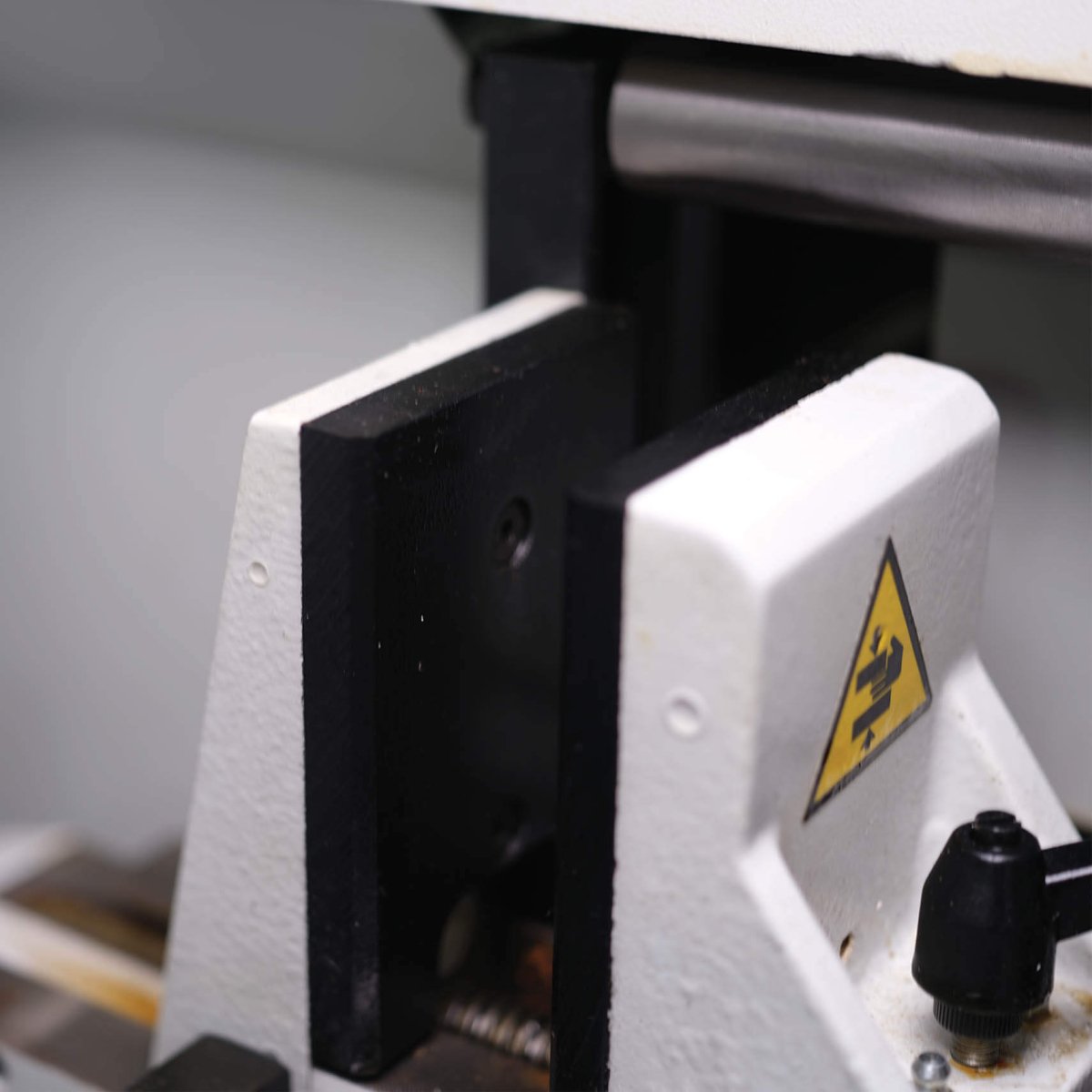

- Pneumatic clamping system provides consistent holding force during each cycle.
- Blade shaft mounted on precision bearings supports smooth, stable cutting action.

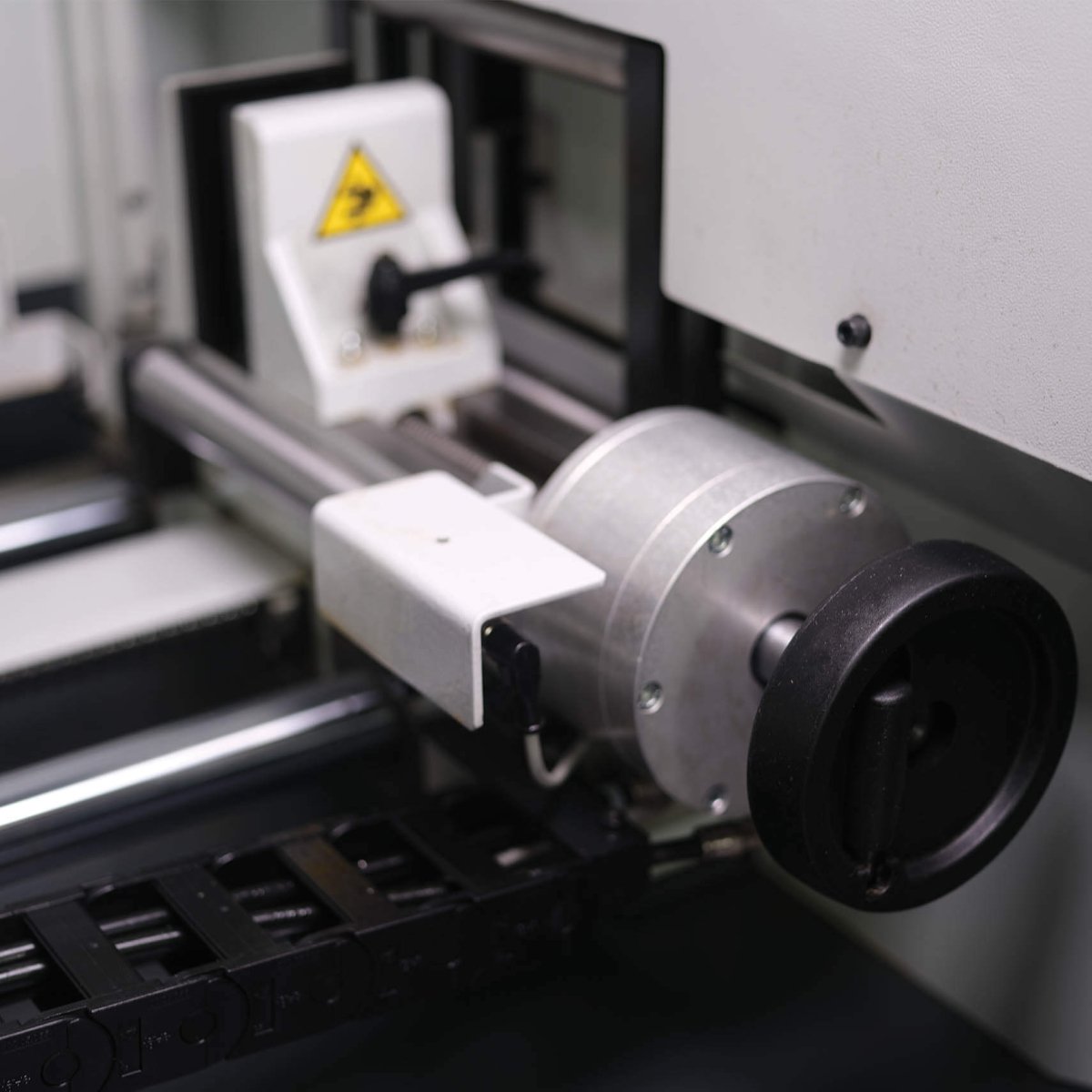

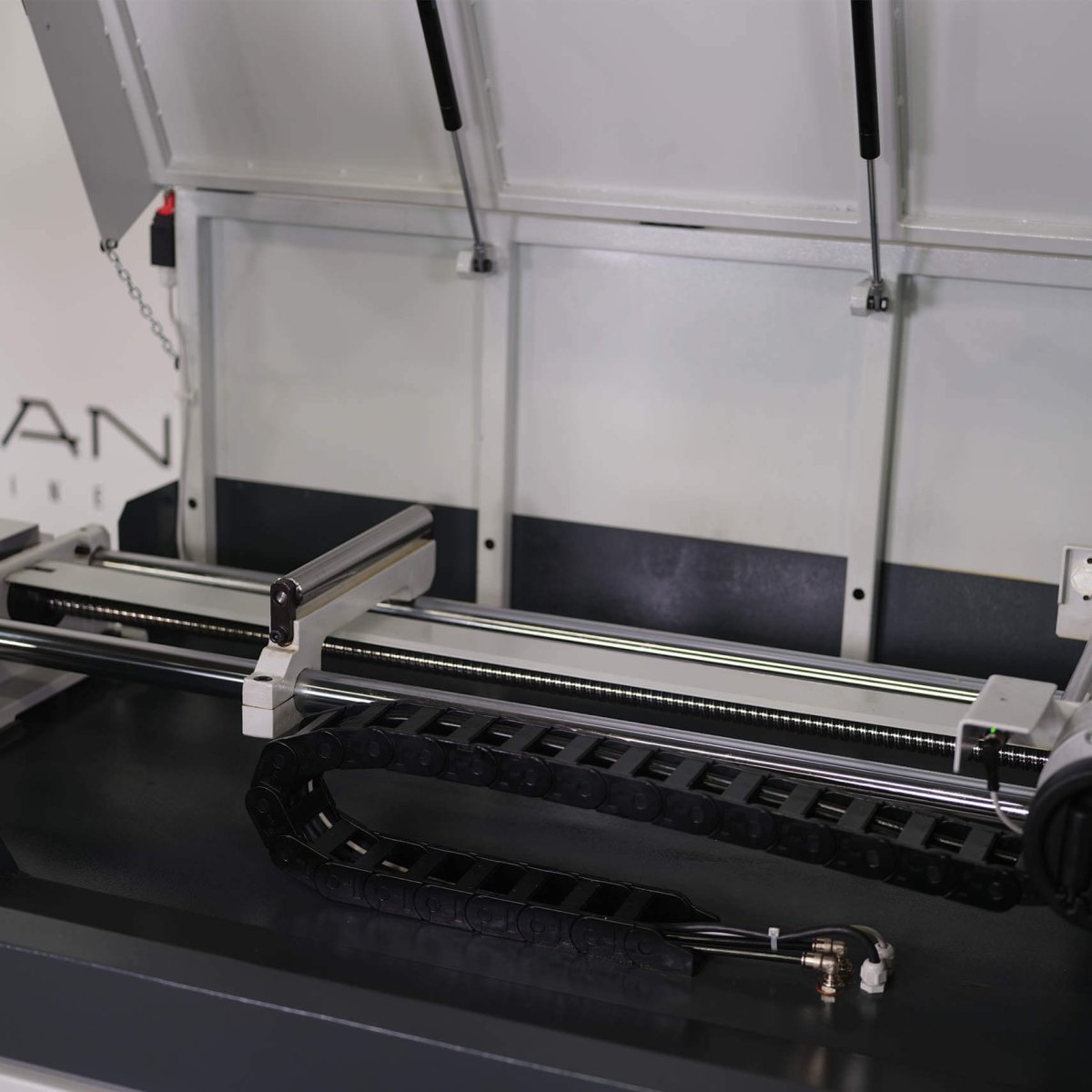

- Integrated bar support arm and bar stop support repeatable length cutting.

Specifications:
- Motor power: 2.2 kW.
- Blade speed: 3,000 rpm.
- Blade diameter (actual): 15.75" (400mm).
- Overall dimensions: 59.06" × 43.31" × 35.43" (1500mm × 1100mm × 900mm).
- Approximate weight: 397 lbs. (180kg).

Common Uses:
The TA 400 A is used in aluminum extrusion processing and production environments performing repetitive straight cuts where accuracy, surface finish, and operator safety are critical. Its fully automatic, fixed-angle design makes it ideal for high-volume cutting of non-ferrous profiles without the complexity of miter adjustment.
