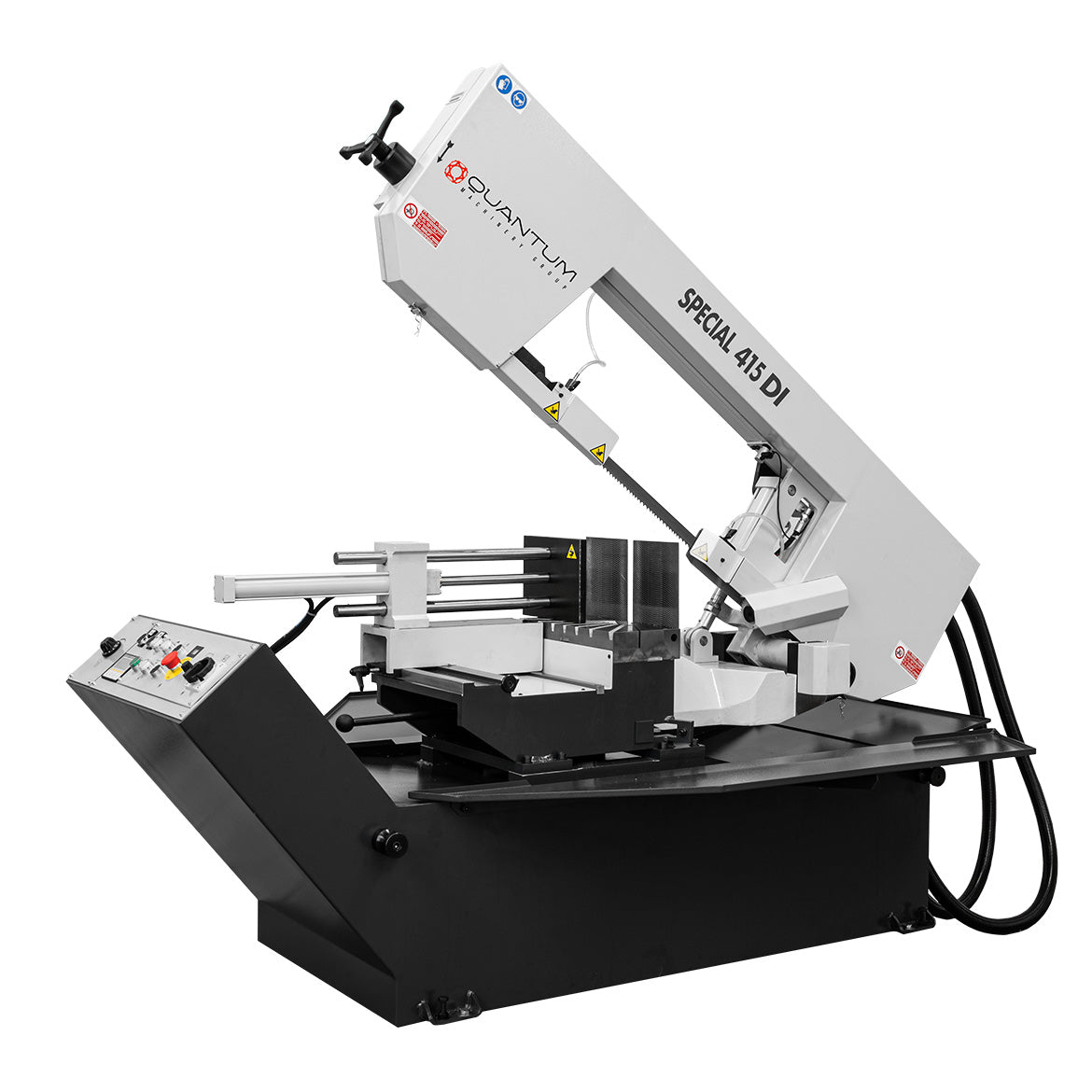

S 415 DI: Semi-Automatic Band Saw with Variable Speed Inverter

The S 415 DI is a semi-automatic horizontal band saw designed for cutting large steel tubes, profiles, and solid bars in fabrication and industrial environments where improved productivity and controlled automation are required. Its rigid saw frame, hydraulically controlled cutting motion, and automatic head return deliver consistent cut quality while reducing operator effort between cycles.

The DI operating configuration provides a semi-automatic cutting cycle using hydraulic control for both the cutting descent and the return of the saw head to its raised position. This balances productivity and control while maintaining a straightforward, serviceable machine design.

- Semi-automatic band saw operation with hydraulic cutting descent and hydraulic head return.
- Variable speed inverter allows blade speed adjustment to match material type and section size.
- Supports straight and miter cutting for structural and heavy fabrication applications.
- Reduces operator fatigue by automating head movement between cuts.
- Heavy-duty saw frame and secure vice clamping support stable cutting of large sections.

Operating Cycle:
Cycle start is initiated by the operator after material positioning and clamping. Once activated, the machine performs the following operations automatically during each cutting cycle:
1. Closing of the material vice and activation of the blade motor.
2. Cutting head descends under hydraulic control, regulating cutting pressure throughout the cut.
3. The cut is completed and the blade motor stops.
4. The cutting head returns automatically to the raised position under hydraulic control.
(REPEAT)

Cutting Capacities:
- Round Material at 90°: 16.34" (415mm).
- Round Material at 45°: 11.81" (300mm).

- Square Material at 90°: 15.75" × 15.75" (400mm × 400mm).
- Square Material at 45°: 11.81" × 11.81" (300mm × 300mm).

- Rectangular Material at 90°: 15.75" × 11.81" (400mm × 300mm).
- Rectangular Material at 45°: 11.81" × 11.81" (300mm × 300mm).

Key Features:
- Semi-automatic cutting cycle improves throughput while maintaining operator oversight.
- Hydraulic-controlled cutting descent provides smooth, consistent cutting action.
- Automatic hydraulic head return eliminates manual lifting between cuts.
- Variable speed inverter enables precise blade speed control across a wide material range.
- Integrated coolant system supports blade life and cut surface quality.

Specifications:
- Motor power: 3.0 kW.
- Blade speed: Variable via inverter.
- Blade dimensions: 160.63" × 1.34" × 0.042" (4080mm × 34mm × 1.1mm).
- Overall dimensions: 86.61" × 37.40" × 51.18" (2200mm × 950mm × 1300mm).
- Approximate weight: 1,565 lbs. (710kg).

Common Uses:
The S 415 DI is used in heavy fabrication, structural steel processing, and industrial production environments where larger material sizes are cut repeatedly with reduced manual handling. Its semi-automatic operation makes it a strong choice for shops seeking higher productivity than manual band saws while retaining operator control over the cutting process.
