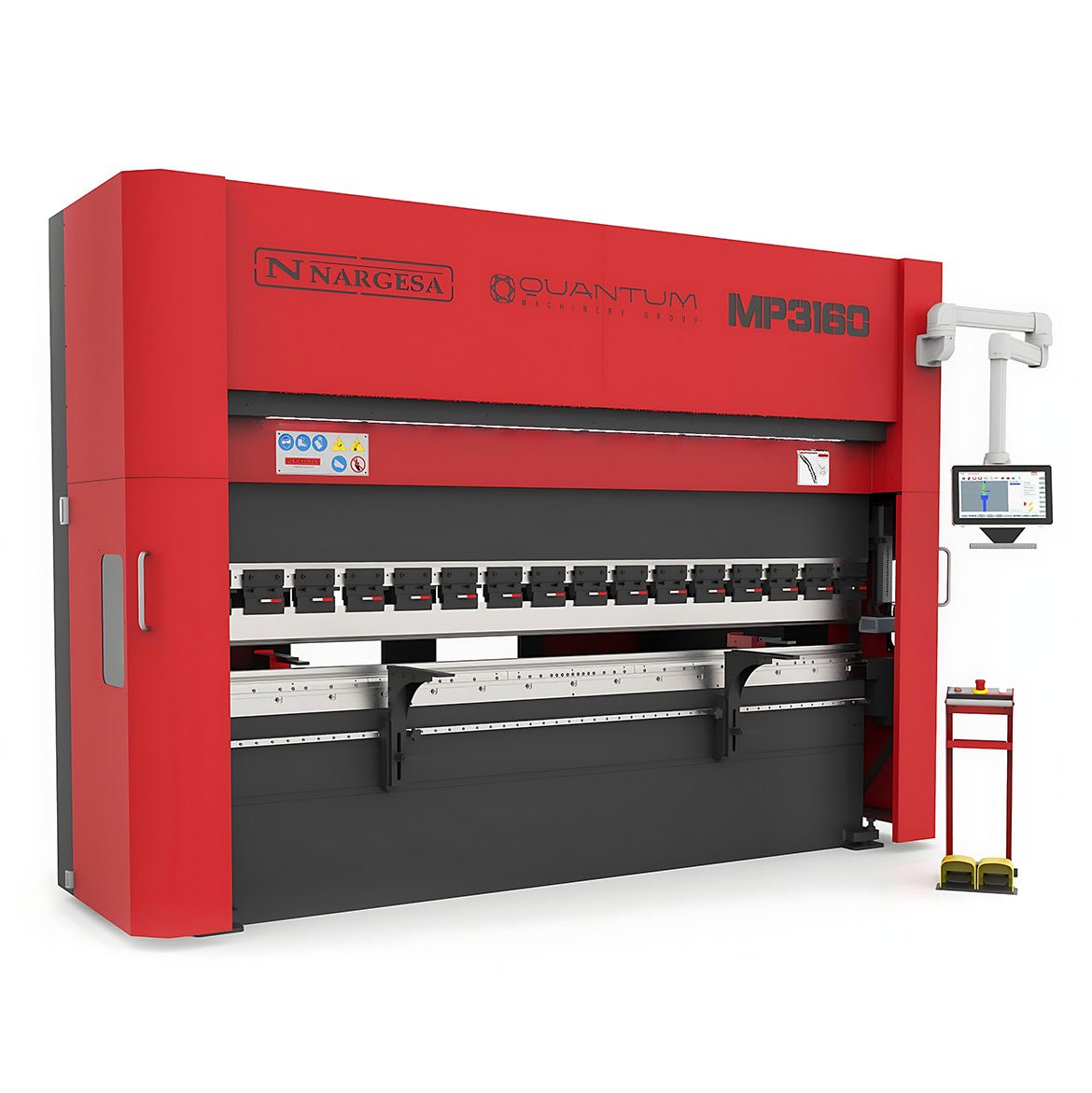

MP3160CNC: 10 Foot x 180 Ton Hydraulic Press Brake

The MP3160CNC is a high-capacity hydraulic CNC press brake designed for sheet metal fabrication environments that require increased bending length, higher forming force, and repeatable CNC-controlled accuracy. It is intended for professional fabrication shops and production environments where long parts, thicker materials, and consistent results are required.

Constructed from a welded, stabilized, and fully machined steel monoblock frame, the MP3160CNC is engineered to control deflection during high-force bending operations. Combined with advanced CNC control and electronic compensation systems, the machine maintains consistent bend angles and flange dimensions across the full working length.

- Designed for high-capacity CNC-controlled bending operations.
- Rigid monoblock frame minimizes deflection under higher forming loads.
- CNC-controlled axes support repeatable, multi-bend long parts.
- Electronic compensation improves consistency across extended bending lengths.
- Suitable for production, structural, and repeat fabrication environments.

CNC Control – ESA S630:
The MP3160CNC is equipped with the ESA S630 CNC control, developed specifically for press brake applications. The control manages bending sequences, axis positioning, and pressure regulation to reduce setup time and ensure consistent results across repeated jobs.

- 10" color touch-screen CNC interface.
- Graphical and numerical programming modes.
- 2D bending simulation with collision detection.
- Automatic bend force and sequence calculation.
- Program storage for repeat production work.
- Supports Y, X, R, and Z axis control.
- Ethernet and USB connectivity for program transfer and diagnostics.

Why Choose the MP3160CNC:
The MP3160CNC builds directly on the MP1500CNC platform by increasing tonnage and working length while maintaining the same CNC accuracy and control philosophy. It allows larger and thicker parts to be formed without sacrificing repeatability or setup efficiency.

- Expands bending capacity for longer and thicker components.
- Maintains consistent bend accuracy across extended part lengths.
- Reduces setup time compared to manual or NC press brakes.
- Improves repeatability for production and structural applications.
- Supports complex parts with multiple bends and higher force requirements.

Working Capacities:
All bending capacities depend on material type, thickness, tooling selection, and bending method.

- Hydraulic bending force: 160 metric tons (≈176 U.S. tons).
- Total bending length: 122.05" (3100mm).
- Inner bending length: 103.54" (2630mm).
- Maximum punch stroke: 8.66" (220mm).
- Throat depth: 15.75" (400mm).

Standard Machine Features:
- Hydraulic press brake with stabilized welded steel frame.
- Promecam punch clamping and die guide system.
- CNC-controlled vertical bending axis (Y axis).
- Servo-driven backgauge with CNC-controlled X axis.
- Manual R and Z axis adjustment.
- Electronic chassis bending compensation system.
- Optical encoder feedback for precise vertical positioning.
- Laser safety system with electronic muting.
- LED lighting in the bending zone.
- Front support arms with linear guides.

Specifications:
- Machine type: Hydraulic CNC press brake.
- Rated bending force: 160 metric tons (≈176 U.S. tons).
- CNC control: ESA S630.
- Backgauge travel (X axis): 23.62" (600mm).
- Main motor power: 20 HP (15kW).
- Electrical supply: 220 Volt / 3 Phase / 60Hz or 480 Volt / 3 Phase / 60Hz.
- Approximate weight: 26,235 lbs. (11,900kg).

Common Uses:
The MP3160CNC is used for precision bending of long and heavy sheet metal components such as panels, frames, structural parts, enclosures, and formed assemblies. It is well suited for fabrication environments where higher tonnage and longer bending lengths are required without sacrificing CNC-controlled accuracy.

Warranty:
Nargesa machines are built for long-term industrial service and are supported by an industry-leading warranty program. Each machine includes a standard 6-month warranty covering defective components. By registering the machine on Nargesa.com, customers extend this coverage to a full 3-year warranty on defective parts. The warranty covers replacement of defective components only and does not include labor, technical assistance, or travel.

System Configuration & Full Quotation:
The MP3160CNC is configured based on material range, tooling selection, axis configuration, and production requirements. To ensure proper configuration and accurate pricing, tooling and options are quoted as part of a complete machine package. To request a full quotation and application review, call (704) 703-9400 or email Sales@QuantumMachinery.com.
