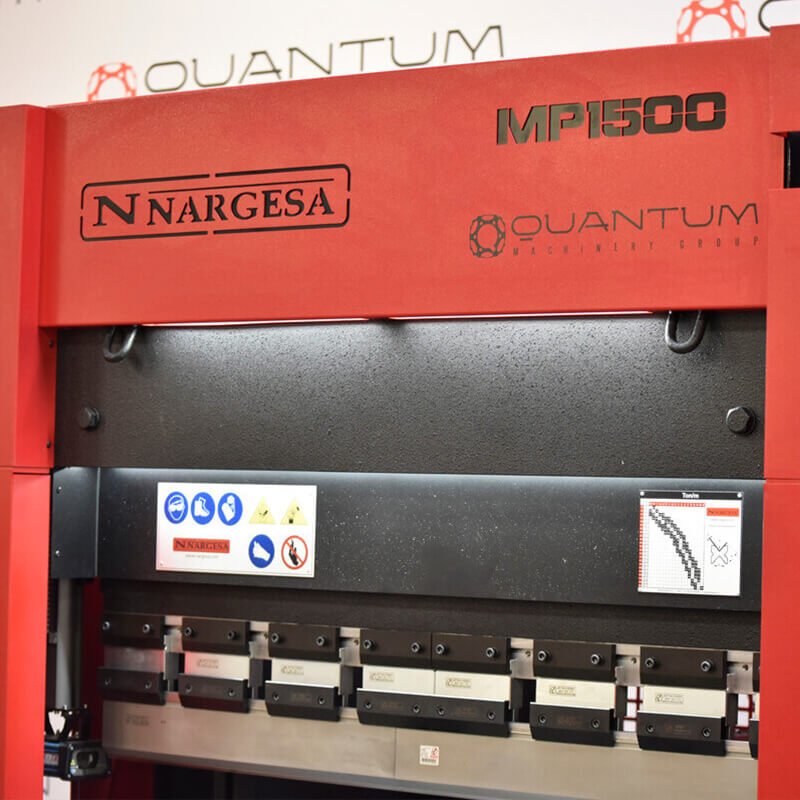

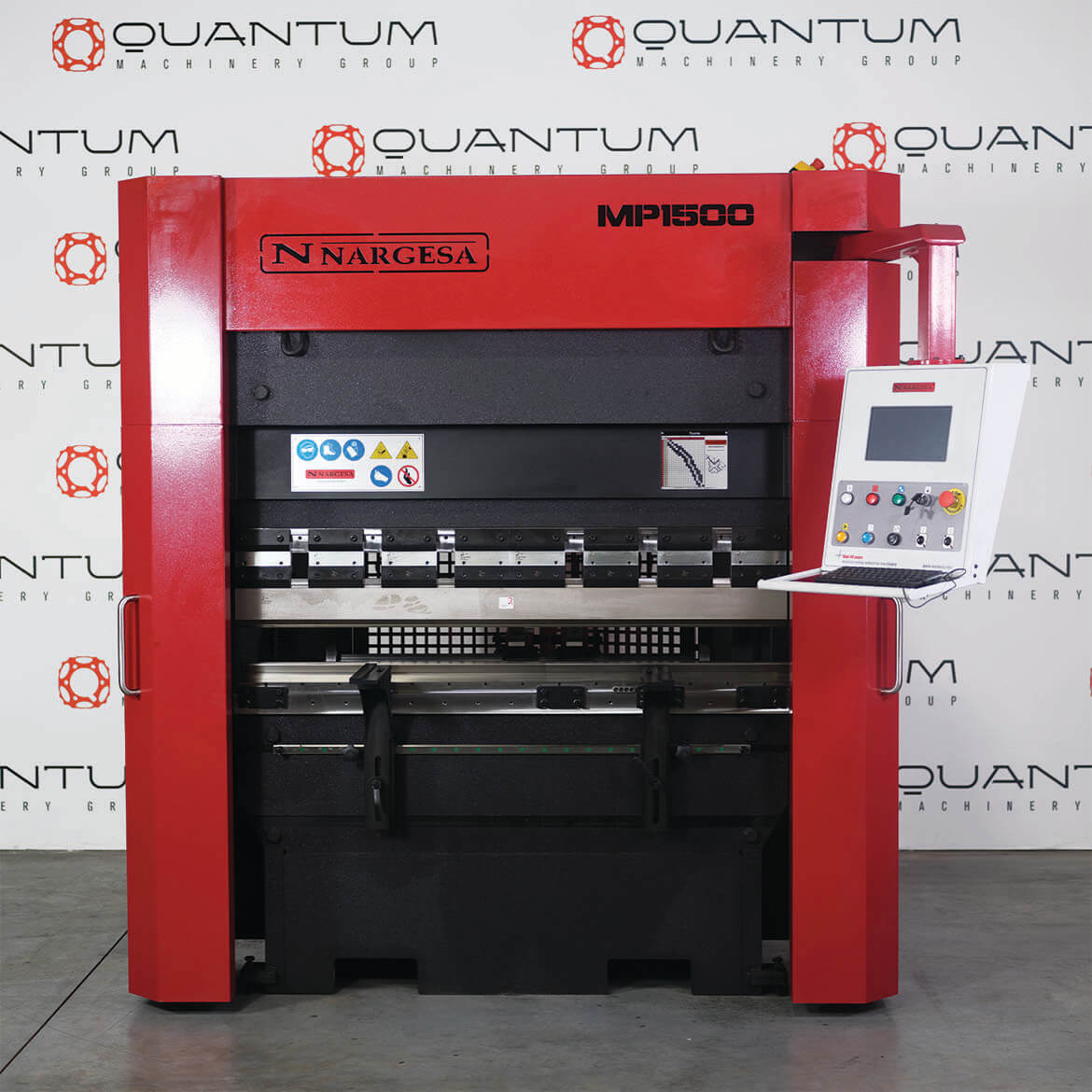

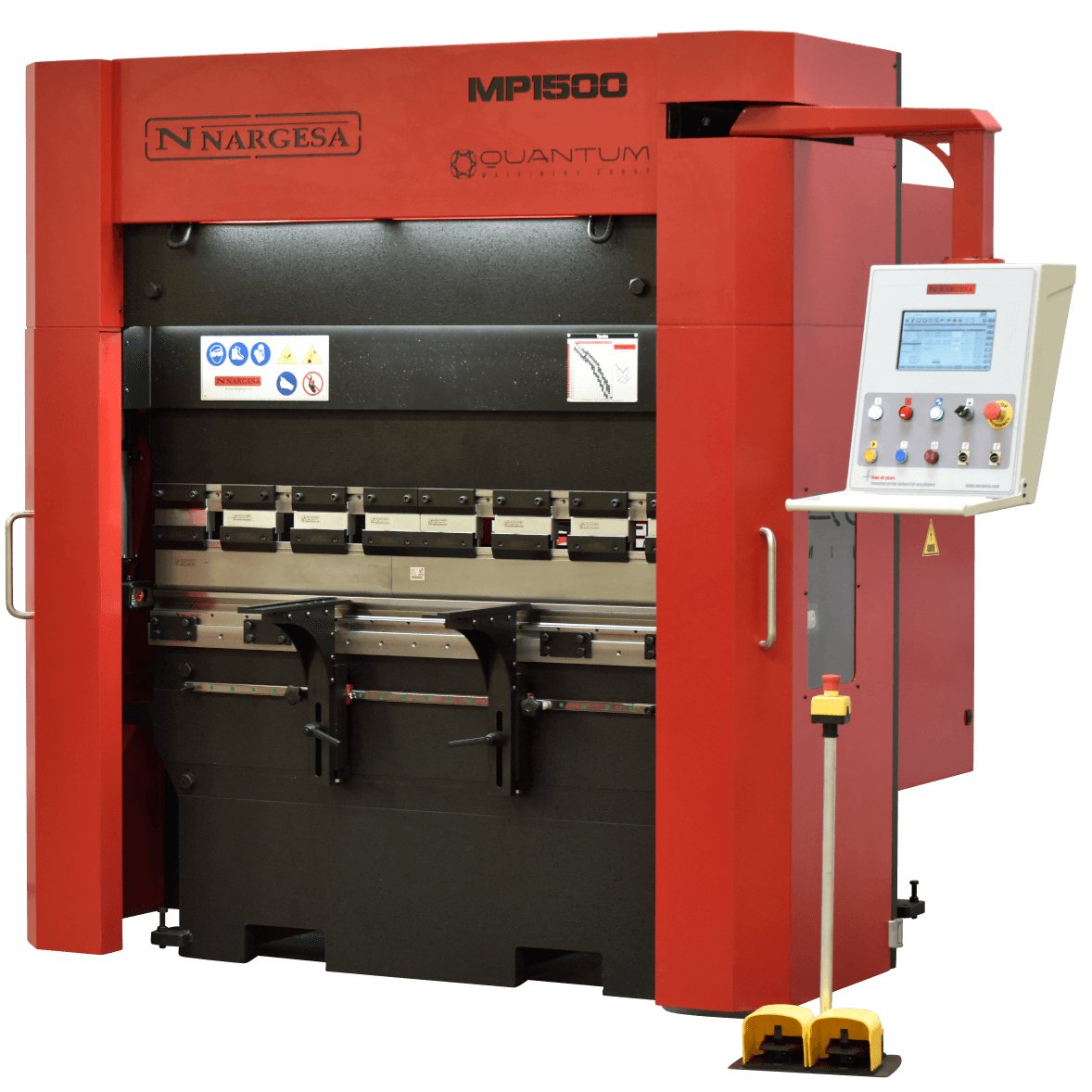

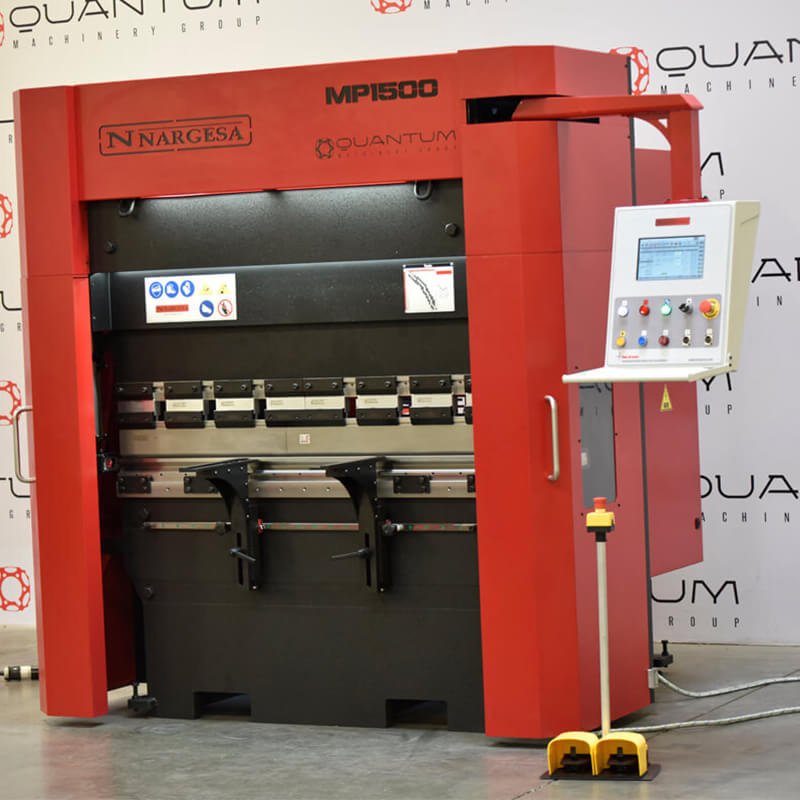

MP1500CNC: 5 Foot x 40 Ton Hydraulic Press Brake

The MP1500CNC is a high-precision hydraulic CNC press brake designed for sheet metal fabrication environments that require repeatable accuracy, controlled bending force, and CNC-driven consistency. It is built for professional fabrication shops, OEM manufacturers, and production environments where setup time, bend accuracy, and reliability directly affect throughput and profitability.

Constructed from a welded, stabilized, and fully machined steel monoblock frame, the MP1500CNC is engineered to control deflection during bending operations. Combined with advanced CNC control and electronic compensation systems, the machine maintains consistent bend angles and flange dimensions across the full working length.

- Designed for precision CNC-controlled bending operations.
- Rigid monoblock frame minimizes deflection under load.
- CNC-controlled axes support repeatable, multi-bend parts.
- Electronic compensation improves consistency across the bending length.
- Suitable for production, high-mix, and repeat fabrication environments.

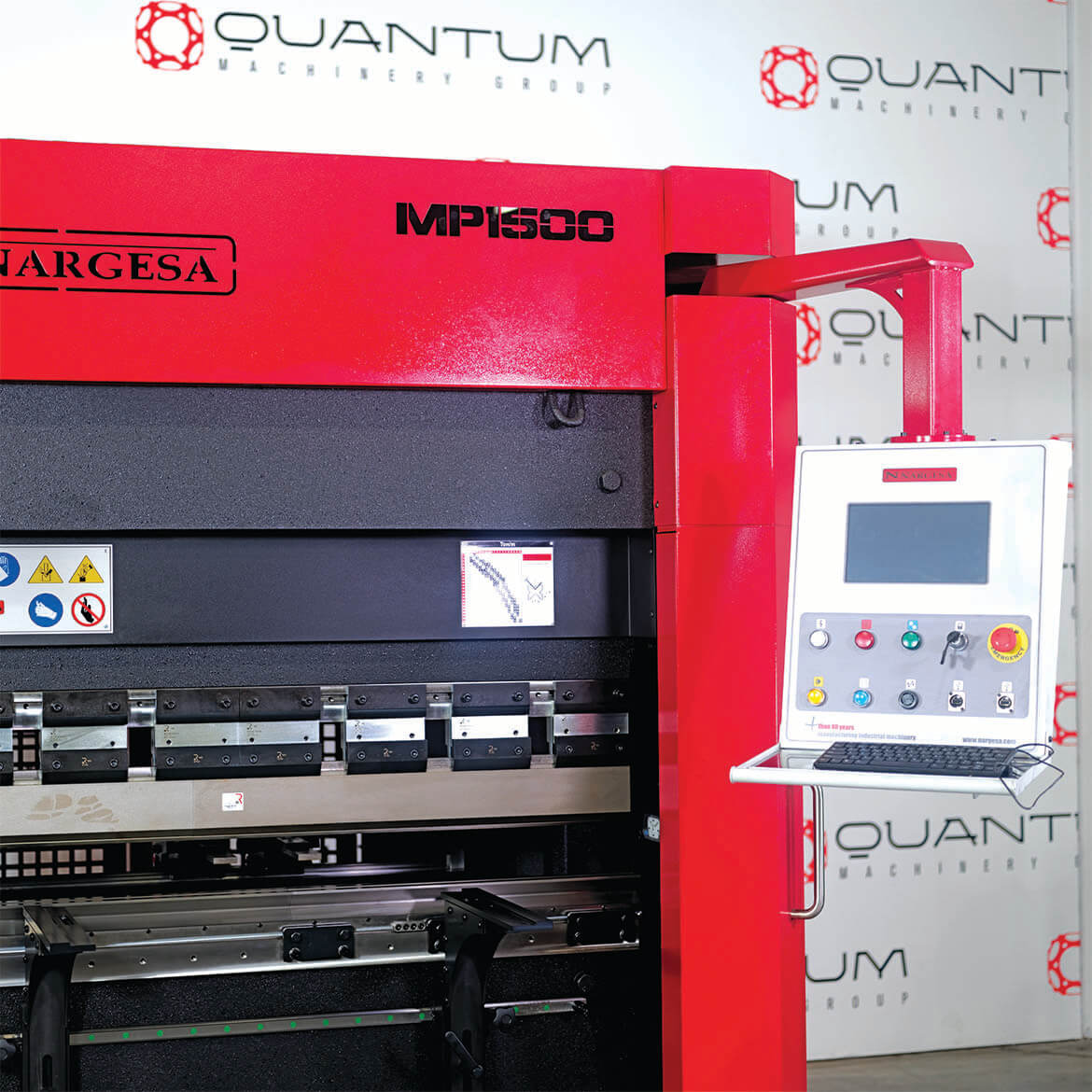

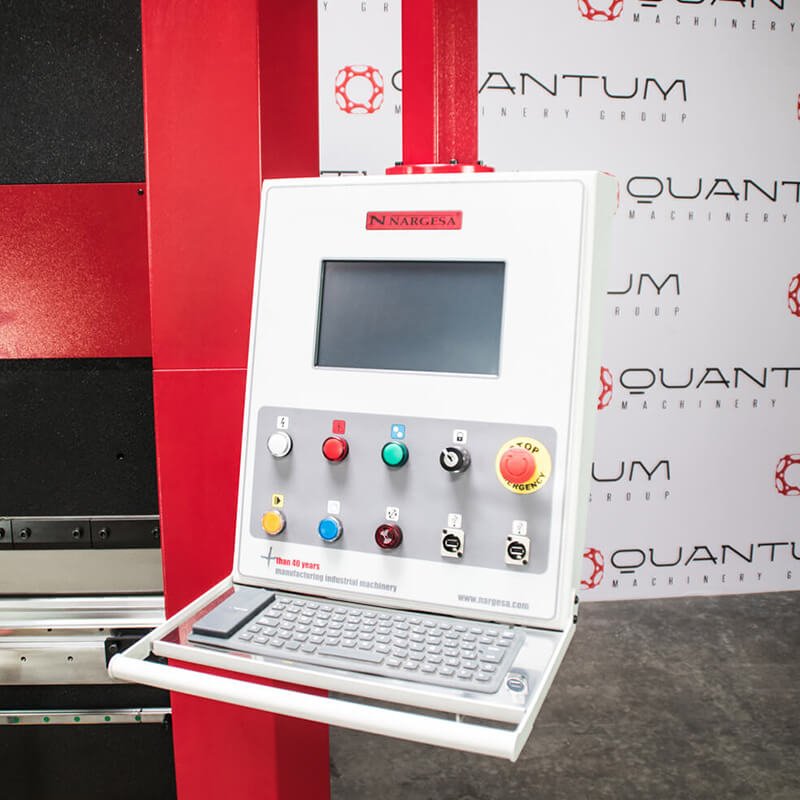

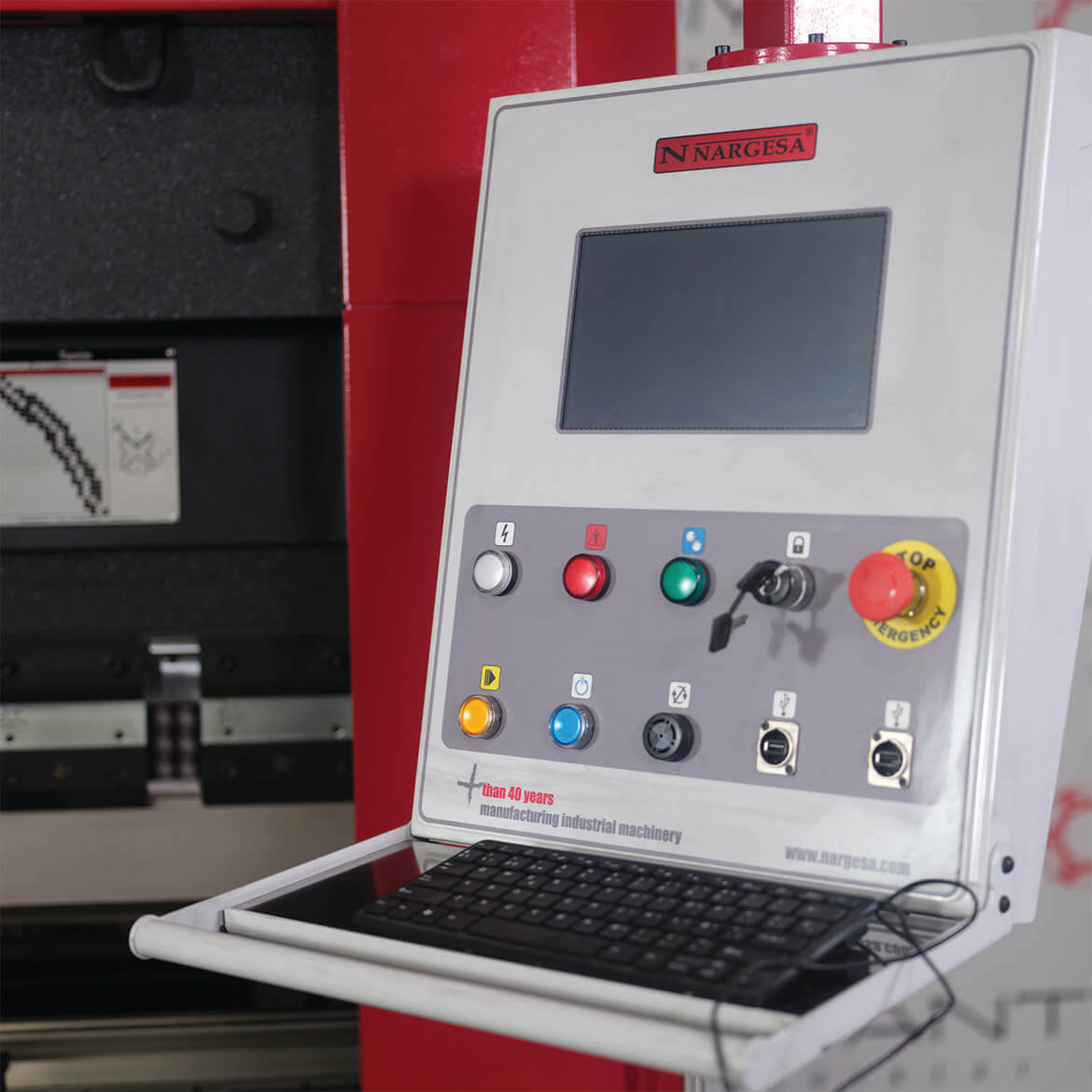

CNC Control – ESA S630:
The MP1500CNC is equipped with the ESA S630 CNC control, developed specifically for press brake applications. The control manages bending sequences, axis positioning, and pressure regulation to reduce setup time and ensure consistent results across repeated jobs.

- 10" color touch-screen CNC interface.
- Graphical and numerical programming modes.
- 2D bending simulation with collision detection.
- Automatic bend force and sequence calculation.
- Program storage for repeat production work.
- Supports Y, X, R, and Z axis control.
- Ethernet and USB connectivity for program transfer and diagnostics.

Why Choose the MP1500CNC:
The MP1500CNC is positioned above entry-level press brakes by combining CNC intelligence with mechanical rigidity. Electronic pressure management, optical encoder feedback, and backgauge precision allow operators to achieve consistent results without constant manual correction.

- Reduces setup time compared to manual or NC press brakes.
- Maintains bend accuracy across varying material thicknesses.
- Improves repeatability for short-run and production work.
- Extends tooling life through controlled pressure application.
- Supports complex parts with multiple bends and tight tolerances.

Working Capacities:
All bending capacities depend on material type, thickness, tooling selection, and bending method.

- Hydraulic bending force: 40 metric tons (≈44 U.S. tons).
- Total bending length: 59.06" (1500mm).
- Inner bending length: 49.21" (1250mm).
- Maximum punch stroke: 7.87" (200mm).
- Throat depth: 10.63" (270mm).

Standard Machine Features:
- Hydraulic press brake with stabilized welded steel frame.

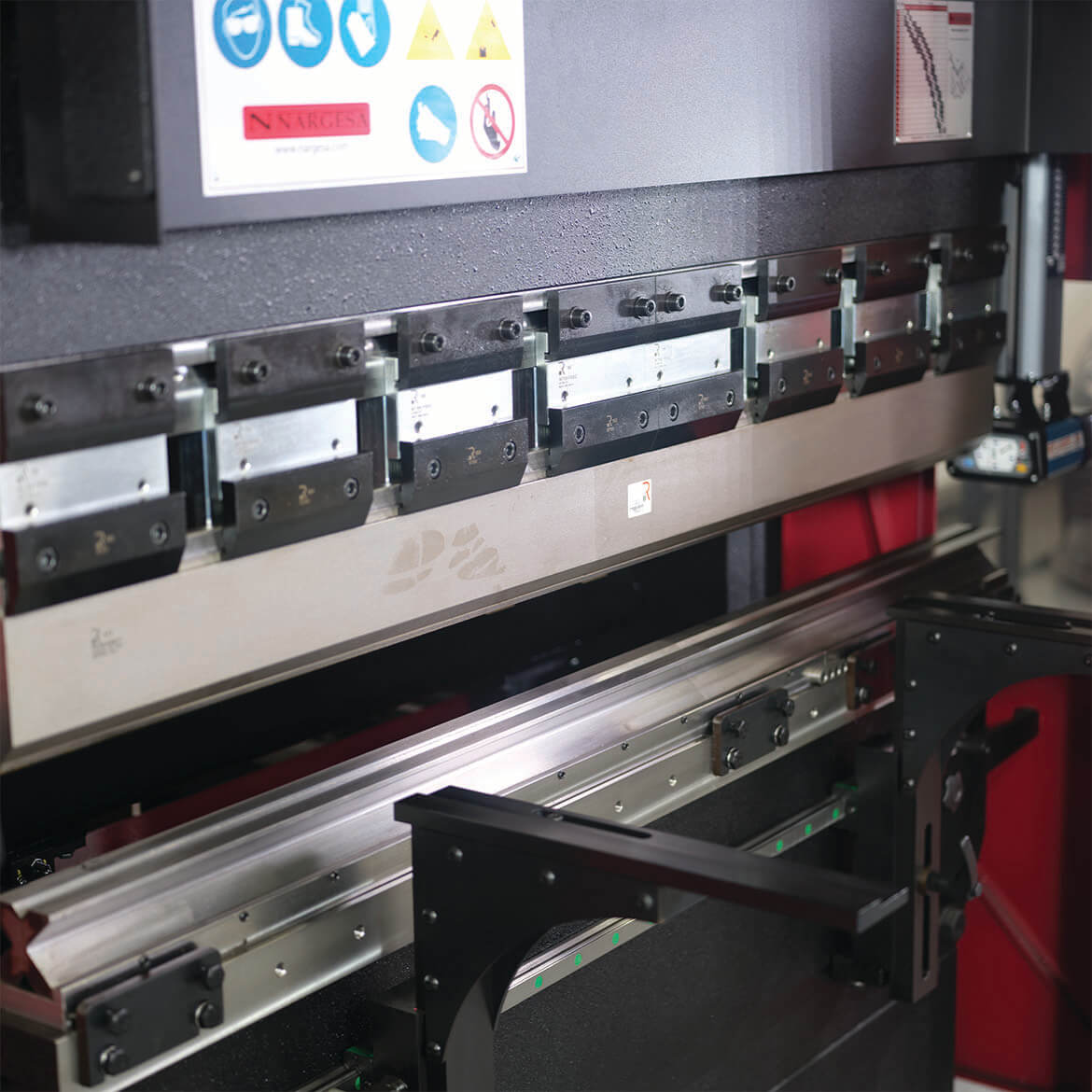

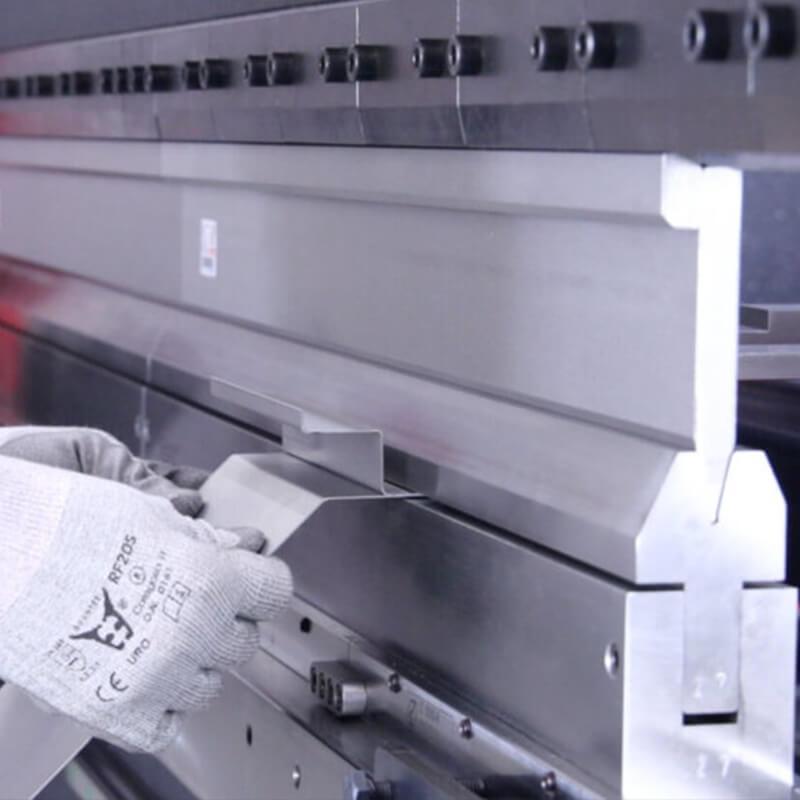

- Promecam punch clamping and die guide system.
- CNC-controlled vertical bending axis (Y axis).

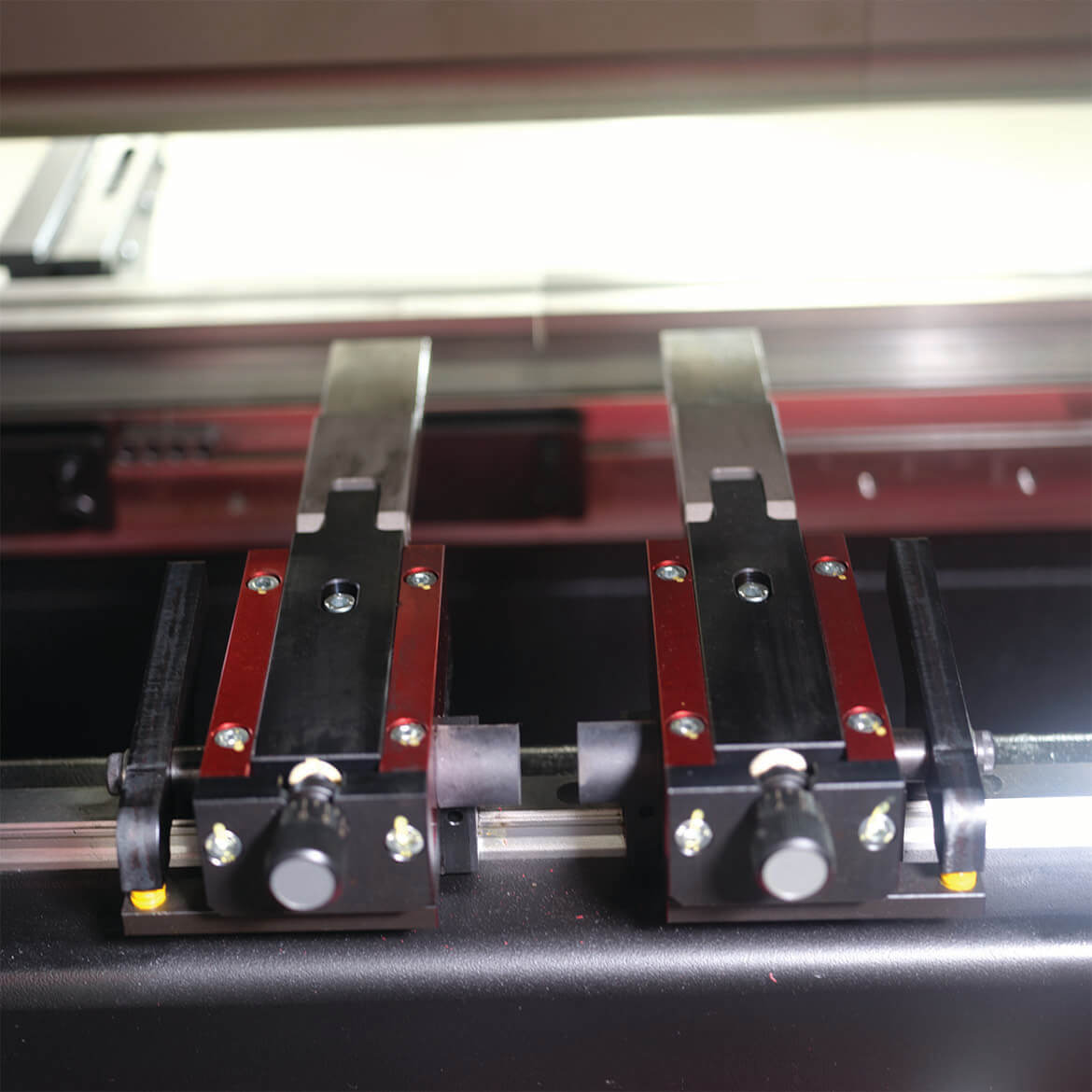

- Servo-driven backgauge with CNC-controlled X axis.
- Manual R and Z axis adjustment.
- Electronic chassis bending compensation system.
- Optical encoder feedback for precise vertical positioning.

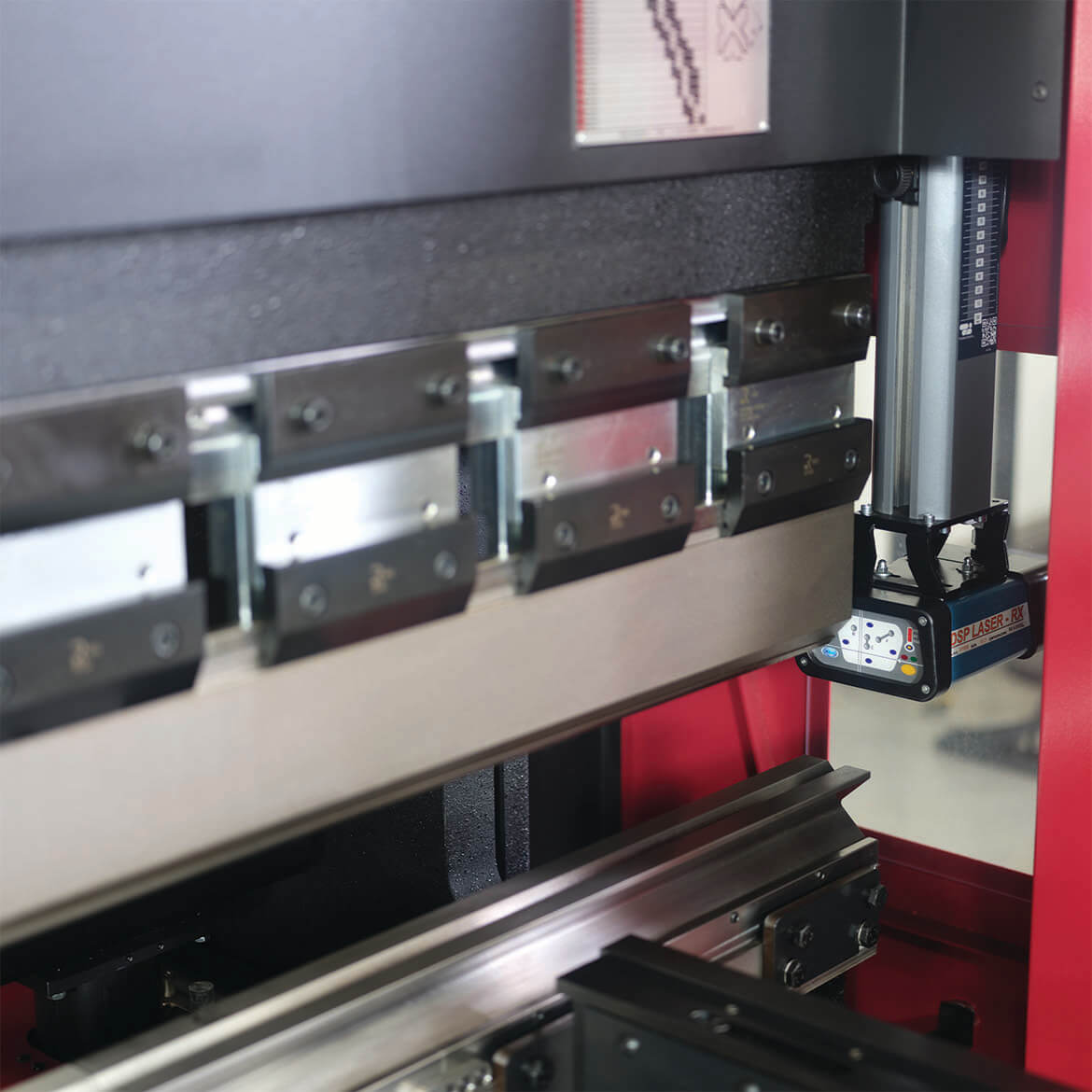

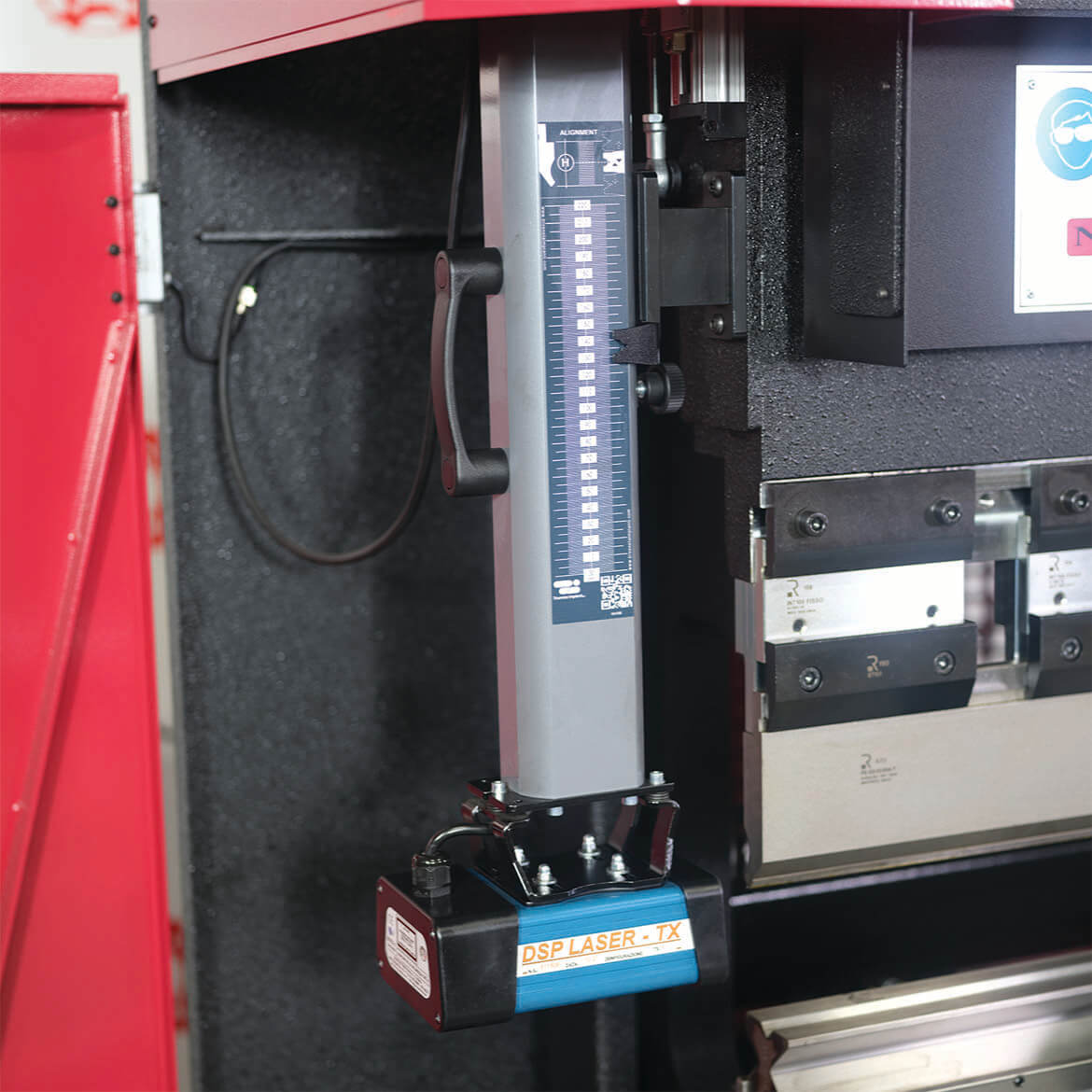

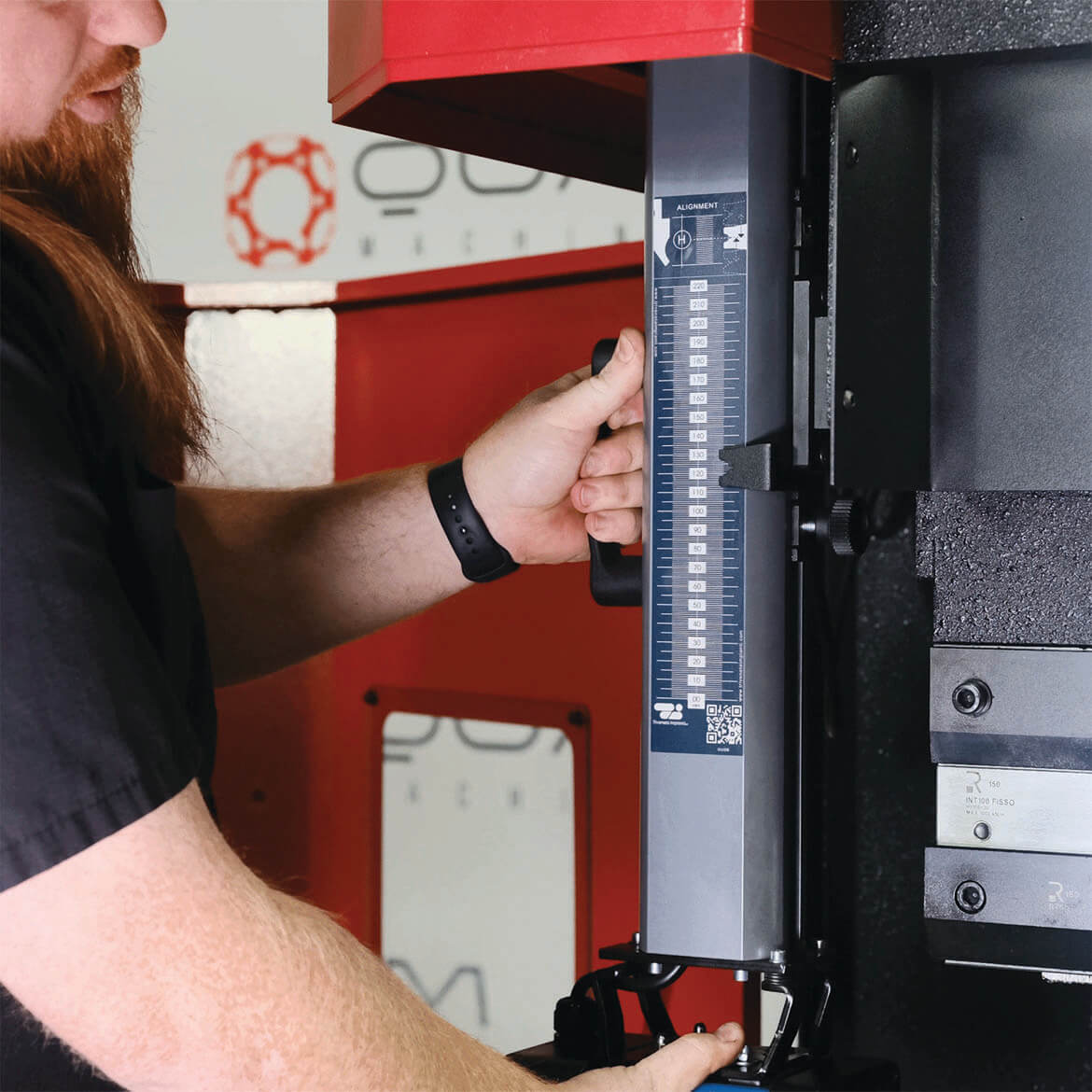

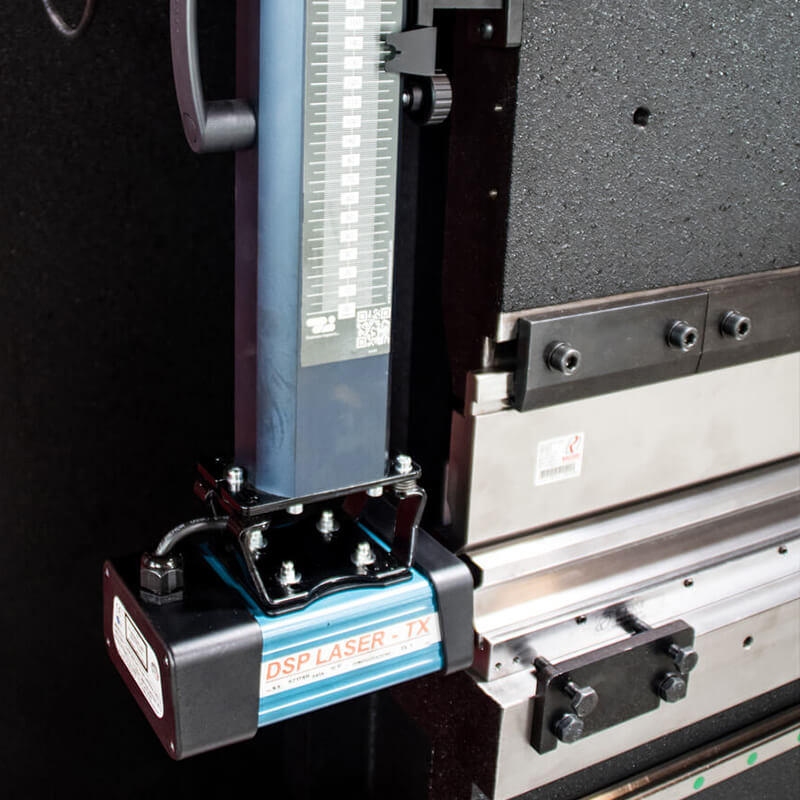

- Laser safety system with electronic muting.

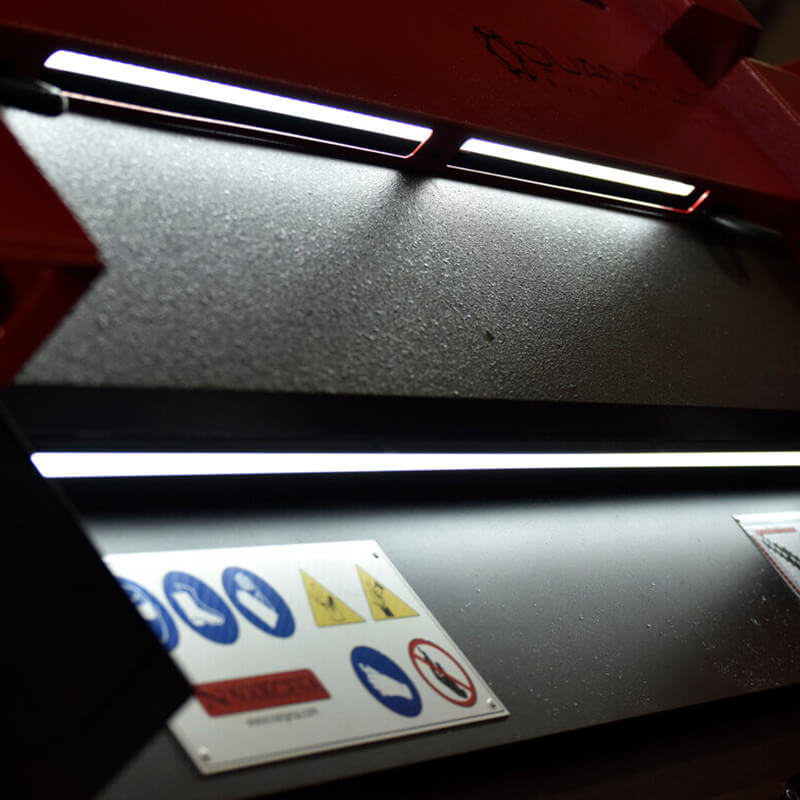

- LED lighting in the bending zone.

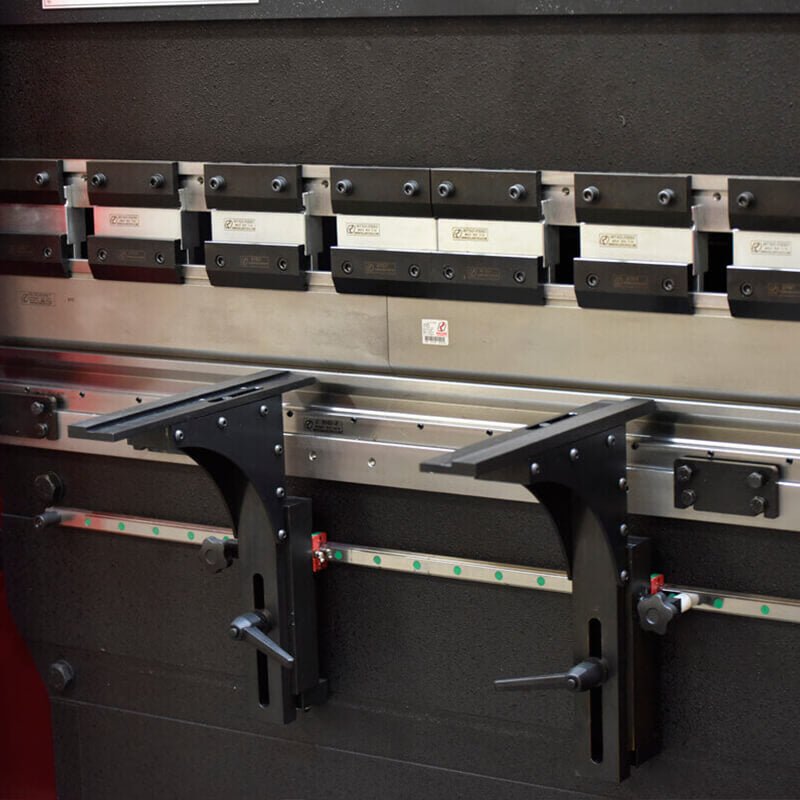

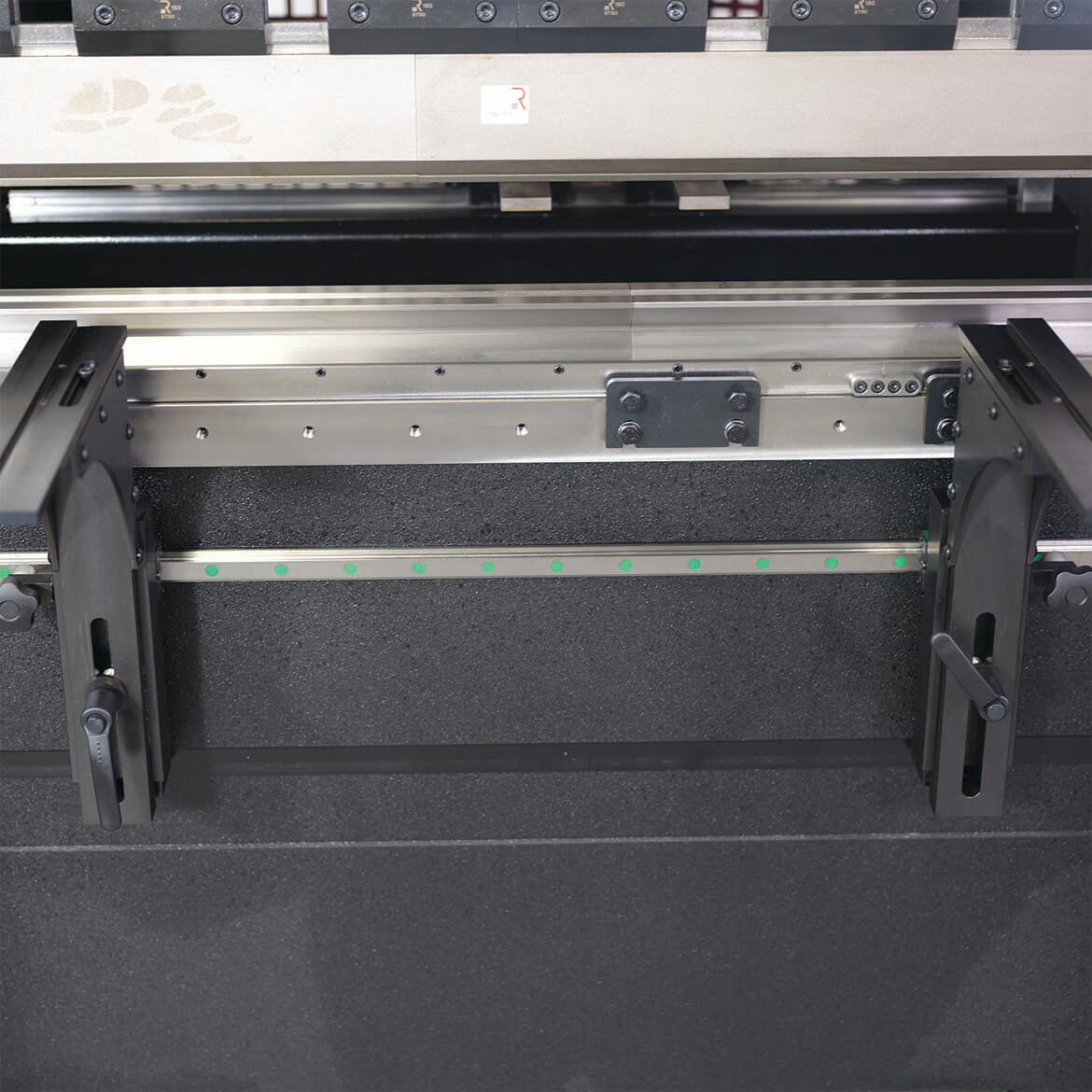

- Front support arms with linear guides.

Specifications:
- Machine type: Hydraulic CNC press brake.
- Rated bending force: 40 metric tons (≈44 U.S. tons).
- CNC control: ESA S630.
- Backgauge travel (X axis): 23.62" (600mm).
- Main motor power: 7.5 HP (5.5kW).
- Electrical supply: 220 Volt / 3 Phase / 60Hz or 480 Volt / 3 Phase / 60Hz.
- Approximate weight: 10,800 lbs. (4,900kg).

Common Uses:

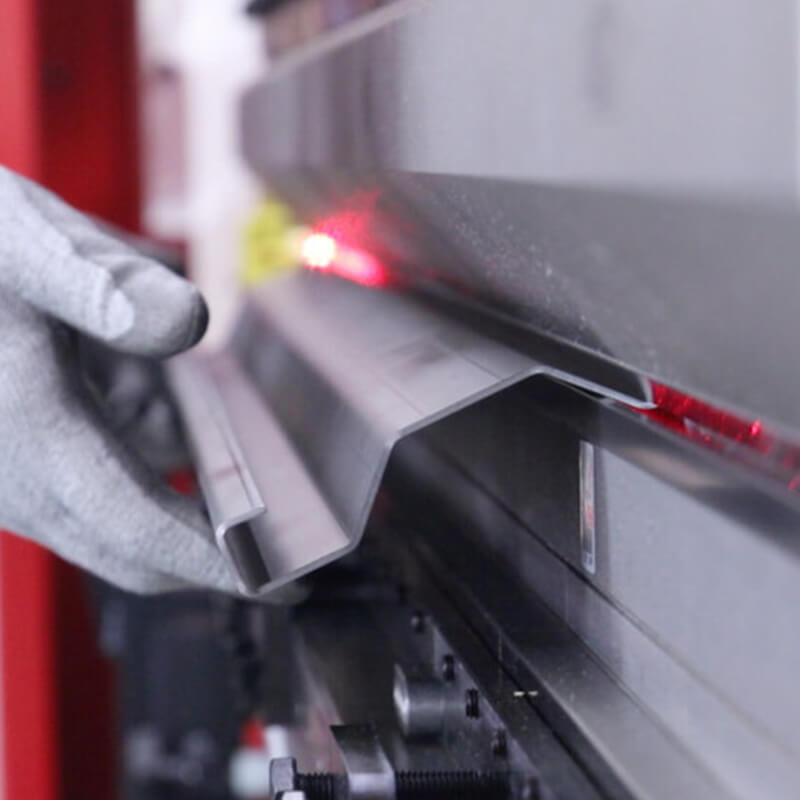

The MP1500CNC is used for precision bending of sheet metal components such as enclosures, brackets, panels, frames, and formed parts. It is well suited for fabrication environments where repeatable bend accuracy, reduced setup time, and CNC-controlled consistency are required.

Warranty:
Nargesa machines are built for long-term industrial service and are supported by an industry-leading warranty program. Each machine includes a standard 6-month warranty covering defective components. By registering the machine on Nargesa.com, customers extend this coverage to a full 3-year warranty on defective parts. The warranty covers replacement of defective components only and does not include labor, technical assistance, or travel.

System Configuration & Full Quotation:
The MP1500CNC is configured based on material range, tooling selection, axis configuration, and production requirements. To ensure proper configuration and accurate pricing, tooling and options are quoted as part of a complete machine package. To request a full quotation and application review, call (704) 703-9400 or email Sales@QuantumMachinery.com.
