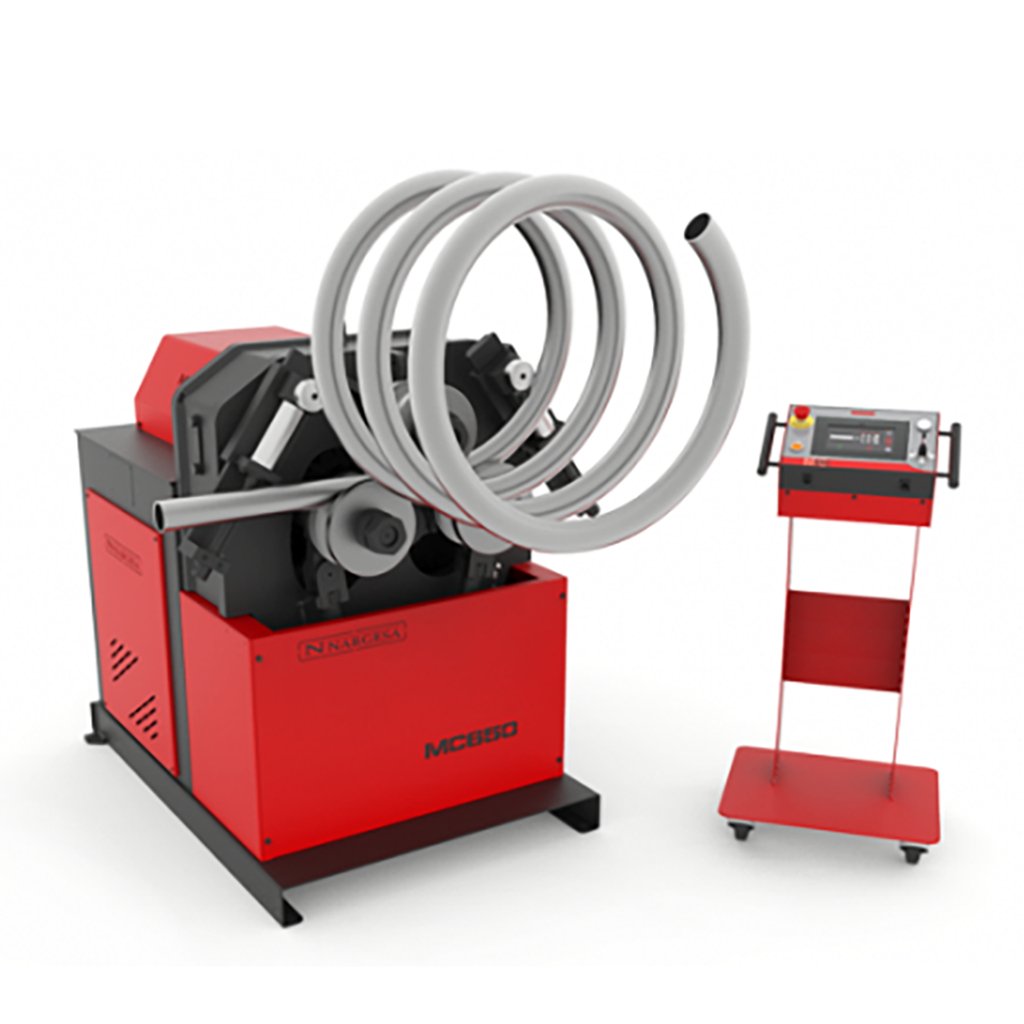

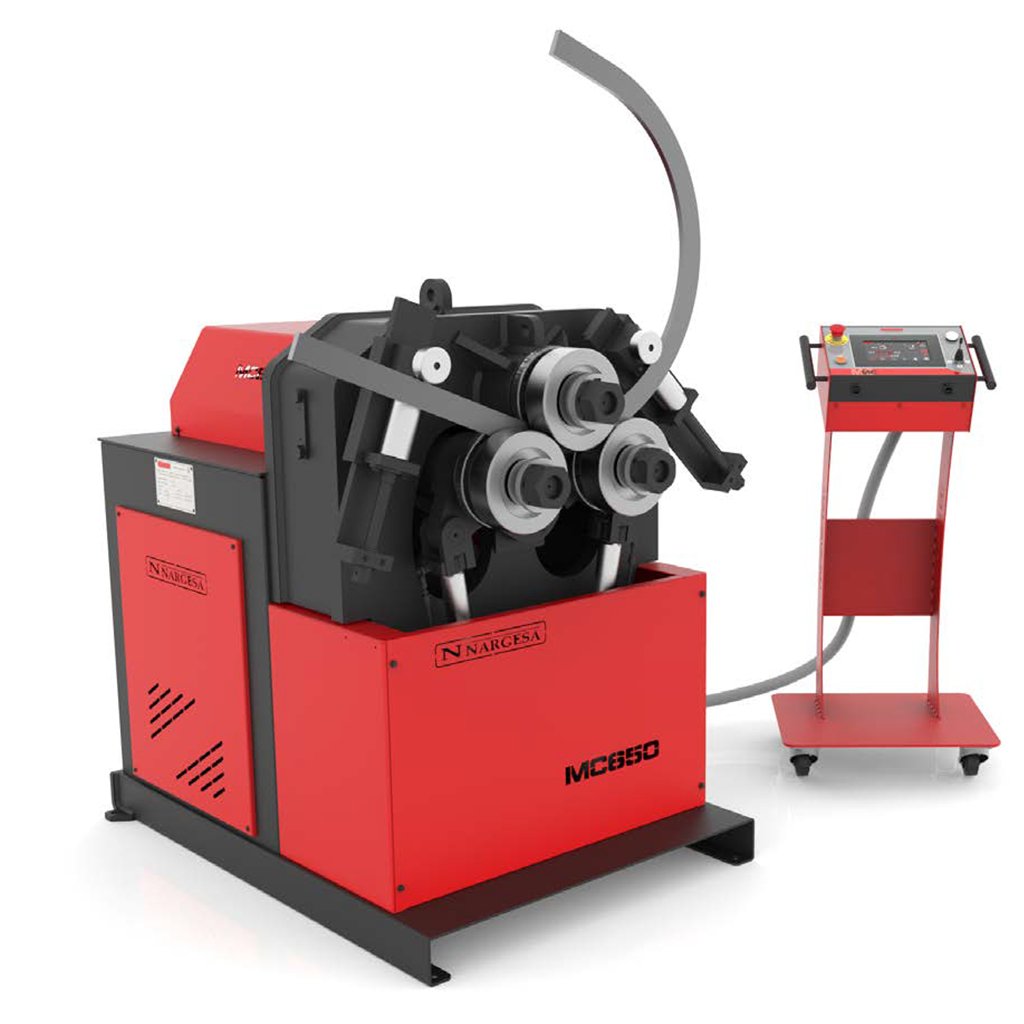

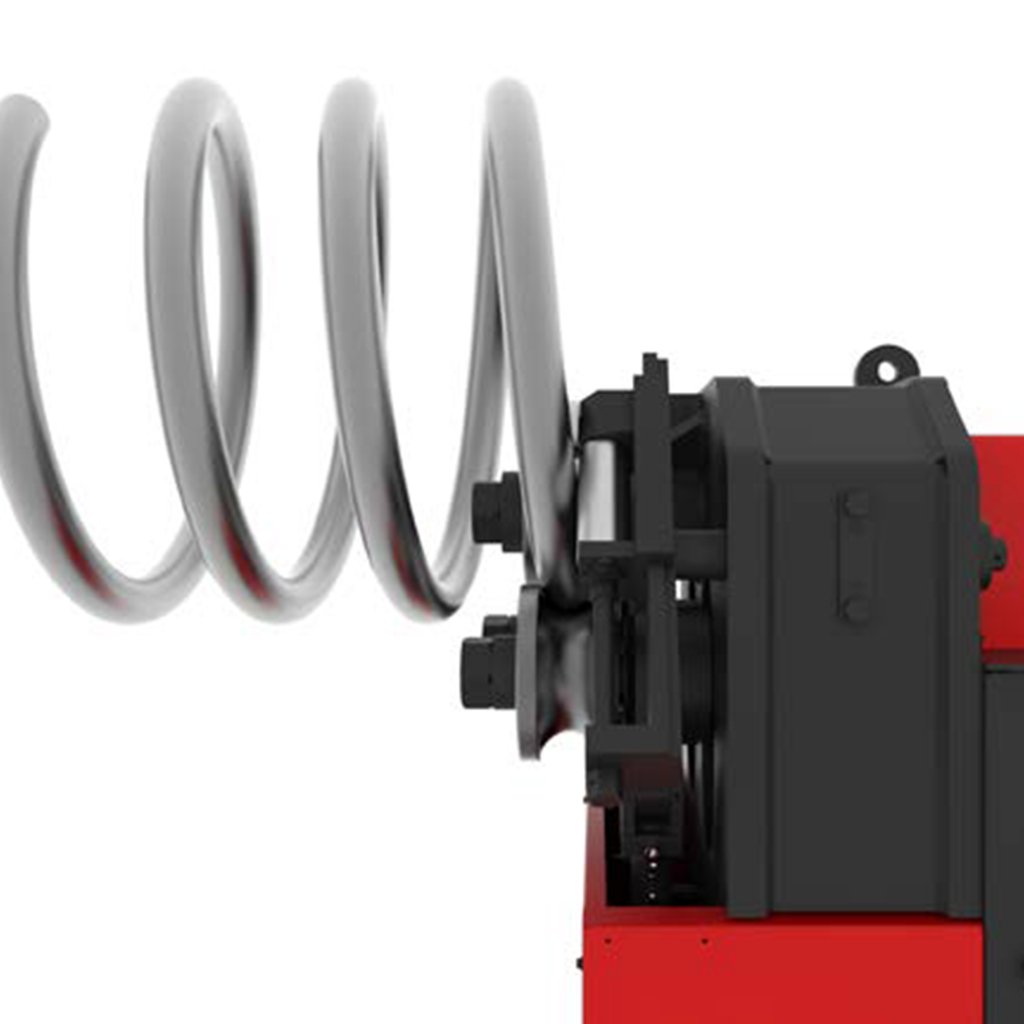

MC650 Roll Bender

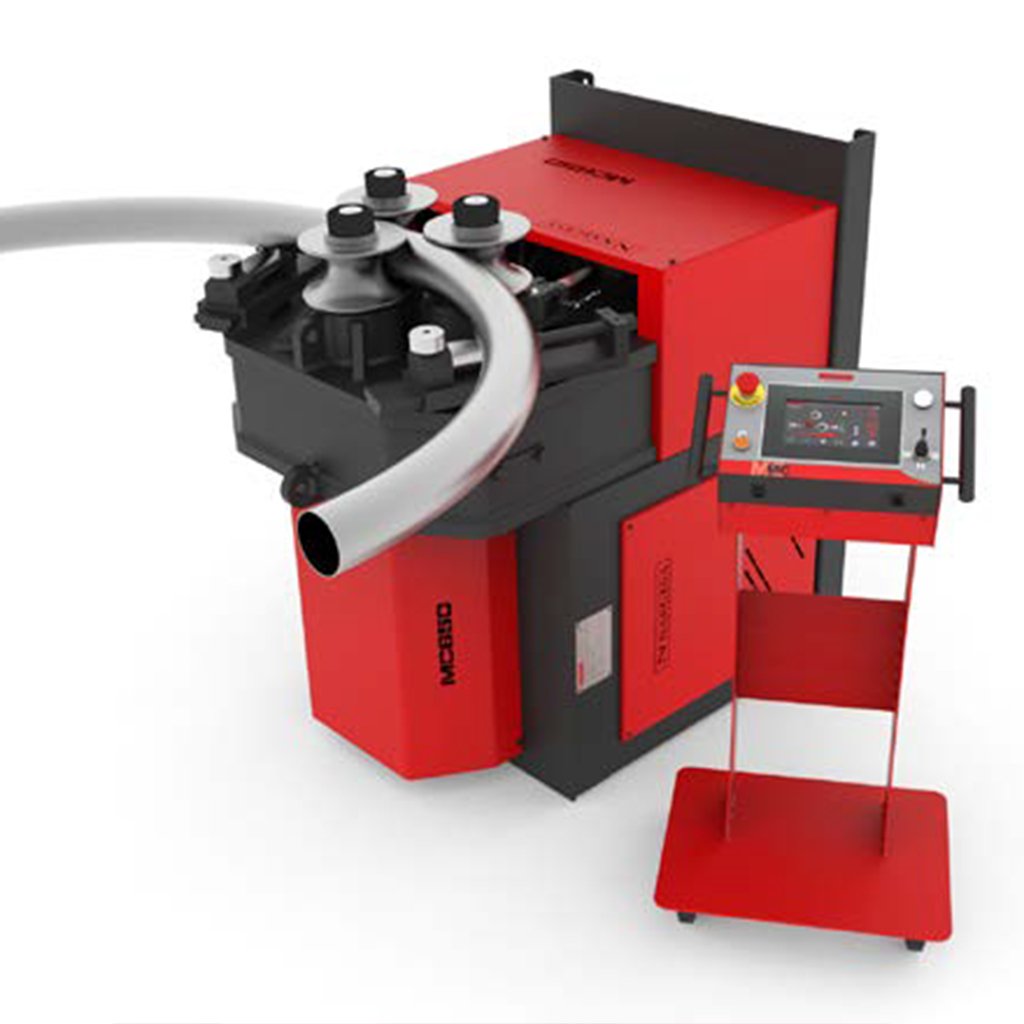

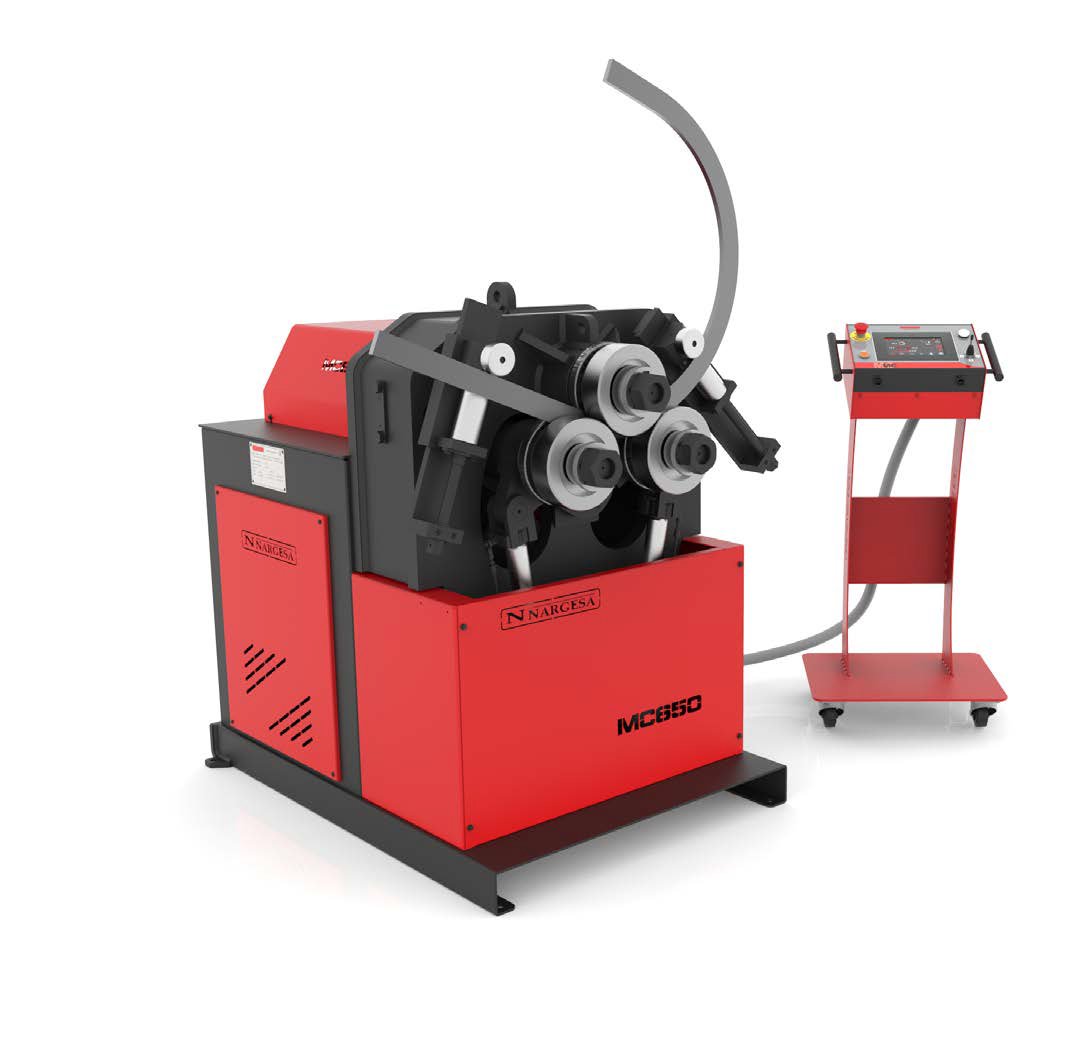

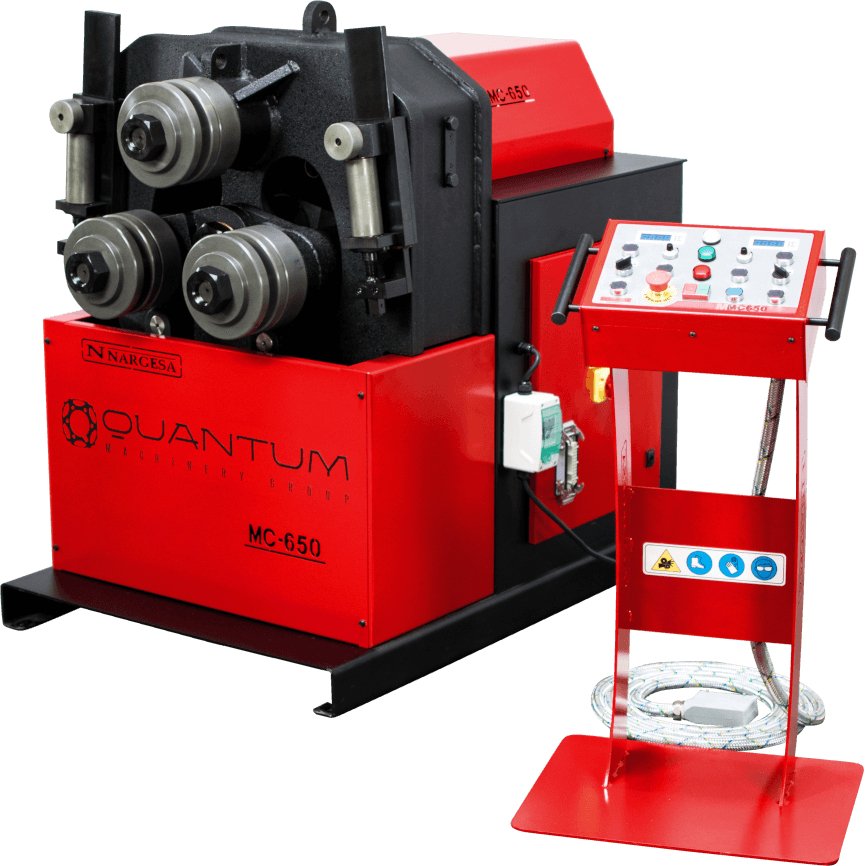

The MC650 is a heavy-duty industrial horizontal bending and forming machine designed for shaping flat bar, round bar, square bar, tube, and large structural sections where high capacity and controlled repeatability are required. It is the next step above the MC550, providing increased section capability while retaining NC-controlled operation for repeat production.

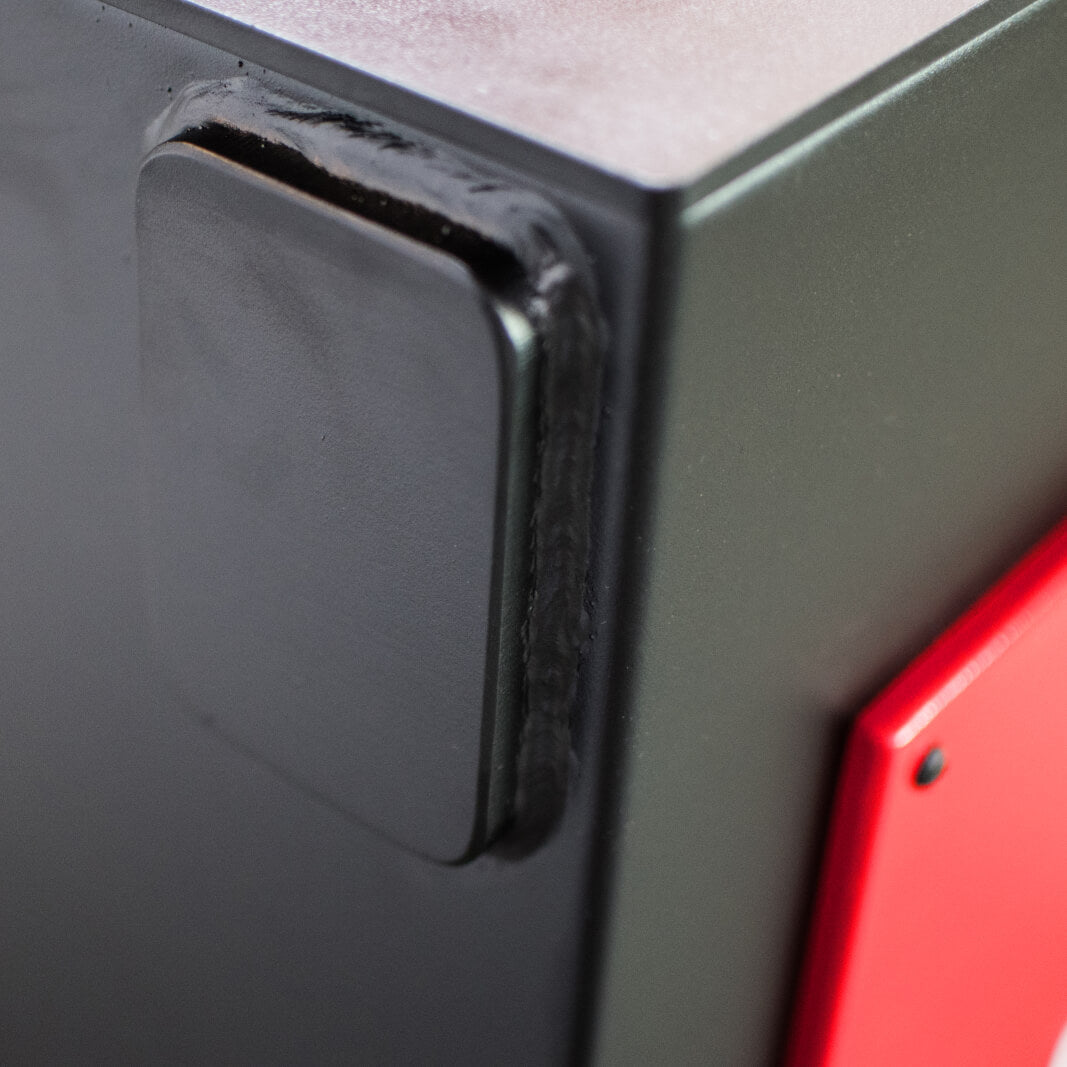

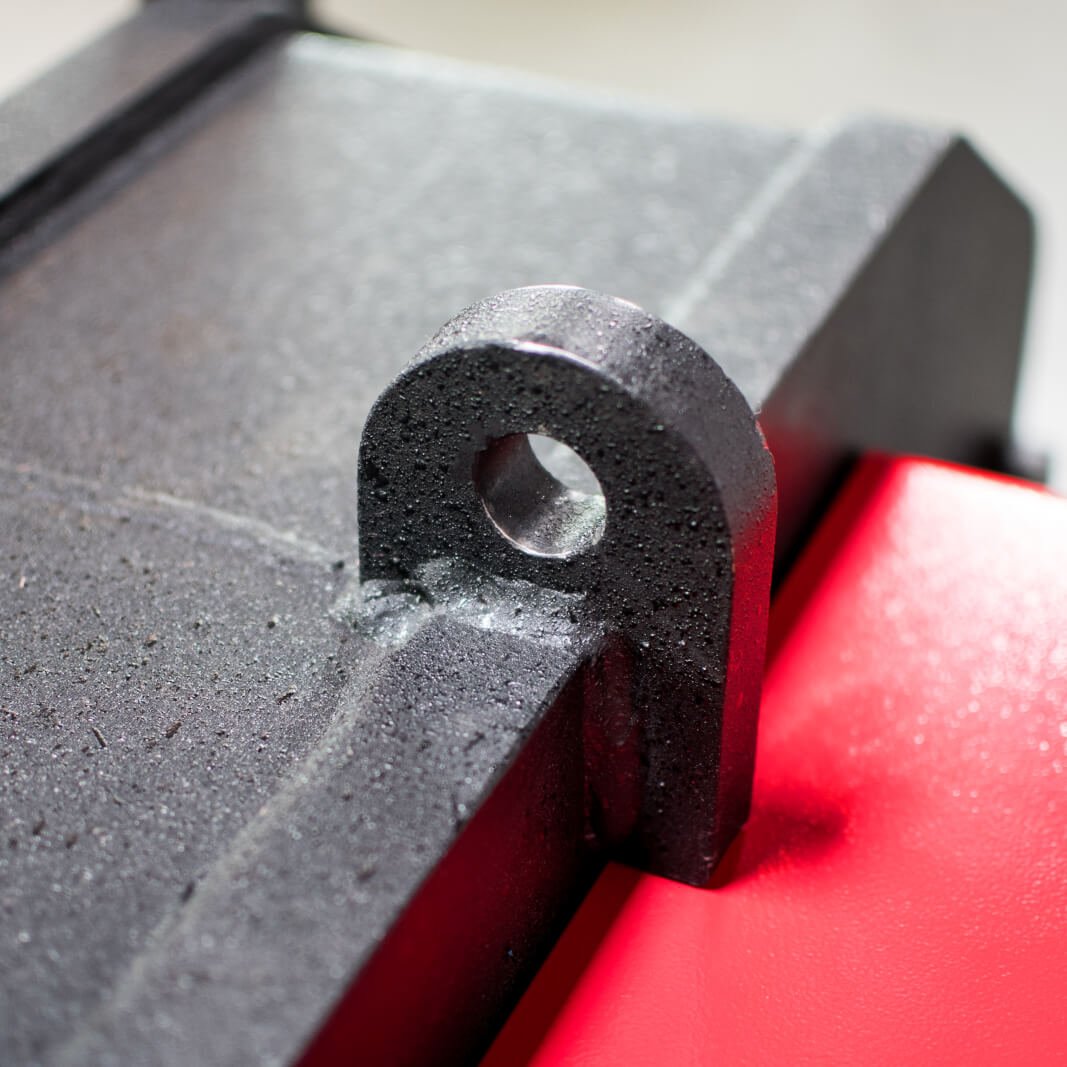

Built around a reinforced welded steel frame and a high-capacity electrohydraulic drive system, the MC650 is equipped with Nargesa’s NC control. This allows operators to store and repeat complex bending operations with consistent results, making the machine suitable for production environments handling larger sections and heavier forming loads.

- Designed for horizontal bending and forming of large profiles and structural sections.
- NC control enables repeatable, programmable bending operations.
- Increased capacity compared to MC550 for heavier and larger sections.
- Electrohydraulic drive system delivers controlled, consistent forming force.
- Suitable for batch production and repeat fabrication work.

NC Control (MC650):

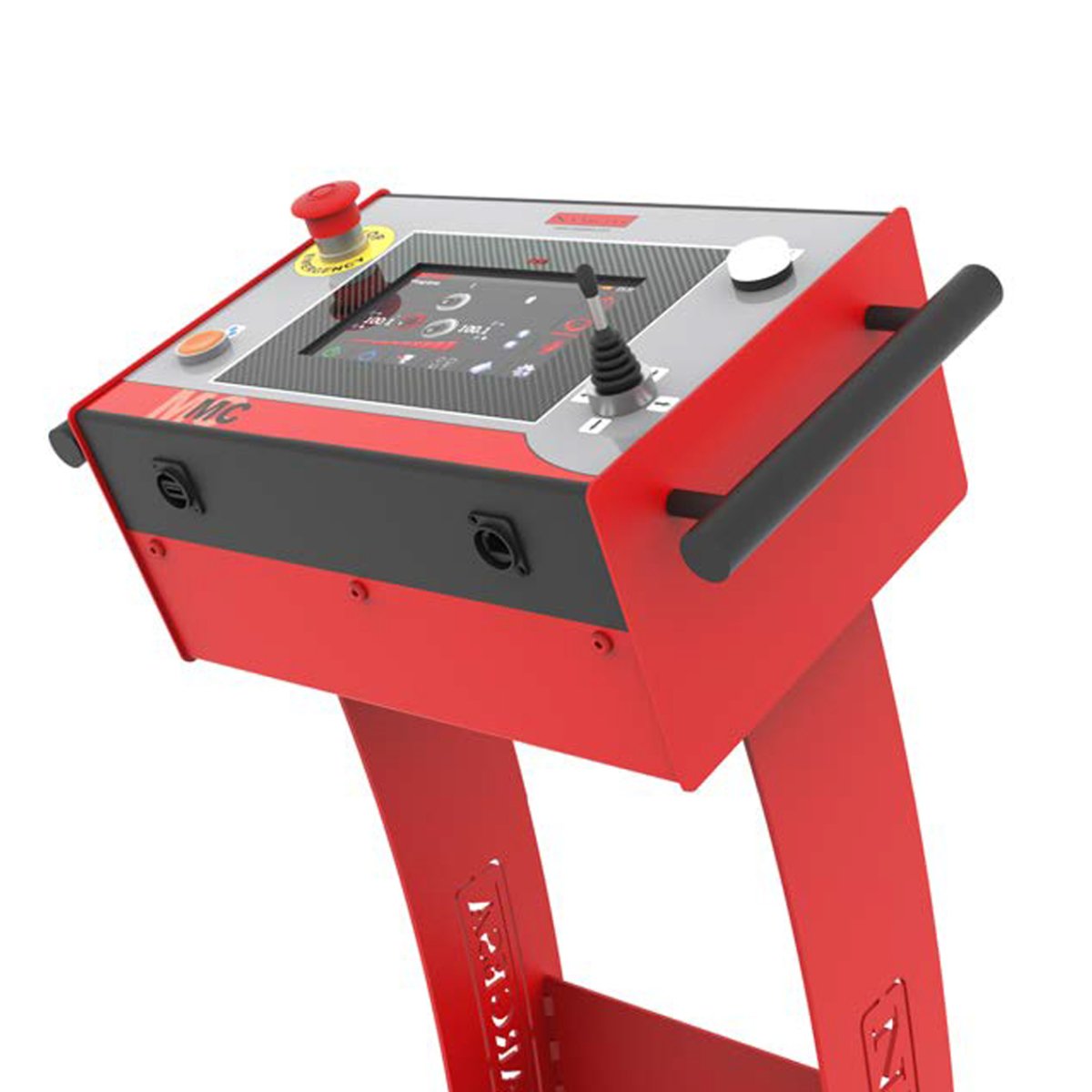

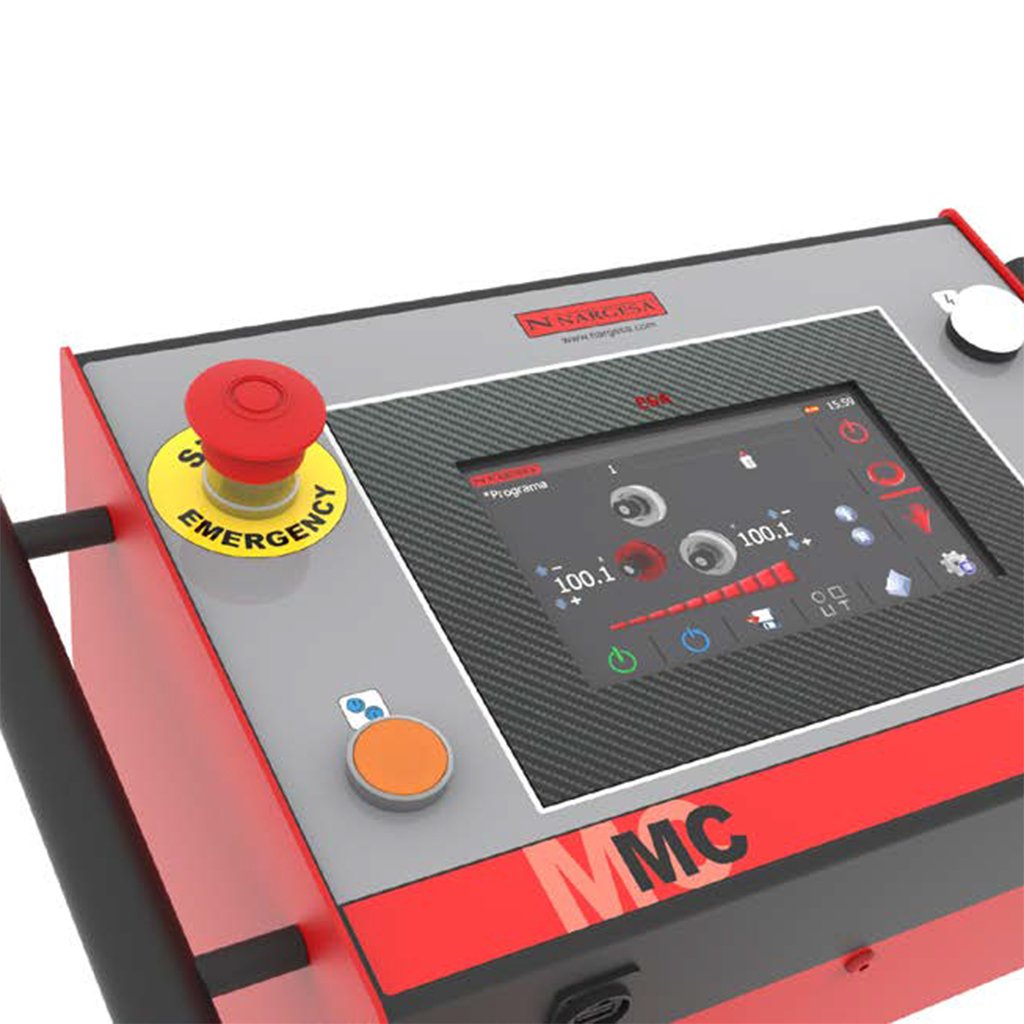

The MC650 is equipped with Nargesa’s NC control system, designed to manage bending operations where consistency, repeatability, and production efficiency are required. The control system manages roller positioning and bending sequence, allowing bending parameters to be stored and recalled for future runs.

Compared to manually adjusted machines, the NC control reduces setup time and minimizes variation between parts and operators. This is particularly valuable when producing repeat components, larger-radius bends, or multi-bend profiles where manual adjustment introduces inconsistency.

The NC system is intentionally practical and production-focused. It does not require CNC programming or post-processing code, allowing operators to move from setup to production quickly while maintaining full visibility of the forming process.

- Stores and recalls bending programs for repeat production.
- Improves consistency across multiple parts and operators.
- Reduces setup time compared to manual adjustment machines.
- Minimizes scrap caused by trial-and-error forming.
- Ideal for shops producing larger components in repeat batches.

Bending Capacities:
All bending capacities are based on mild steel profiles / applications. Minimum bending radii are listed exactly as provided by the manufacturer and may vary with material hardness and wall thickness. Dimensions marked with an asterisk (*) require optional rollers. Dimensions marked with a red dot (●) require consultation with the manufacturer.

Round Tube:
- 4.00" × 0.24" wall (101.6×3.5mm)* — Minimum bending radius: 19.69" (500mm).
- 3.94" × 0.12" wall (100×3mm)* — Minimum bending radius: 19.69" (500mm).
- 3.50" × 0.17" wall (88.9×4mm)* — Minimum bending radius: 27.56" (700mm).
- 1.38" × 0.08" wall (35×2mm)* — Minimum bending radius: 4.72" (120mm).
- 0.79" × 0.06" wall (20×1.5mm)* — Minimum bending radius: 4.53" (115mm).

Square Tube:
- 2.76" × 2.76" × 0.16" (70×70×4mm) — Minimum bending radius: 29.53" (750mm).
- 2.36" × 2.36" × 0.12" (60×60×3mm) — Minimum bending radius: 29.53" (750mm).
- 1.57" × 1.57" × 0.12" (40×40×3mm) — Minimum bending radius: 11.81" (300mm).

Solid Round Bar:
- Ø1.97" (Ø50mm) — Minimum bending radius: 11.81" (300mm).
- Ø1.57" (Ø40mm) — Minimum bending radius: 7.87" (200mm).
- Ø0.98" (Ø25mm) — Minimum bending radius: 6.89" (175mm).

Solid Square:
- 1.77" × 1.77" (45×45mm) — Minimum bending radius: 11.81" (300mm).
- 1.57" × 1.57" (40×40mm) — Minimum bending radius: 11.02" (280mm).
- 0.98" × 0.98" (25×25mm) — Minimum bending radius: 7.87" (200mm).
- 0.79" × 0.79" (20×20mm) — Minimum bending radius: 5.91" (150mm).

Flat Bar:
- 3.94" × 0.59" (100×15mm) — Minimum bending radius: 49.21" (1250mm).
- 3.15" × 0.79" (80×20mm) — Minimum bending radius: 17.72" (450mm).
- 2.36" × 0.59" (60×15mm) — Minimum bending radius: 11.81" (300mm).
- 1.97" × 0.59" (50×15mm) — Minimum bending radius: 6.10" (155mm).
- 0.79" × 0.39" (20×10mm) ● — Minimum bending radius: 5.51" (140mm).

Flat Bar (Heavy Section):
- 4.72" × 0.79" (120×20mm) — Minimum bending radius: 9.84" (250mm).
- 3.94" × 0.98" (100×25mm) — Minimum bending radius: 13.78" (350mm).
- 3.15" × 0.79" (80×20mm) — Minimum bending radius: 7.87" (200mm).

Angle Leg-Out:
- 4.72" (120mm)* — Minimum bending radius: 23.62" (600mm).
- 3.94" (100mm)* — Minimum bending radius: 23.62" (600mm).
- 3.15" (80mm) — Minimum bending radius: 13.78" (350mm).

* Optional rollers required. ● Consult with manufacturer.

Specifications:
- Machine type: NC-controlled horizontal bending and forming machine.
- Drive system: Electrohydraulic.
- Control system: Nargesa NC control.

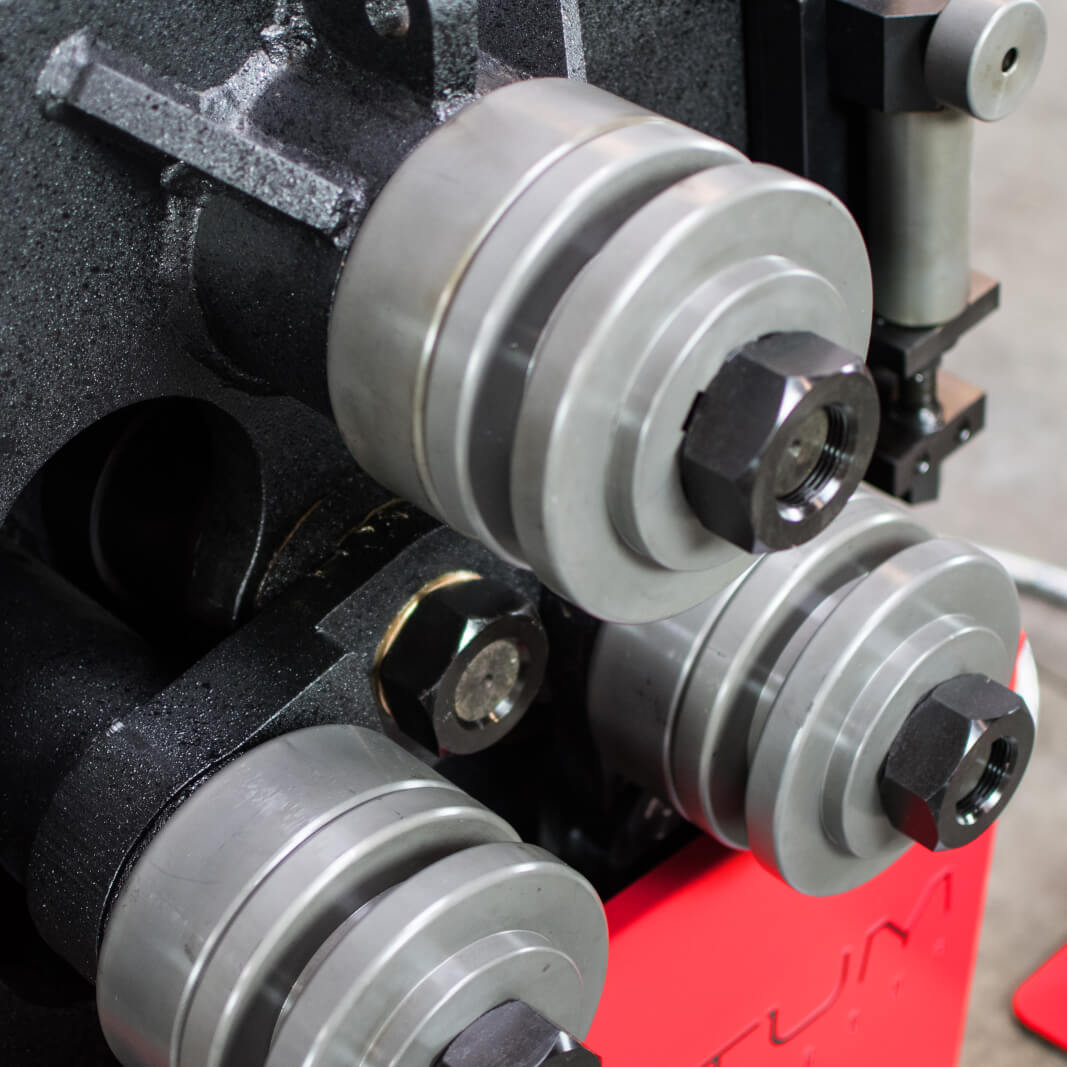

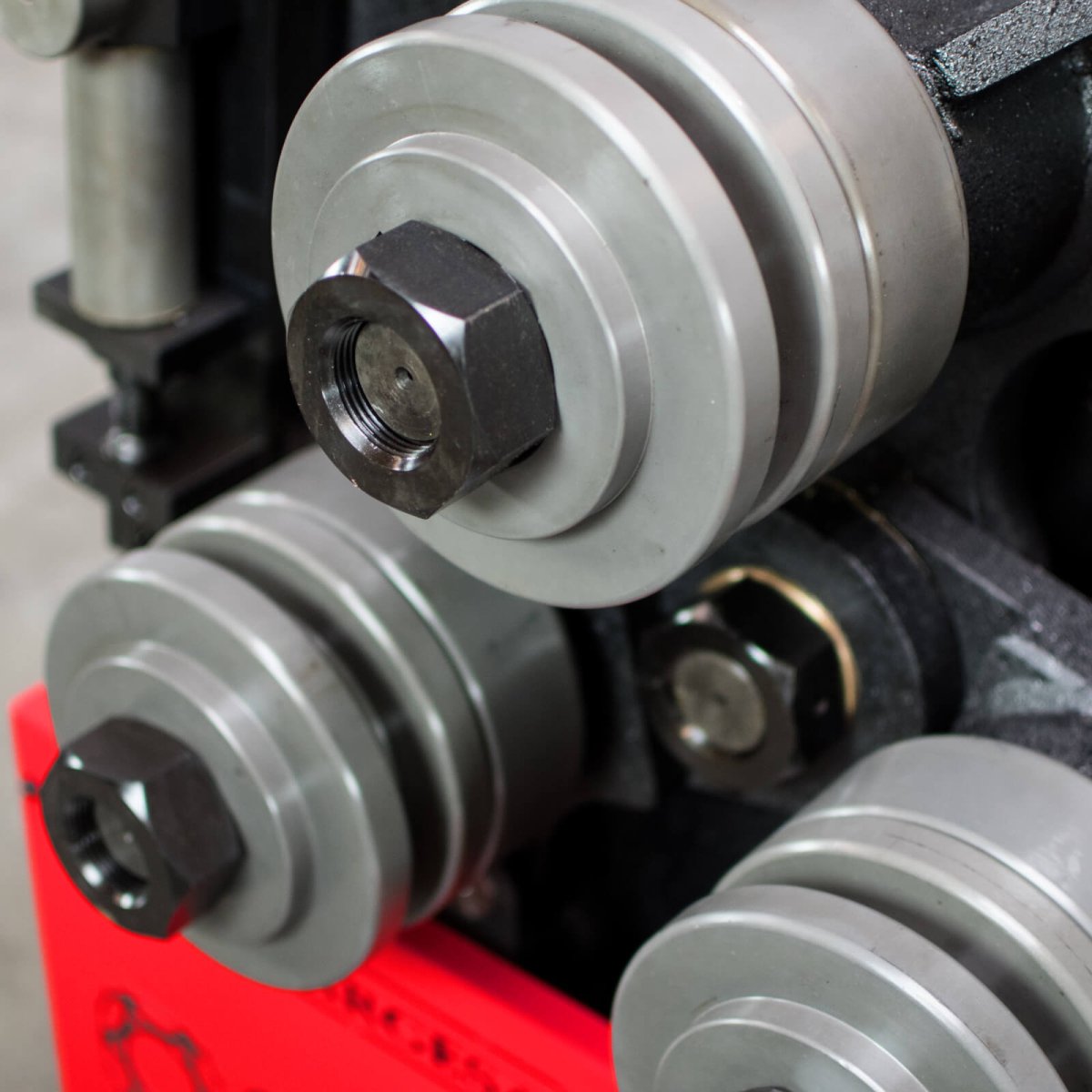

- Roller configuration: Three traction rollers designed for high-capacity profile bending.
- Standard tooling: Profile-specific roller sets supplied per machine configuration.
- Optional tooling: Specialty rollers for tube and large-profile bending (quoted by configuration).

- Axle material: Tempered and rectified alloy steel.

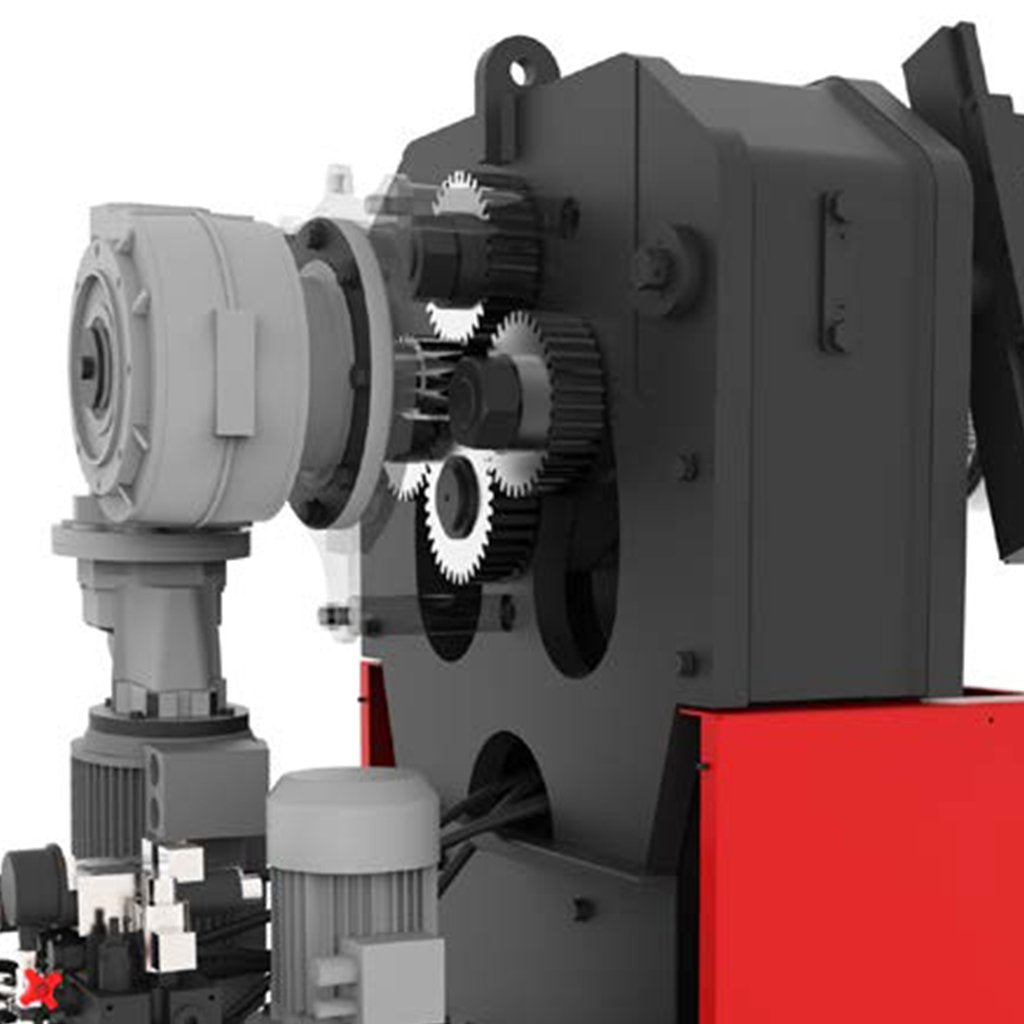

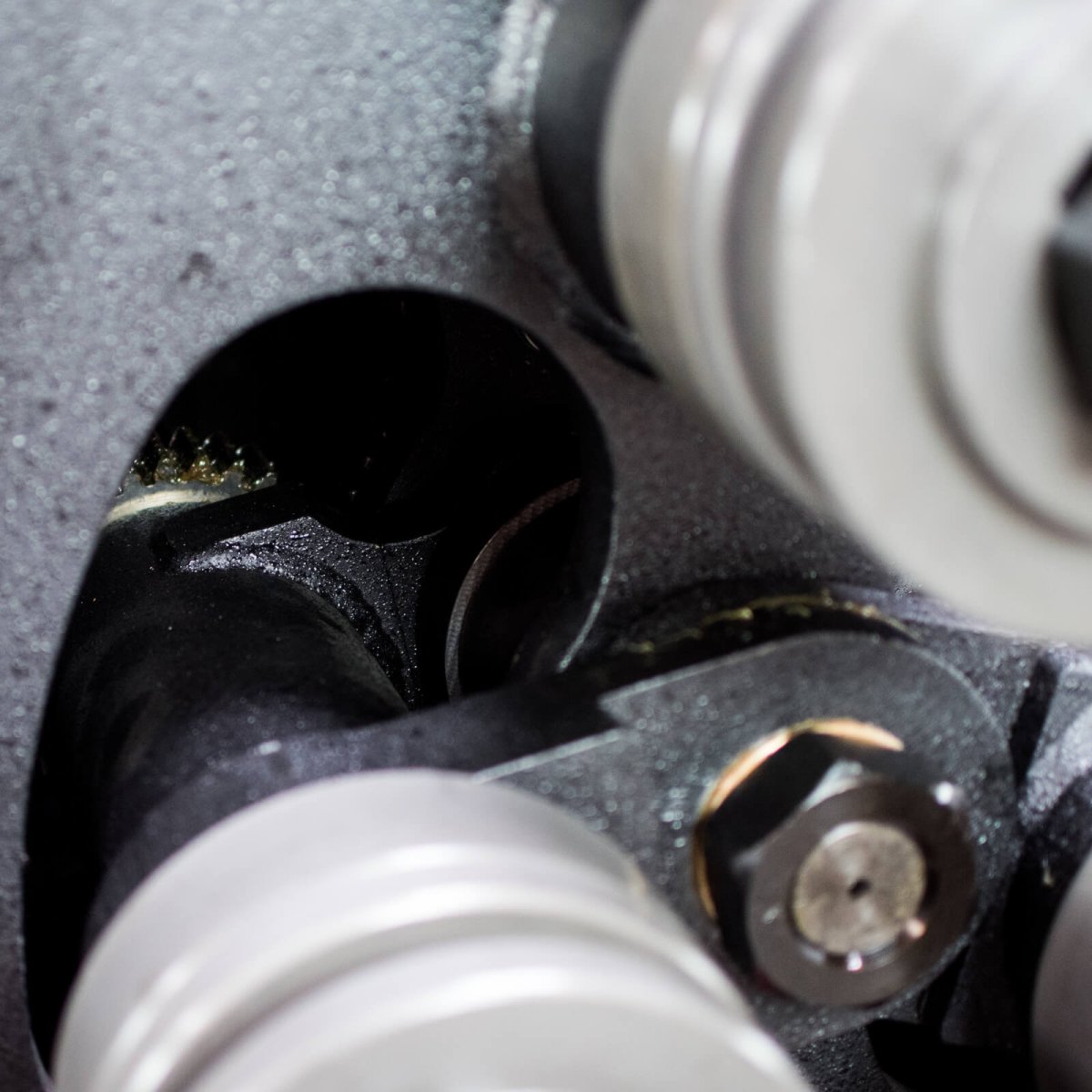

- Axle transmission: Planetary gear system with hardened pinions.
- Bending regulation: Independent upper roller adjustment relative to lower rollers.
- Roller positioning: Electronically controlled asymmetric roller movement.

Common Uses:
The MC650 is used for bending and forming large flat bar, solid section, tube, and structural profiles in fabrication and production environments. It is well suited for architectural components, heavy frames, structural elements, and repeat-production parts requiring controlled, high-capacity bending.

Warranty:
Nargesa machines are built for long-term industrial service and are supported by an industry-leading warranty program. Each machine includes a standard 6-month warranty covering defective components. By registering the machine on Nargesa.com, customers extend this coverage to a full 3-year warranty on defective parts. The warranty covers replacement of defective components only and does not include labor, technical assistance, or travel.
