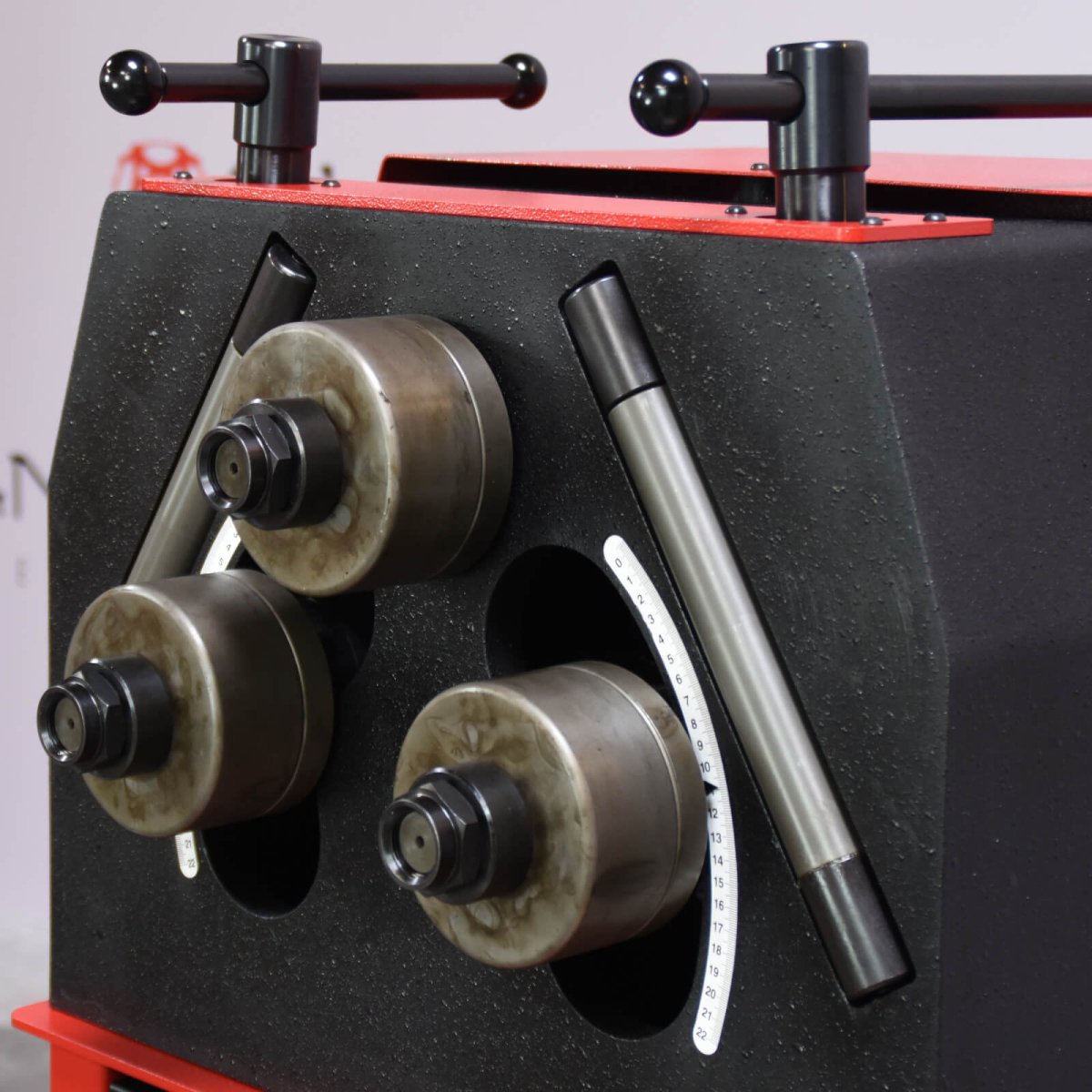

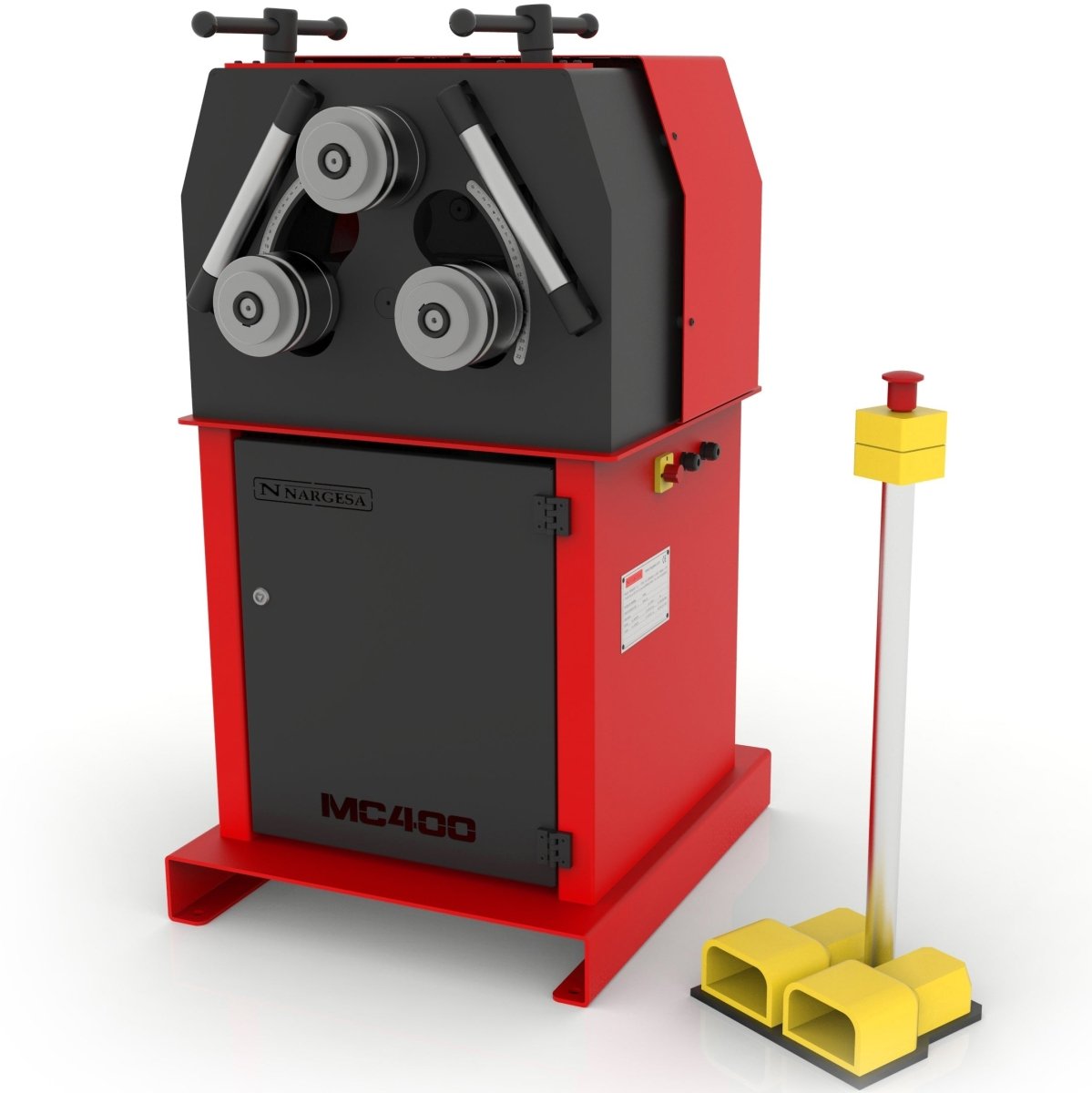

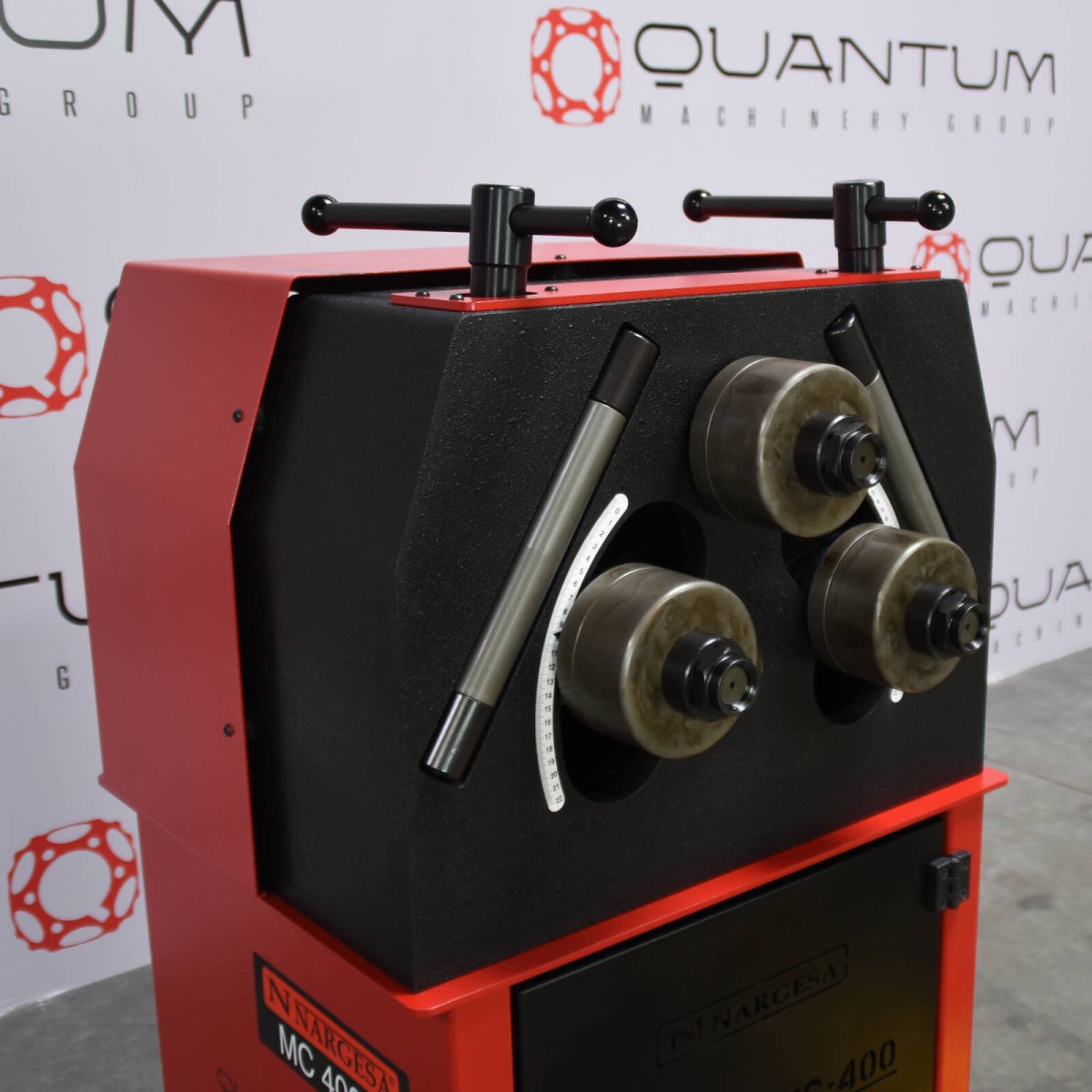

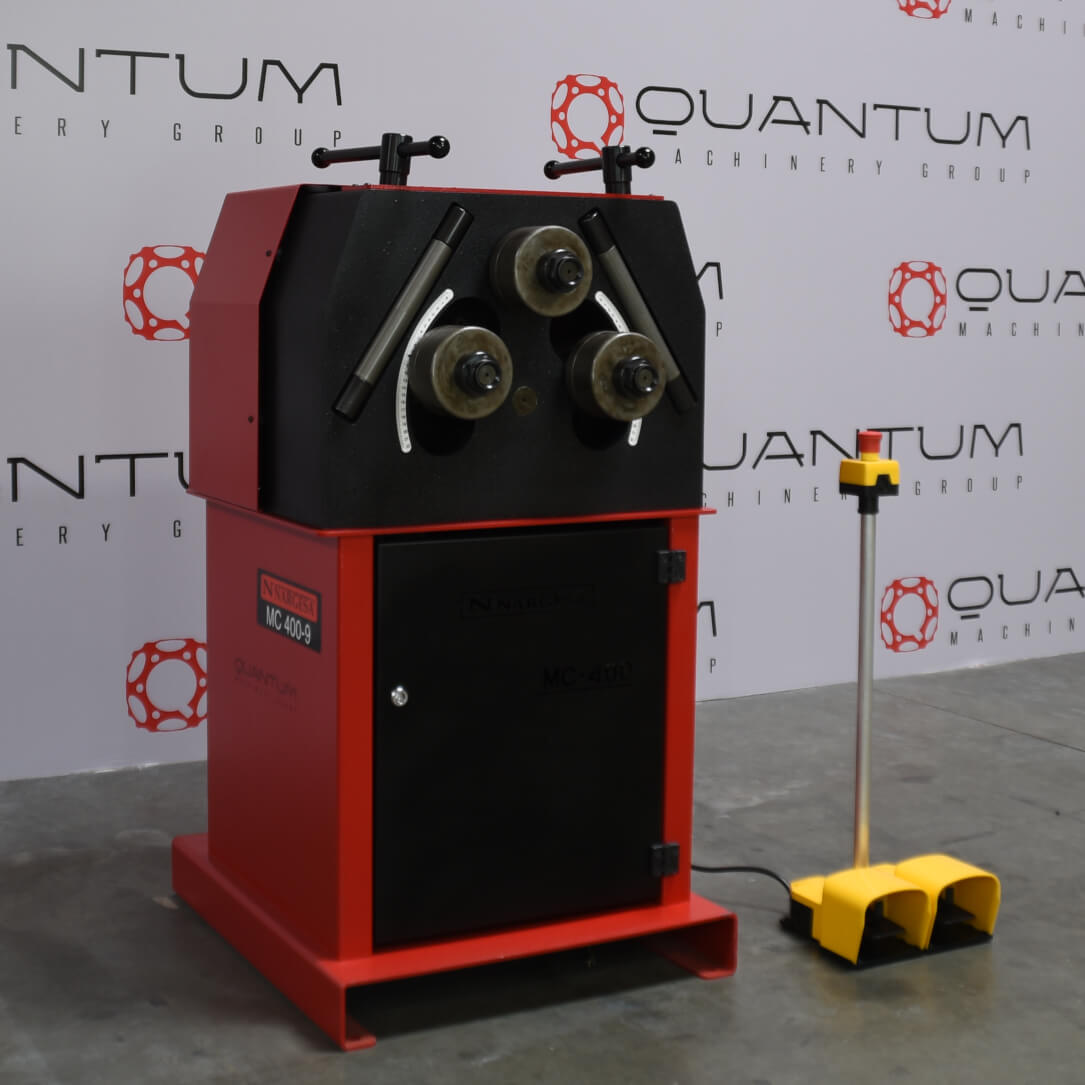

MC400 Planetary-Style Roll Bender

The MC400 is a heavy-duty industrial horizontal bending and forming machine designed for shaping flat bar, round bar, square bar, tube, and structural sections through controlled bending and forming operations. It is intended for fabrication and production environments that require higher forming capacity, improved profile control, and tighter radii than mid-range machines can deliver.

Built around a reinforced welded steel frame and a high-capacity industrial hydraulic system, the MC400 delivers increased forming force and stability during bending operations. The machine is compatible with optional planetary-style rollers, allowing improved control when forming tube and structural profiles where deformation or surface marking must be minimized.

- Designed for horizontal bending and forming of profiles and structural sections.
- Provides higher forming capacity for heavier sections and tighter radii.
- Supports optional planetary-style rollers for improved profile control.
- Hydraulic forming system delivers smooth, controlled bending force.
- Suitable for continuous-duty fabrication and production environments.

Bending Capacities:
All bending capacities are based on mild steel profiles / applications. Minimum bending radii are listed exactly as provided by the manufacturer and may vary with material hardness and wall thickness. Dimensions marked with an asterisk (*) require optional rollers.

Round Tube:
- 2.50" × 0.12" wall (63.5×3mm)* — Minimum bending radius: 17.72" (450mm).
- 1.57" × 0.08" wall (40×2mm)* — Minimum bending radius: 7.87" (200mm).

Square Tube:
- 1.97" × 1.97" × 0.12" (50×50×3mm) — Minimum bending radius: 23.62" (600mm).
- 1.57" × 1.57" × 0.12" (40×40×3mm) — Minimum bending radius: 11.81" (300mm).

Solid Round Bar:
- Ø1.18" (Ø30mm) — Minimum bending radius: 5.91" (150mm).

Solid Square:
- 1.18" × 1.18" (30×30mm) — Minimum bending radius: 5.91" (150mm).

Flat Bar (Easy Way):
- 3.15" × 0.79" (80×20mm) — Minimum bending radius: 5.91" (150mm).

Flat Bar (Hard Way):
- 1.97" × 0.39" (50×10mm) — Minimum bending radius: 9.84" (250mm).

Angle Leg-Out:
- 1.57" (40mm) — Minimum bending radius: 7.87" (200mm).

* Optional rollers required.

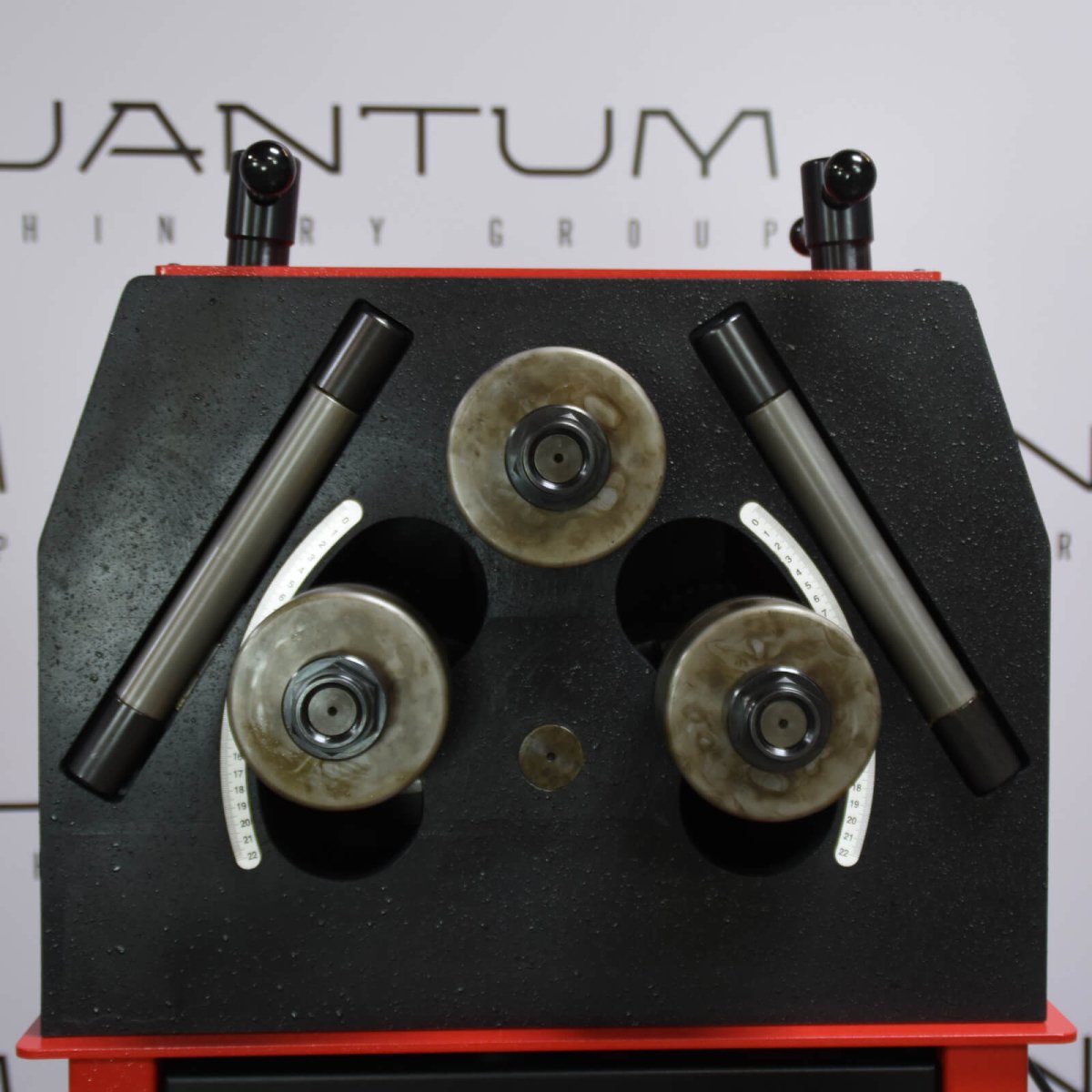

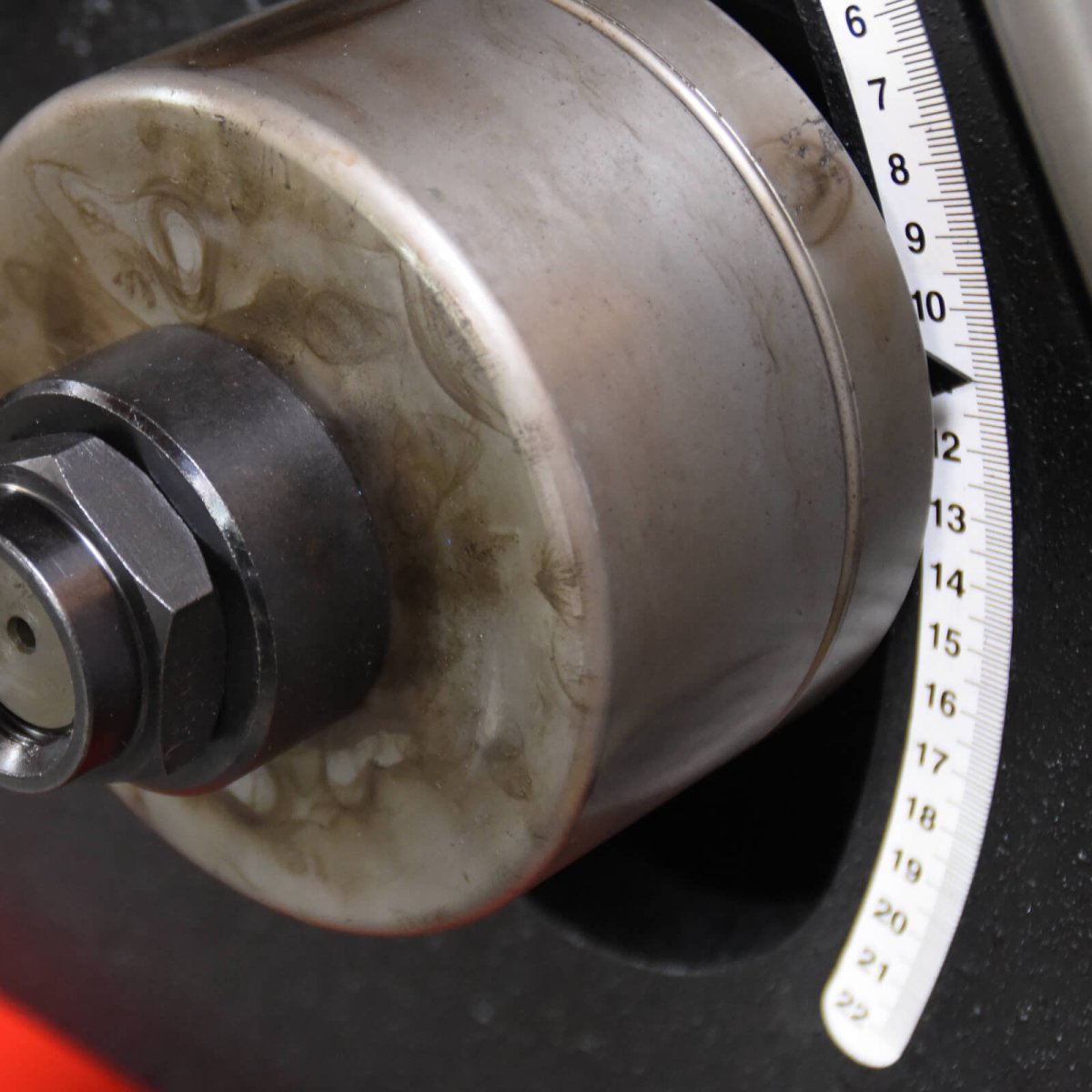

Planetary-Style Rollers:
The MC400 supports optional planetary-style roller systems designed to improve control when bending tube and structural profiles. Unlike fixed rollers, planetary rollers rotate around the section during the bend, maintaining continuous contact and distributing forming pressure evenly.

Planetary rollers are particularly beneficial when forming thin-wall tube, square tube, and architectural profiles where deformation, flattening, or surface marking must be minimized. By supporting the section throughout the bend radius, these rollers help maintain cross-section geometry and improve consistency on tighter or longer-radius bends.

- Improves profile control on tube and hollow sections.
- Reduces deformation and surface marking during bending.
- Enhances consistency on tighter radii and longer arcs.
- Recommended for repeat fabrication and production work.

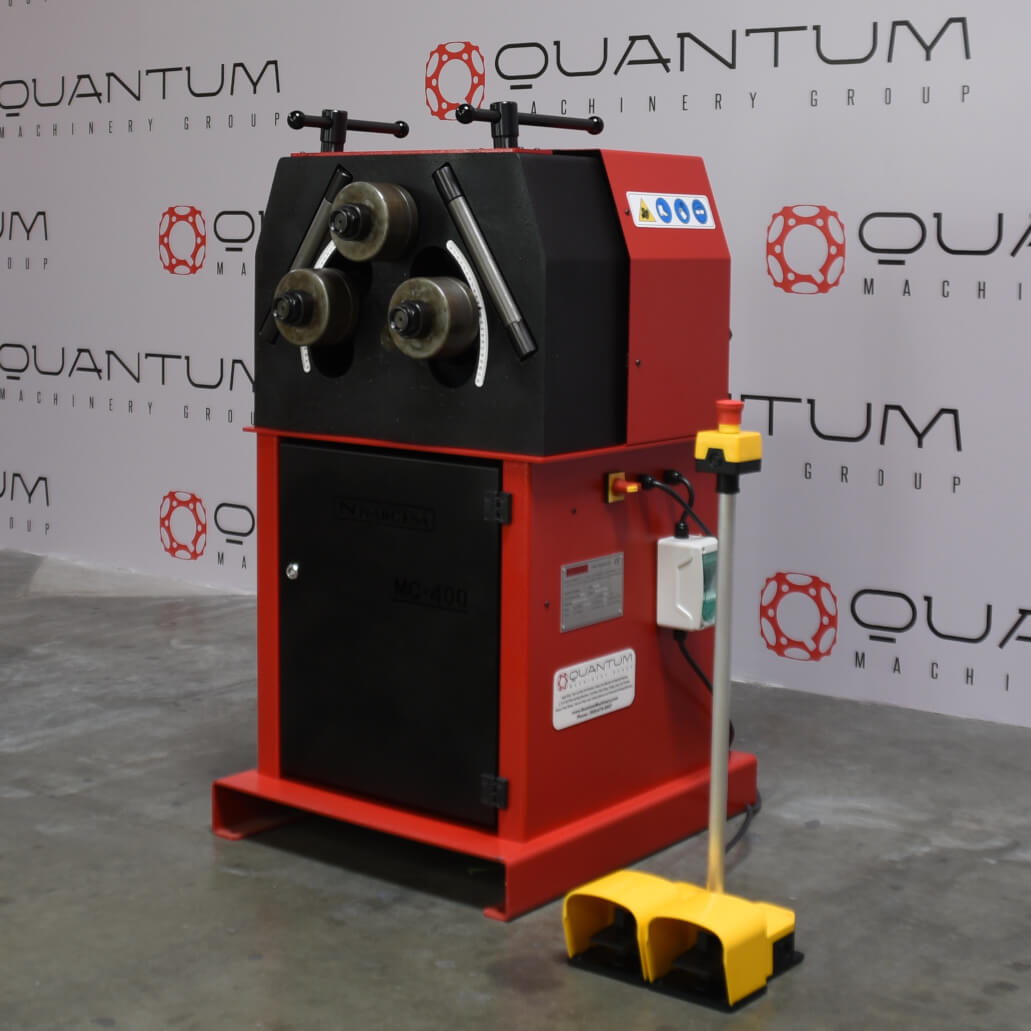

Base Machine (Standard):
- Industrial horizontal bending and forming machine platform.
- Reinforced welded steel frame designed to resist deflection under load.
- High-capacity industrial hydraulic power system.

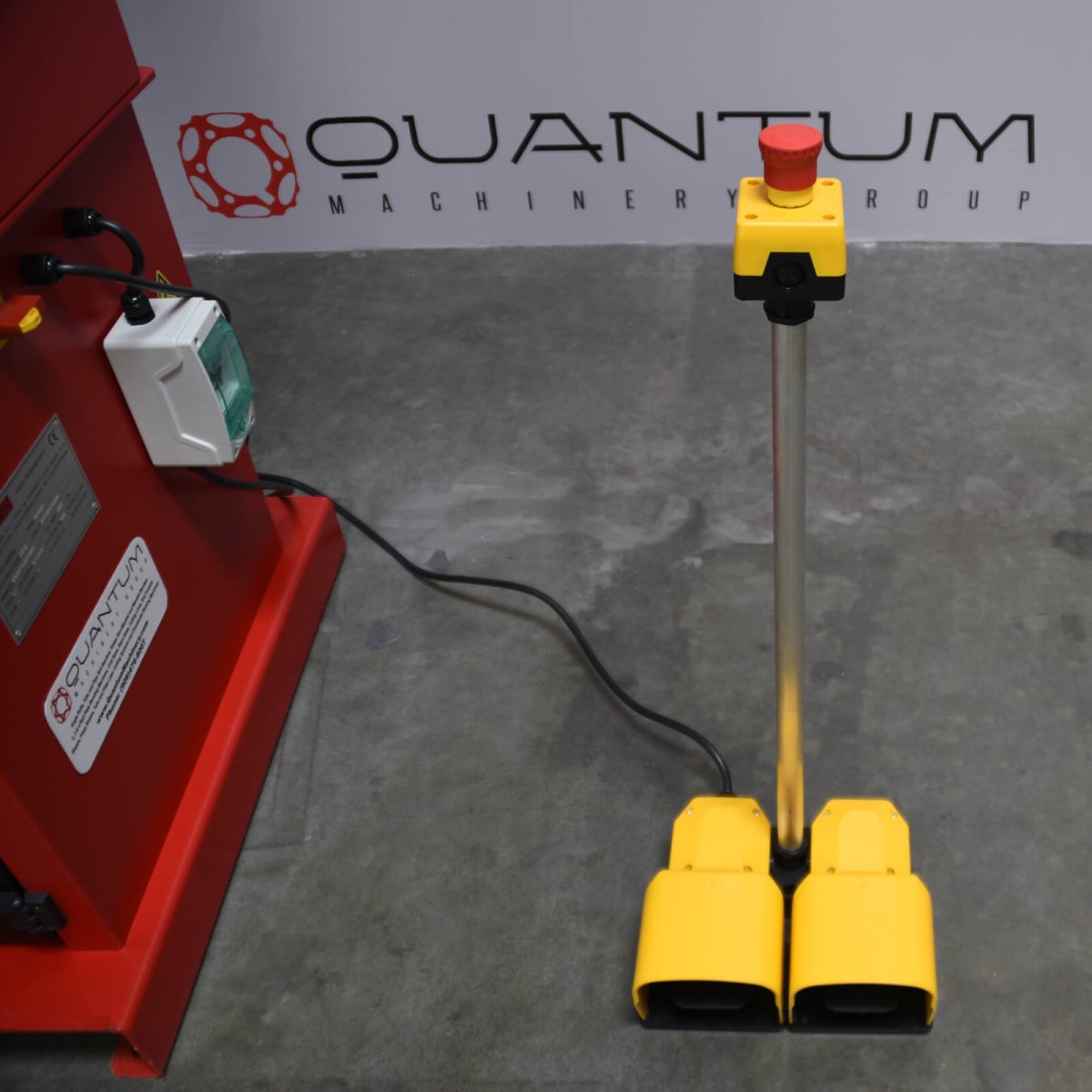

- Operator control interface for controlled bending cycles.
- Safety guarding and emergency stop controls.

Optional Tooling & Accessories (Quoted by Configuration):
- Bending dies for flat bar, square bar, and round bar.
- Profile-specific tooling for tube and structural sections.
- Planetary-style rollers for tube and profile bending.
- Material support arms and positioning accessories.
- Custom-manufactured tooling based on application requirements.

Working Capabilities:
- Bending and forming capacity varies based on tooling selection, section geometry, and hydraulic adjustment.

Key Features:
- Heavy-duty frame construction supports stable forming under higher loads.
- Hydraulic system delivers smooth, controlled bending force.
- Planetary roller compatibility improves profile control and repeatability.
- Tool-change flexibility supports a wide range of profile types.
- Designed for long service life in demanding fabrication environments.

Specifications:
- Machine type: Industrial horizontal bending and forming machine.
- Construction: Reinforced welded steel frame.
- Power system: Industrial hydraulic power unit.
- Electrical configuration: Configurable to shop requirements.
- Control type: Manual operation.

Common Uses:
The MC400 is used for bending and forming flat bar, round bar, square bar, tube, and structural sections in fabrication and production environments. It is well suited for architectural components, frames, structural elements, and formed parts requiring higher capacity and improved profile control.

Warranty:
Nargesa machines are built for long-term industrial service and are supported by an industry-leading warranty program. Each machine includes a standard 6-month warranty covering defective components. By registering the machine on Nargesa.com, customers extend this coverage to a full 3-year warranty on defective parts. The warranty covers replacement of defective components only and does not include labor, technical assistance, or travel.

System Configuration & Full Quotation:
The MC400 is configured based on section size, bending requirements, and tooling selection. To ensure proper configuration and accurate pricing, tooling and accessories are quoted as part of a complete machine package. To request a full quotation and application review, call (704) 703-9400 or email Sales@QuantumMachinery.com.
