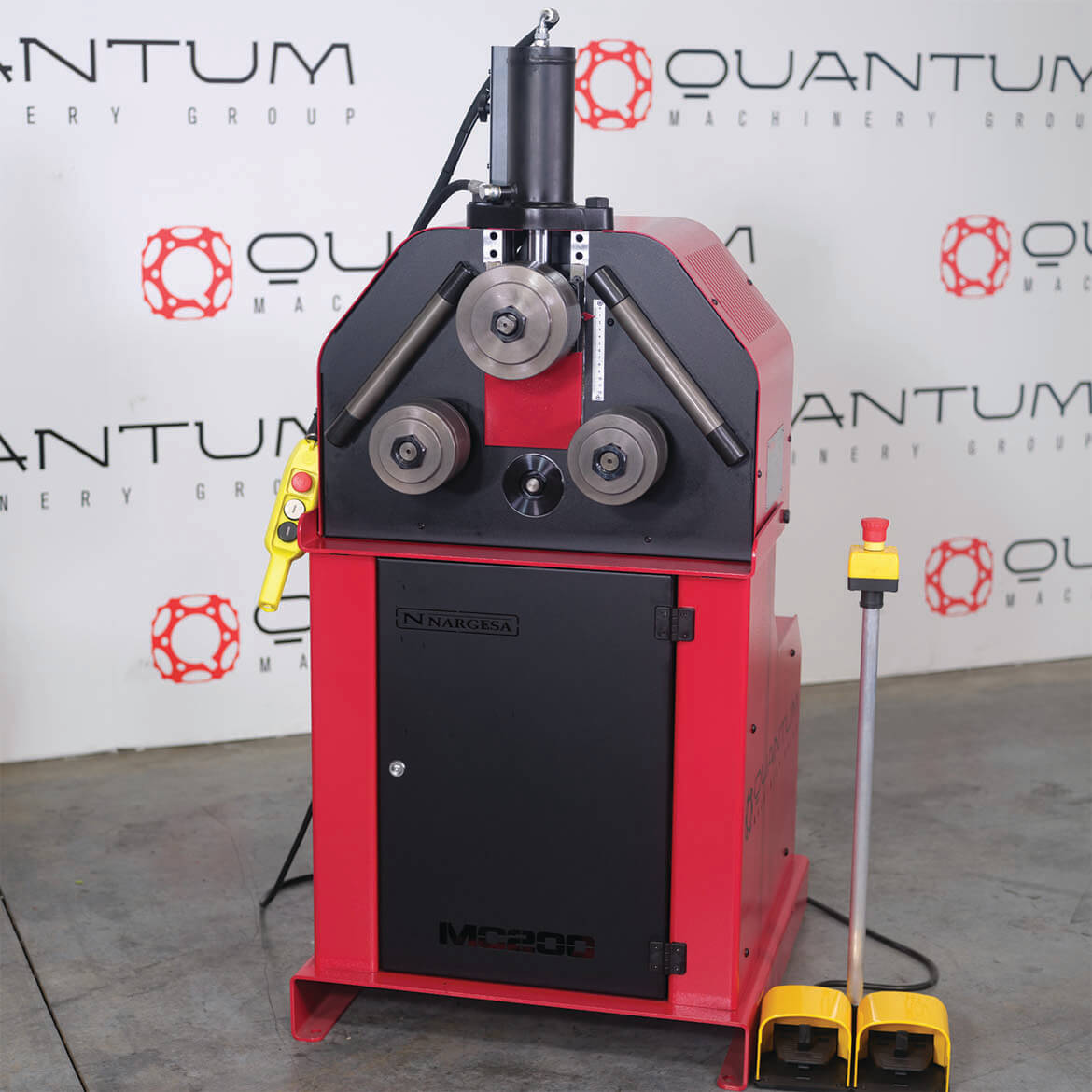

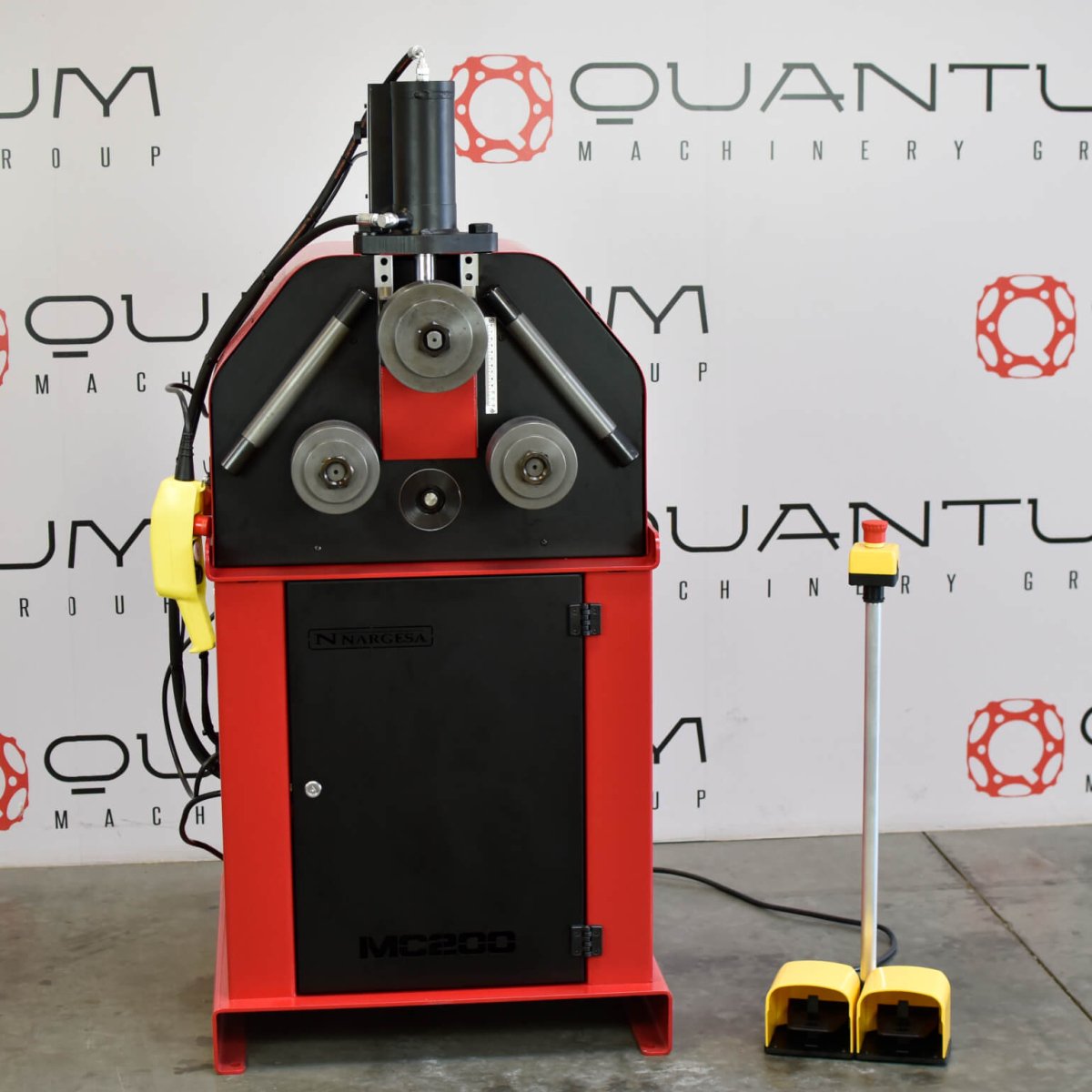

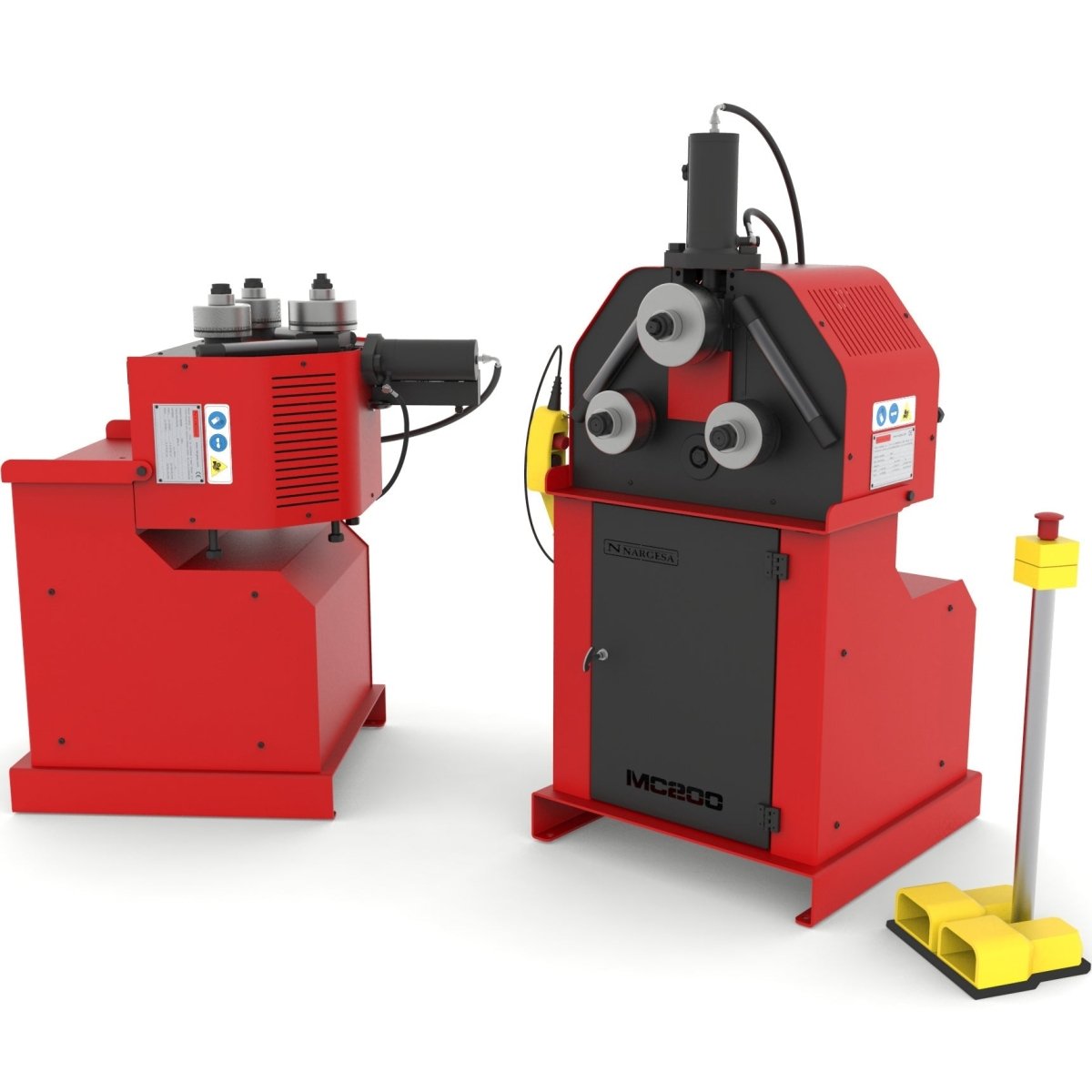

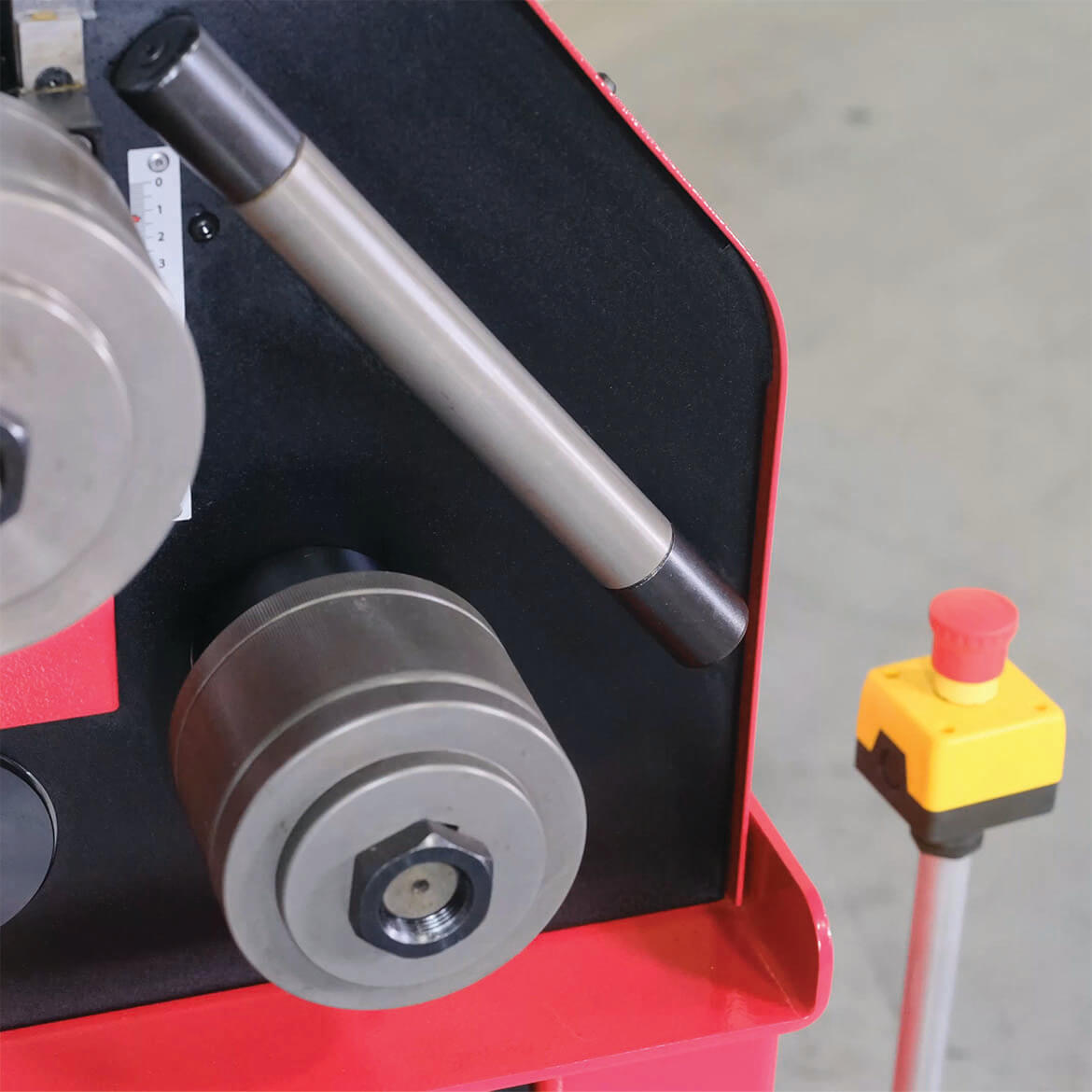

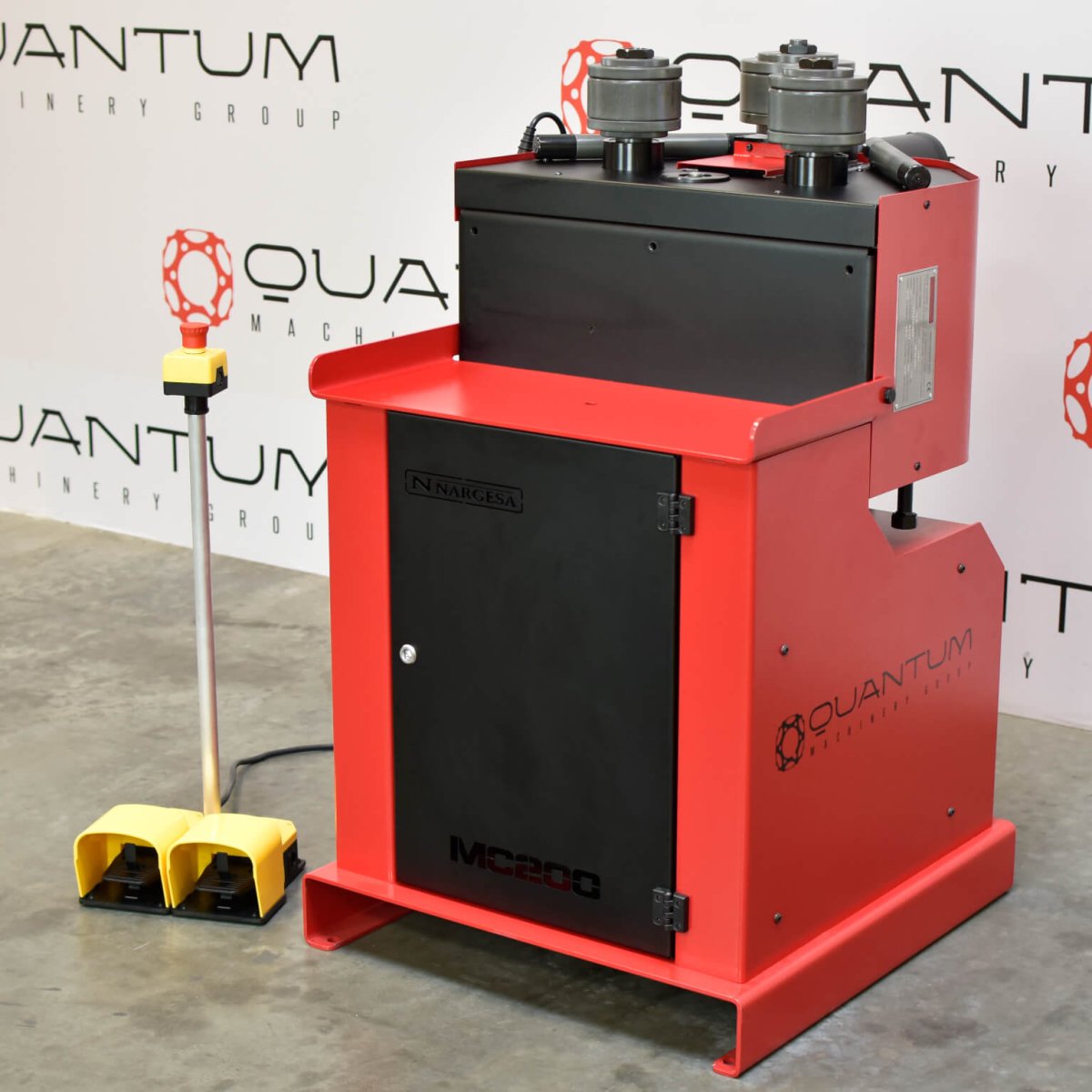

MC200H Roll Bender

The MC200H is an industrial horizontal bending and forming machine designed for shaping flat bar, round bar, square bar, tube, and structural sections through controlled bending and forming operations. It is intended for fabrication and production environments that require improved forming control, higher consistency, and increased capacity compared to mechanically adjusted machines.

Built around a reinforced welded steel frame and an industrial hydraulic system, the MC200H is distinguished by its hydraulic top roll. This replaces mechanical adjustment with hydraulic positioning, allowing smoother pressure application, more consistent bending results, and improved control when working with heavier sections or tighter radii.

- Designed for horizontal bending and forming of profiles and structural sections.
- Hydraulic top roll provides finer control than mechanical adjustment.
- Supports tighter radii and increased capacity on select profiles.
- Interchangeable tooling adapts the machine to multiple section geometries.
- Suitable for continuous use in fabrication and light production environments.

Bending Capacities:
All bending capacities are based on mild steel profiles / applications. Minimum bending radii are listed exactly as provided by the manufacturer and may vary with material hardness and wall thickness. Dimensions marked with an asterisk (*) require optional rollers.

Round Tube:
- 2.50" × 0.12" wall (63.5×3mm)* — Minimum bending radius: 17.72" (450mm).
- 1.57" × 0.08" wall (40×2mm)* — Minimum bending radius: 7.87" (200mm).

Square Tube:
- 1.97" × 1.97" × 0.12" (50×50×3mm) — Minimum bending radius: 17.72" (450mm).
- 1.57" × 1.57" × 0.12" (40×40×3mm) — Minimum bending radius: 11.81" (300mm).

Solid Round Bar:
- Ø1.18" (Ø30mm) — Minimum bending radius: 5.91" (150mm).

Solid Square:
- 1.18" × 1.18" (30×30mm) — Minimum bending radius: 5.91" (150mm).

Flat Bar (Easy Way):
- 3.15" × 0.79" (80×20mm) — Minimum bending radius: 5.91" (150mm).

Flat Bar (Hard Way):
- 2.36" × 0.39" (60×10mm) — Minimum bending radius: 7.87" (200mm).

Angle Leg-Out:
- 1.57" (40mm) — Minimum bending radius: 11.81" (300mm).

* Optional rollers required.

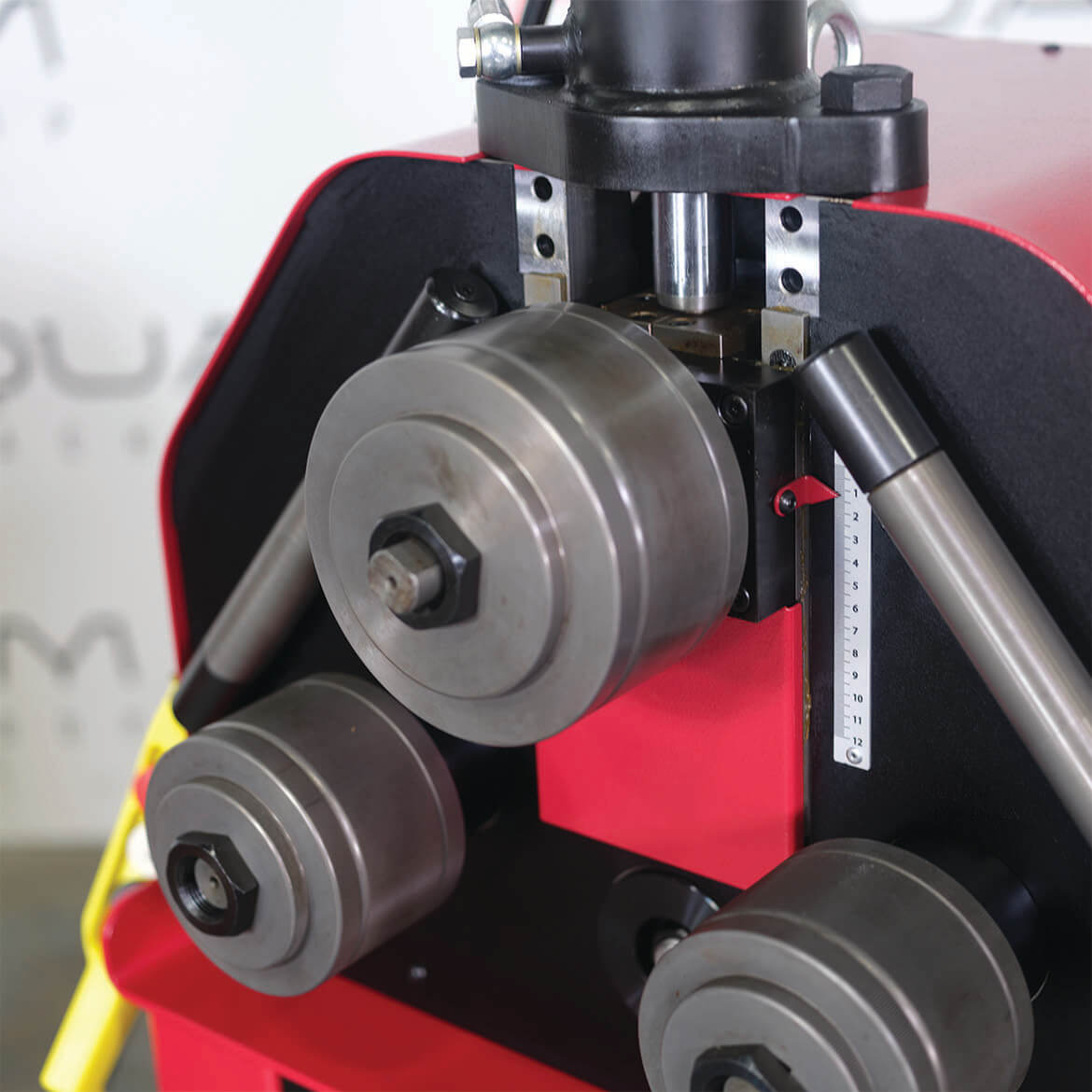

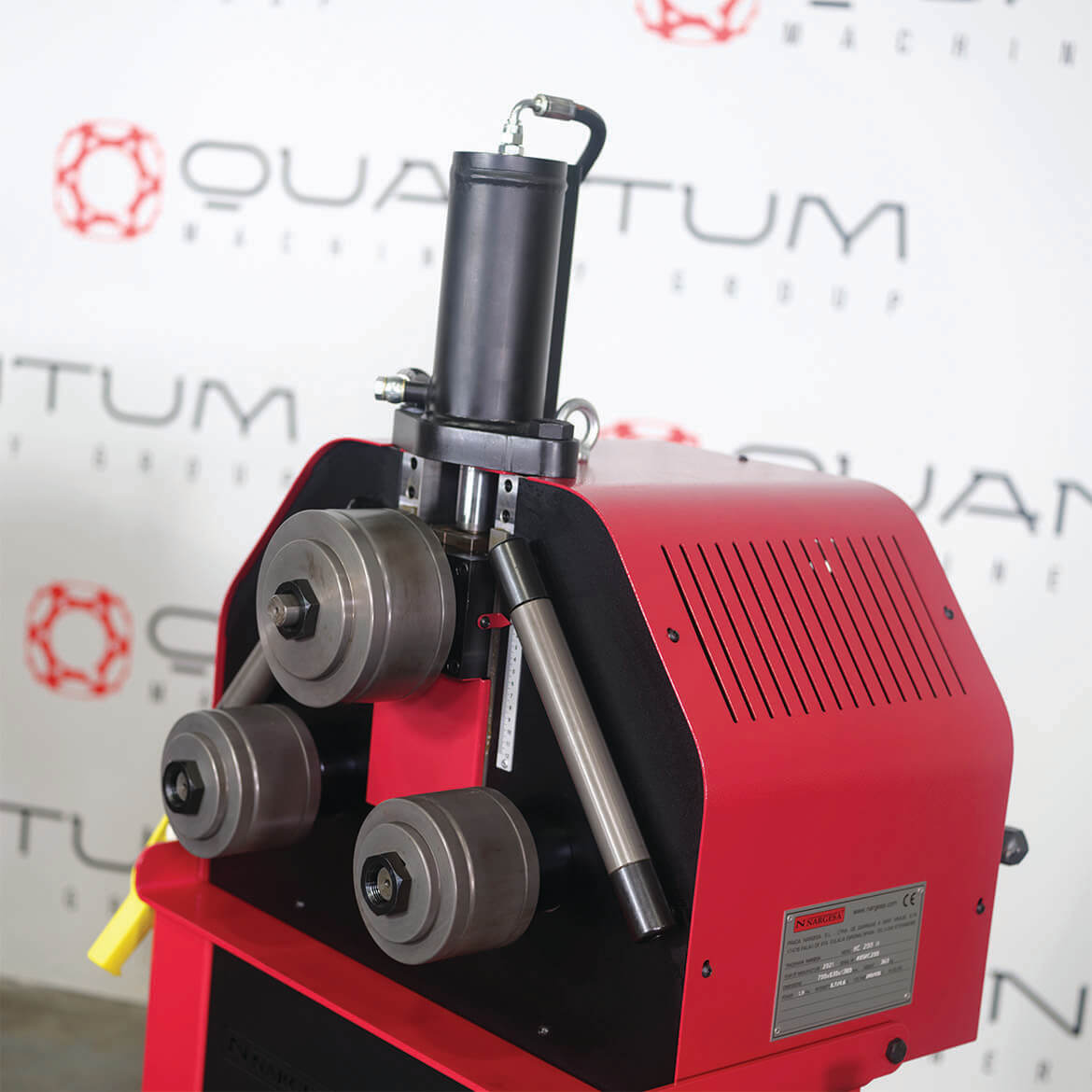

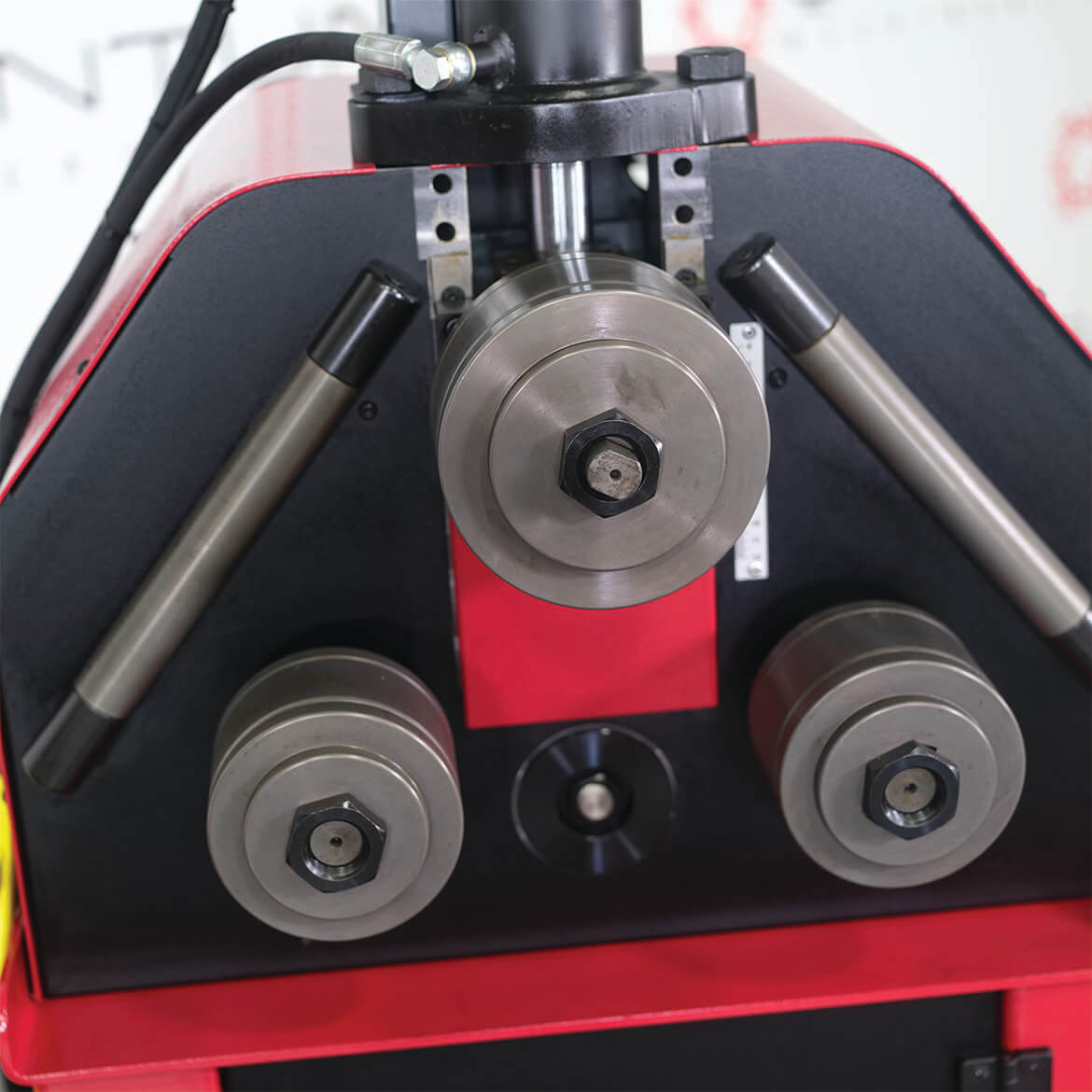

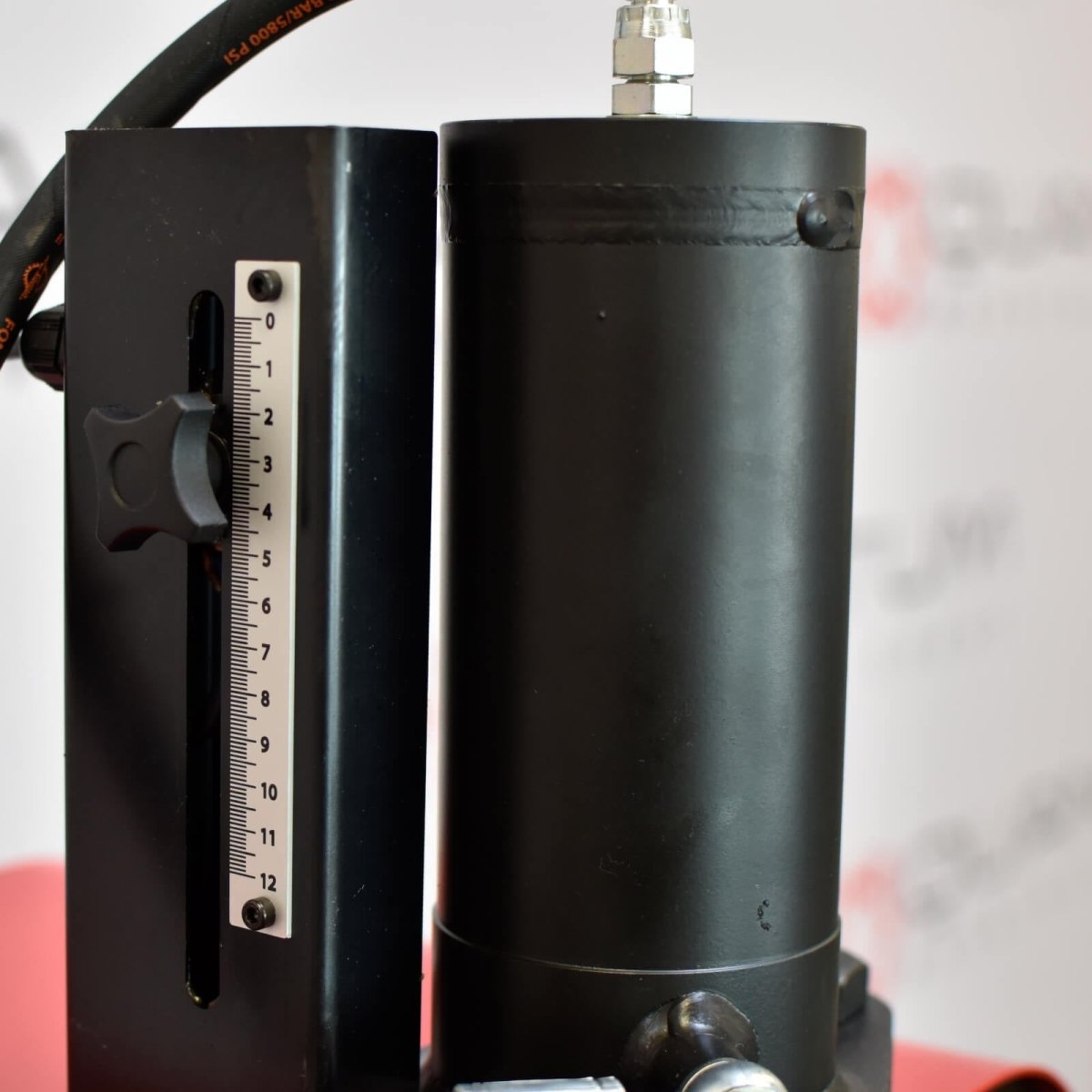

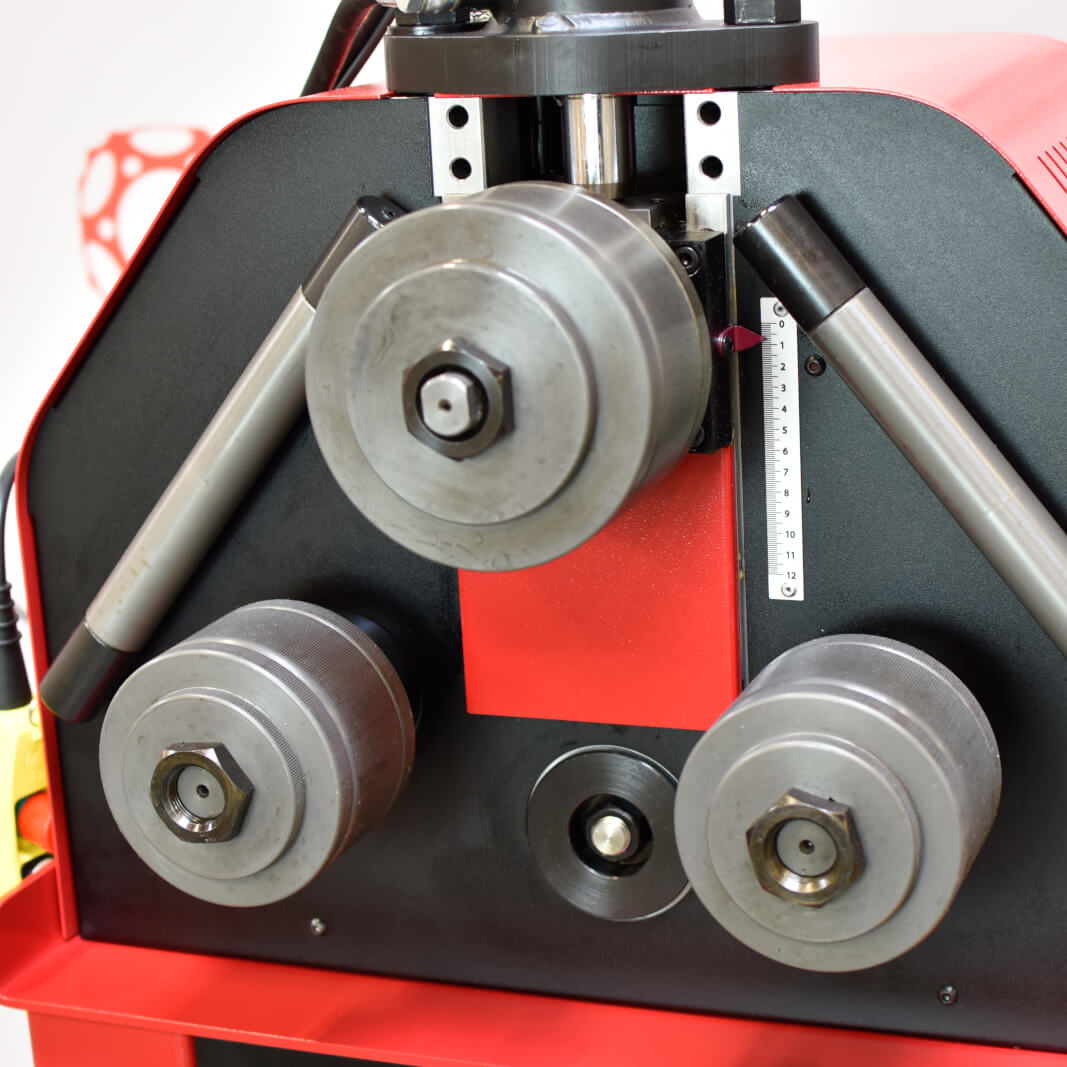

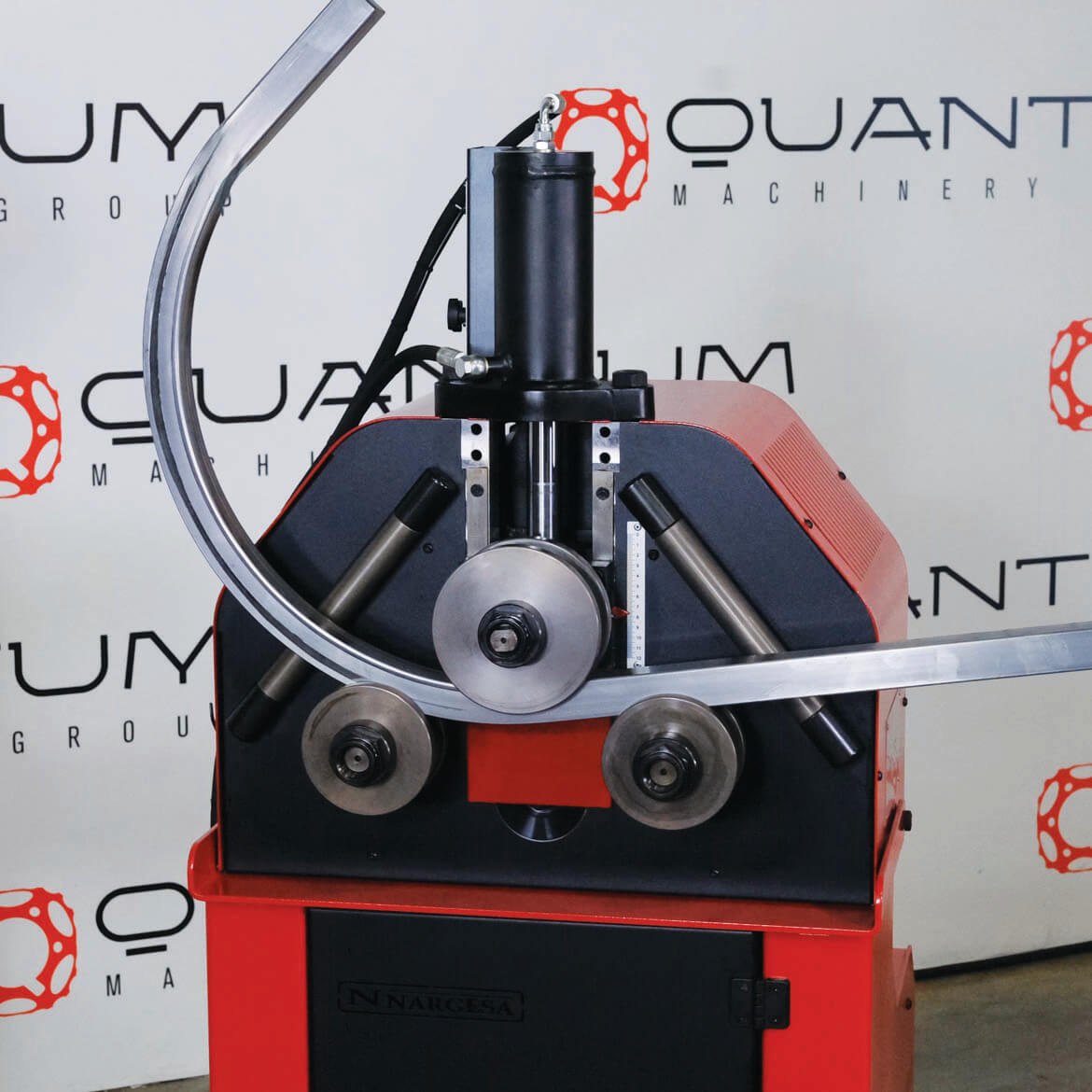

Hydraulic Top Roll:

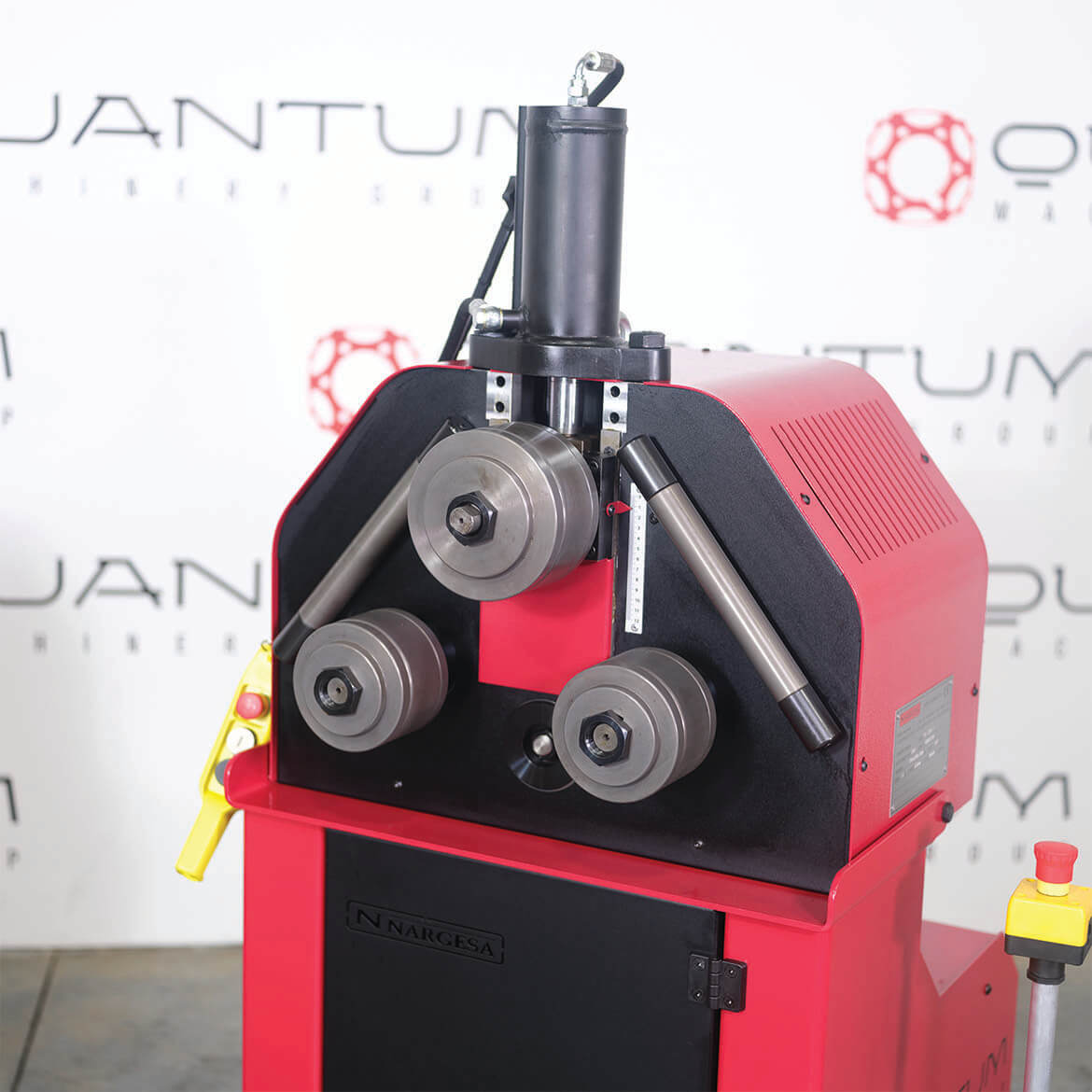

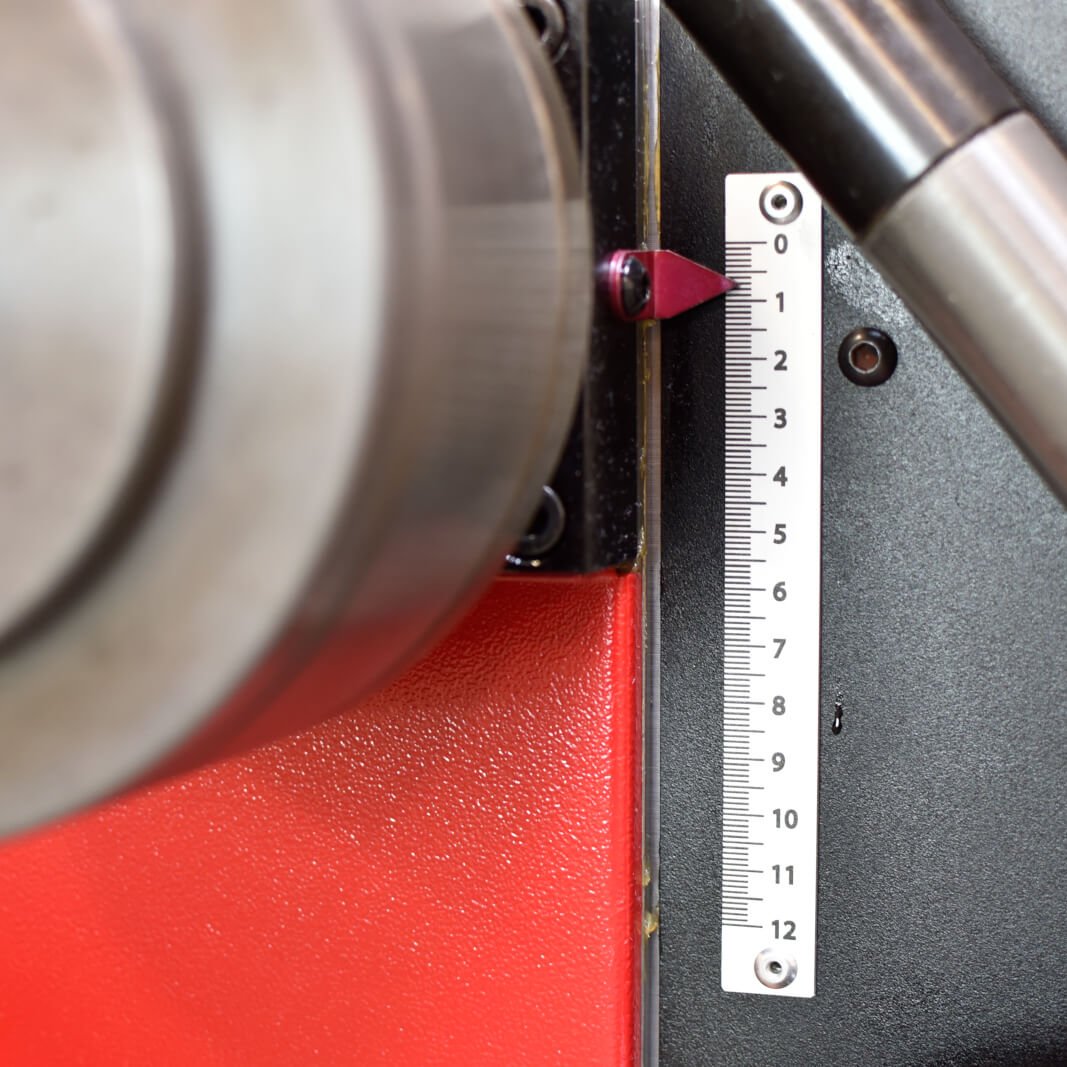

The defining feature of the MC200H is its hydraulic top roll, which allows bending pressure and roller position to be adjusted hydraulically rather than mechanically. This provides smoother force application, improved control of springback, and greater consistency across repeated bends.

The hydraulic top roll is particularly beneficial when bending heavier sections, producing tighter radii, or running repeat jobs where manual adjustment can introduce variation. It reduces operator effort while maintaining direct control of the forming process.

- Improves consistency compared to mechanical adjustment.
- Enhances control on heavier sections and tighter radii.
- Reduces operator effort during setup and adjustment.
- Supports repeat fabrication and light production work.

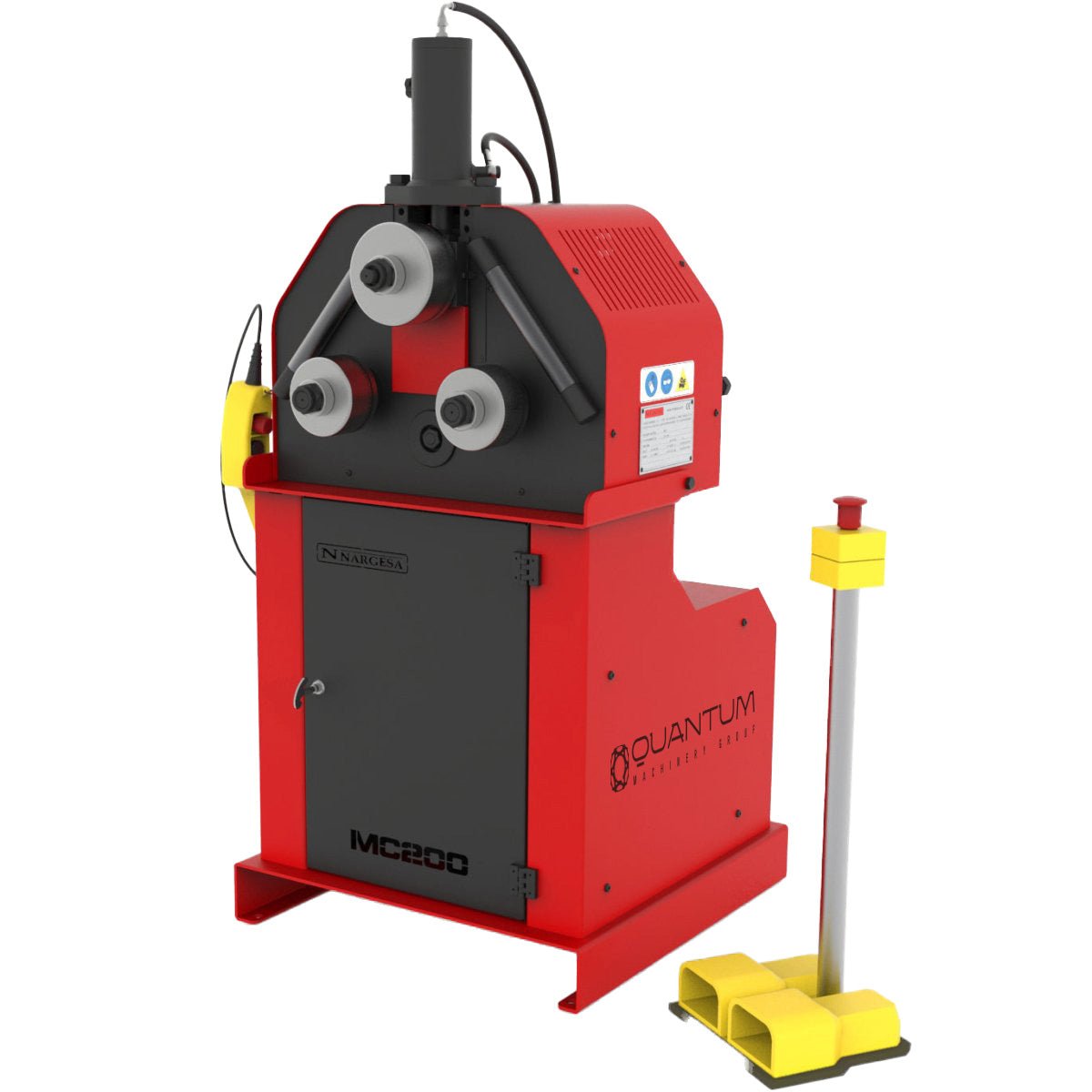

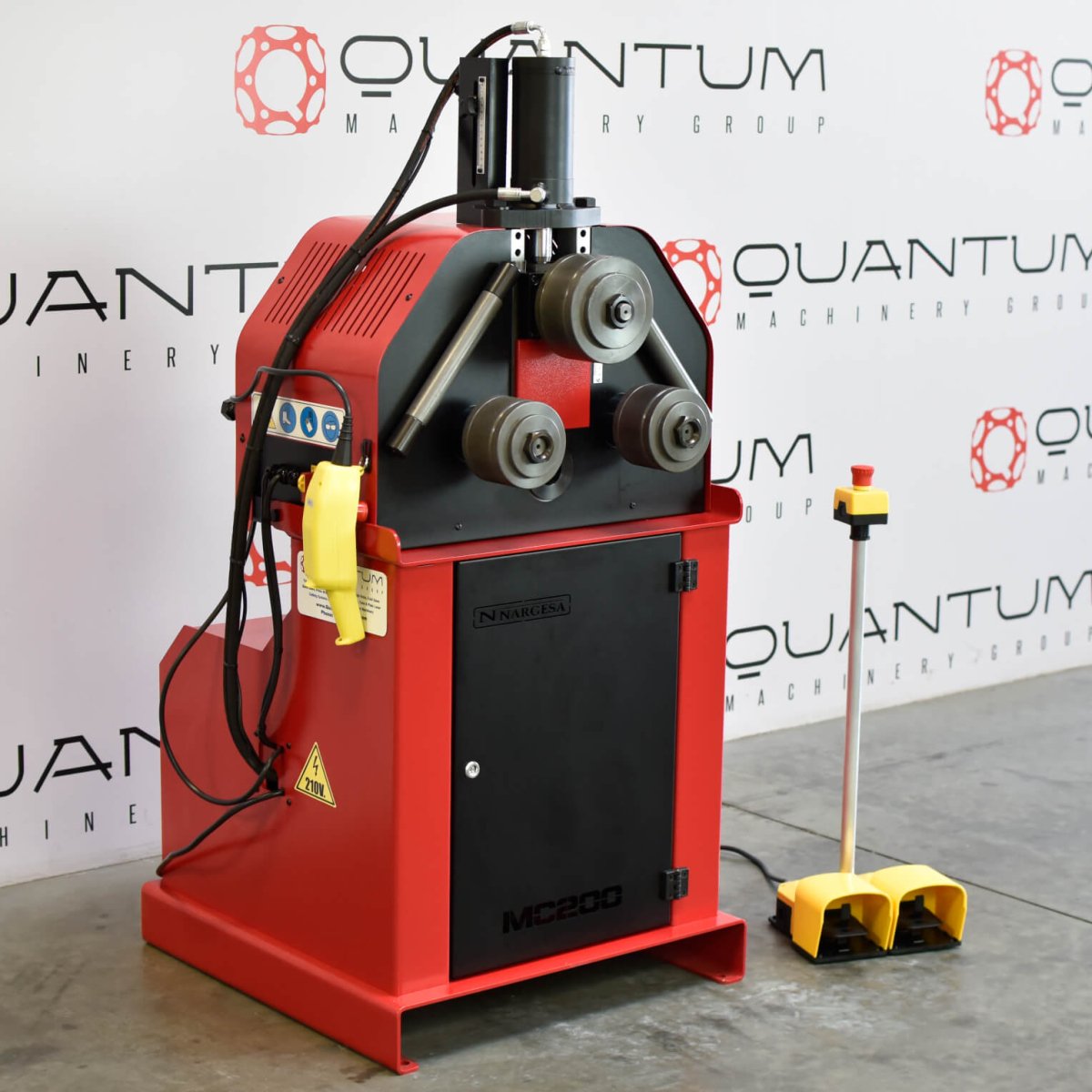

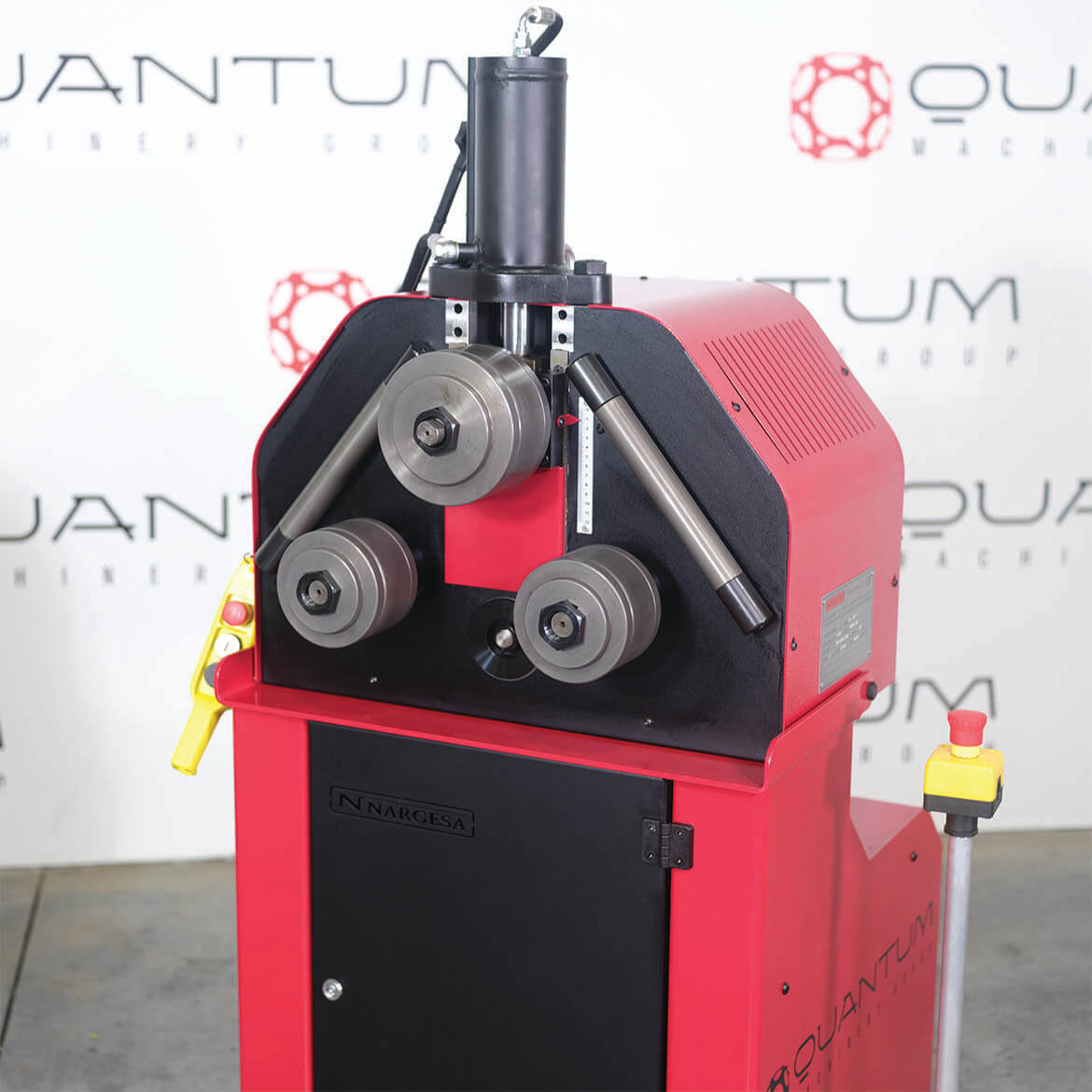

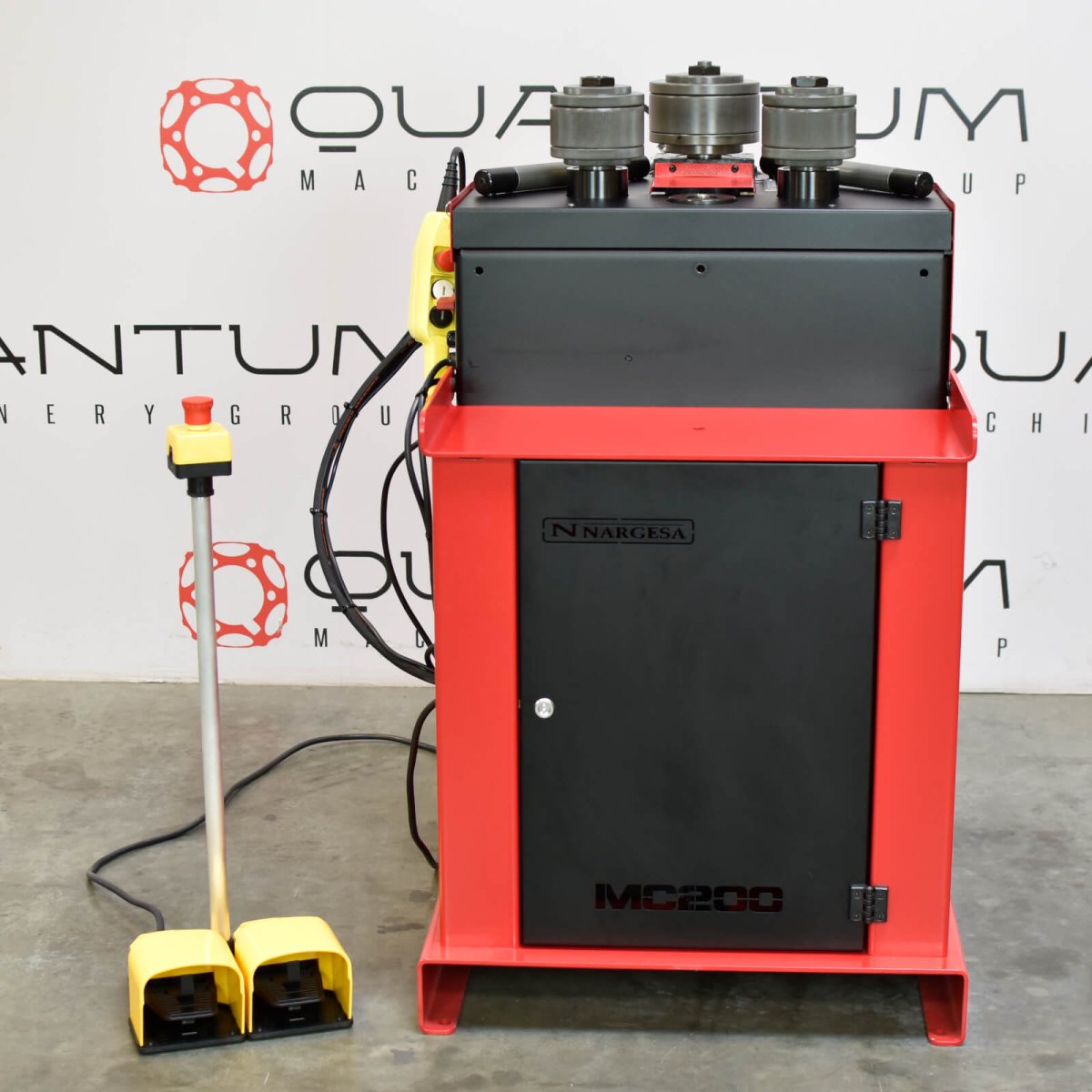

Base Machine (Standard):
- Industrial horizontal bending and forming machine platform.
- Reinforced welded steel frame designed to resist deflection under load.
- Industrial hydraulic power system with hydraulic top roll control.

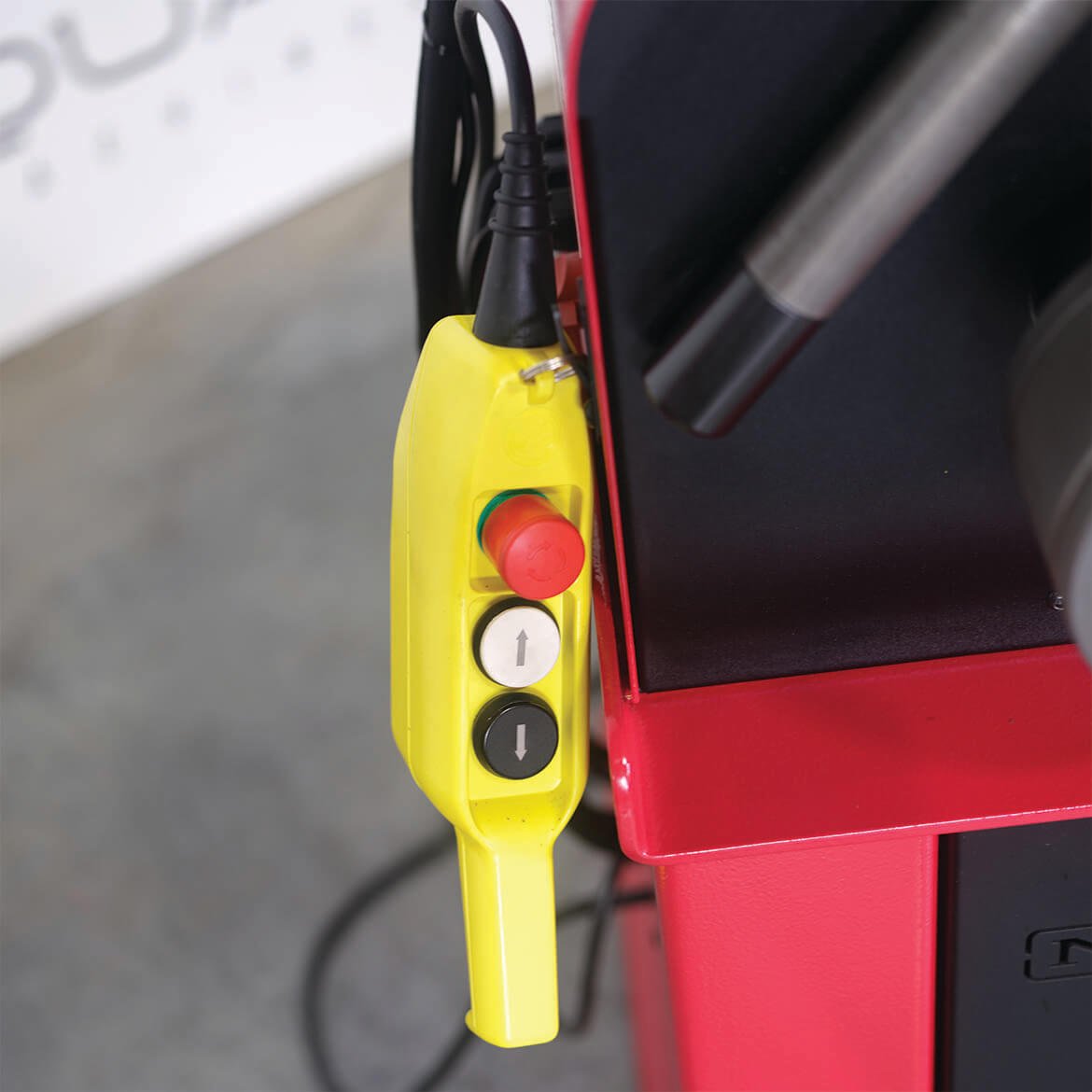

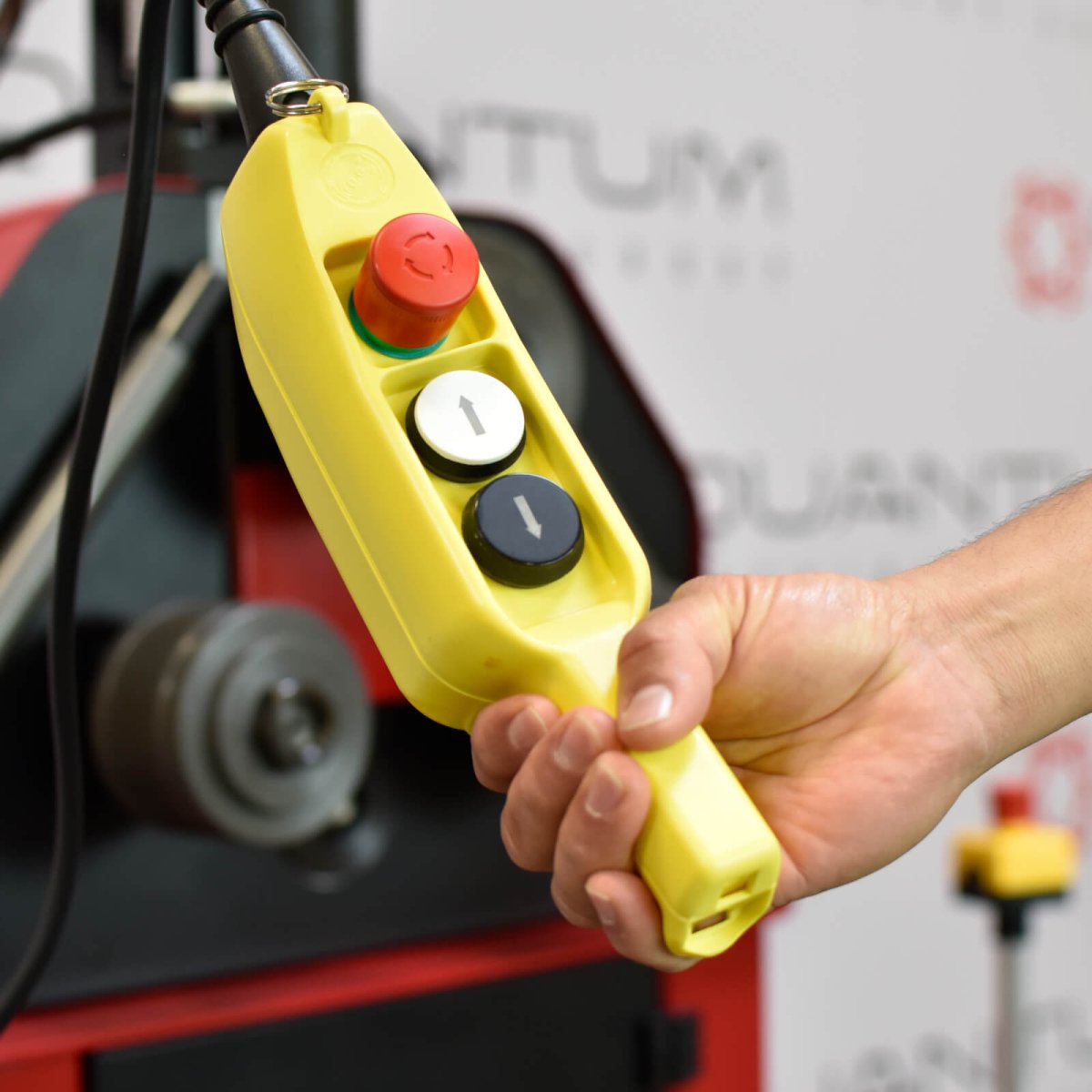

- Operator control interface for controlled bending cycles.

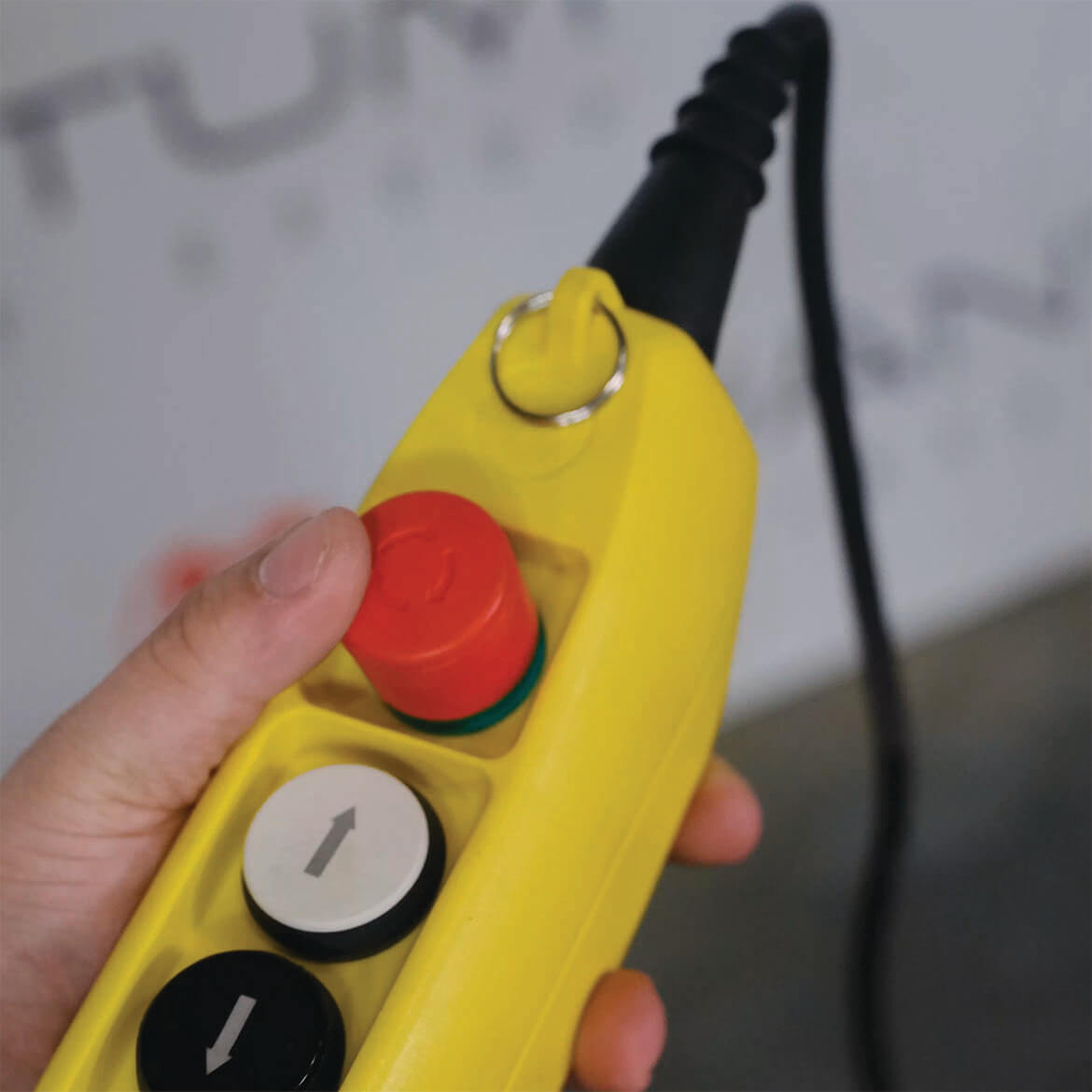

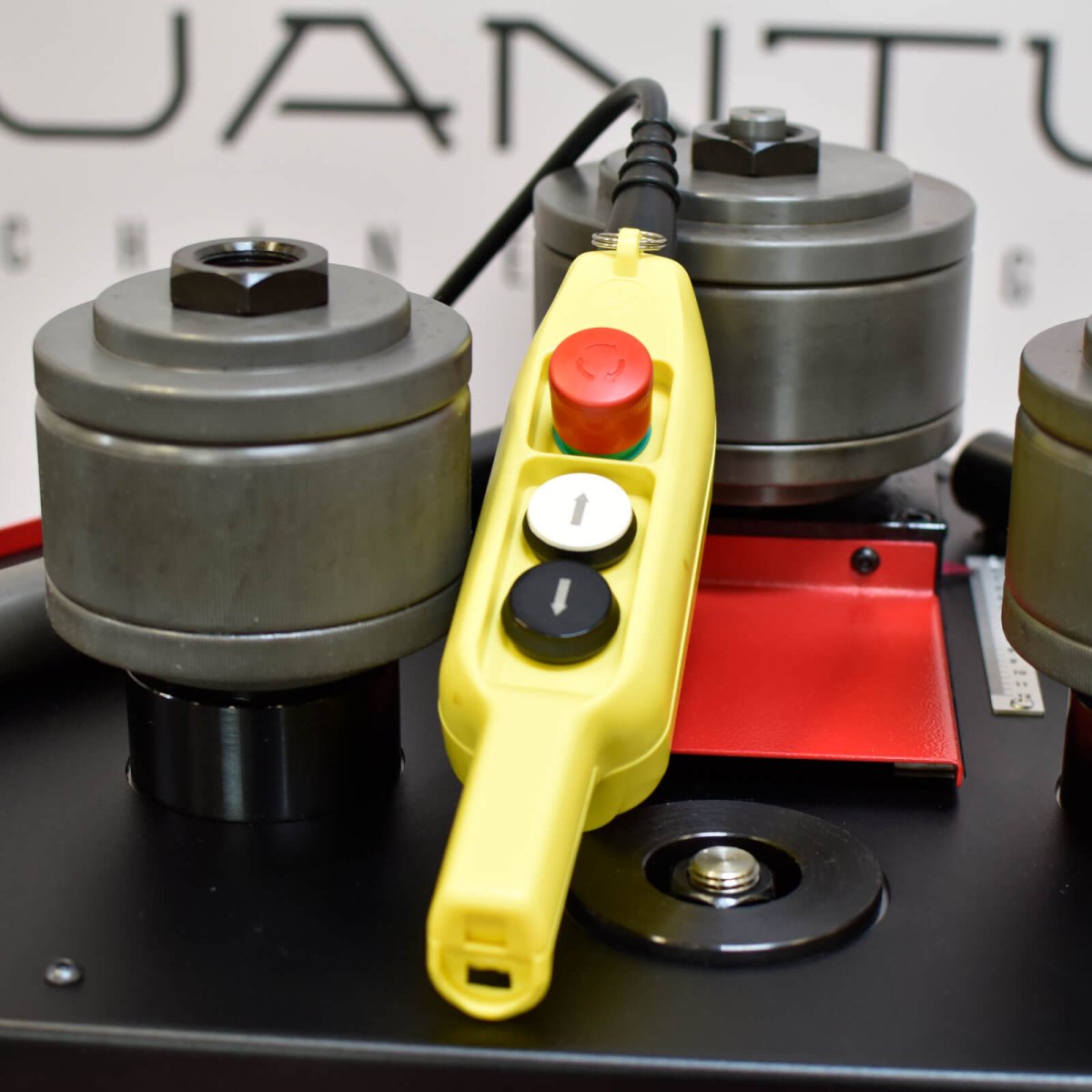

- Safety guarding and emergency stop controls.

Optional Tooling & Accessories (Quoted by Configuration):
- Bending dies for flat bar, square bar, and round bar.
- Profile-specific tooling for tube and angle sections.
- Optional rollers for round tube and specialty profiles.
- Material support arms and positioning accessories.
- Custom-manufactured tooling based on application requirements.

Working Capabilities:
- Bending and forming capacity varies based on tooling selection, section geometry, and hydraulic adjustment.

Key Features:
- Hydraulic top roll improves forming control and repeatability.
- Rigid frame construction supports stable forming under load.
- Hydraulic system delivers smooth, controlled bending force.
- Tool-change flexibility supports multiple profile types.
- Designed for long service life in fabrication environments.

Specifications:
- Machine type: Industrial horizontal bending and forming machine.
- Construction: Reinforced welded steel frame.
- Power system: Industrial hydraulic power unit.
- Electrical configuration: Configurable to shop requirements.
- Control type: Manual operation with hydraulic adjustment.

Common Uses:
The MC200H is used for bending and forming flat bar, round bar, square bar, tube, and structural sections in fabrication and production environments. It is well suited for applications requiring improved consistency, tighter radii, and greater control than mechanically adjusted machines can provide.

Warranty:
Nargesa machines are built for long-term industrial service and are supported by an industry-leading warranty program. Each machine includes a standard 6-month warranty covering defective components. By registering the machine on Nargesa.com, customers extend this coverage to a full 3-year warranty on defective parts. The warranty covers replacement of defective components only and does not include labor, technical assistance, or travel.

System Configuration & Full Quotation:
The MC200H is configured based on section size, bending requirements, and tooling selection. To ensure proper configuration and accurate pricing, tooling and accessories are quoted as part of a complete machine package. To request a full quotation and application review, call (704) 703-9400 or email Sales@QuantumMachinery.com.
