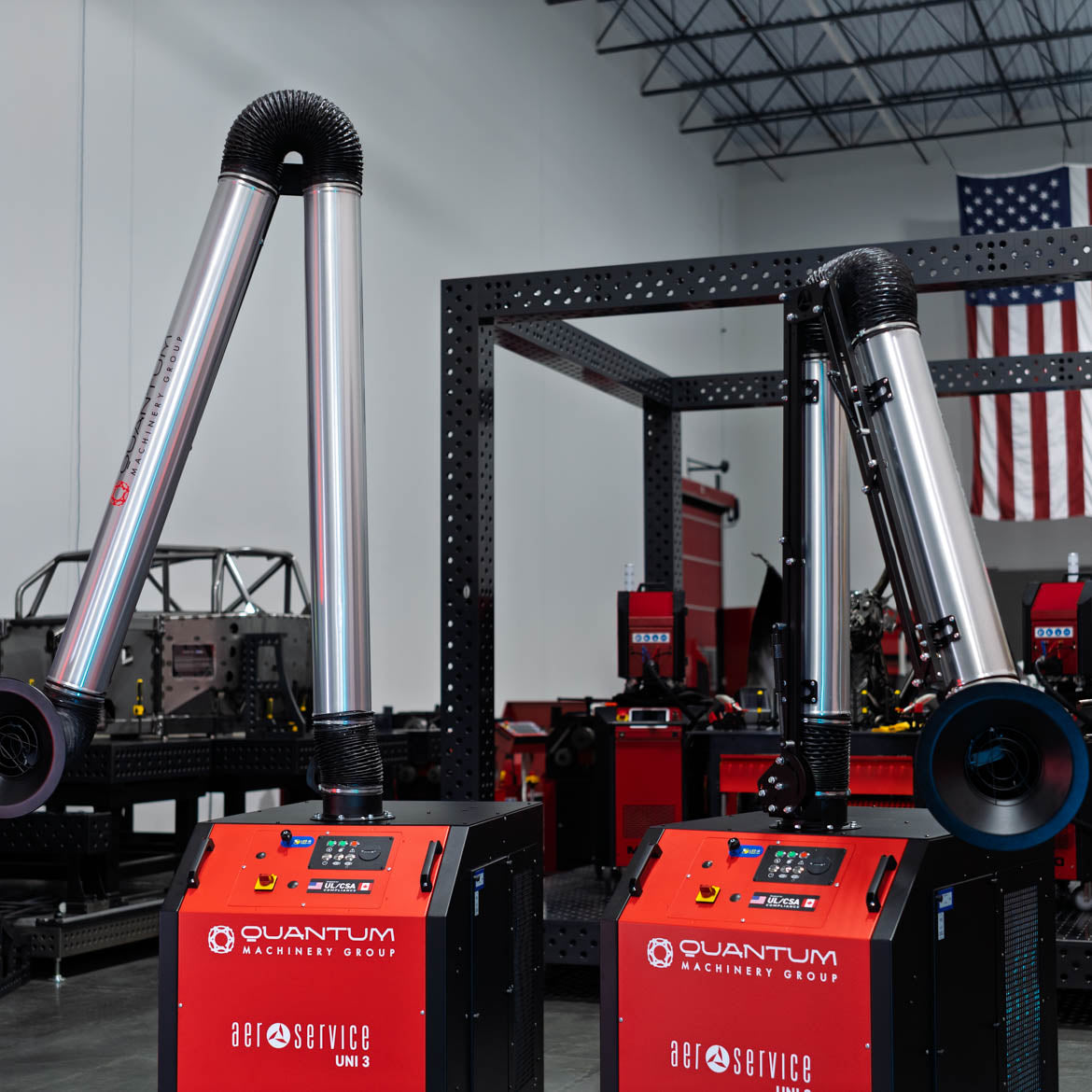

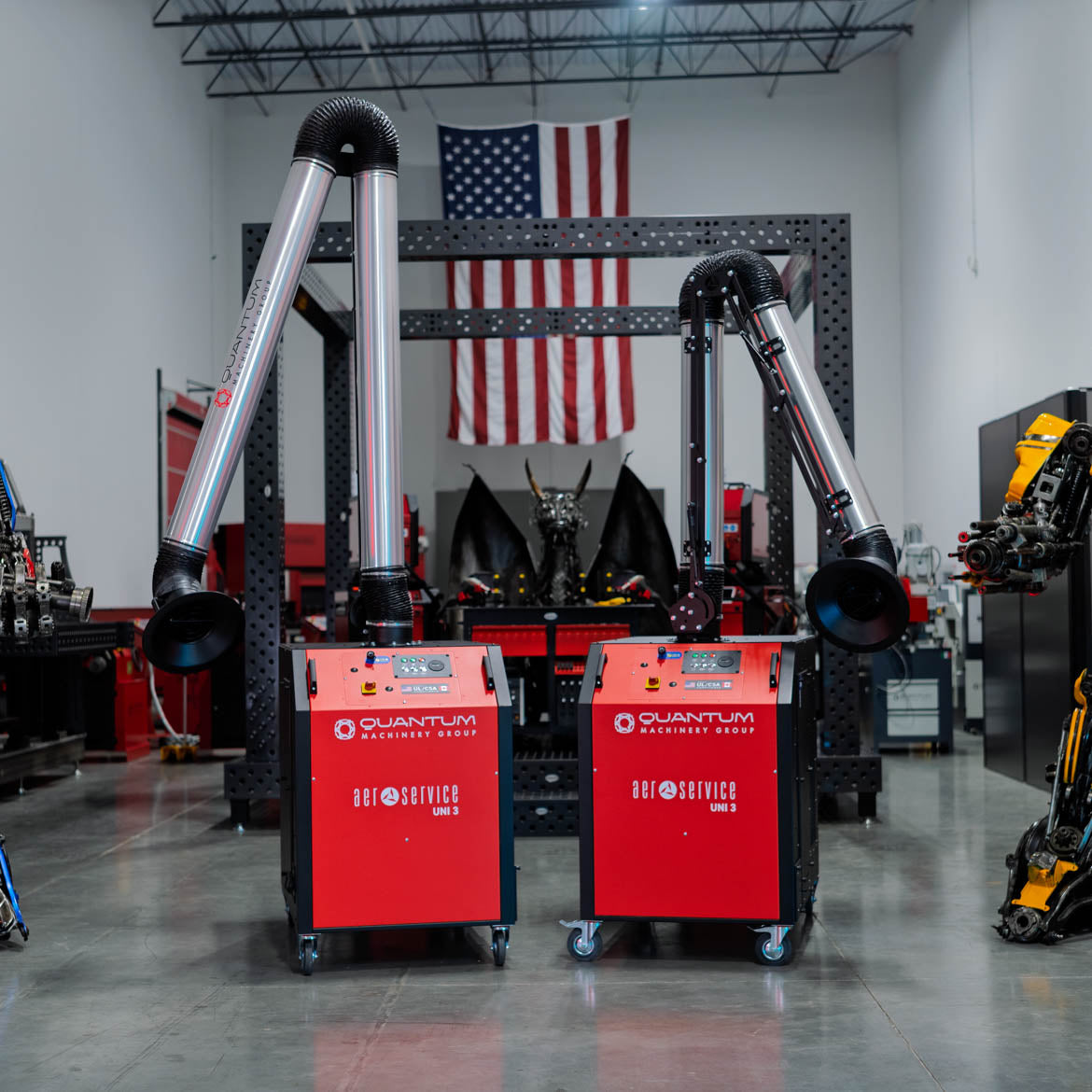

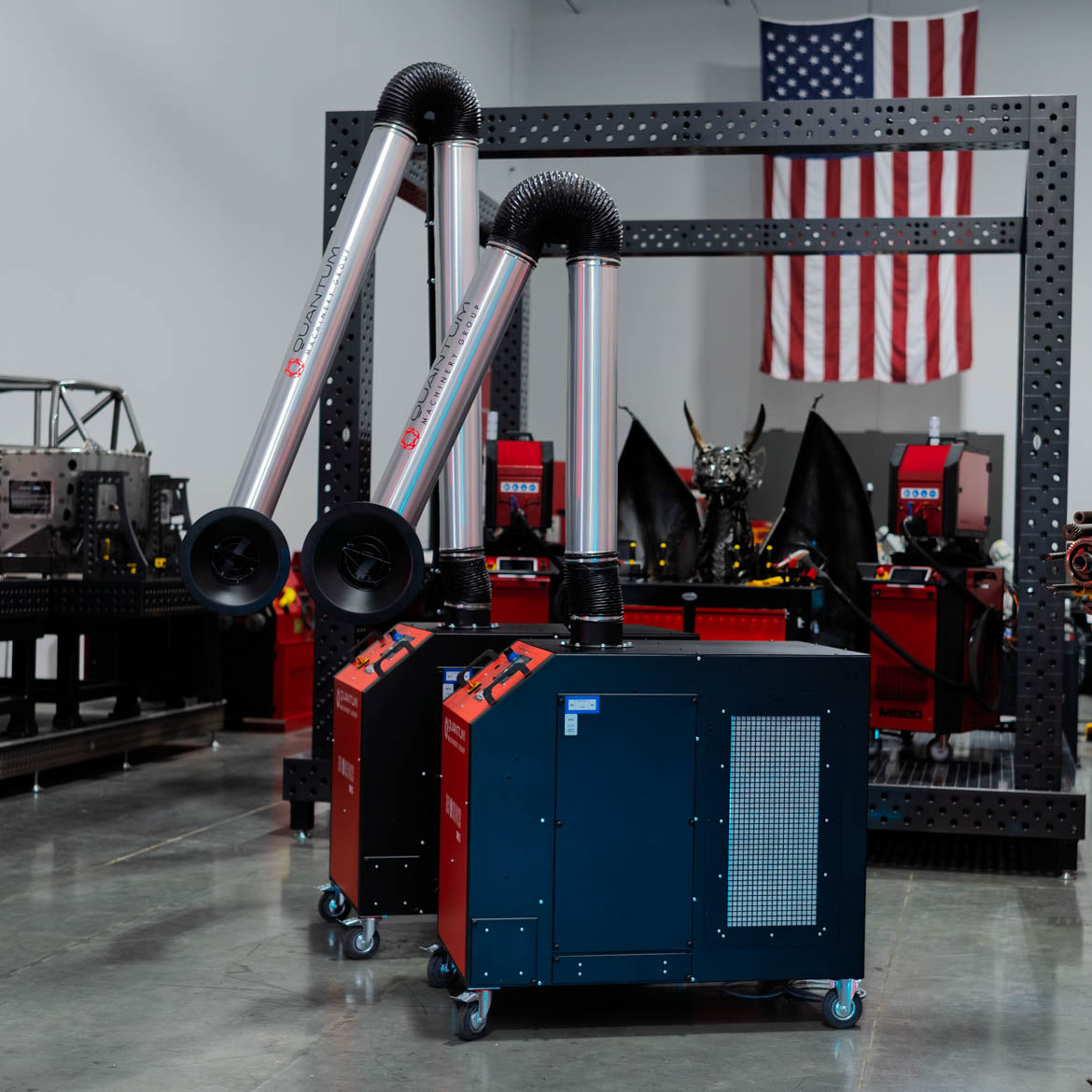

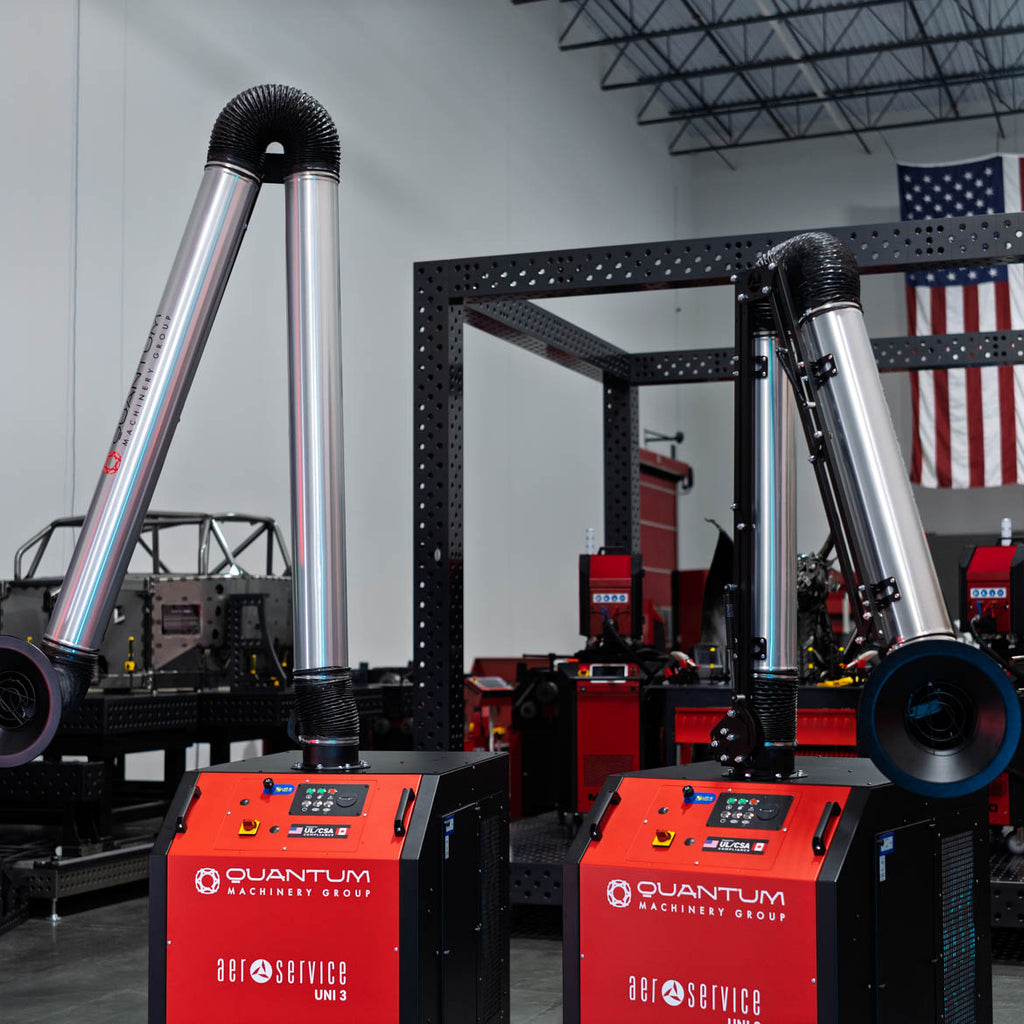

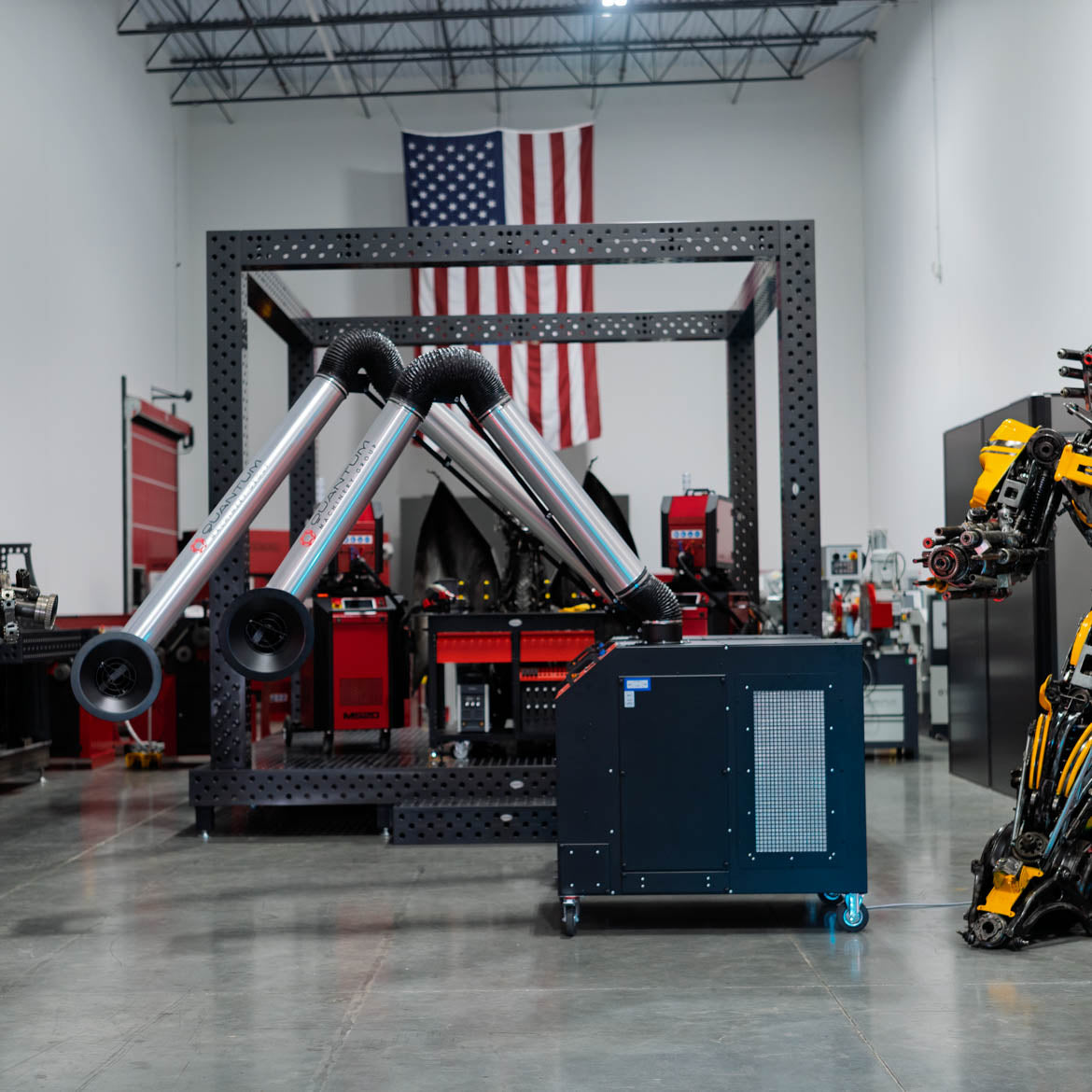

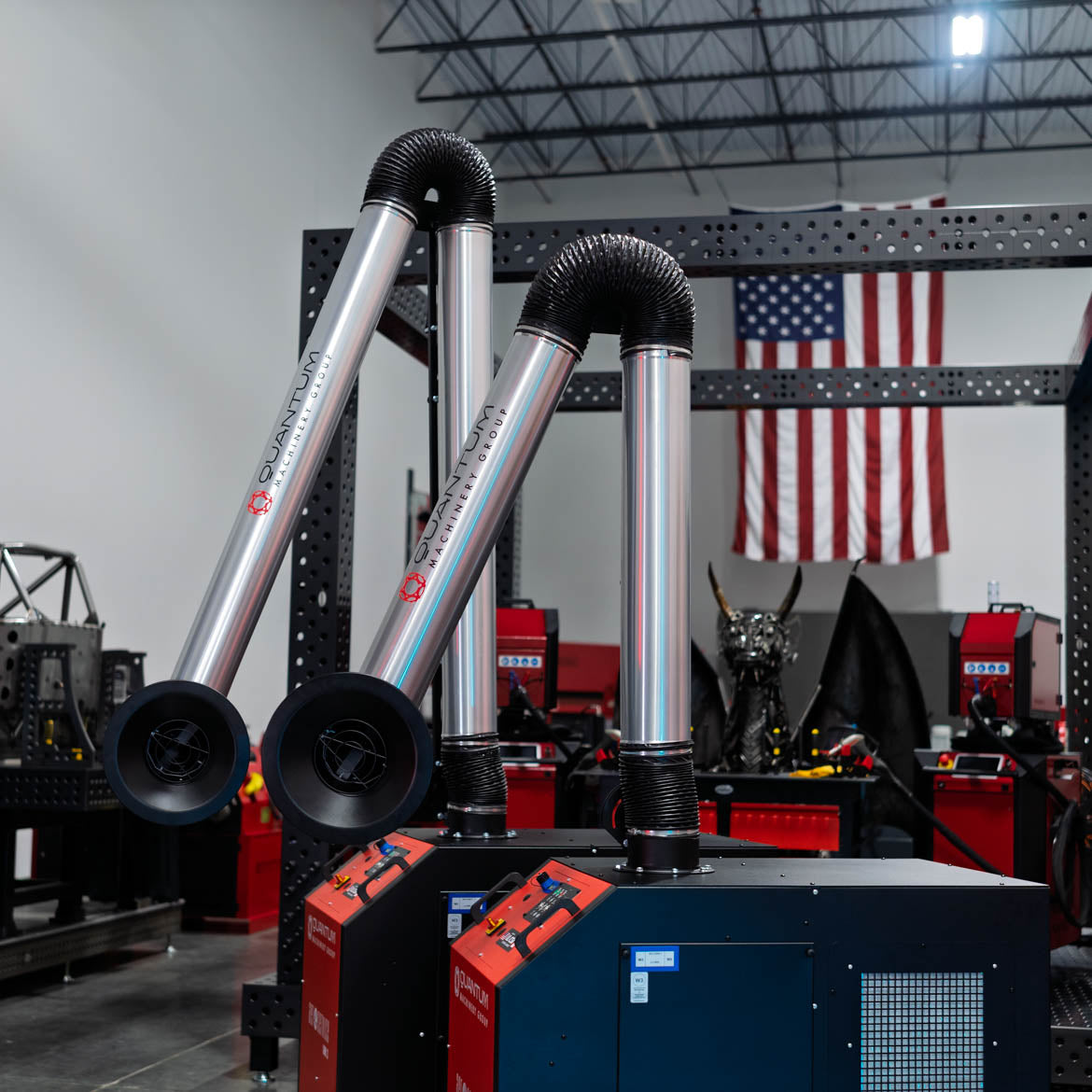

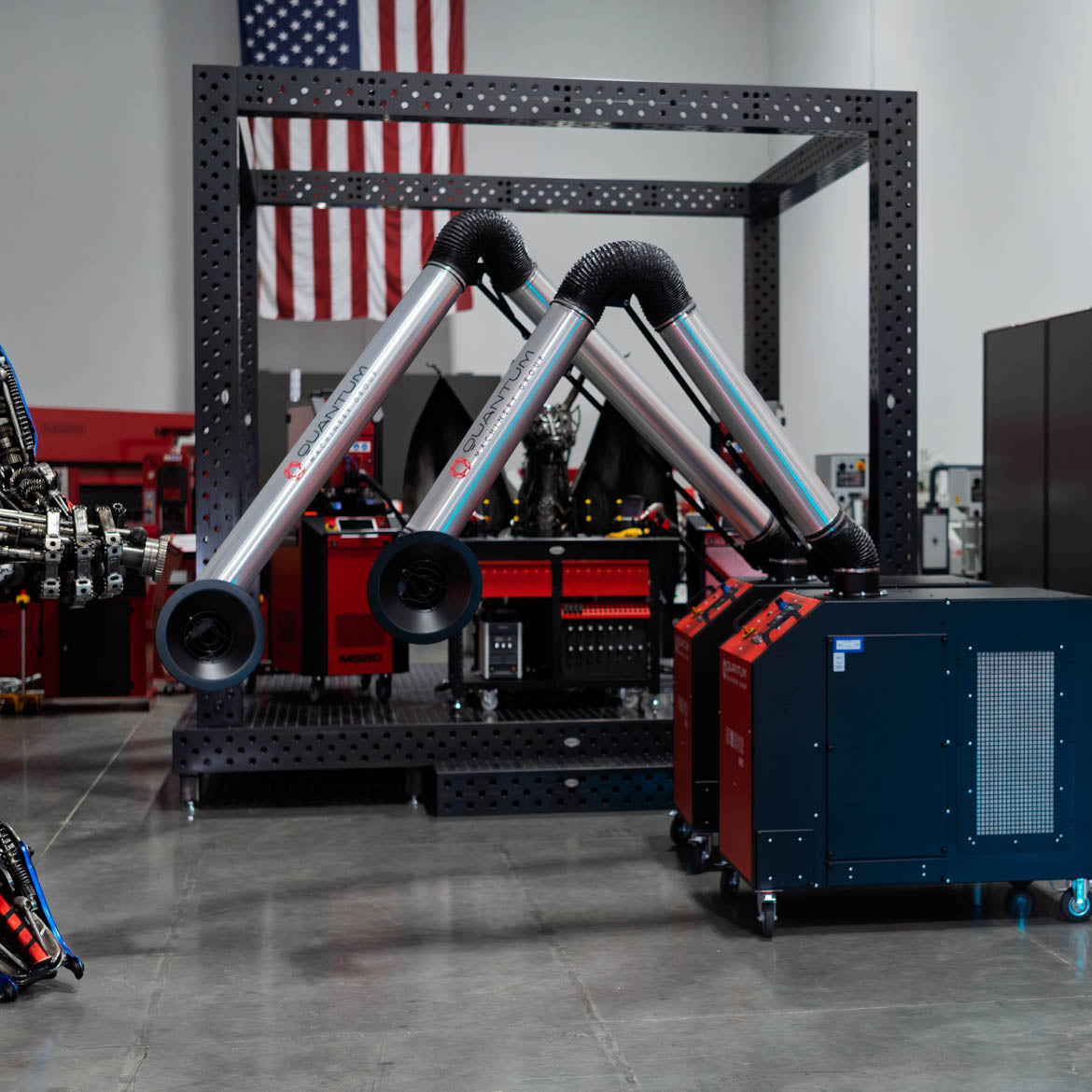

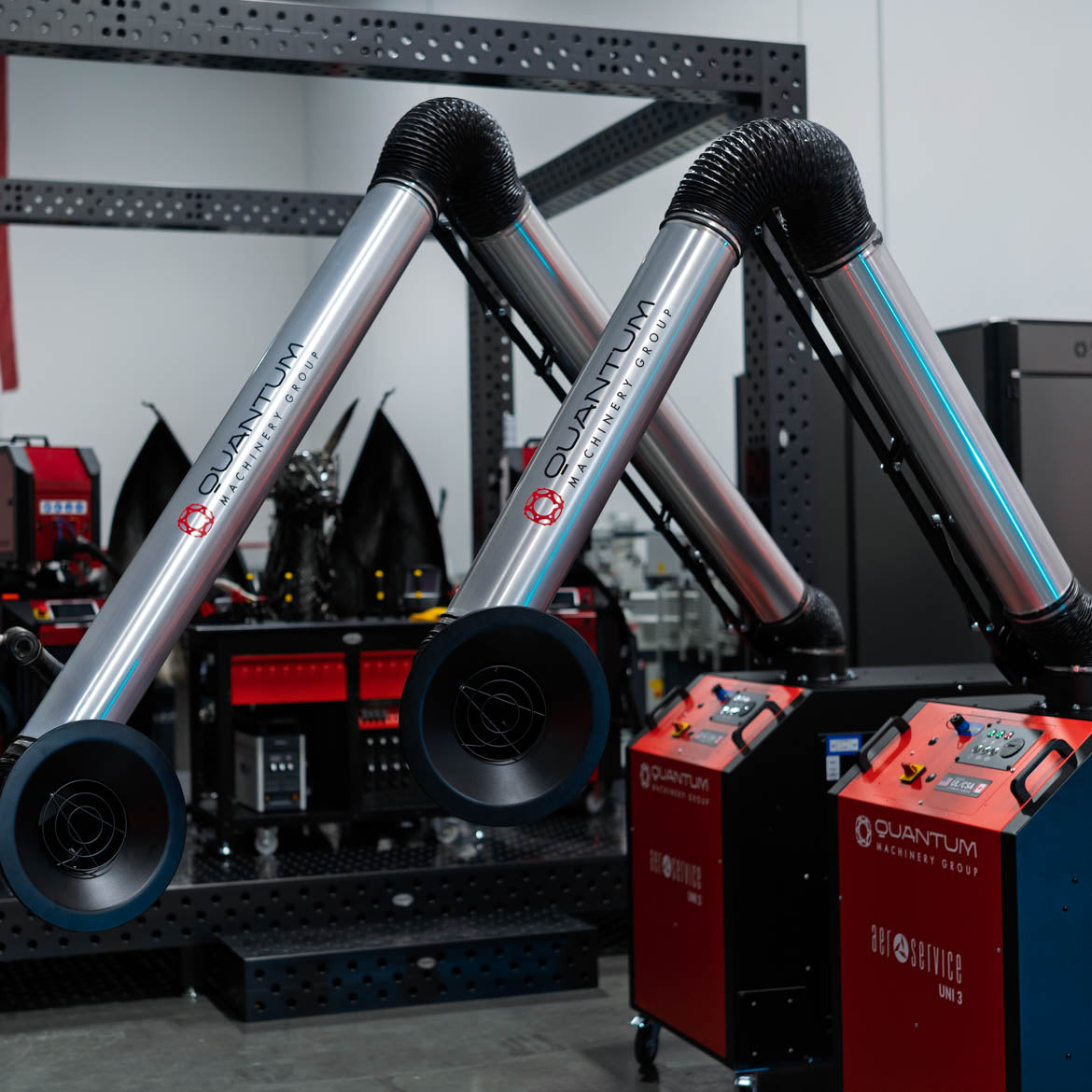

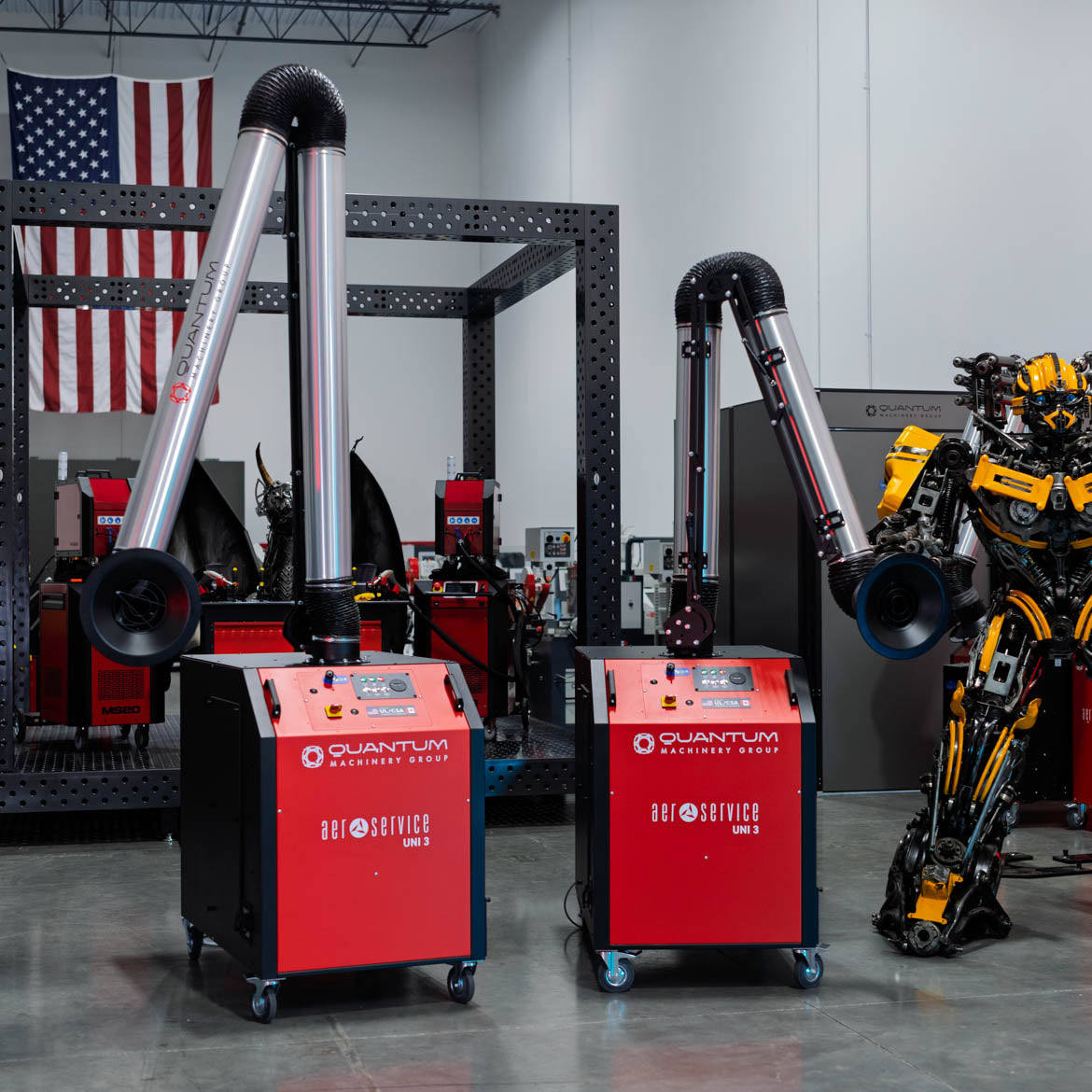

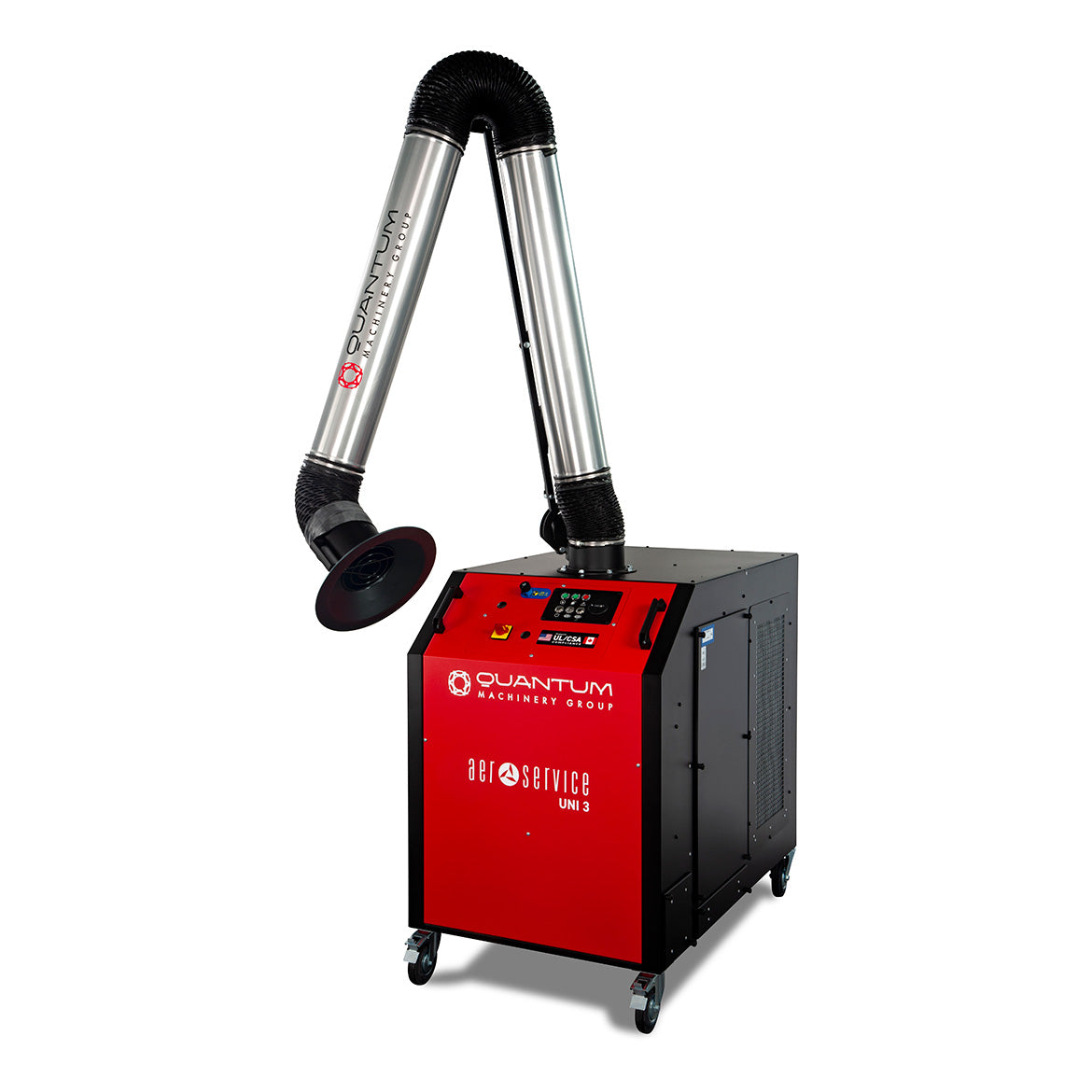

UNI 3.2.1 W3: Self-Cleaning Mobile Filter Unit for Welding Fumes with 13' Aluminum Extraction Arm

Self-Cleaning Welding Fume Extraction with Extended Reach for Large-Scale Fabrication

The AerService UNI 3.2.1 W3 with 13' Aluminum Extraction Arm is a self-cleaning mobile welding fume extraction system engineered for demanding fabrication environments requiring continuous operation, high airflow performance, and expanded extraction coverage. Combining W3-certified filtration, automatic compressed-air filter cleaning, and a 13' articulated aluminum extraction arm, this configuration delivers powerful source-capture extraction while providing the extended reach needed for larger weldments, oversized worktables, and expansive fabrication workspaces.

Designed for intensive daily welding operations, the UNI 3.2.1 W3 delivers industrial-grade filtration performance with minimal maintenance downtime. The included 13' Aluminum Extraction Arm (4m) increases the working envelope around the extraction unit, allowing operators to reach more areas without repositioning equipment and improving productivity in large fabrication environments.

Why Choose the 13' Aluminum Extraction Arm Configuration?

Some fabrication environments require greater extraction reach due to larger assemblies, structural components, and workstation layouts where moving equipment frequently can reduce productivity.

The 13' Aluminum Extraction Arm configuration provides:

• Extended extraction reach.
• Greater workstation coverage.
• Reduced machine repositioning.
• Improved access to large weldments.

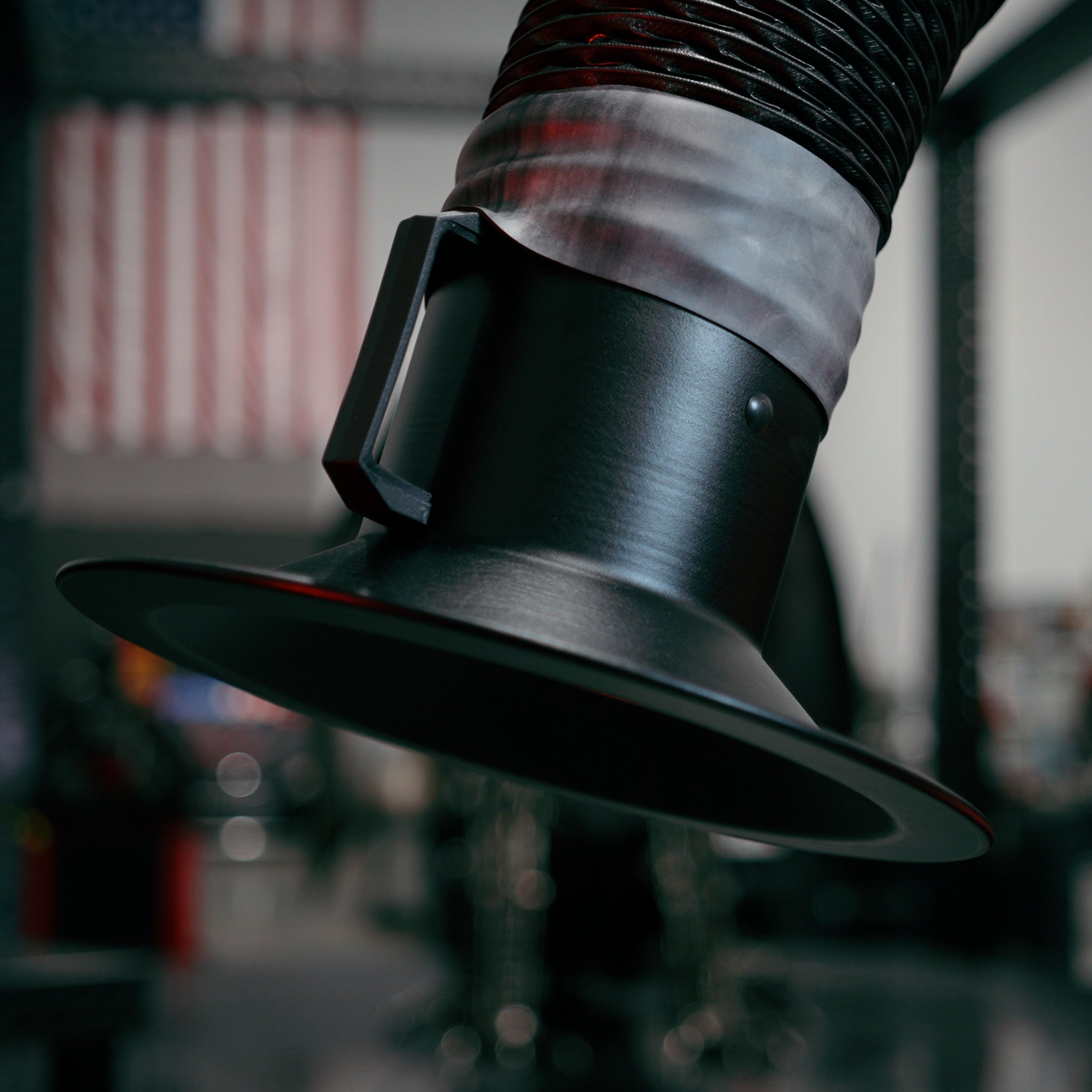

• Stable hood positioning.
• Professional articulated arm performance.

This configuration is particularly well suited for structural fabrication, heavy manufacturing, large assemblies, and fabrication environments where expanded extraction coverage improves workflow and operational efficiency.

Designed for Intensive Industrial Applications

The UNI 3.2.1 W3 is built for facilities where welding, grinding, and thermal cutting activities occur continuously throughout the workday.

Ideal applications include:

• Heavy fabrication shops.
• Manufacturing facilities.
• Production welding operations.
• Structural steel fabrication.
• Industrial metalworking.
• Maintenance and repair operations.
• Fabrication cells requiring continuous extraction.
• Facilities generating both welding fumes and grinding dust.

Its self-cleaning filtration system helps maintain consistent performance while minimizing maintenance interruptions.

W3-Certified Filtration Performance

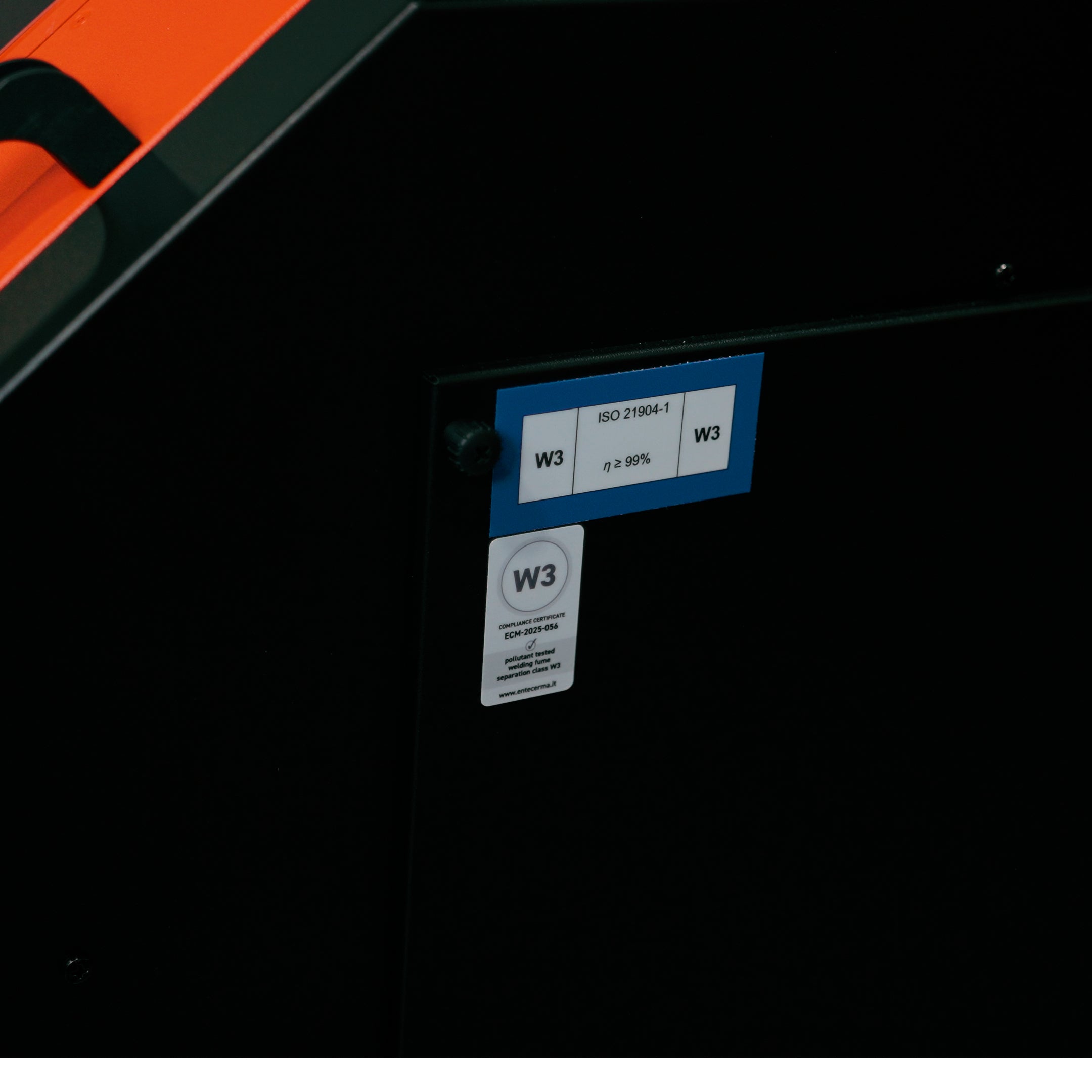

The UNI 3.2.1 W3 is certified to W3 filtration standards with filtration efficiency exceeding 99%, making it suitable for demanding welding fume extraction applications.

The filtration system utilizes:

Pre-Separation Chamber

Incoming air enters a dedicated pre-chamber designed to separate heavier dust and sparks before they reach the primary filtration cartridges. This reduces filter loading and improves overall system performance.

Dual Cartridge Filtration

The system incorporates two high-capacity cartridge filters utilizing Sintexx Plus nanofiber media, providing exceptional filtration efficiency and extended service life.

Automatic Compressed-Air Cleaning

The integrated reverse-pulse cleaning system automatically removes accumulated particulate from the filter surface, maintaining airflow performance without requiring manual cleaning procedures.

Advanced Digital Control System

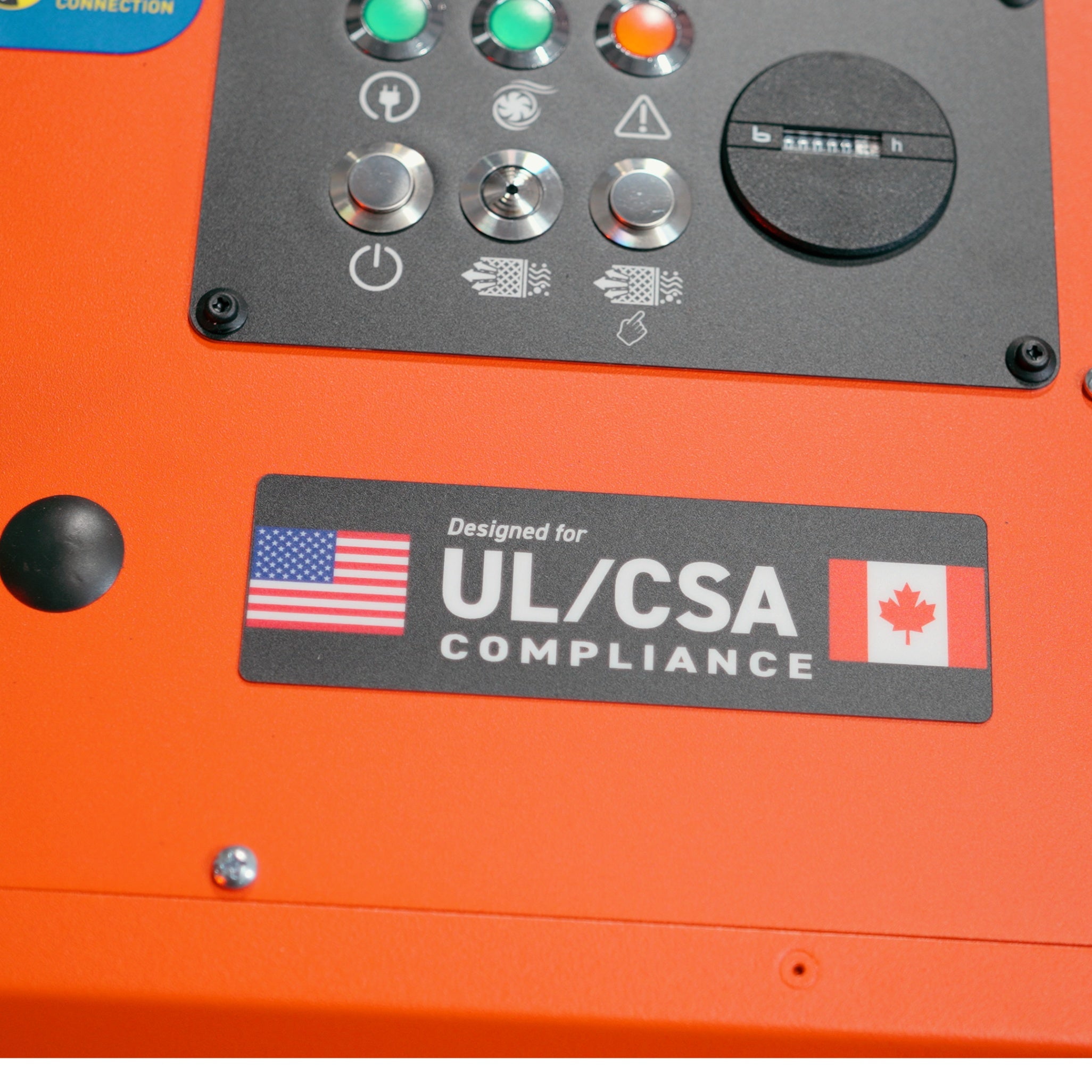

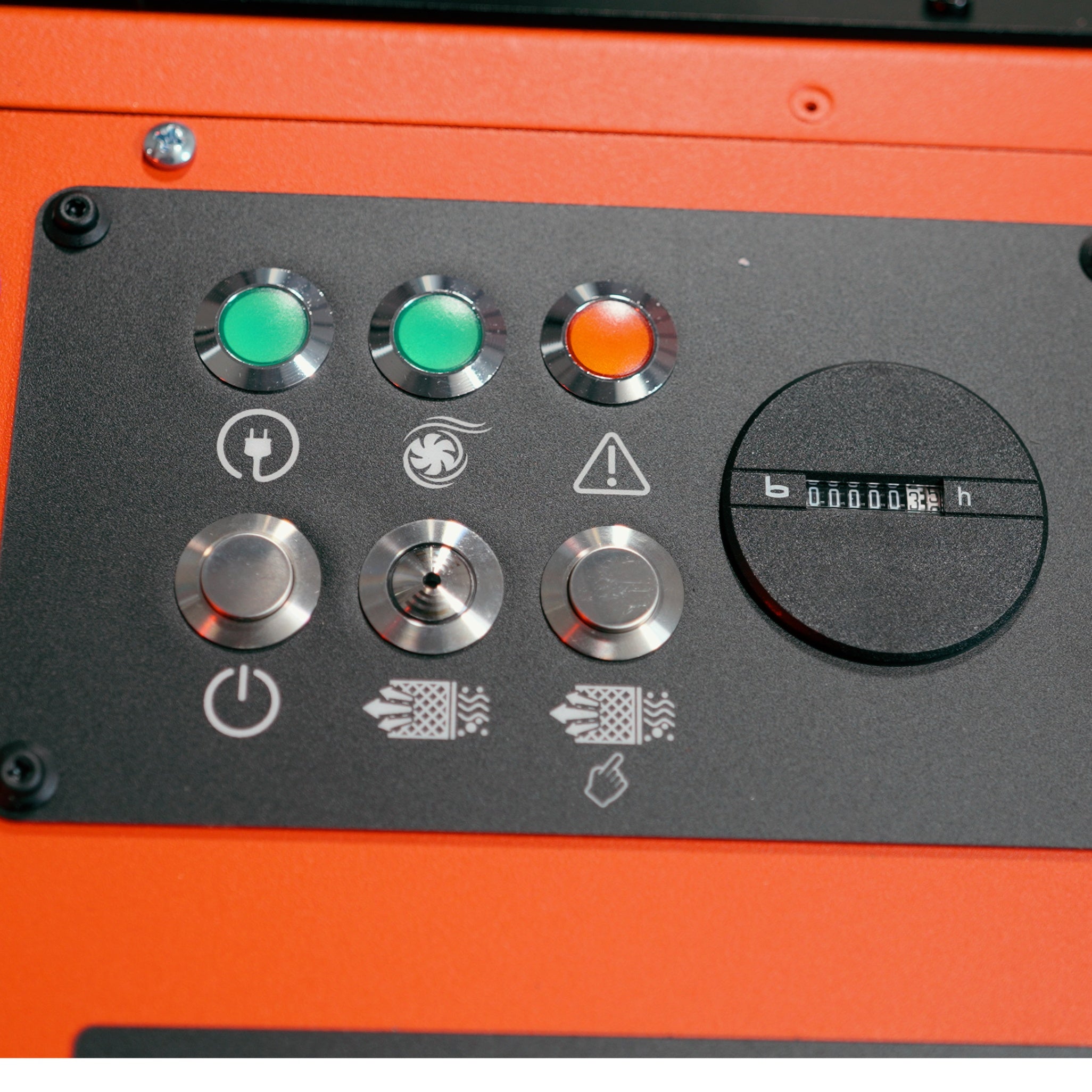

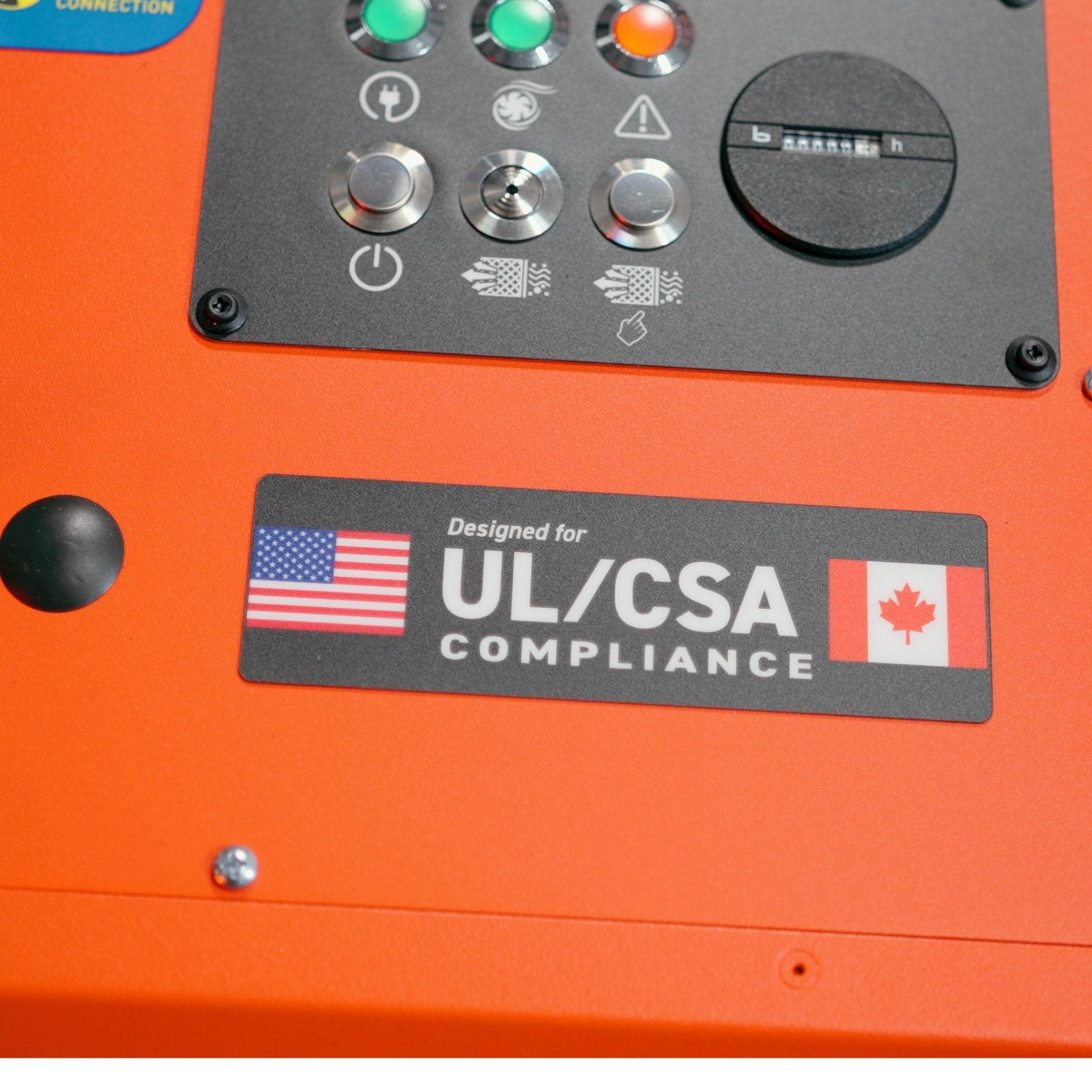

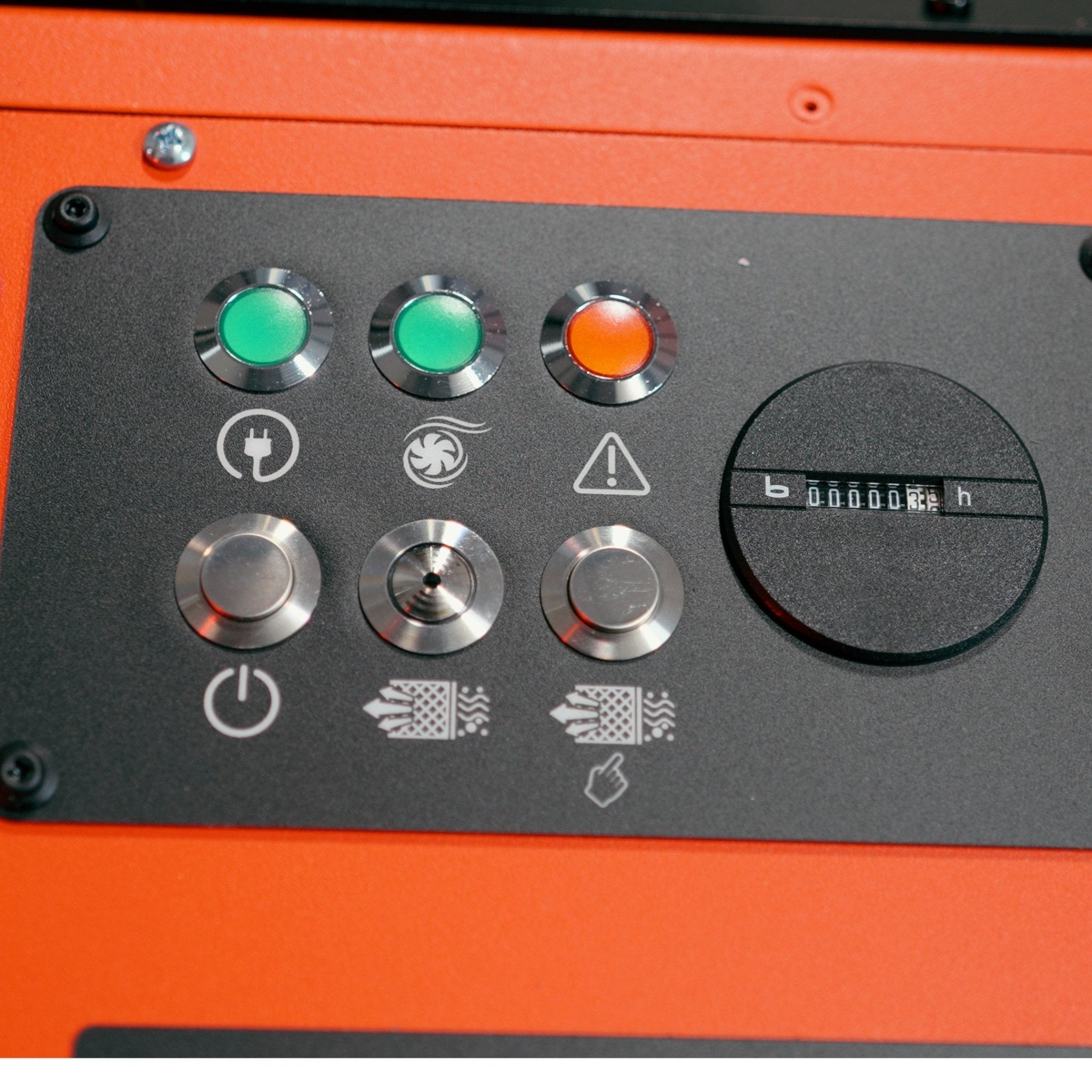

The UNI 3.2.1 W3 features a digital control panel designed to simplify operation and provide real-time system monitoring.

Features include:

• Multi-language interface.
• Hour meter.
• Alarm history log.
• Filter status monitoring.
• Clogged filter alarm.
• Compressed-air monitoring.
• Automatic Start/Stop functionality.

These features help operators maximize performance while reducing maintenance-related interruptions.

Optimized Airflow Design

The UNI 3.2.1 W3 incorporates several airflow management features to maximize extraction performance.

These include:

• Plug-fan extraction technology.
• Integrated airflow equalizer.
• High-capacity extraction system.
• Dual-stage dust collection.
• Optimized discharge airflow distribution.

The result is a system engineered to maintain stable extraction performance under demanding operating conditions.

Supported Processes

The UNI 3.2.1 W3 is suitable for:

• MIG Welding
• MAG Welding
• Pulsed MIG/MAG Welding
• TIG Welding
• MMA / Stick Welding
• Manual Plasma Cutting
• Grinding Operations

The unit is designed for dry welding fumes and particulate generated by these processes.

Ideal Applications

The UNI 3.2.1 W3 with 13' Aluminum Extraction Arm is an excellent solution for:

• Structural steel fabrication.
• Large assemblies and weldments.
• Heavy manufacturing operations.
• Production welding stations.
• Industrial maintenance facilities.
• Grinding stations.
• Plasma cutting workstations.
• Applications requiring extended extraction reach.

Key Features

• Includes 13' Aluminum Extraction Arm (4m).
• W3-certified filtration efficiency greater than 99%.
• Automatic compressed-air filter cleaning.
• Dual-cartridge filtration system.
• Sintexx Plus nanofiber filter media.
• Pre-separation chamber for dust and spark removal.
• Plug-fan extraction technology.
• Digital control panel.
• Automatic Start/Stop functionality.
• Compressed-air monitoring.
• Alarm history log.
• Clogged filter alarm.
• Dual dust collection drawers.
• Mobile industrial-duty design.

Configuration

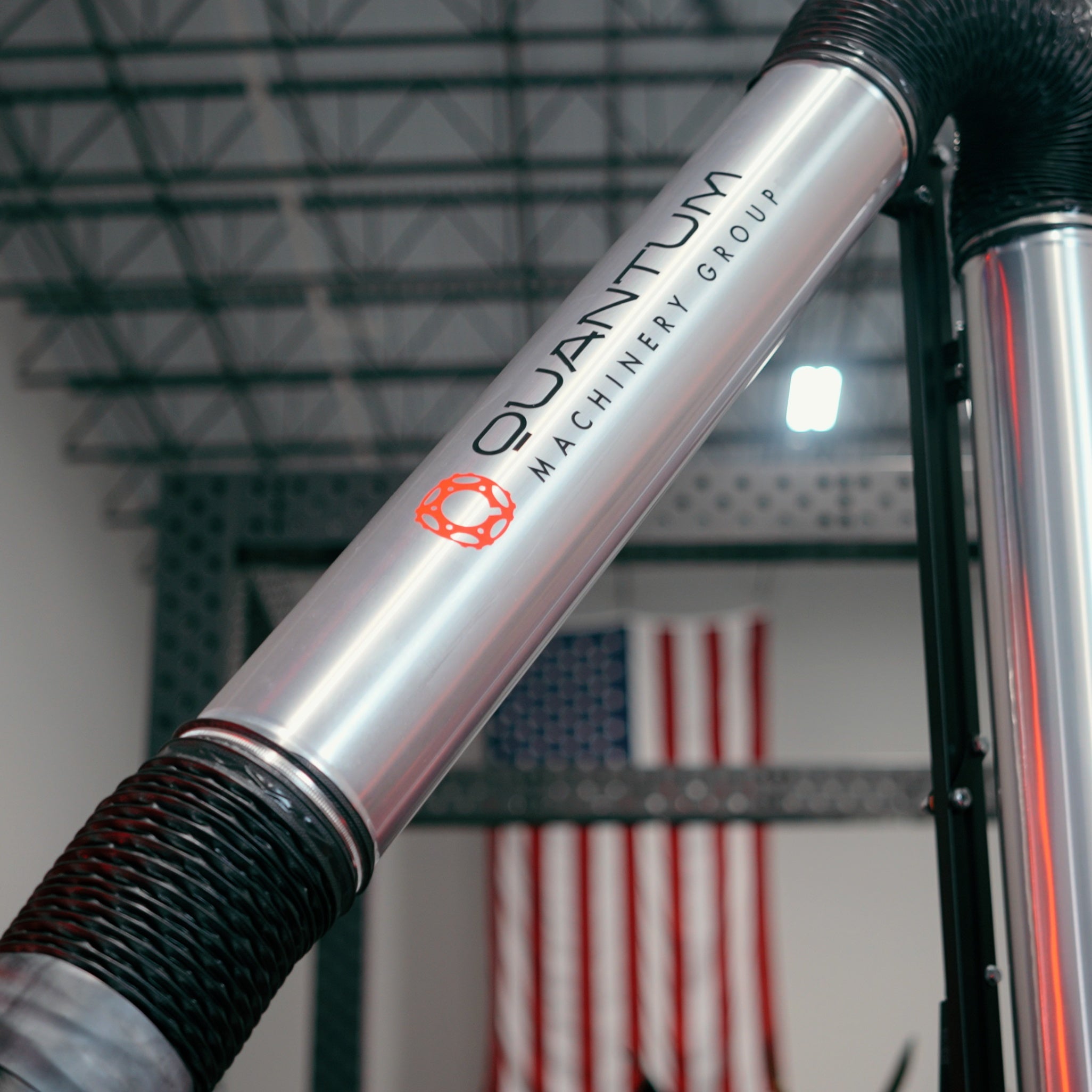

Included Arm: 13' Aluminum Extraction Arm (4m)

Technical Specifications

Fan Capacity: 1,483 CFM (2,520m³/h)

Extraction Capacity: 824 CFM (1,400m³/h)

Filtration Efficiency: W3 Certified >99%

Filter Area: 172 sq ft (16m²)

Filter Media: Sintexx Plus Nanofiber

Motor Power: 2 HP (1.5kW)

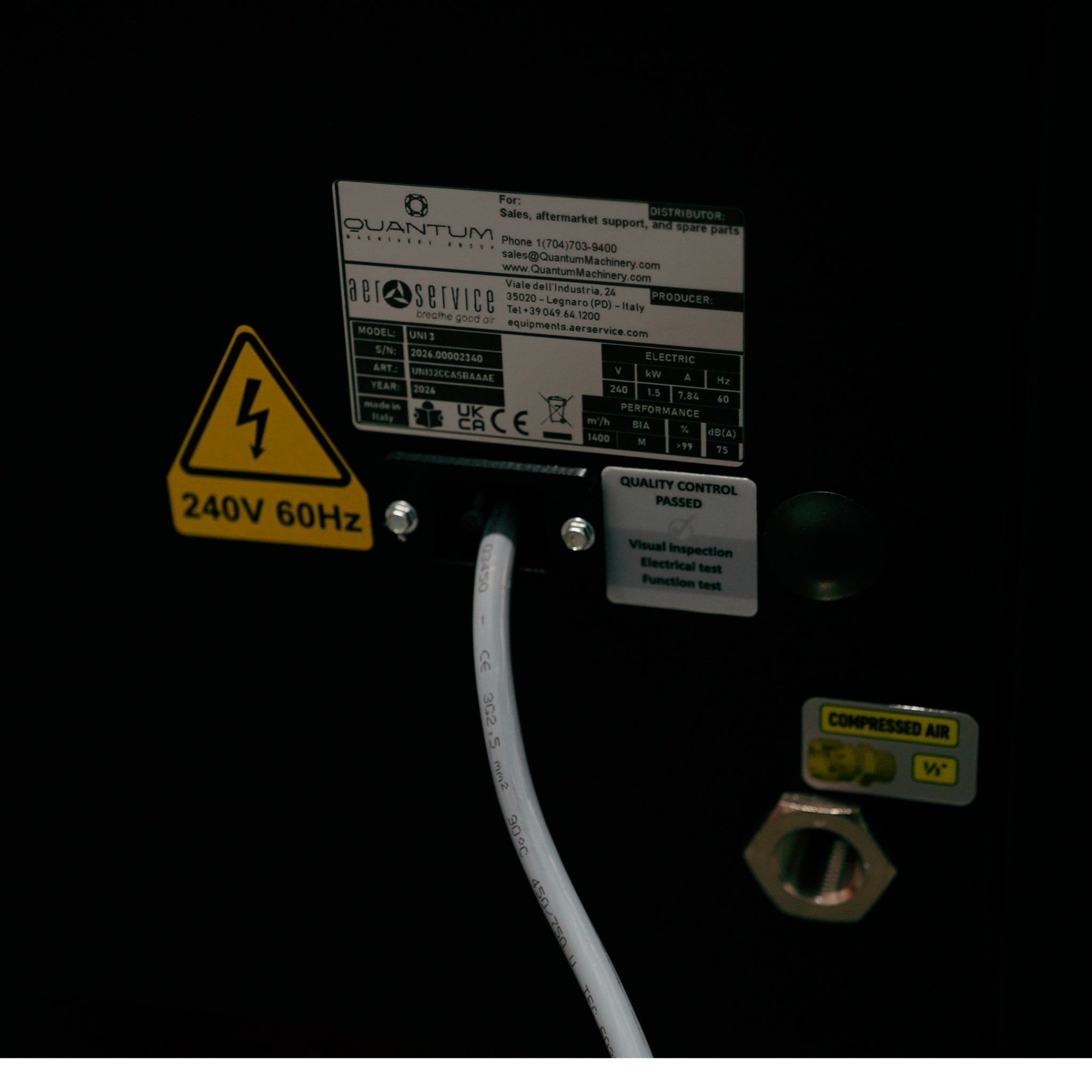

Voltage: 230V / 1 Phase / 50Hz or 400V / 3 Phase / 50-60Hz*

Noise Level: 75 dB(A)

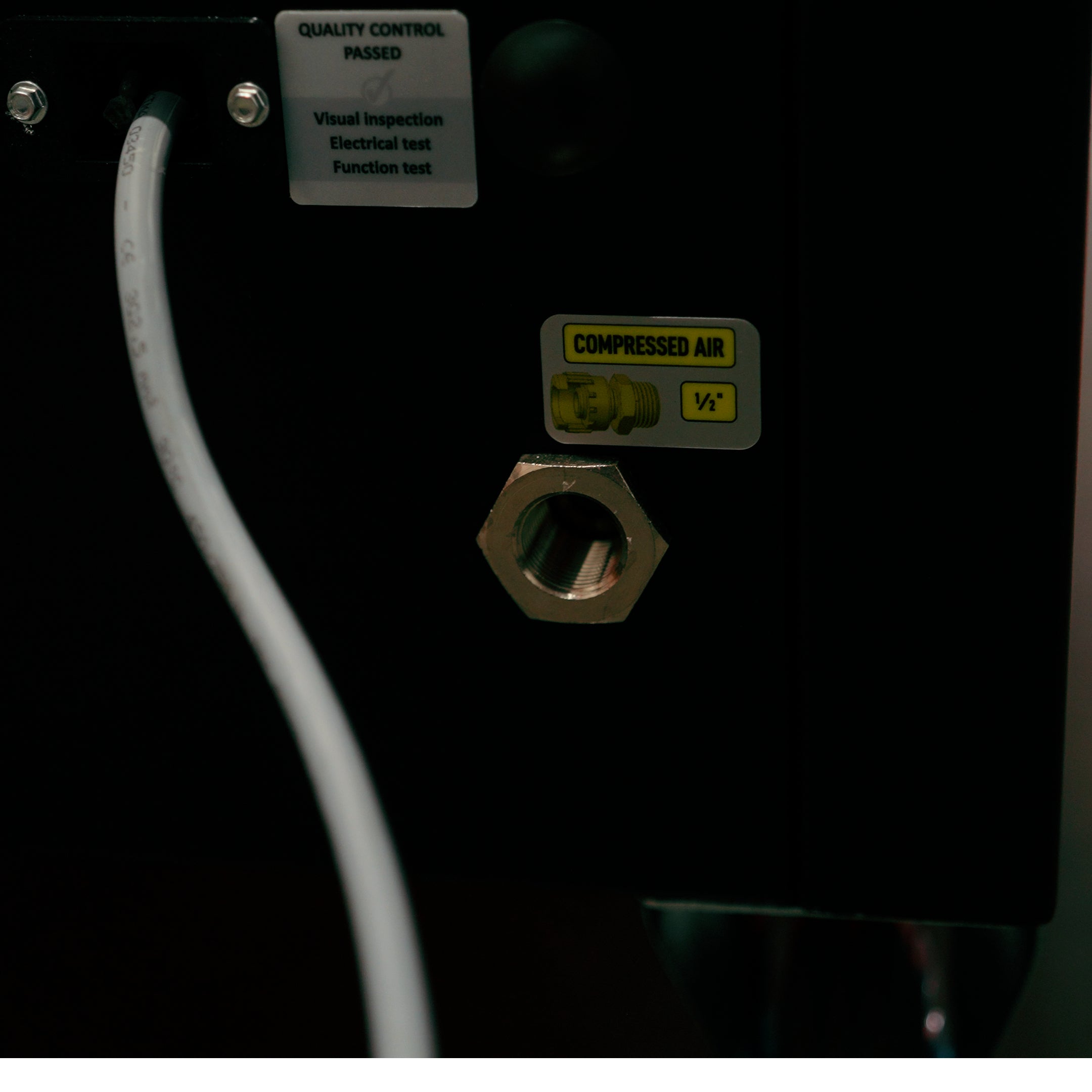

Compressed Air Connection: 1/2"

Dimensions: 29.1" x 46.5" x 43.7" (740 x 1180 x 1110mm)

Weight: 401 lbs (182kg)

*Verify final electrical configuration for North American installations before publication.

Important Operating Considerations

The UNI 3.2.1 W3 is designed for:

• Dry welding fumes.
• Grinding dust.
• Manual plasma cutting particulate.
• Intensive production environments.

The unit is not suitable for oily fumes and is not approved for use in potentially explosive or hazardous atmospheres. Operation of the automatic cleaning system requires a compressed-air connection.

Built for Extended-Reach Industrial Welding Fume Control

The AerService UNI 3.2.1 W3 with 13' Aluminum Extraction Arm delivers industrial-grade welding fume extraction for facilities where productivity, filtration performance, and uptime are critical. Combining automatic filter cleaning, W3-certified filtration, advanced airflow management, and extended extraction coverage, this configuration provides a powerful source-capture solution for large fabrication environments requiring reliable continuous-duty operation.
