MAXIMUM CUTTING CAPACITIES:

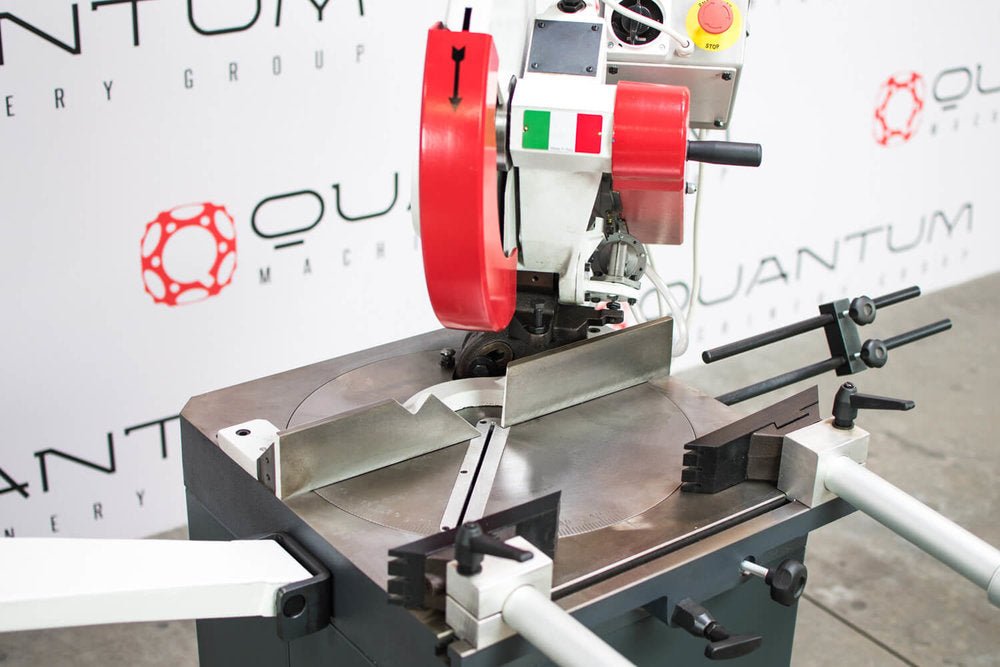

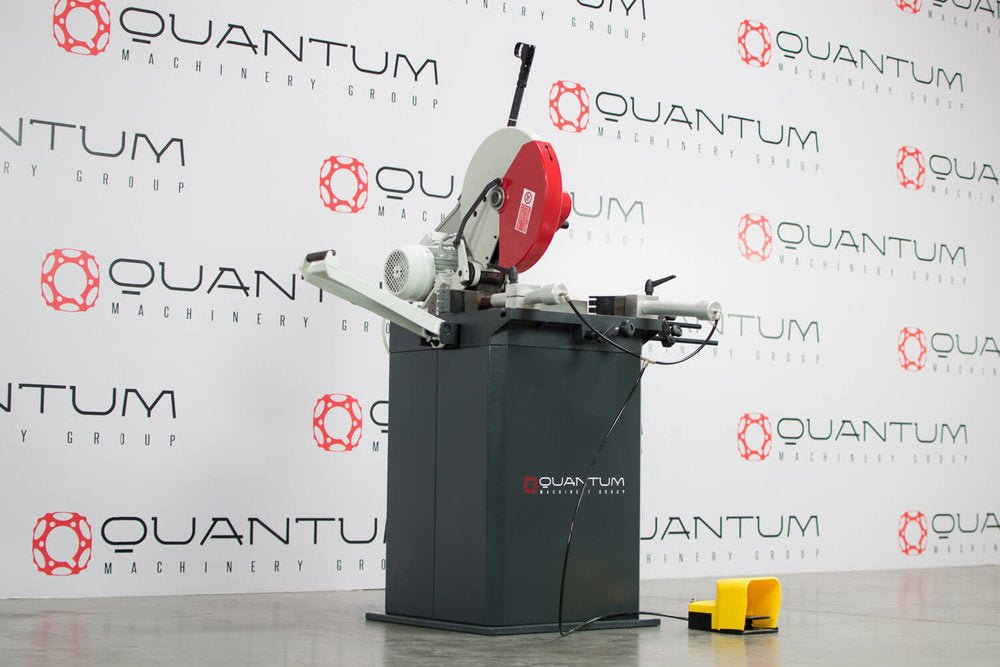

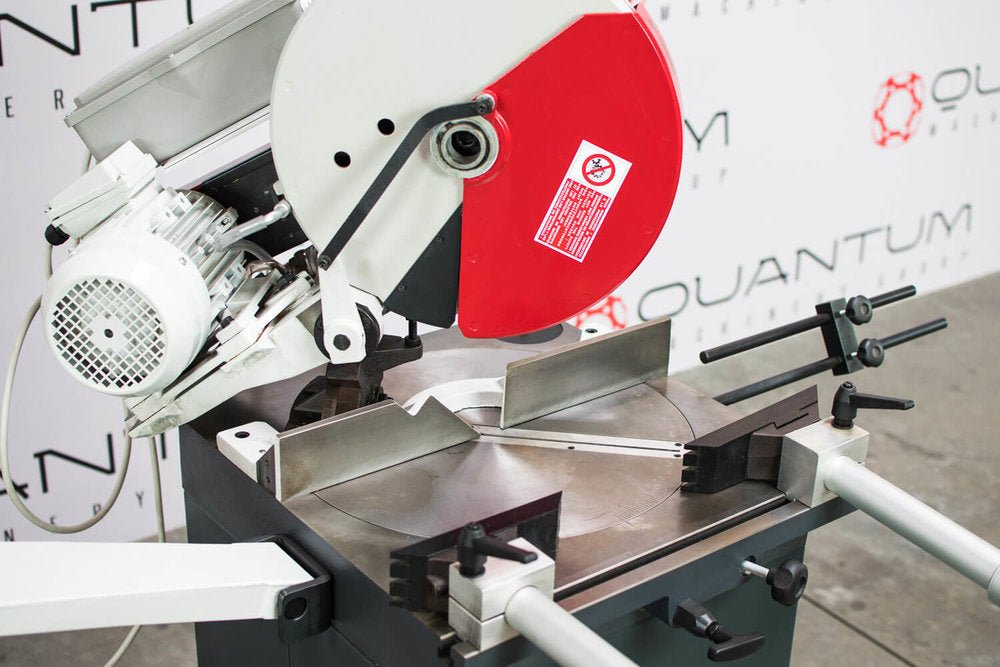

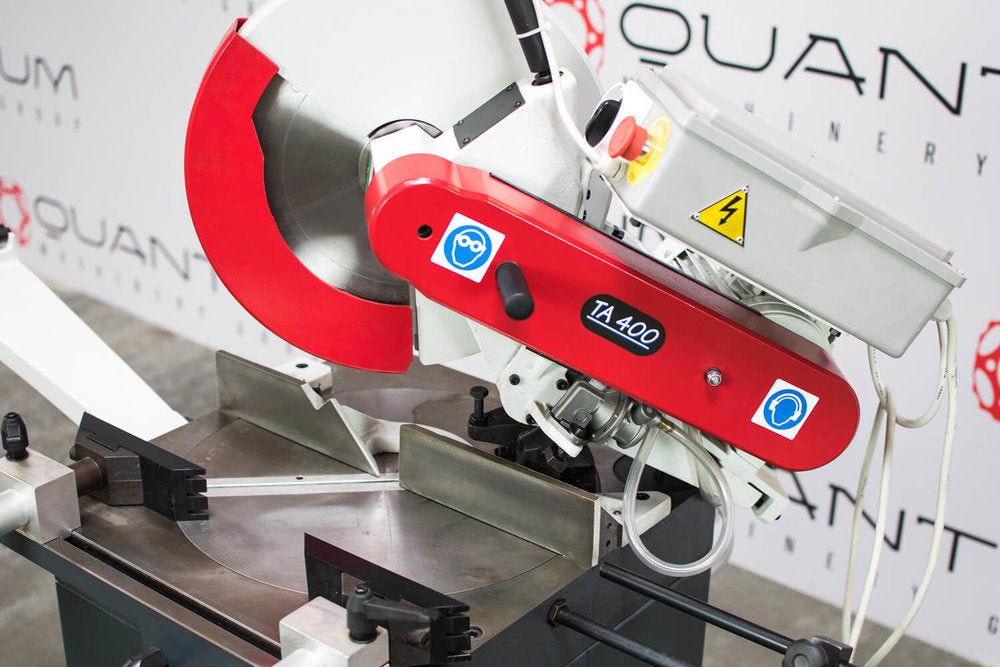

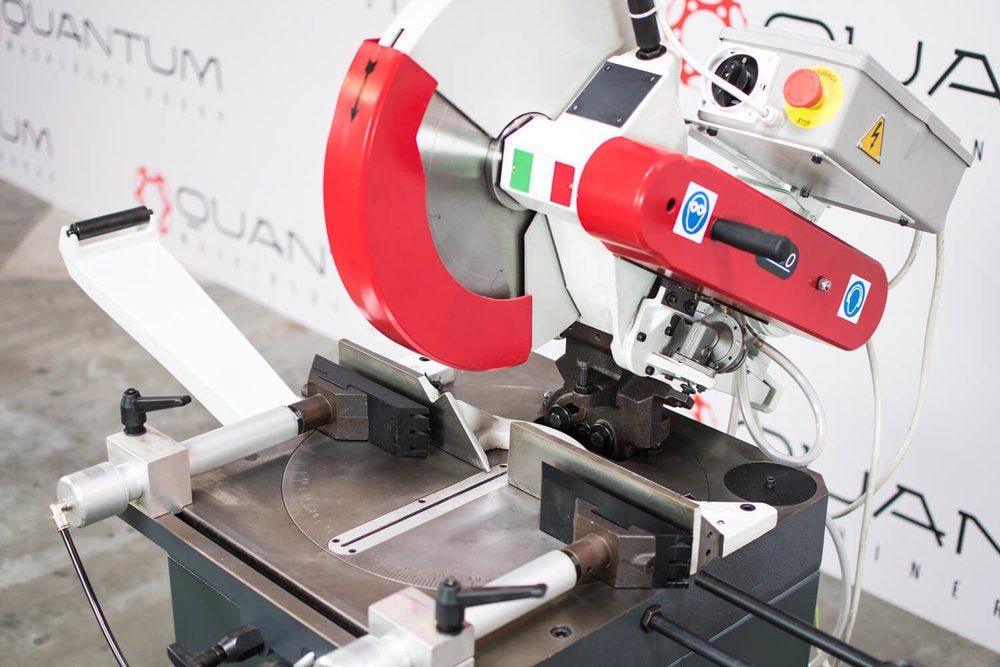

TA 400: 15.75" Manual Non-Ferrous, Aluminum Cutting Saw (5-1/2" Round Tube Capacity)

TA 400: 15.75" Manual Non-Ferrous, Aluminum Cutting Saw (5-1/2" Round Tube Capacity)
Sale price$6,600
Regular price (/)
Round Tube:
- Straight Cut: 5-1/4" or 5.25"
- 45° Left Cut: 5-1/8" or 5.125"
- 45° Right Cut: 5-1/8" or 5.125"
Square Tube:
- Straight Cut: 4-1/4" or 4.25"
- 45° Left Cut: 4-3/4" or 4.75"
- 45° Right Cut: 4-3/4" or 4.75"
Solid Round:
- Straight Cut: 2-1/4" or 2.25"
- 45° Left Cut: 2-1/4" or 2.25"
- 45° Right Cut: 2-1/4" or 2.25"
Rectangular Tube:
- Straight Cut: 4-3/4"H x 7"W or 4.75"H x 7"W
- 45° Left Cut: 4-3/4"H x 5-3/4"W or 4.75"H x 5.75"W
- 45° Right Cut: 4-3/4"H x 5-3/4"W or 4.75"H x 5.75"W
TECHNICAL DATA & FEATURES:

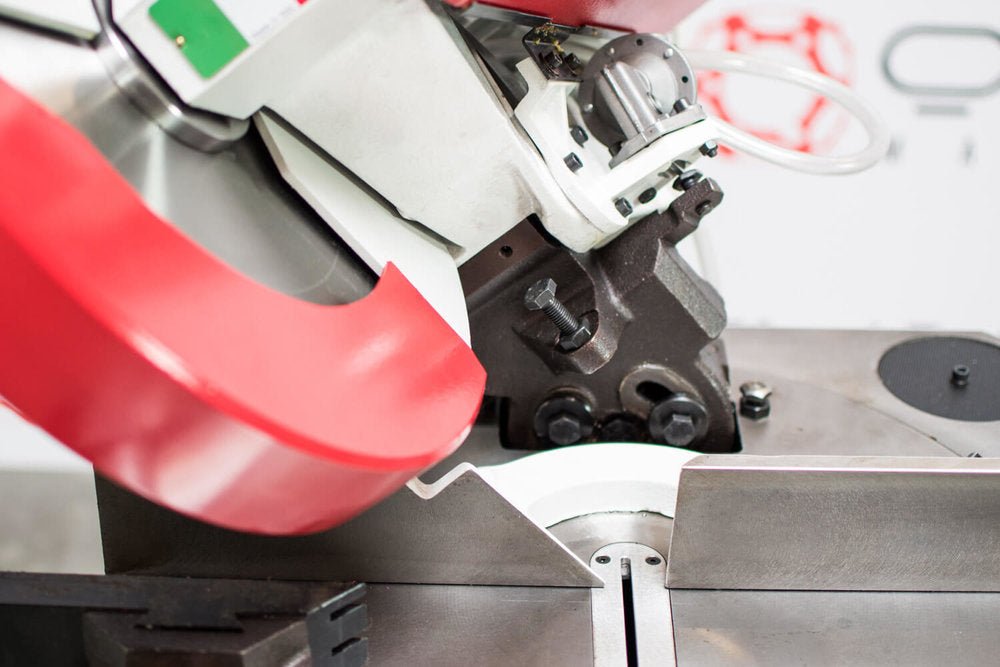

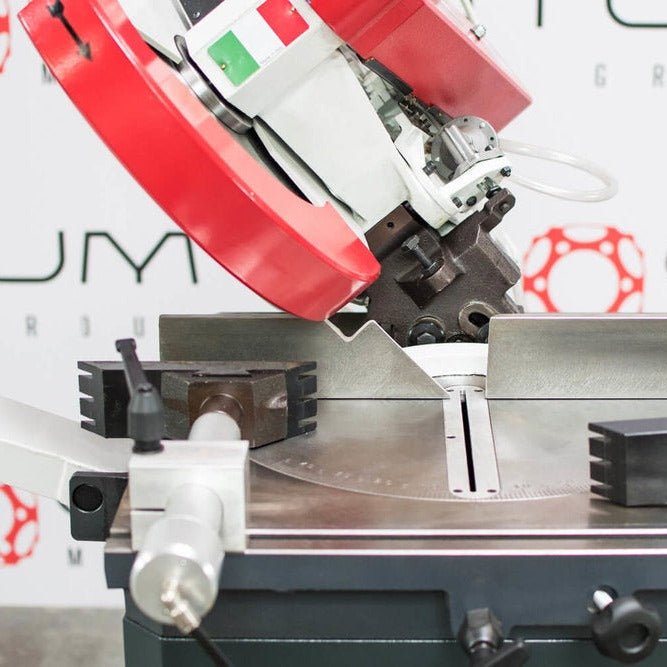

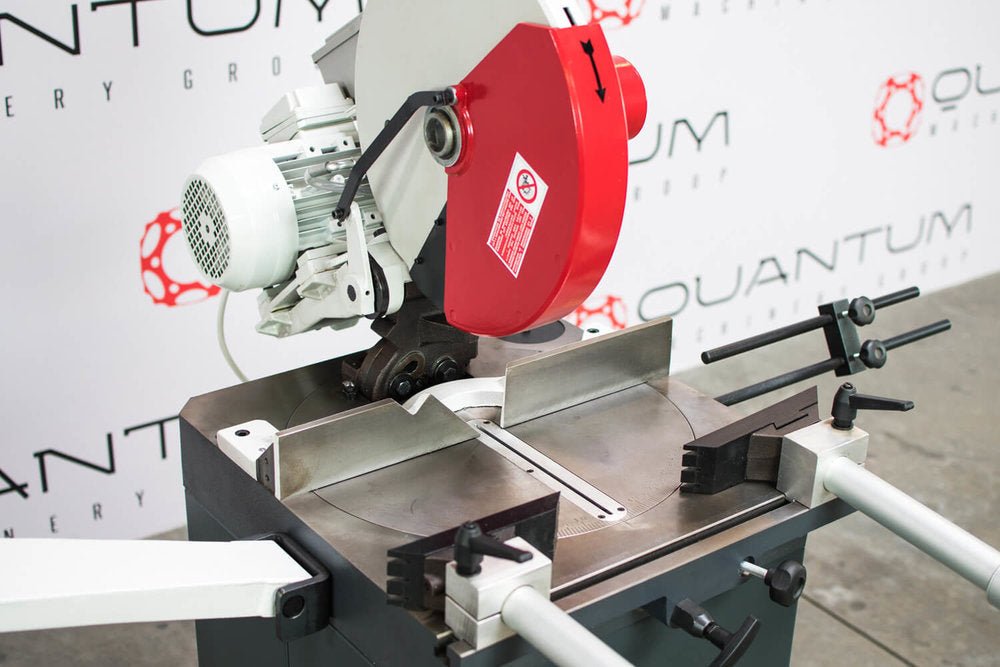

- Movable Cutting Head: From 45° Left up to 45° Right and Inclinable head up to 45° left.
- Manual circular saw for aluminium.
- 24V low voltage installation with hold-to-run head control handle.

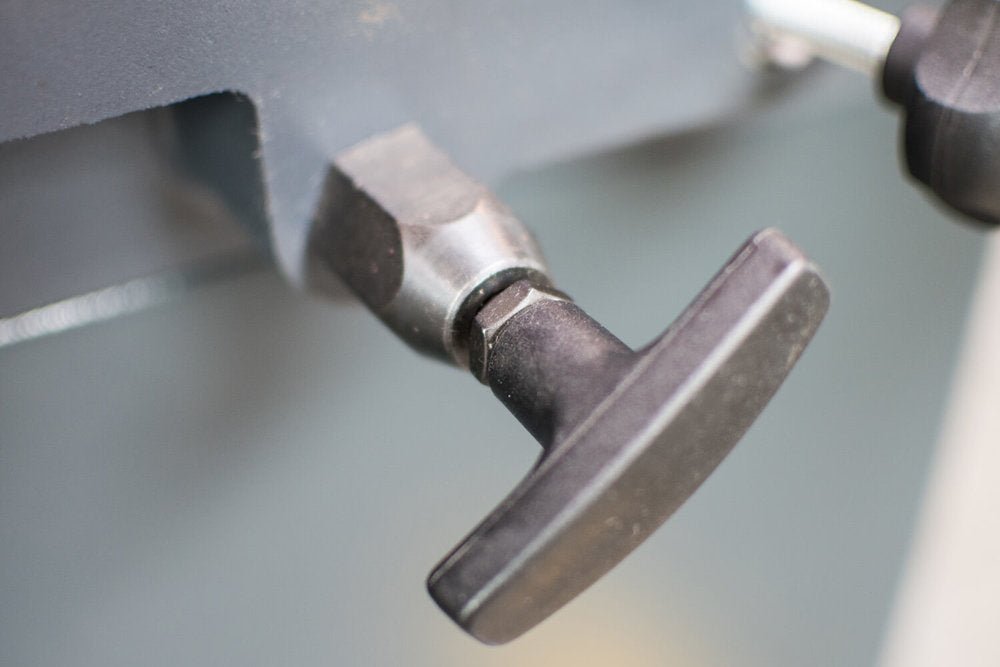

- Locking pin ensuring fast positioning of the head.
- Blade holder shaft on bearings.
- Movable bed assembled on spheres.

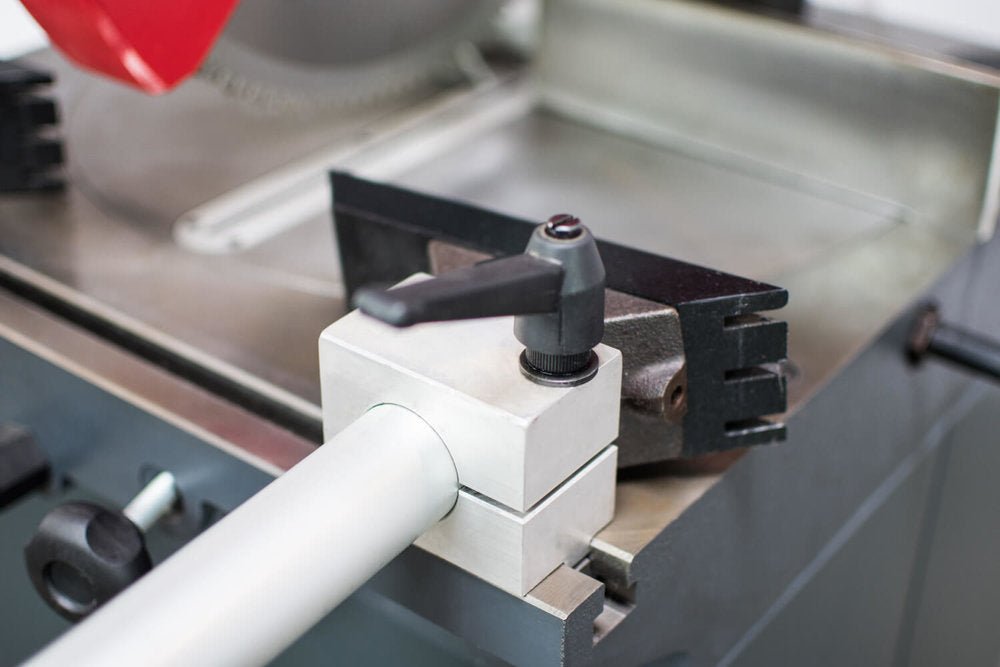

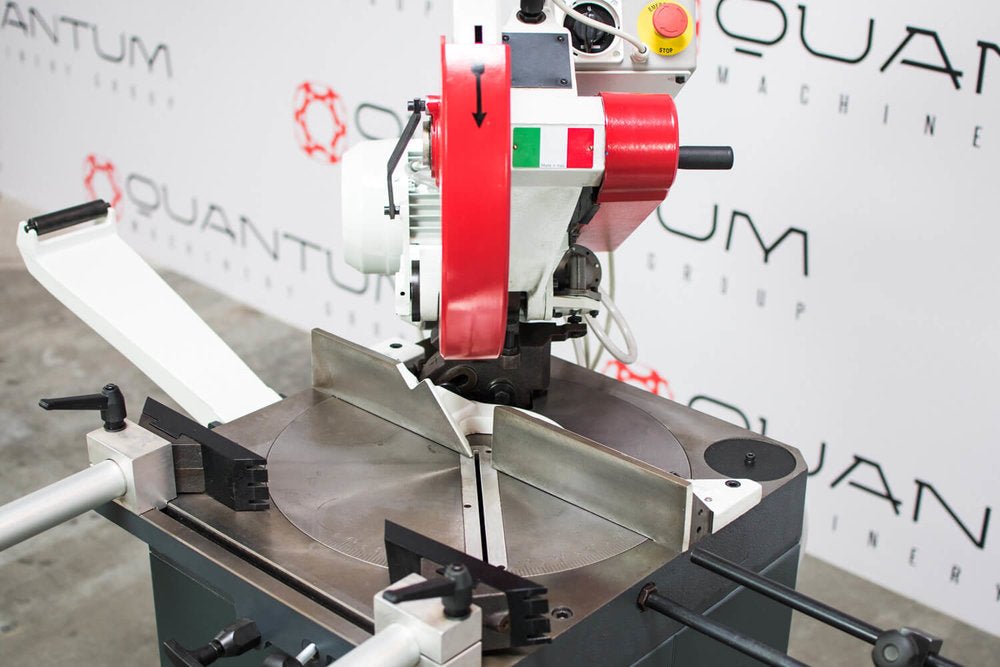

- Two manual vices and Teflon jaws for material clamping.

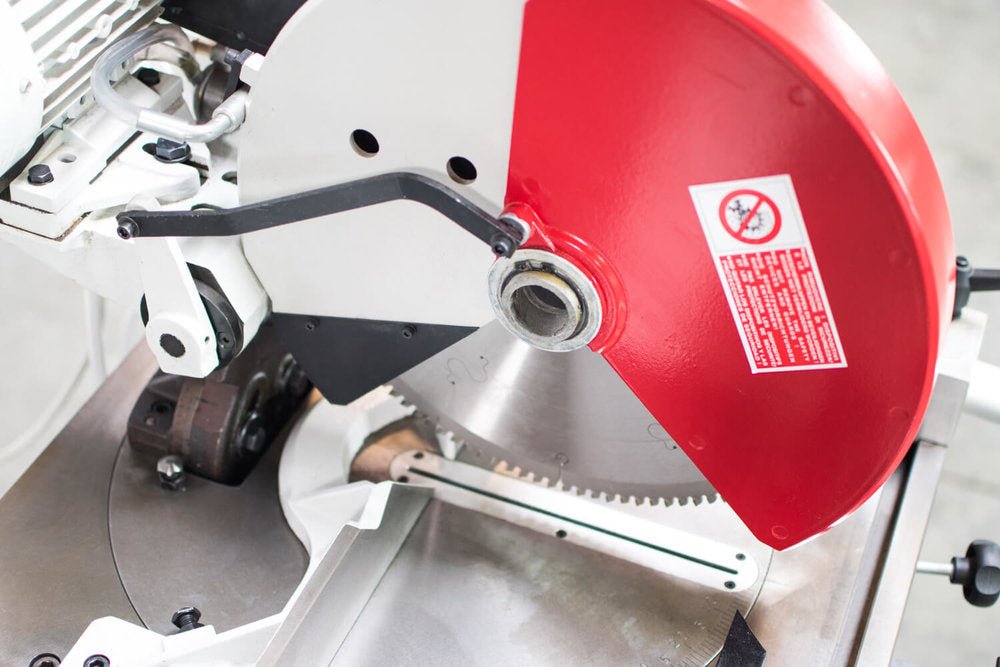

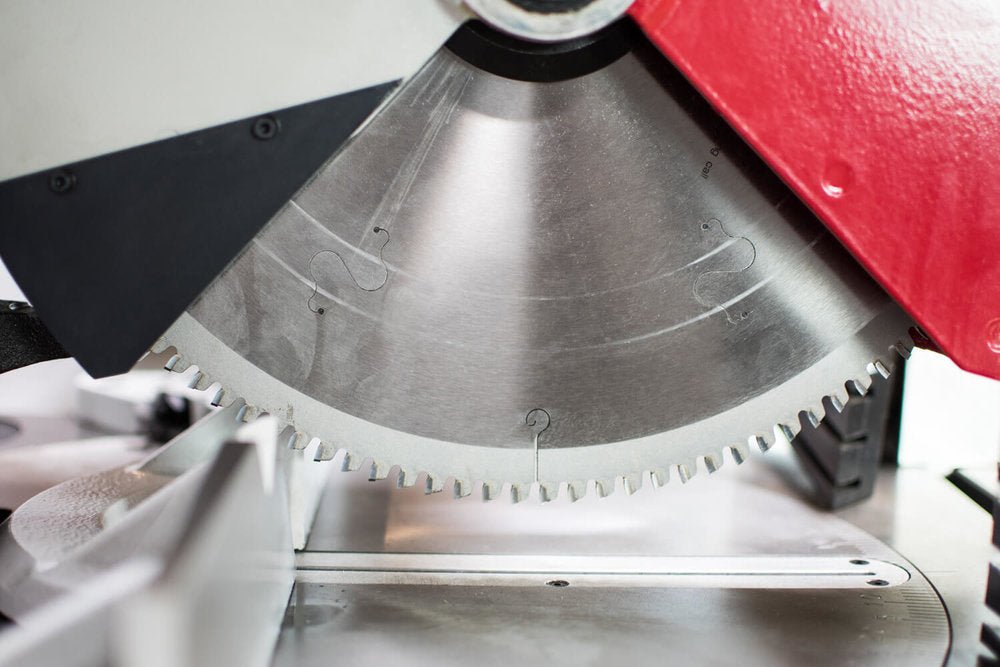

- Blade Size: 400 x 2.5 x 32mm Bore Carbide Tip
- Maximum Vice Opening: 7” (180 mm)
- Machine Weight: 350 lbs. (160 kg.)
- Blade Speed: 3,000 R.P.M.
- Overall Dimensions: 3'H x 5'W x 3'-3"L or 36”H x 59”W x 40”L or 900 mm H x 1,500 mm W x 1,000mm L
- Available In 220V / 3PH or 480V / 3PH.

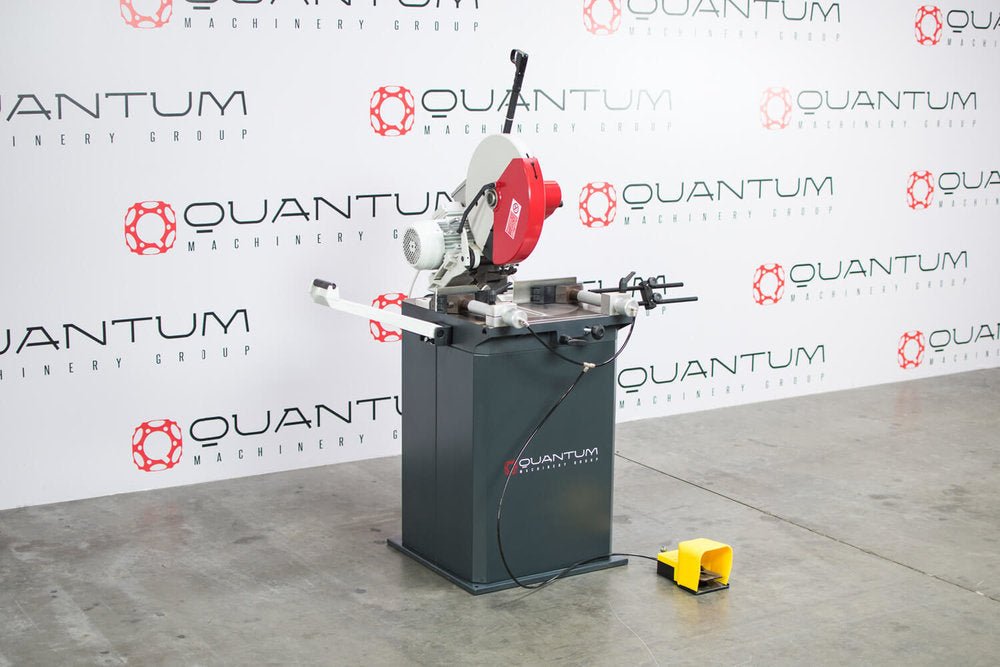

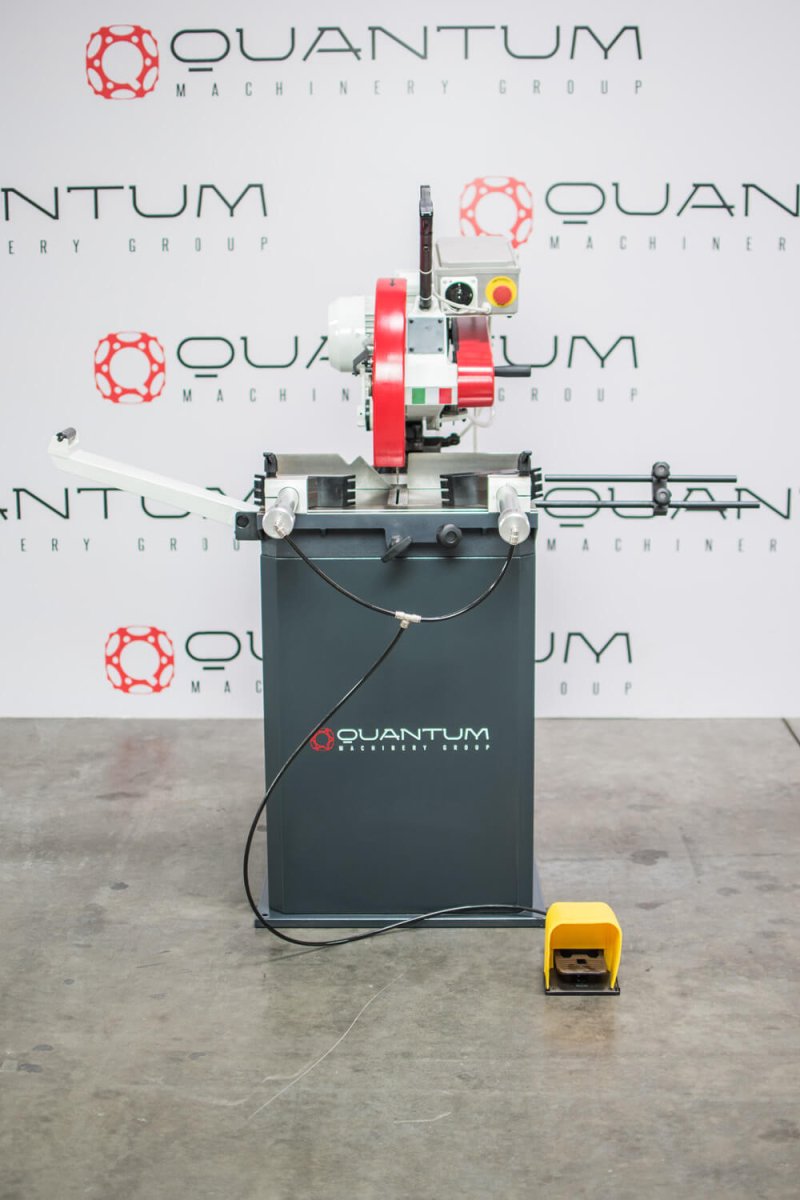

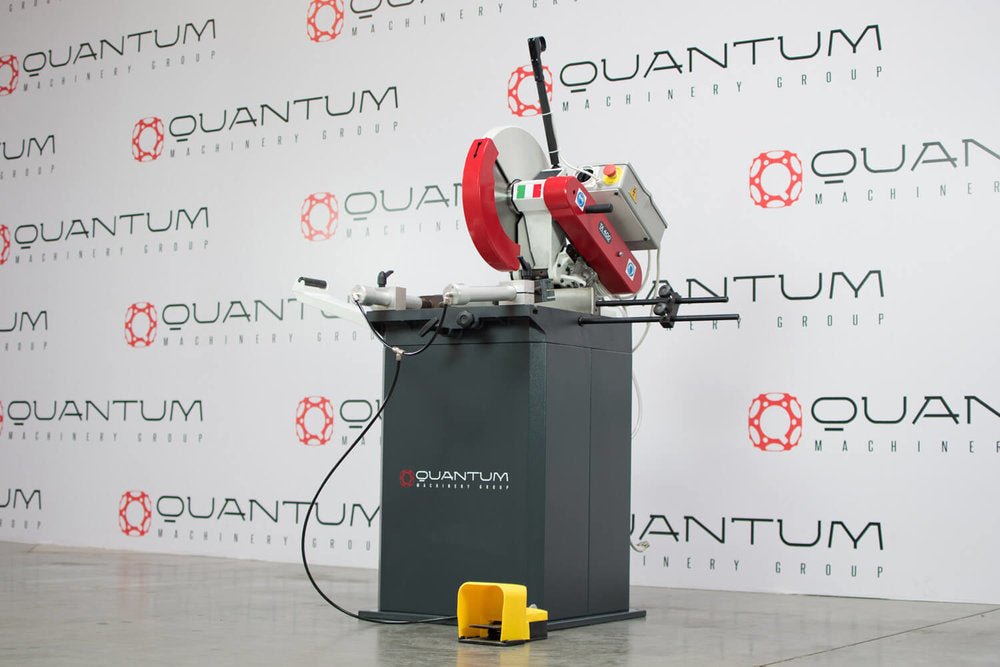

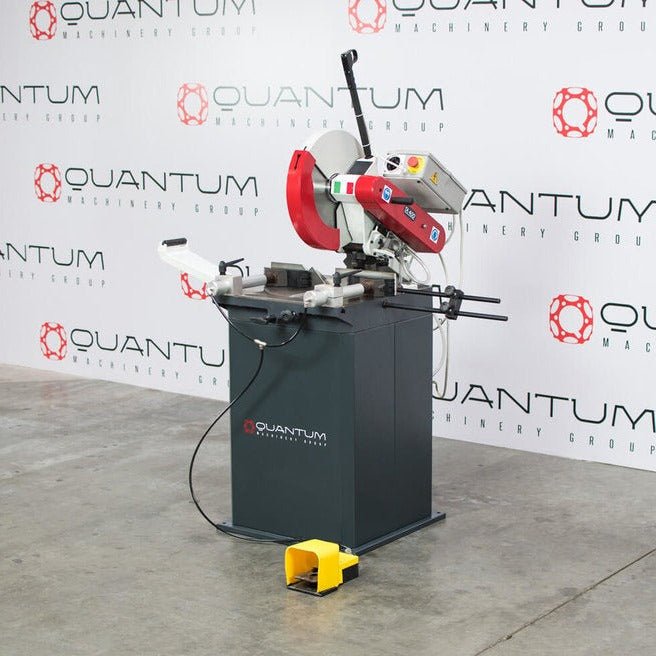

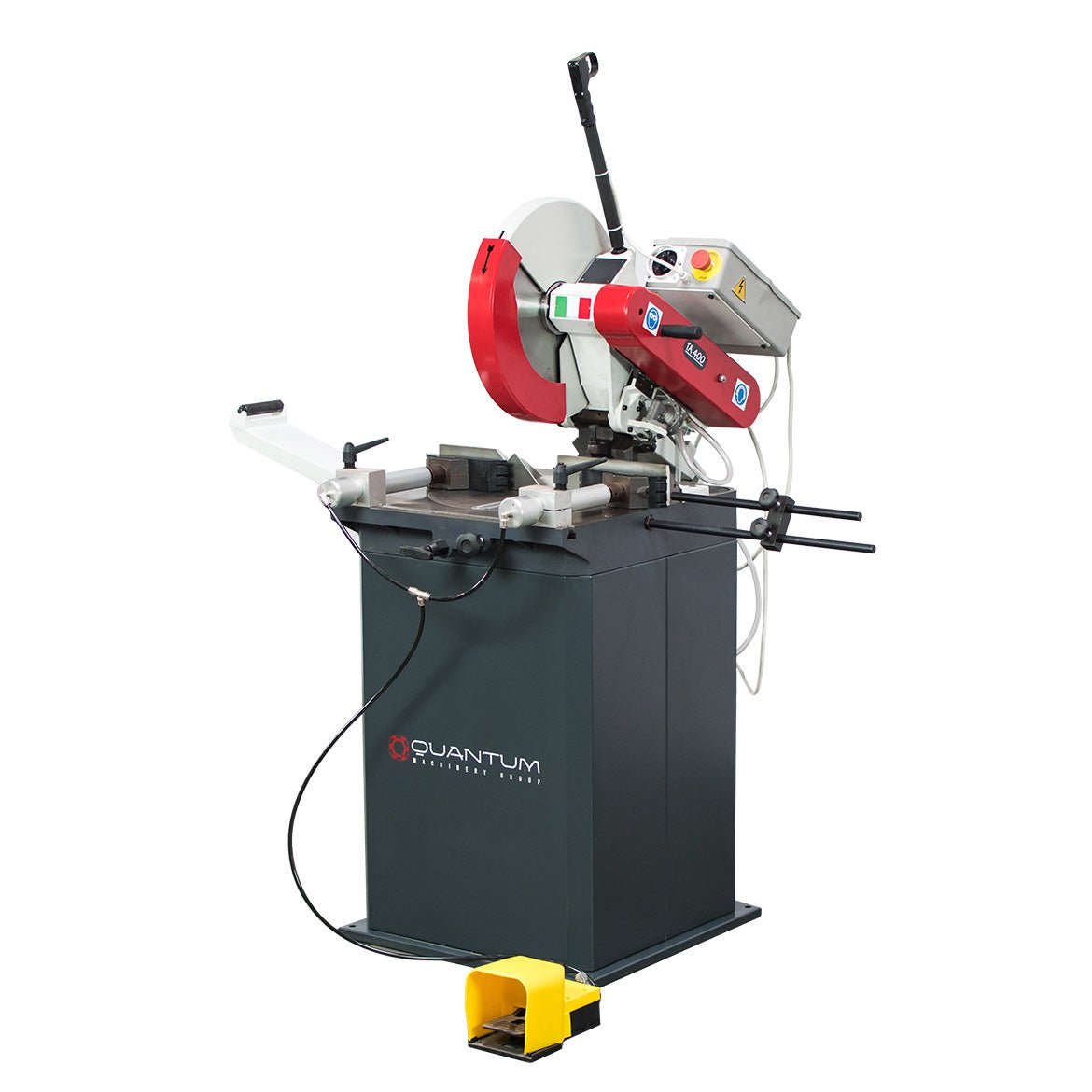

- This Saw Includes: Steel Pedestal/Stand, Pedal Controlled Pneumatic Vice, Rapid Stop on Motor, Instruction Manual, Service Tools & 1 Bore Carbide Tip Blade.
