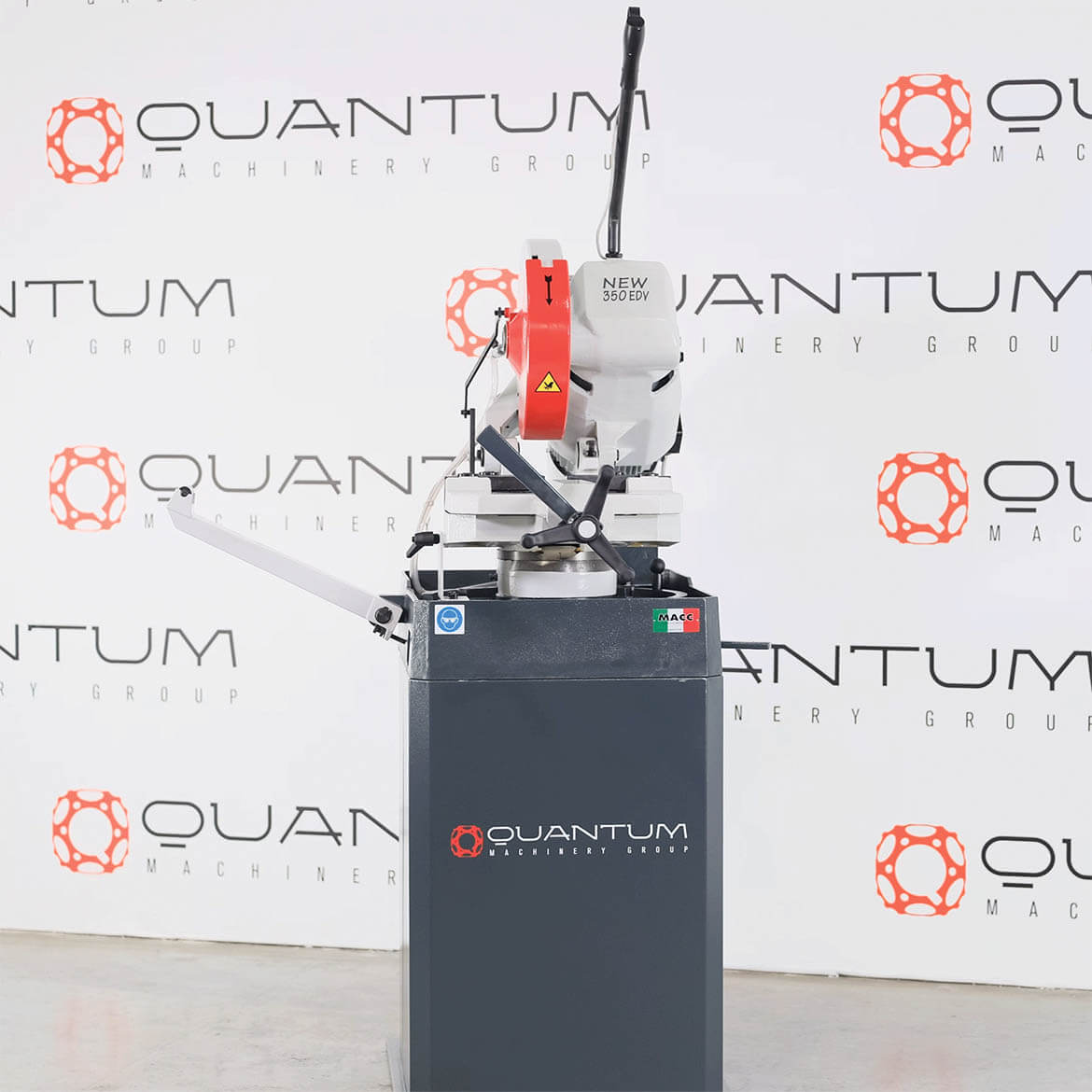

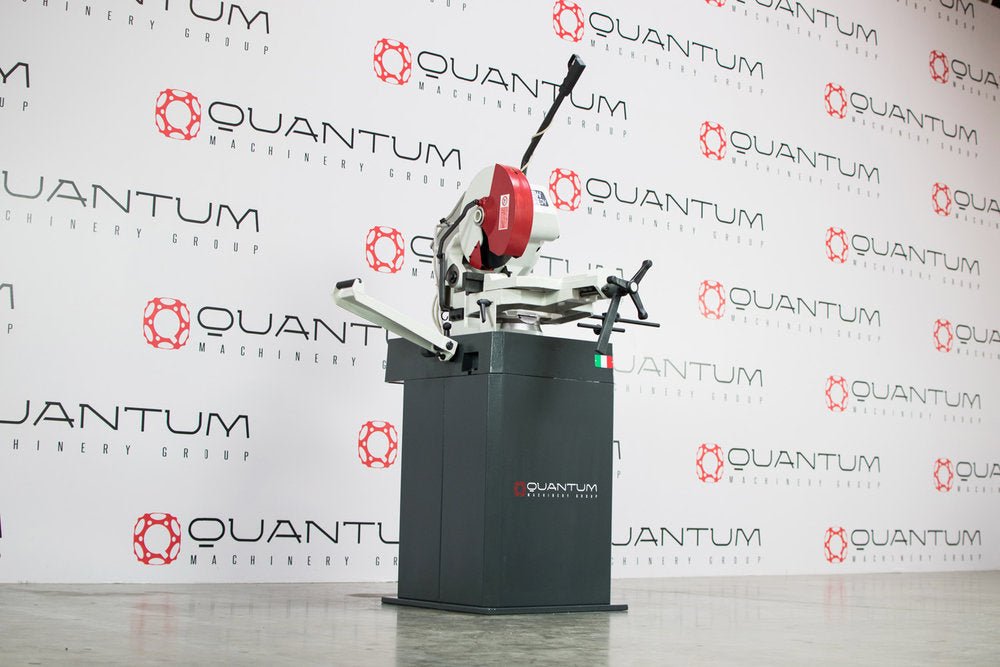

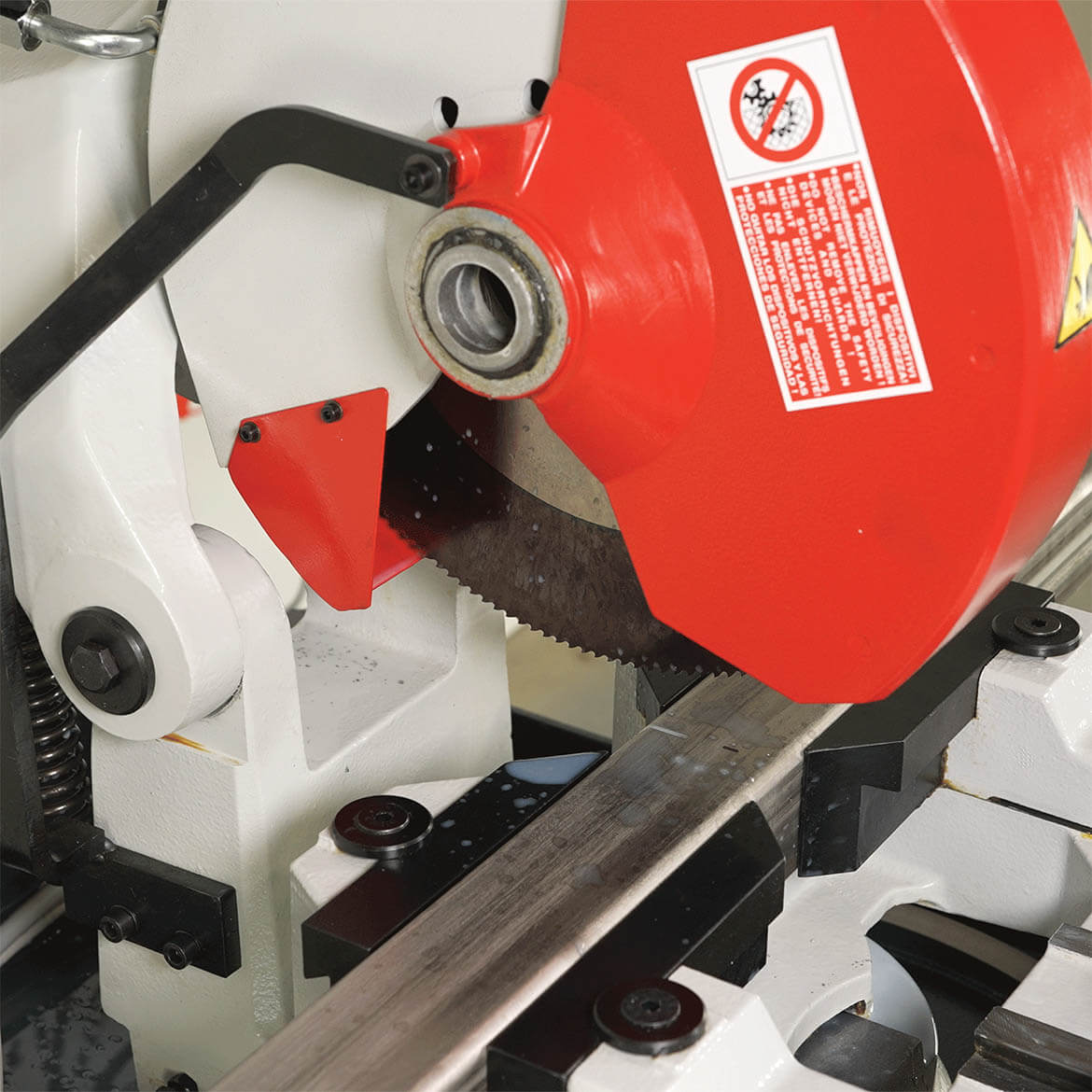

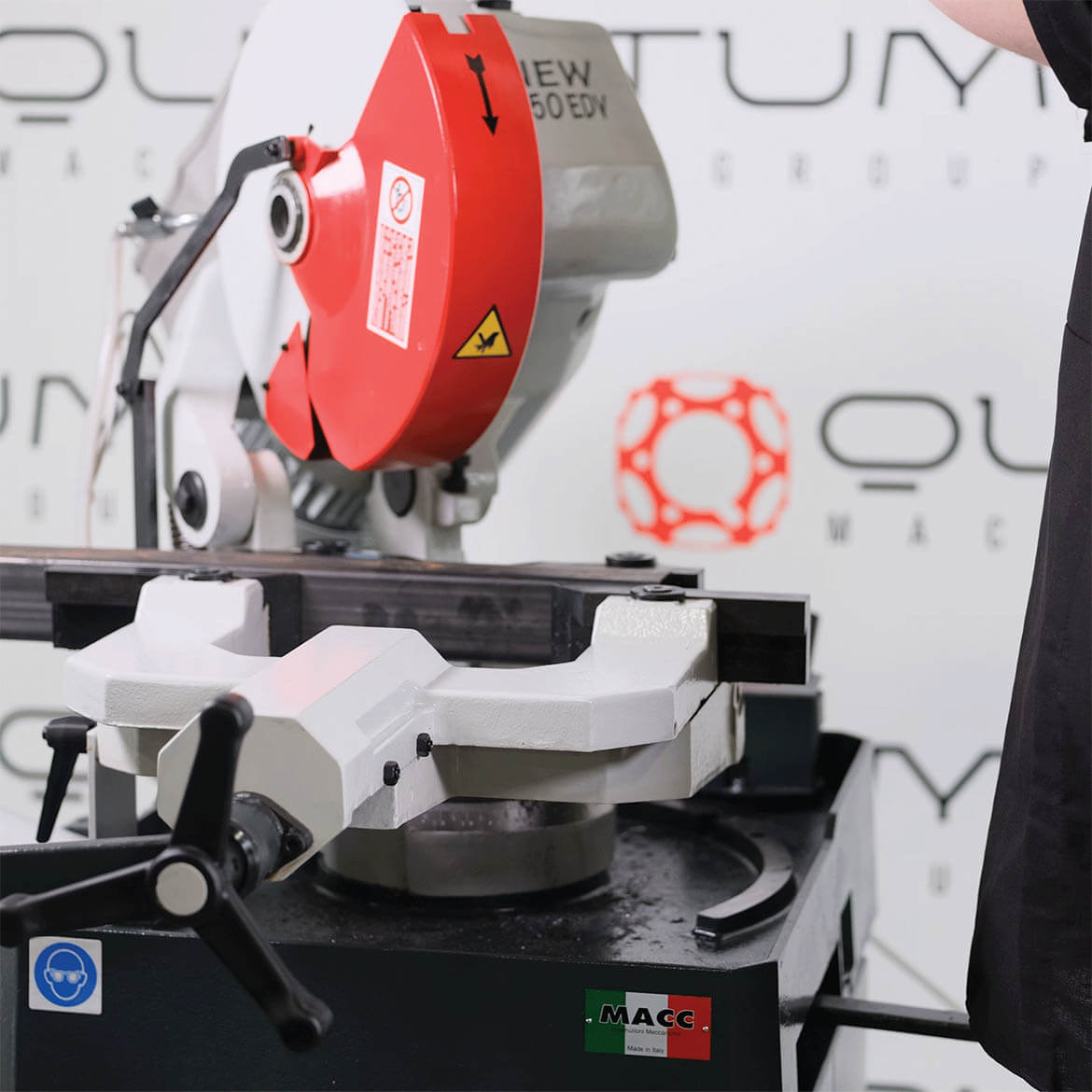

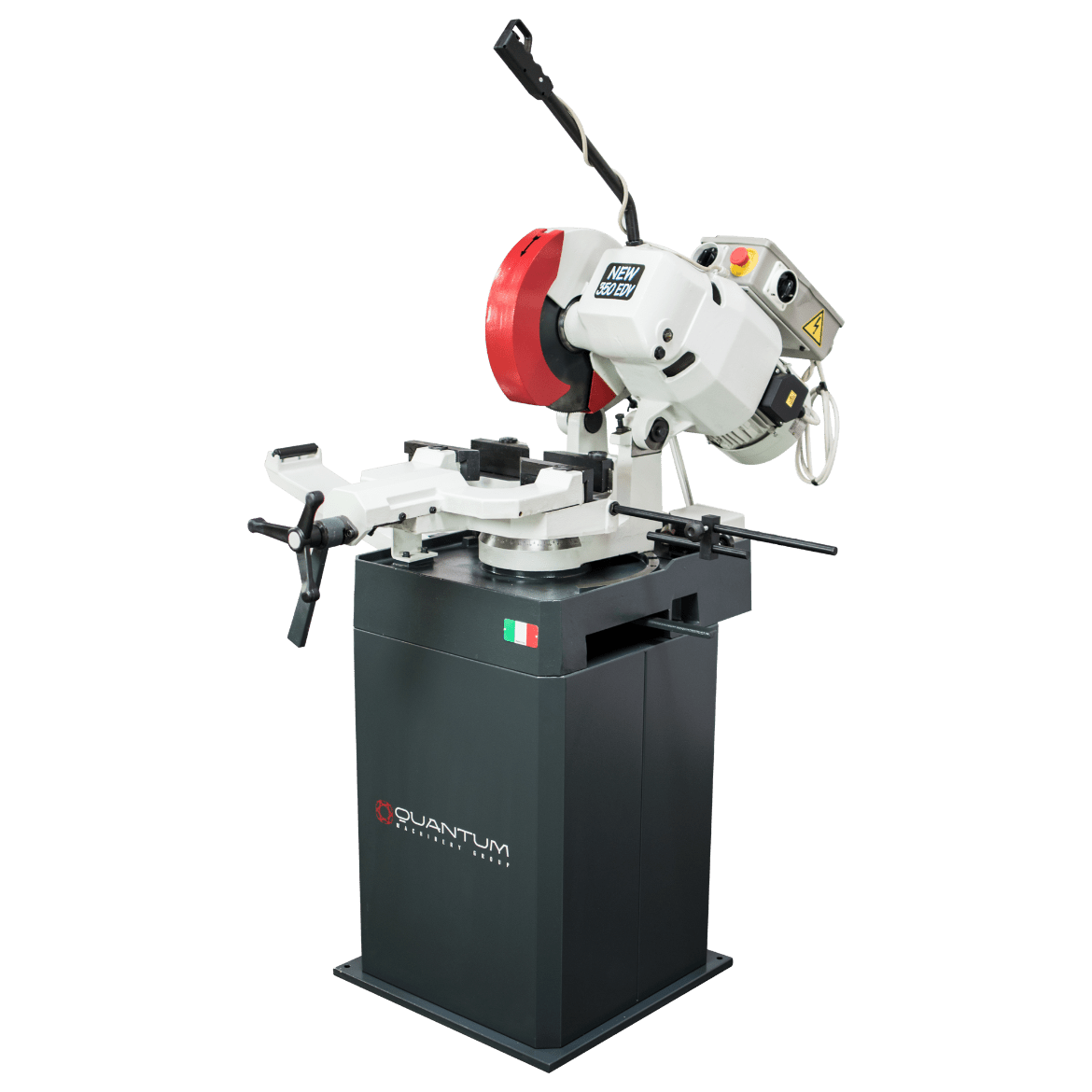

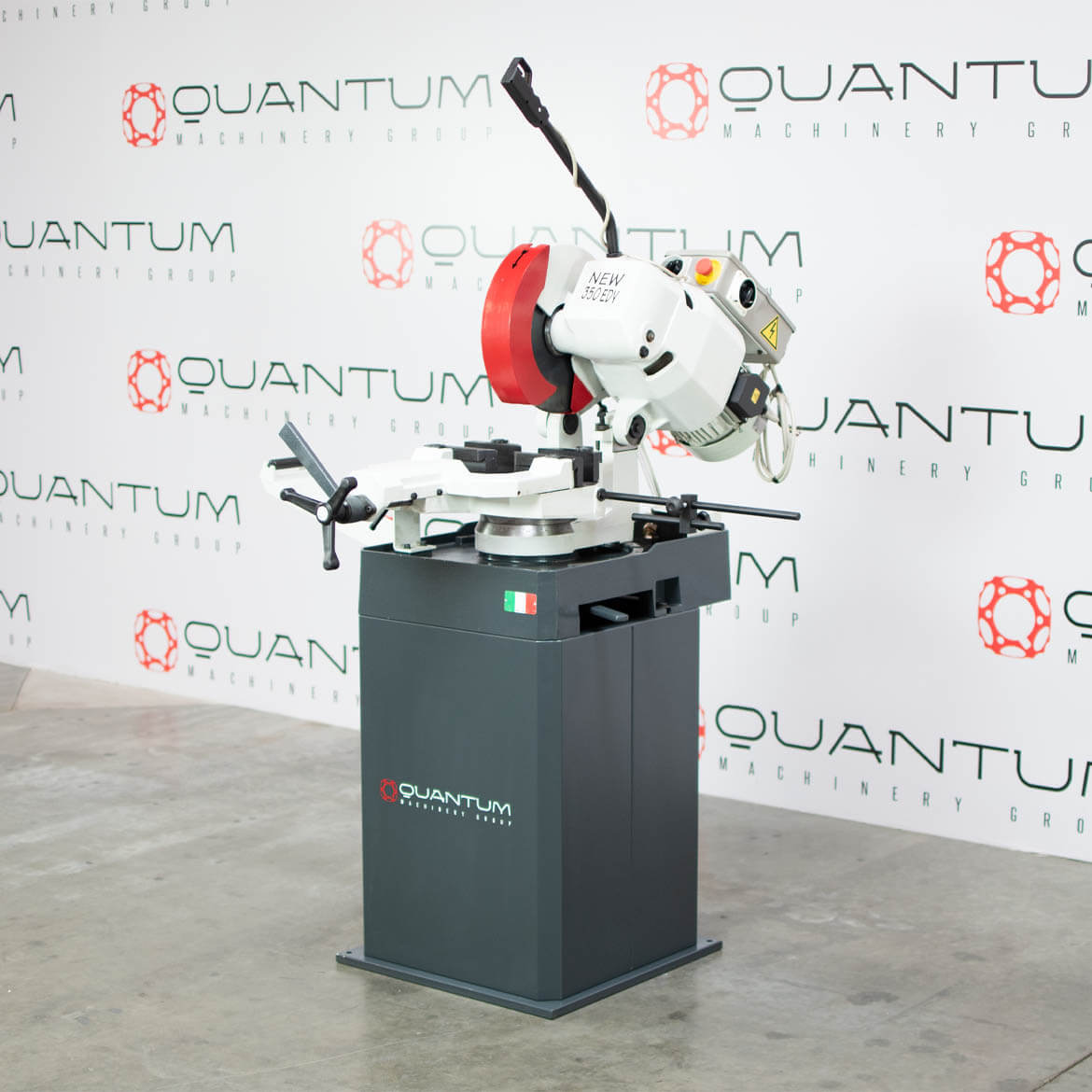

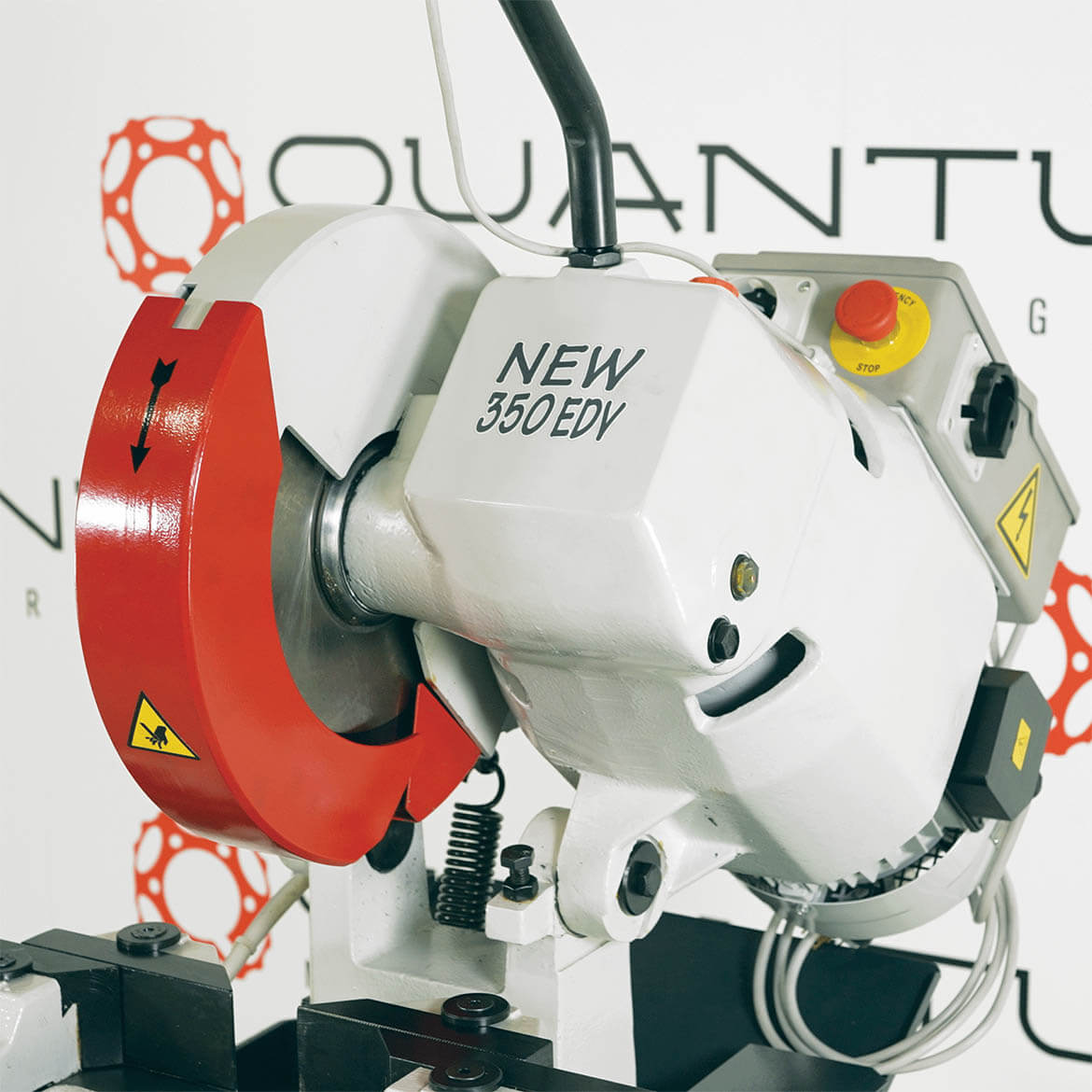

NEW 350 EDV: 14" Manual, Pivot-Style Cold Saw (4-1/4" Round Tube Capacity)

Sale price$5,500

Voltage Options: 220 Volt / 3 Phase / 60Hz

MAXIMUM CUTTING CAPACITIES:


Gray metal pipe with a smooth surface and hollow center.

Round Tube:

  • Straight Cut: 4-1/4" or 4.25"
  • 45° Left Cut: 3-1/8" or 3.125"
  • 45° Right Cut: 3-1/8" or 3.125"
  •

Metal rectangular hollow tube on a white background.

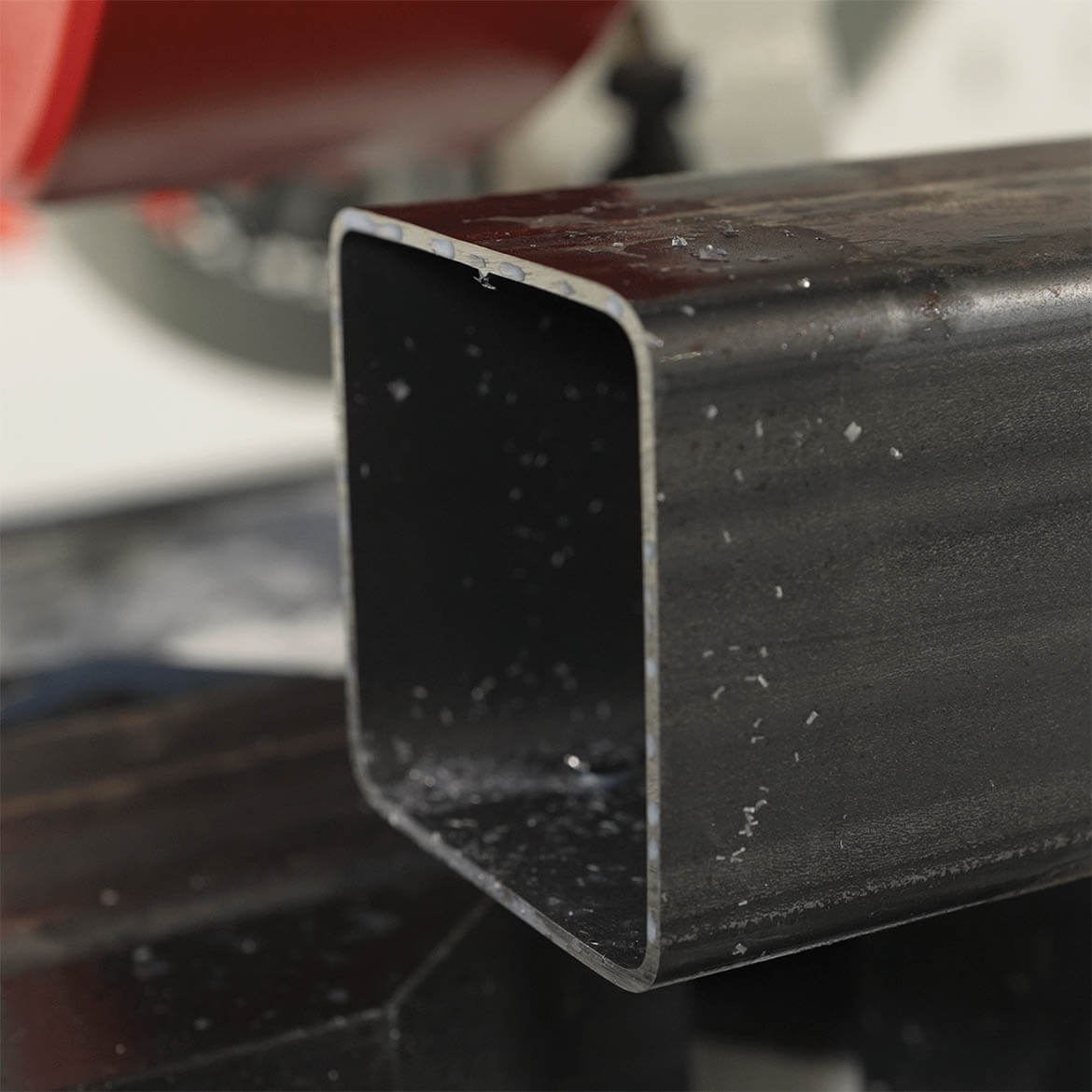

Square Tube:

  • Straight Cut: 3-3/4" or 3.75"
  • 45° Left Cut: 3-1/8" or 3.125"
  • 45° Right Cut: 3-1/8" or 3.125"
  •

A smooth, metallic cylindrical rod on a plain background.

Solid Round:

  • Straight Cut: 2-1/2" or 2.25"
  • 45° Left Cut: 2-1/8" or 2.125"
  • 45° Right Cut: 2-1/8" or 2.125"
  •

Rectangular Tube:

  • Straight Cut: 3-1/8"H x 4-1/2"W or 3.125"H x 4.5"W
  • 45° Left Cut: 3-1/8"H x3-1/8"W or 3.125"H x 3.125"W
  • 45° Right Cut: 3-1/8H x 3-1/8"W or 3.125"H x 3.125"W
  •

  • TECHNICAL DATA & FEATURES:

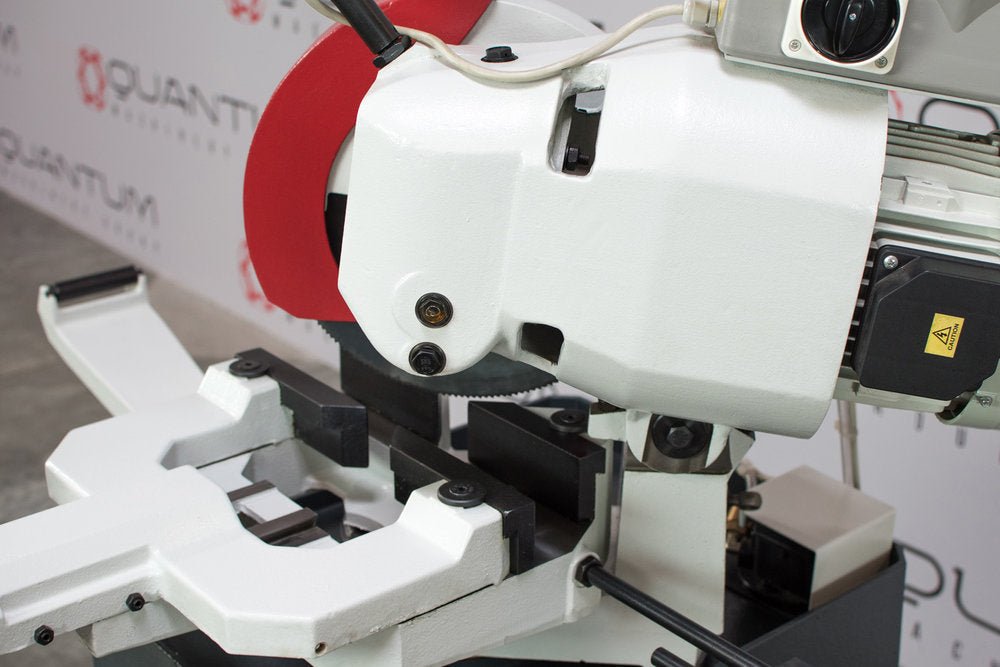

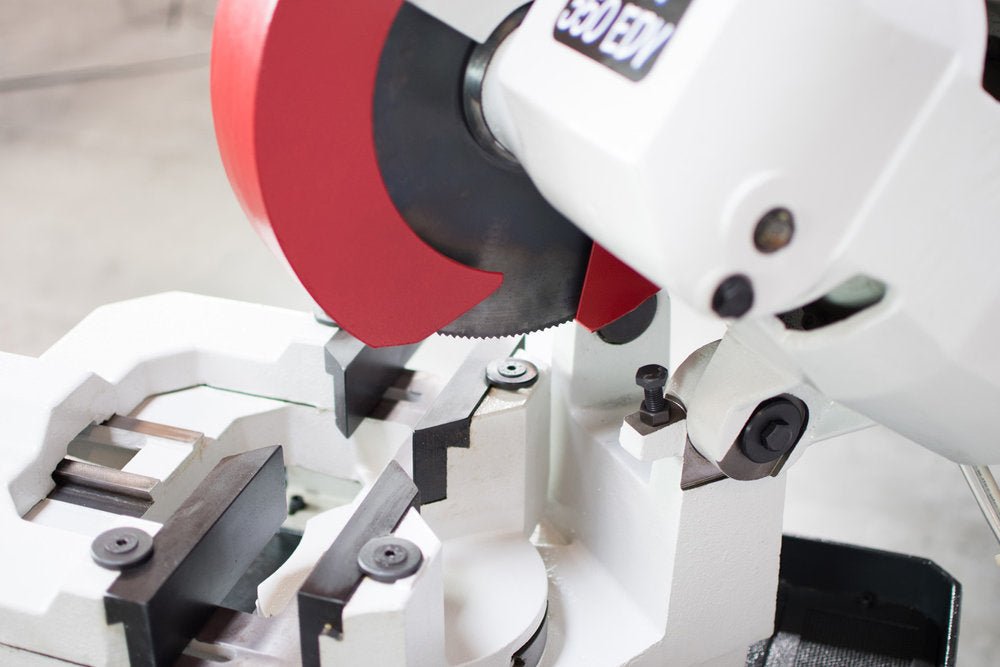

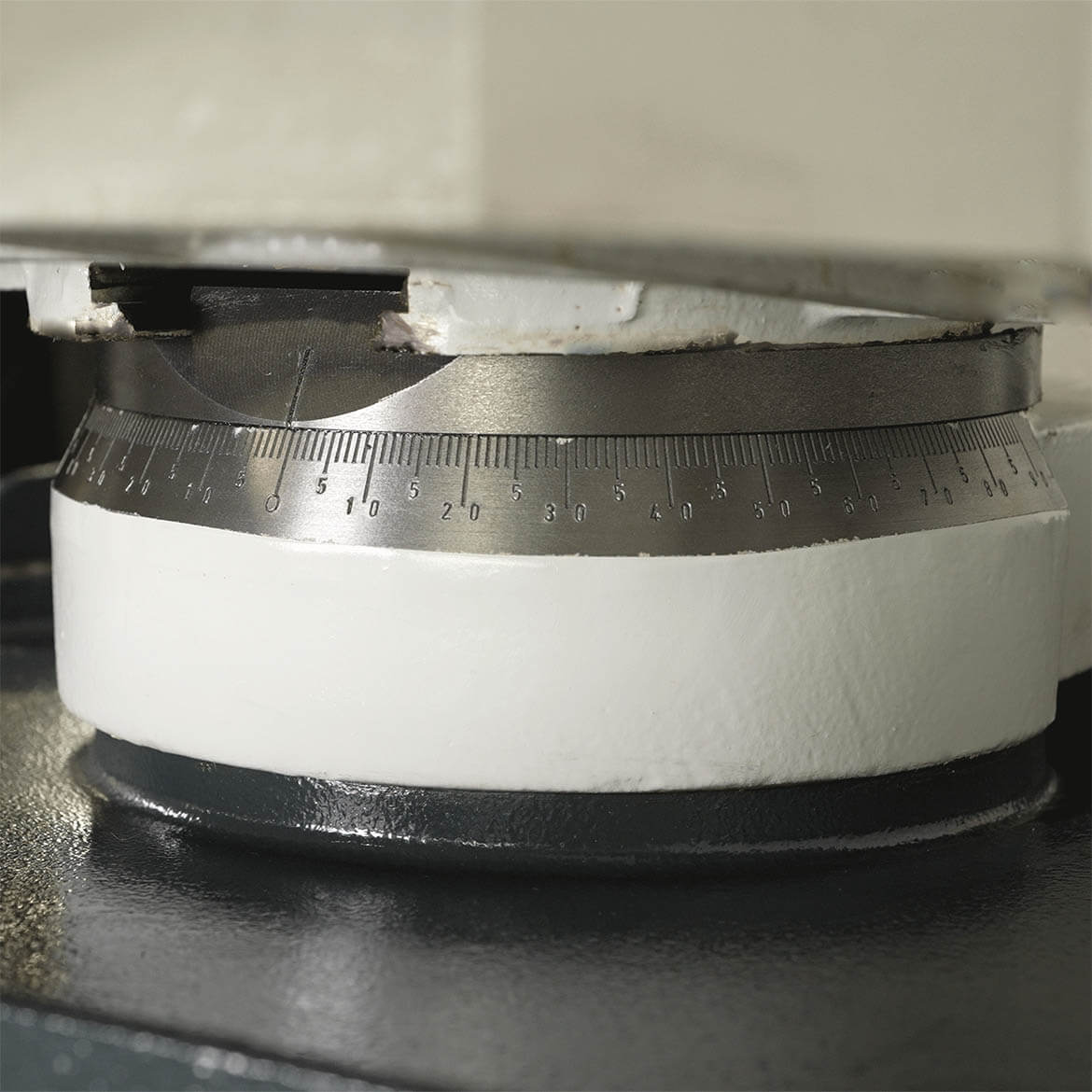

  • Movable Cutting Head: From 45° Left up to 45° Right.
  • Double-Hinged Pin with Eccentric Bush.

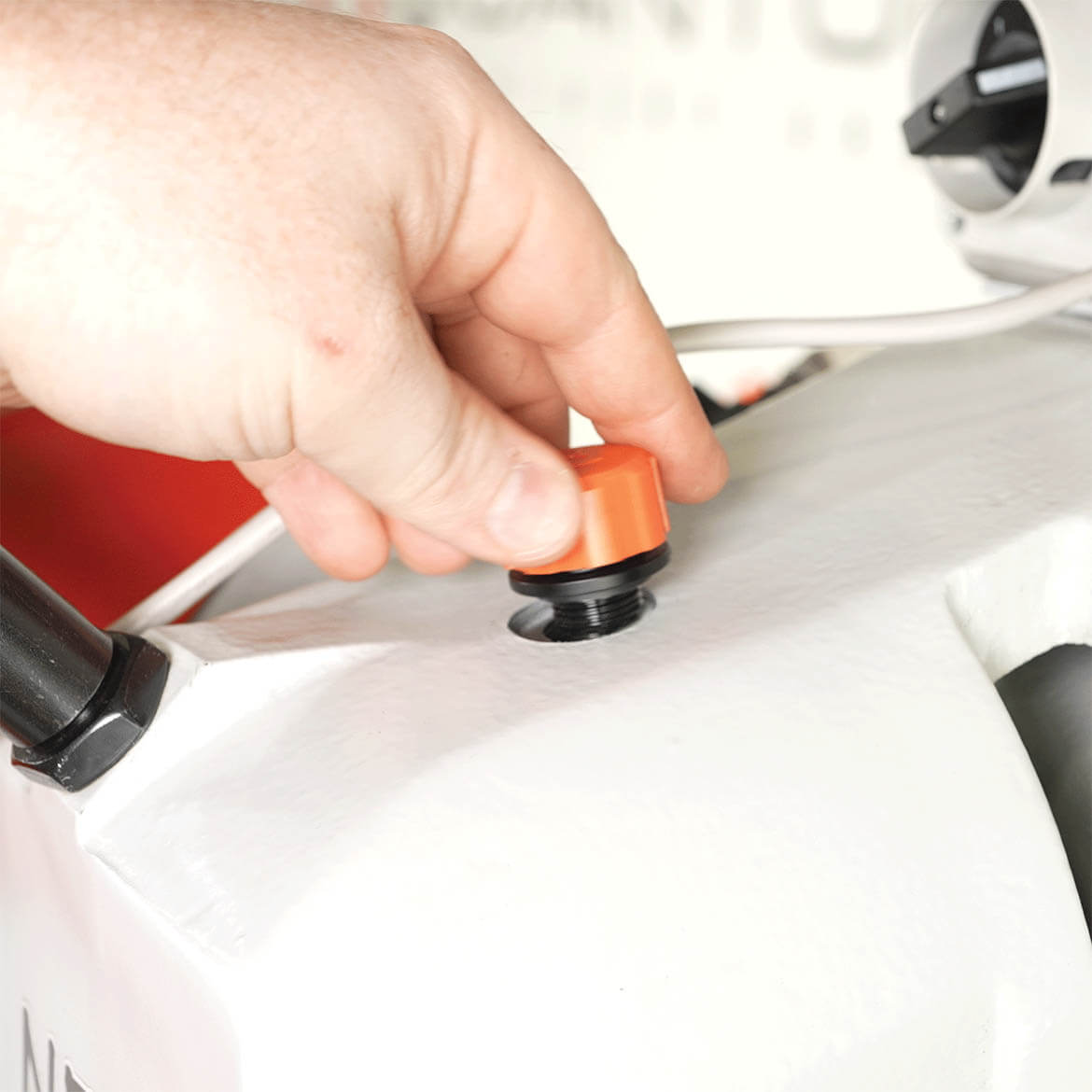

  • Reduction Unit in Oil Bath.

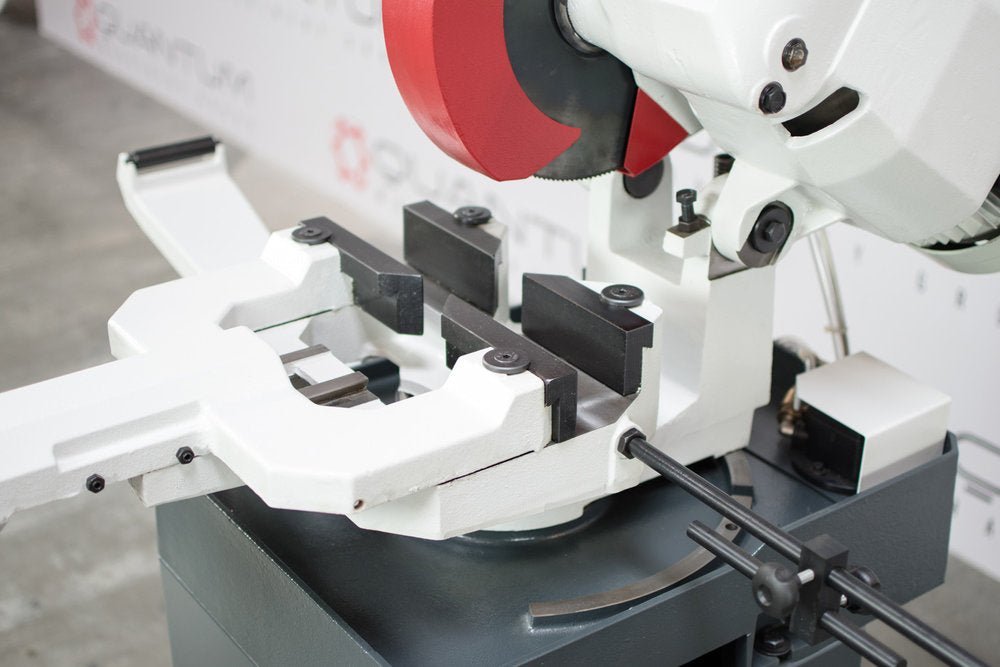

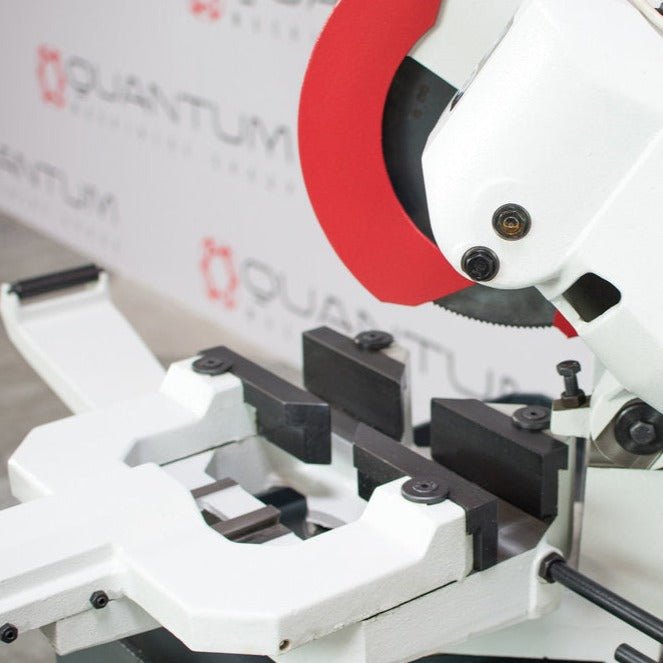

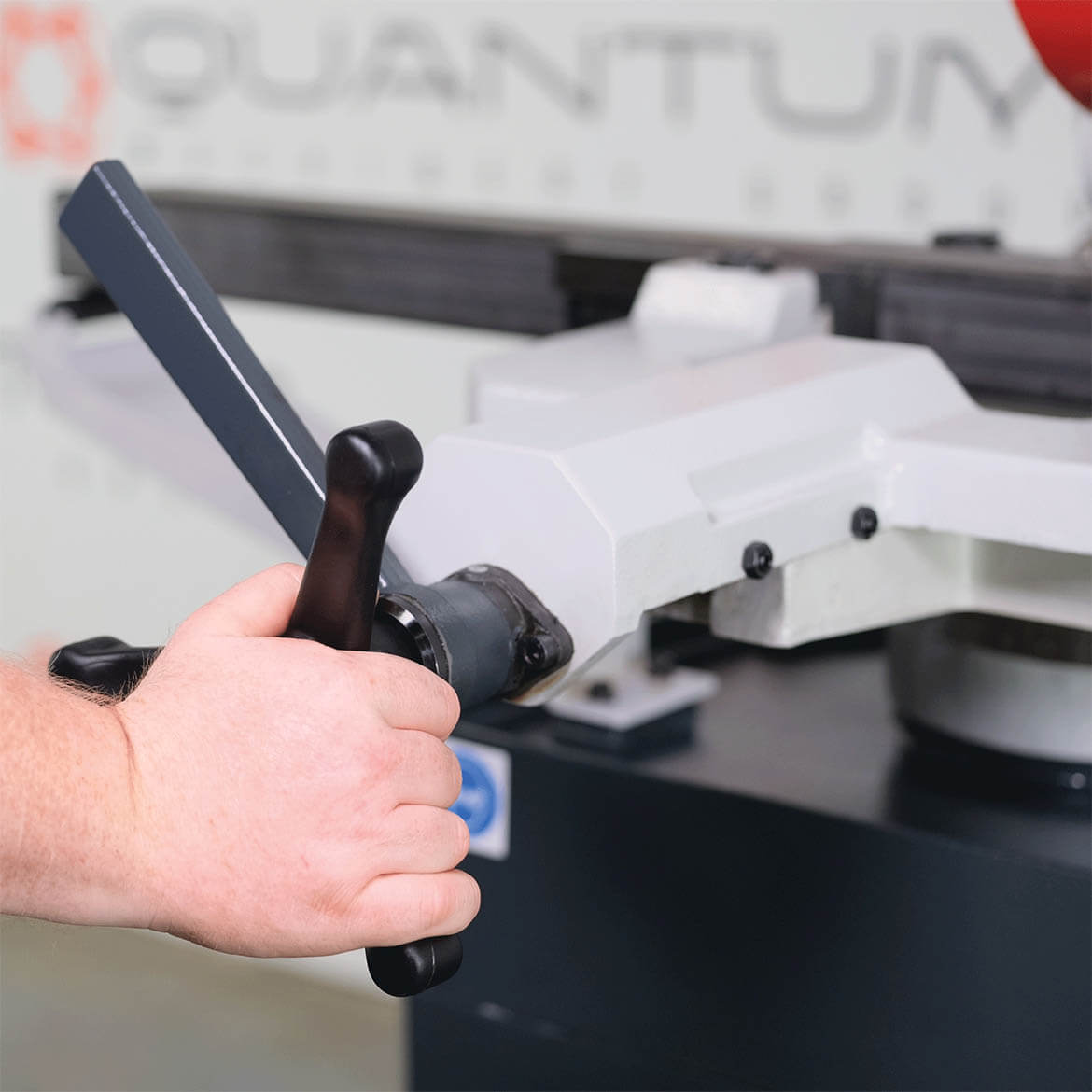

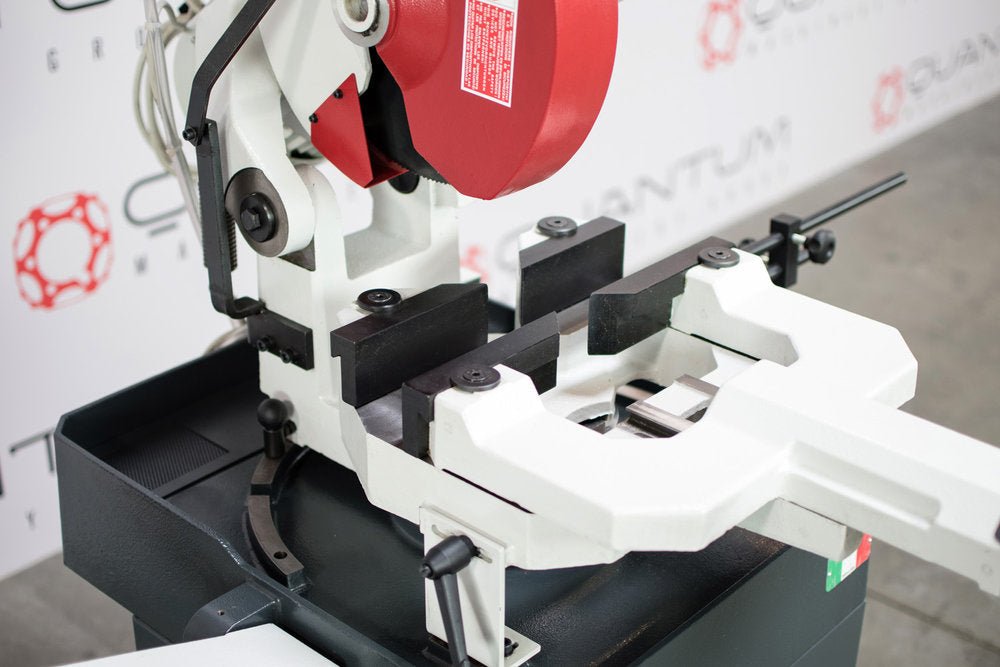

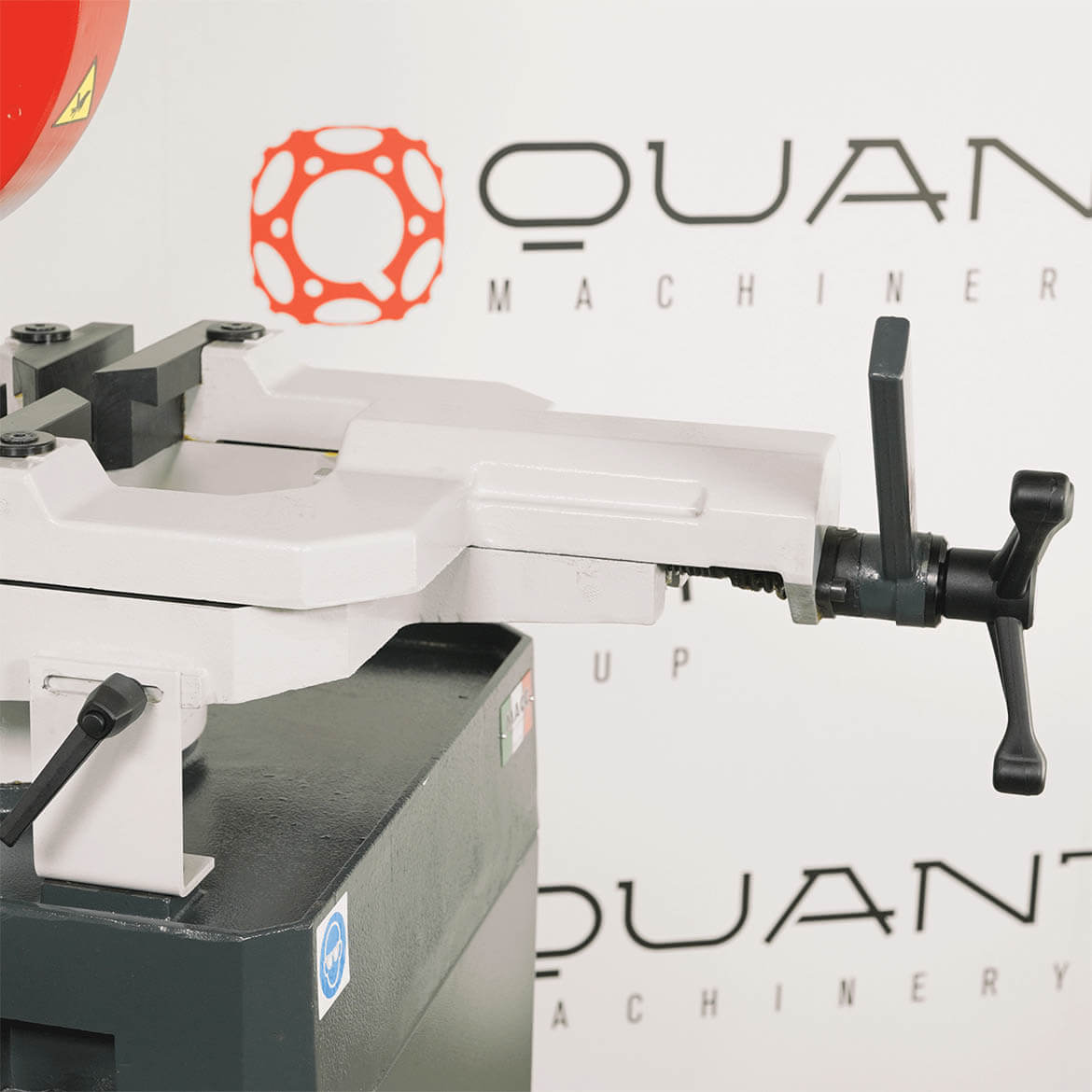

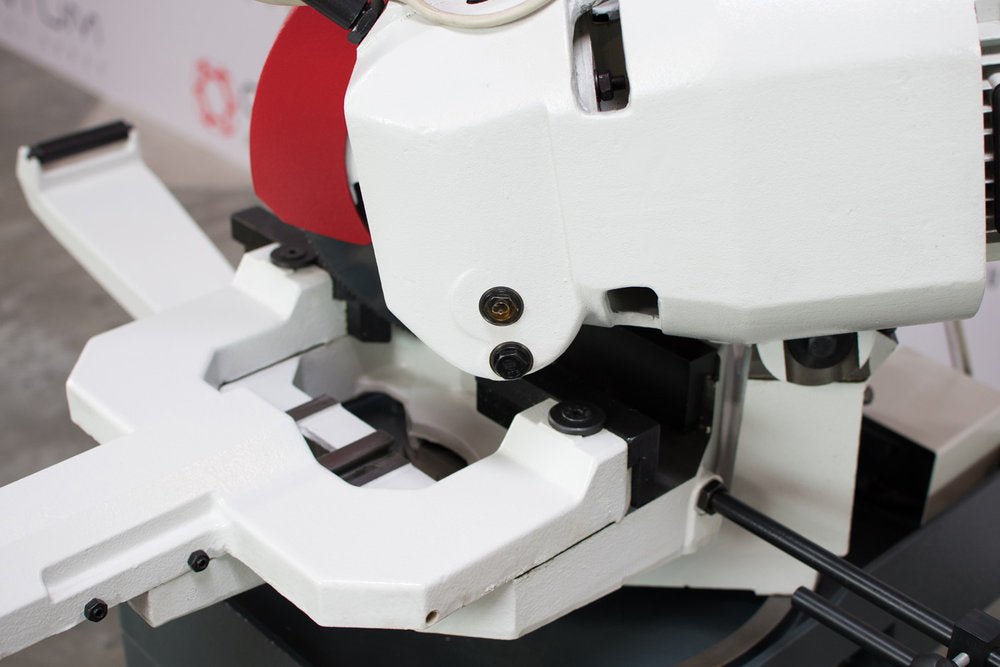

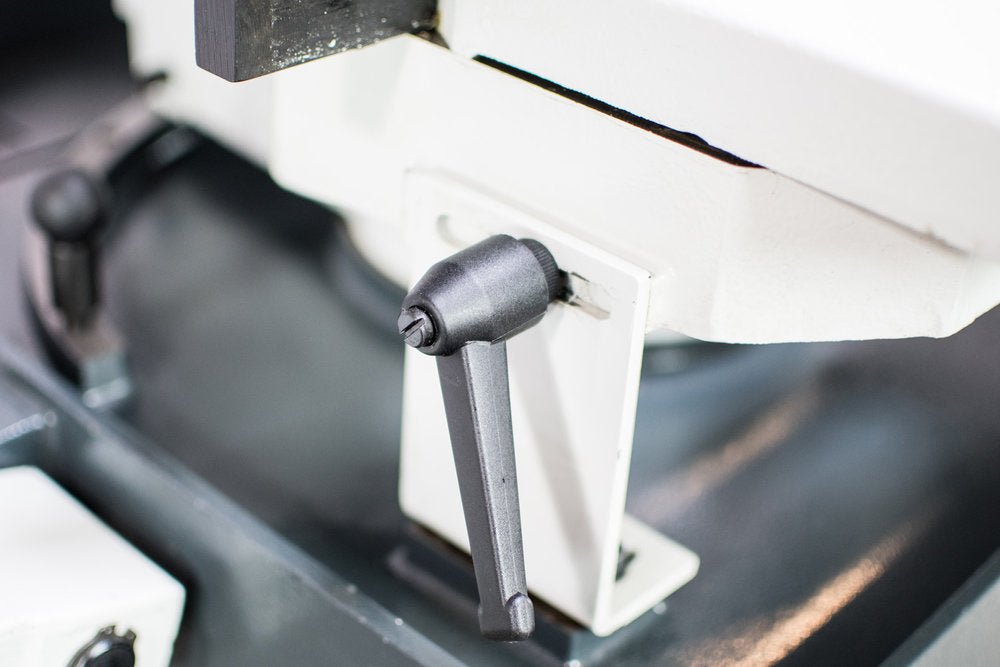

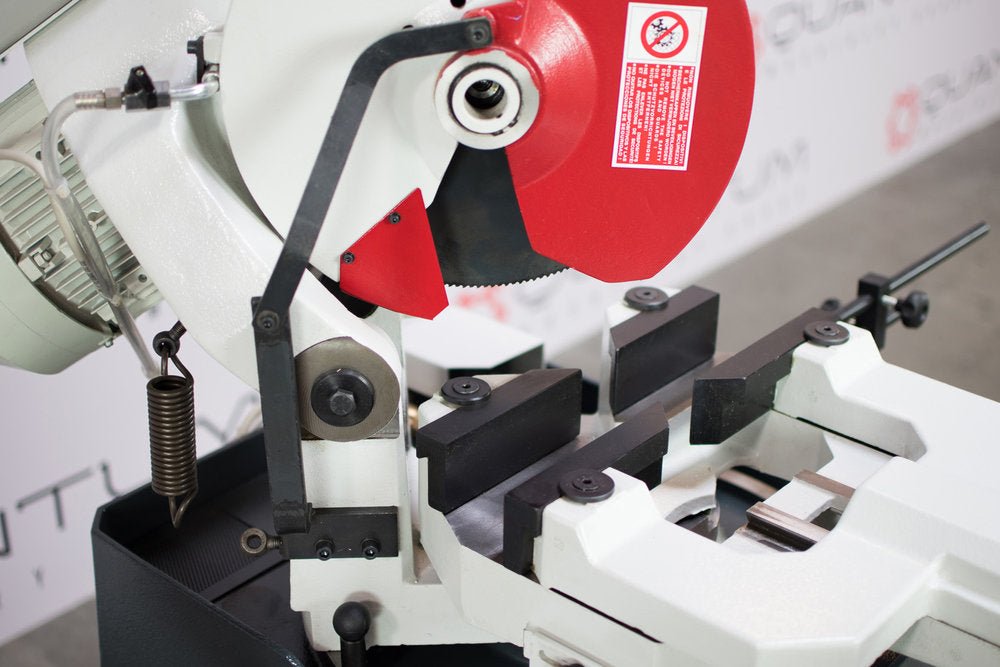

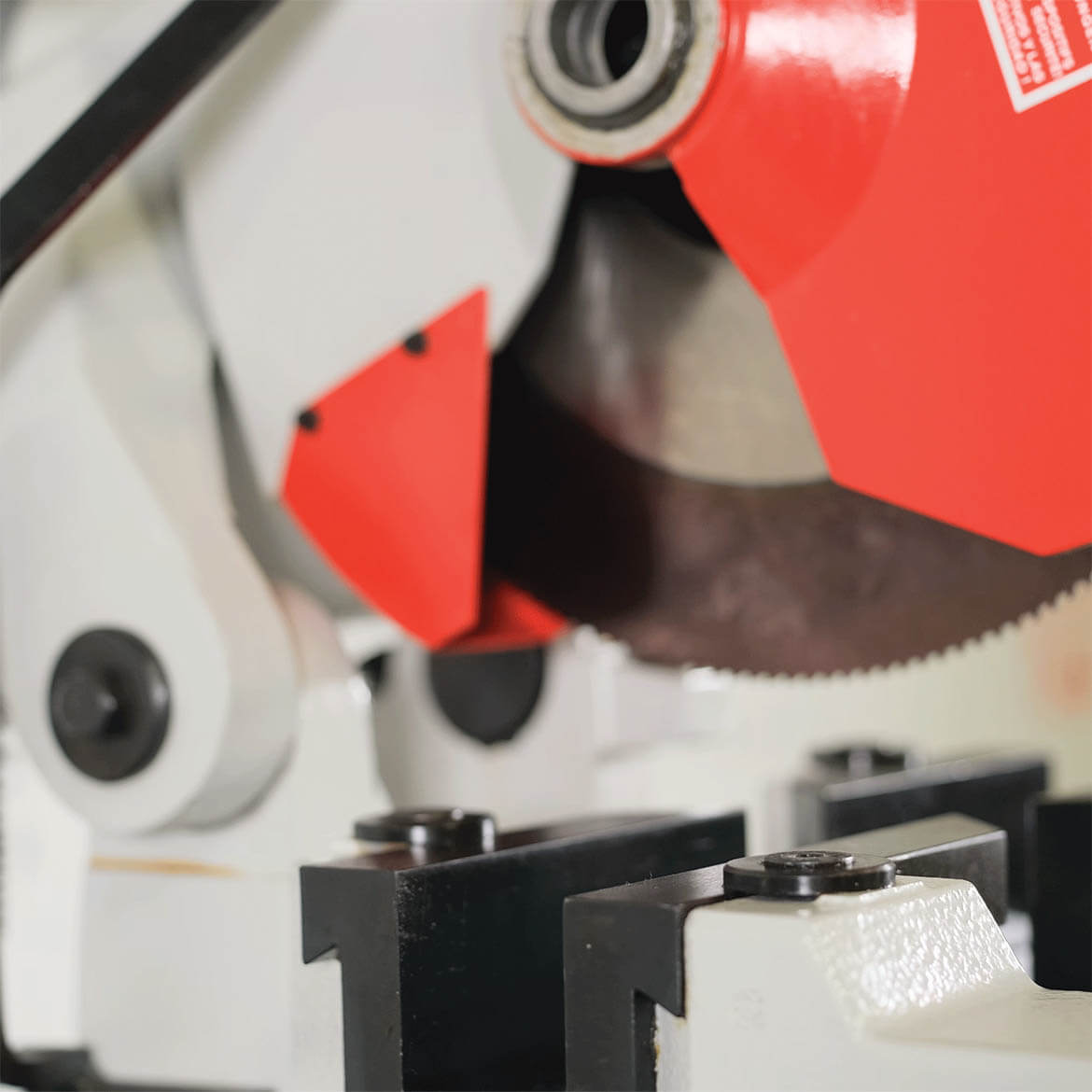

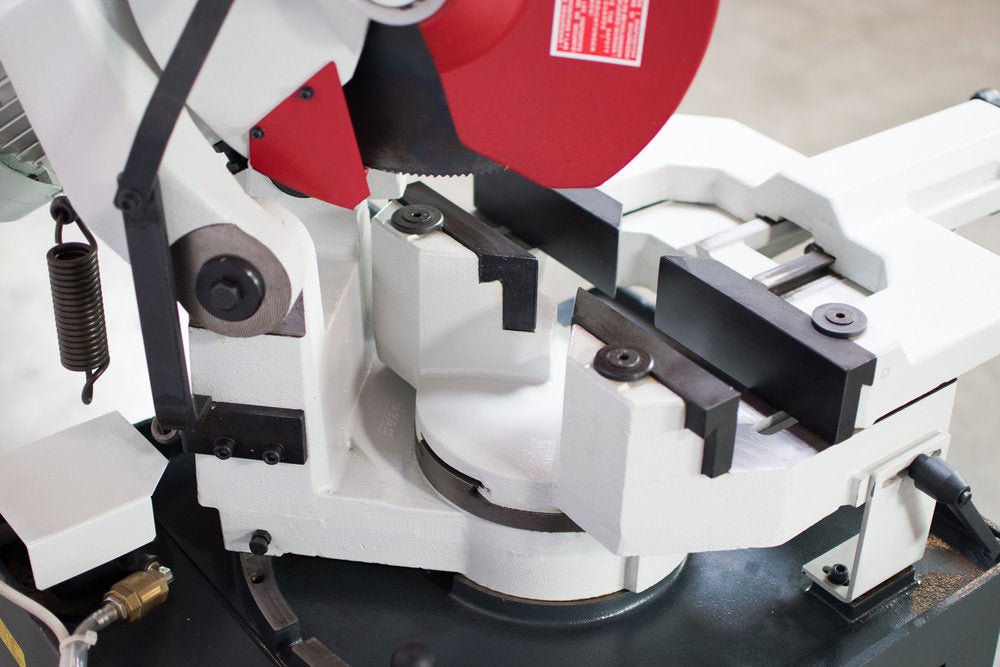

  • Double-Quick Locking Vice.
  • Coolant Filter.

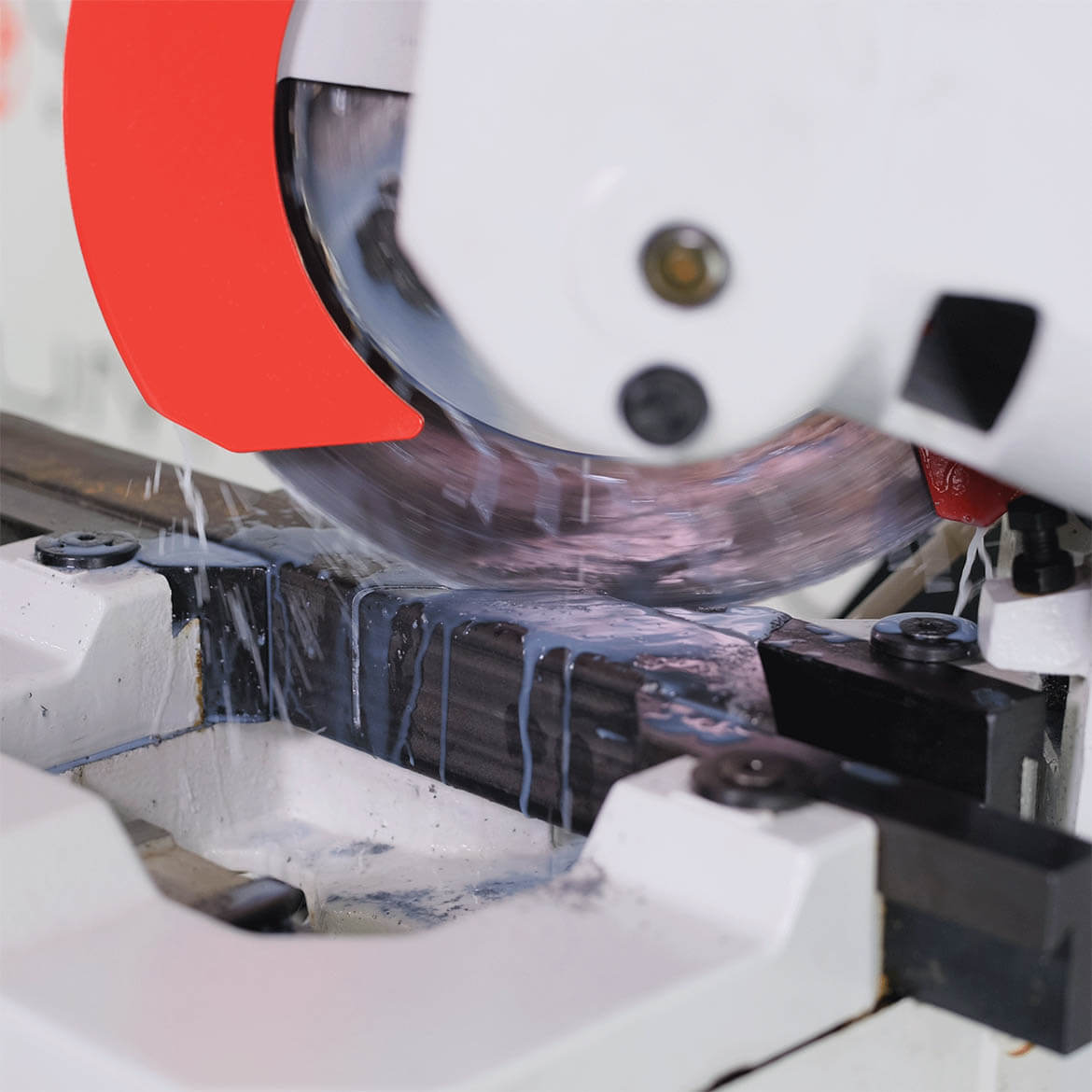

  • Jet Separation System to keep the Blade Oiled.

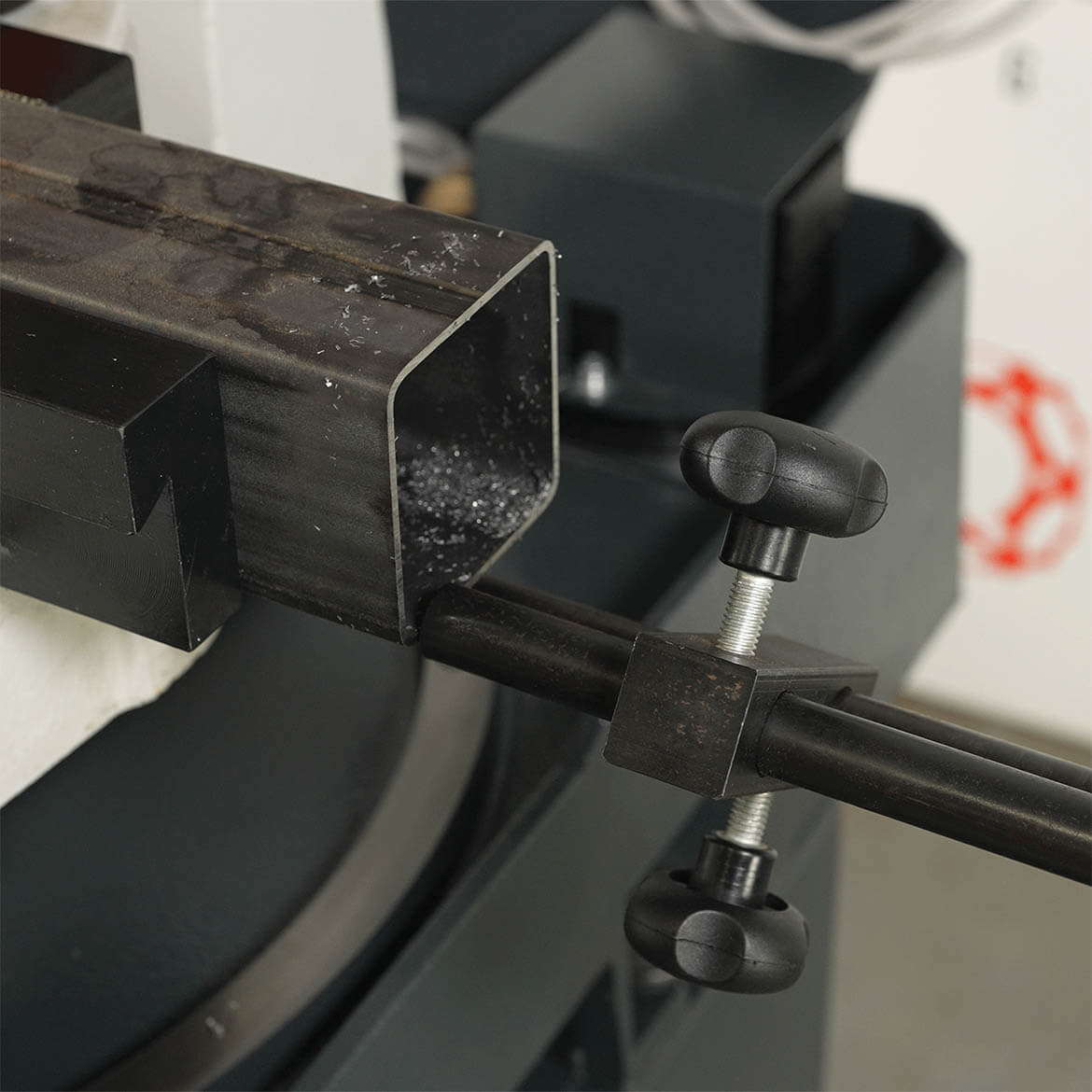

  • Sliding Counter-Vice for Longitudinal Cutting.

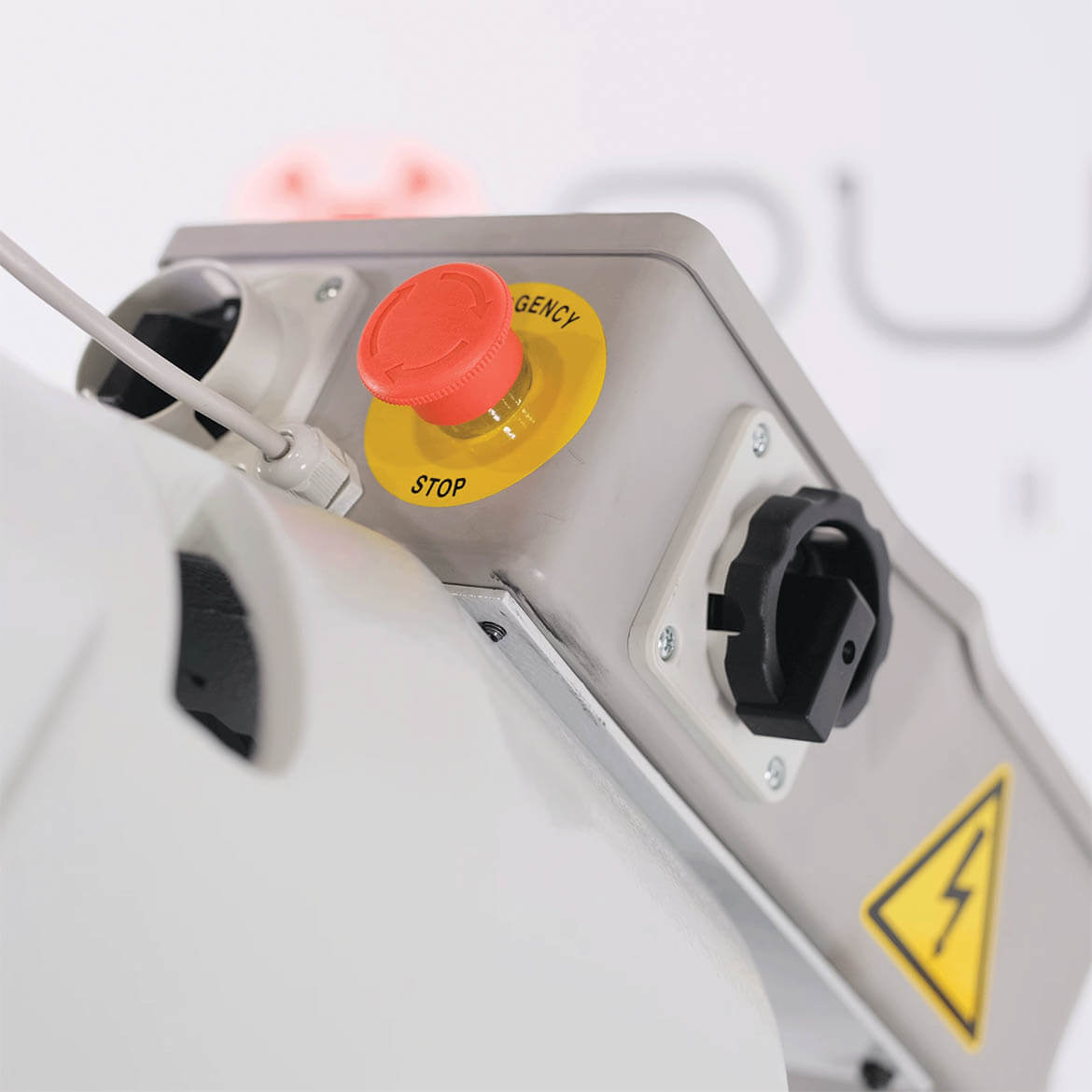

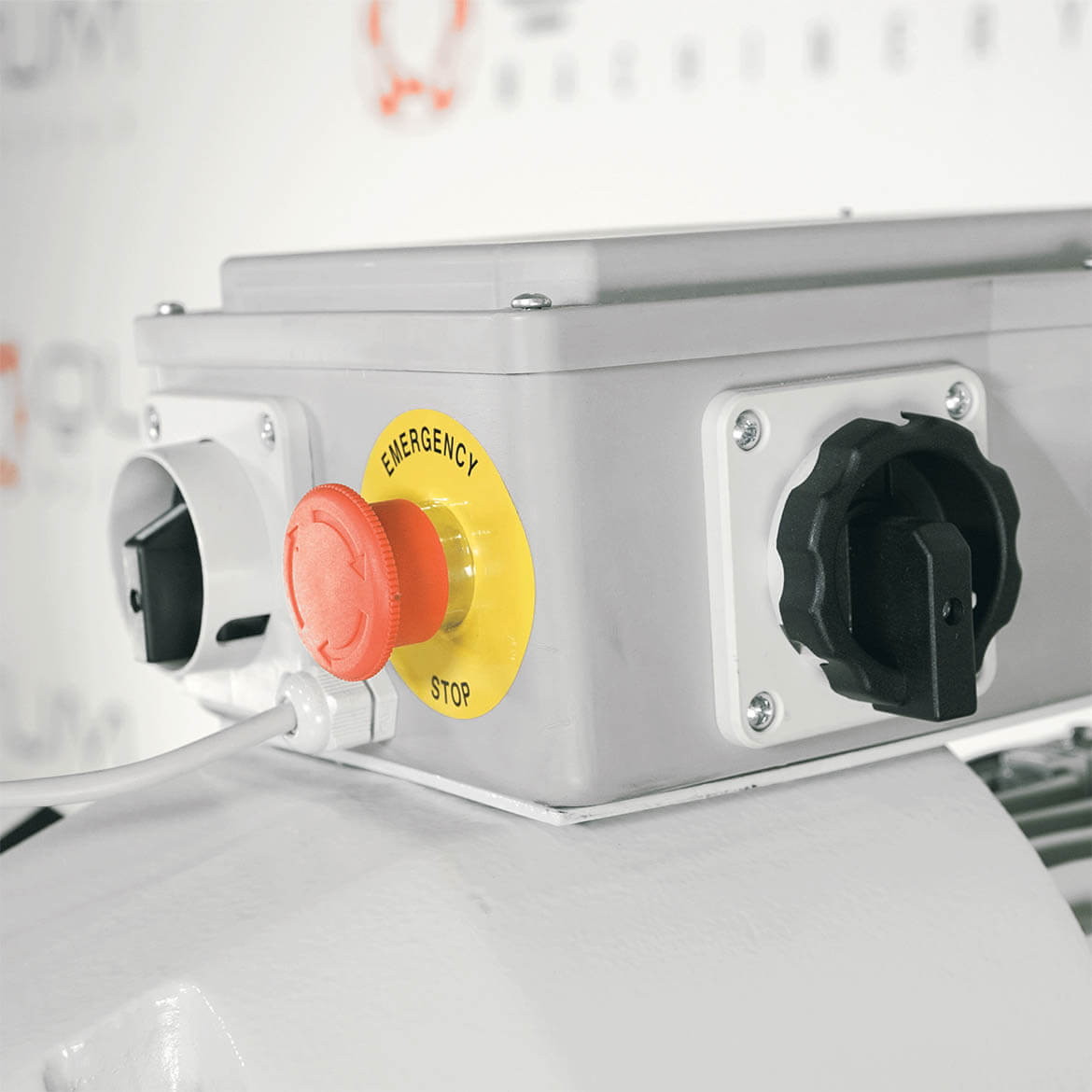

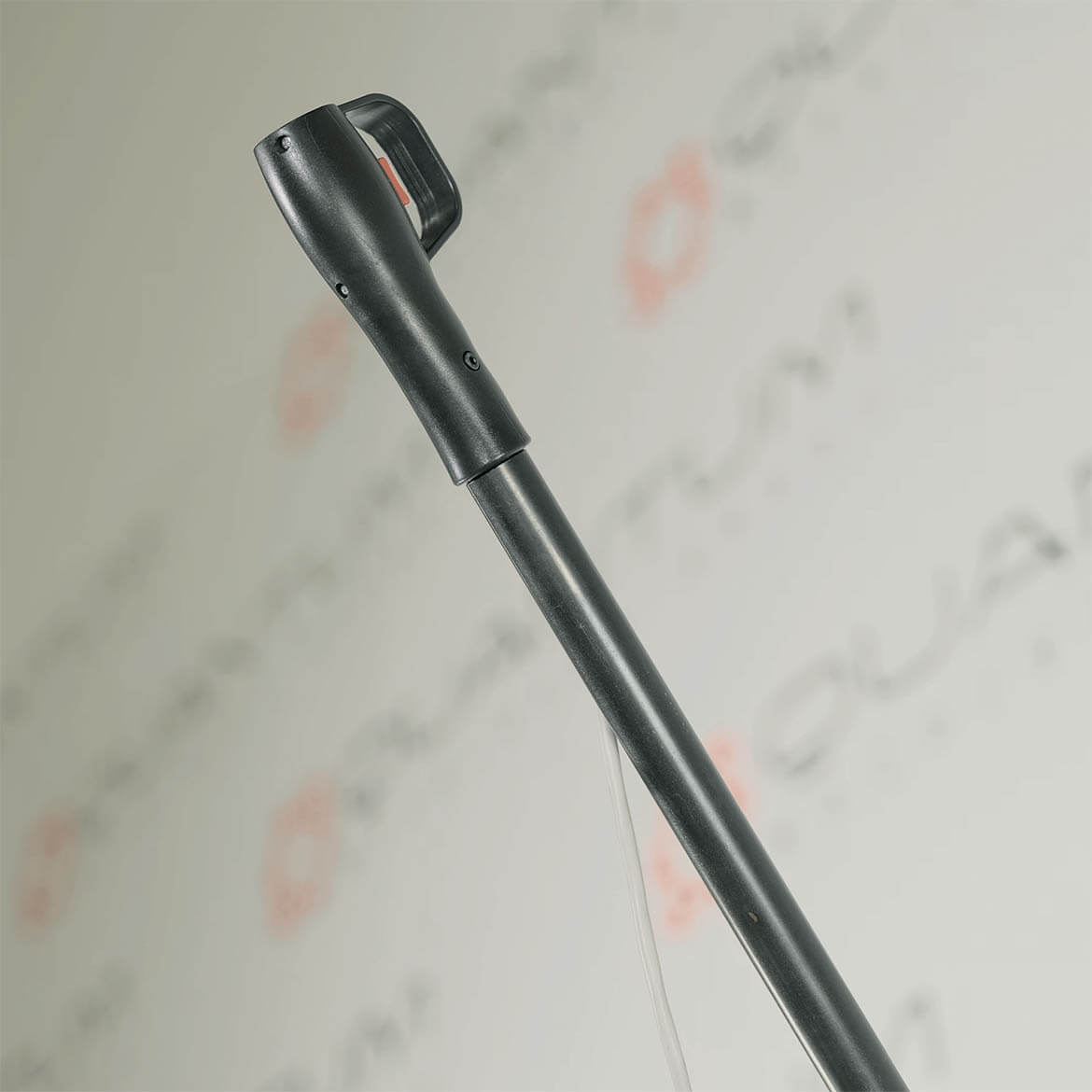

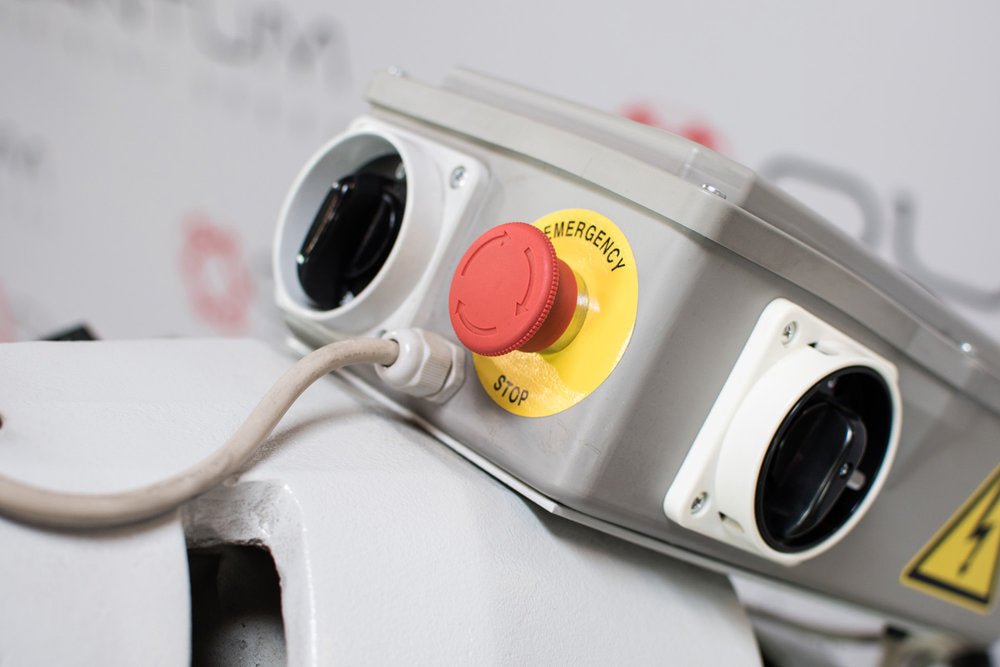

  • 24V Low Voltage Installation withhold-to-run Head Control Knob.

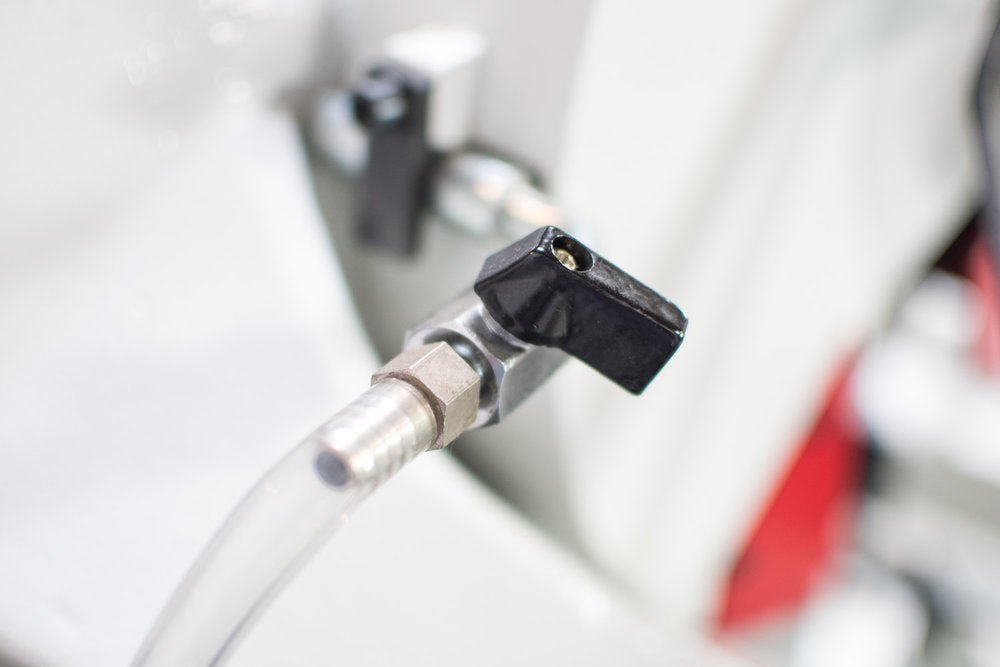

  • 0.09 kW Power-Driven Pump for Band Cooling.

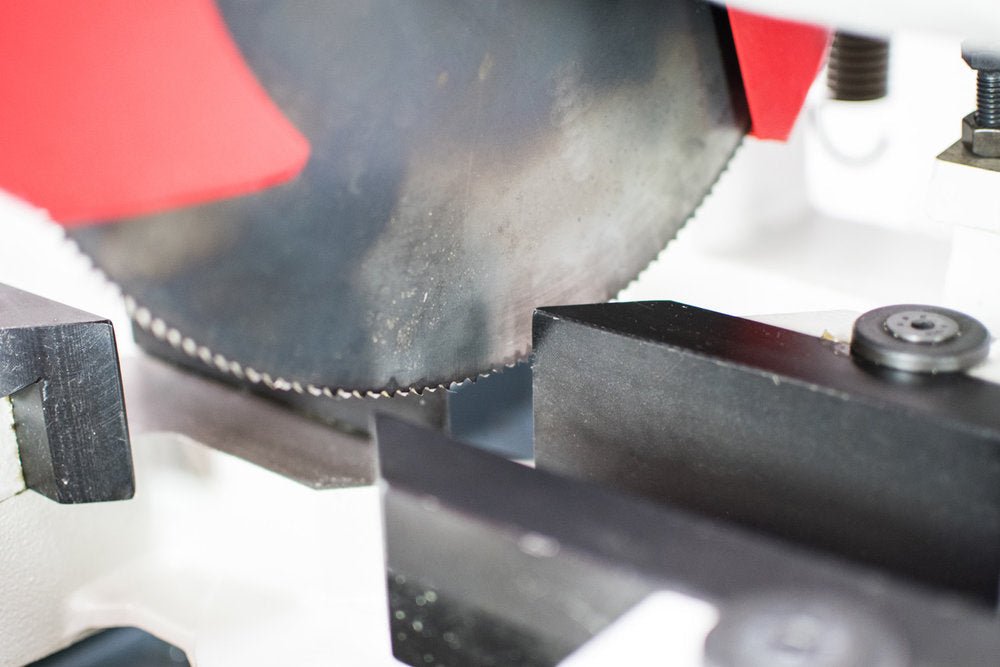

  • Blade Size: 350 x 2.5 x 32mm Bore HSS Blade
  • Maximum Vice Opening: 4.7” (120mm)
  • Machine Weight: 510 lbs. (231 kg.)
  • 2 Speeds: 40 - 80 R.P.M. (Saw can be equipped with Variable Speed Inverter)
  • Overall Dimensions: 4'-10"H x 3'-4"W x 3'-11"L or 58”H x 40”W x 47”L or 1,475mm H x 1,000mm W x 1,200mm L

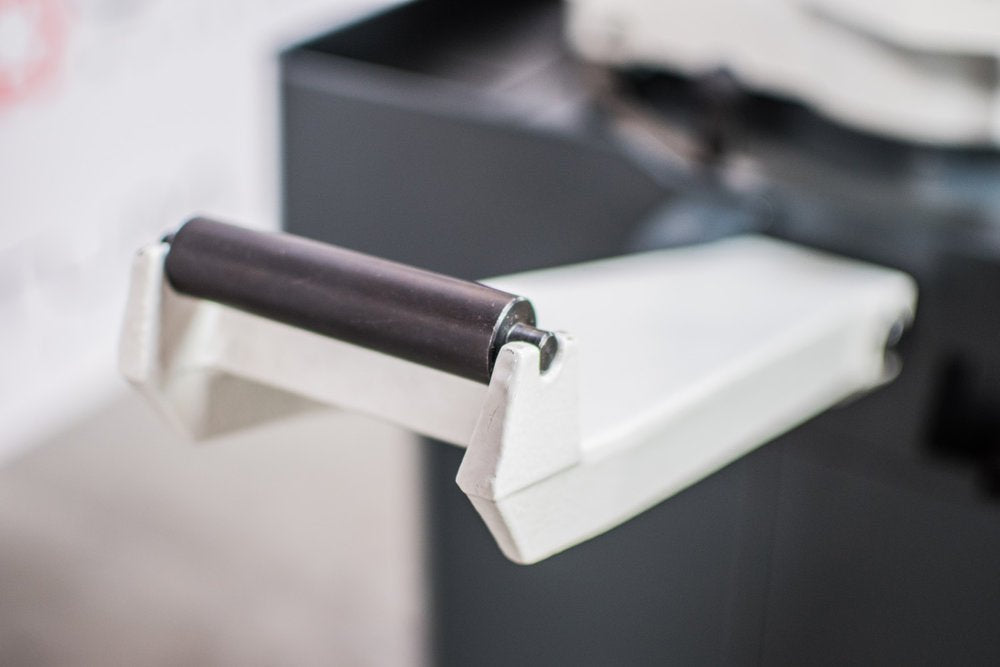

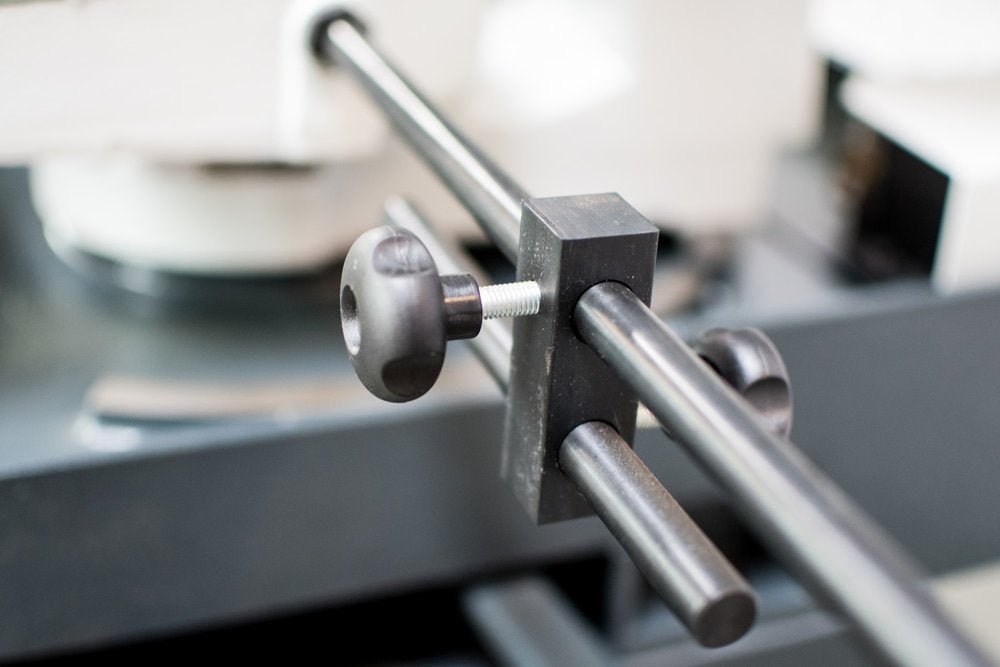

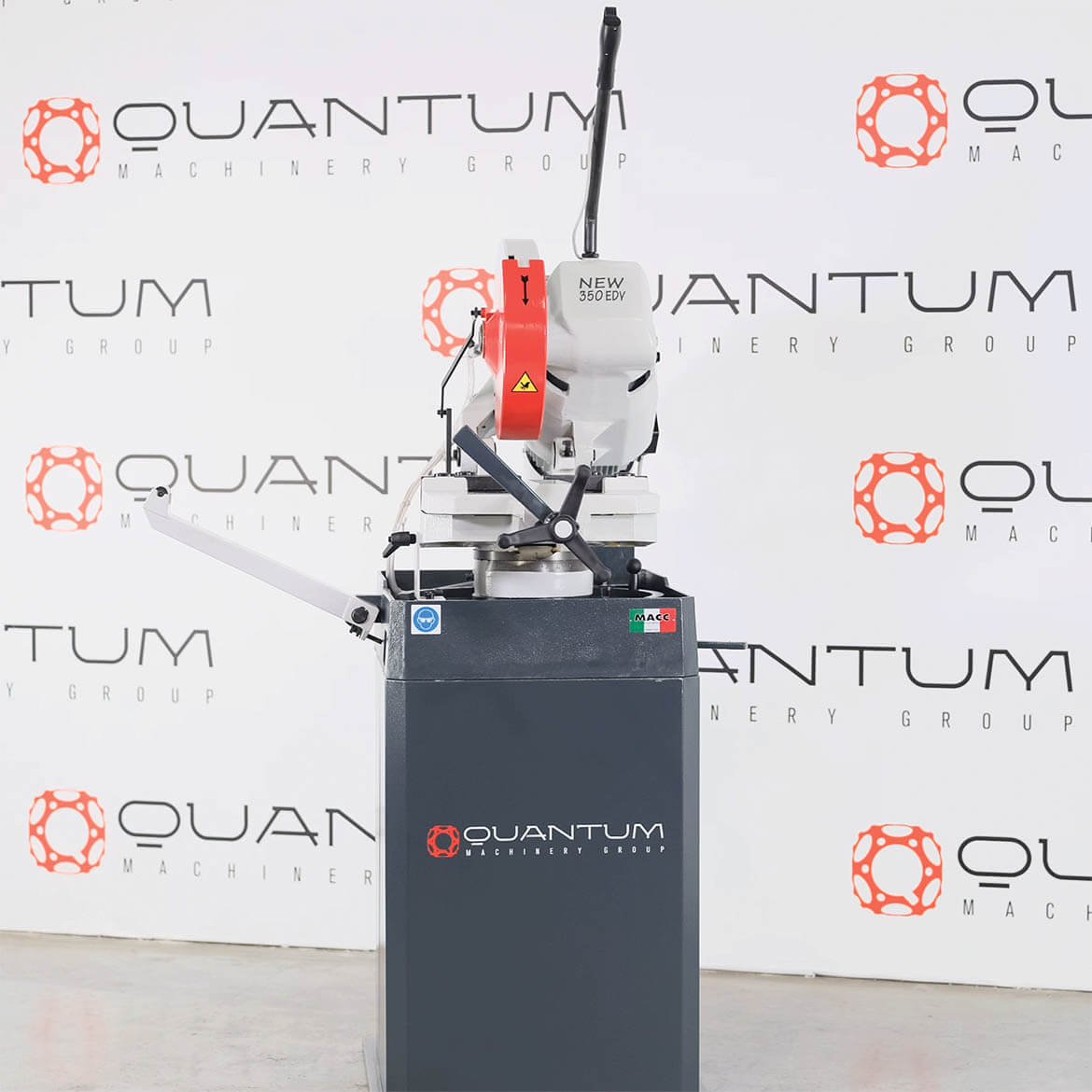

  • This Saw Includes: the Pedestal/Stand, Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 HSS Cold Saw Blade.
