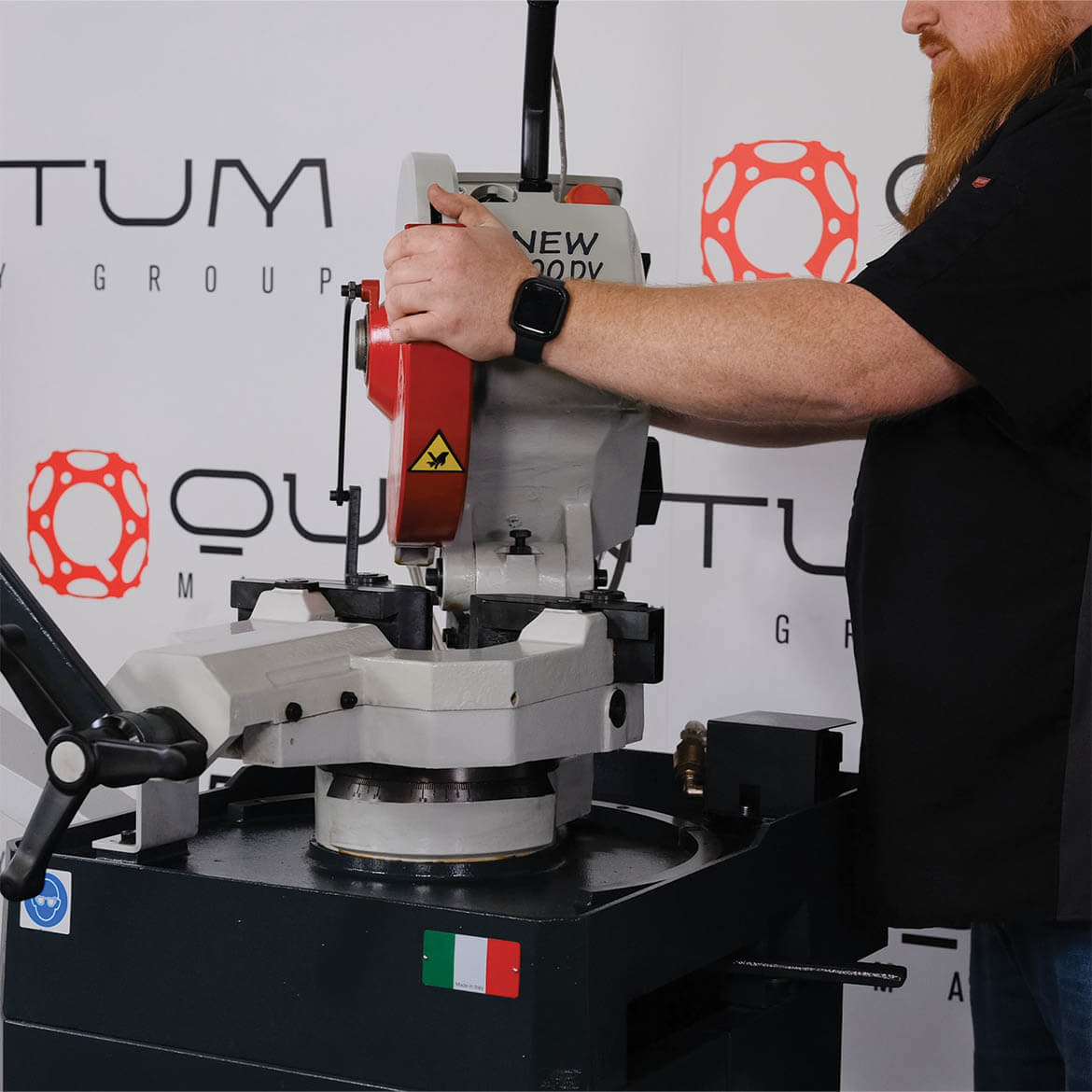

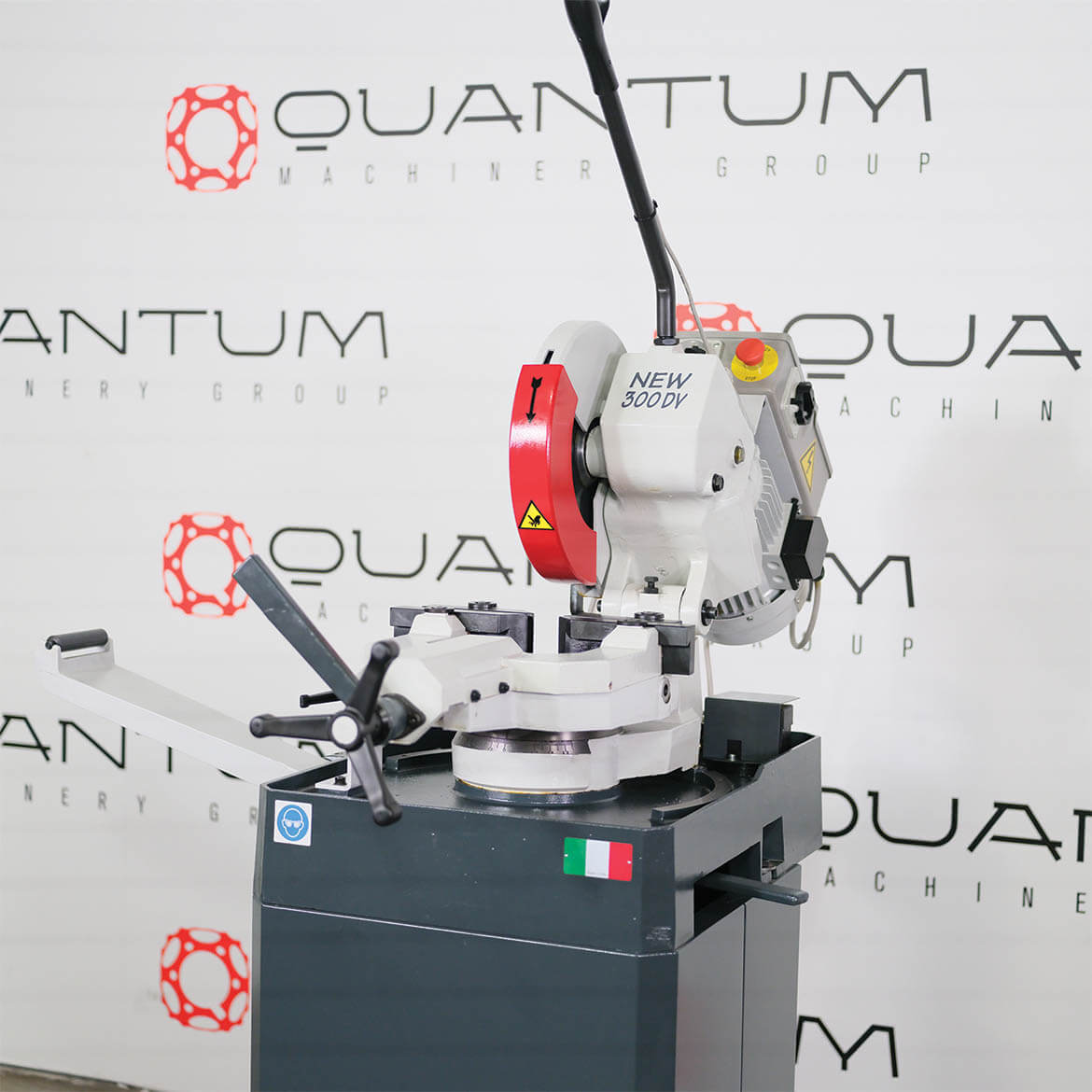

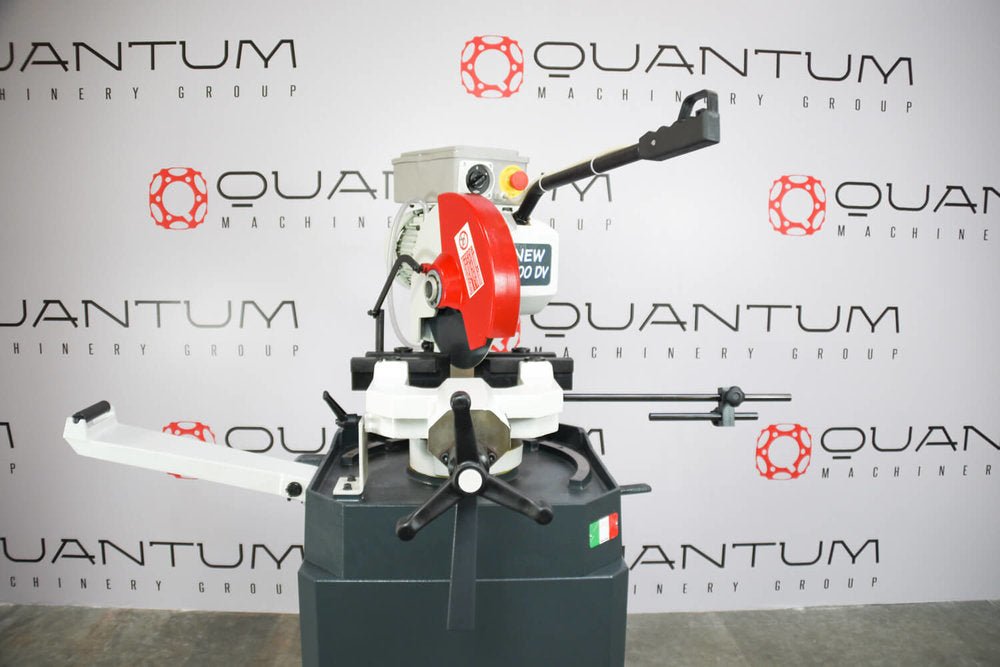

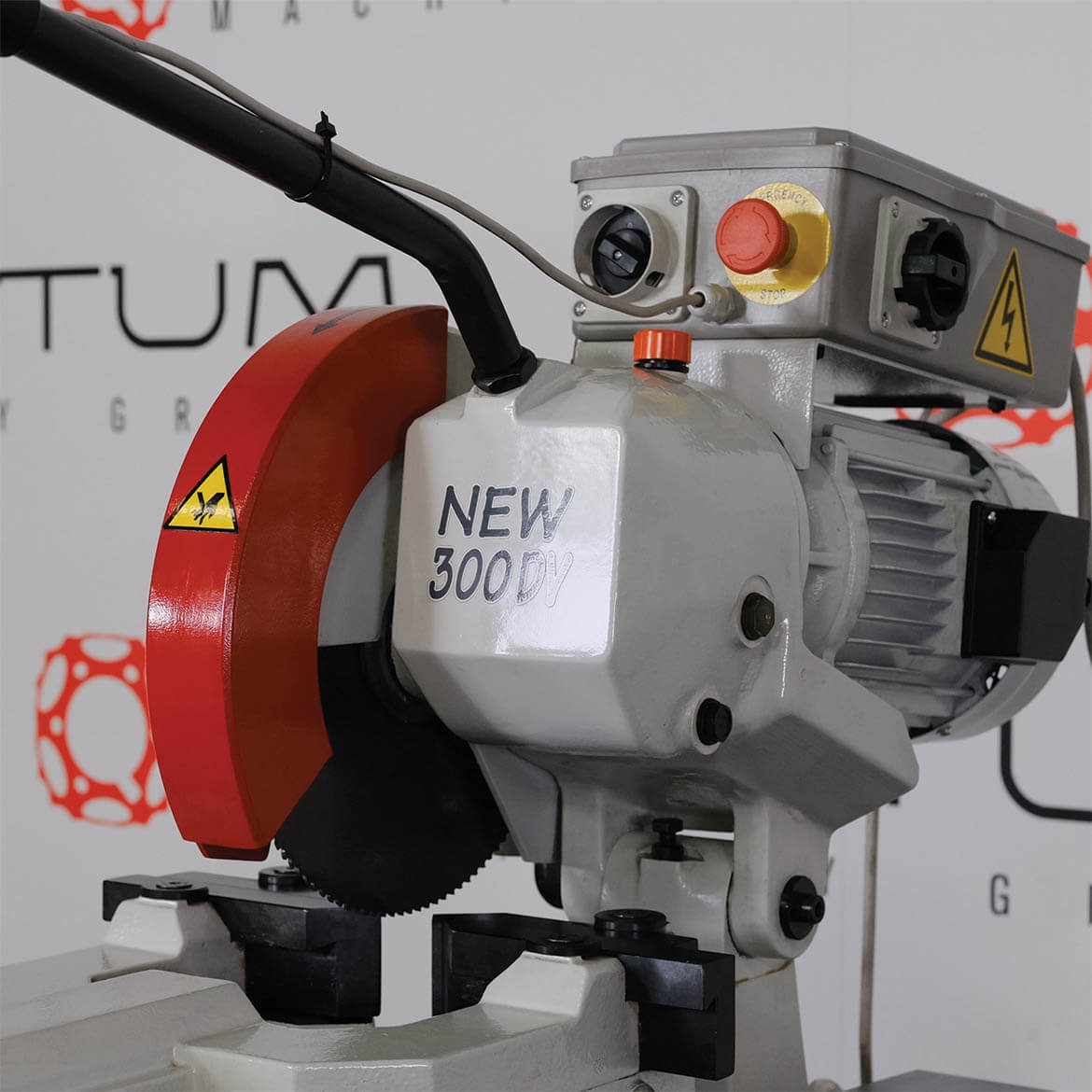

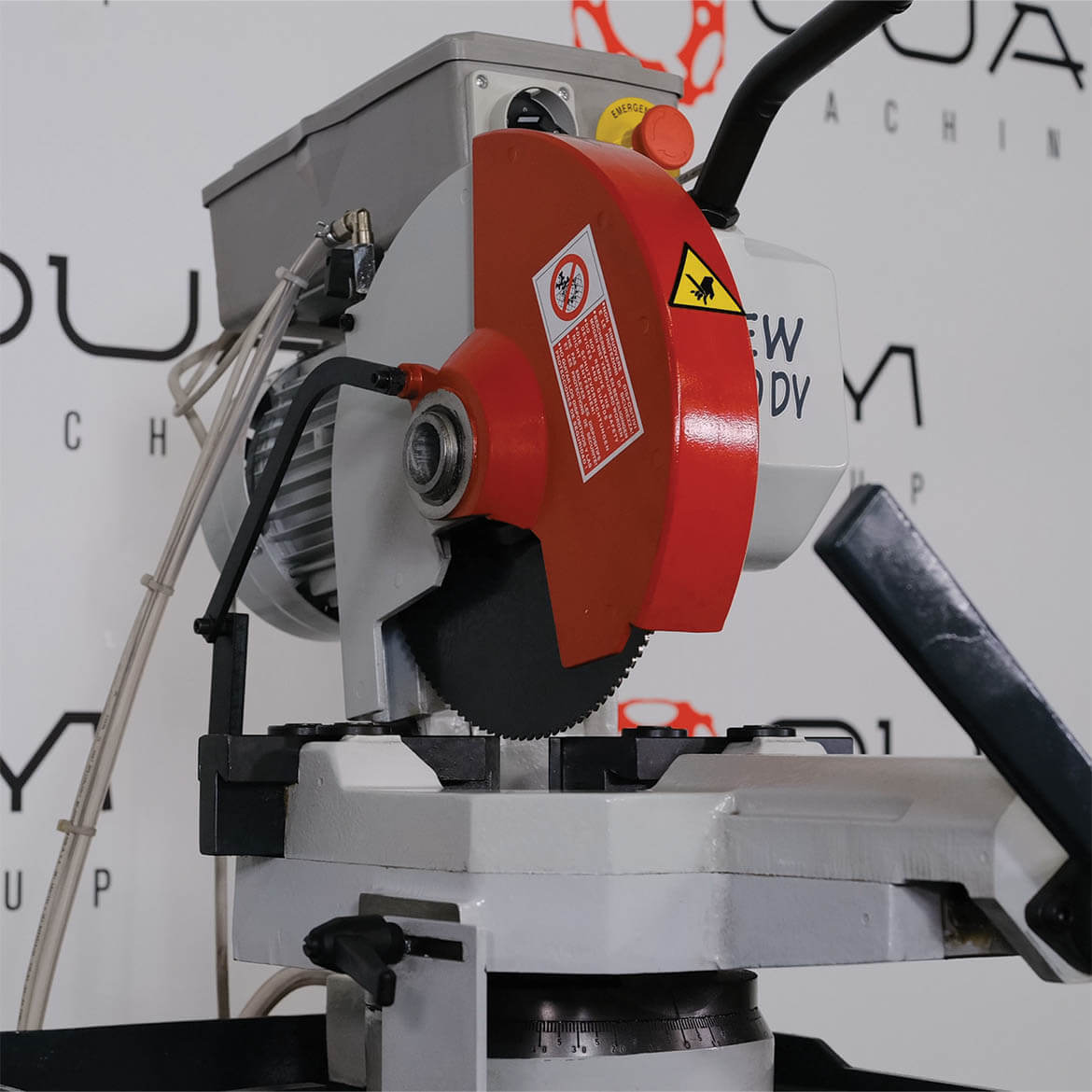

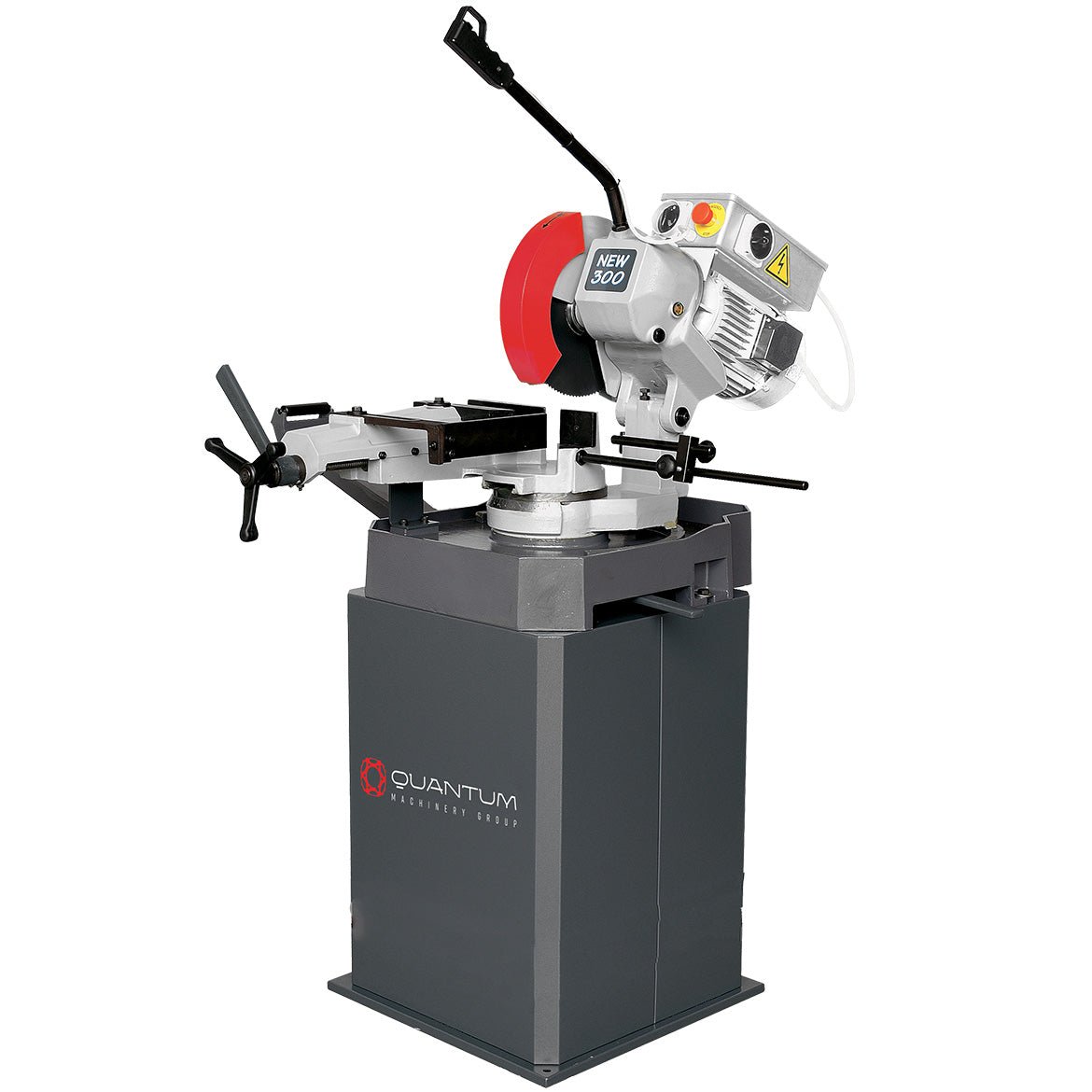

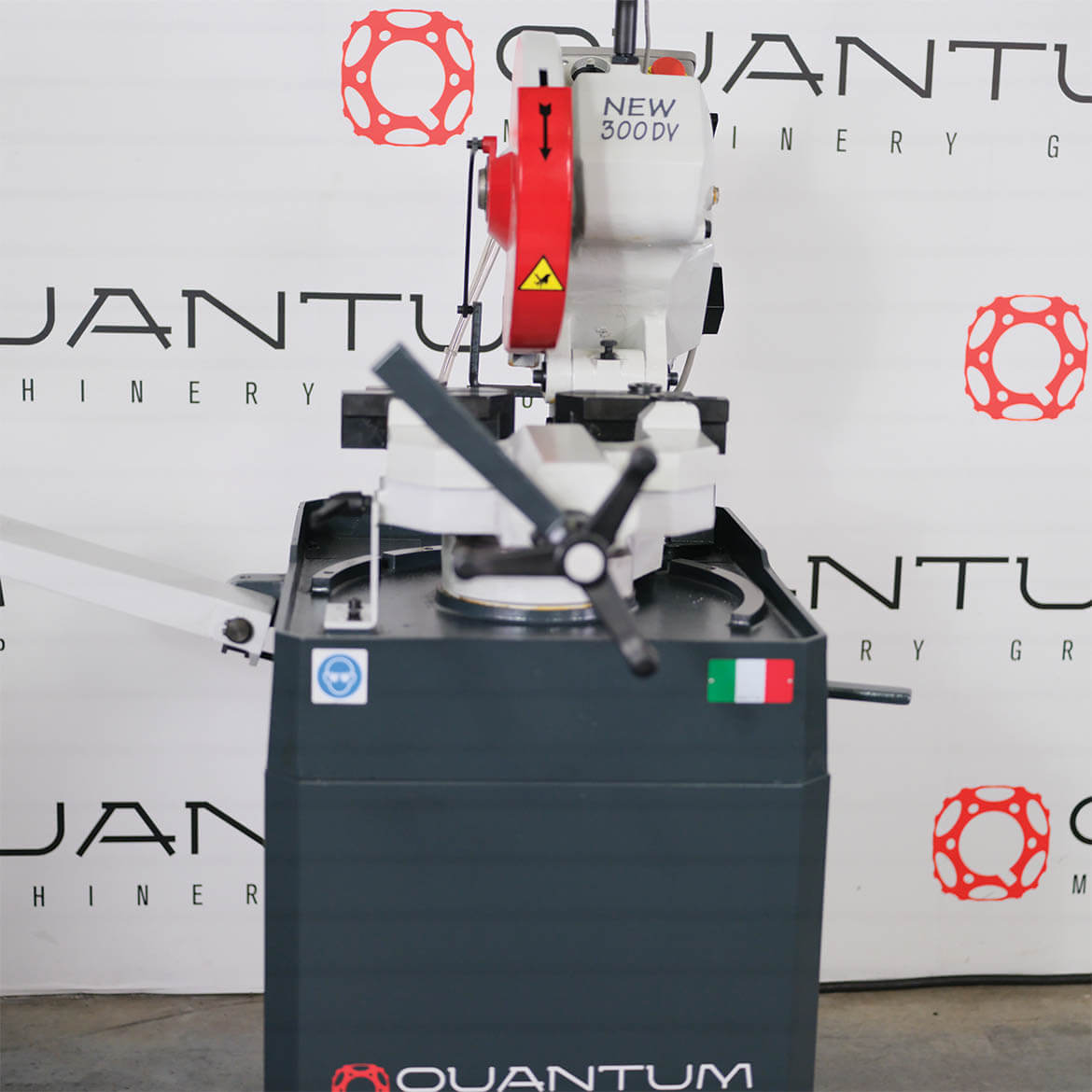

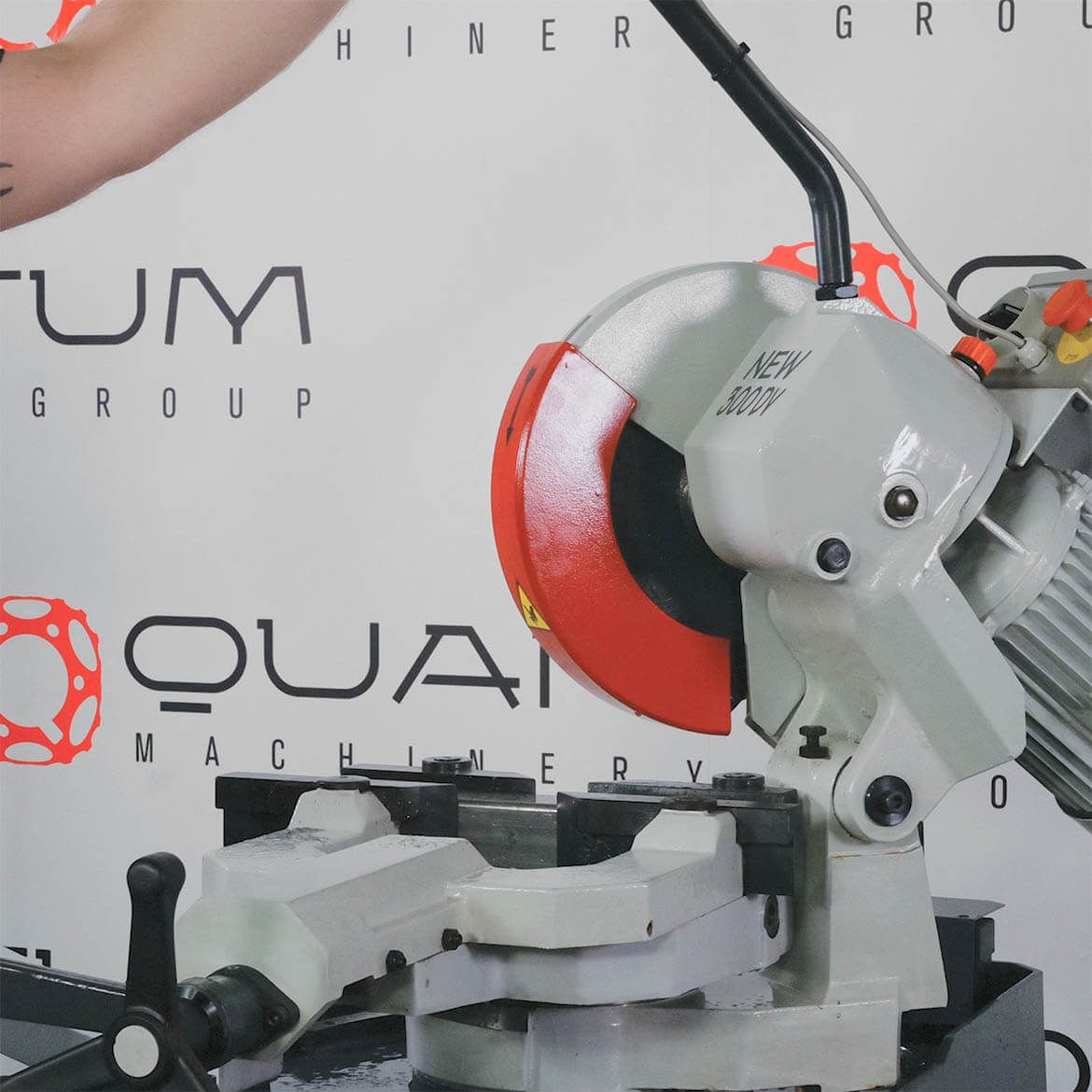

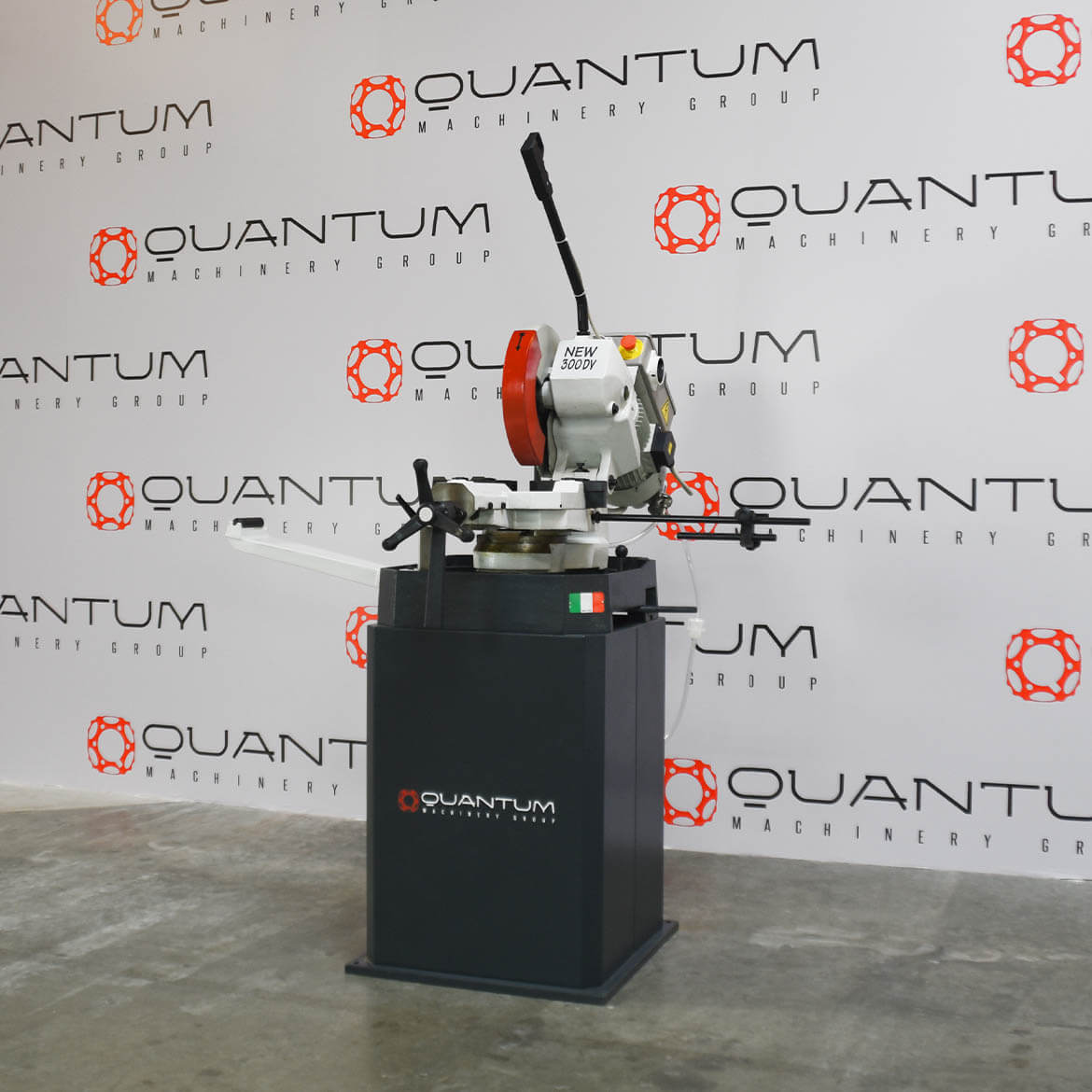

NEW 300 EDV: 12" Manual, Pivot-Style Cold Saw (3-1/2" Round Tube Capacity)

MAXIMUM CUTTING CAPACITIES:

Round Tube

• Straight Cut: 3.5"
• 45° Left Cut: 3.1
• 45° Right Cut: 3.1"
•

Square Tube

• Straight Cut: 3.1"
• 45° Left Cut: 2.75"
• 45° Right Cut: 2.75"
•

Solid Round

• Straight Cut: 2.1"
• 45° Left Cut: 2.9"
• 45° Right Cut: 2.9"
•

Rectangular Tube

• Straight Cut: 2.75"H x 4.5"W
• 45° Left Cut: 2.75"H x 2.75"W
• 45° Right Cut: 2.75"H x 2.75"W

• TECHNICAL DATA & FEATURES:

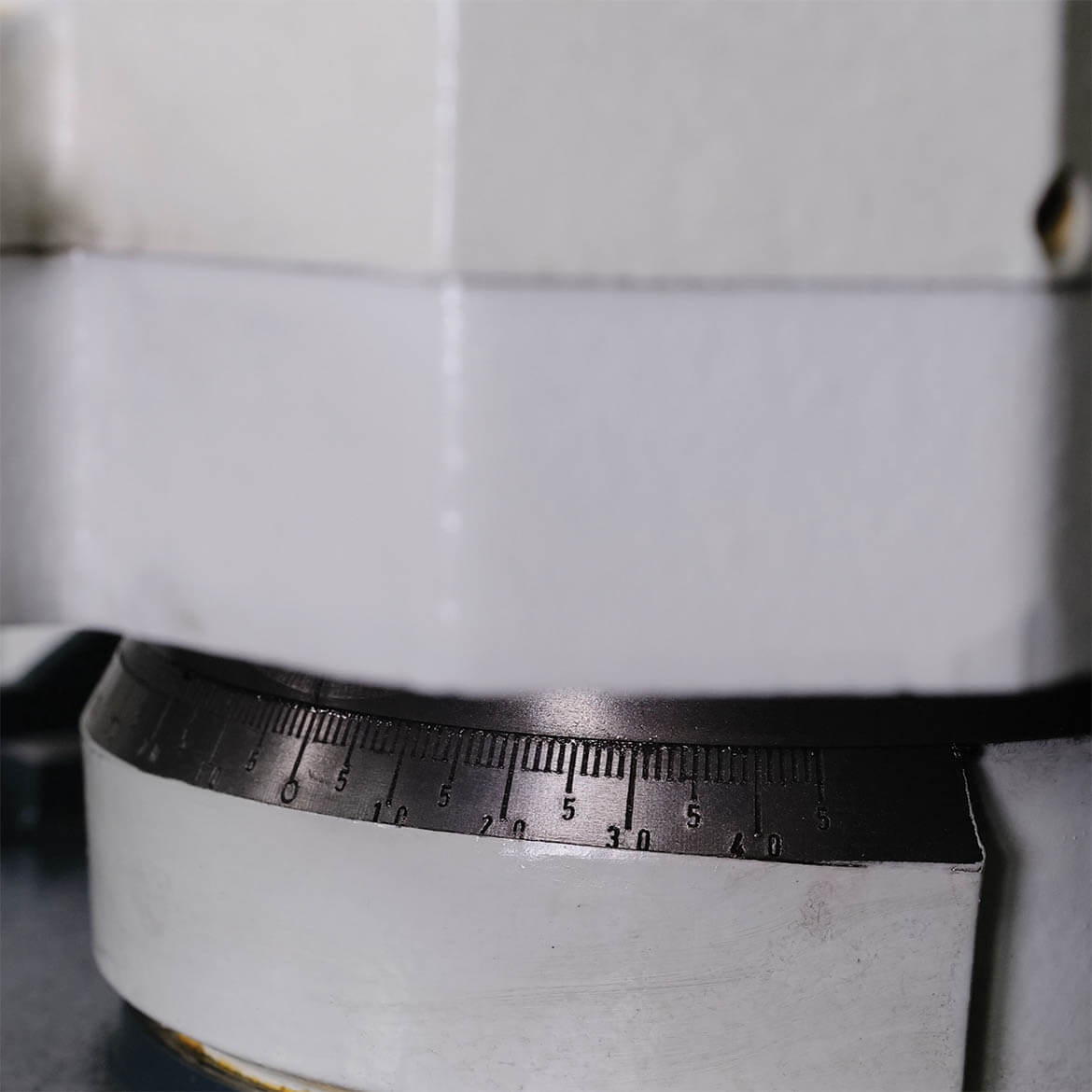

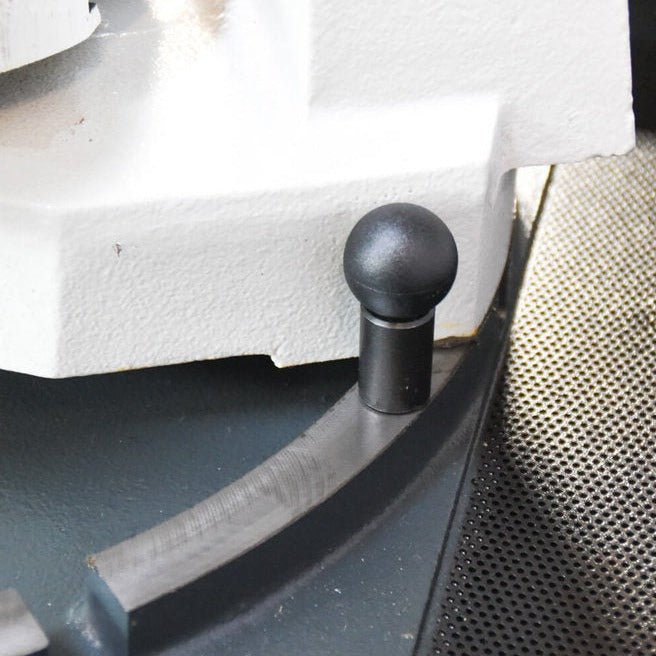

• Movable Cutting Head: From 45° Left up to 45° Right.
• Double-Hinged Pin with Eccentric Bush.
• Reduction Unit in Oil Bath.

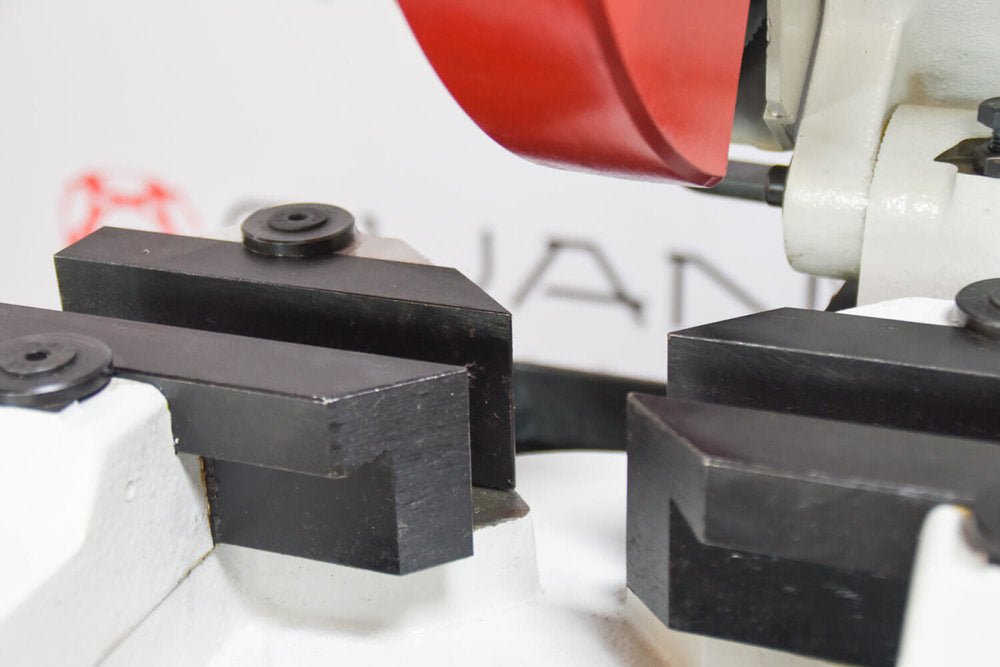

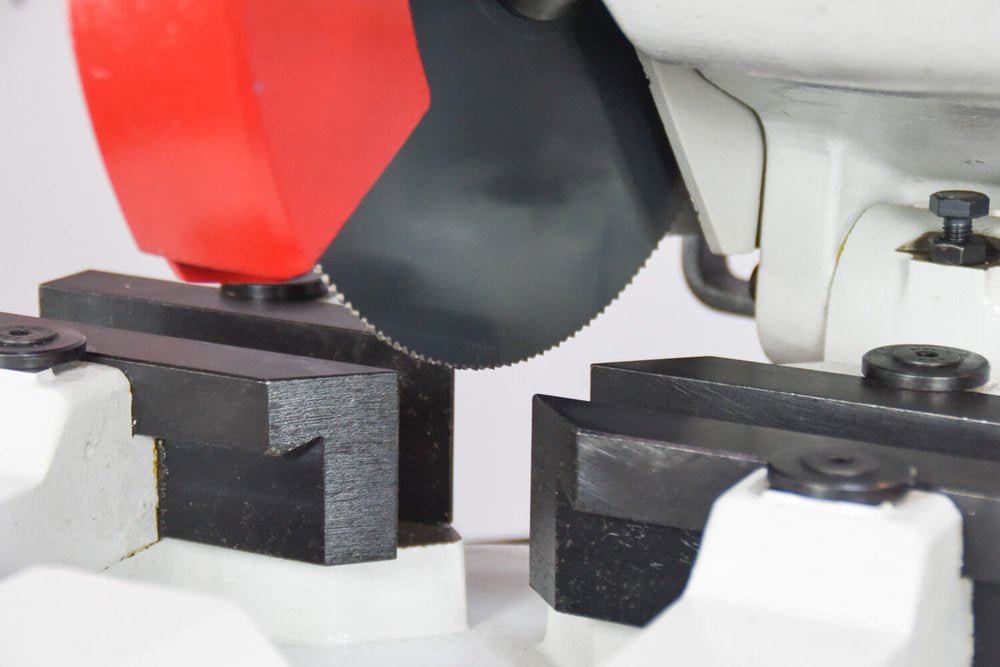

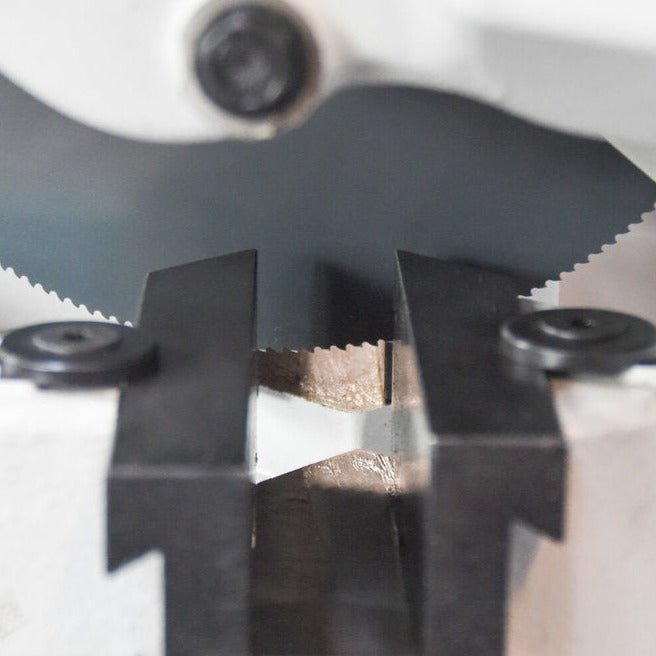

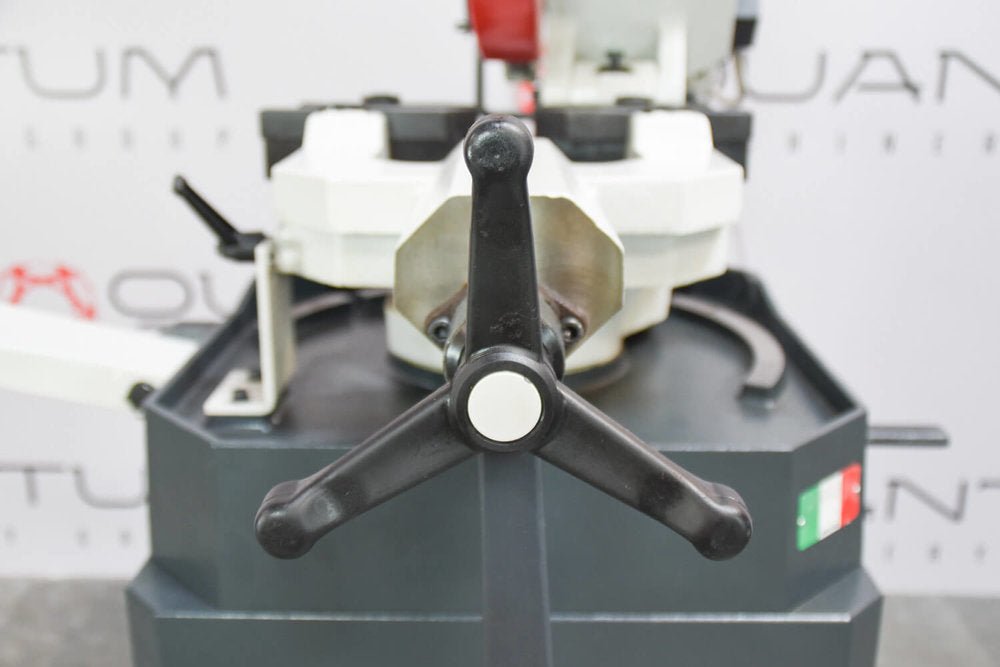

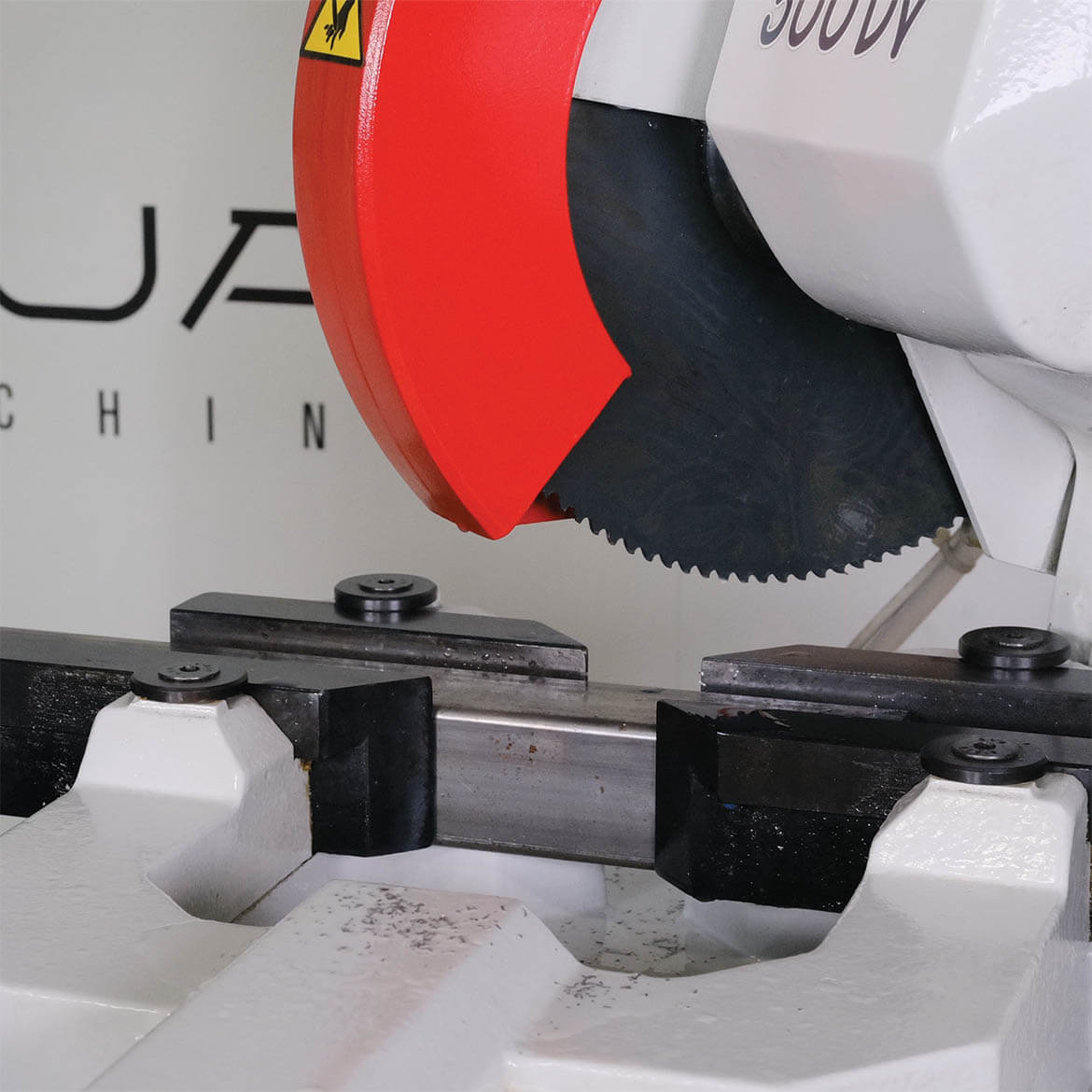

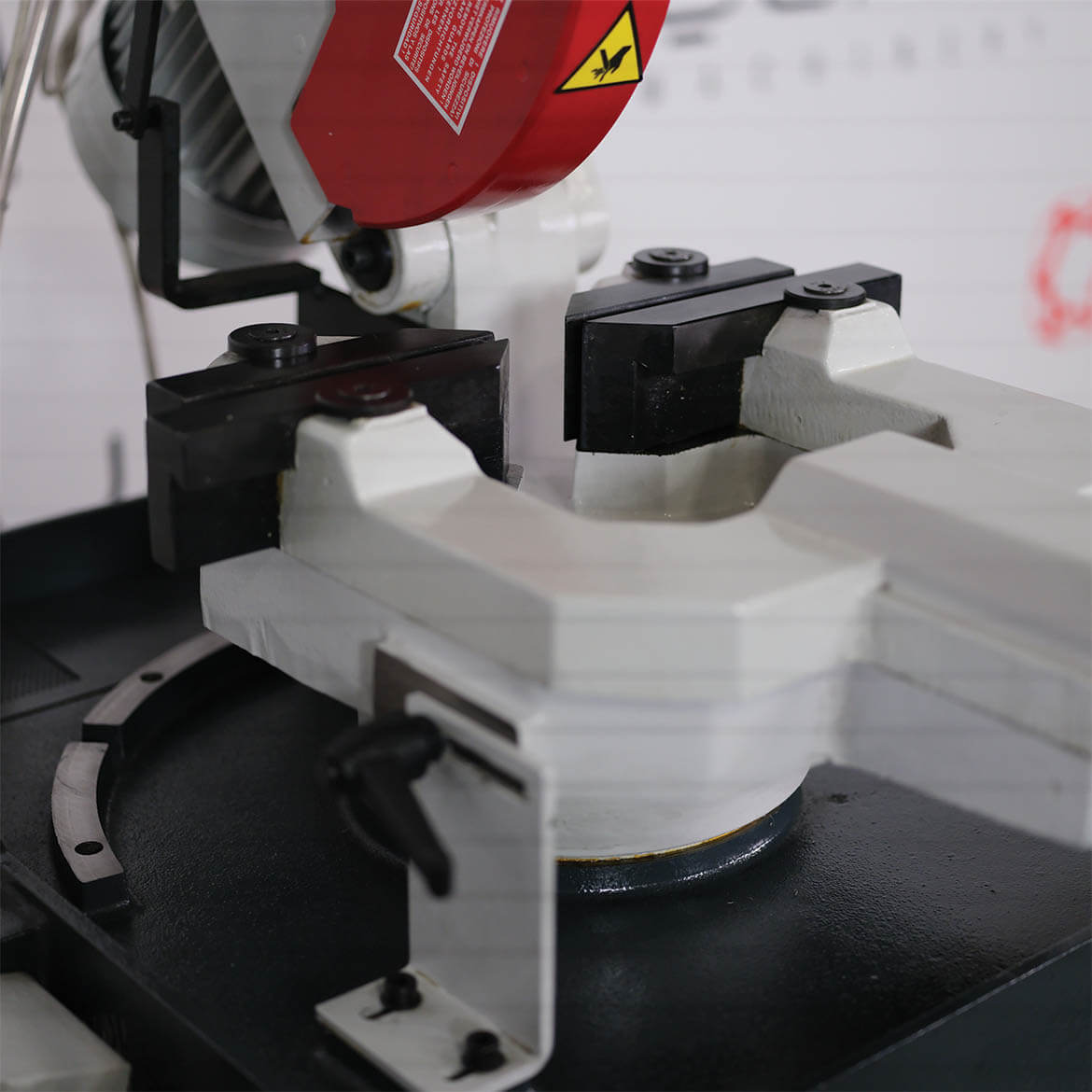

• Double-Quick Locking Vice.
• Coolant Filter.
• Jet Separation System to keep the Blade Oiled.

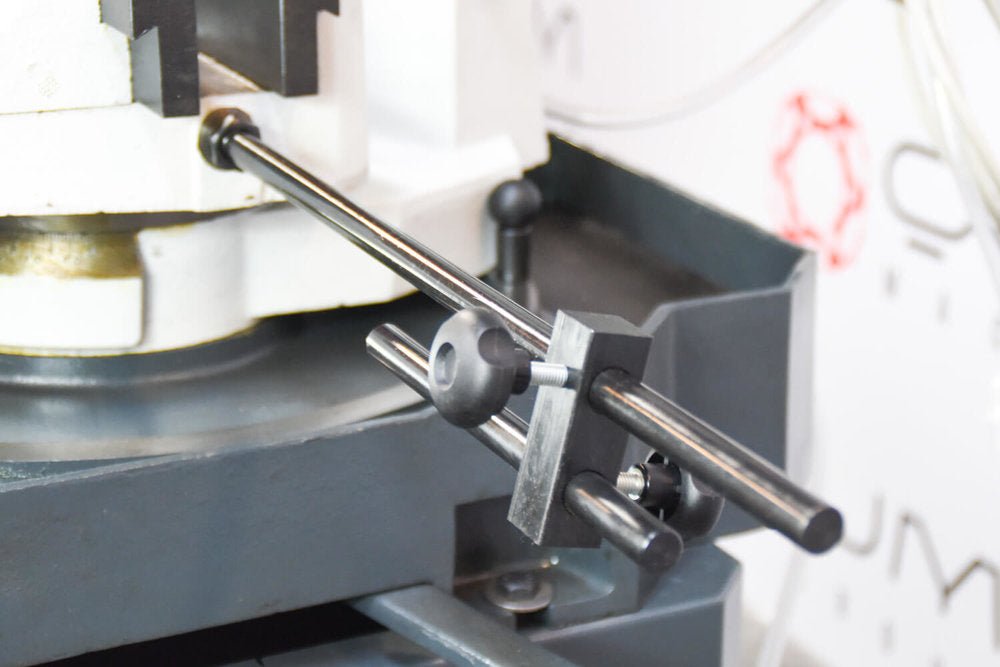

• Sliding Counter-Vice for Longitudinal Cutting.

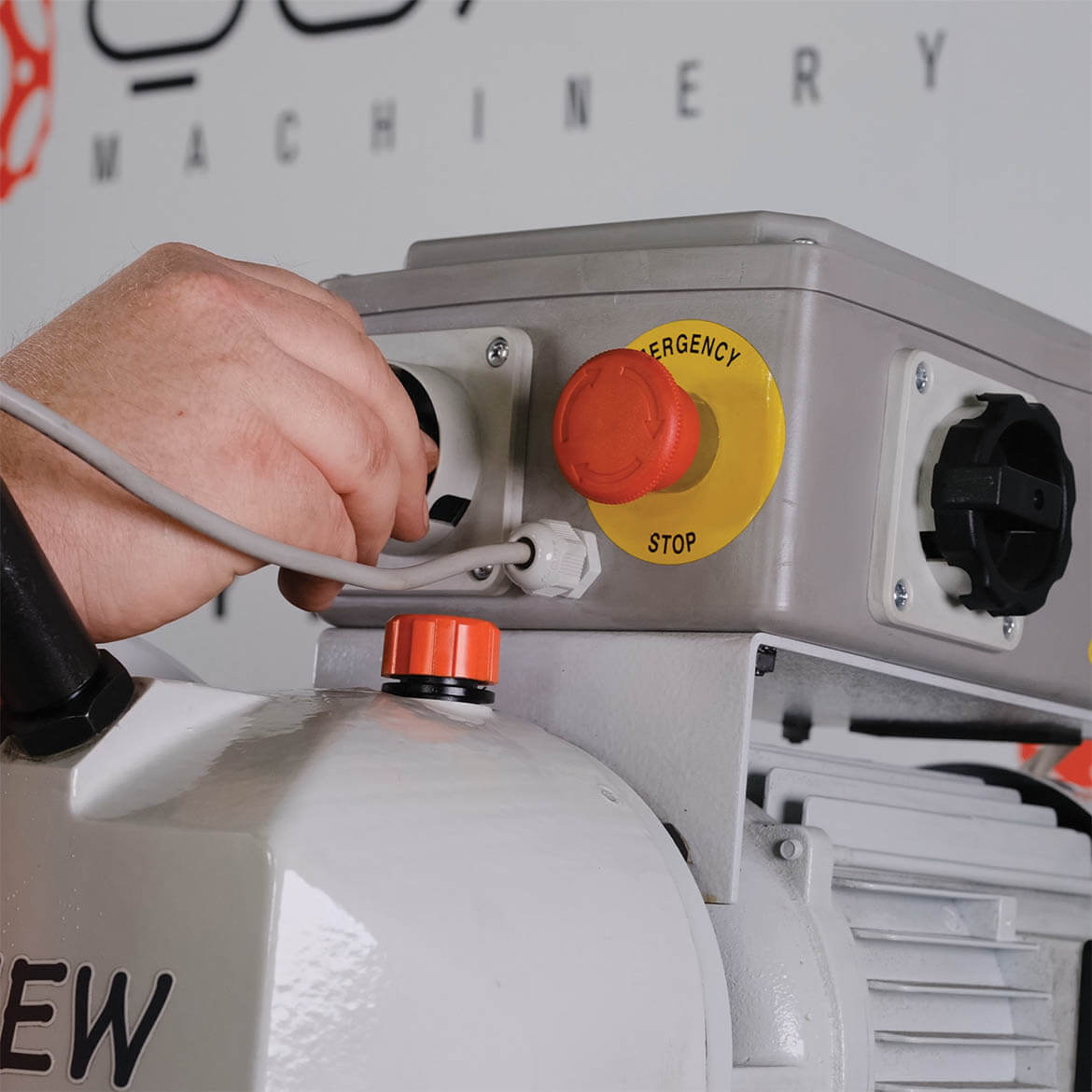

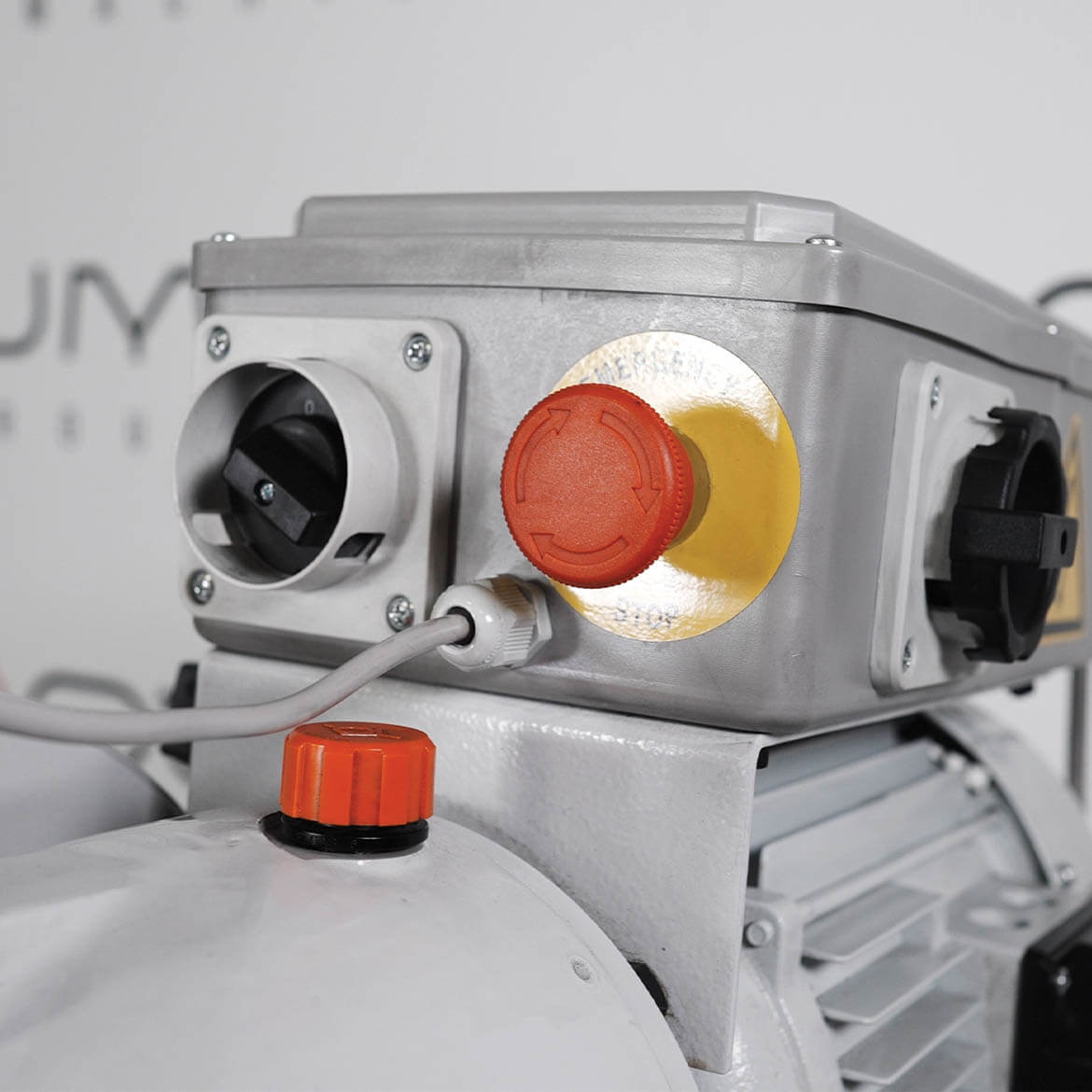

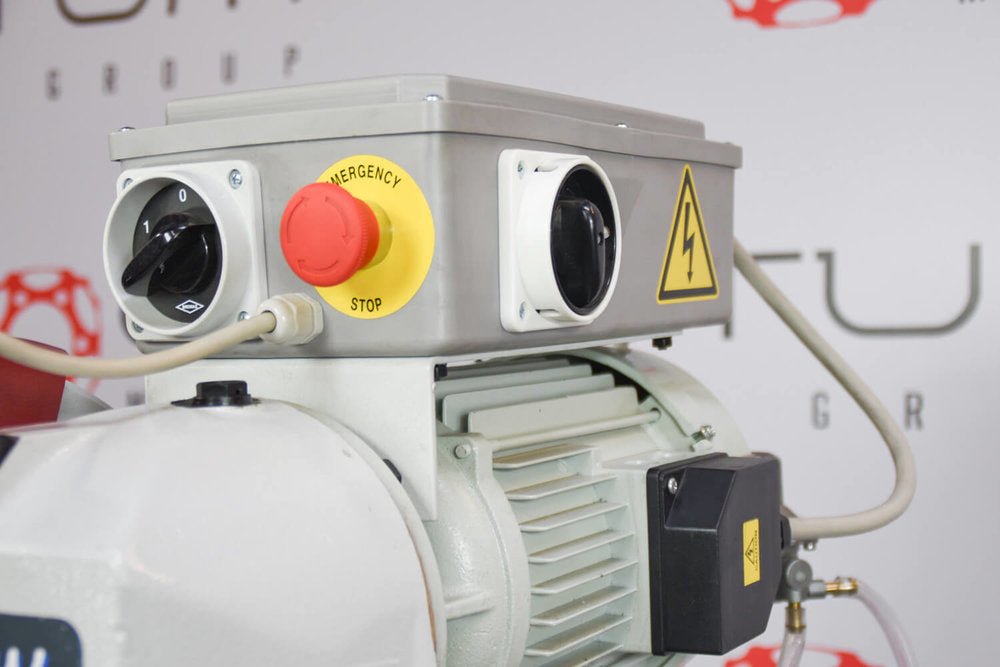

• 24V Low Voltage Installation withhold-to-run Head Control Knob.
• 0.09 kW Power-Driven Pump for Band Cooling.

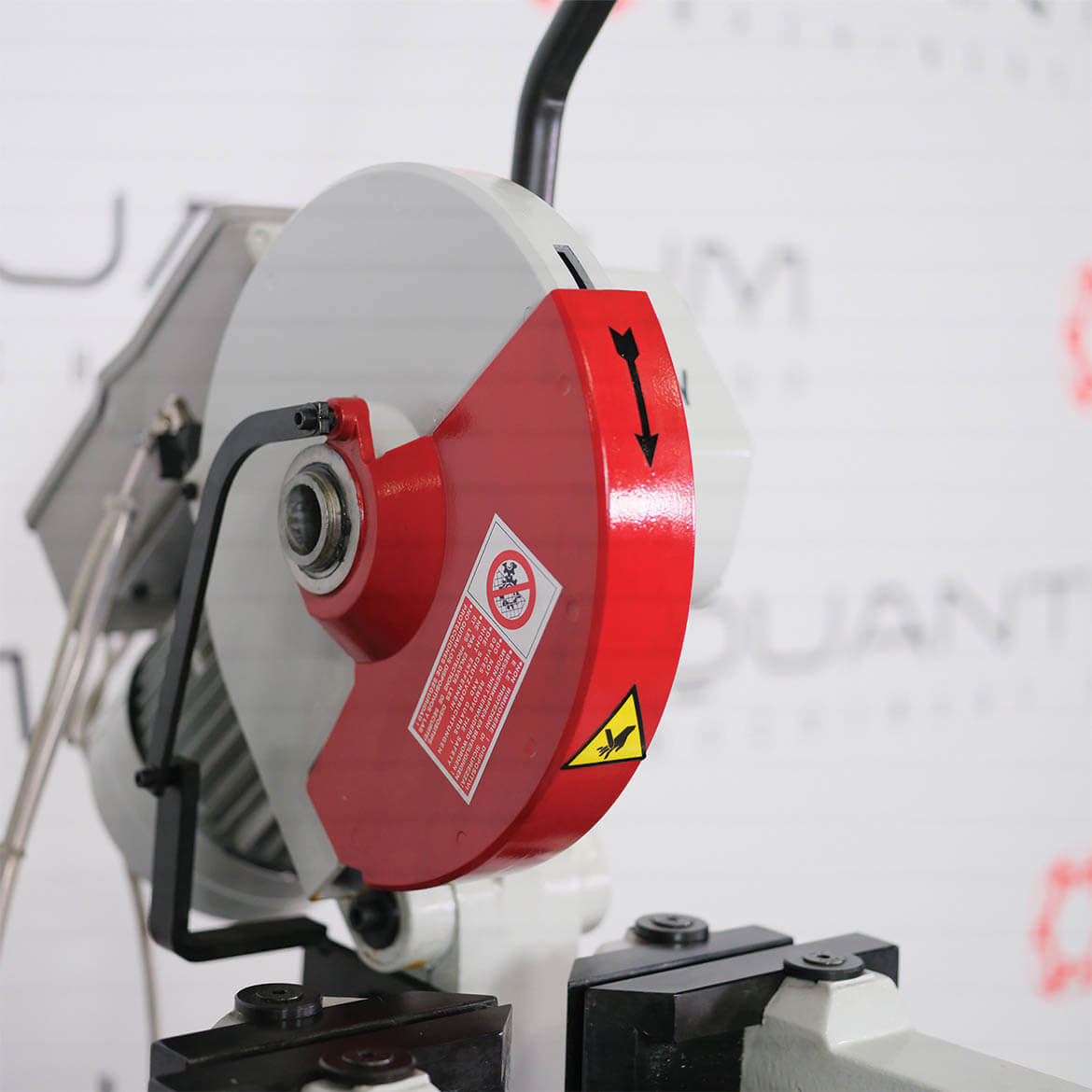

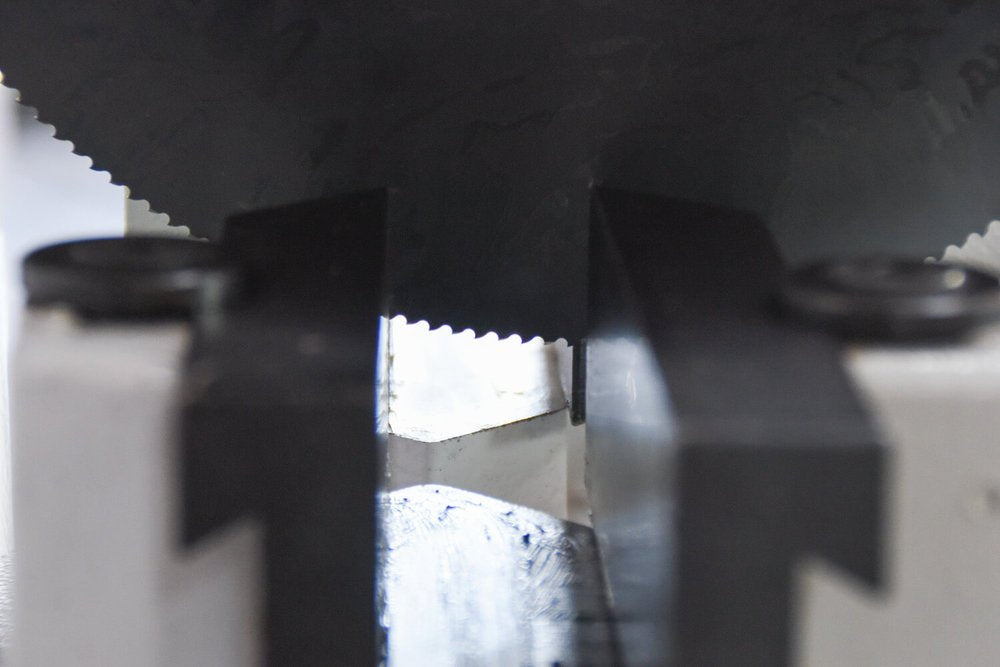

• Blade Size: 300 x 2.5 x 32mm Bore HSS Blade
• Maximum Vice Opening: 4.7” (120mm)
• Machine Weight: 364 lbs. (165 kg.)
• 2 Speeds: 40 - 80 R.P.M.
• Overall Dimensions: 4'-8” W x 3'-3” L x 3'-8” H or 58” W x 40” L x 46” H or 1,475 mm L x 1,000 mm W x 1,150 mm H.
• Additionally, this Saw Includes:  Instruction Manual, Service Tools & 1 HSS 300mm Cold Saw Blade.
