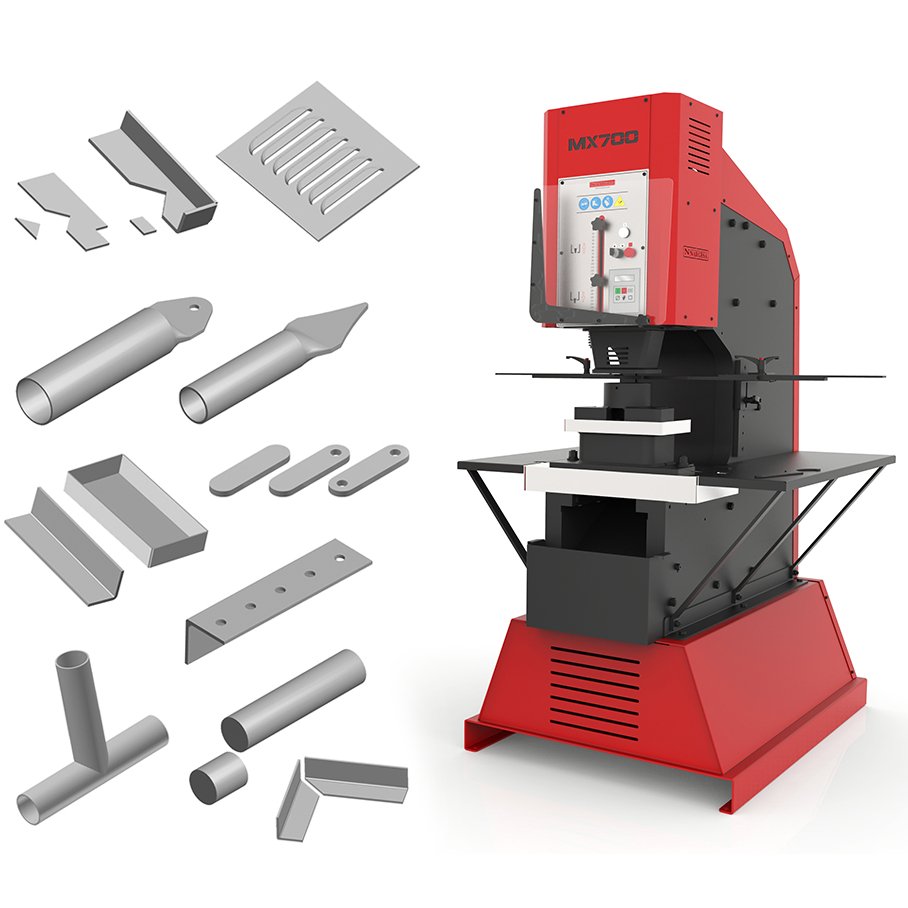

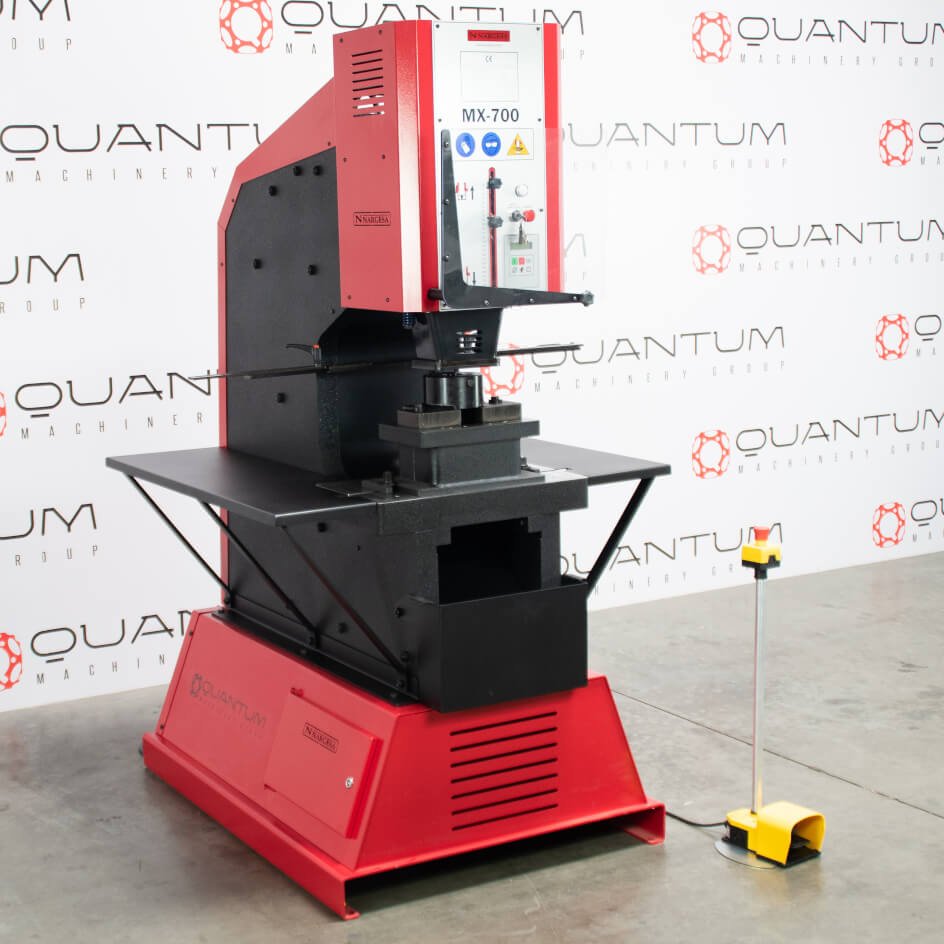

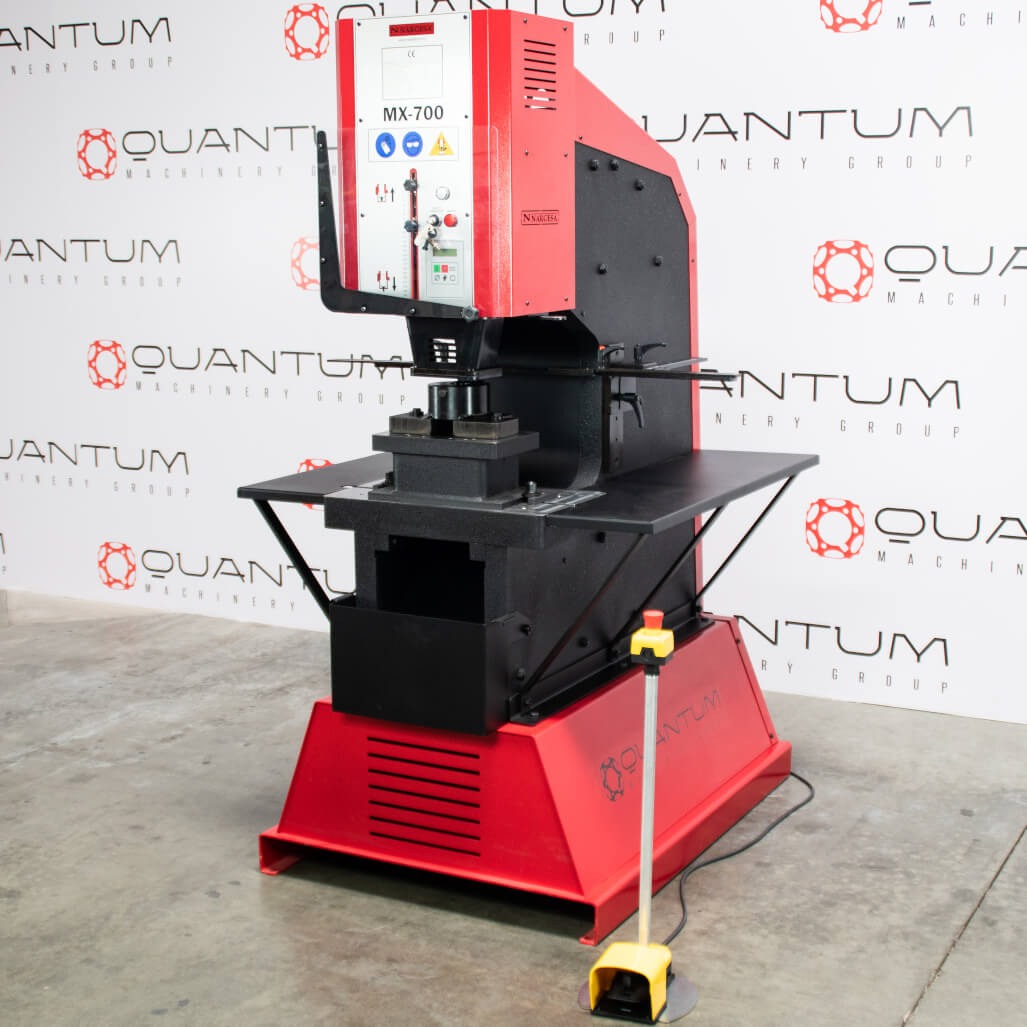

The QUANTUM NARGESA MX700 Hydraulic Ironworker (Punching Machine) is widely-known for its extensive versatility. This unit can perform numerous working functions, such as punching materials (like sheet metal, flat bar, tube, angle, U profile, T profile, UPN, IPN, etc..) Bending, Cutting, Inlaying, Tube Notching, Embossing, and it doesn’t end there. The MX700 can be adapted to be used with tooling of any kind, even tooling that is made by you, the customer. If you’re looking for a versatile, efficient and easy to use workhorse, then the MX700 is an essential piece of equipment for your metalworking shop floor.












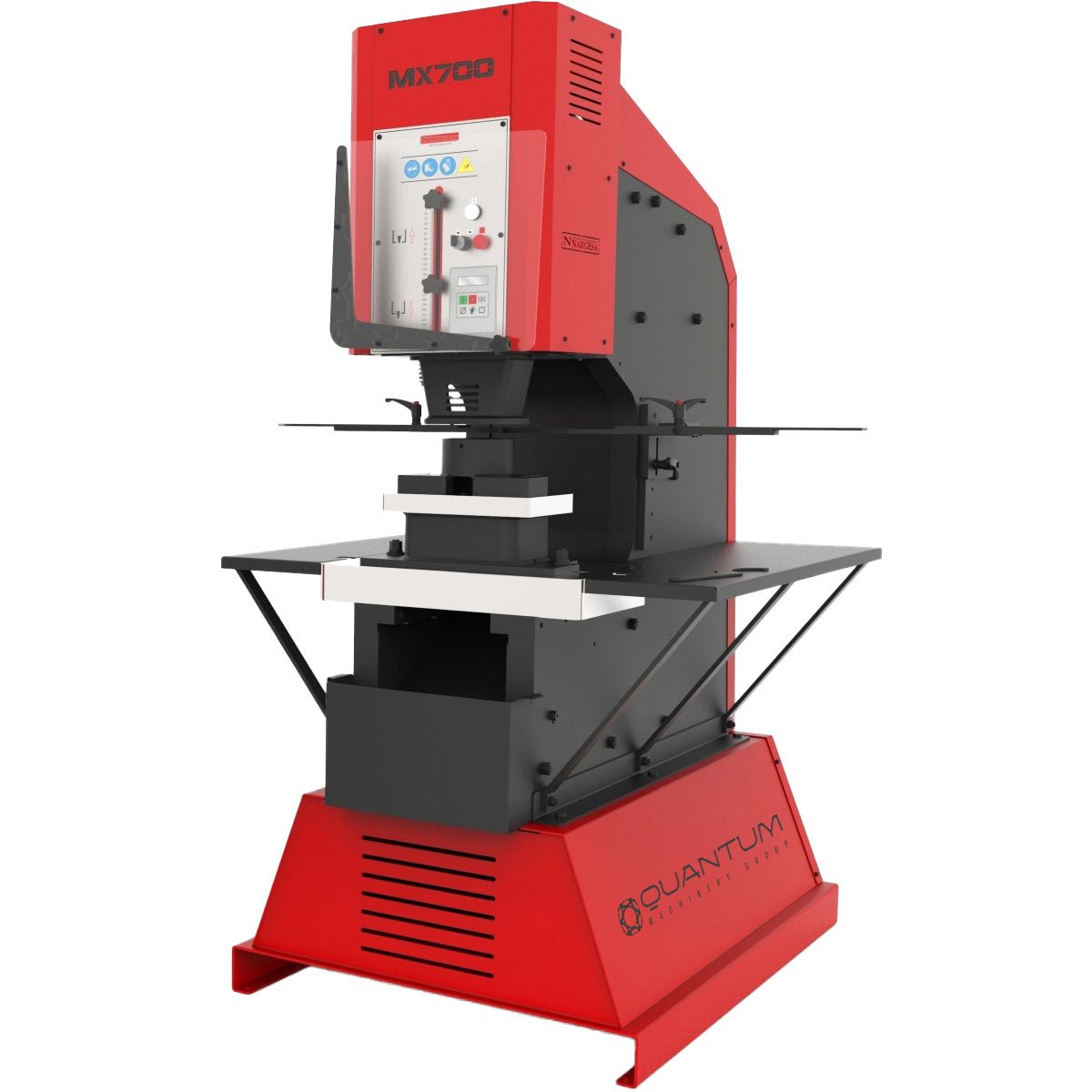

MX700: 70 Ton Industrial Hydraulic Ironworker

WATCH THE VIDEO TO SEE EXACTLY HOW THE NARGESA MX700: 70 TON IRONWORKER WORKS ALONG WITH SOME OF IT’S FEATURES
MAJOR ADVANTAGE OF THE MX SERIES IRONWORKERS:
Our MX Series Ironworkers stand out in many ways, but they are literally like no other Ironworker on the market, because of it's displacement and the wide working table that allows you to fit all kind of tooling. It isn't uncommon for our customers to make their own tooling, since it is so easy to adapt their custom tooling to the MX700.
Its versatility and features makes it a fast payback machine. It carries out the same functions of 5 different machines.
All Nargesa Hydraulic Ironworkers are equipped with Nargesa’s punching tool base that includes the fitting nut for punches and the base holder for dies. All punches and dies are are optional, which allows each customer to equip their ironworker as desired.
MX700 TECHNICAL SPECS & FEATURES
All Nargesa Hydraulic Ironworkers are equipped with Nargesa’s punching tool base that includes the fitting nut for punches and the base holder for dies. All punches and dies are are optional, which allows each customer to equip their ironworker as desired.
-
- Gooseneck (Neck): 13.7”
- Max. Height.: 15.3”
- Hydraulic Power: 70 Tons
- Working Speed: 0.35” Per Second
- Return Speed: 0.55” Per Second
- Tooling Support Table: 23.6” x 13.7”
- Motor Power: 7.5 HP / 5.5 kW
- Machine Dimensions: 37” x 52” x 82”
- Machine Weight: 4,400 lbs.
- Warranty: 3 Years (On any defective parts.)
- Extremely Fast Tooling Changeover: 30 Seconds Max.
- The Displacement Adjustment allows for an increase in productivity.
- There is no maximum dimension for punching.
- Palletized Base to easily move the MX700 around.

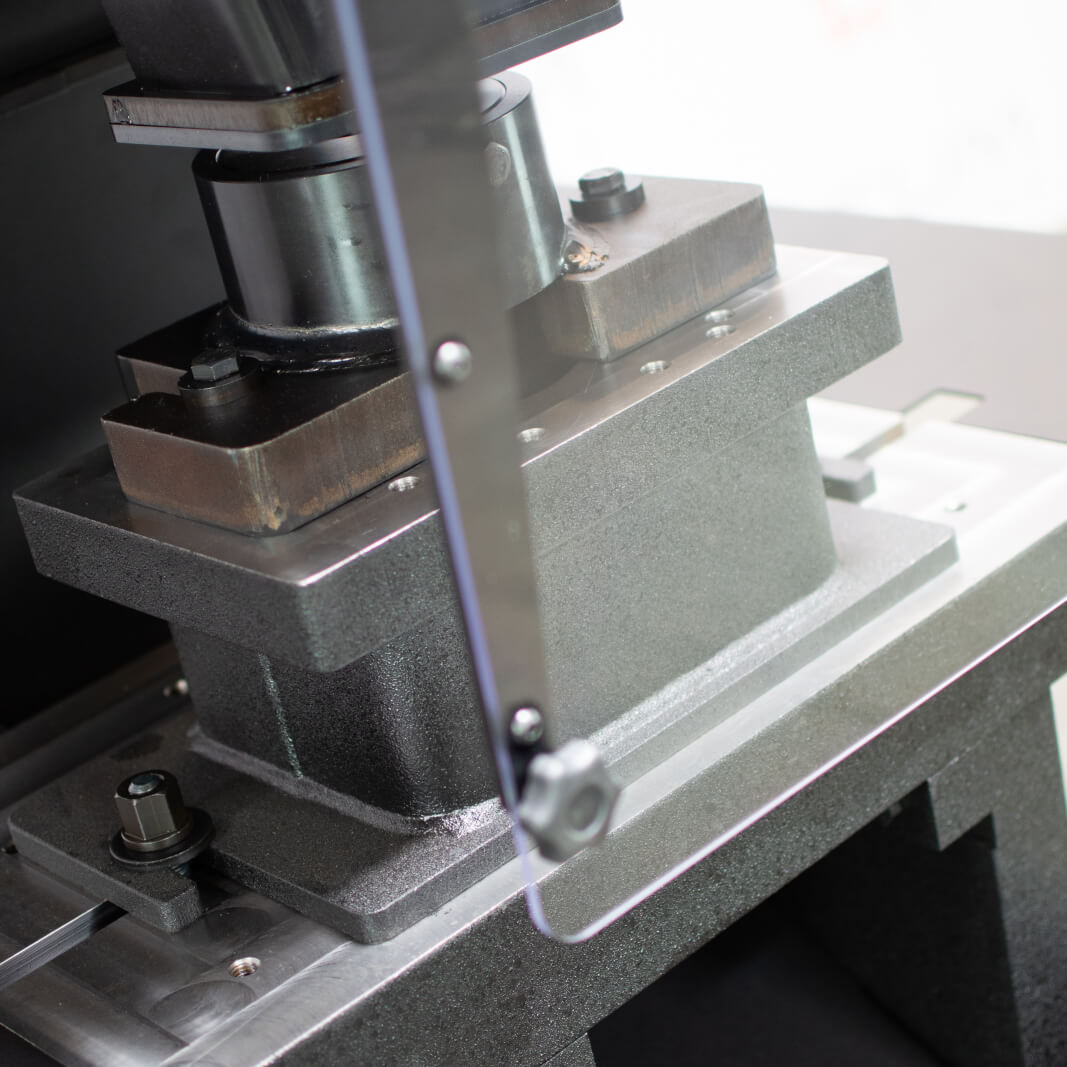

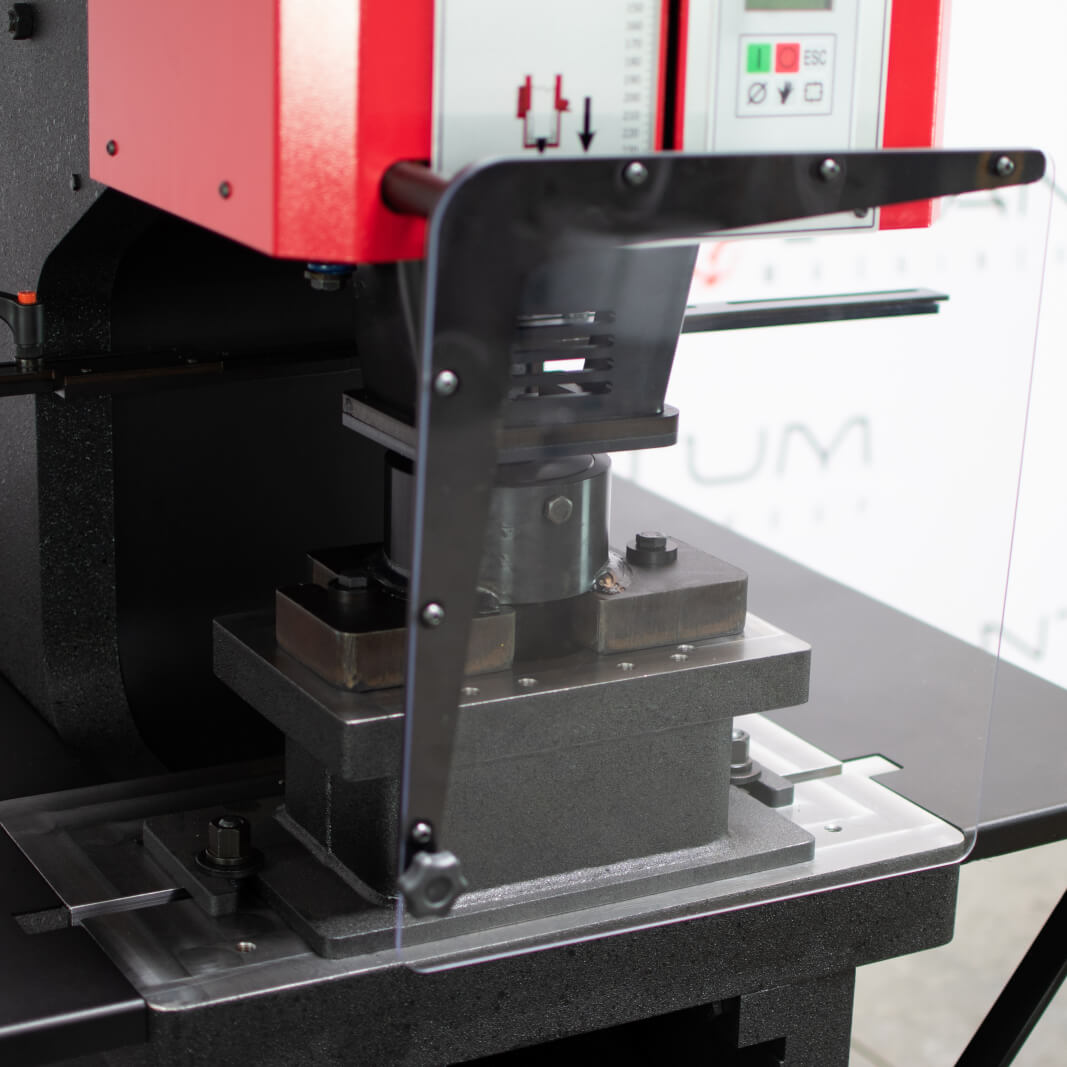

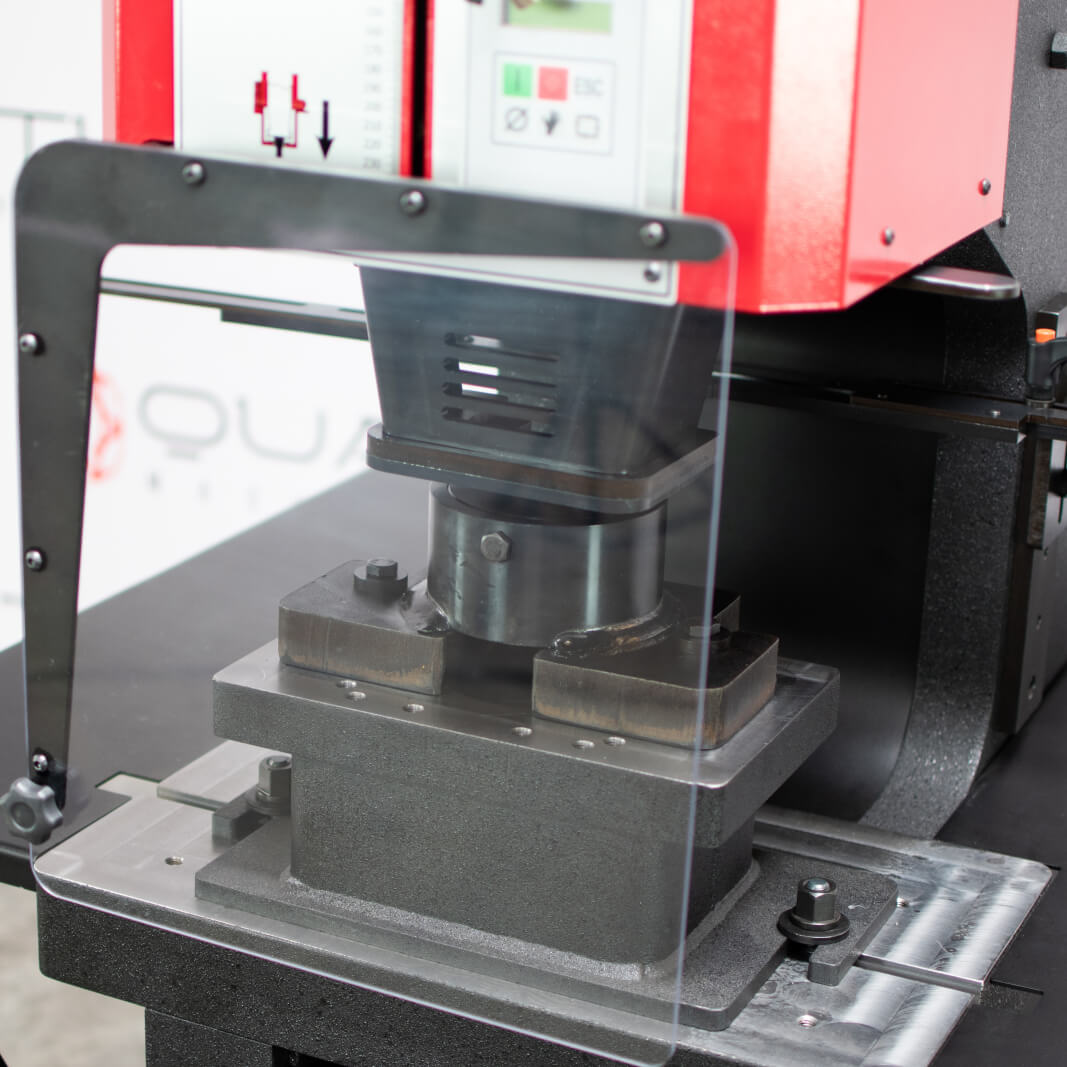

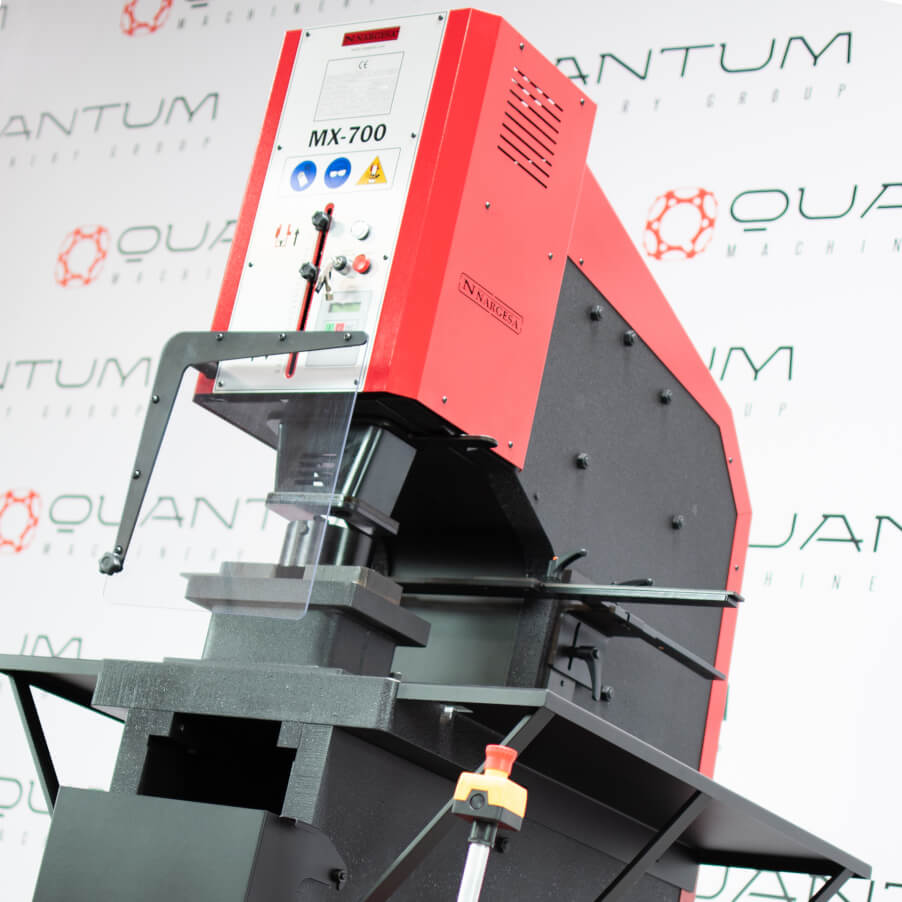

- Swinging front safety protection.

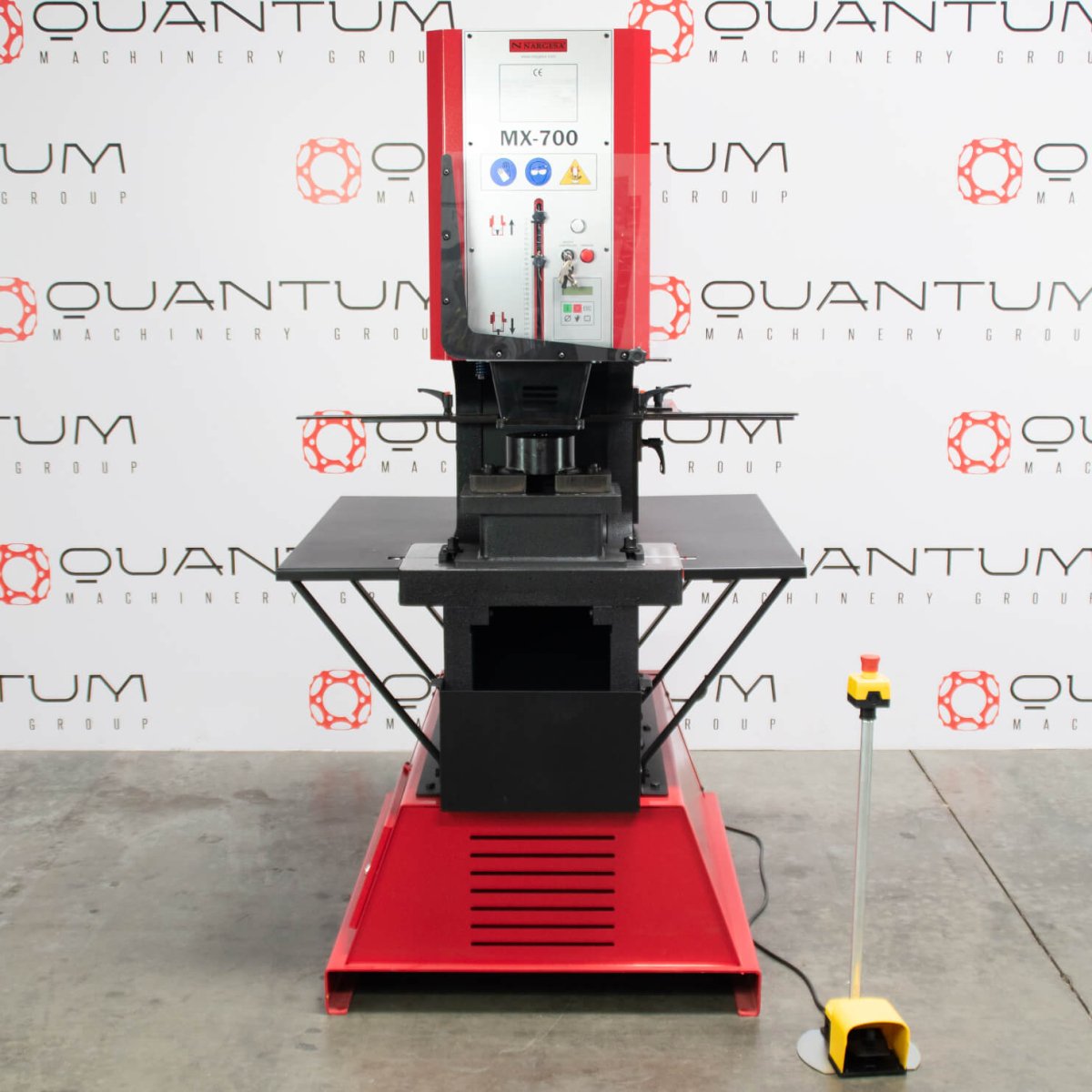

- Start/Activation with safety pedal.

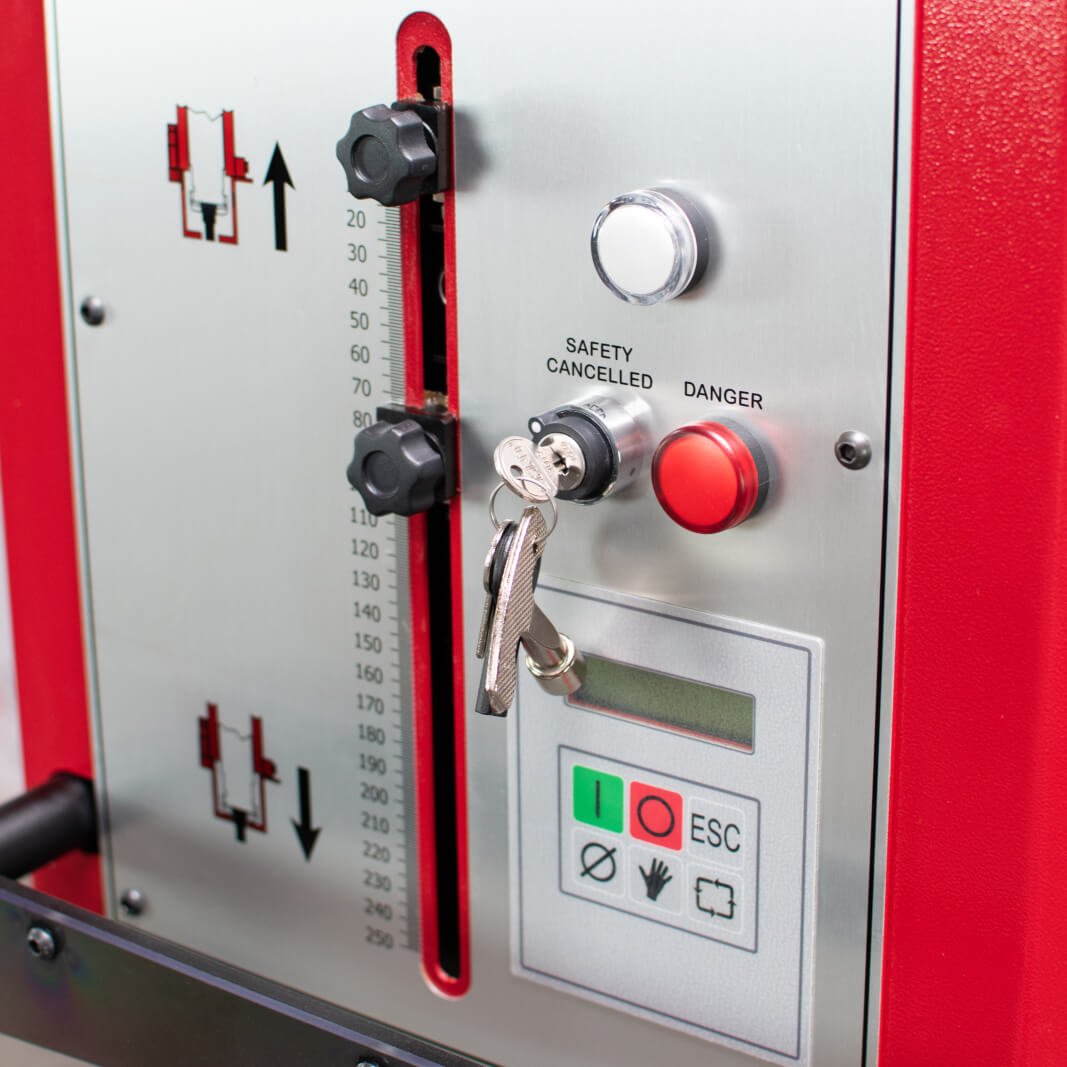

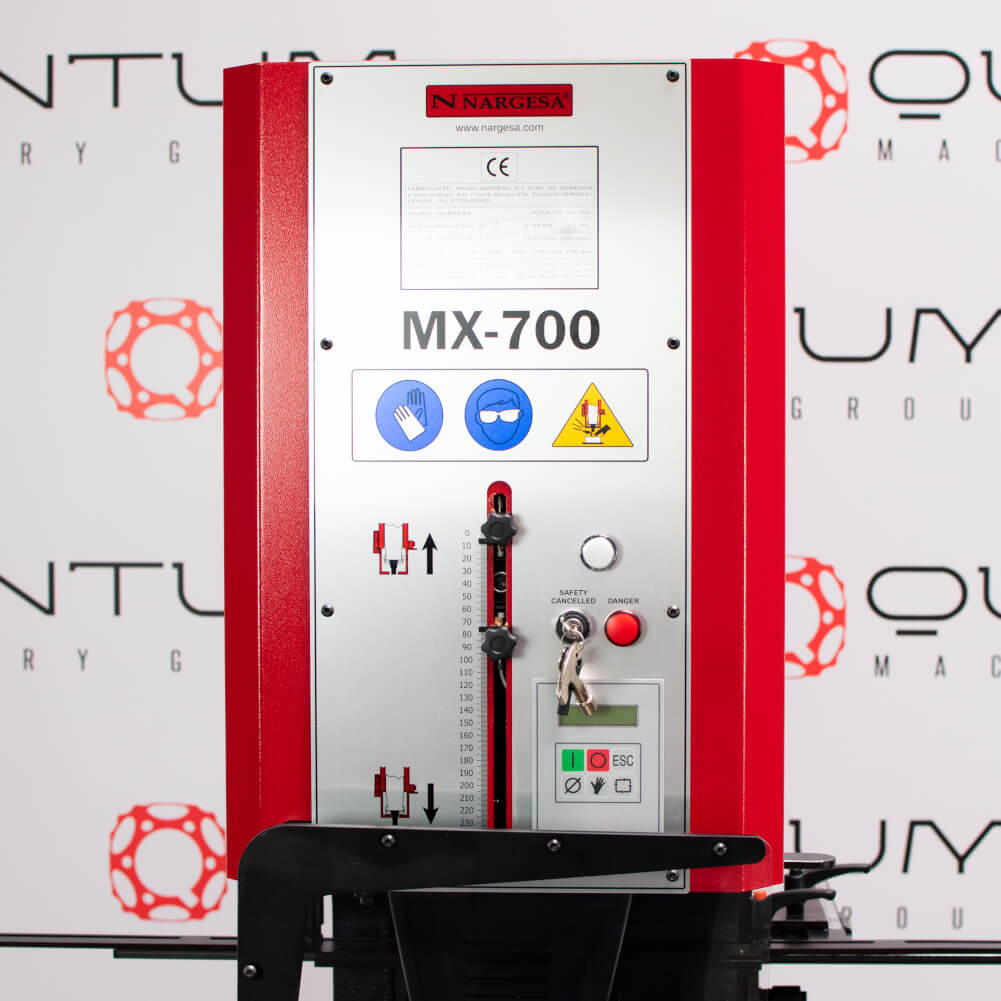

- Digital display.
- Parts and strokes counter.
- Alarm diagnosis.
PUNCHES AND DIES
ONE ROUND PUNCH AND ONE DIE OF YOUR CHOICE FROM 0.120"Ø to 1.10"Ø ARE INCLUDED (FOR A COMPLETE LIST OF ALL PUNCH AND DIES, CONTACT YOUR SALES ENGINEER.)
All Nargesa Hydraulic Ironworkers are equipped with one set of round punch and die to the customer’s choice from 0.120" to 1.10" (3 to 28mm). The rest of the dies are optional (at an additional cost), which means each customer equips his machine as desired.
MX700 Punching Thickness Specs (CAPACITIES):
MX700 Thickness Specs #1
Material Thickness: 1.0” Thick
Round Punch: 1.0” Diameter
Square Punch: 0.75”x0.75”
MX700 Thickness Specs #2
Material Thickness: 0.39” Thick
Round Punch: 2.30” Diameter
Square Punch: 1.85”x1.85”
MX700 Thickness Specs #3
Material Thickness: 0.31” Thick
Round Punch: 2.75” Diameter
Square Punch: 2.15”x2.15”
MX700 Thickness Specs #4
Material Thickness: 0.19” Thick
Round Punch: 3.90” Diameter
Square Punch: 2.75”x2.75”
OPTIONAL ACCESSORIES FOR THE MX700
Nargesa offers a very large catalog of punches and dies of all kinds for the Ironworkers.
(Contact a Sales Engineer for more information.)
(Contact a Sales Engineer for more information.)
(Contact a Sales Engineer for more information.)
(Contact a Sales Engineer for more information.)
Max. Thickness for Flat Bar/Solid Bar: 0.59” (15mm)
(Accessory Weight: 33 lbs.)
(Accessory Weight: 84 lbs.)
Max. Straight Cutting Capacity: 3.15” x 3.15” (80x80mm)
Max. Mitered Cutting Capacity: 1.9” x 1.9” (50x50mm)
(Accessory Weight: 71 lbs.)
Folding Tooling up to 3.9" (REF: 140-02-02-00033)Tooling to fold steel sheet and flat bar up to 3.9” (100mm). 88º Punch. Die with 2.2” (56mm) and 1” (26mm) V's.
Max. Folding Length: 3.9” (100mm)Max. Thickness: 0.315” to 0.47” (8 to 12mm)
(Accessory Weight: 20 lbs.)
Max. Folding Length: 6.6” (170mm)Max. Thickness: 0.315” to 0.47” (8 to 12mm)
(Accessory Weight: 29 lbs.)
Max. Folding Length: 13.7” (350mm)Max. Thickness: 0.78” (20mm)
(Accessory Weight: 100 lbs.)
Max. Hole Diameter: 1.1” (28mm)
(Accessory Weight: 15 lbs.)
Max. Cutting Capacity: 3.9”x0.47” (100x12mm)
(Accessory Weight: 64 lbs.)
Max. Cutting Capacity: 7.8”x0.78” (200x20mm)
(Accessory Weight: 120 lbs.)
Min. Cutting Diameter: 0.118” (3mm)
Max. Cutting Diameter: 1.37” (35mm)
(Accessory Weight: 35 lbs.)
Max. Sheet Thickness: 0.118” (3mm)(Accessory Weight: 50 lbs.)
Min. Round Tube Size: 0.39”x0.07” (10x2mm)
Max. Round Tube Size: 1.18”x0.07” (30x2mm)
(Accessory Weight: 44 lbs.)
Min. Round Tube Size: 0.39” (10mm)
Max. Round Tube Size: 1.96” (50mm)
(Accessory Weight: 53 lbs.)
Max. Thickness: 0.23” (6mm)(Accessory Weight: 3 lbs.)
Max. Punching Size: 3.9”x0.78” (100x20mm)
Max. Thickness: 0.078” (2mm)(Accessory Weight: 47 lbs.)
(Accessory Weight: 128 lbs.)
Flower Diameter: 2.55” (65mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”, 0.118”
Cutting Thicknesses in mm: 1, 1.5, 2, 3mm
(Accessory Weight: 23 lbs.)
Flower Diameter: 2.55” (65mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”, 0.118”
Cutting Thicknesses in mm: 1, 1.5, 2, 3mm
(Accessory Weight: 11 lbs.)
Flower Diameter: 3.3” (85mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”
Cutting Thicknesses in mm: 1, 1.5, 2mm
(Accessory Weight: 23 lbs.)
Flower Diameter: 3.3” (85mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”
Cutting Thicknesses in mm: 1, 1.5, 2mm
(Accessory Weight: 14 lbs.)
Leaf Size: 4.25”x1.65" (108x42mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”, 0.118"
Cutting Thicknesses in mm: 1, 1.5, 2, 3mm
(Accessory Weight: 23 lbs.)
Leaf Size: 4.25”x1.65" (108x42mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”, 0.118"
Cutting Thicknesses in mm: 1, 1.5, 2, 3mm
(Accessory Weight: 23 lbs.)
Leaf Size: 4.25”x1.65" (108x42mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”, 0.118"
Cutting Thicknesses in mm: 1, 1.5, 2, 3mm
(Accessory Weight: 23 lbs.)
