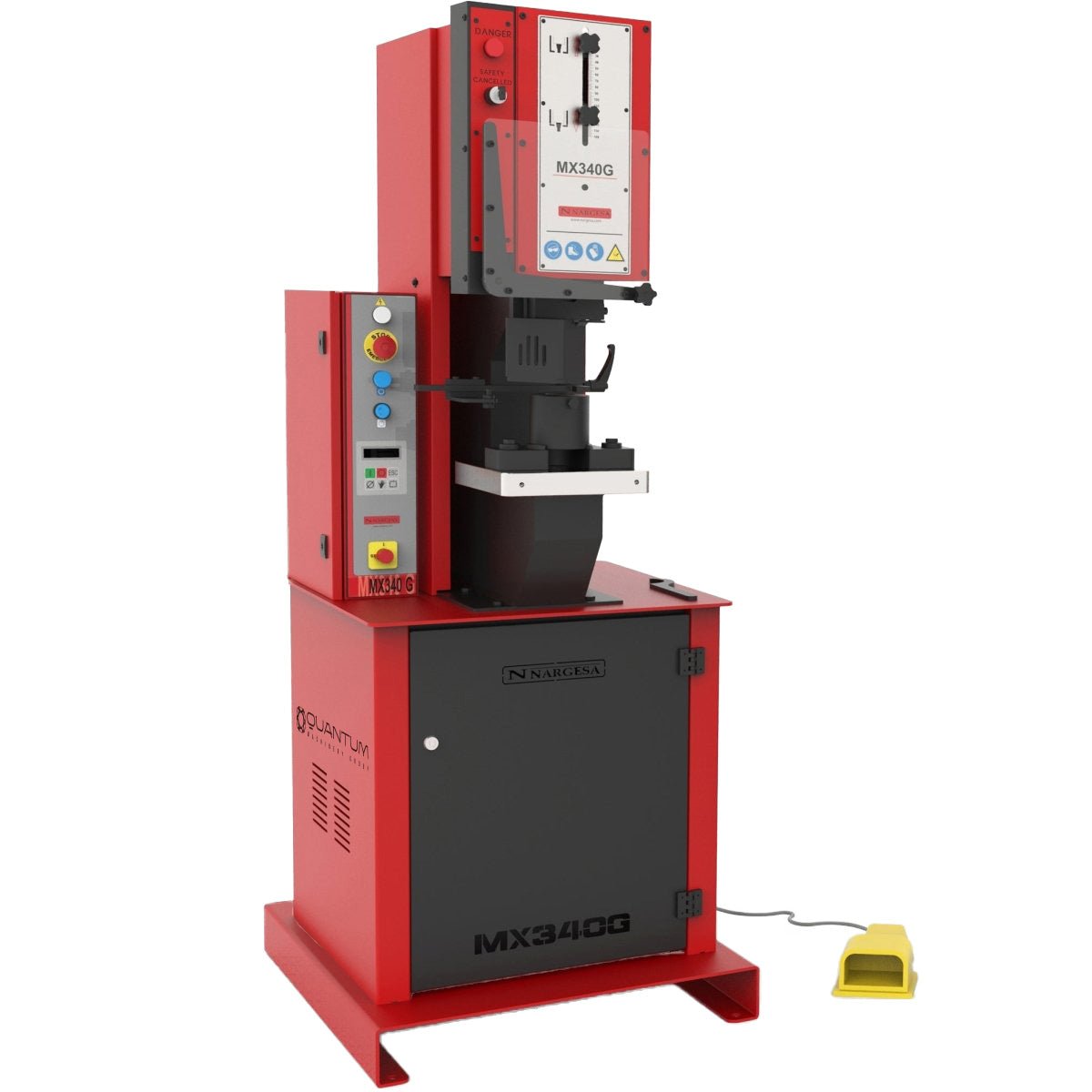

MX340G: 40 Ton Industrial Hydraulic Ironworker

Sale price$10,999 Regular price$15,060
Save $4,061

Electrical Options: 220V / 1PH / 60Hz

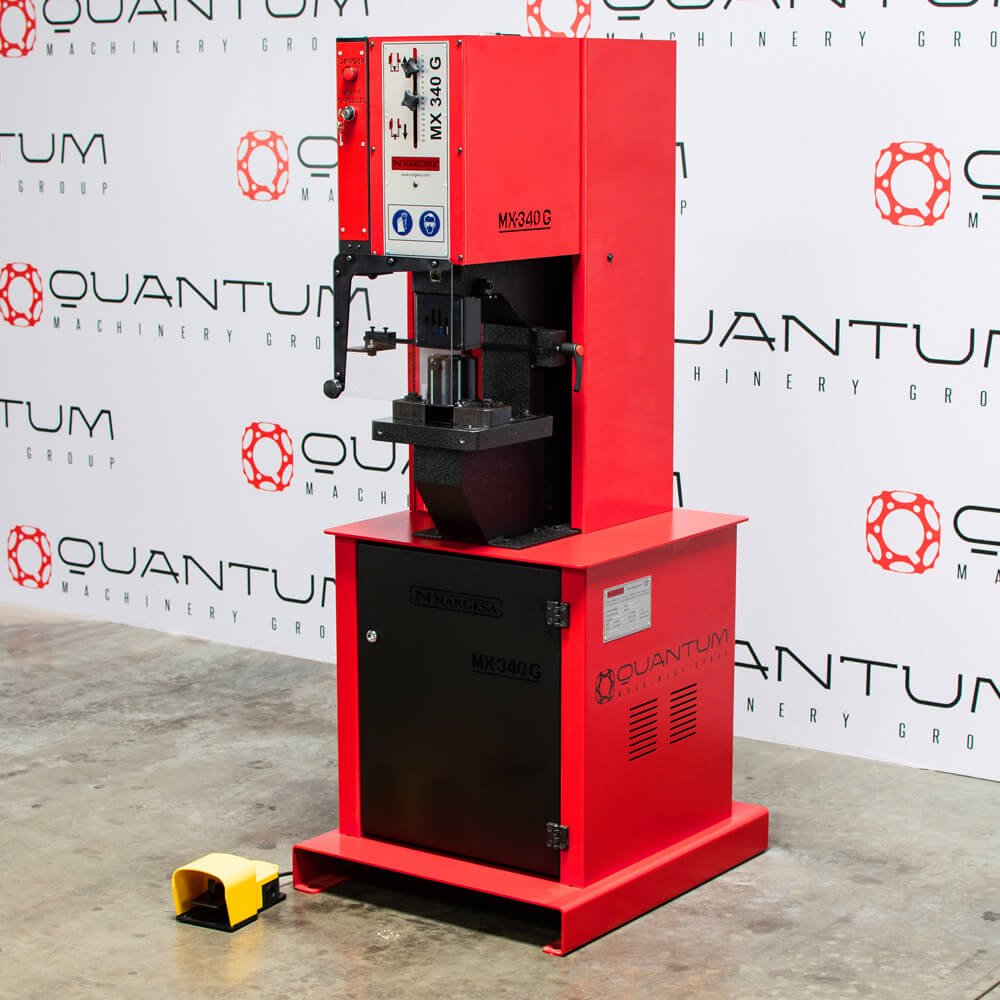

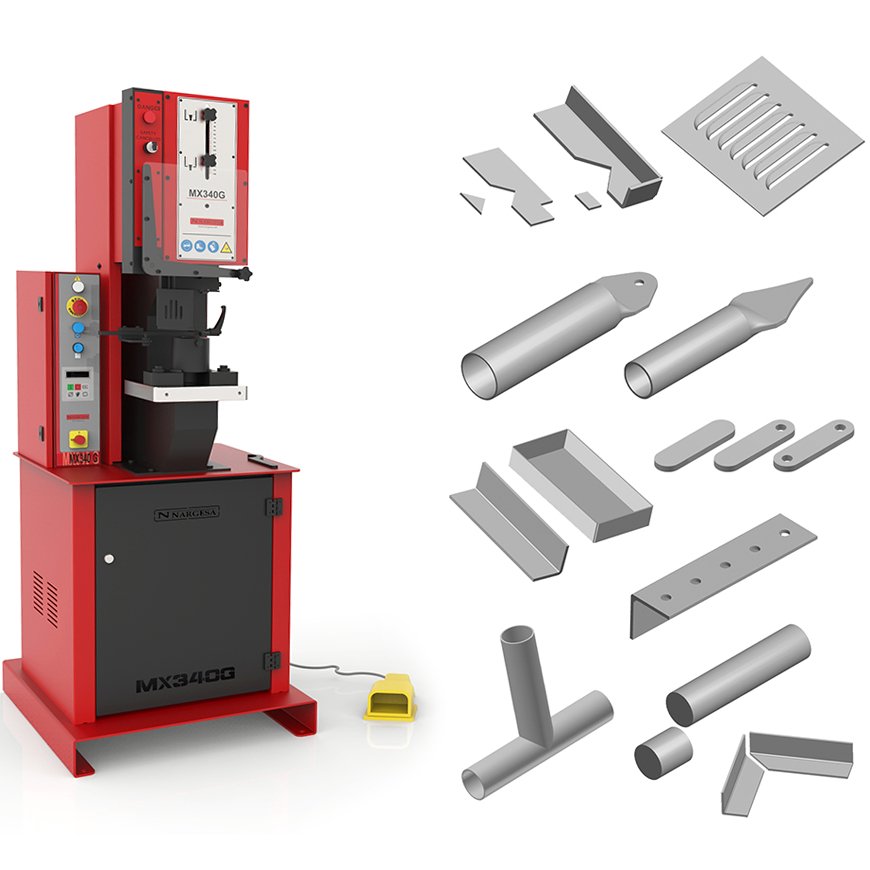

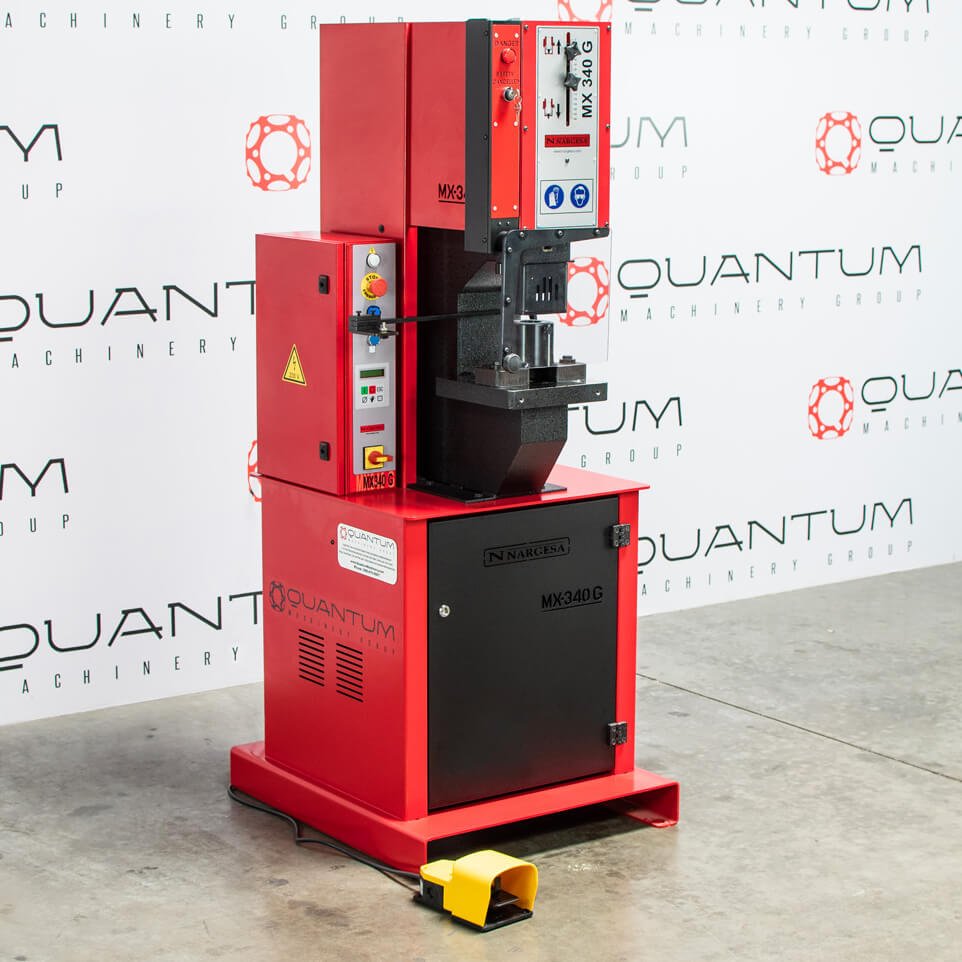

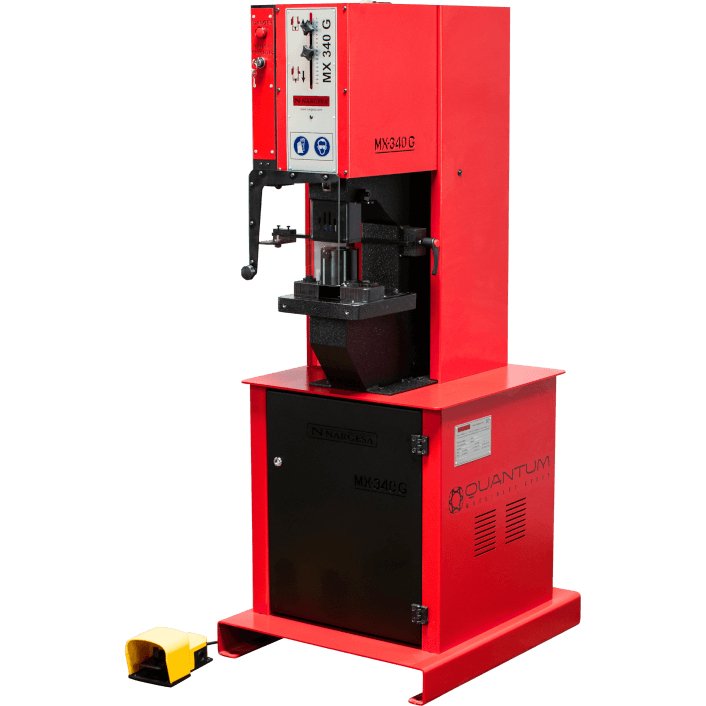

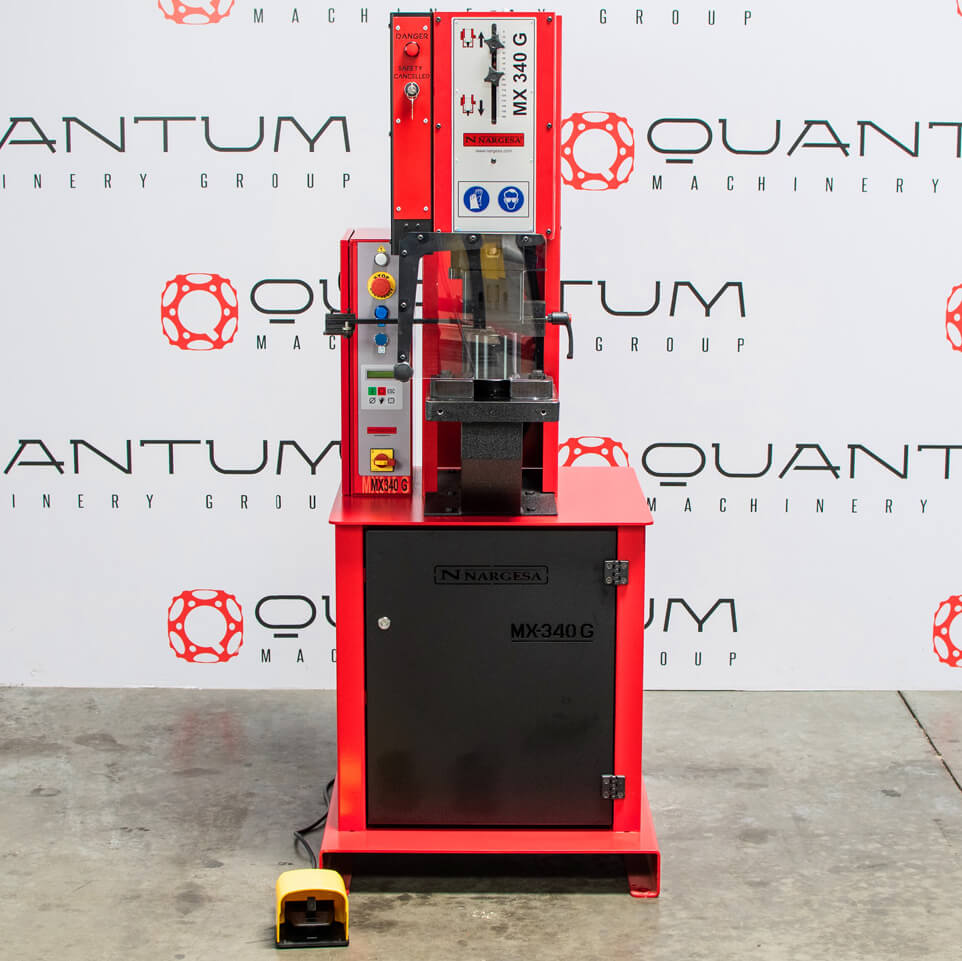

The QUANTUM NARGESA MX340G Hydraulic Ironworker (Punching Machine) is widely-known for its extensive versatility. This unit can perform numerous working functions, such as punching materials (like sheet metal, flat bar, tube, angle, U profile, T profile, UPN, IPN, etc..) Bending, Cutting, Inlaying, Tube Notching, Embossing, and it doesn’t end there. The MX340G can be adapted to be used with tooling of any kind, even tooling that is made by you, the customer. If you’re looking for a versatile, efficient and easy to use workhorse, then the MX340G is an essential piece of equipment for your metalworking shop floor.

WATCH THE VIDEO TO SEE EXACTLY HOW THE NARGESA MX340G 40 TON IRONWORKER WORKS ALONG WITH SOME OF IT’S FEATURES


TECHNICAL SPECS AND FEATURES

  • Hydraulic Power: 40 Tons
  • Working Speed: 0.27” Per Second
  • Return Speed: 0.36” Per Second
  • Tooling Support Table: 9.6” x 10.4”
  • Motor Power: 3 HP / 2.2 kW
  • Machine Dimensions: 27.5” x 31.5” x 71”
  • Machine Weight: 1,360 lbs.
  • Warranty: 3 Years (On any defective parts.)
  • Extremely Fast Tooling Changeover: 30 Seconds Max.
  • The Displacement Adjustment allows for an increase in productivity.
  • There is no maximum dimension for punching.
  • Palletized Base to easily move the MX340G around.

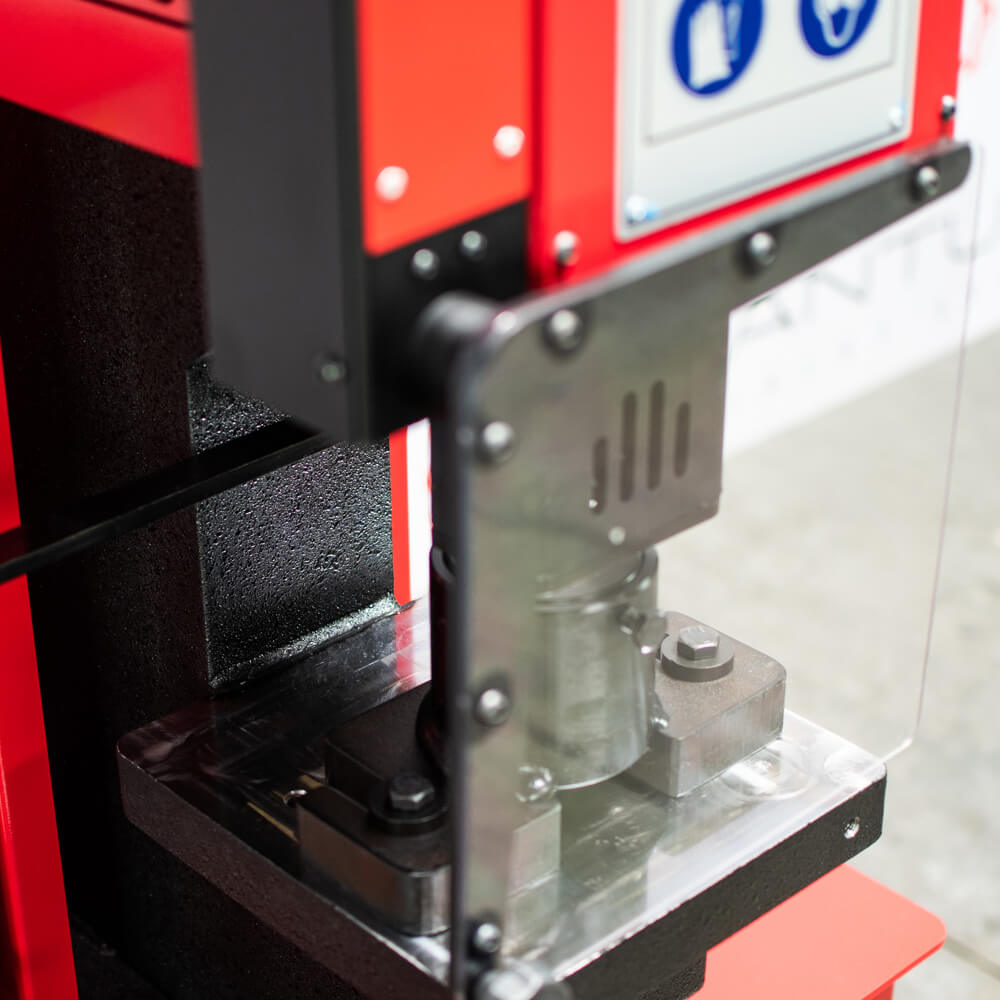

  • Swinging front safety protection.
  • Start/Activation with safety pedal.
  • Digital display.
  • Parts and strokes counter.
  • Alarm diagnosis.

MAJOR ADVANTAGE OF THE MX SERIES IRONWORKERS:
Our MX Series Ironworkers stand out in many ways, but they are literally like no other Ironworker on the market, because of its 7”/180mm goose neck, the 3.93”/100mm displacement and the wide working table that allows you to fit all kind of tooling. It is not uncommon for our customers to make their own tooling, since it is so easy to adapt their custom tooling to the MX340G.
Its versatility and features makes it a fast payback machine. It carries out the same functions of 5 different machines. All Nargesa Hydraulic Ironworkers are equipped with Nargesa’s punching tool base that includes the fitting nut for punches and the base holder for dies. All punches and dies are are optional, which allows each customer to equip their ironworker as desired.


All Nargesa Hydraulic Ironworkers are equipped with Nargesa’s punching tool base that includes the fitting nut for punches and the base holder for dies. All punches and dies are are optional, which allows each customer to equip their ironworker as desired.

  • Gooseneck (Neck): 7” (180mm)

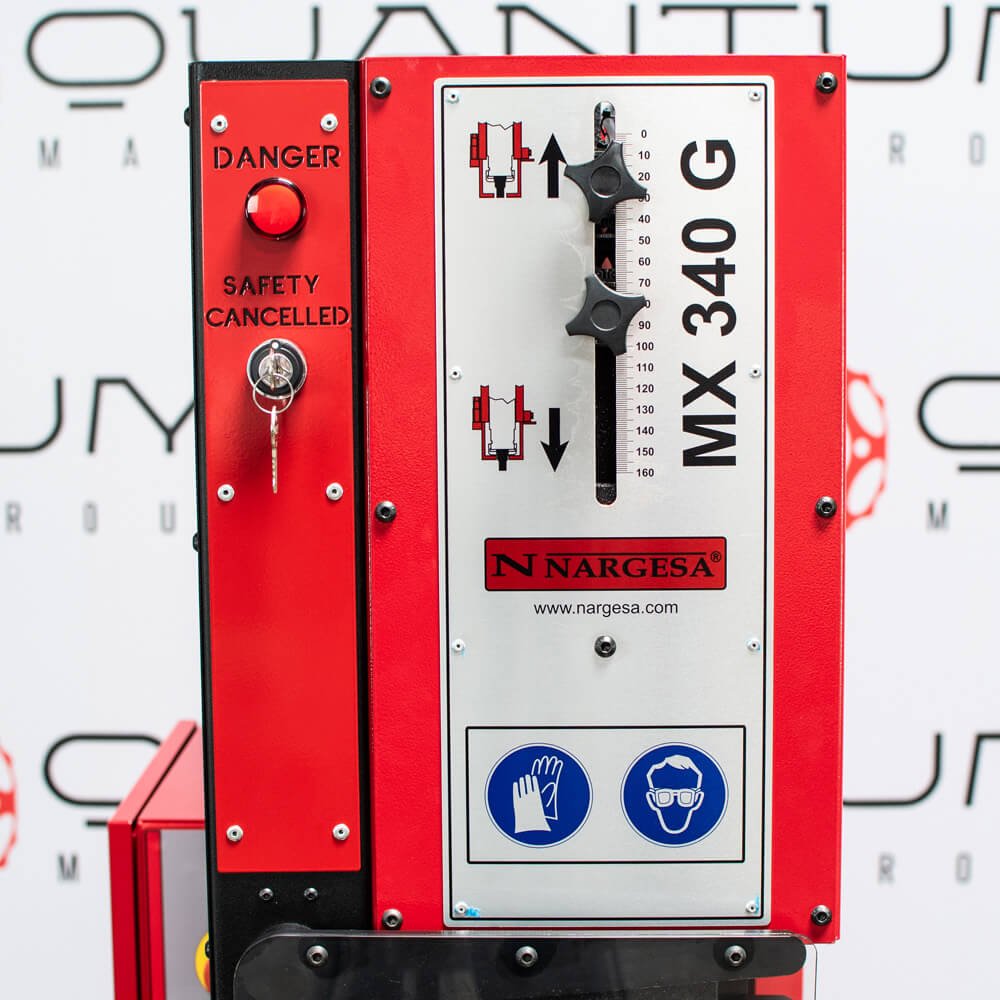

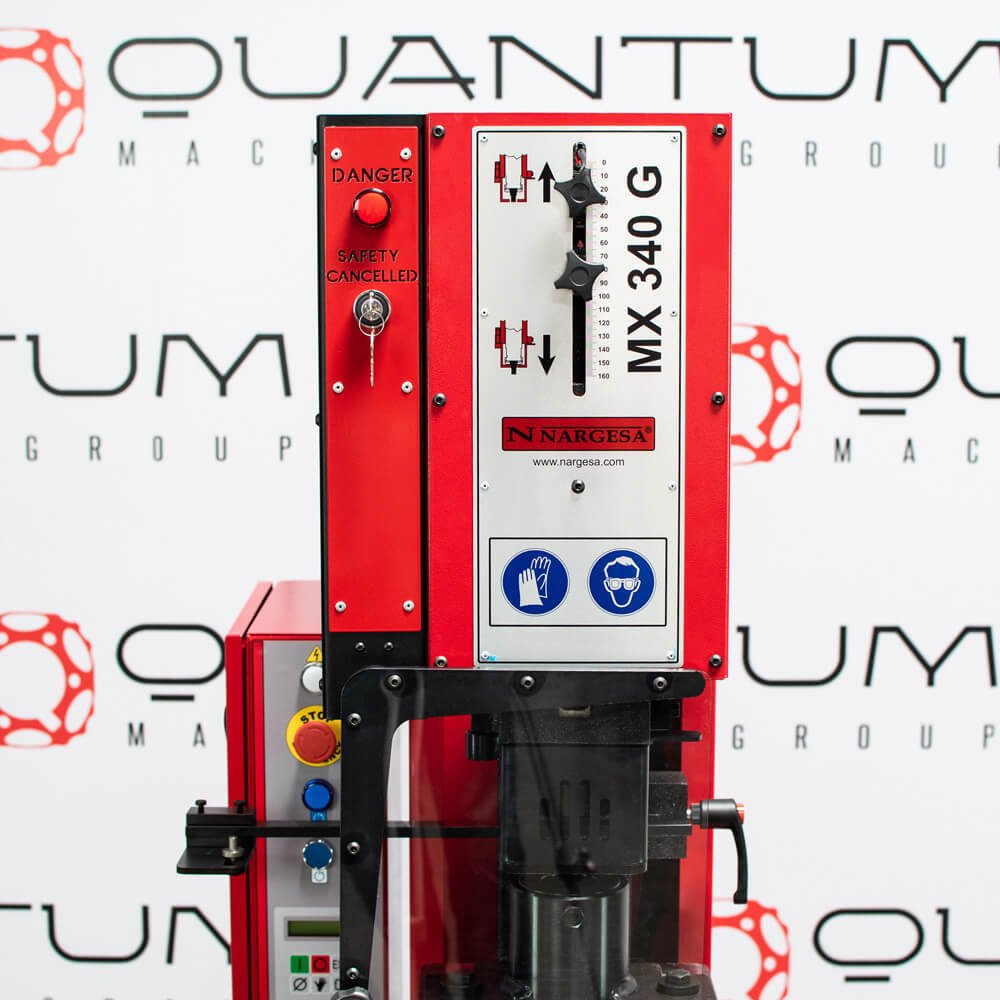

  • Punch Displacement: 3.9” (100mm)
  • Max. Height.: 8.6” (220mm)

MX340G PUNCHES AND DIES

ONE ROUND PUNCH AND ONE DIE OF CUSTOMER'S CHOICE FROM 0.120"Ø to 1.10"Ø ARE INCLUDED (FOR A COMPLETE LIST OF ALL PUNCH AND DIES, CONTACT YOUR SALES ENGINEER.)

All Nargesa Hydraulic Ironworkers are equipped with one set of round punch and die to the customer’s choice from 0.120" to 1.10" (3 to 28mm). The rest of the dies are optional (at an additional cost), which means each customer equips his machine as desired.

MX340G Punching Thickness Specs (CAPACITIES):

MX340G Thickness Specs #1
Material Thickness: 0.50” Thick
Round Punch:
0.80” Diameter
Square Punch:
0.65”x0.65”



MX340G Thickness Specs #2
Material Thickness: 0.39” Thick
Round Punch: 1.10” Diameter
Square Punch: 0.80”x0.80”



MX340G Thickness Specs #3
Material Thickness: 0.31” Thick
Round Punch: 1.18” Diameter
Square Punch: 0.90”x0.90”



MX340G Thickness Specs #4
Material Thickness: 0.19” Thick
Round Punch: 1.80” Diameter
Square Punch: 1.50”x1.50”


MX340G OPTIONAL ACCESSORIES

Round Punches and Dies, Square Punches, Oval Punches & Rectangular Punches
Nargesa offers a very large catalog of punches and dies of all kinds for the Ironworkers.
(Contact a Sales Engineer for more information.)

Tooling to Round Off CornersNargesa offers a very large catalog of punches and dies of all kinds for the Ironworkers.
(Contact a Sales Engineer for more information.)

Tooling to Round the Ends of Flat BarsNargesa offers a large catalog of punches and dies for Rounding Off the ends of Flat Bar Applications.
(Contact a Sales Engineer for more information.)

Round Tube Notching ToolingNargesa offers round tube / pipe notching tooling from 0.63” x 2.3” in diameter (16 to 60mm in diameter).
(Contact a Sales Engineer for more information.)

Flattening Extractor (REF: 140-02-01-00039)Extractor that flattens flat bars while punching so they cannot be distorted during that process.
Max. Thickness for Flat Bar/Solid Bar: 0.59” (15mm)
(Accessory Weight: 33 lbs.)

90º Adjustable Angle Stripper Tooling - 3.9"x3.9" Max. Cutting Capacity (REF: 140-02-01-00005)Sheet stripping tooling for angle etc. - adjustable up to 3.9”x3.9” (100x100mm) to a fixed 90º.Max. Cutting Capacity: 3.9”x3.9”x0.15” (100x100x4mm)
(Accessory Weight: 77 lbs.)

Angle Cutting Tool (REF: 140-02-01-00001)Tooling to cut angle to 90º and 45º.
Max. Straight Cutting Capacity: 2.3” x 2.3” (60x60mm)
Max. Mitered Cutting Capacity: 1.9” x 1.9” (50x50mm)
(Accessory Weight: 71 lbs.)

Folding Tooling up to 3.9" (REF: 140-02-01-00003)Tooling to fold steel sheet and flat bar up to 3.9” (100mm). 88º Punch. Die with 2.2” (56mm) and 1” (26mm) V's.
Max. Folding Length: 3.9” (100mm)Max. Thickness: 0.315” to 0.47” (8 to 12mm)
(Accessory Weight: 18 lbs.)

Folding Tooling up to 6.6" (REF: 140-02-01-00004)Tooling to fold steel sheet and flat bar up to 6.6” (170mm). 88º Punch. Die with 2.2” (56mm) and 1” (26mm) V's.
Max. Folding Length: 6.6” (170mm)Max. Thickness: 0.315” to 0.47” (8 to 12mm)
(Accessory Weight: 27 lbs.)

Tooling Holder for Punching Angle and U-Profiles (REF: 140-02-01-00031)Tooling holder to punch angles and U Profiles. Separate, Exchangeable punches and dies (not included with base) of different sizes are needed to make punches.Min. Hole Diameter: 0.078” (2mm)
Max. Hole Diameter: 1.1” (28mm)
(Accessory Weight: 15 lbs.)

Tooling to Cut Flat Bar up to 3.9" x 0.39" (REF: 140-02-01-00002)Tooling to cut sheet metal or flat bar from 0.0315” up to 0.39” thickness (0.8mm up to 10mm thickness).
Max. Cutting Capacity: 3.9”x0.39” (100x10mm)
(Accessory Weight: 62 lbs.)

Tooling to Cut Round Bar up to 1.37" (REF: 140-02-01-00035)Tooling to cut round solid bar from 0.118” up to 1.37” (3mm up to 35mm).
Min. Cutting Diameter: 0.118” (3mm)
Max. Cutting Diameter: 1.37” (35mm)
(Accessory Weight: 33 lbs.)

Tooling to Make "Arrows" out of Sheet Metal (REF: 140-02-01-00006)Tooling to punch sheet metal steel in the shape of an arrow for fencing.
Max. Sheet Thickness: 0.118” (3mm)(Accessory Weight: 46 lbs.)

Tooling to Make "Arrows" out of Round Tubes (REF: 140-02-01-00007)Tooling to flatten and cut Round Tube into the shape of an arrow for different ornamental applications. Can suit different diameters within capacity.
Min. Round Tube Size: 0.39”x0.07” (10x2mm)
Max. Round Tube Size: 1.18”x0.07” (30x2mm)
(Accessory Weight: 42 lbs.)

Tooling to Make "Fence Ends/Tops" out of Round Tubes (REF: 140-02-01-00040)Tooling to flatten and cut Round Tube for fencing. Can suit different diameters within capacity. Also able to punch different diameter holes within capacity.
Min. Round Tube Size: 0.39” (10mm)
Max. Round Tube Size: 1.96” (50mm)
(Accessory Weight: 50 lbs.)

Punch and Die Tooling for Locks (REF: 140-02-01-00036)Punch and die to make locks holes in metal sheet. (In order to use this tooling, 2 more optional separate accessories are required: CAB60 and TAP40.)
Max. Thickness: 0.23” (6mm)(Accessory Weight: 3 lbs.)

Tooling to Make "Grill Ventilation" (REF: 140-02-01-00010)Tooling to make ventilation grill in sheet metal. With adjustable punching operations since they're made one by one.
Max. Punching Size: 3.9”x0.78” (100x20mm)
Max. Thickness: 0.078” (2mm)(Accessory Weight: 44 lbs.)

Set of Cutting and Shaping Die Holders for Decorative Flower & Leaf Shapes (REF: 140-02-01-00042)Set of die holders that are to be adapted for cutting and shaping tools for decorative / ornamental flower elements.
(Accessory Weight: 128 lbs.)

Flower Cutting Die D65 "with 8 Petals" (REF: 140-02-01-00043)Die for cutting 8 petal flowers out of sheet metal. In order to use this die, accessory “Set of Cutting and Shaping Die Holders for Decorative Flower & Leaf Shapes” (item no. 140-02-01-00042) is required. For other designs (including custom designs), consult with your sales engineer.
Flower Diameter: 2.55” (65mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”, 0.118”
Cutting Thicknesses in mm: 1, 1.5, 2, 3mm
(Accessory Weight: 23 lbs.)

Flower Cold Stamping Tooling "with 8 Petals" (REF: 140-02-01-00044)Die for cold stamping / molding 8 petal flower design out of sheet metal. In order to use this die, accessory “Set of Cutting and Shaping Die Holders for Decorative Flower & Leaf Shapes” (item no. 140-02-01-00042) is required, as well as the cutting die (item no. 140-02-01-00043). For other designs (including custom designs), consult with your sales engineer.
Flower Diameter: 2.55” (65mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”, 0.118”
Cutting Thicknesses in mm: 1, 1.5, 2, 3mm
(Accessory Weight: 11 lbs.)

Flower Cutting Die D85 "with 5 Petals" (REF: 140-02-01-00045)Die for cutting 5 petal flowers out of sheet metal. In order to use this die, accessory “Set of Cutting and Shaping Die Holders for Decorative Flower & Leaf Shapes” (item no. 140-02-01-00042) is required. For other designs (including custom designs), consult with your sales engineer.
Flower Diameter: 3.3” (85mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”
Cutting Thicknesses in mm: 1, 1.5, 2mm
(Accessory Weight: 23 lbs.)

Flower Cold Stamping Tooling "with 5 Petals" (REF: 140-02-01-00046)Die for cold stamping / molding 5 petal flower design out of sheet metal. In order to use this die, accessory “Set of Cutting and Shaping Die Holders for Decorative Flower & Leaf Shapes” (item no. 140-02-01-00042) is required, as well as the cutting die (item no. 140-02-01-00045). For other designs (including custom designs), consult with your sales engineer.
Flower Diameter: 3.3” (85mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”
Cutting Thicknesses in mm: 1, 1.5, 2mm
(Accessory Weight: 14 lbs.)

Leaf Cutting Die 4.25"x1.65" (REF: 140-02-01-00047)Die for cutting decorative leaves out of sheet metal. In order to use this die, accessory “Set of Cutting and Shaping Die Holders for Decorative Flower & Leaf Shapes” (item no. 140-02-01-00042) is required. For other designs (including custom designs), consult with your sales engineer.
Leaf Size: 4.25”x1.65" (108x42mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”, 0.118"
Cutting Thicknesses in mm: 1, 1.5, 2, 3mm
(Accessory Weight: 23 lbs.)

Leaf (Left) Cold Stamping Tooling 4.25"x1.65" (REF: 140-02-01-00048)Die for cold stamping / molding left facing decorative leaf design out of sheet metal. In order to use this die, accessory “Set of Cutting and Shaping Die Holders for Decorative Flower & Leaf Shapes” (item no. 140-02-01-00042) is required, as well as the cutting die (item no. 140-02-01-00047). For other designs (including custom designs), consult with your sales engineer.
Leaf Size: 4.25”x1.65" (108x42mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”, 0.118"
Cutting Thicknesses in mm: 1, 1.5, 2, 3mm
(Accessory Weight: 23 lbs.)

Leaf (Right) Cold Stamping Tooling 4.25"x1.65" (REF: 140-02-01-00049)Die for cold stamping / molding left facing decorative leaf design out of sheet metal. In order to use this die, accessory “Set of Cutting and Shaping Die Holders for Decorative Flower & Leaf Shapes” (item no. 140-02-01-00042) is required, as well as the cutting die (item no. 140-02-01-00047). For other designs (including custom designs), consult with your sales engineer.
Leaf Size: 4.25”x1.65" (108x42mm)
Cutting Thicknesses in inches: 0.039”, 0.059”, 0.078”, 0.118"
Cutting Thicknesses in mm: 1, 1.5, 2, 3mm
(Accessory Weight: 23 lbs.)
