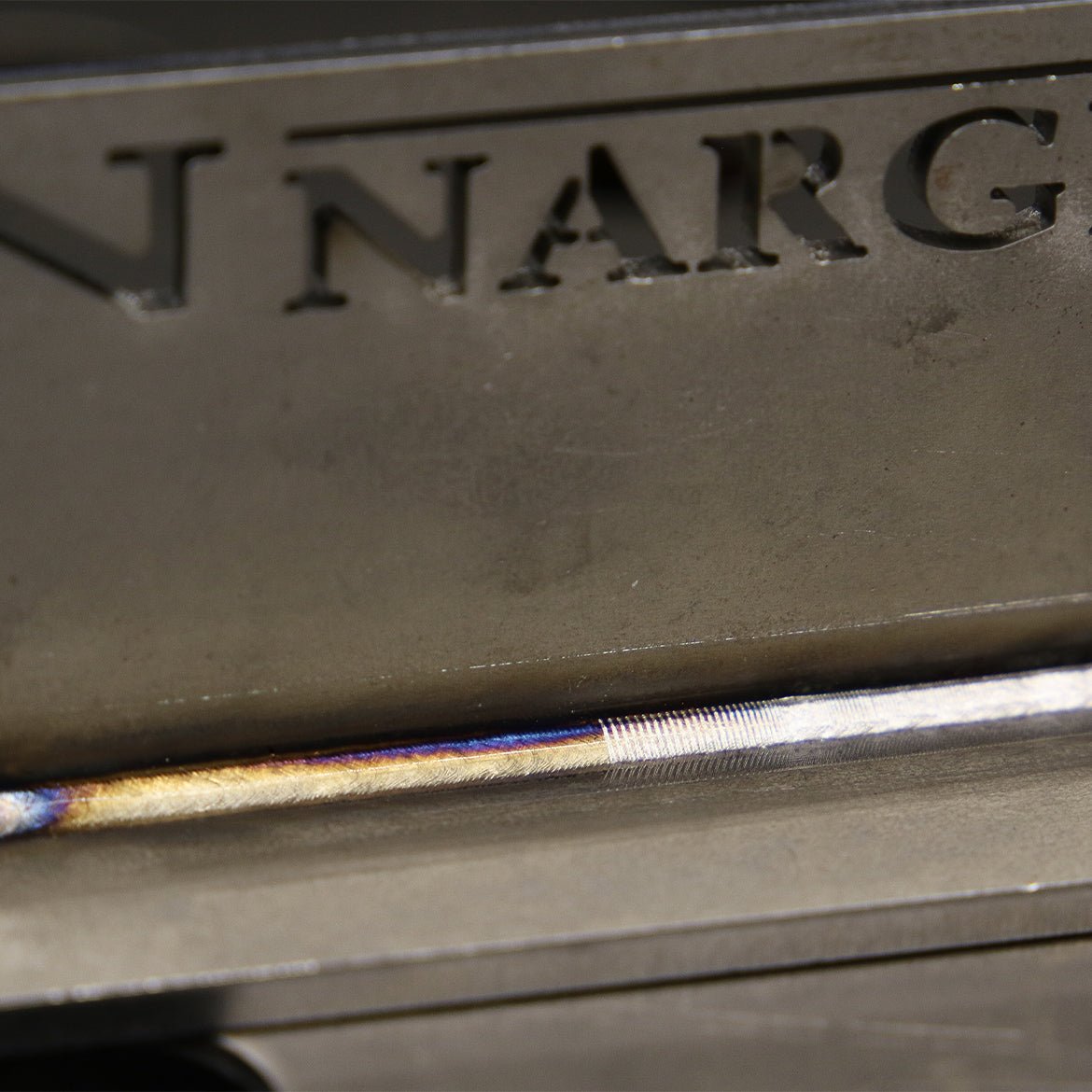

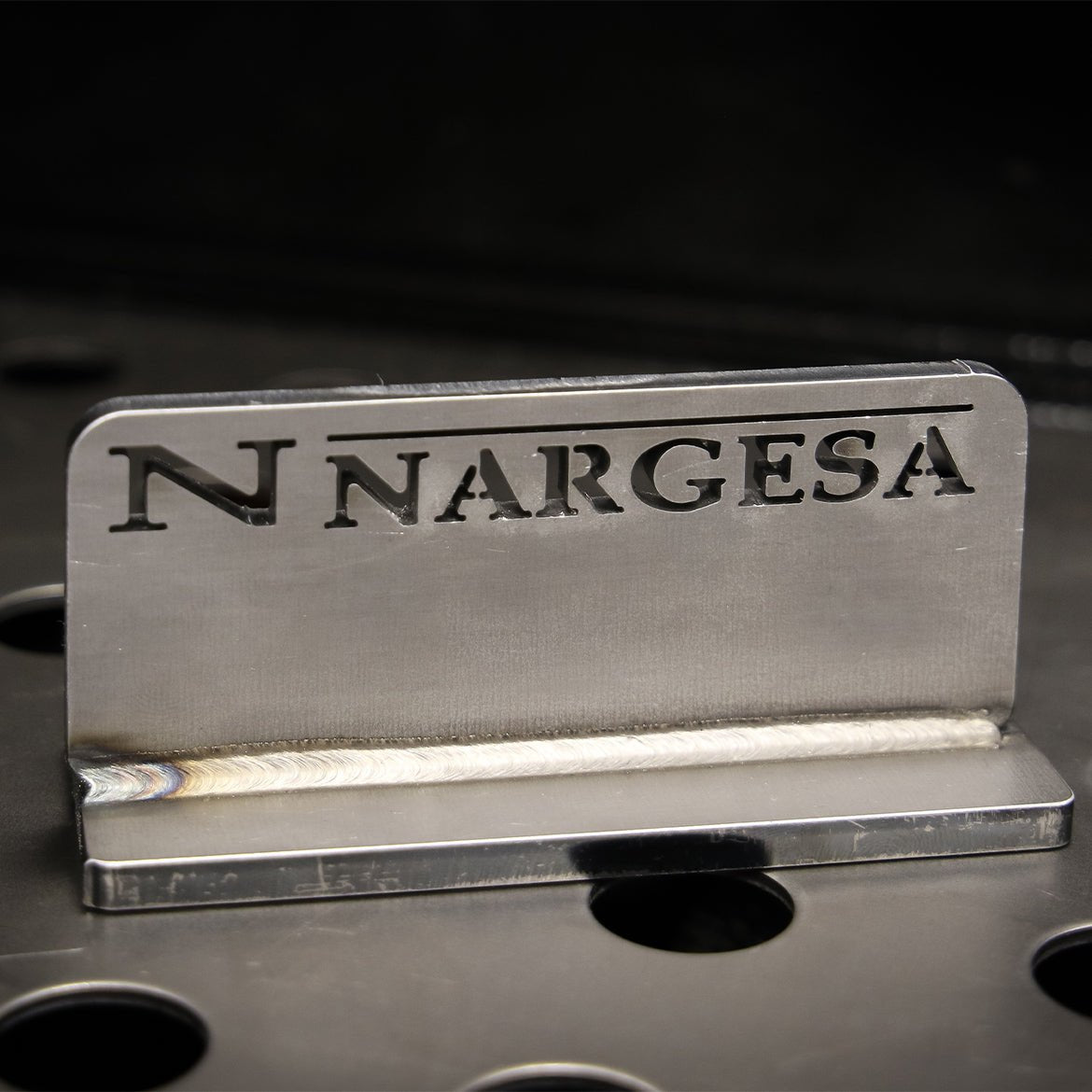

Are you looking to improve the quality of your welds and optimize your production? The Nargesa MS20 laser welder is the perfect solution. With cutting-edge technology, it offers clean, fast, and distortion-free joints, even in the most delicate materials. Reduce costs, increase your productivity, and give your products a professional finish that makes all the difference.
All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...

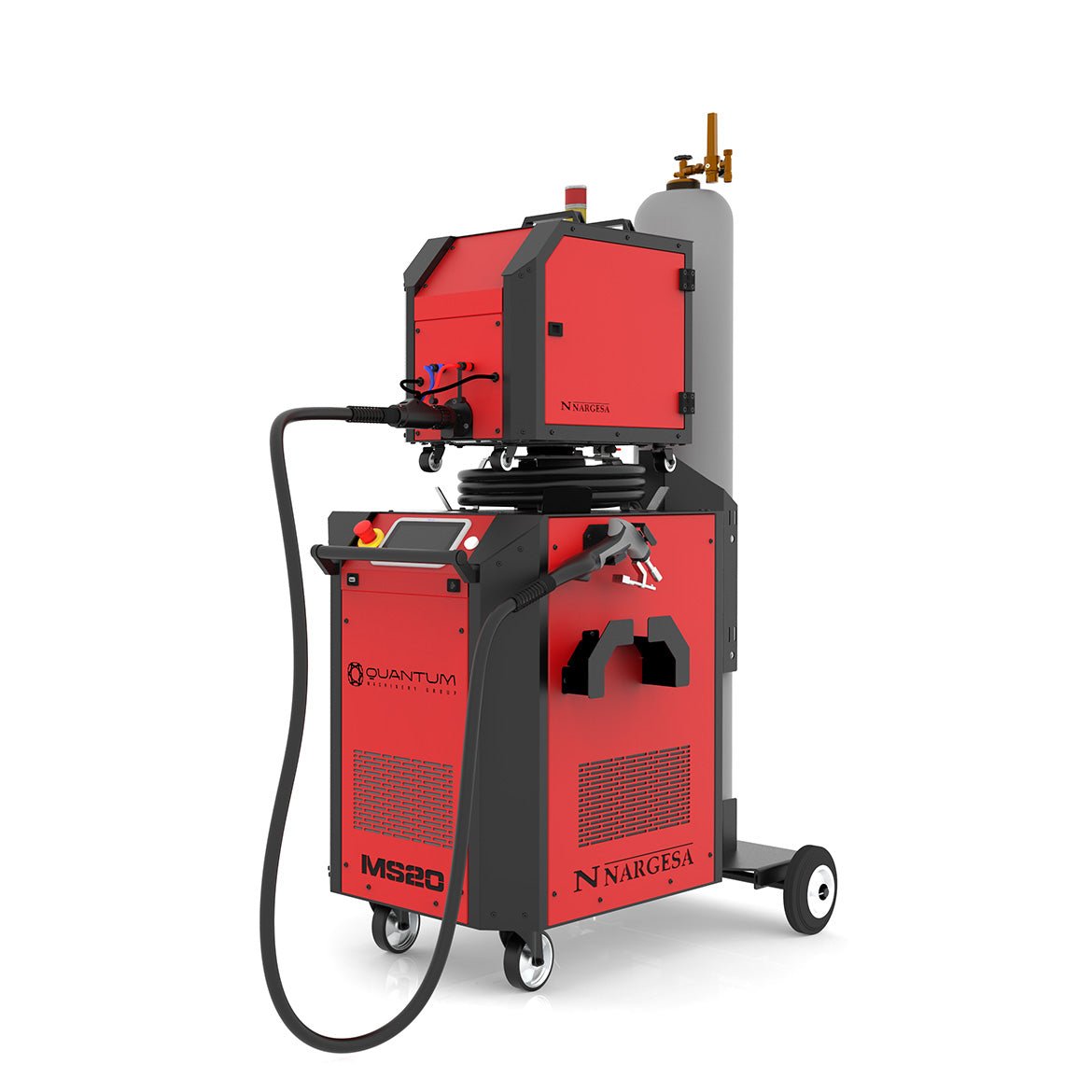

MS20: Laser Welder (2,000W of Power)
MS20: Laser Welder (2,000W of Power)
Sale price$29,995
Regular price (/)
TECHNICAL SPECS AND FEATURES
- Power: 2000W / 2Kw
Voltage: 220 / 240V. Single-phase
Frequency: 50 / 60Hz
Wavelength: 1080nm
Fiber Hose Length: 10,000mm / 393.7”
Fiber Diameter: 25 μm
Guide Laser: 630-650nm / 0.5-1Mw
Maximum Laser Beam Opening: 5mm / 0.2” (Single Wire Feed) – 8mm / 0.31” (Double Wire Feed)
- Electrical Consumption: 4Kw
- Maximum Amperage: 16A
- Cooling Method: Distilled water
- CNC Control Panel: ESA S820 7” Touchscreen
- Alarm Diagnostics
- Industry 4.0 Technology
- Metric and Imperial Unit Control
- Temperature Control in Celsius and Fahrenheit
- Resonator Status Monitoring via Bluetooth
- Maximum Wire Capacity: 2 spools of 2mm / 0.079”
- Spool Capacity: 2 units of 15Kg. Ø300mm / 33lb 11.81”
- Built-in Interior LED Light
- Capable of Working with Two Spools – Same or Different Wire
- Number of Wire Feeders: 2 Units
- Number of Motorized Feed Rollers: 8 Units
- Cleaning Range: 5 to 80mm / 0.2” to 3.15”
- Cooling Method: Water
- Integrated Warning Light (Signal Tower)
- Next-Generation Laser Torch with LED and Ergonomic Grip – Can be held with one or two hands
- Torch-to-Hose Connection with Flex Spring
- Single Hose with All Components Integrated

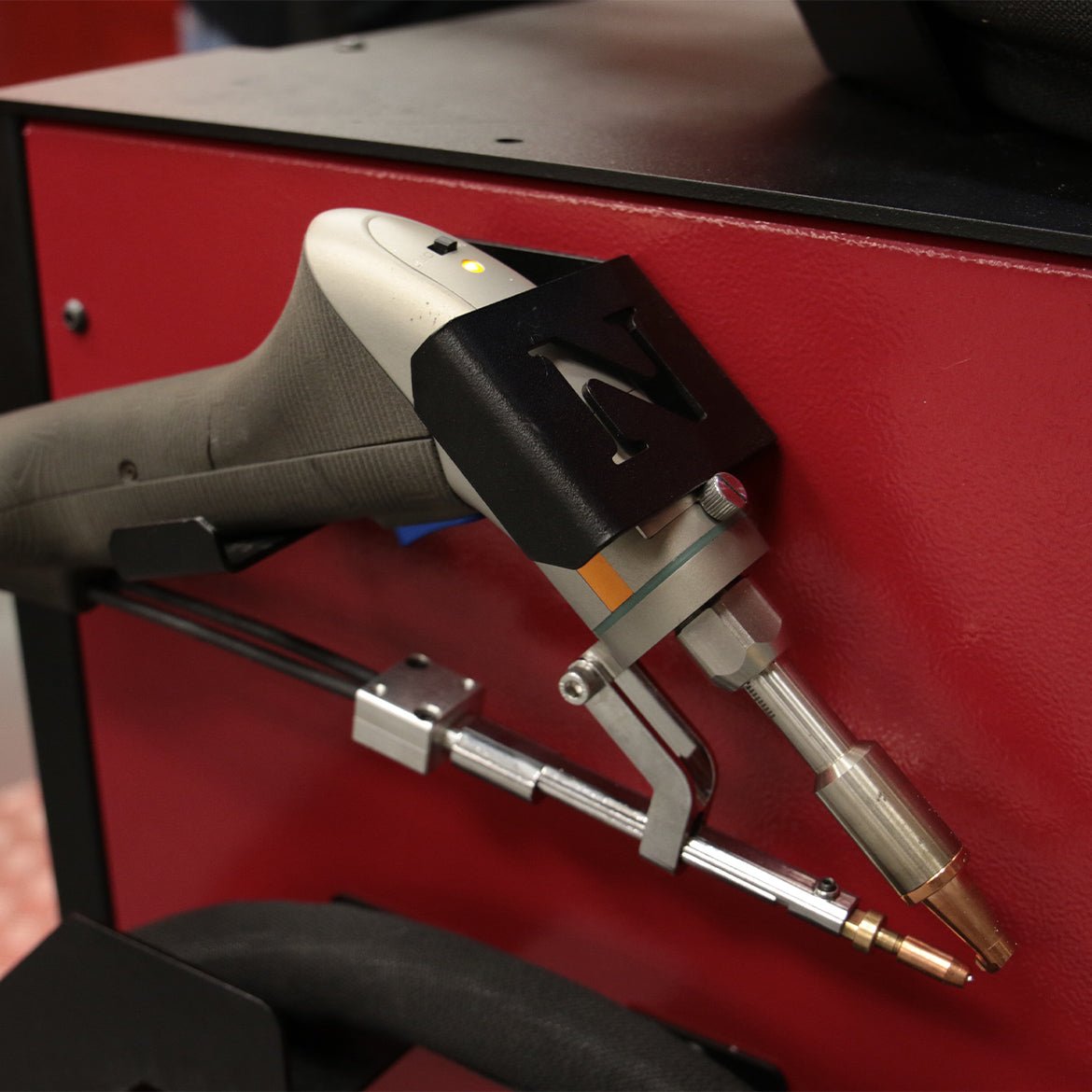

- Magnetized and Protected Torch Holder
- Holder for Argon or Nitrogen Bottles Included
- Drawer for Consumables, Tools, and Spare Parts
- Machine is Shipped Fully Assembled
THE NARGESA MS20 FEATURES

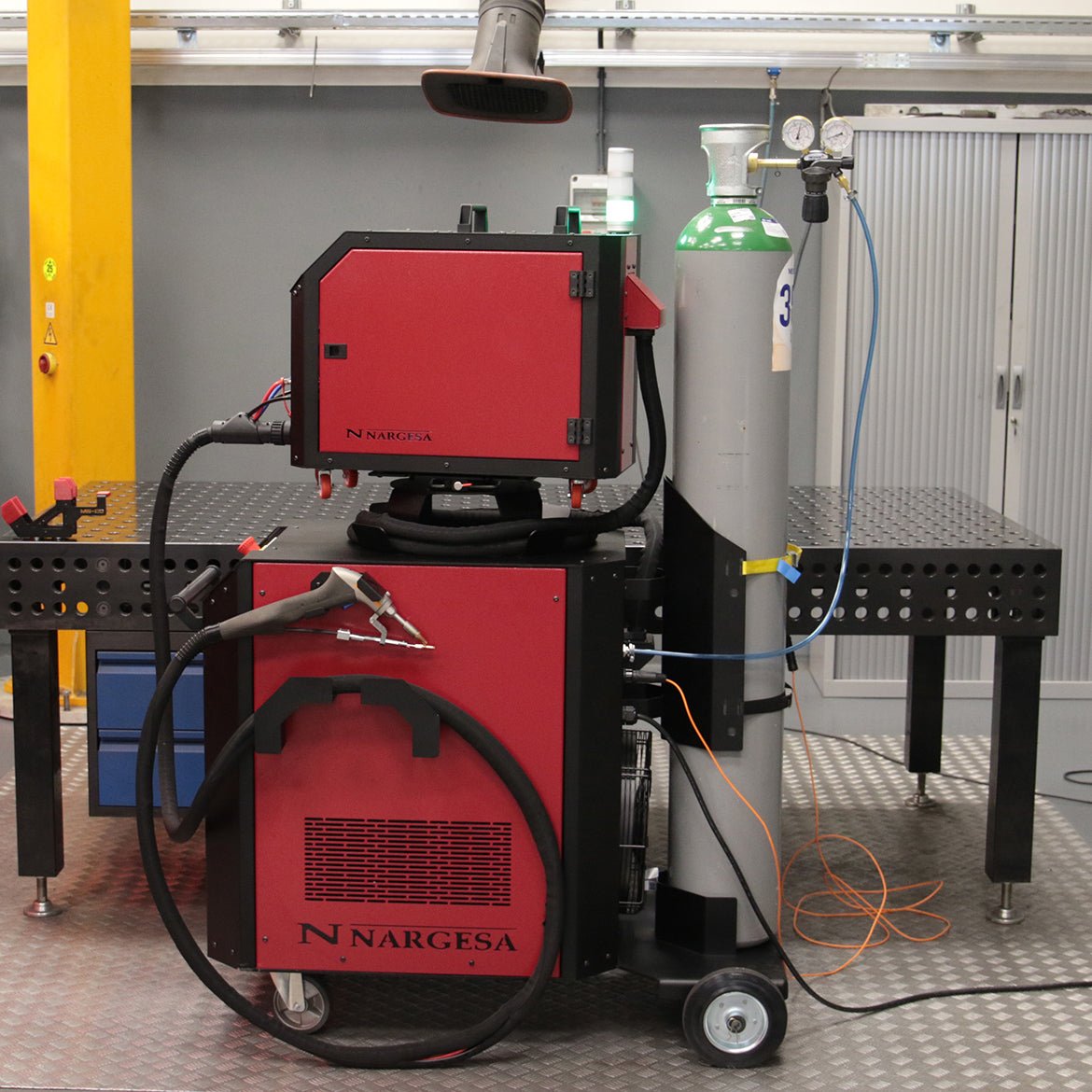

Safety and Mobility
Most laser welding machines on the market do not include built-in supports for gas cylinders such as argon or nitrogen. This omission not only makes transporting the equipment more difficult but also poses a significant safety risk to the operator. Without proper securing, cylinders can easily tip over—even when the machine is stationary—creating hazardous situations in the work environment. Having a solution that ensures the stability and mobility of the entire system is essential for safe, efficient, and professional operation.

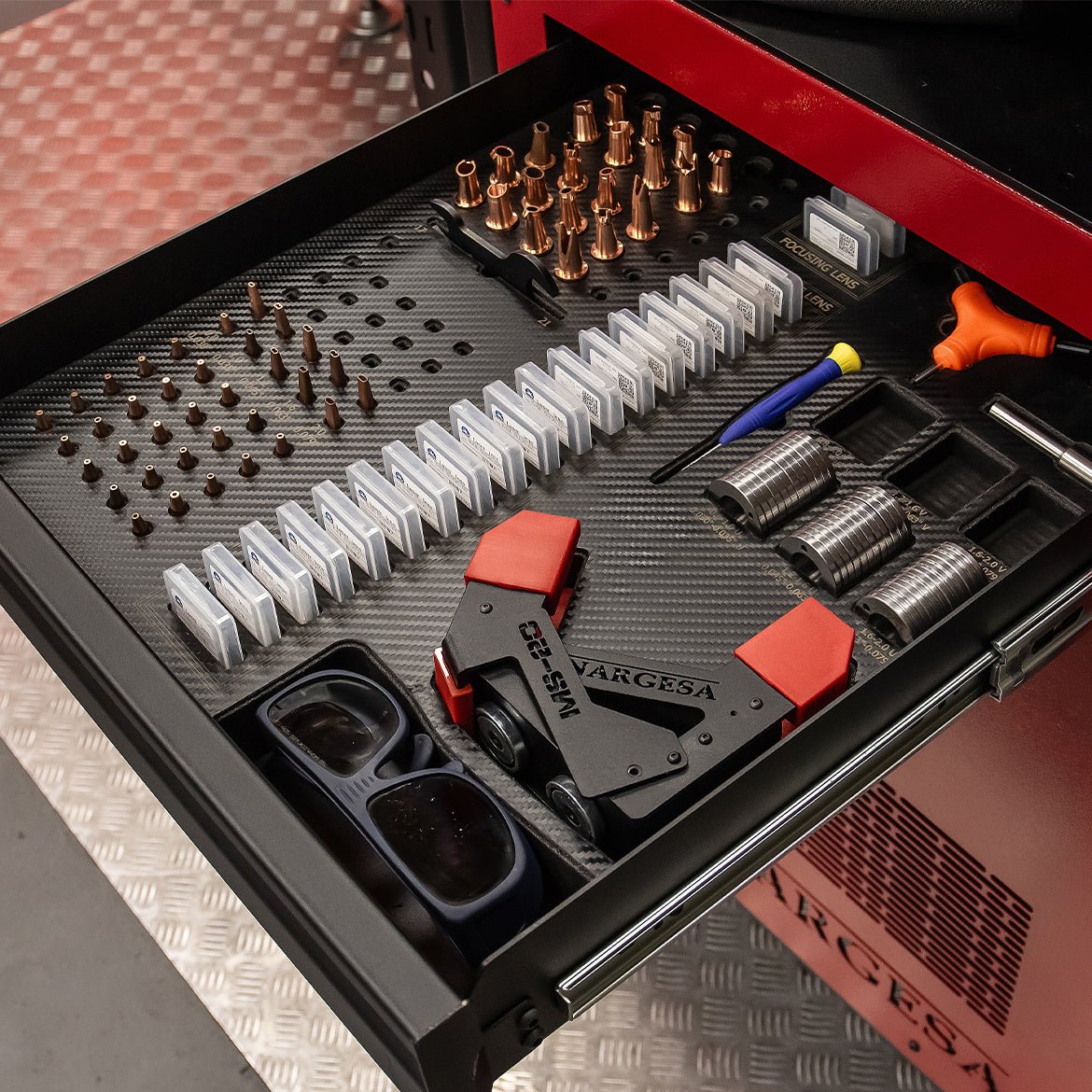

Storage Drawer
The machine features a built-in drawer within the chassis, specifically designed to store consumables, tools, and accessories in a clean, safe, and organized manner. This solution allows the operator to keep everything within easy reach, avoiding unnecessary movement and improving day-to-day work efficiency. Every detail has been carefully considered to deliver a practical, professional, and fully self-sufficient user experience.
4.0 Technology
The advantages of having this technology in a machine are countless, but we’ll highlight the most important ones. With the customer’s consent, the manufacturer can remotely connect to the machine to perform software updates completely free of charge and detect potential issues without needing to be on-site. It also notifies the user when preventive maintenance is due—among many other advanced features.
Water Cooling System
Ensures consistent performance even during long hours of intensive work. This system is especially critical in automatic or robotic mode, where continuous operation and thermal stability are essential. A reliable cooling system not only extends the lifespan of the components but also ensures more precise, uninterrupted welding—ultimately optimizing process efficiency.

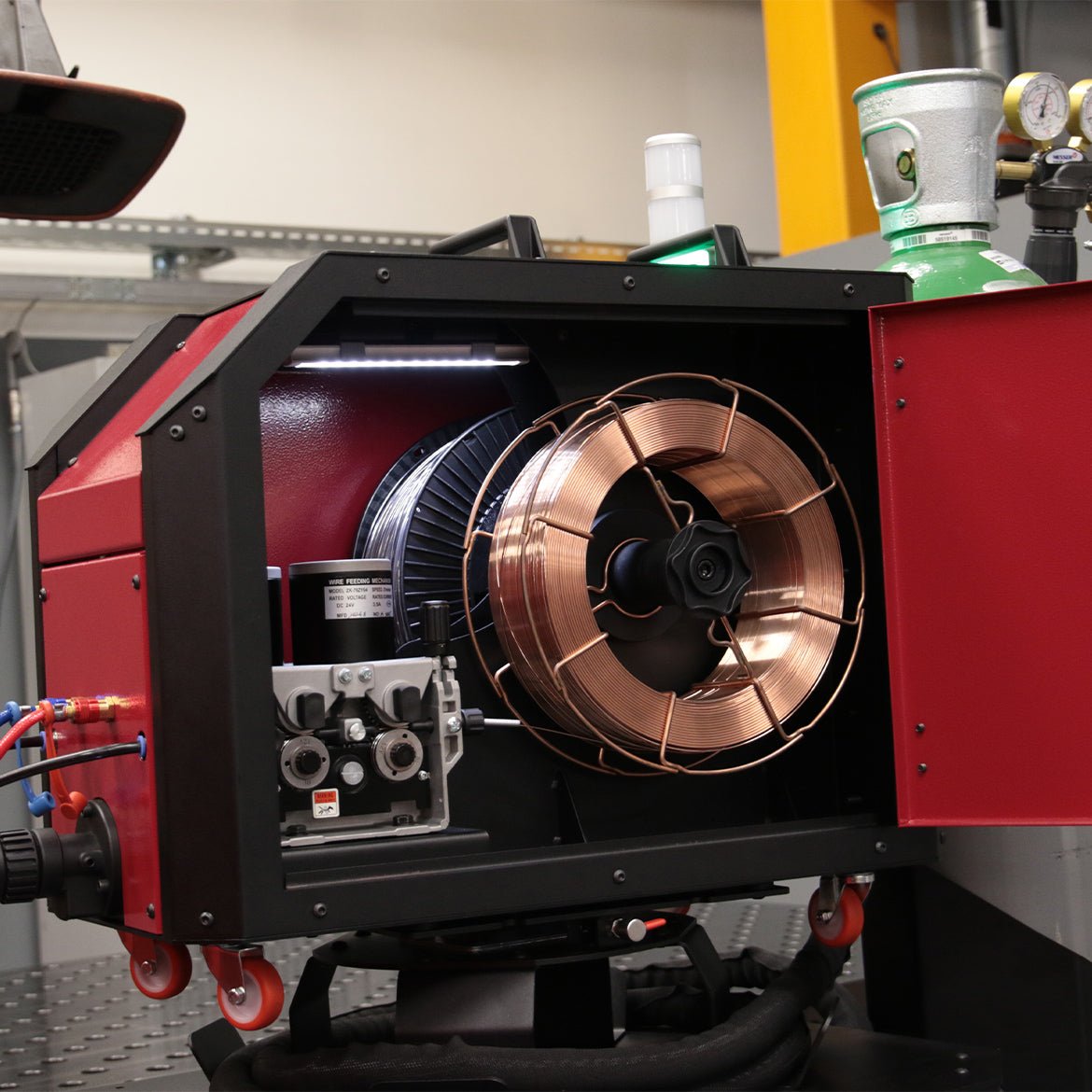

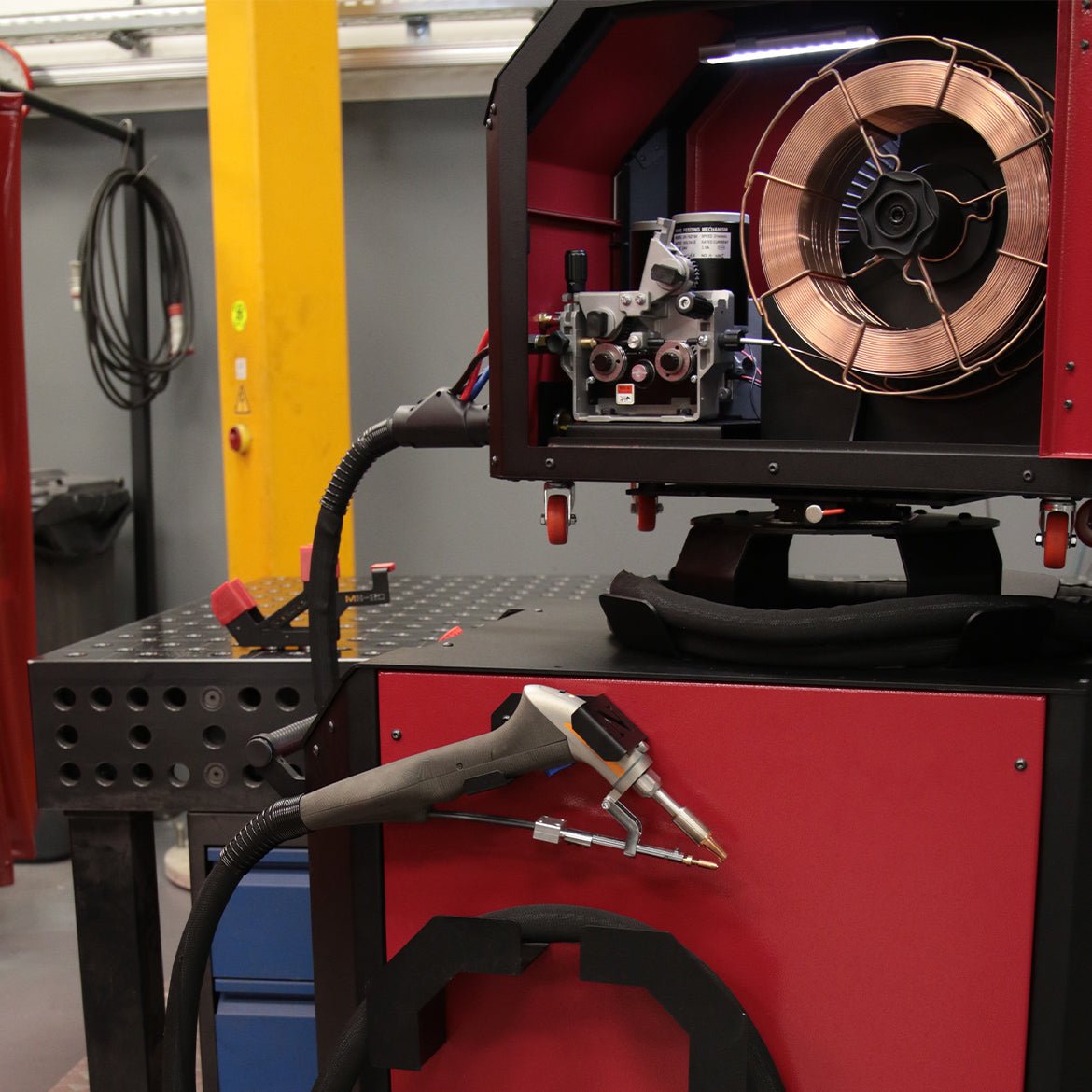

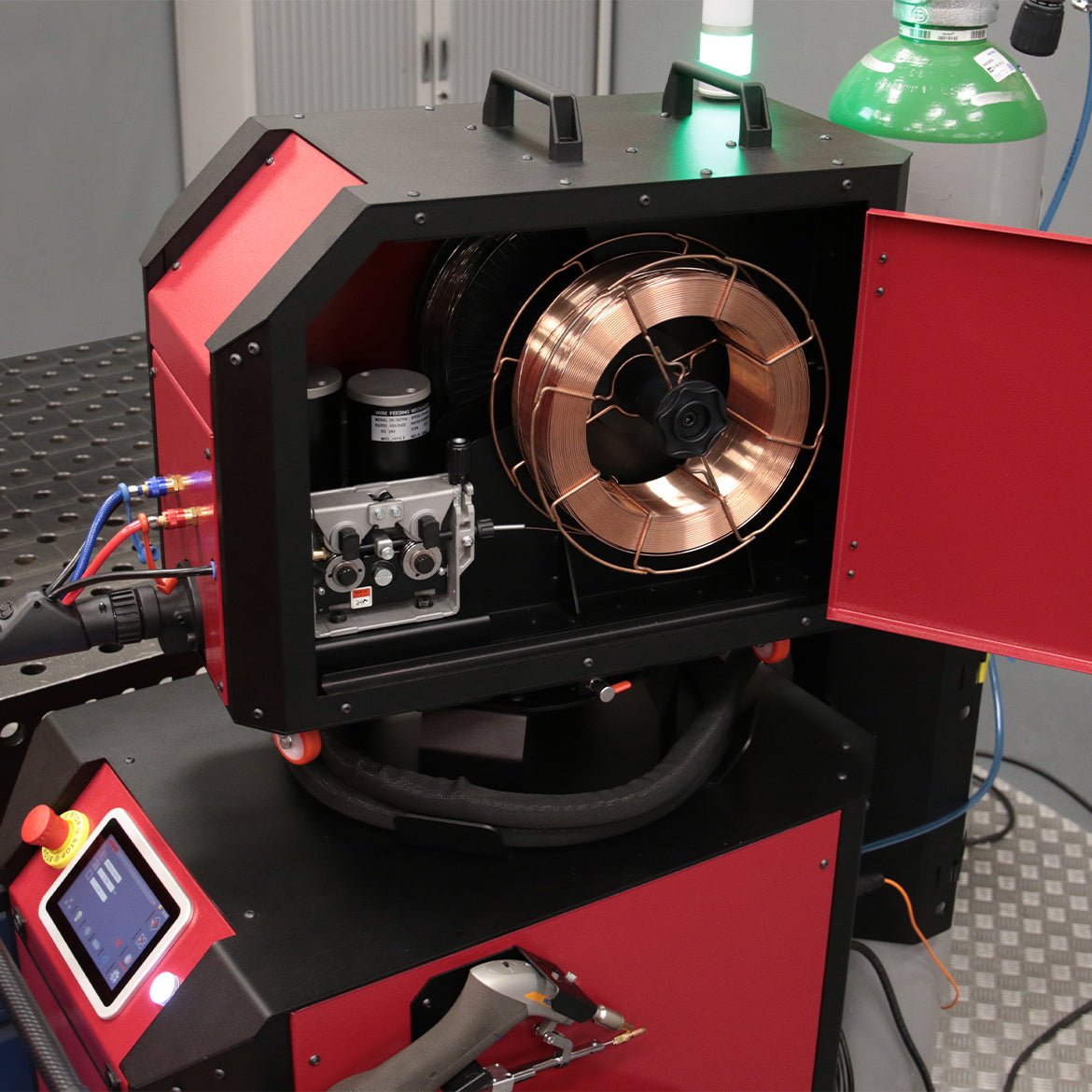

Wire Feeding System
The MS20 laser welding machine is equipped with an advanced dual-rotation drive system featuring four motorized rollers, engineered to deliver precise and consistent wire feeding—especially critical in demanding applications such as aluminum and stainless steel welding. Unlike many machines on the market that only motorize the lower rollers, the MS20 includes eight motorized rollers in total, ensuring uniform, slip-free wire delivery even with challenging materials.

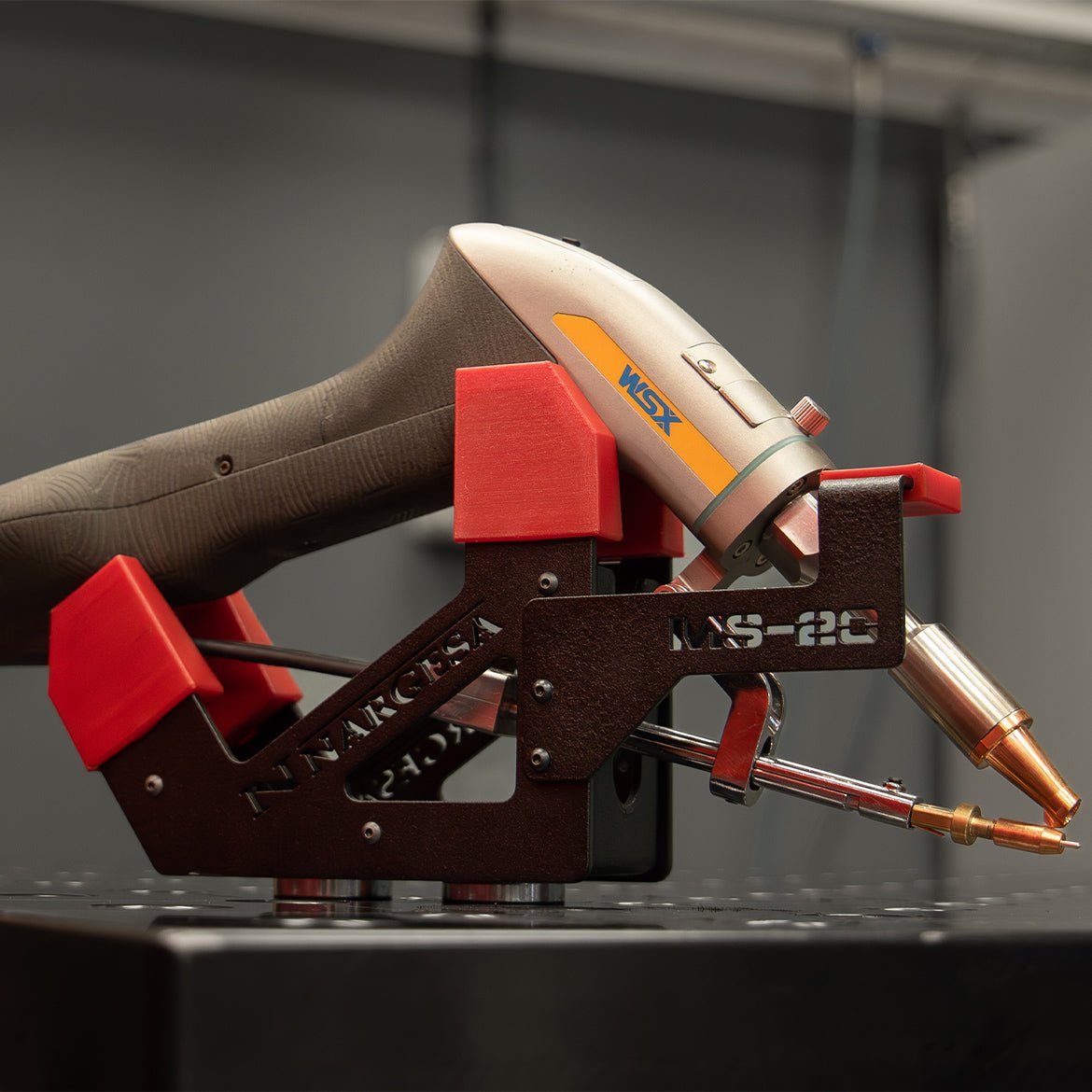

Ergonomic Torch
Our welding torch is designed to deliver maximum comfort, precision, and durability in high-demand environments. It features an ergonomic grip that compactly integrates the fiber optic cable, cooling hoses, and dual wire feeds—all connected through a flexible spring that enhances freedom of movement and comfort during extended use. Unlike other solutions on the market, all conduits and components are fully protected, ensuring long-lasting performance and safety.
THE MS20 LASER WELDER DIMENSIONS

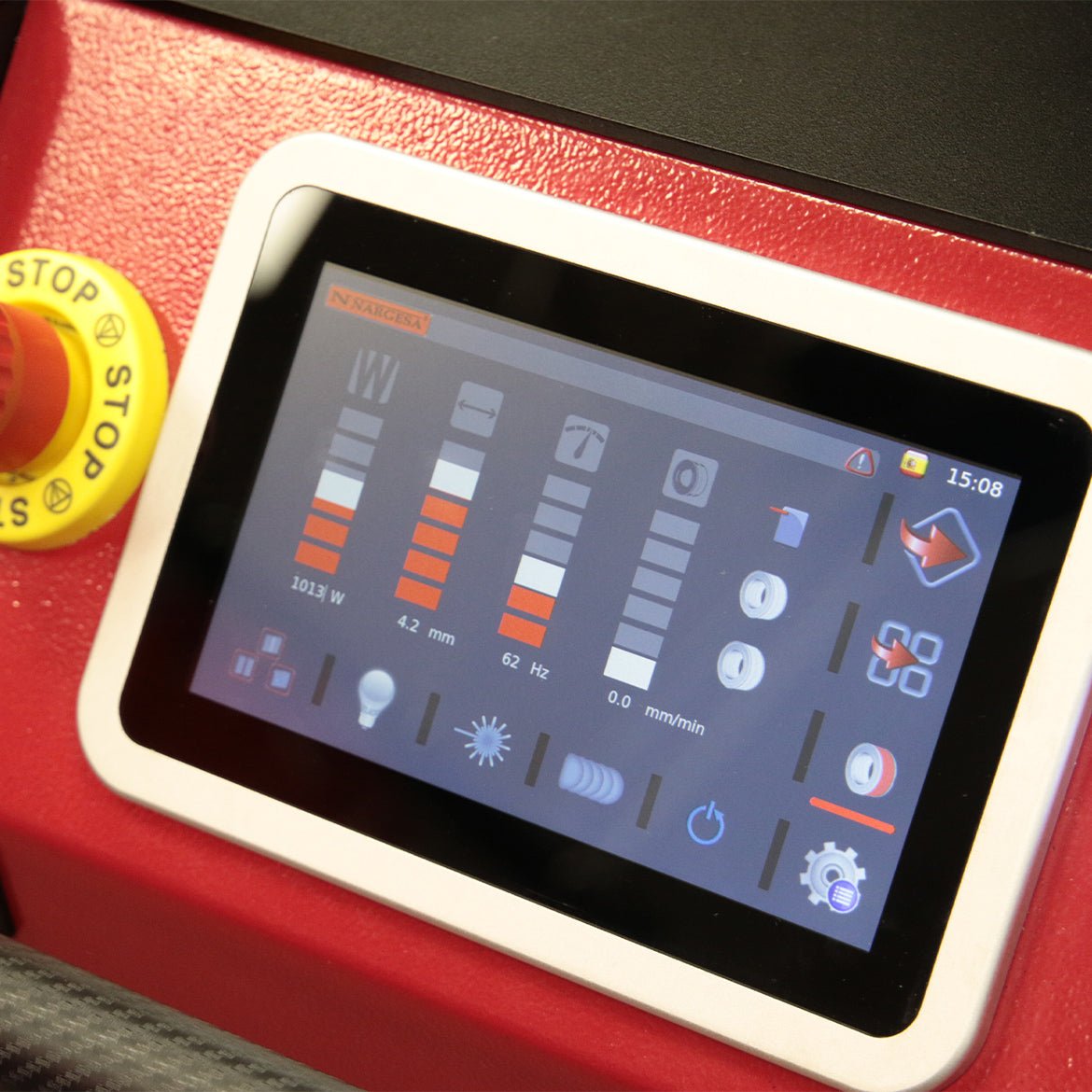

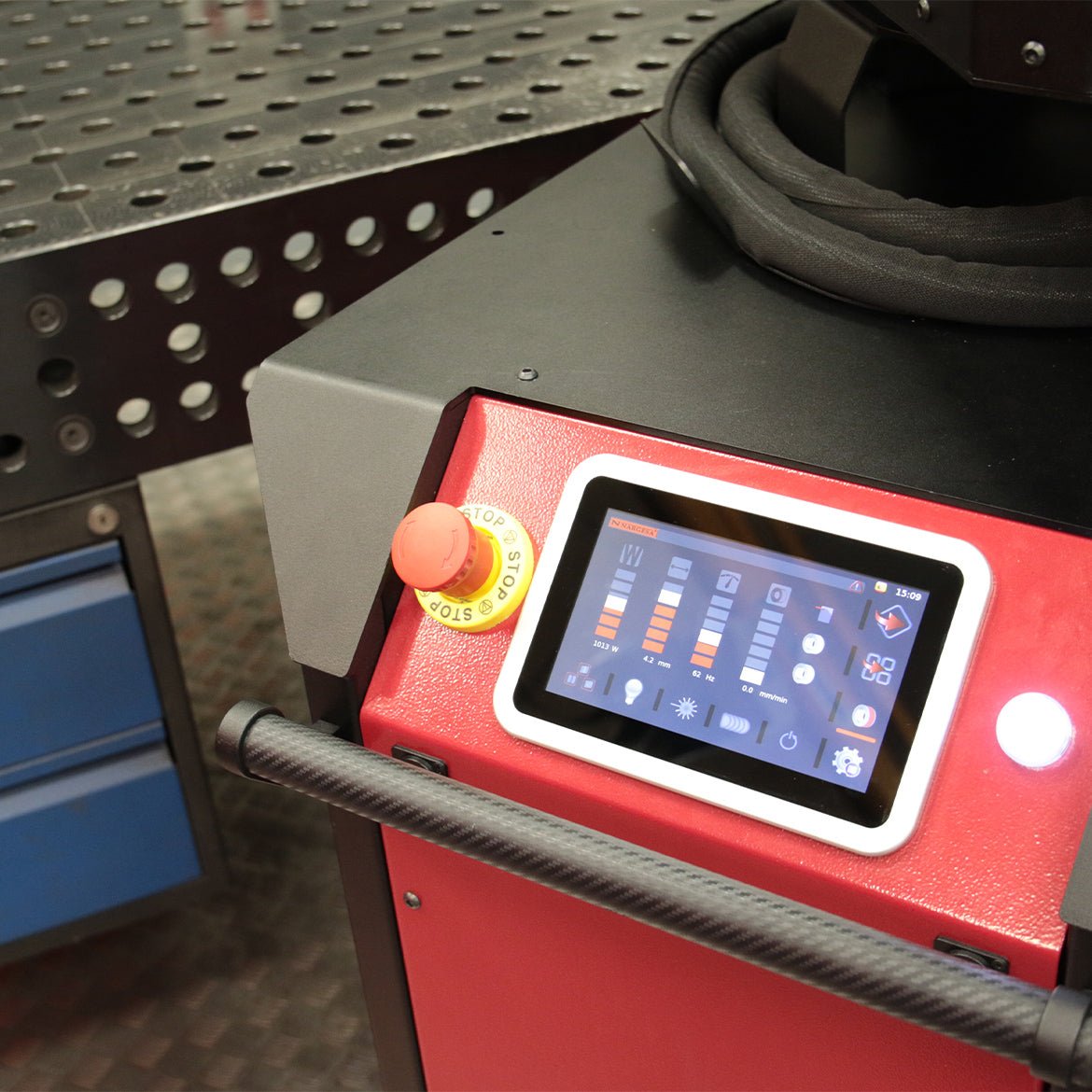

THE ESA S820 CONTROL FEATURES
The Nargesa MS20 Laser Welder is equipped with a 7” full-color touchscreen control panel—intuitive, user-friendly, and powered by the latest Industry 4.0 technology. It includes a powerful database for welding, cleaning, and cutting, with the ability to automatically modify and save programs.
- Storage capacity for up to 10,000 programs
-
Measurement units configurable in inches or millimeters
-
Powerful database for welding, cleaning, and cutting
-
Preloaded material library with the ability to add new entries
-
Welding and material library
-
Cleaning and material library
-
Cutting and material library
-
Dynamic temperature control for the Protective Lens
-
Dynamic temperature control for the Focus Lens
-
Dynamic temperature control for the Torch Motor
-
Programming available in over 20 languages
-
Industry 4.0-ready
-
On-screen alarm diagnostics
-
Preventive maintenance notifications
-
Remote connectivity option for manufacturer support
-
7” touchscreen display resolution: 800x480
-
128MB silicon disk
-
2 analog inputs, 12-bit resolution
-
16 digital inputs (24 VDC)
-
16 digital outputs (24 VDC, max 0.7 A), protected against overload and short-circuit
-
1 RS232 serial port
-
1 CAN port with 9-pin Sub-D female connector
-
1 USB port
INCLUDED ACCESSORIES & TOOLING
Magnetic torch holder for table mounting
Certified protective glasses
Accessory and tool drawer with individual compartments
Star knob
Allen keys: 2mm, 2.5mm, and 3mm
3 nozzles for welding without wire feed
3 nozzles for single wire feed
5 single wire feed contact tips: 0.8mm, 1mm, 1.2mm, 1.6mm, 2mm / 0.030”, 0.035”, 0.045”, 0.063”, 0.079”
3 nozzles for double wire feed
5 double wire feed contact tips: 0.8mm, 1mm, 1.2mm, 1.6mm, 2mm / 0.030”, 0.035”, 0.045”, 0.063”, 0.079”
1 cutting nozzle
1 cutting tip1 cleaning nozzle10 protective lenses
1 focus lens
4 V-groove wire feed rollers for 0.8mm and 1mm wire / 0.030”, 0.035”
4 V-groove wire feed rollers for 1.2mm and 1.6mm wire / 0.045”, 0.063”
4 V-groove wire feed rollers for 1.6mm and 2mm wire / 0.063”, 0.079”
4 U-groove aluminum wire rollers for 0.8mm and 1mm wire / 0.030”, 0.035”
4 U-groove aluminum wire rollers for 1.2mm and 1.6mm wire / 0.045”, 0.063”
4 U-groove aluminum wire rollers for 1.6mm and 2mm wire / 0.063”, 0.079”
2 wire liners – fully compatible with standard MIG welding machines
1 laser centering tape
