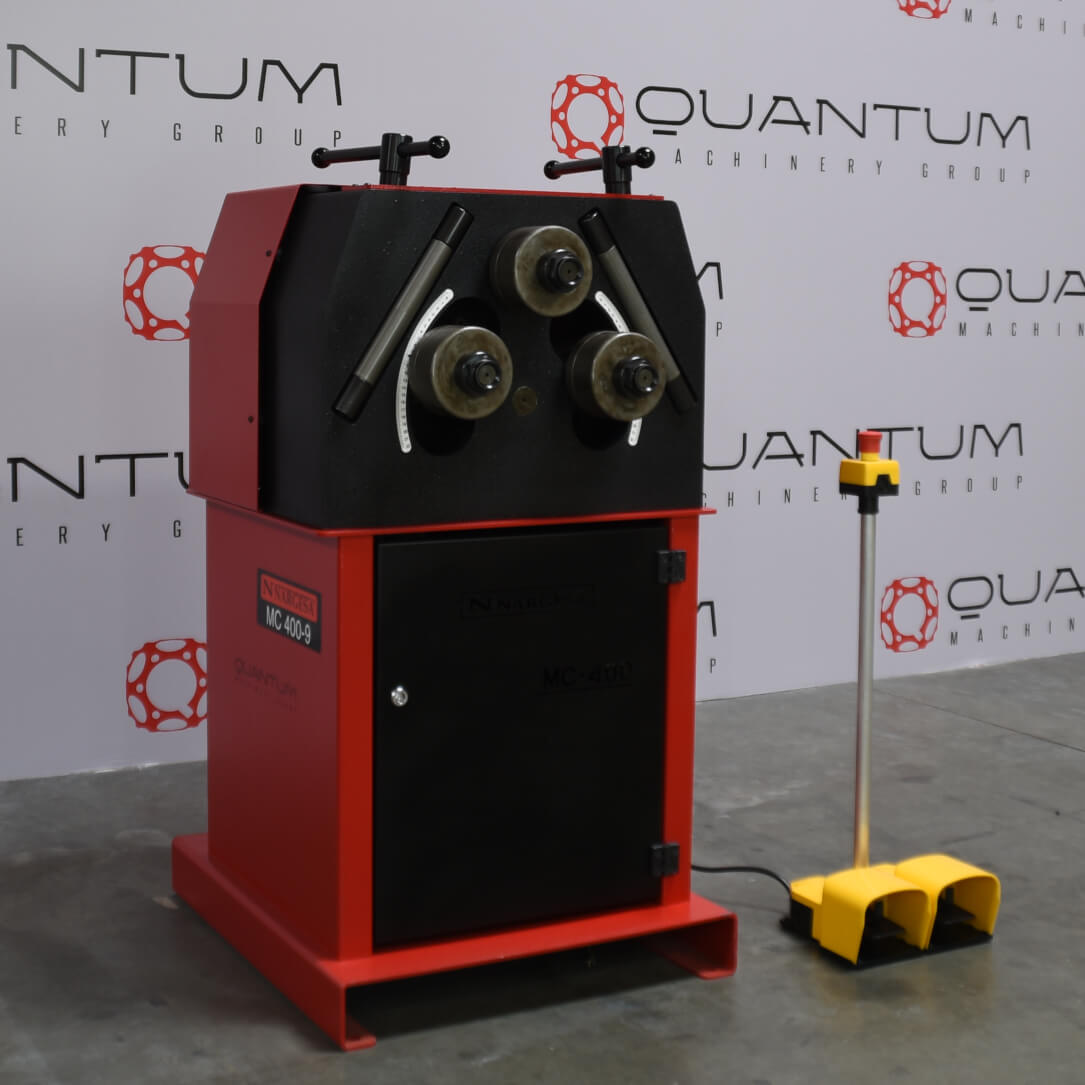

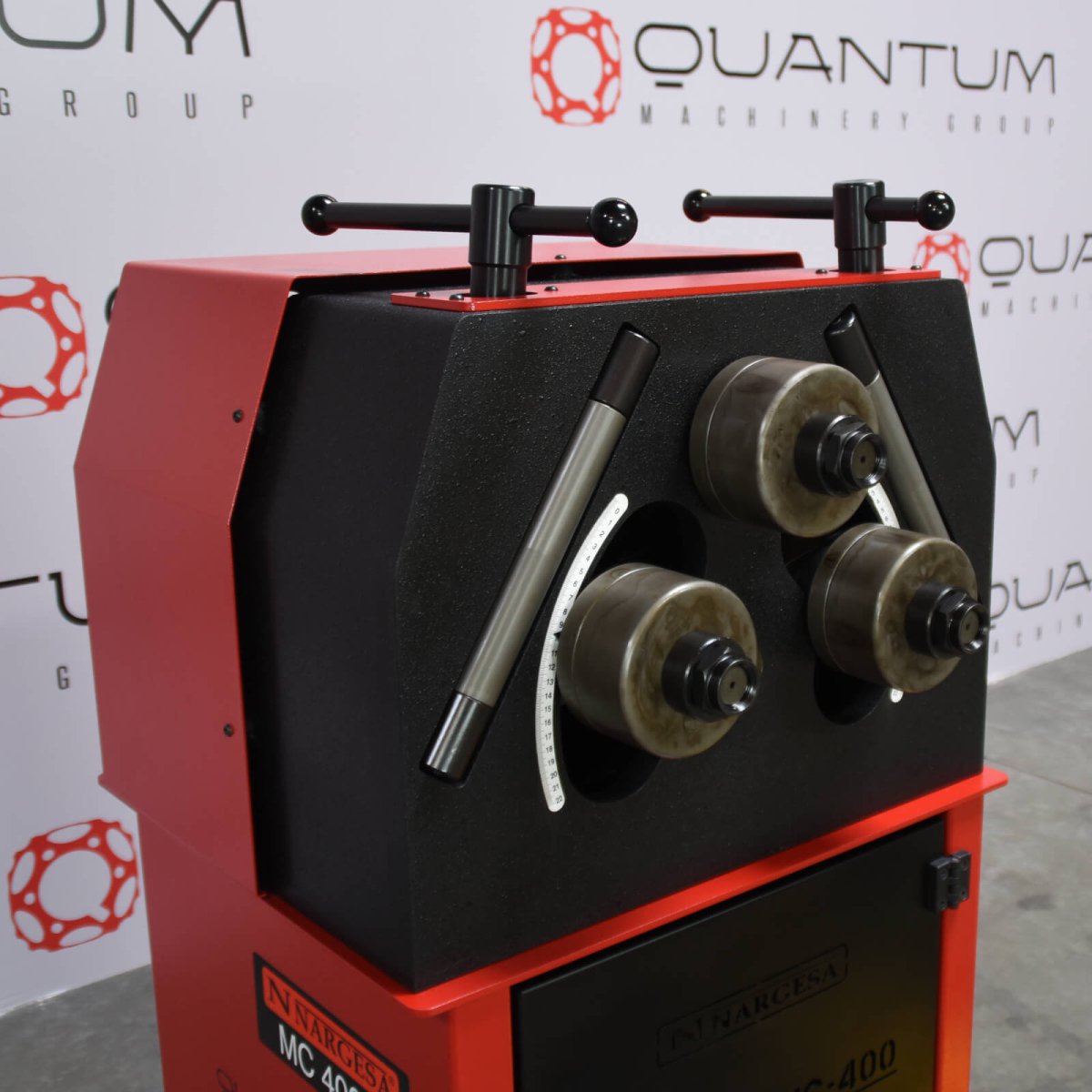

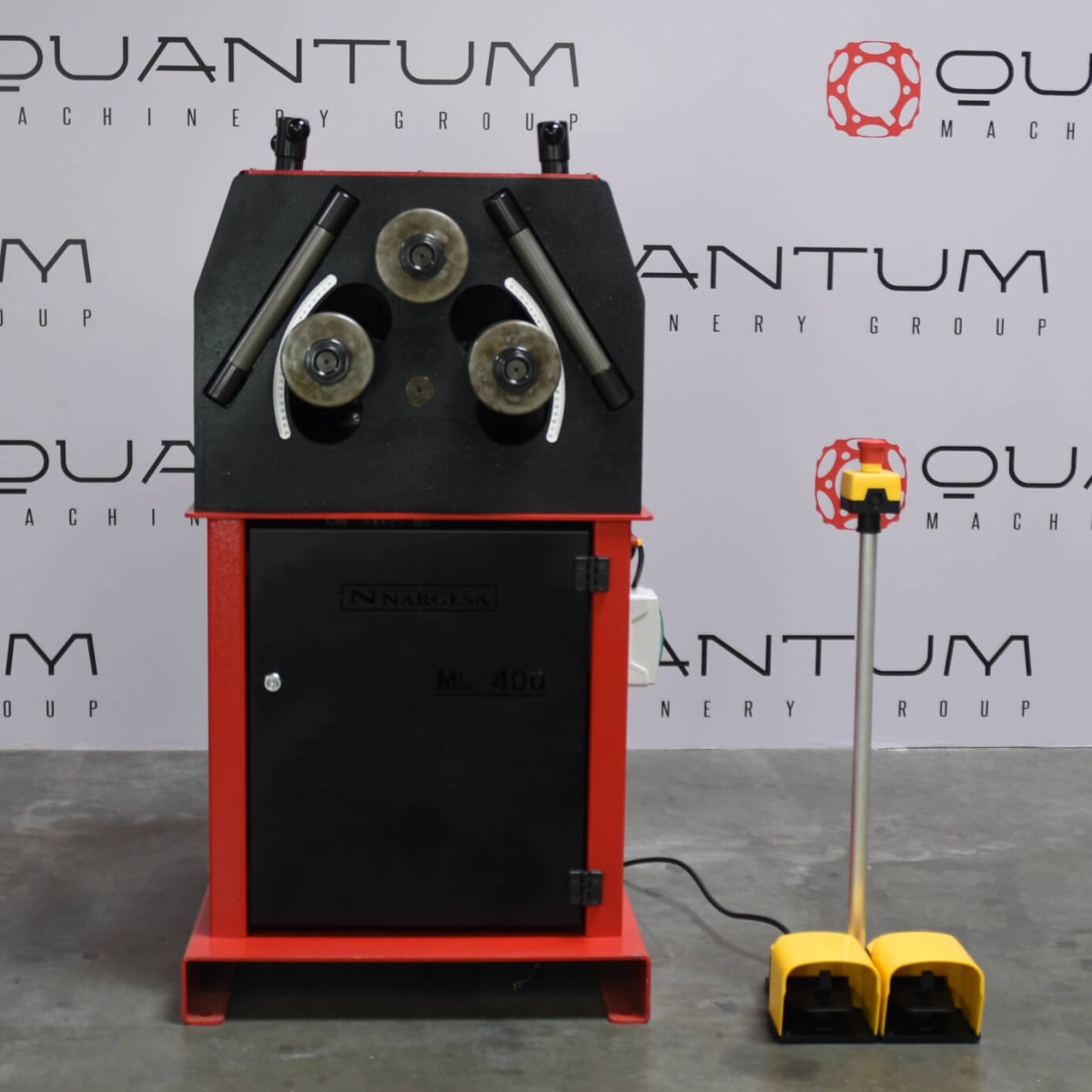

MC400: Planetary-Style Roll Bender (Bend up to 2.5" O.D. Round Tube)

Sale price$13,320 Regular price$18,145
Save $4,825

Electrical Options: 220V / 1PH / 60Hz

WATCH THE VIDEO TO SEE EXACTLY HOW THE NARGESA MC400 ROLL BENDER WORKS ALONG WITH SOME OF IT’S FEATURES

The NARGESA MC400 Section and pipe bending Roll Bender. Our pipe bender MC400 is designed to minimize the manufacturing cost and provide maximum performance when bending pipes and profiles. It has been manufactured for different profiles such as flat bar or bar section, T-profile, rolling U-profile, bending angle, bending solid rod, both square and round types, spiral tube or even to perform square, rectangular or round pipe in different materials: iron, carbon steel, stainless steel, brass, copper, aluminum. The purpose of these bending operations varies from making greenhouses, tables, chairs, car guards, doors, windows, railings, fences up to countless metal products.

All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...

THE MC400 BENDING CAPACITIES

  • Round Tube: 2.5" x .120" with a Minimum Radius of 18" Inches
  • Square Tube: 2" x 2" x .120" with a Minimum Radius of 24" Inches
  • Angle (Leg-Out): 1.5" with a Minimum Radius of 8" Inches
  • Flat Bar (Easy Way): 3.15" x 0.75" with a Minimum Radius of 6" Inches
  • Flat Bar (Hard Way): 2.25" x 0.39" with a Minimum Radius of 10" Inches
  • Solid Round: 1.15" with a Minimum Radius of 6" Inches
  • Solid Square: 1.15" x 1.15" with a Minimum Radius of 6" Inches
  • C-Channel (Easy Way): 2.25" with a Minimum Radius of 9" Inches
  • C-Channel (Hard Way): 2.25" with a Minimum Radius of 9" Inches
  • T-Channel (Easy Way): 1.5" x 1.5" with a Minimum Radius of 6" Inches

STANDARD TOOLING CONFIGURATION:

The Nargesa MC400 Roll Bender is equipped with 9 standard pieces, by means of which the user can work all kinds of profiles. Square, Rectangular Tube, Square Bars, C-Channel, T-Channel, Angle, Flat Bar, and Edged Flat Bar. Adjustable rollers, by washers with the size of profile which allows us to make bending to different profile sizes.


TECHNICAL SPECS AND FEATURES OF THE MC400

    • Rollers Speed: 7 RPM

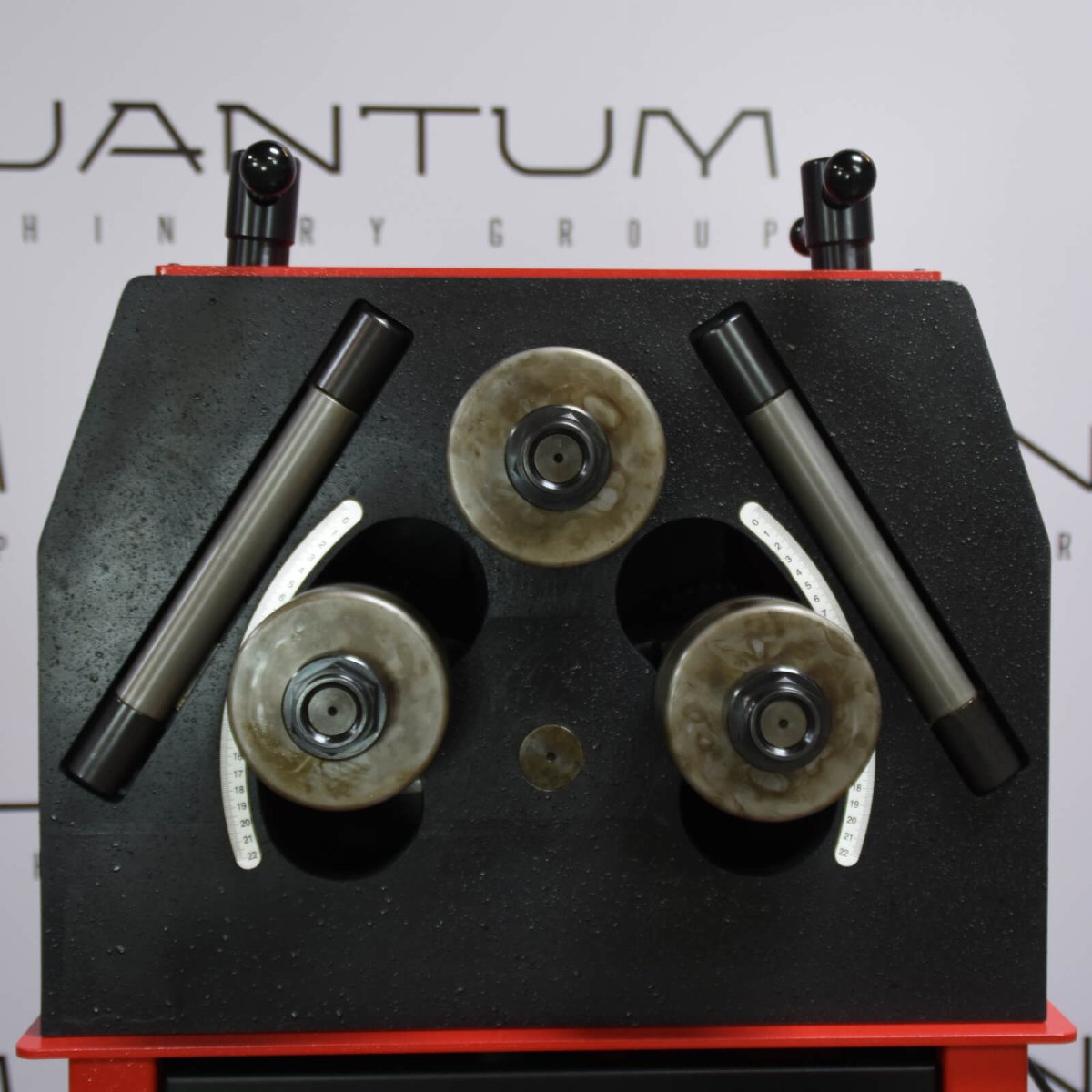

    • Number of Drive Rollers: 3 Drive Rollers
    • Diameter of Axes: 1.5" / 40mm
    • Useful Axes Length: 3.15" / 80mm
    • Motor Power: 1.1 KW / 1.5 HP
    • Dimensions: 26"L x 30"W x 50"H
    • Approx. Machine Weight: 800 lbs.

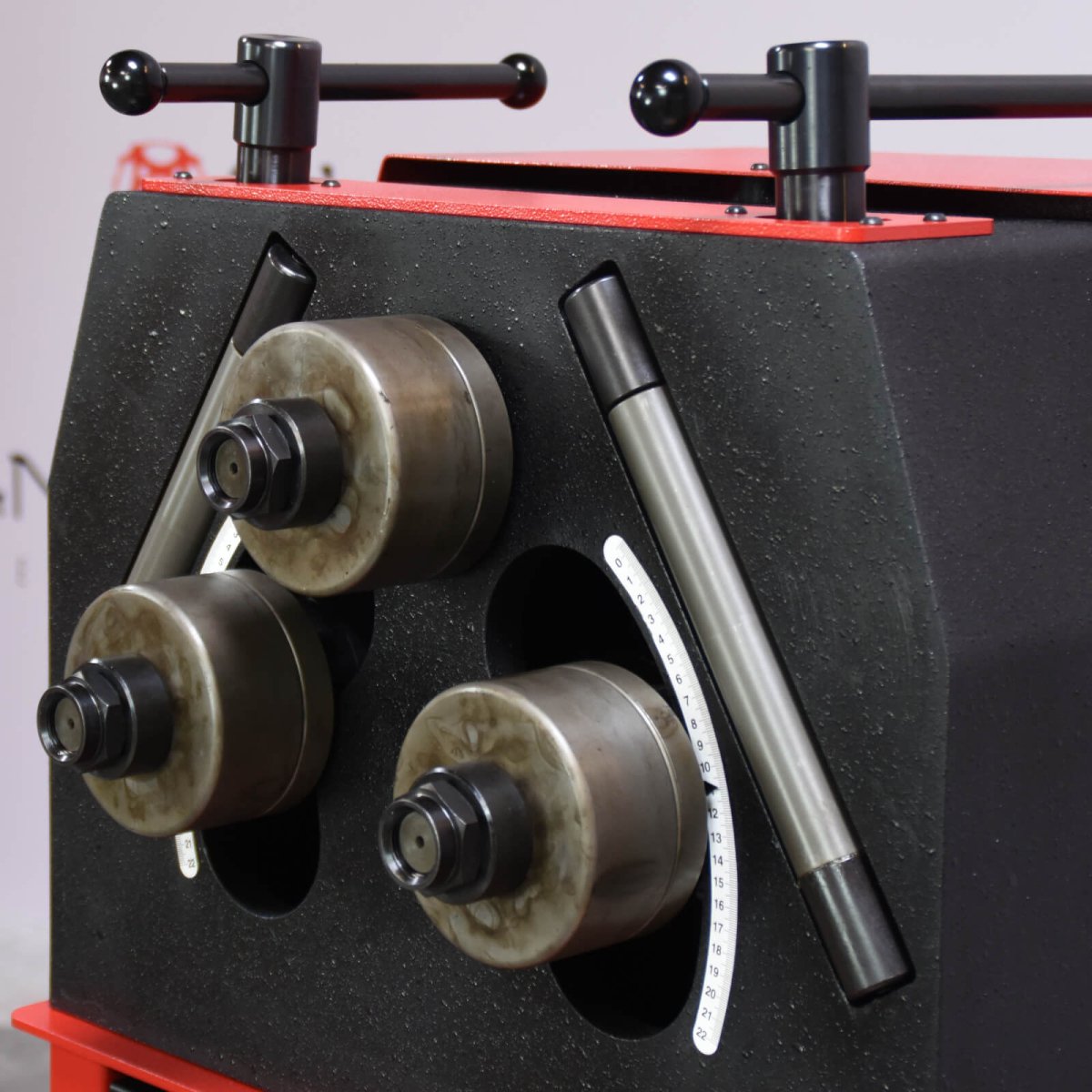

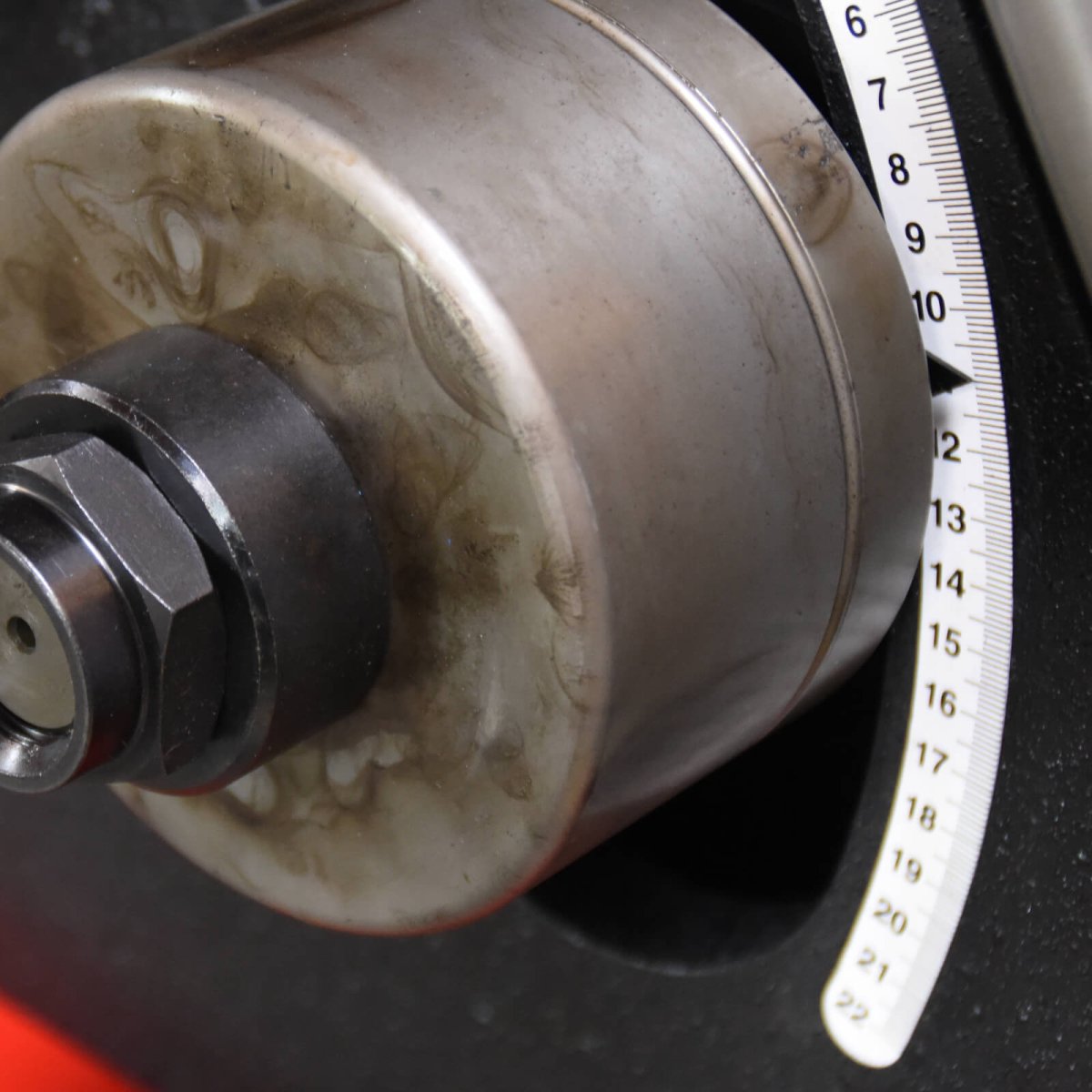

    • Millimeter scale for bending in the upper shaft.
    • Maximum Capacity for Bending Round Tube: 2.5" inches or 63.5 mm
    • Manufacturer's Warranty: 3 Years on All Parts (Fulfilled by Quantum Machinery Group.)
  • Lower bench palletized to easily transport the machine to the workplace or store it in case of lacking space.
  • Correction rollers on the sides to control the bending deformation when making spirals and spiral staircases.
  • Bending regulation by the upper shaft, which allows to curve tube and profile dimensions and profiles of large diameter without deformation.
  • Secure transmission by using flat hardened pinions.
  • Base cupboard for rollers and accessories.
  • The MC400 can be brought in to be used in either the Vertical Position, or Horizontal Position. (MUST SPECIFY WITH ORDER.) The MC400 can be used in either the vertical or horizontal position. Horizontal table is ideal for big diameter jobs or facilities with heightshortage. 90% of our customers use our vertical MC400. Whenever the place allows it it is more advisable to work in the vertical mode since it is more comfortable for the operator. (Must tell Sales Engineer which style you'd prefer, as it must be specially made if you would like it in the horizontal position.)
