Digital Arc Meter: High Precision Digital Radius Gauge

Sale price$2,950

WATCH THE VIDEO TO SEE EXACTLY HOW THE NARGESA DIGITAL ARC METER WORKS ALONG WITH SOME OF IT’S FEATURES

The NARGESA High Precision Digital Arc Meter allows the user to have a direct and immediate reading of inner and outer radius in a range from 55 to 11.250 millimeters or from 2” to 443” inches. The High precision digital radius gauge measures radii in spherical objects such as tubes, profiles and pipes in a quick and accurate way. To obtain an optimum result in the different bending operations, it is essential to count on accurate and reliable measurements tools. The Digital arc meter is the best complement for the Nargesa Section and tubes bending machines. This tool enables to check the bending radius on the bent profiles in a quick and accurate way, without the need to take off the tube from the machine.

All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...


TECHNICAL SPECS AND FEATURES FOR THE DIGITAL ARC METER

    • Width: 390 mm (15.35”)

    • Depth: 280 mm (11.02”)

    • Height: 100 mm (3.93”

    • Volume: 0,11 m3

    • Net Weight: 1,30 Kg. (2.86 lbs.)

    • Gross Weight: 2,75 Kg. (6.06 lbs.)

    • Measurement scope: From 55 to 11.250 millimeters or from 2" to 443" Inches

    • Accuracy: 0.01

    • Power supply: 3V CR2032 Lithium battery (included)

    • Working temperature: 0±40ºC

    • Storage and transport temperature: -20ºC – 60ºC

    • Relative humidity: =80%

FEATURES OF THE DIGITAL ARC METER

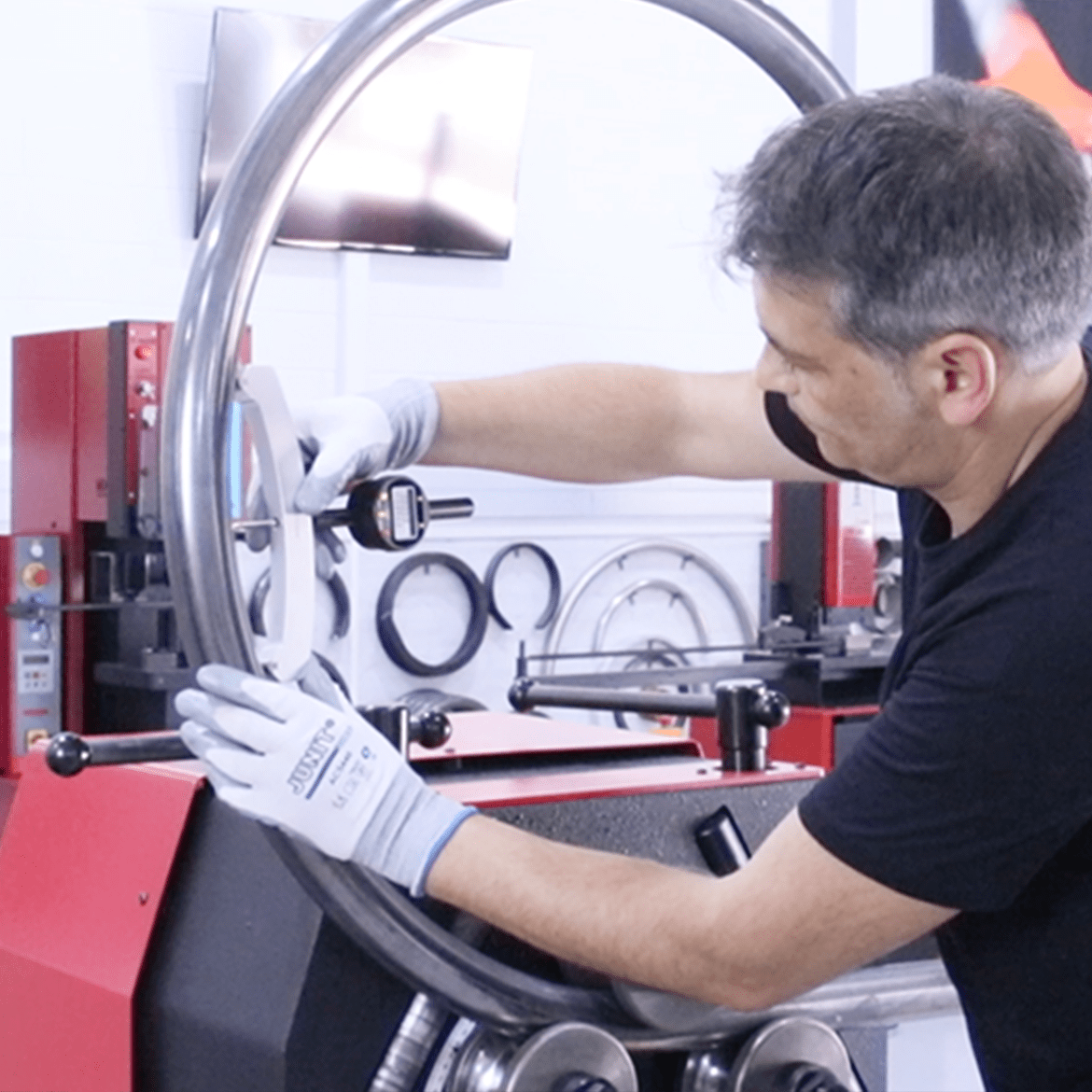

Person measuring a circular object with a digital caliper.

COMFORT

No need to prepare and cut a template to know the radius of a bend, it is not necessary to remove the part from the machine to measure it either. The digital radius gauge makes the job quicker and easier.

EASY TO USE

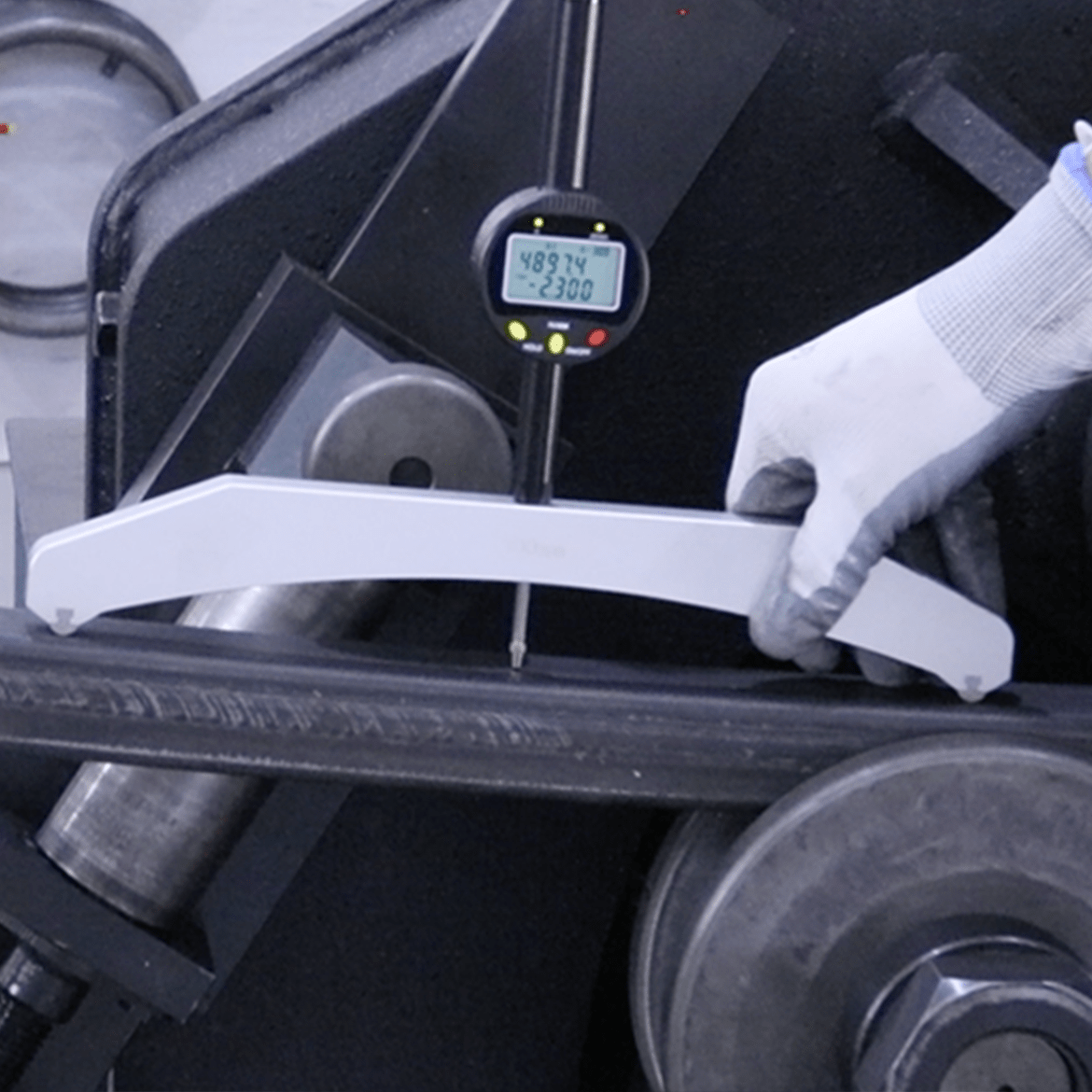

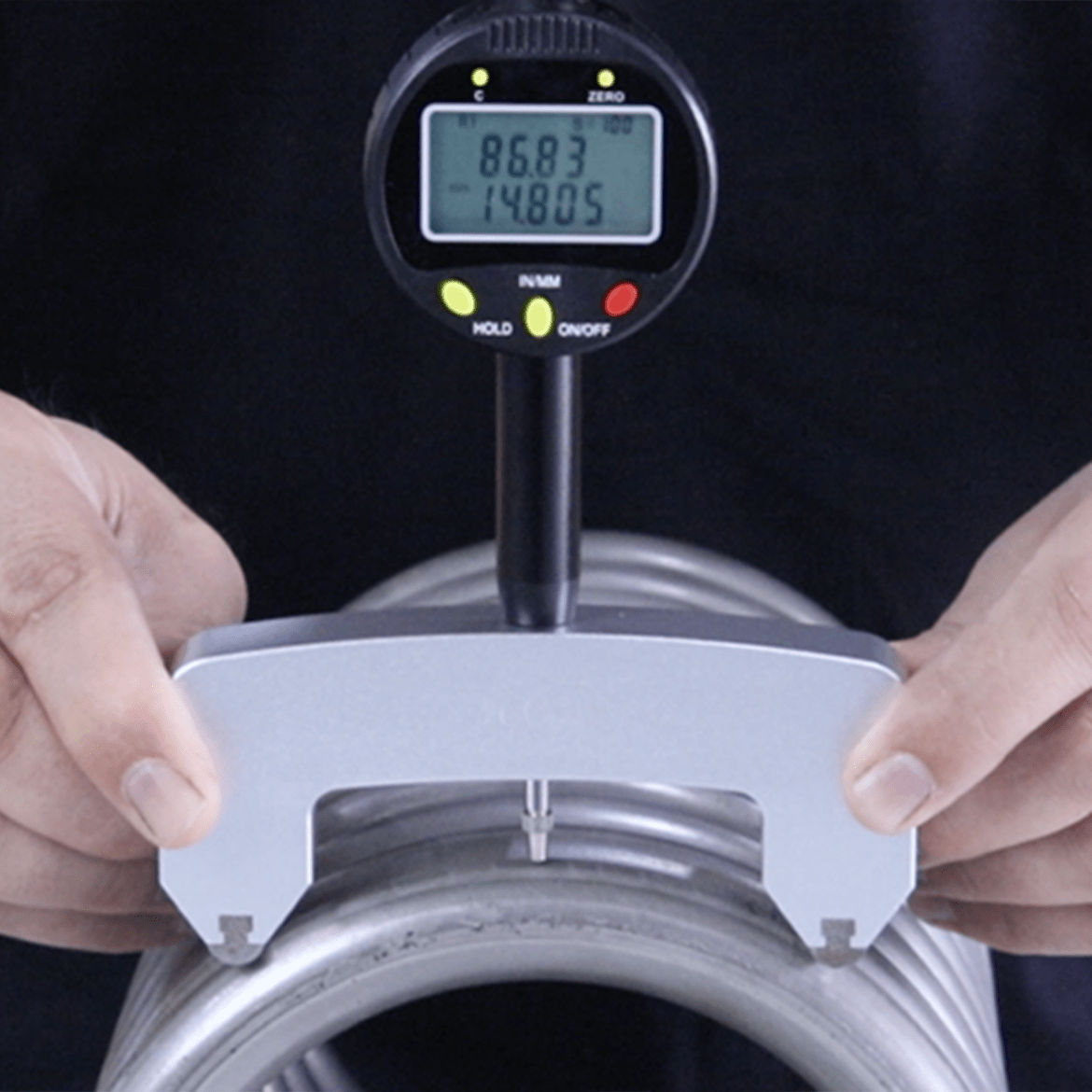

Its use is simple and the measurement process is very fast. We only have to place the digital radius gauge on the internal or external part of the curve and it will automatically show the value.

Person measuring a metallic object with a caliper in a workshop.

MULTI-MATERIAL & HIGH PRECISION

This tool is suitable for any kind of solid and consistent materials like steel, wood or plastic shapes. Its error tolerance over the radius is 0,01mm. Precision will depend on the surface quality of the material to measure.

LCD DIGITAL SCREEN

Comfortable reading of all data and low power consumption. It is small and light, you can easily use it for different measurements.

APPLICATION SCOPE

This digital radius gauge is supplied with three different high precision arc meters. The use of either one or other arch meter offers a measurement range swinging from 55 to 11.250 millimeters and from 2" to 443" inches.

WIDE OR SMALL RADII

Unlike other manufacturers, the High Precision Arc Meter Nargesa can measure radii up to 12m with maximum precision. For bigger radii, please consult the manufacturer. The great touch sensor length allows its use even when the inner radius to measure is very tiny.

TWO UNITS OF MEASURE

You can select either millimeters or inches just by pressing a button.

STORAGE

It is delivered inside a stainless briefcase, with an inner foam protection to keep it safe and protect the arc meter when it is not in use.


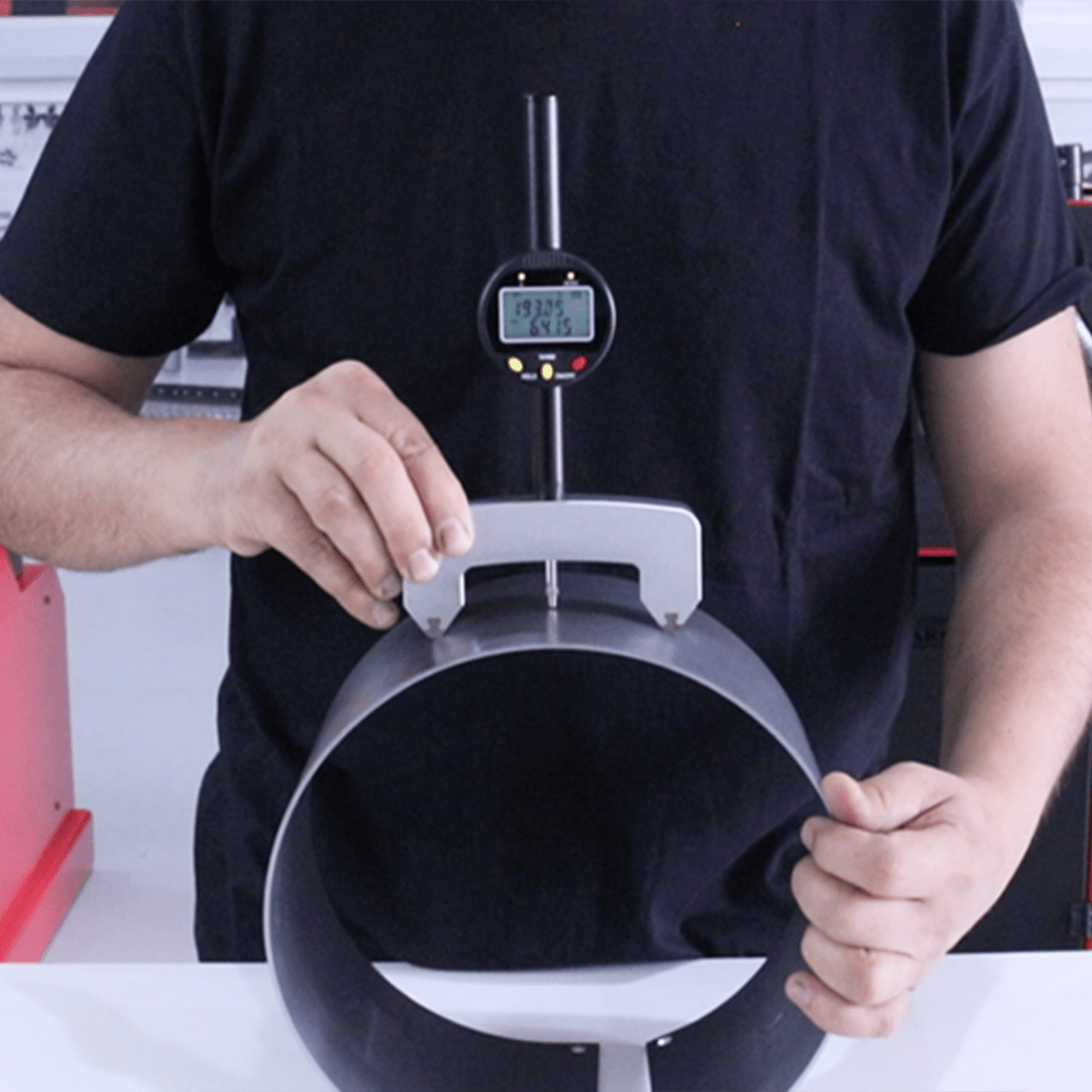

100mm MEASUREMENT ARC

This tool is attached to the arc meter to measure internal or external radii, amongst the following ranges:

Minimum radius: 55mm or 2"

Maximum radius: 625mm or 25"

Weight of the tool: 0,25 Kg or 0.54 lbs.

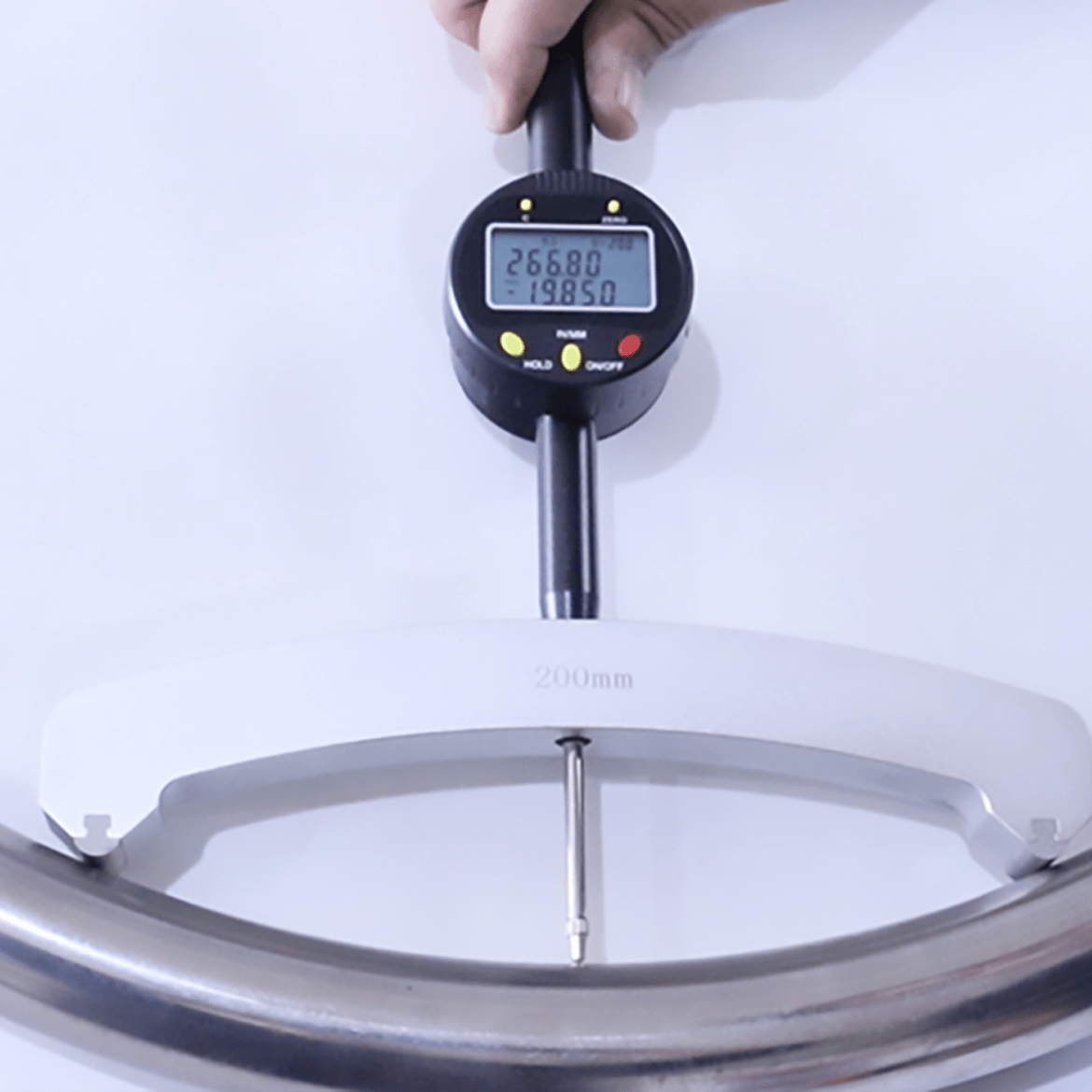

200mm MEASUREMENT ARC

This tool is attached to the arc meter to measure internal or external radii, amongst the following ranges:

Minimum radius: 125mm or 5"

Maximum radius: 2.500mm or 99"

Weight of the tool: 0,33 Kg or 0.73 lbs.

300mm MEASUREMENT ARC

This tool is attached to the arc meter to measure internal or external radii, amongst the following ranges:

Minimum radius: 475mm or 18"

Maximum radius: 11.250mm or 443"

Weight of the tool: 0,527 Kg or 1.16 lbs.
