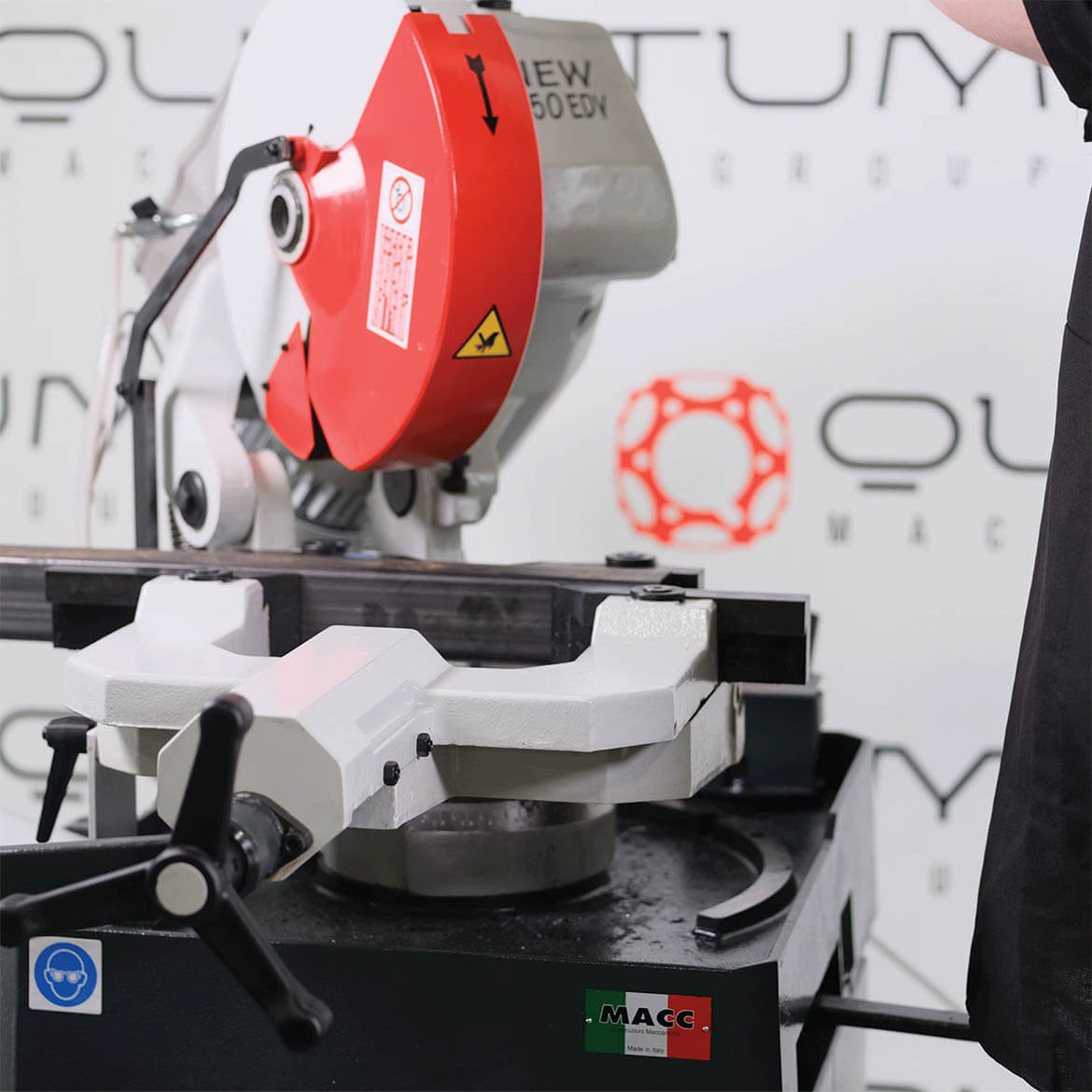

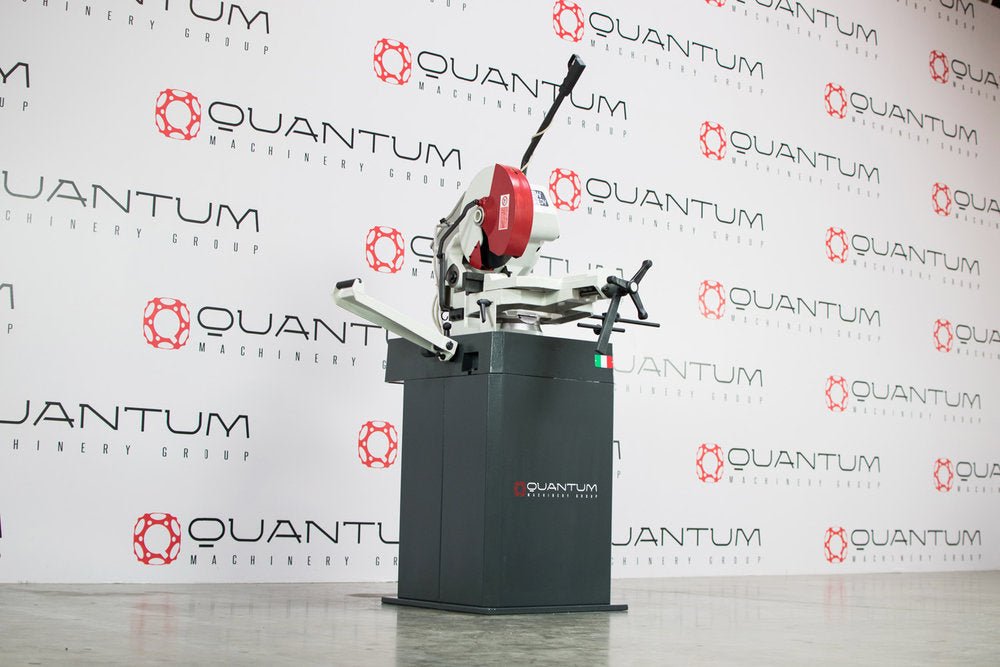

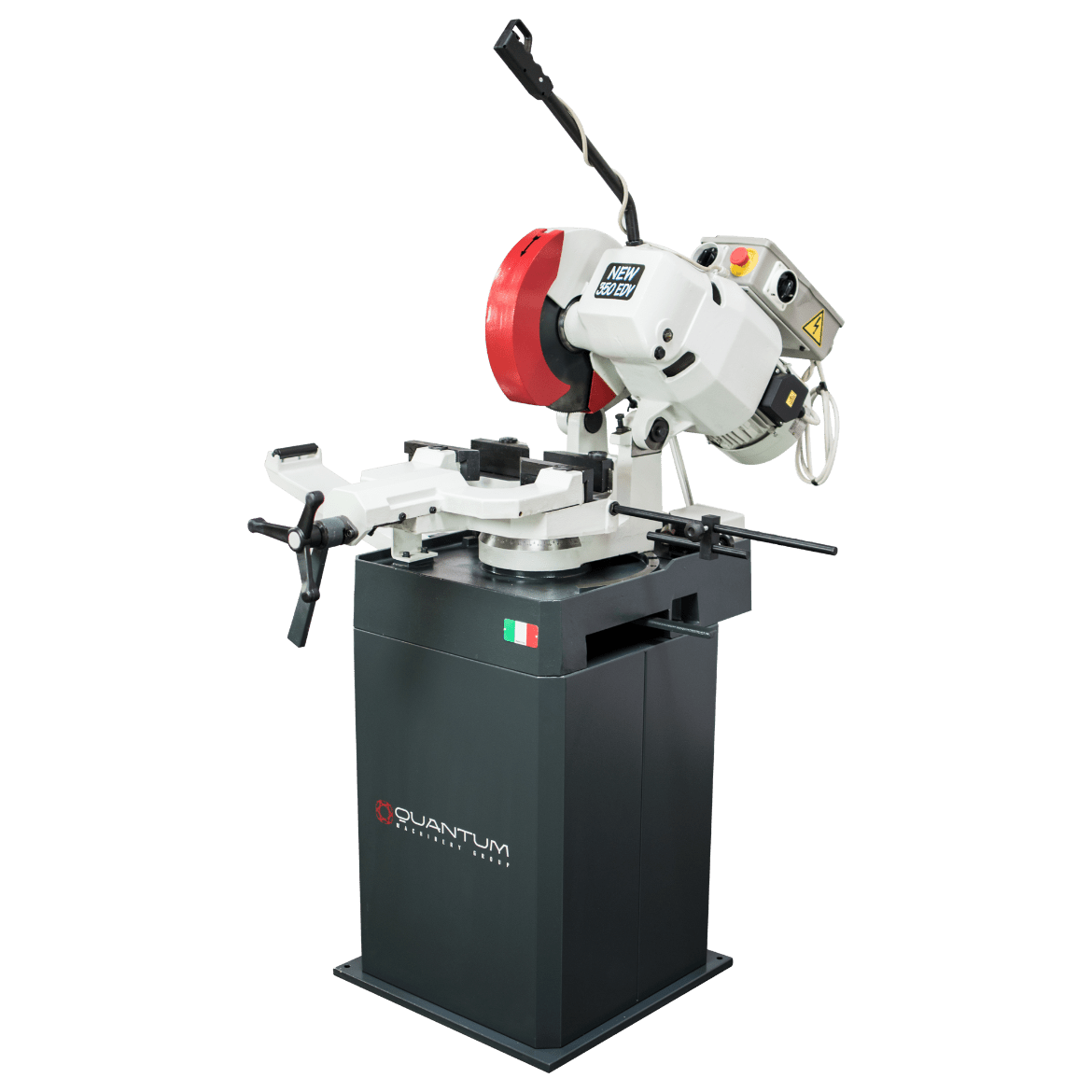

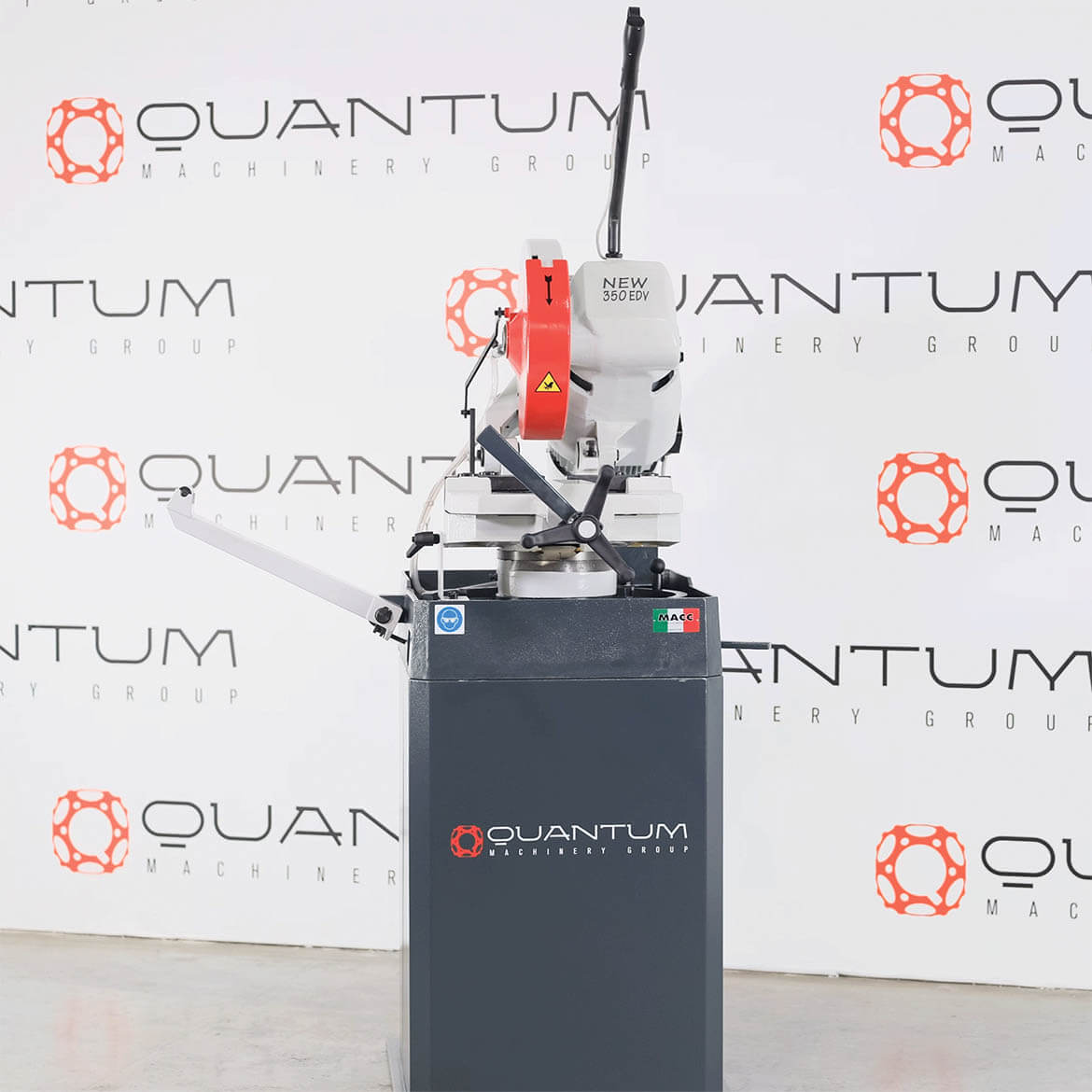

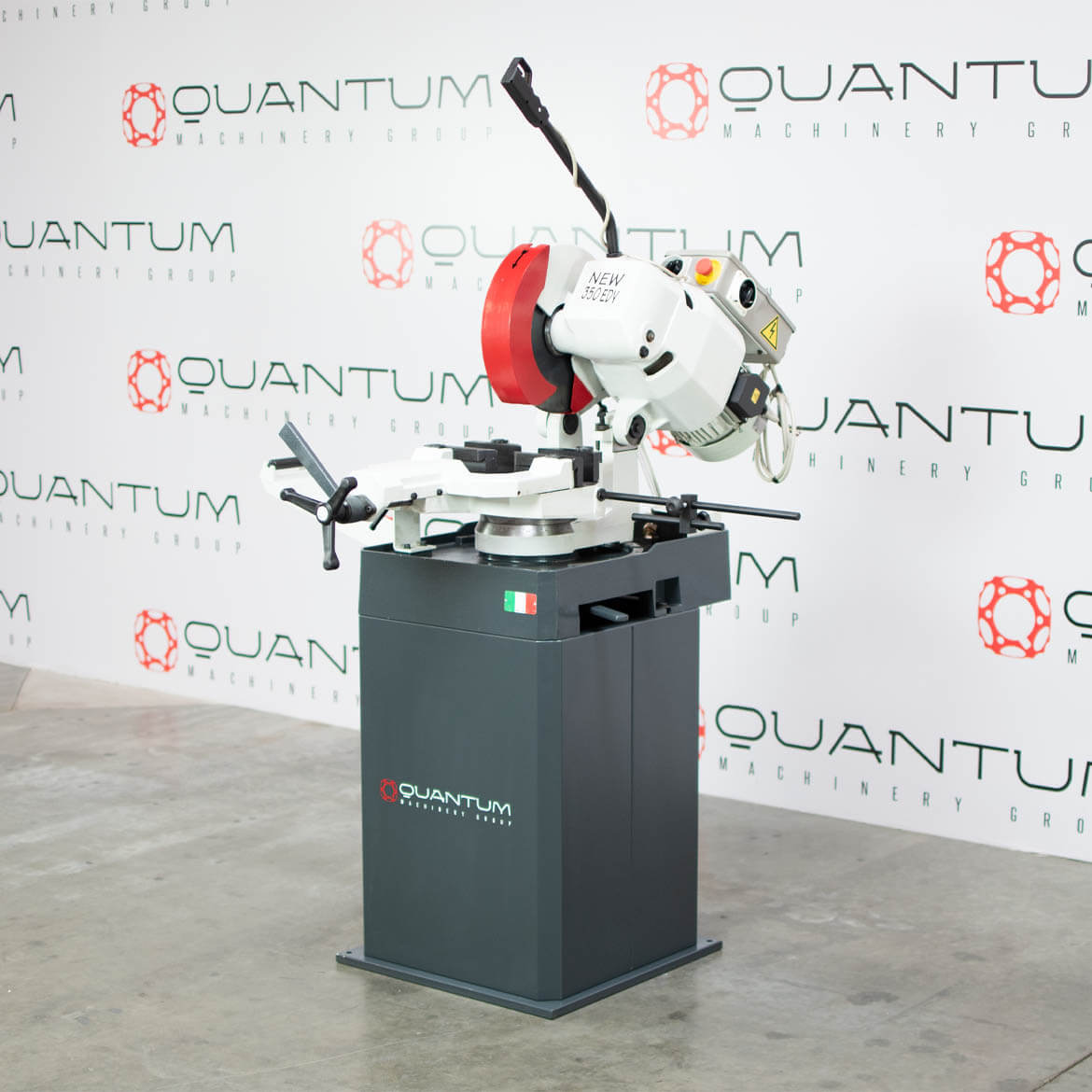

NEW 350 EDV: 14" Manual, Pivot-Style Cold Saw

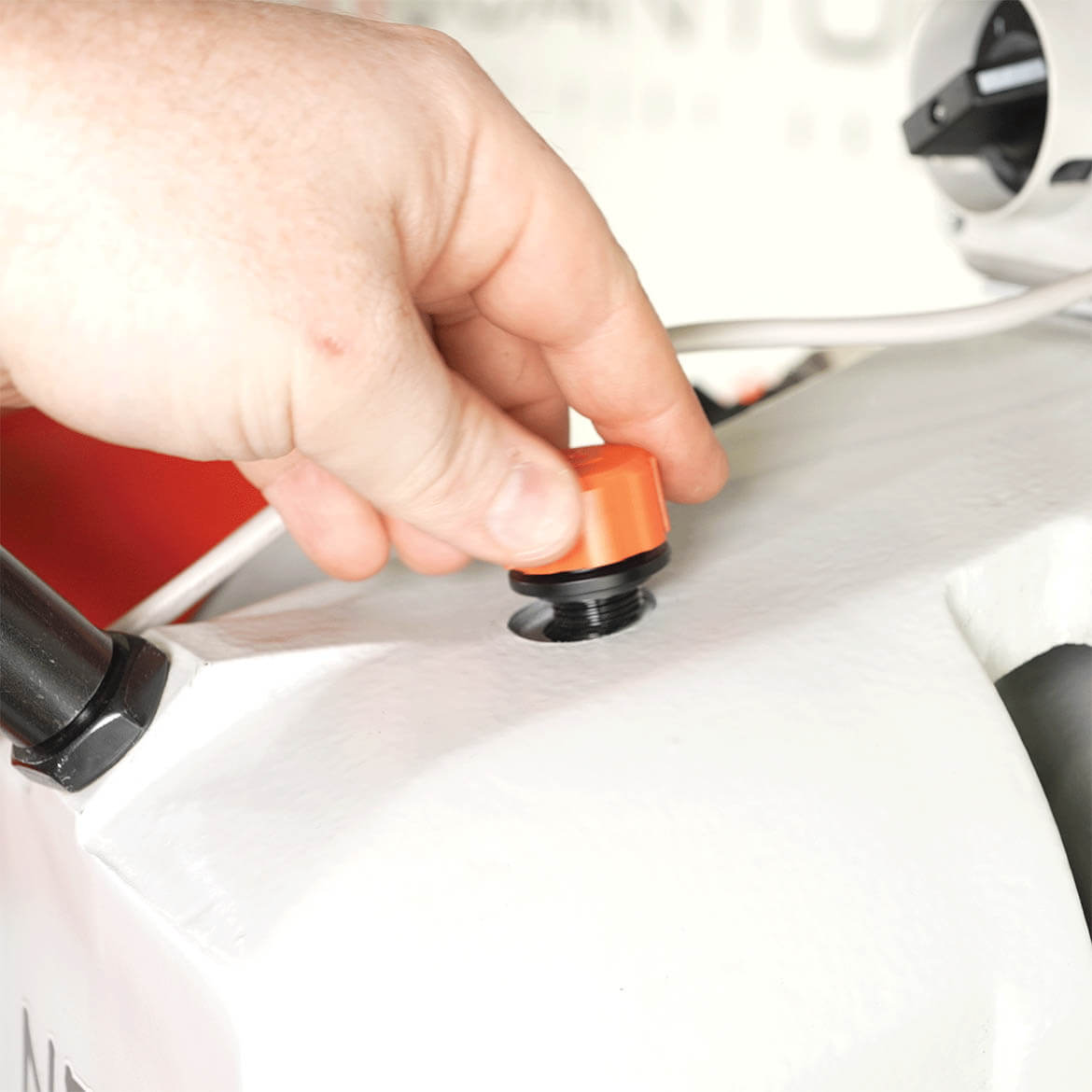

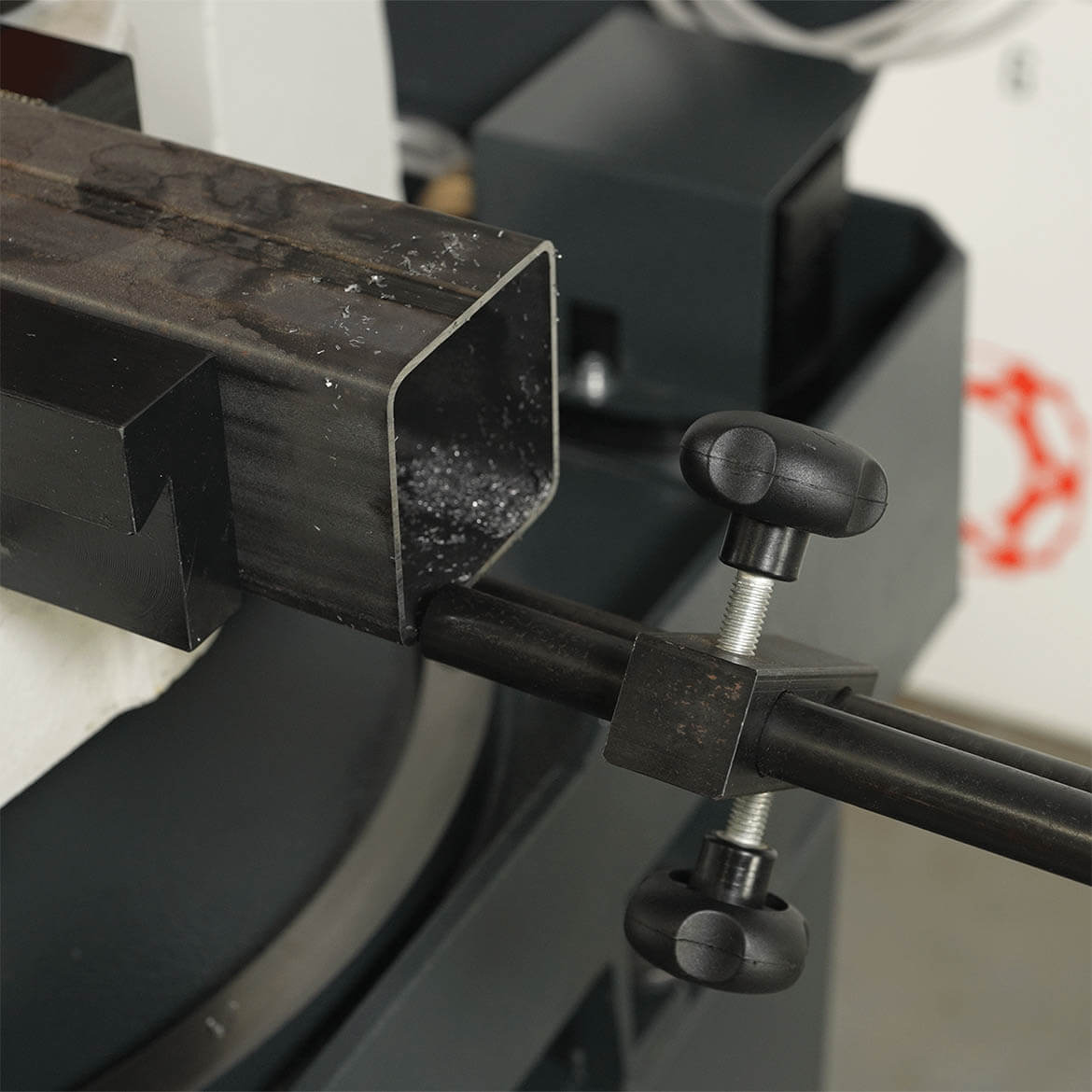

The NEW 350 EDV is a manual circular cold saw designed for higher-capacity metal cutting while maintaining precise control and repeatability. Its reinforced swivel head, oil-bath gearbox, and dual clamping system provide the stability required for consistent performance in demanding fabrication and production settings.

In common cold saw sizing practice, the 350mm blade capacity places this machine in the 14" class. This positions the NEW 350 EDV squarely in the standard-capacity range for cold saws, supporting broad blade availability and simplifying integration into established shop operations.

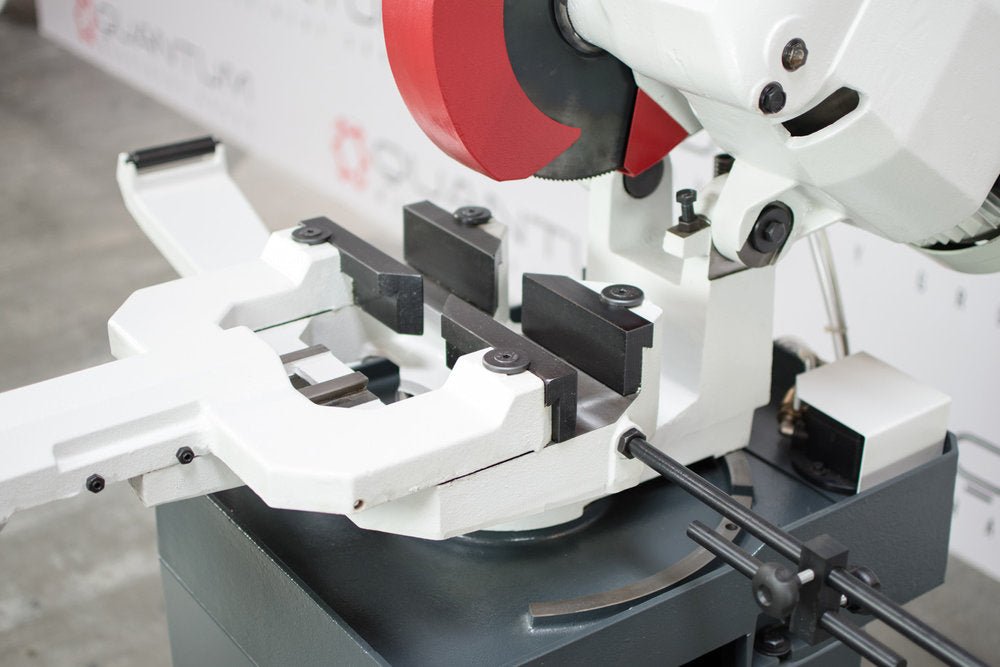

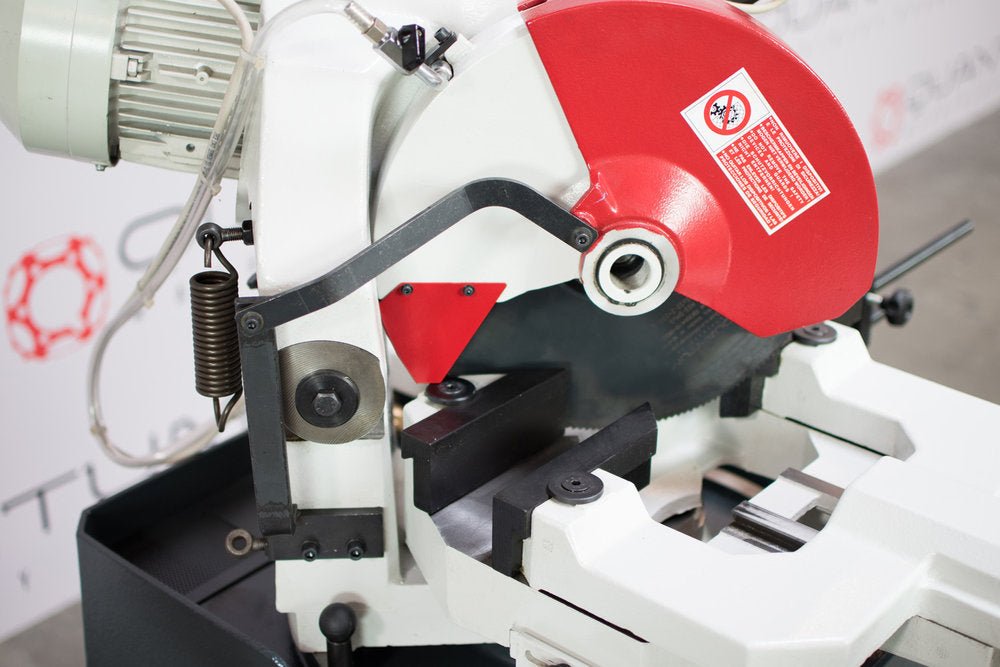

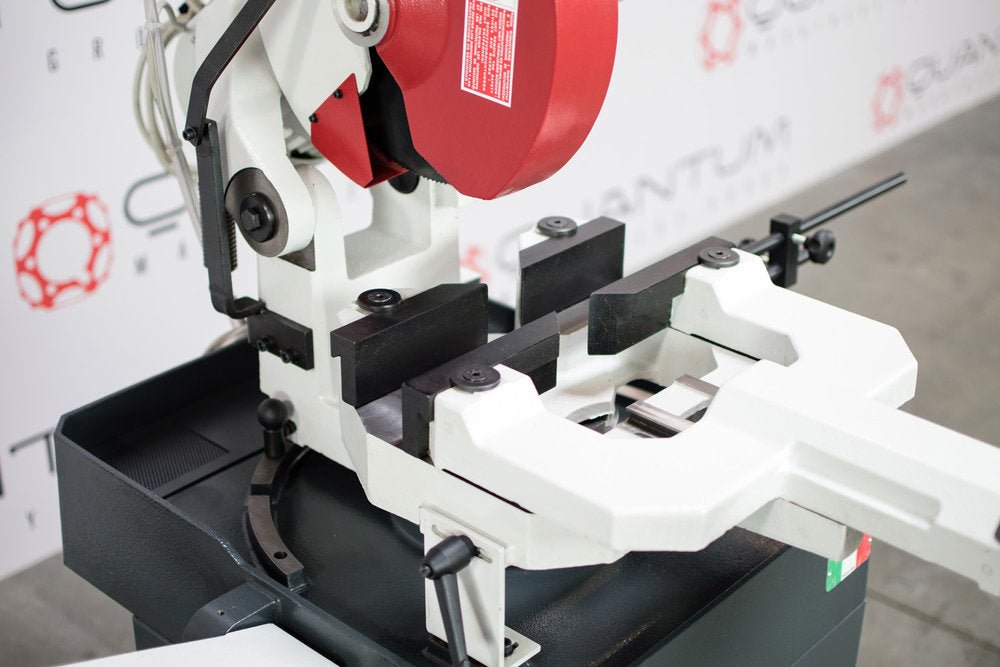

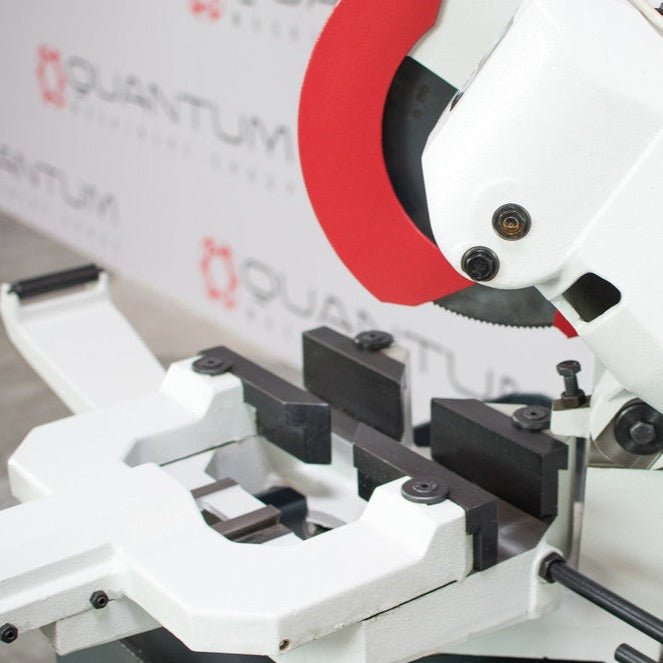

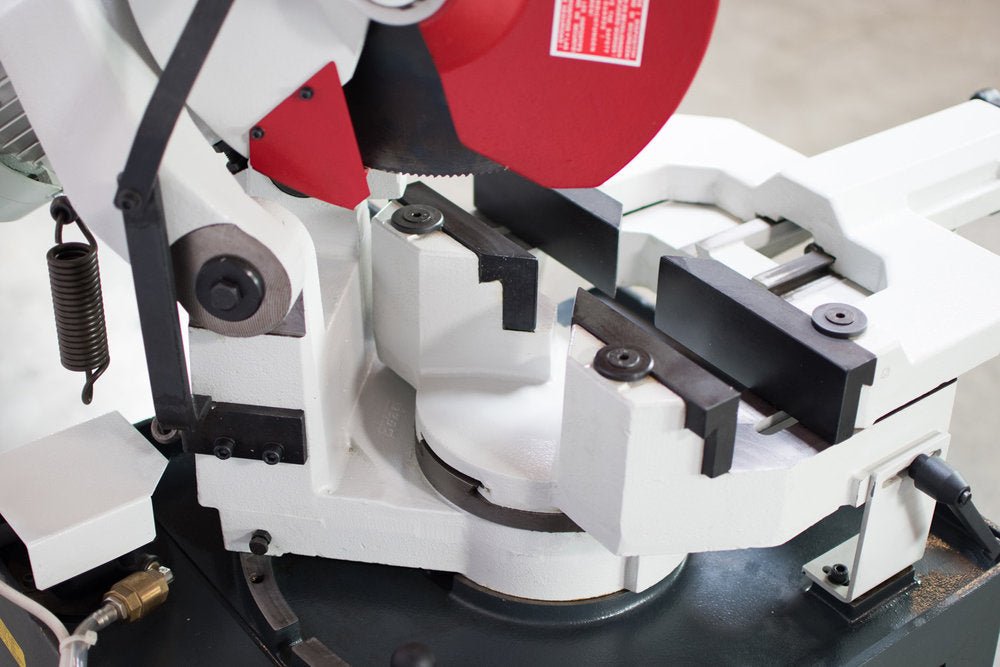

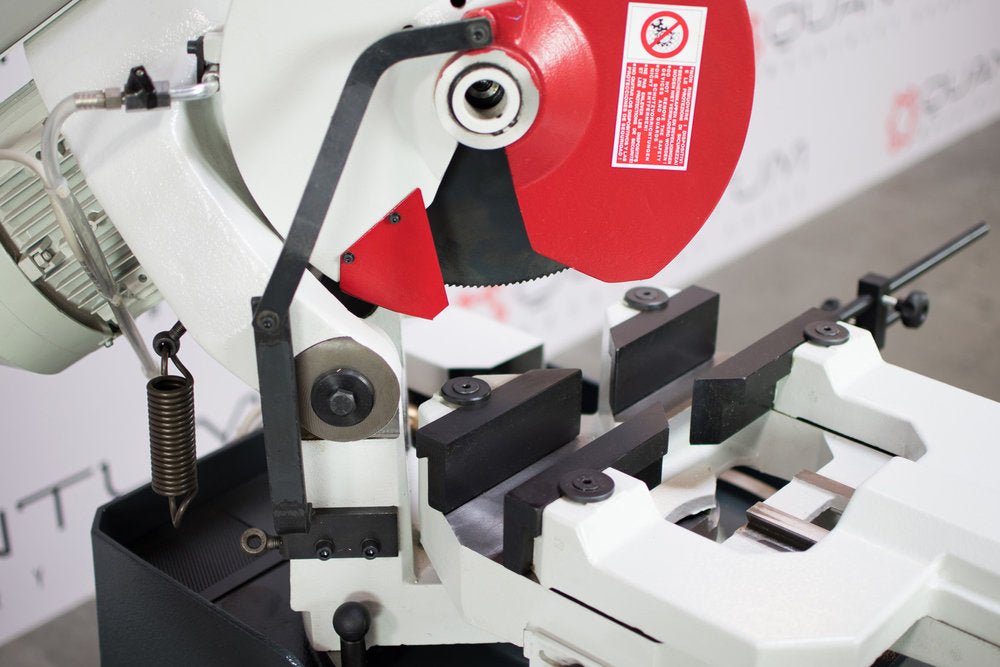

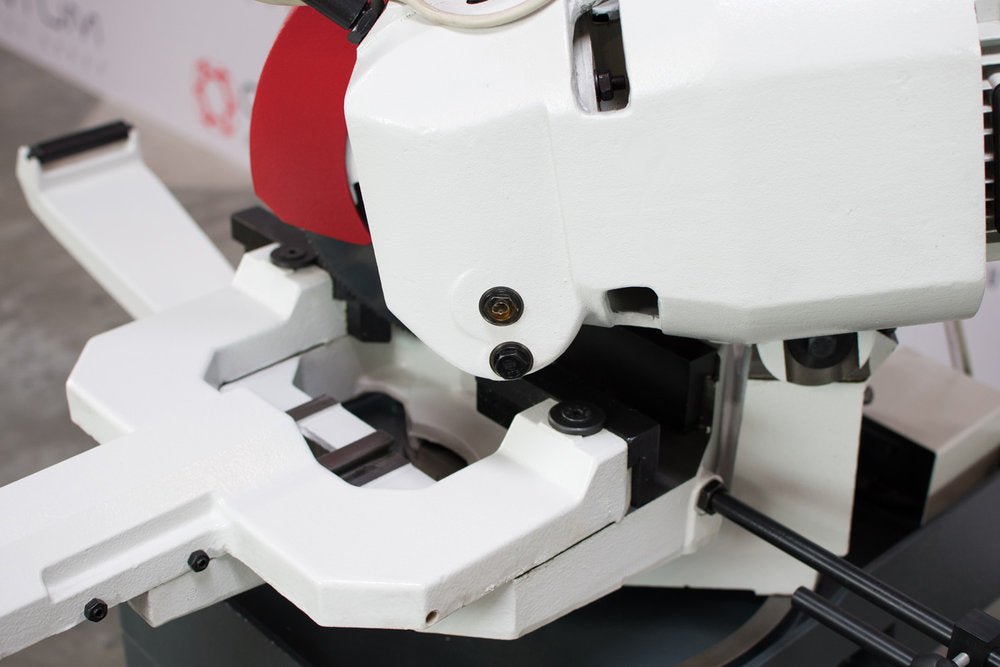

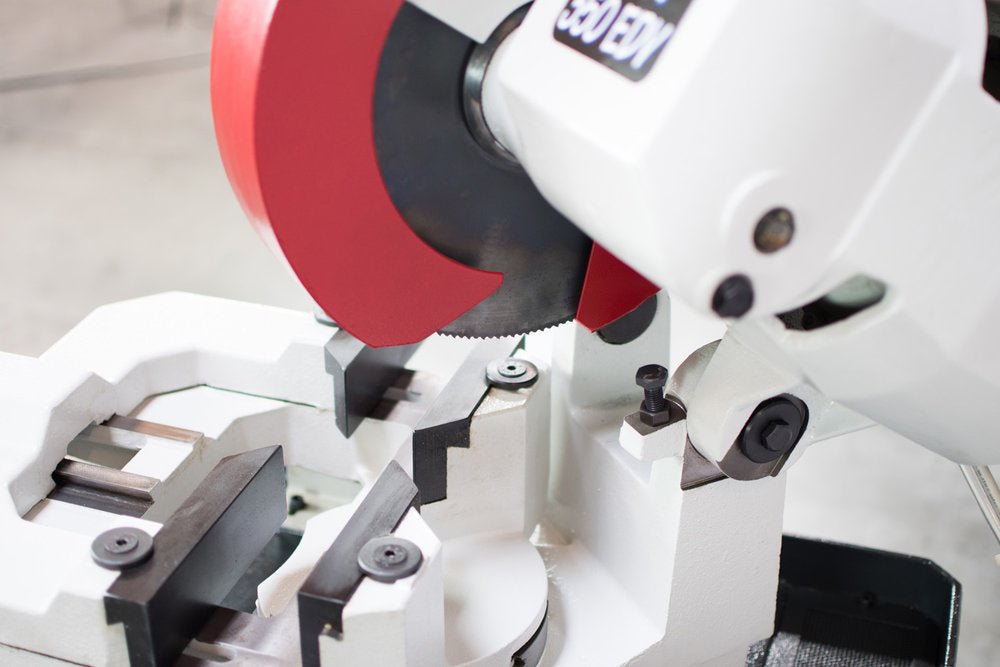

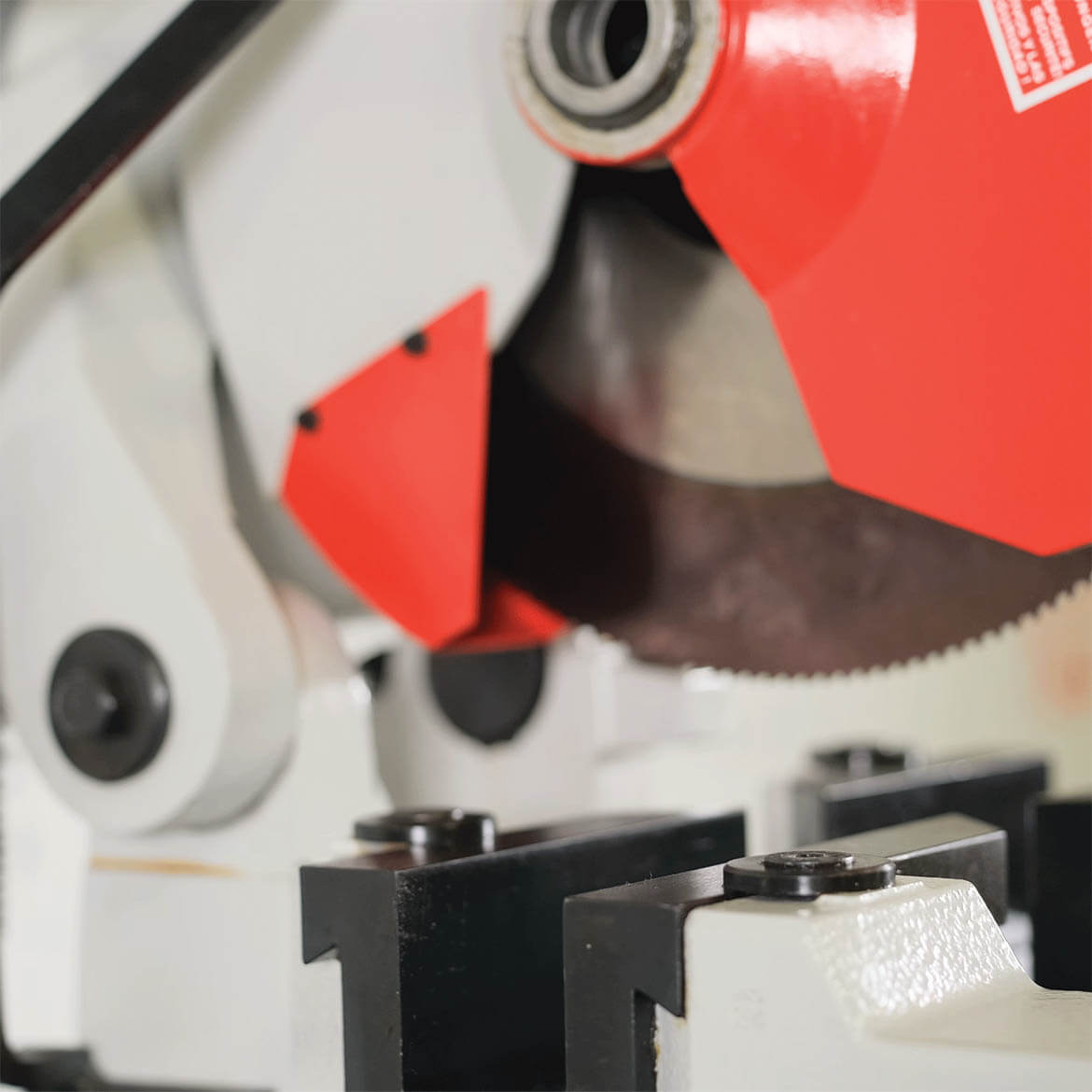

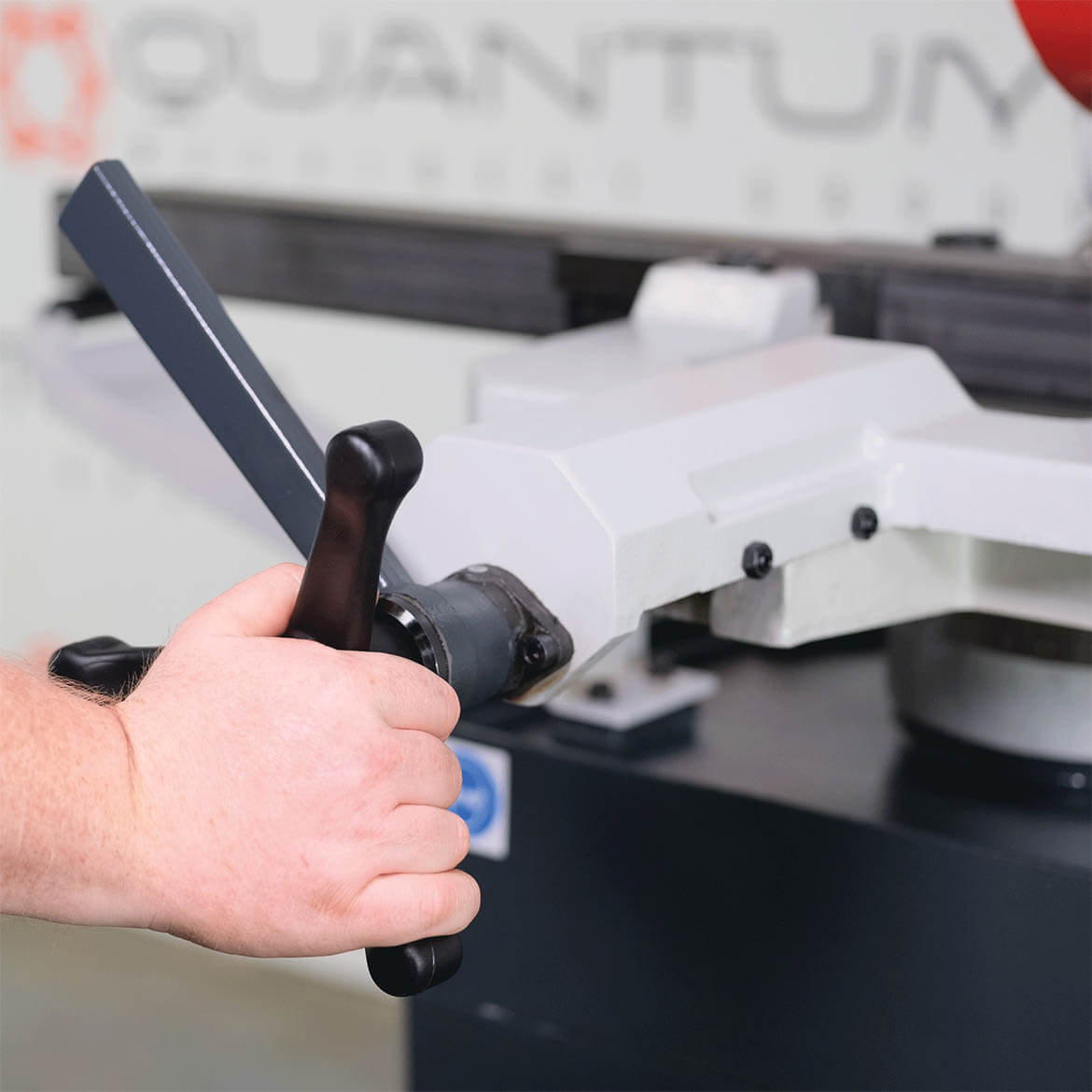

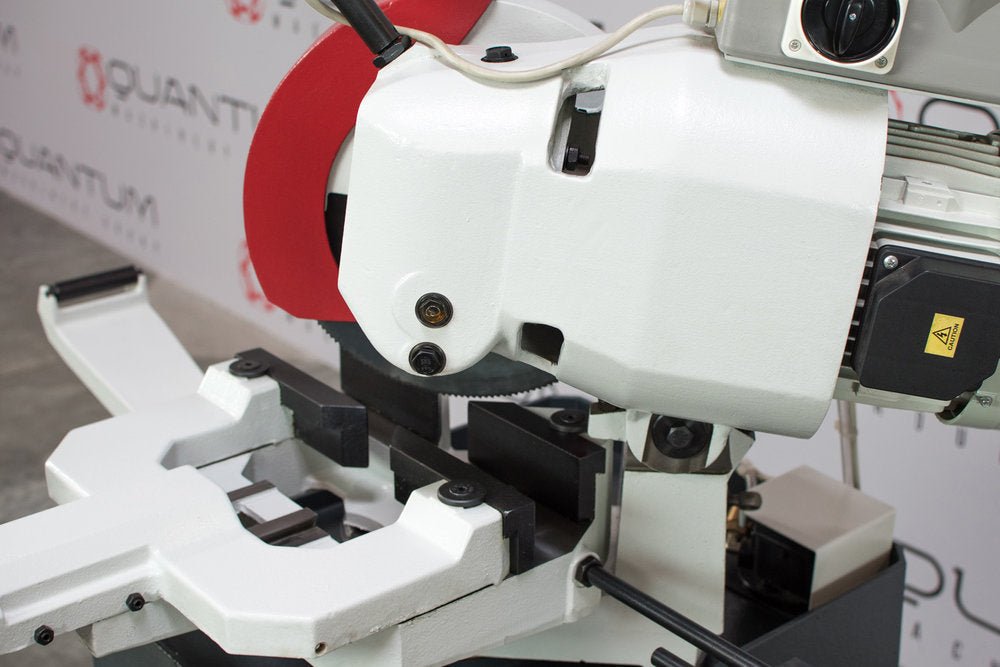

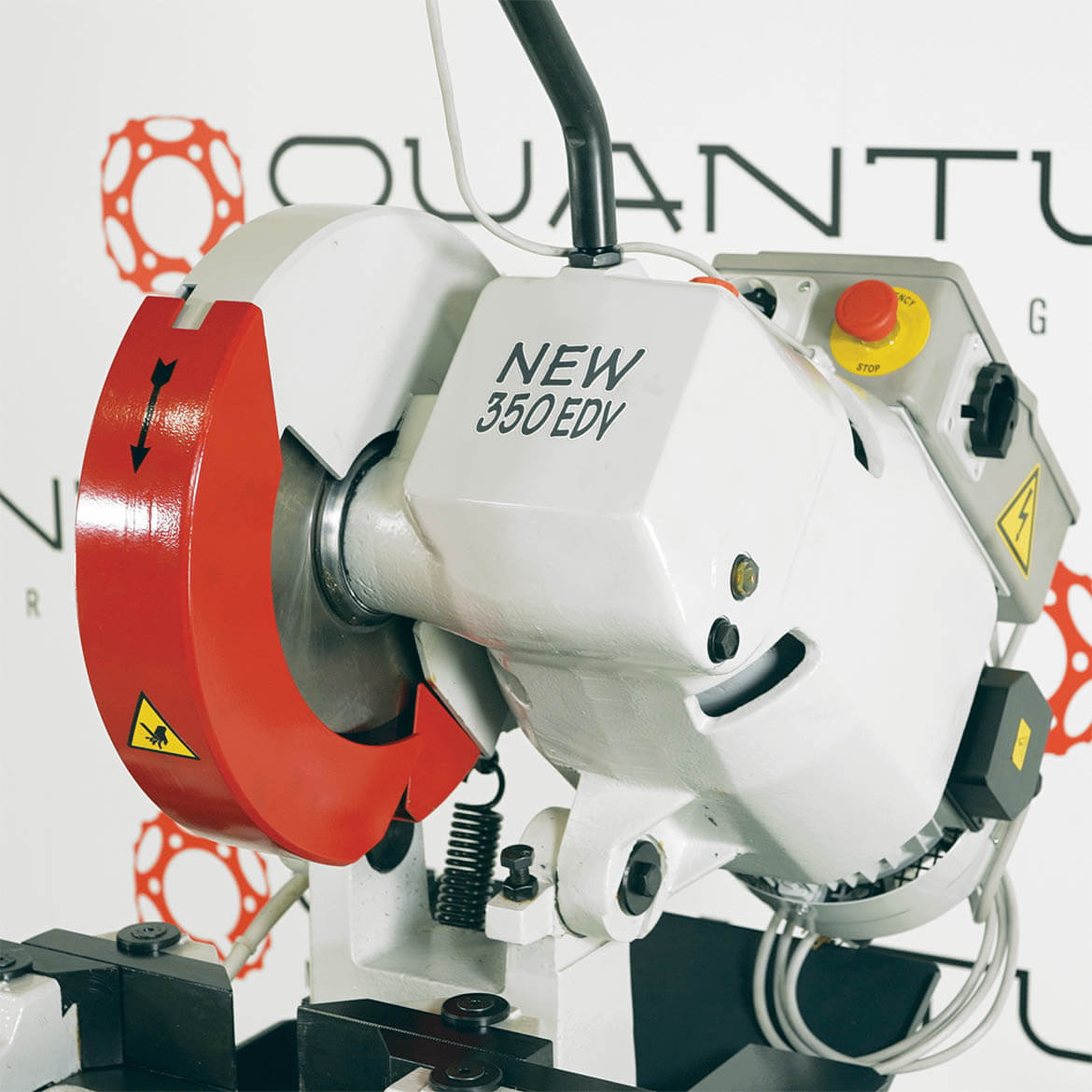

- Delivers stable cutting accuracy through a rigid swivel head with adjustable eccentric pivot control.

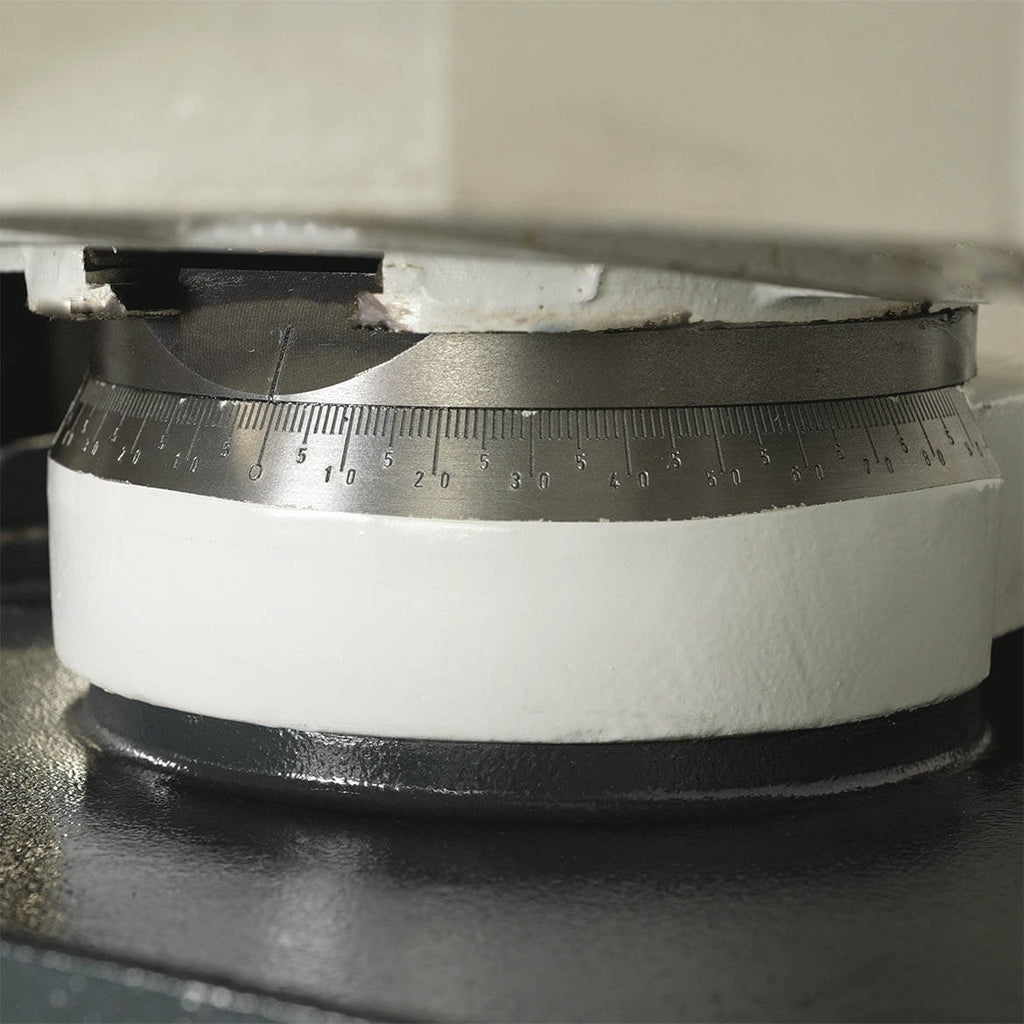

- Supports left and right miter cutting up to 45° for structural steel and profile fabrication.
- Operates within the widely recognized 14" blade class for straightforward blade selection.

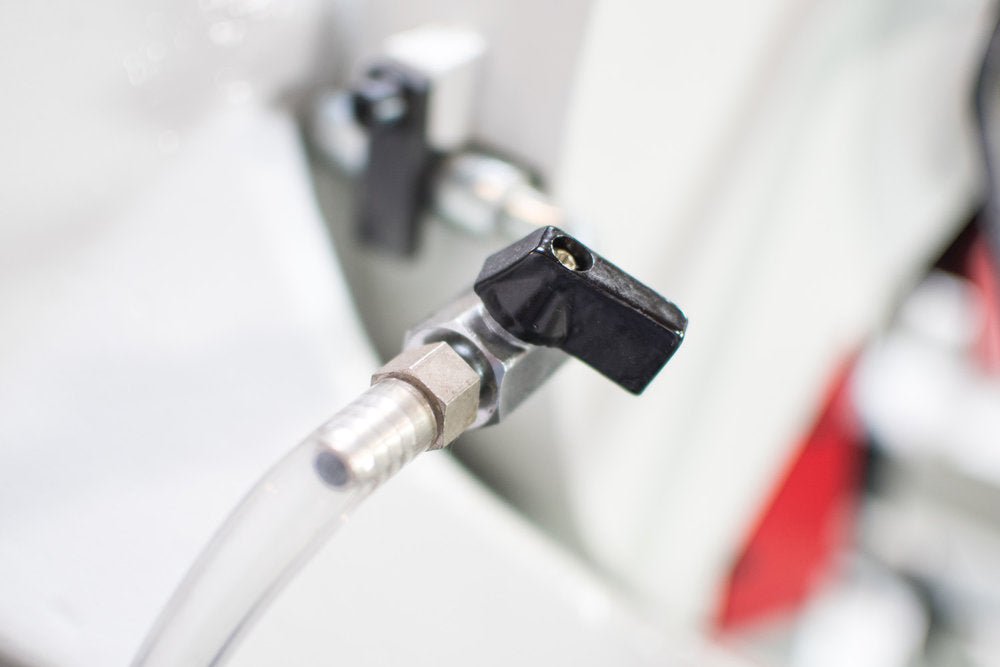

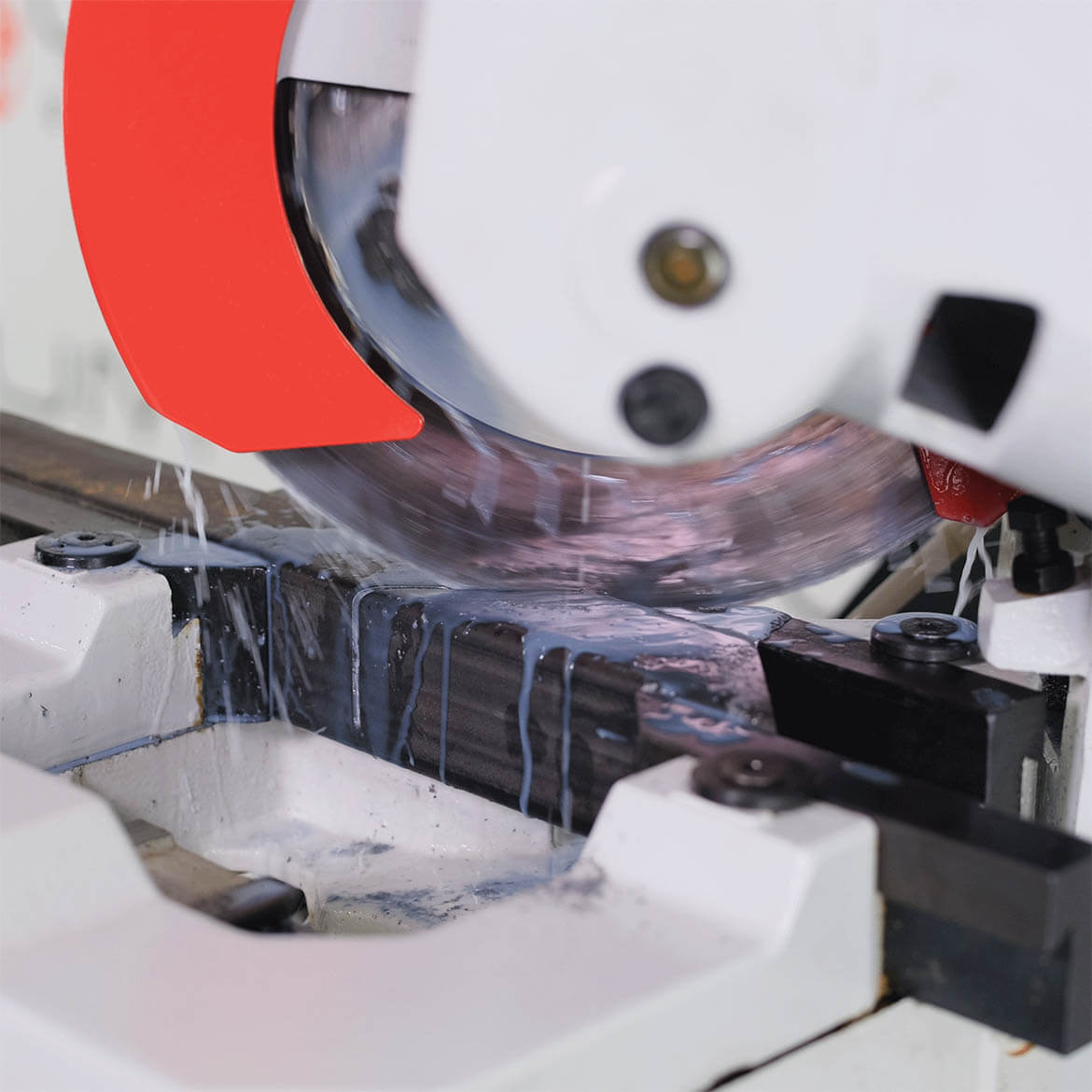

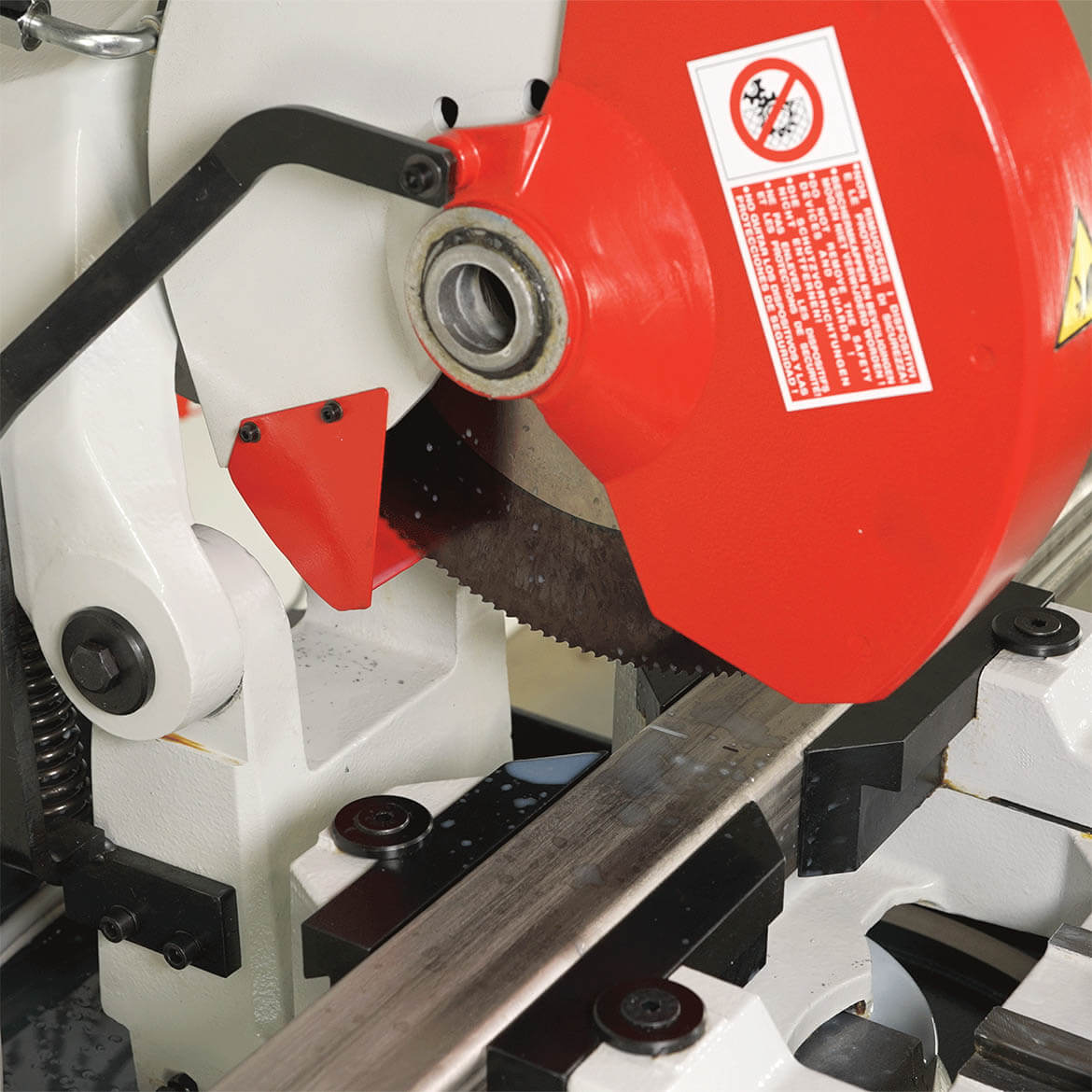

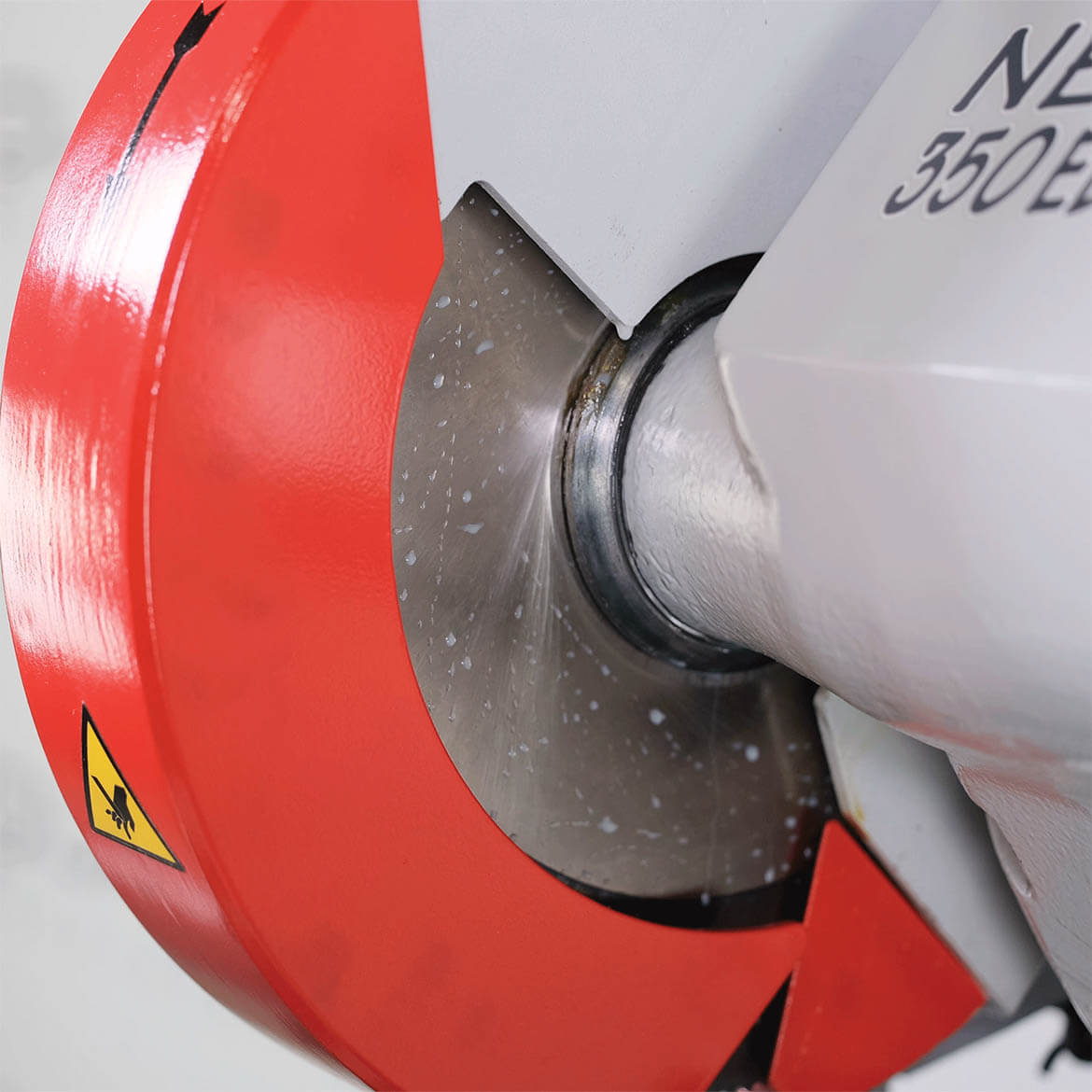

- Maintains blade life and surface finish through integrated coolant delivery and jet lubrication.

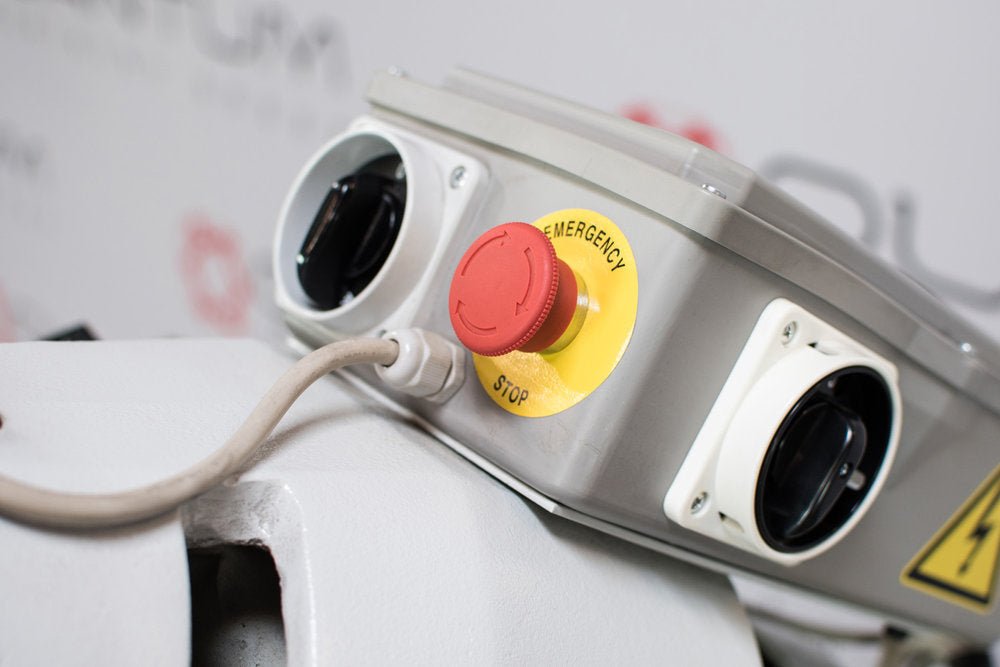

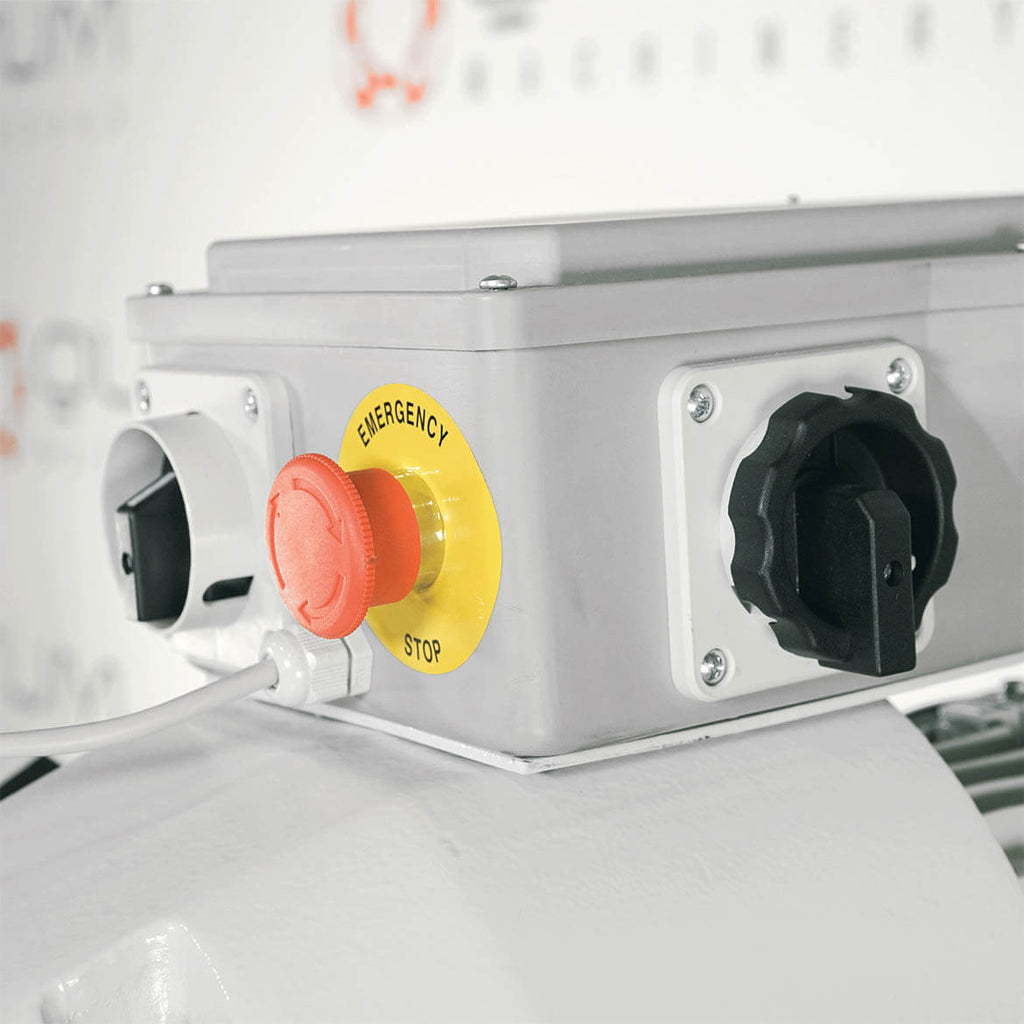

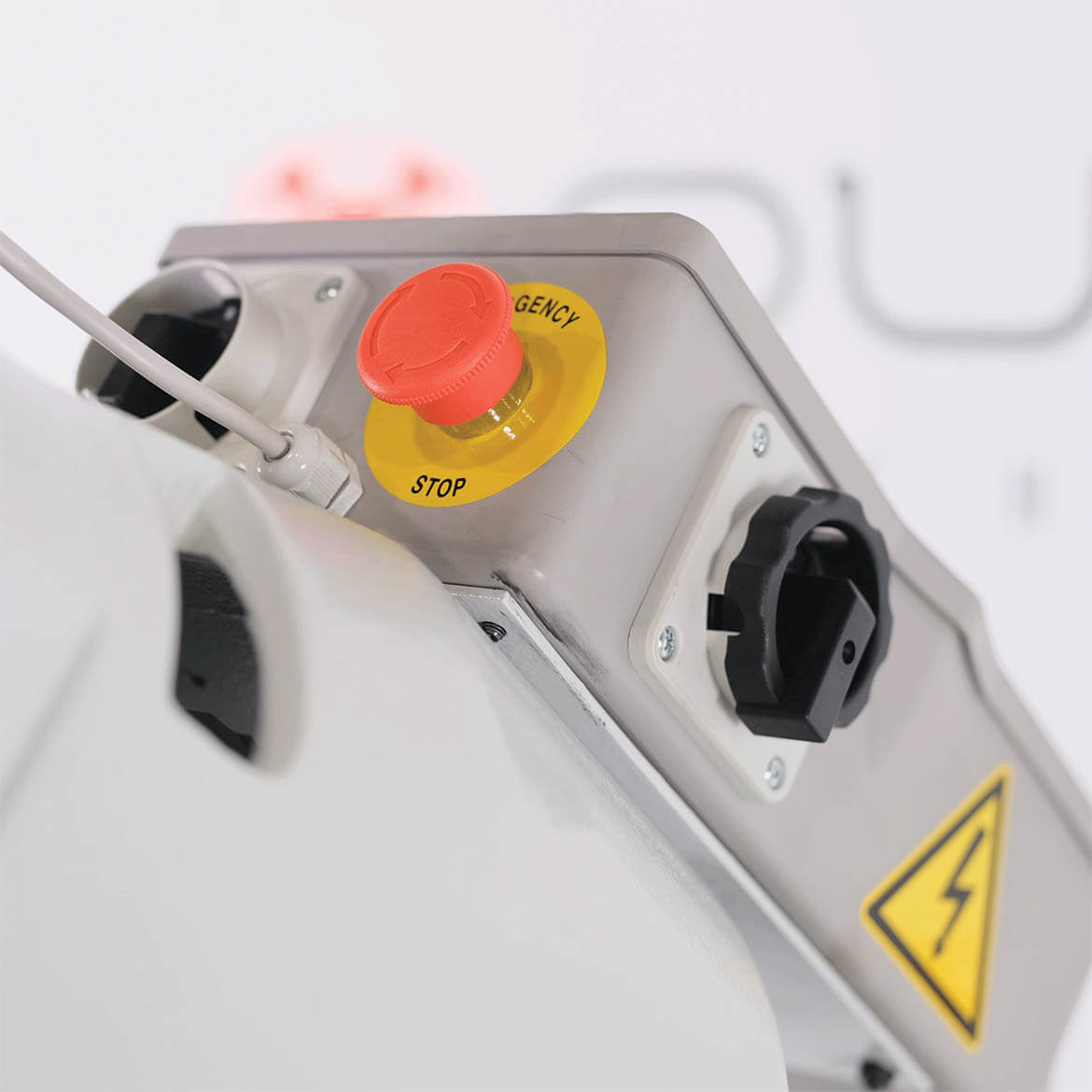

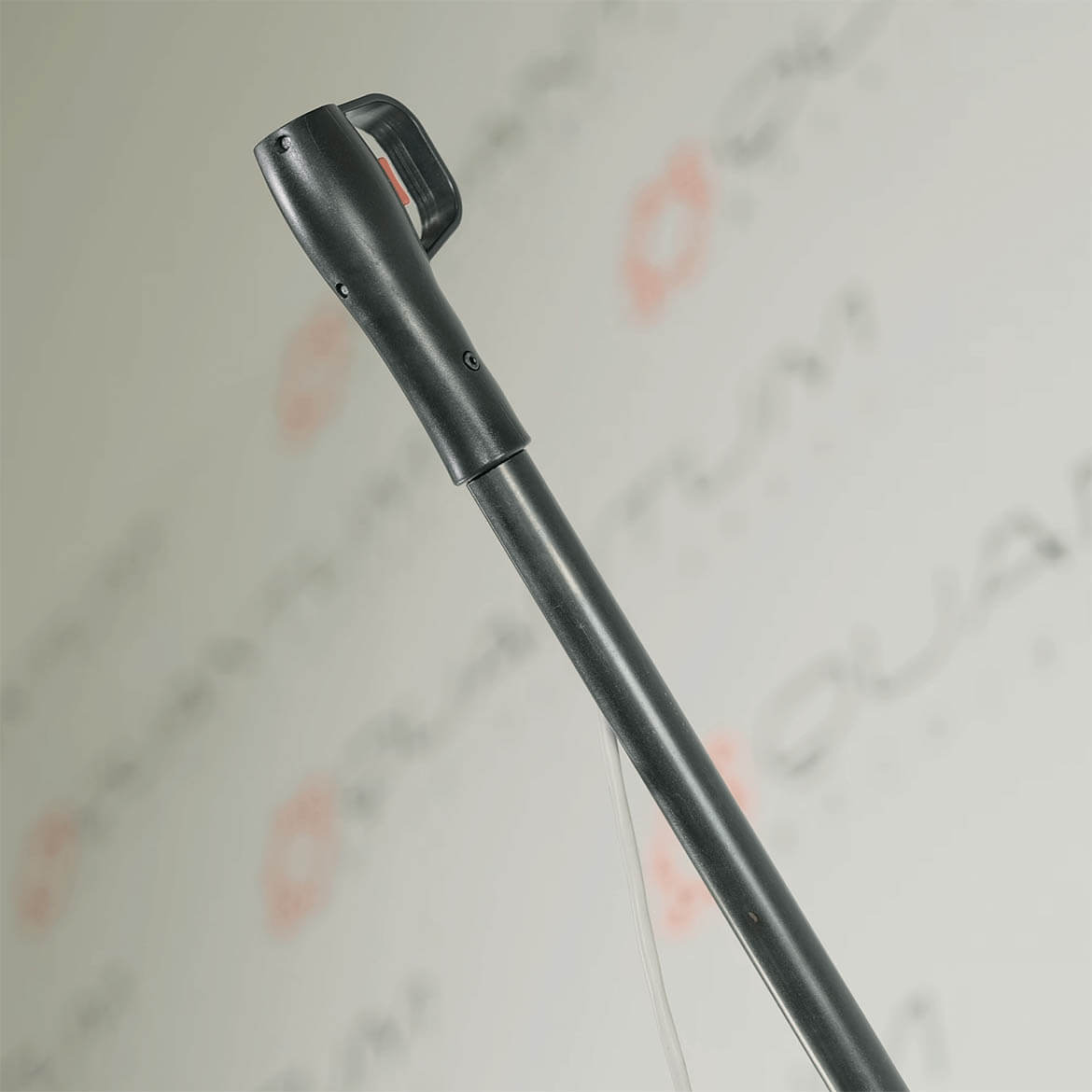

- Improves operator safety with a 24V low-voltage hold-to-run head control system.

Cutting Capacities:
- Round Tube at 0°: 4.33" (110mm).
- Round Tube at 45° Right: 3.15" (80mm).
- Round Tube at 45° Left: 3.15" (80mm).

- Square Tube at 0°: 3.15" × 3.15" (80mm × 80mm).
- Square Tube at 45° Right: 3.15" × 3.15" (80mm × 80mm).
- Square Tube at 45° Left: 3.15" × 3.15" (80mm × 80mm).

- Rectangular Tube at 0°: 3.15" × 4.72" (80mm × 120mm).
- Rectangular Tube at 45° Right: 2.17" × 3.15" (55mm × 80mm).
- Rectangular Tube at 45° Left: 2.17" × 3.15" (55mm × 80mm).

Specifications:

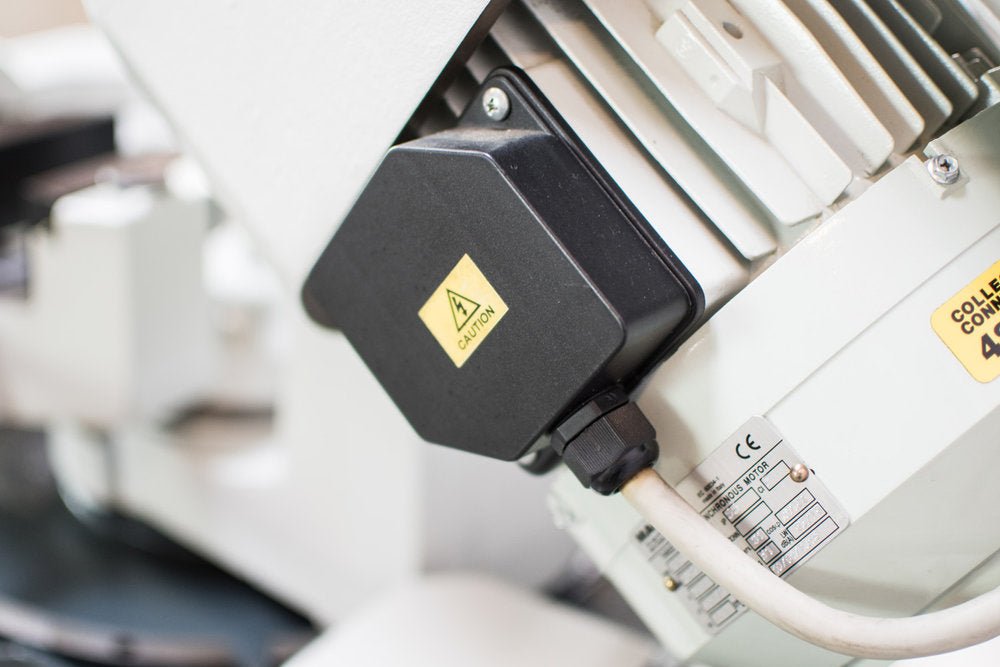

- Motor power: 1.8–2.4 kW.
- Blade speed range: 40–80 rpm.
- Blade diameter (class): 14".
- Blade diameter (actual): 13.78" (350mm).
- Overall dimensions: 58.07" × 39.37" × 47.24" (1475mm × 1000mm × 1200mm).
- Approximate weight: 509 lbs. (231kg).

Common Uses:
The NEW 350 EDV is used in fabrication shops, maintenance operations, and light production environments for cutting steel tubes, bars, and structural profiles where repeatability, throughput, and clean cut quality are critical. Its standard blade class and robust construction make it a natural choice for shops scaling capacity.
