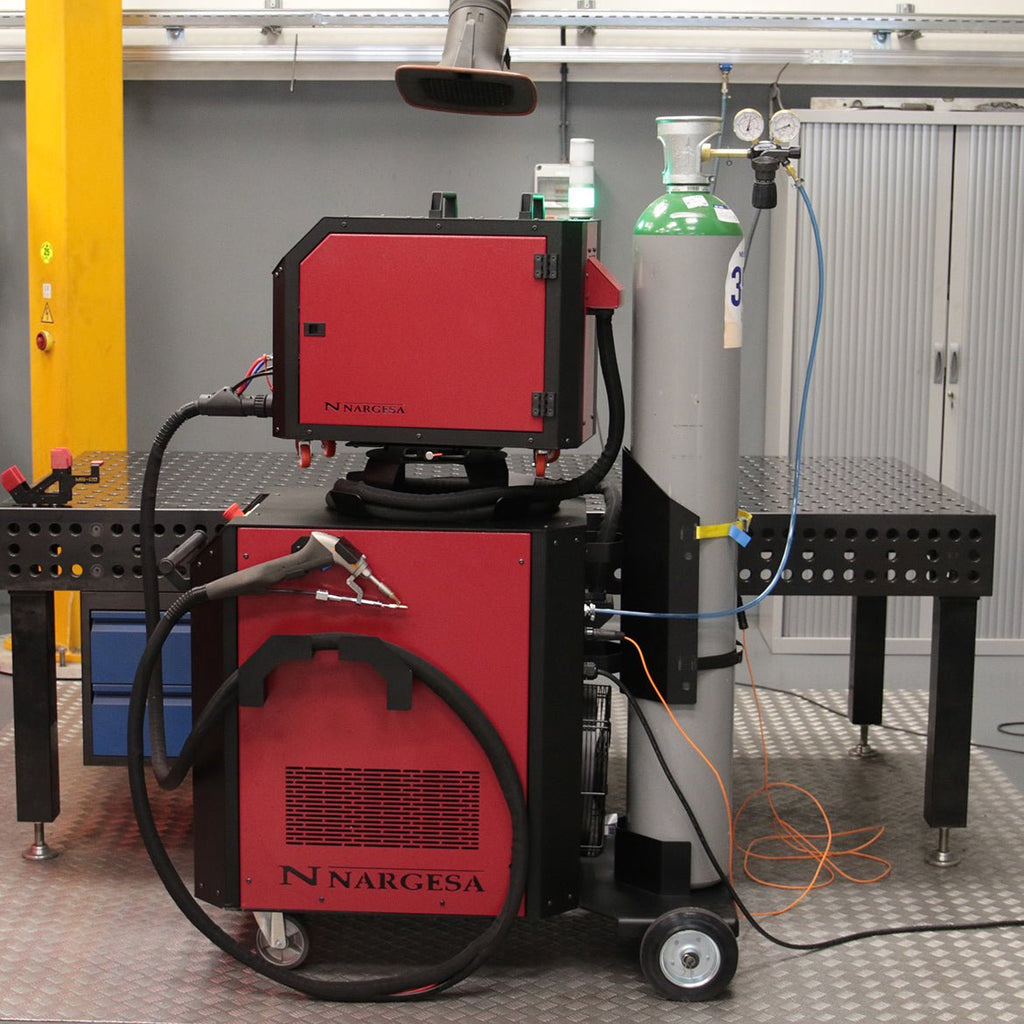

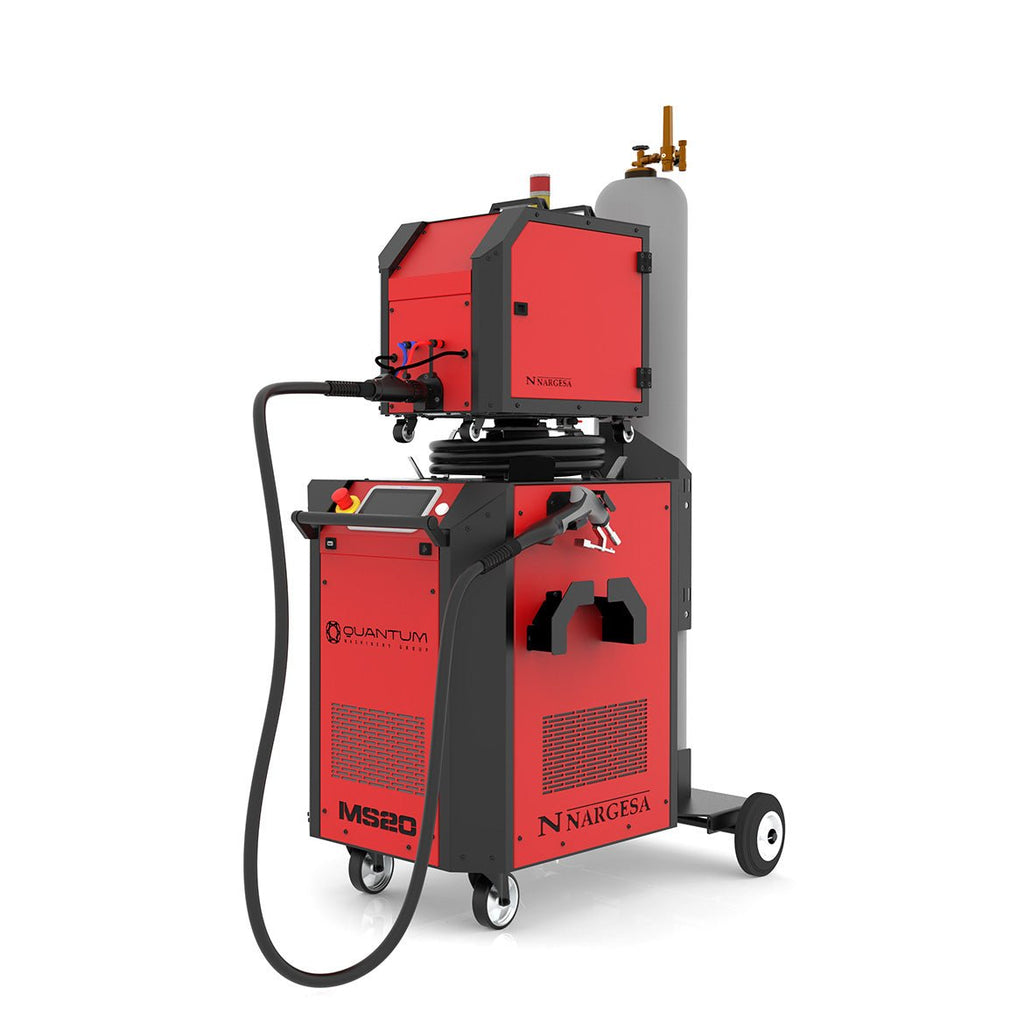

MS20: 2,000 Watt Laser Welder

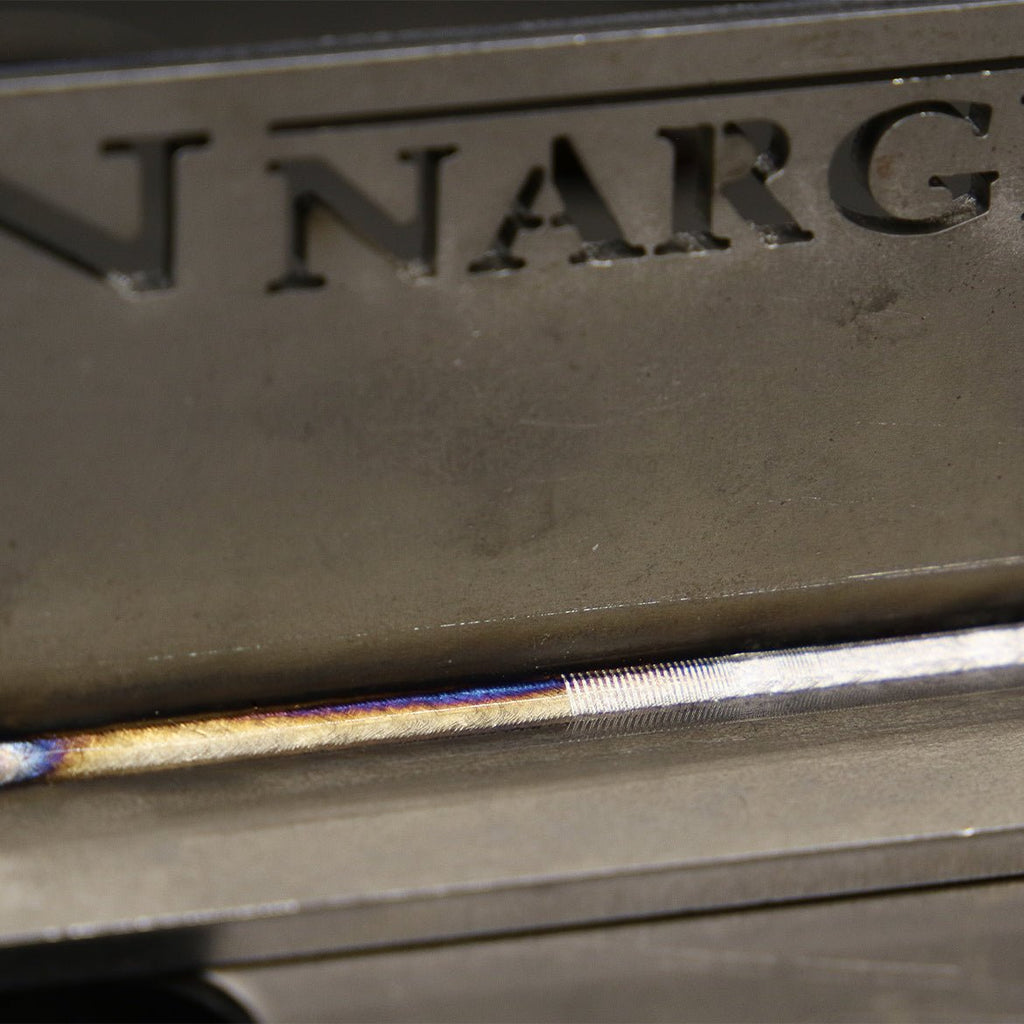

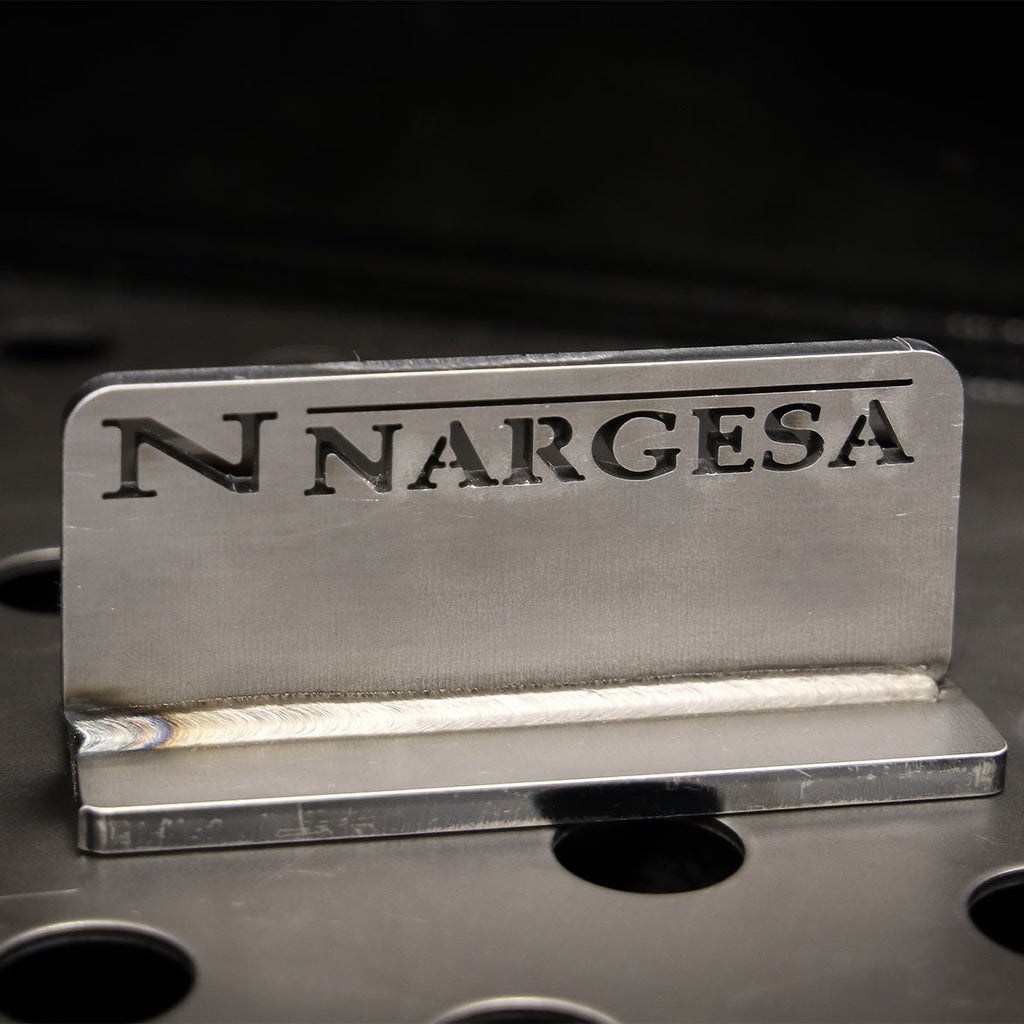

The Nargesa MS20 laser welder delivers a faster, cleaner approach to modern welding. Designed to produce high-quality welds with minimal distortion and reduced post-weld cleanup, the MS20 helps fabrication shops improve productivity, reduce rework, and achieve professional results across a wide range of applications. Equipped with 2,000 watts of laser power, dual wire feed capability, and an integrated water-cooled system, the MS20 is built for demanding fabrication environments.

Manufactured by Nargesa in Spain, the MS20 is built using high-quality European components and backed by the support, inventory, and expertise of Quantum Machinery Group.

• 2,000 Watts of Fiber Laser Power
• Dual Wire Feed Capability
• Integrated Water-Cooled System
• ESA S820 7" Touchscreen Control
• Industry 4.0 Connectivity
• Bluetooth Resonator Monitoring
• Metric and Imperial Unit Selection
• Celsius and Fahrenheit Temperature Control
• Alarm Diagnostics and System Monitoring

• Next-Generation Ergonomic Laser Torch with Integrated LED Lighting
• Single Hose Design with Integrated Components
• Supports Two Wire Spools Simultaneously, Same or Different Material
• Dual Wire Feeders with Eight Motorized Feed Rollers
• Integrated Signal Tower Warning Light
• Built-In Storage for Consumables, Tools, and Spare Parts
• Includes Holder for Argon or Nitrogen Bottles
• Delivered Fully Assembled and Ready for Installation

Laser Power
- 2,000W Fiber Laser

Electrical Requirements
- 220 Volt / 1 Phase / 60Hz
- 4kW Power Consumption
- 16A Maximum Current Draw

Laser System
- Wavelength: 1080nm
- Fiber Diameter: 25μm
- Fiber Hose Length: 10,000mm (393.7")
- Guide Laser: 630-650nm

Welding Capacity
- Maximum Beam Opening: 5mm Single Wire Feed
- Maximum Beam Opening: 8mm Dual Wire Feed

Control System
- ESA S820 7" Touchscreen
- Alarm Diagnostics
- Bluetooth Monitoring
- Industry 4.0 Connectivity

Wire Feeding System
- Dual Wire Feed Capability
- Two Wire Feeders
- Eight Motorized Feed Rollers
- Maximum Wire Size: 2mm
- Capacity for Two 15kg Wire Spools

Cooling System
- Integrated Water Cooling System
- Distilled Water Cooling Medium

Additional Features
- Integrated LED Work Lighting
- Signal Tower Warning Light
- Ergonomic Laser Torch
- Integrated Torch Storage
- Tool and Consumable Storage Drawer
- Argon/Nitrogen Bottle Holder Included

Shipping
- Delivered Fully Assembled

Most laser welding machines on the market do not include built-in supports for gas cylinders such as argon or nitrogen. This omission not only makes transporting the equipment more difficult but also poses a significant safety risk to the operator. Without proper securing, cylinders can easily tip over—even when the machine is stationary—creating hazardous situations in the work environment. Having a solution that ensures the stability and mobility of the entire system is essential for safe, efficient, and professional operation.

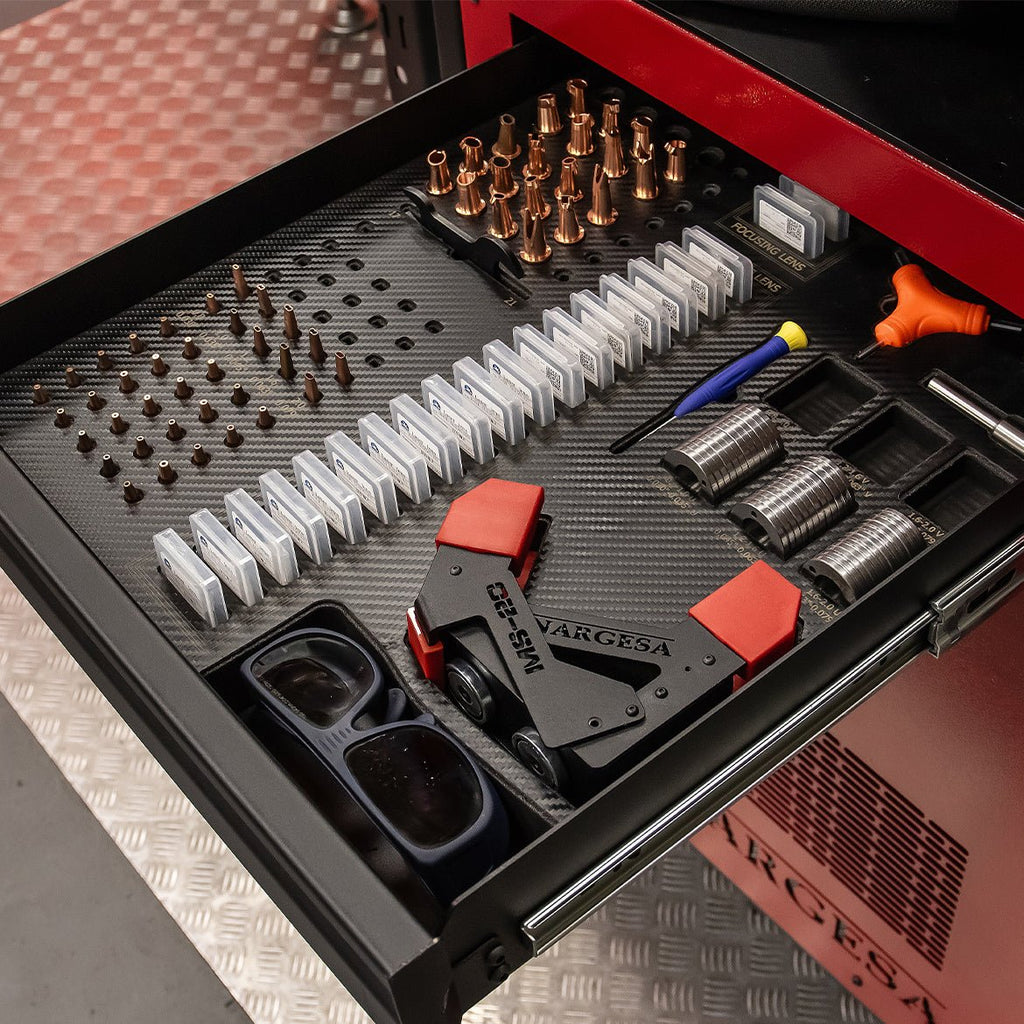

The machine features a built-in drawer within the chassis, specifically designed to store consumables, tools, and accessories in a clean, safe, and organized manner. This solution allows the operator to keep everything within easy reach, avoiding unnecessary movement and improving day-to-day work efficiency. Every detail has been carefully considered to deliver a practical, professional, and fully self-sufficient user experience.

The advantages of having this technology in a machine are countless, but we’ll highlight the most important ones. With the customer’s consent, the manufacturer can remotely connect to the machine to perform software updates completely free of charge and detect potential issues without needing to be on-site. It also notifies the user when preventive maintenance is due—among many other advanced features.

Ensures consistent performance even during long hours of intensive work. This system is especially critical in automatic or robotic mode, where continuous operation and thermal stability are essential. A reliable cooling system not only extends the lifespan of the components but also ensures more precise, uninterrupted welding—ultimately optimizing process efficiency.

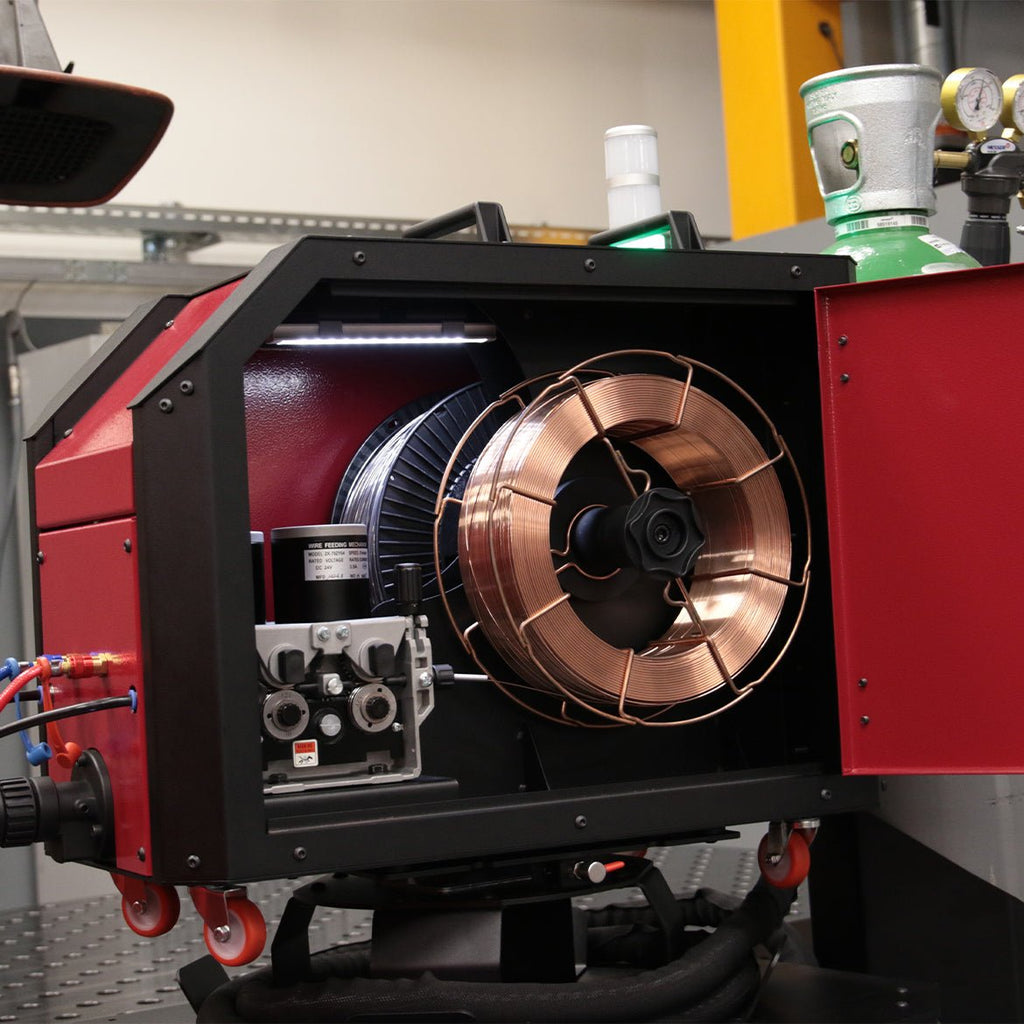

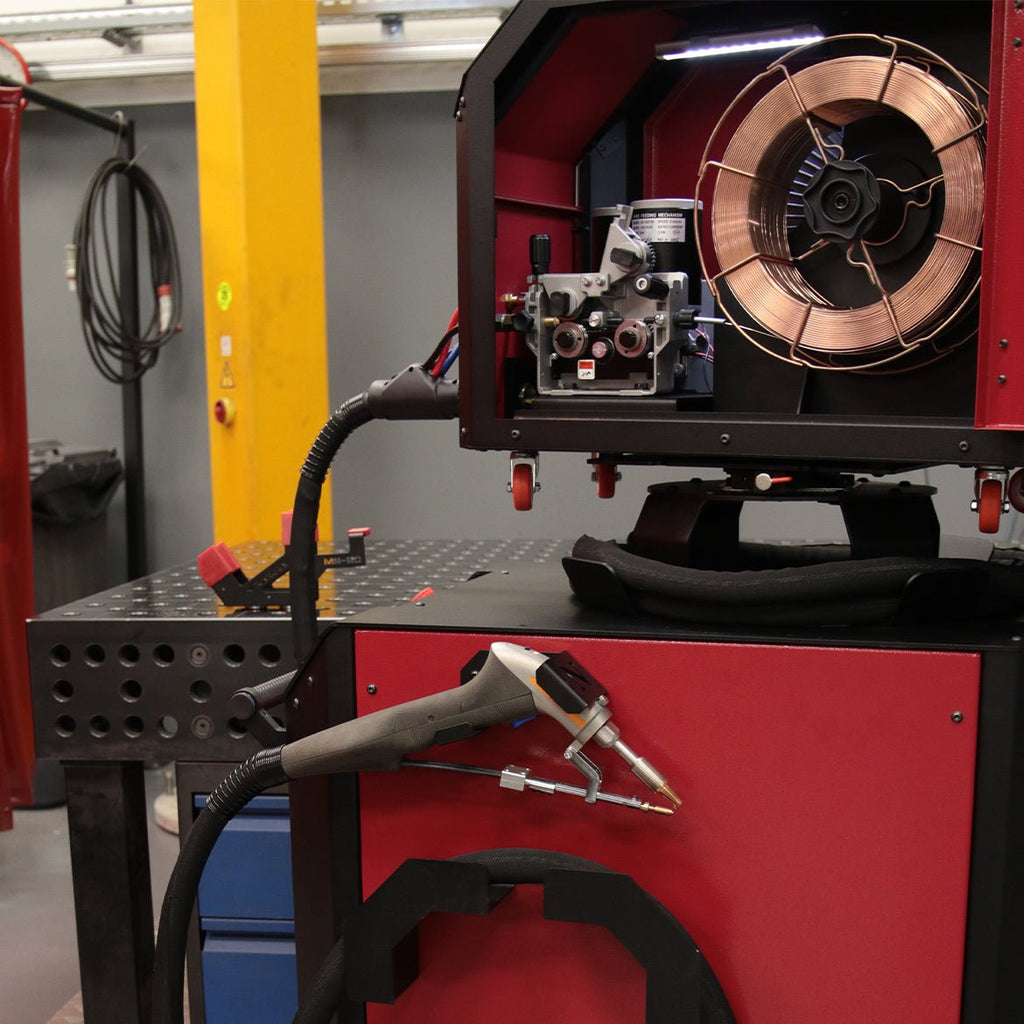

The MS20 laser welding machine is equipped with an advanced dual-rotation drive system featuring four motorized rollers, engineered to deliver precise and consistent wire feeding—especially critical in demanding applications such as aluminum and stainless steel welding. Unlike many machines on the market that only motorize the lower rollers, the MS20 includes eight motorized rollers in total, ensuring uniform, slip-free wire delivery even with challenging materials.

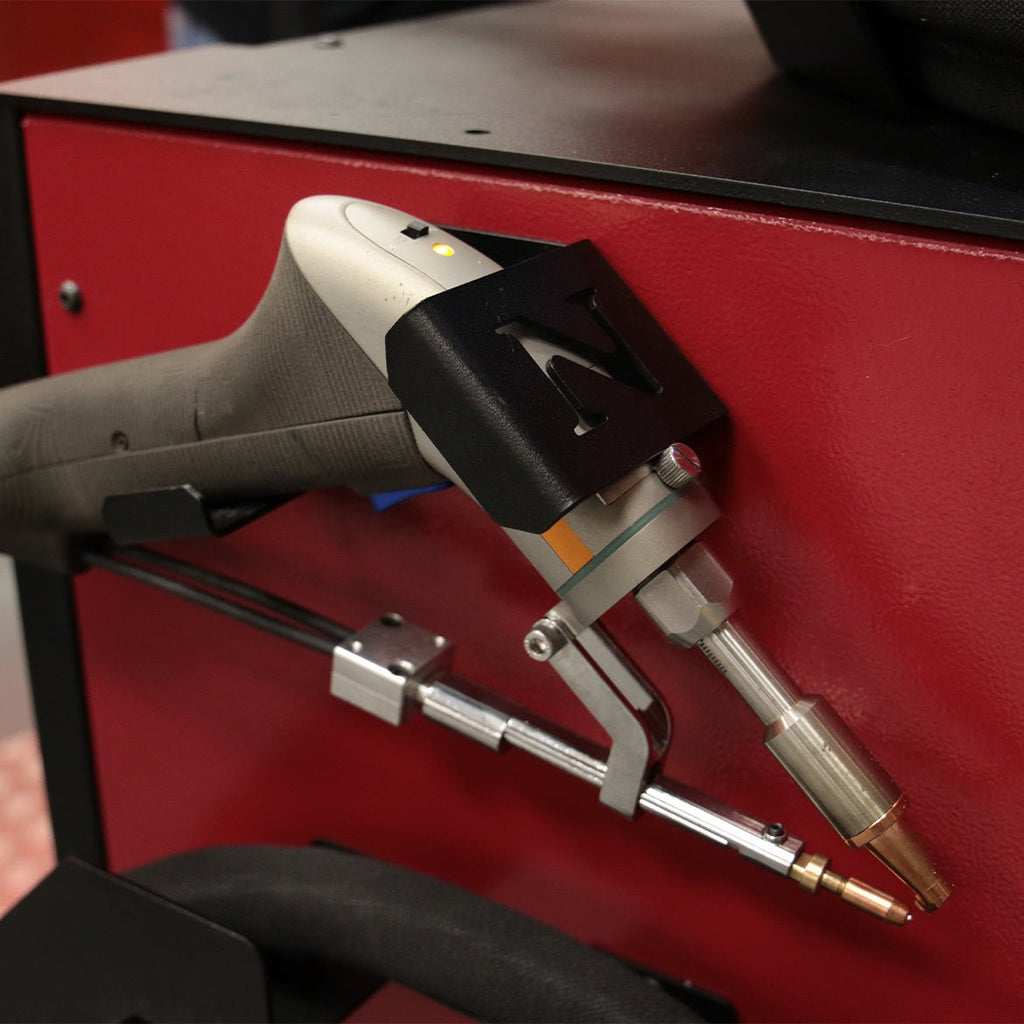

Our welding torch is designed to deliver maximum comfort, precision, and durability in high-demand environments. It features an ergonomic grip that compactly integrates the fiber optic cable, cooling hoses, and dual wire feeds—all connected through a flexible spring that enhances freedom of movement and comfort during extended use. Unlike other solutions on the market, all conduits and components are fully protected, ensuring long-lasting performance and safety.

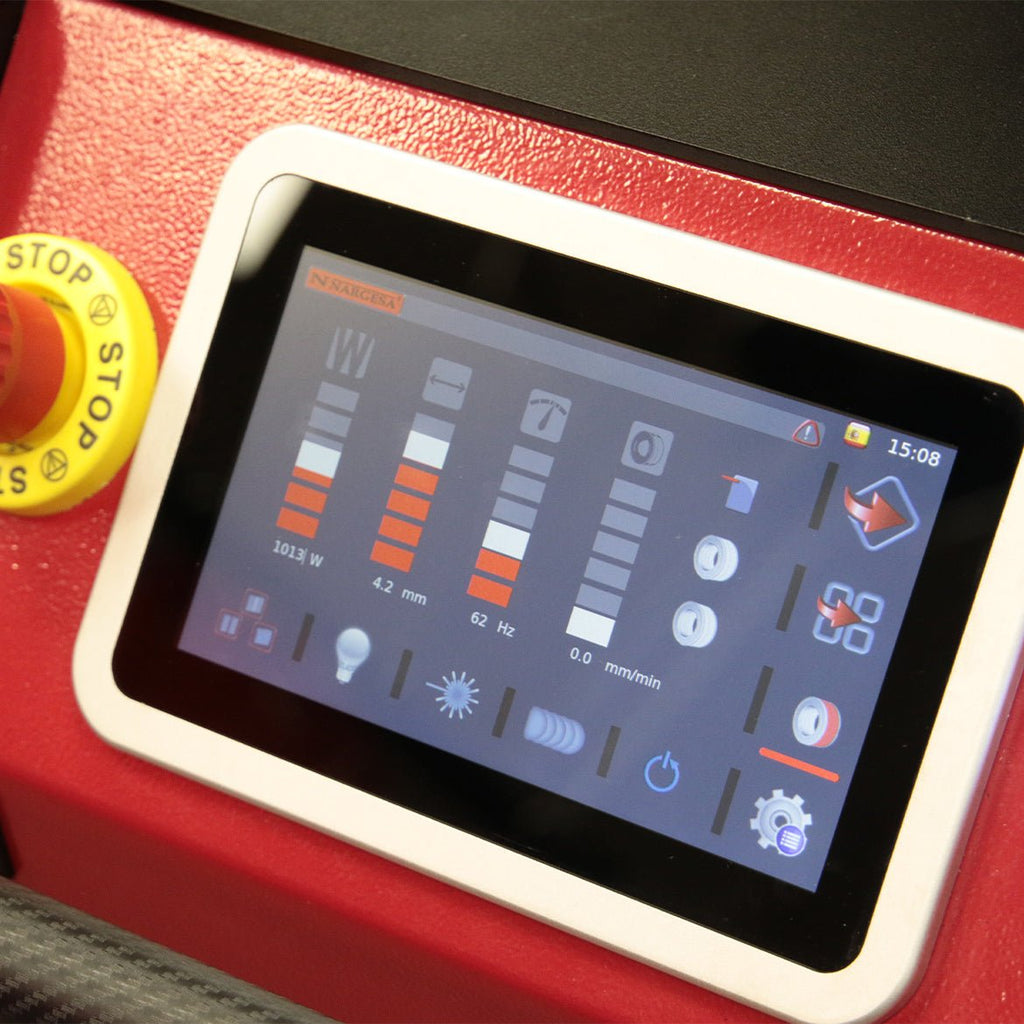

At the heart of the Nargesa MS20 is the ESA S820 7" industrial touchscreen control, engineered to deliver the performance, flexibility, and process control demanded by modern fabrication shops. With Industry 4.0 connectivity, storage for up to 10,000 programs, integrated material libraries, real-time diagnostics, and advanced system monitoring, operators can manage welding, cleaning, and cutting operations through a single intuitive interface. Preventive maintenance notifications, remote connectivity capabilities, and comprehensive process libraries help maximize uptime while simplifying operation in both production and custom fabrication environments. The result is faster setup, greater process consistency, and improved productivity across every job.
